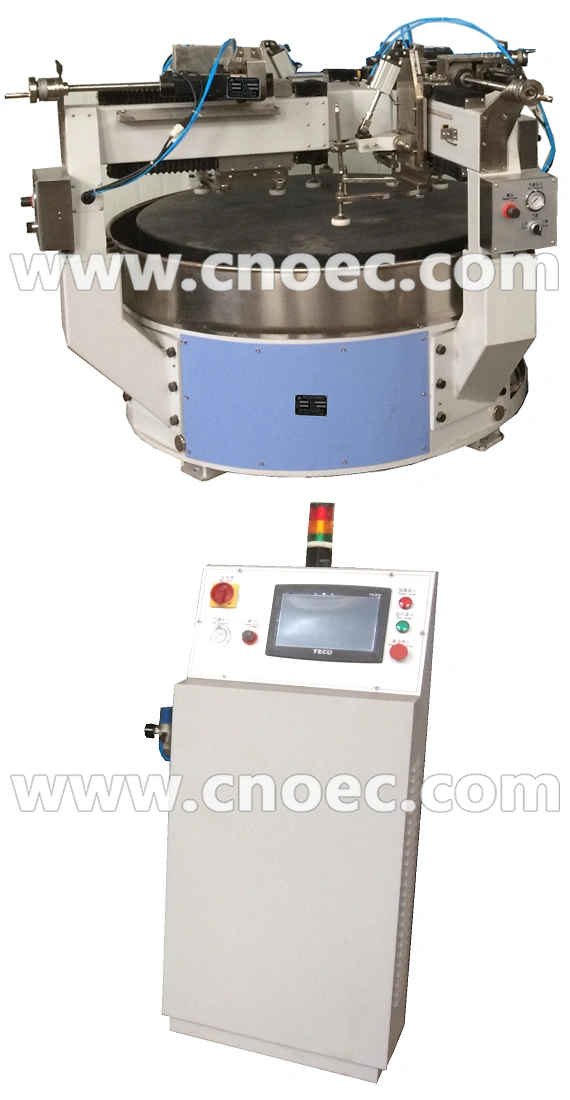

CNC Air Pressure Swing Ring Polisher 1.2m
CNC Air Pressure Swing Ring Polisher 1.2m

M11.9112

Like Favorites

CNC Air Pressure Swing Ring Polisher 1.2m

Quantity:

M11.9112 Specification
Millstone Size (Granite)
Φ1200mm
Water Tank Diameter
Φ1380mm
Jumping Range Of The Millstone
≤ 0.05mm
Jumping Range Of Single Point
≤ 0.01mm
Proessing Range
≤ Φ320mm
Millstone Rotating Speed
0 - 20 RPM (Servo Stepless)
Swing Set Time
0 - 100 RMP (Servo Stepless)
PLC Operation Panel
AH102L(10")
Swing Space
±100mm
Air Pressure
0.6MPa
Total Power
5KW / 380V
Overall Dimension (mm)
1415 x 1415 x 1330
Weight (Approx. kgs)
2200
Customizing
Allowed
