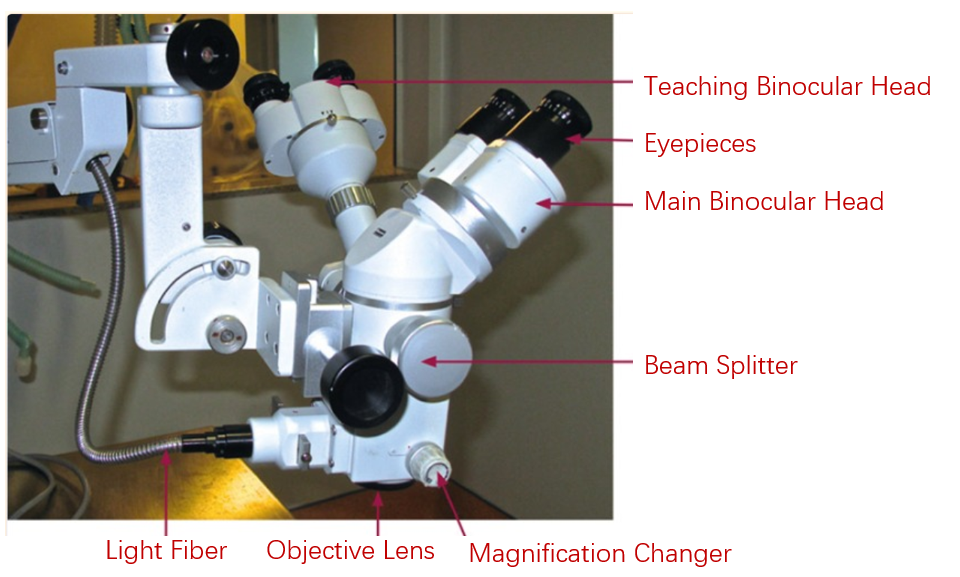

What is Surgical Operation Microscope? The Surgical Microscope, or Operation Microscope, is an optical microscope that provides the surgeon with a stereoscopic, high quality magnified and illuminated image of the small structures in the surgical area. The optical components of a basic stereo microscope consist of the binocular head, a magnification changer, the objective lens and an illuminator which beams light through the objective lens and onto the operating field. The binocular head consists of two telescopes with adjustable eyepieces. The magnification can be changed by turning a knob (which selects different magnification lenses) or by using a motorised zoom controlled by a foot pedal. The working distance is the distance from the microscope objective lens to the point of focus of the optical system. This value is fixed and is dependent on the chosen focal length of the objective lens. The choice of working distance depends on the type of surgery. For modern ophthalmic surgery that involves delicate work in the posterior chamber, objective focal lengths of 150 mm, 175 mm and 200 mm are commonly used. For ENT, Dental surgery, it should be 250mm or larger to see deep inside the throat. The advanced surgical models may be equipped with a large zoom range objective lens which can supply 200-500mm working distance. The optical system often includes a beam splitter and a second set of teaching binoculars (Figure so that two people can view the operation simultaneously, and add a digital camera to output the image to monitor for easy sharing. |
|

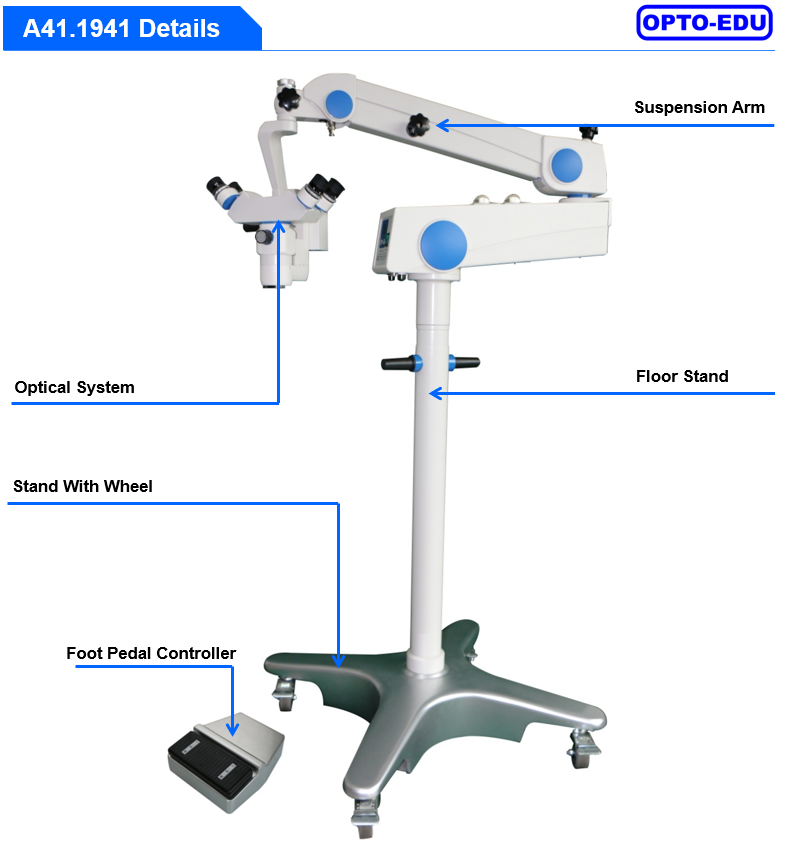

The optical system is attached to the suspension arm of the floor stand . The suspension arm makes it possible to position the optics exactly and to fix them in place. The floor stand has wheels and can be moved around the floor and fixed into place using the brakes. A foot pedal connected to the floor stand allows the surgeon to control the focus, the zoom, the position of the optics over the eye (the x,y position on the horizontal plane) and to turn the illumination on and off. The illumination system is usually housed in the floor stand in order to keep the bulb heat away from the operating field. In this case, the light is transmitted to the operating field by means of a fibre optic cable. The light in ophthalmic micro scopes is usually coaxial, meaning that it follows the same path as the image in order to avoid shadows. |
|

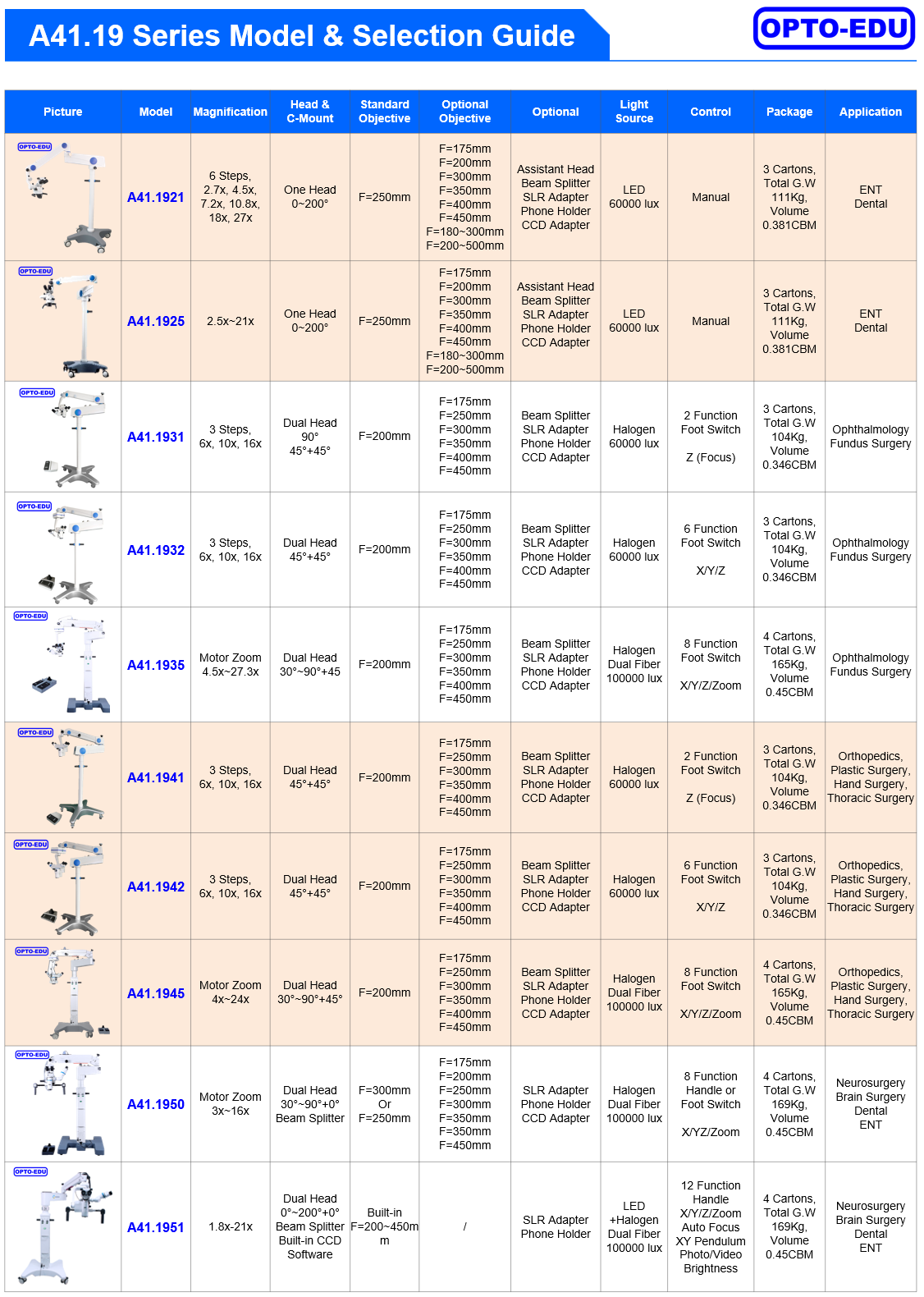

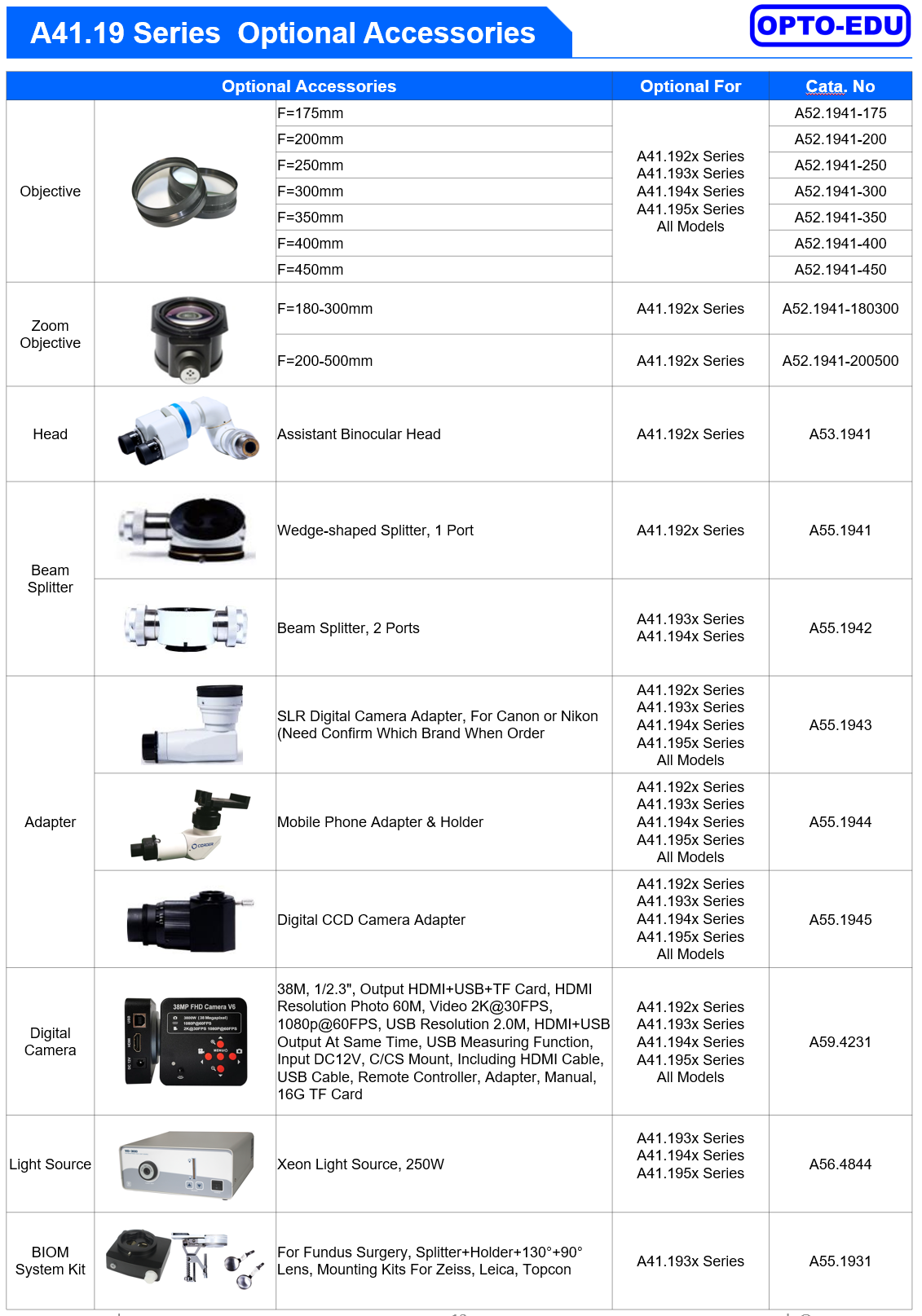

How to select a surgical microscope & accessory The structure and principle of the operating microscope are generally the same, but there are some differences in various parameters and accessories according to the specific operation conditions used. Choosing the right operating microscope starts with knowing what surgery you will be doing: ENT and Dental, Orthopedic Surgery, Ophthalmology, Neurosurgery and Brain Surgery. Secondly, the performance (budget) is divided - do you need to manually divide and zoom? (cheap) or manual continuous zoom? (medium) or motorized zoom? (more expensive) to choose. Finally, select the details, such as multi-functional pedals, electromagnetic locks, cameras, displays and other accessories are needed. The following list is some main models of surgical microscopes, and the application fields of each model can be seen in the far right column, which is convenient for customers to choose from. |
|

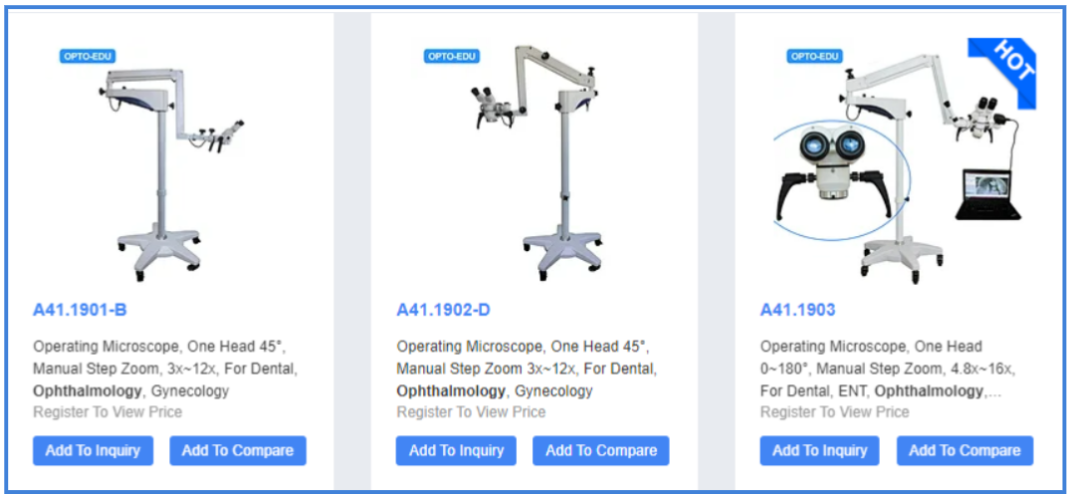

For ENT Surgery Opto-Edu has A41.190 series for ENT, Dental surgery. They are all with one main binocular head, which is inclined to 45°, 90°, or 0~180°, and can add beam splitter & digital camera. 1. If you need binocular head at 90°, no need for beam splitter, we recommend A41.1901-A, which can meet ENT & Dental surgery needs at the lowest price. |
|
● Straight Binocular Head For ENT, Surgery ● Total Magnification 3x~12x, Step Zoom Body 0.6x, 1x, 1.6x ● Objectives F=200mm, 300mm, 400mm For Different Operating ● 10W LED High Brightness Light Source ● 2 Parts Column + Five Star Base With Caster |
|
|
2. If you need the beam splitter & digital camera, but with limited budget, A41.1902-C is the best choice. |
|
|
● Straight Binocular Head For ENT, Surgery ● Total Magnification 3x~12x, Step Zoom Body 0.6x, 1x, 1.6x ● Objectives F=200mm, 300mm, 400mm For Different Operating ● With 50:50 Beam spliter, With C-Mount To Connect Digital Camera Or LCD ● 2 Parts Column + Five Star Base With Caster |
|
3. If you need a higher level, with adjustable incline head 0~180°, A41.1903 is recommended, which can do Dental and Gynecological surgery too. It is the best sales model in our range. |
|
● Best Choice For Dental, ENT, Ophthalmology, Gynecology Operation Microscope ● 8x Tilting 0~180° Binocular Head, With 12.5x Eyepiece, Magnification 4.8x~16x ● Step Zoom Body 0.6x,1x,1.6x, Objectives F=200mm, 250mm, 300mm, 400mm ● 10W LED High Brightness Coaxial Light Source With Blue/Green Filters ● 2 Parts Column + Five Star Base With Caster, Optional Beam Splitter & C-Mount |
|
|

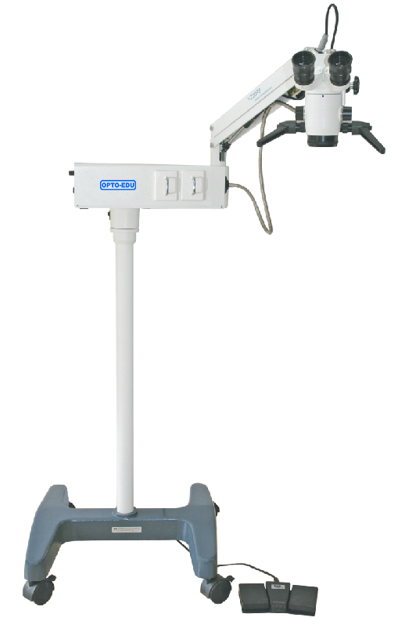

For Dental Surgery We have 5 models for dental surgery, with different magnification, manual/motorized zoom for choice. If there is no special requirement for binocular head and high magnificatio, A41.1903 is the best choice. The other 2 most often chosen models are: 1. For 0~200° head, manual step zoom model, A41.1921 is recommended, which as a total magnification up to 27X. |
|
A41.1921 Operating Microscope, One Head 0-200°, Manual 6 Step ● One Binocular Head, Tiltable 0~200°, Interpupillary 55-75mm, Diopter +/-6D ● Eyepiece 12.5x, 6 Steps Manual Zoom, Magnification 2.7x,4.5x,7.2x, 10.8x,18x,27x ● Objective F=250mm, View Field Dia.74.1~7.4mm, Head X/Y Swing +/-45° ● LED Cold Light, Max Brightness 60000Lux, Light Spot Dia.80mm, With Blue/Yellow Filters ● Four Wheels Stand Swing Angle of Carry Arm 0~300°, Height From Objective to Floor 730mm |
|
|
2. If you need continuous zoom, A41.1925 is good, with a higher price than A41.1921. |
|
|
A41.1925 Operating Microscope, One Head 0-200°, Manual Zoom, 2.5x~21x, For Dental,ENT ● One Binocular Head, Tiltable 0~200°, Interpupillary 55-75mm, Diopter +/-6D ● Manual Continuous Zoom 1:6, Magnification 2.5x~21x, Beam Splitter Optional ● Objective F=250mm, View Field Dia.78.6~9mmmm, Head X/Y Swing +/-45° ● LED Cold Light, Max Brightness 60000Lux, Light Spot Dia.80mm, With Blue/Yellow Filters ● Four Wheels Stand Swing Angle of Carry Arm 0~300°, Height From Objective to Floor 730mm |
|
For Ophthalmology Surgery Entry Level For simple ophthalmology surery, single operator, A41.1901-B, A41.1901-D, or A41.1903 is good enough, which has the best cost-effective performance, easy operation. |
|
Middle Level For Anterior Segment Surgery only, A41.3403 is recommended. It has Red Reflex Intensifier specially designed for Ophthalmology Surgery. |
|
● One Head 45°Manual Step Zoom, 5.3x,8x,12x, 2 Directions Foot Switch ● Special For Ophthalmology: Retina Protect Device, Red Reflex Intensifier, Filter For Infrared & Ultraviolet Ray ● One Binocular Head Eyepiece WF12.5x/18mm, Head 45° Inclined, Diopter Adjustable +/-6D ● 3 Steps Manual Zoom Body 5.3x,8x,12x, View Field Dia.37mm, 25mm, 16.7mm ● Standard Objective F=200mm, W.D.190mm, With 6°+0° Coaxial Halogen Cold Light ≥35000 Lux ● 4 Wheels Stand Arm Extending Range 870mm, Height Adjustable Range 700-1100mm Higher Level A14.193 series, all with Red Reflex Intensifier, and with optional BIOM KIT For Fundus Surgery, has the best performance for all kinds of Ophthalmology Surgery. All 3 models can upgrade with optional beam splitter, SLR camera adapter, phone holder, CCD adapter for digital camera, for sharing real time images to LCD monitor, mobile phone or computer. BIOM KIT For Fundus Surgery is also optional. A41.1931 Operating Microscope, is Best Choice for Ophthalmology Operation. It has two heads both inclined 45°, using fiber-optic cable for coaxial illumination up to 60000 lux, manual 3 step zoom body, total magnification 6x,10x,16x, standard objective F=200mm, optional objectives F=175mm, 250mm, 300mm, 350mm, 400mm, 450mm. Featured with 2 functions foot switch to control motorized Z focus, it is widely used in hospitals for Ophthalmology. A41.1932 is upgraded version, with 6 functions foot switch to control motorized X/Y move, Z focus. A41.1935 is the highest model in this series, with motorized zoom 4.5x~27.3x objective, dual fiber halogen fiber light 100000 lux, 8 functions foot switch to control motorized X/Y move, Z focus & Zoom. |
|

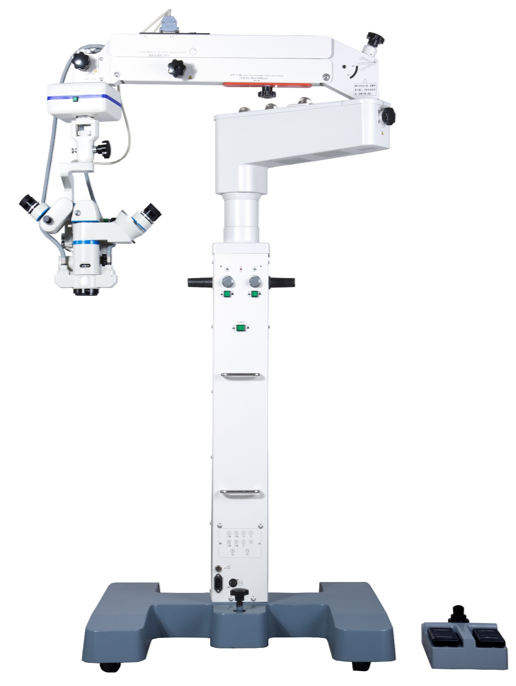

● Dual Head, Motor Zoom, 4.5x~27.3x, 8 Function Foot Switch, ● Dual Head 90° Opposite, With Red Reflection & Macular Protector, For Ophthalmology ● Eyepiece 12.5x, Motorized Zoom 1:6, 4.5x~27.3x, View Field Dia. 44~7.7mm, Objective F=200mm ● Main Head 30~90° Assistant Head 30°, Manual 3 Step Zoom 6.5x10.8x17.3x, 2nd Objective F=180mm ● Dual Optical Fiber Halogen Light, Max Brightness 100000Lux, Light Spot Dia.50mm ● 8 Functions Foot Switch, Motorized Zoom +XYZ Move, Four Wheels Stand, Max 1200mm For Orthopedics Surgery |
|

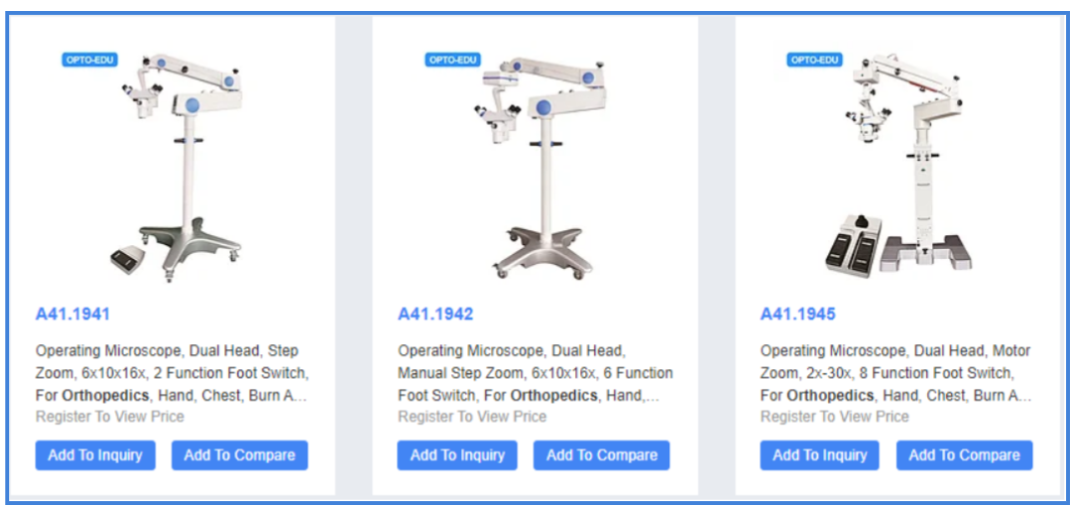

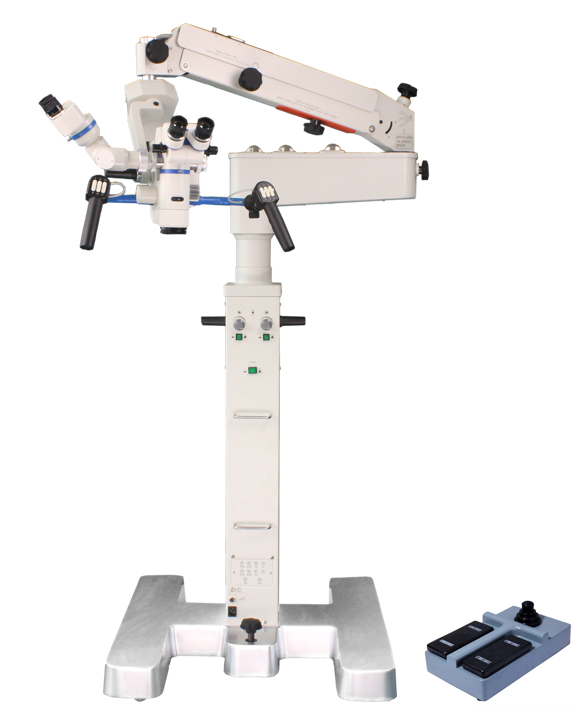

We have 3 models for Orthopedics Surgery, Plastic Surgery, Hand Surgery, Thoracic Surgery, etc. A41.1941 Operating Microscope, is Best Choice for Orthopedics, Plastic Surgery, Hand Surgery, Thoracic Surgery Operation. It has two heads both inclined 45°, using fiber-optic cable for coaxial illumination up to 60000 lux, manual 3 step zoom body, total magnification 6x,10x,16x, standard objective F=200mm, optional objectives F=175mm, 250mm, 300mm, 350mm, 400mm, 450mm. Featured with 2 functions foot switch to control motorized Z focus, it is widely used in hospitals for Ophthalmology. A41.1942 is upgraded version, with 6 functions foot switch to control motorized X/Y move, Z focus. A41.1945 is the highest model in this series, with motorized zoom 4x~24x objective, dual fiber halogen fiber light 100000 lux, 8 functions foot switch to control motorized X/Y move, Z focus & Zoom. All 3 models can upgrade with optional beam splitter, SLR camera adapter, phone holder, CCD adapter for digital camera, for sharing real time images to LCD monitor, mobile phone or computer. |
|
● Dual Head, Motor Zoom, 2x-30x, 8 Function Foot Switch ● Dual Head 180° Opposite, For Orthopedics, Hand, Chest, Burn And Plastic Surgery, Andrology, Etc. ● Eyepiece 12.5x, Motorized Zoom 1:6, 4x~24x, View Field Dia. 50~8.2mm, Objective F=200mm ● Main Head 30~90° Assistant Head 45°, Same Magnification & View Field As Main Head ● Dual Optical Fiber Halogen Light, Max Brightness 100000Lux, Light Spot Dia.50mm ● 8 Functions Foot Switch, Motorized Zoom +XYZ Move, Four Wheels Stand, Extend 1200mm For Neurosurgery Surgery |
|

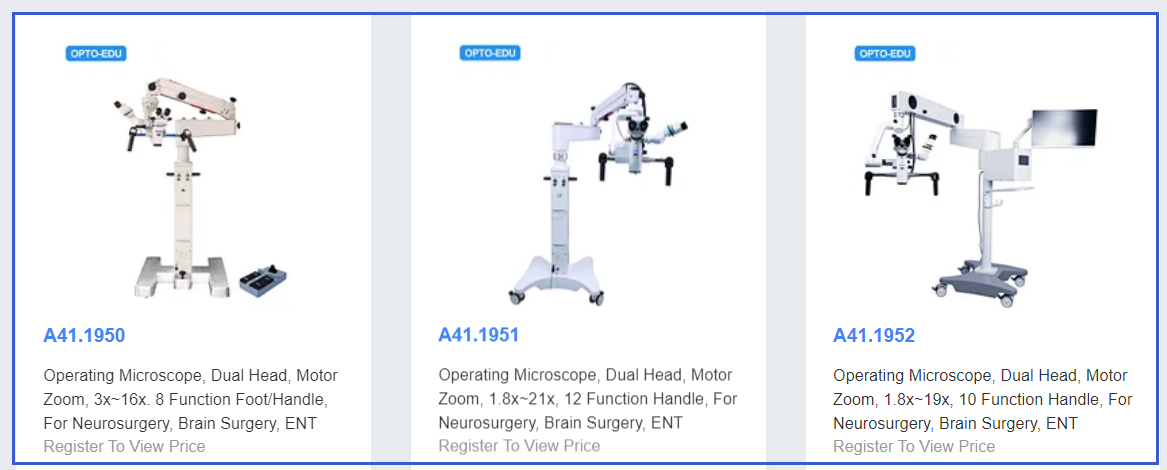

Neurosurgery, Brain Surgery, ENT Such large-scale surgery requires high-end models, and 3 models are recommended according to need. Dual Head, Motor Zoom, 3x~16x, Neurosurgery economic model, Foot/Handle Optional, A41.1950 model is mainly recommended. |
|

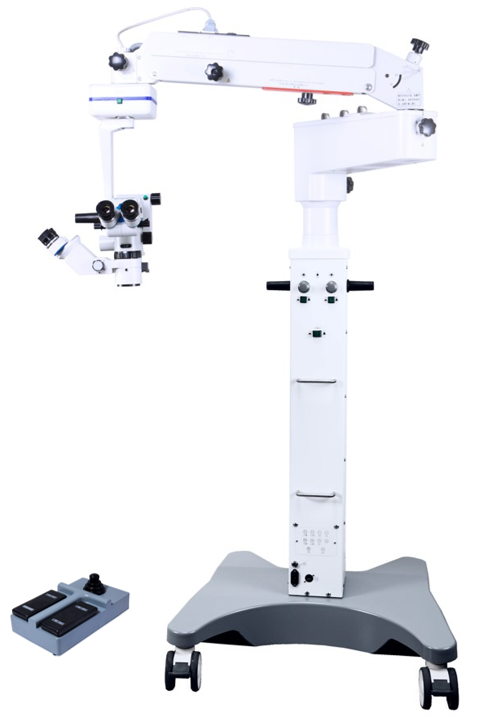

● Best Choice For Neurosurgery, Brain Surgery, Dental, ENT Operation Microscope ● Dual Head Binocular, Eyepiece 12.5x, Motorized Continuous 1:6 Zoom 3x~16x, Objective F=300mm ● Main Binocular Variable Angle 30-90°, Assistant's Binocular 30° Can Swing 90° or 270° ● 8 Function Foot or Handle Control Optional To Control Focusing, X-Y Moving & Zoom ● Dual Optical Fiber Coaxial Halogen Light 100000 lux, Stand Max Extend Range 1250mm A41.1950 Operating Microscope, is Best Choice for Neurosurgery, Brain Surgery Operation. It has one main head and one assistant head which can rotate 360° freely, using fiber-optic cable for coaxial illumination up to 10000 lux, 1:6 Zoom Body, has total magnification 3x~16x, featured with Motorized Focusing, and 8 Functions foot switch or control handle. It is widely used in hospitals for Orthopedics, Hand, Chest, Burn And Plastic Surgery, Andrology, Genitourinary, Animal Anatomy etc. |
|

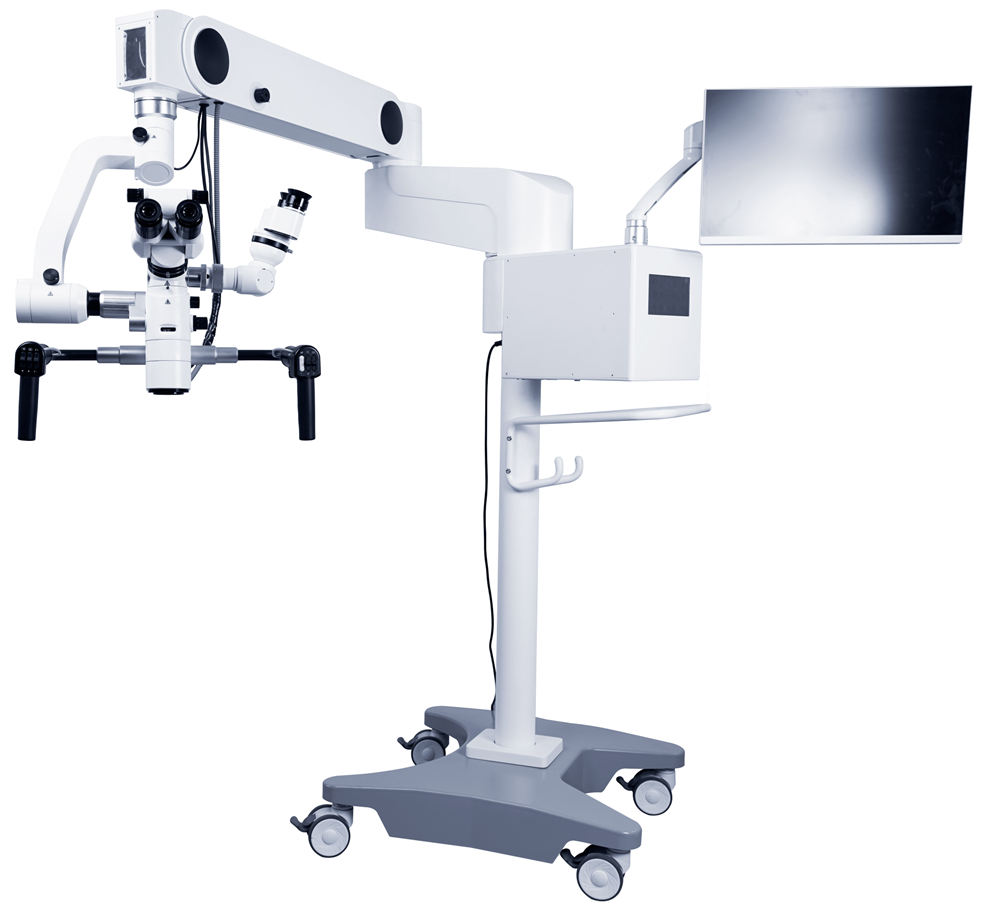

● 2021 New Best Choice For Neurosurgery, Brain Surgery, Dental, ENT Operation Microscope ● Dual Head Binocular, Eyepiece 12.5x, Motorized Zoom 1.8x~19x, Objective F=200~500mm ● Main Binocular Variable Angle 0-200°, With Built-in CCD Camera & Software, Assistant Head 3x-16x ● 10 Function Handle, To Control Zoom, Focusing, Magnetic Lock, Photo/Video, Review, Auto Focus, Brightness Adjust ● Built-in Dual Xenon 300W Light, 100000 Lux, Stand Max Extend Range 1250mmm, With Magnetic Lock A41.1952 is the highest model in this series, built-in 2 sets Xenon 300W Light, magnetic lock, and 10 functions handle, it can meet most surgery operation work with best quality & control. |
|
For any further questions or inquires about comparison forensic microscope,you are welcome to contact us at [email protected]. We will be happy to assist in selecting the Best Suit model! Written By Liko, 2022-12 |
|
