실험실 현미경

실험실 현미경, 인피니티 플랜

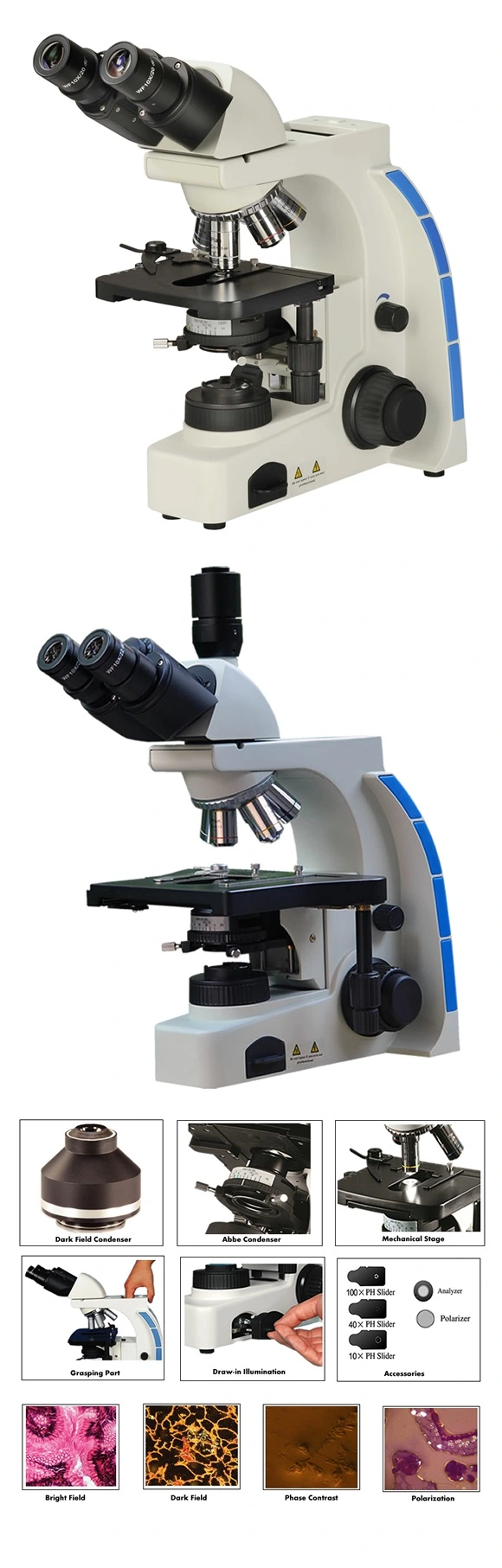

Specification	A12.2702-A	A12.2702-B
Head	Binocular head,30° inclined, 360° rotatable, interpupillary distance 52-75mm, ±5 diopter adjustment	Trinocular head,30° inclined, 360° rotatable, interpupillary distance 52-75mm, ±5 diopter adjustment
Eyepiece	WF10x/20mm, plan, high eyepoint up to 21mm
Objective	Infinity plan achromatic objectives 4x/0.13, 10x/0.30, 40x/0.70 (spring),100x/1.25 (spring,oil)
Focus System	Low positioned, coaxial coarse & fine focusing system with an adjustable tension control and upper limit stop, coarse knob coarse 14mm/rot, fine 0.1mm/rot, minimum reading 1μm on left-side fine knob, moving range 20mm
Nosepiece	Quadruple, reversed type with positive click stops
Stage	Double layer mechanical stage, size 156x138mm, moving range 76x54mm. low position and right hand controls, X-Y coaxial control knob, two slides holder
Condenser	Abbe N.A.1.25 with iris diaphragm and with socket for phase contrast / dark field slider, centering adjustable,height adjustable, color-coded diaphragm scale marking corresponded with the objectives of different power.
Filter	Blue filter Φ 38, (not available for led illumination)
Light Source	6V 20W halogen lamp, brightness adjustable, Kohler type with field diaphragm (adjustable)
Adapter		1x, C-Mount
Power Supply	100-240V wide power range, CE Certified
A12.2702 Laboratory Microscope Optional Accessories			Item No.
Head	Binocular head,30° inclined, 360° rotatable, interpupillary distance 48-75m, ±5 diopter adjustment		A53.2702-2A
	Trinocular head,30° inclined, 360° rotatable, interpupillary distance 48-75mm, ±5 diopter adjustment		A53.2704-2A
	Trinocular head,30° inclined, 360° rotatable, interpupillary distance 48-75mm, ±5 diopter adjustment,light split 100:0 0:100		A53.2704-2B
Eyepiece	WF10x/22mm, plan, high eyepoint up to 21mm		A51.2701-10C
	WF16x/13mm, plan, high eyepoint up to 21mm		A51.2701-16B
	WF10x/20mm plan eyepiece with pointer		A51.2702-10A
	WF10x/22mm plan eyepiece with pointer		A51.2702-10C
	WF10x/20mm plan reticule eyepiece		A51.2703-10A
Infinity Plan Achromatic Objective	2x (need to work with swing out condenser A56.2701-30A)		A52.2706-02A
	20x/0.45 ∞/0.17,WD1.24		A52.2706-20C
	60x/0.80 ∞/0.17,WD0.40 (Spring)		A52.2706-60C
Stage	Upgrade to mechanical stage 185x177mm platform, moving range 75x50mm, low position,right or left hand controls, X-Y coaxial control knob,two slides holder		A54.2701-2B
Nosepiece	Upgrade to Quintuple, reversed type with positive click stops		A54.2705-B
Condenser	Swing out condenser		A56.2701-30A
Light Source	3W LED electrical set (brightness adjustable)		A56.2751-3WA
	Upgrade to LED 3W set including rechargable battery (brightness adjustable)		A56.2751-3WB
	Upgrade to 6V/30W halogen lamp (brightness adjustable)		A56.2750
	Kohler without field diaphragm		A56.2702-2
	6V20W Halogen bulb (Osram)		A56.2703-20B
	6V30W Halogen bulb		A56.2703-30B
	6V30W Halogen bulb (Osram)		A56.2703-30C
	3W LED bulb		A56.2705-3B2
Filter Φ38mm	Green		A56.2706-G
	Yellow		A56.2706-Y
	Frosted		A56.2706-F
Polarizing Attachment	Analyzer		A5P.2701-A
Polarizing Attachment	Polarizer		A5P.2701-P
Dark Field Attachment	Dark field condenser (Dry)		A5D.2701-D
	Dark field condenser (Immersion)		A5D.2701-I
	Dark field slider		A5D.2701-S
Phase Contrast Attachment	Centering telescope		A5C.2710-D
	Turret phase contrast condenser N.A. 1.25		A5C.2711-40A
	Turret phase contrast condenser with dark field		A5C.2711-41
	Phase contrast slider for infinity phase contrast plan achromatic objective	10x	A5C.2712-10P
		20x	A5C.2712-20P
		40x	A5C.2712-40P
		60x	A5C.2712-40P
		100x	A5C.2712-40P
	Infinity phase contrast plan achromatic objective, positive	10x	A5C.2722-10P
		20x	A5C.2722-20P
		40x	A5C.2722-40P
		60x	A5C.2722-60P
		100x	A5C.2722-100P
	Infinity phase contrast plan achromatic objective, negative	10x	A5C.2722-10N
		20x	A5C.2722-20N
		40x	A5C.2722-40N
		60x	A5C.2722-60N
		100x	A5C.2722-100N
Flourescent Attachment	100W DC mercury lamp house		A5F.2712
	Power supply unit for 100W DC mercury lamp		A5F.2713
	I-Grade excitation filter (superior grade)	UV	A5F.2710-IUV
		V	A5F.2710-IV
		B	A5F.2710-IB
		G	A5F.2710-IG
	C-Grade excitation filter (common grade)	UV	A5F.2711-CUV
		V	A5F.2711-CV
		B	A5F.2711-CB
		G	A5F.2711-CG
	Epi-fluorescence illumination		A5F.2714-3
	UV shield		A5F.2715
	100W DC mercury bulb		A5F.2716-H
	100W DC mercury bulb (Osram)		A5F.2716-I
Adapter	1.0x C-Mount		A55.2701-10
	0.5x C-Mount		A55.2701-05
	0.25x C-Mount		A55.2701-25
	for digital eyepiece (to be used on trinocular tube)		A55.2701-8
	Digital camera adapter, (Need to know camera model number)		A55.2702-2
