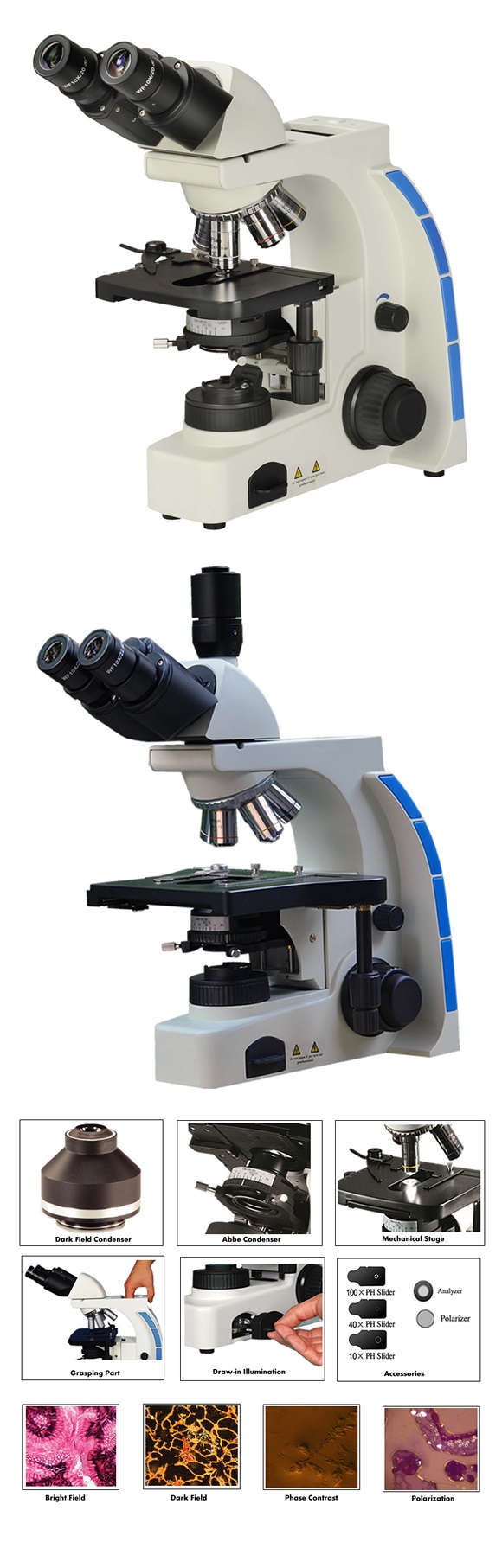

Specification | A12.2702-A | A12.2702-B | |
|---|---|---|---|
| Head | Binocular head,30° inclined, 360° rotatable, interpupillary distance 52-75mm, ±5 diopter adjustment | Trinocular head,30° inclined, 360° rotatable, interpupillary distance 52-75mm, ±5 diopter adjustment | |
| Eyepiece | WF10x/20mm, plan, high eyepoint up to 21mm | ||
| Objective | Infinity plan achromatic objectives 4x/0.13, 10x/0.30, 40x/0.70 (spring),100x/1.25 (spring,oil) | ||
| Focus System | Low positioned, coaxial coarse & fine focusing system with an adjustable tension control and upper limit stop, coarse knob coarse 14mm/rot, fine 0.1mm/rot, minimum reading 1μm on left-side fine knob, moving range 20mm | ||
| Nosepiece | Quadruple, reversed type with positive click stops | ||
| Stage | Double layer mechanical stage, size 156x138mm, moving range 76x54mm. | ||
| Condenser | Abbe N.A.1.25 with iris diaphragm and with socket for phase contrast / dark field slider, centering adjustable,height adjustable, color-coded diaphragm scale marking corresponded with the objectives of different power. | ||
| Filter | Blue filter Φ 38, (not available for led illumination) | ||
| Light Source | 6V 20W halogen lamp, brightness adjustable, Kohler type with field diaphragm (adjustable) | ||
| Adapter | 1x, C-Mount | ||
| Power Supply | 100-240V wide power range, CE Certified | ||
A12.2702 Laboratory Microscope Optional Accessories | Item No. | ||
| Head | Binocular head,30° inclined, 360° rotatable, interpupillary distance 48-75m, ±5 diopter adjustment | A53.2702-2A | |
| Trinocular head,30° inclined, 360° rotatable, interpupillary distance 48-75mm, ±5 diopter adjustment | A53.2704-2A | ||
| Trinocular head,30° inclined, 360° rotatable, interpupillary distance 48-75mm, ±5 diopter adjustment,light split 100:0 0:100 | A53.2704-2B | ||
| Eyepiece | WF10x/22mm, plan, high eyepoint up to 21mm | A51.2701-10C | |
WF16x/13mm, plan, high eyepoint up to 21mm | A51.2701-16B | ||
WF10x/20mm plan eyepiece with pointer | A51.2702-10A | ||
WF10x/22mm plan eyepiece with pointer | A51.2702-10C | ||
WF10x/20mm plan reticule eyepiece | A51.2703-10A | ||
Infinity Plan Achromatic Objective | 2x (need to work with swing out condenser A56.2701-30A) | A52.2706-02A | |
20x/0.45 ∞/0.17,WD1.24 | A52.2706-20C | ||
60x/0.80 ∞/0.17,WD0.40 (Spring) | A52.2706-60C | ||
| Stage | Upgrade to mechanical stage 185x177mm platform, moving range 75x50mm, low position,right or left hand controls, X-Y coaxial control knob,two slides holder | A54.2701-2B | |
| Nosepiece | Upgrade to Quintuple, reversed type with positive click stops | A54.2705-B | |
| Condenser | Swing out condenser | A56.2701-30A | |
| Light Source | 3W LED electrical set (brightness adjustable) | A56.2751-3WA | |
Upgrade to LED 3W set including rechargable battery (brightness adjustable) | A56.2751-3WB | ||
Upgrade to 6V/30W halogen lamp (brightness adjustable) | A56.2750 | ||
| Kohler without field diaphragm | A56.2702-2 | ||
| 6V20W Halogen bulb (Osram) | A56.2703-20B | ||
| 6V30W Halogen bulb | A56.2703-30B | ||
| 6V30W Halogen bulb (Osram) | A56.2703-30C | ||
3W LED bulb | A56.2705-3B2 | ||
| Filter Φ38mm | Green | A56.2706-G | |
Yellow | A56.2706-Y | ||
Frosted | A56.2706-F | ||
| Polarizing Attachment | Analyzer | A5P.2701-A | |
Polarizer | A5P.2701-P | ||
| Dark Field Attachment | Dark field condenser (Dry) | A5D.2701-D | |
Dark field condenser (Immersion) | A5D.2701-I | ||
Dark field slider | A5D.2701-S | ||
| Phase Contrast Attachment | Centering telescope | A5C.2710-D | |
| Turret phase contrast condenser N.A. 1.25 | A5C.2711-40A | ||
| Turret phase contrast condenser with dark field | A5C.2711-41 | ||
Phase contrast slider for infinity phase contrast plan achromatic objective | 10x | A5C.2712-10P | |
| 20x | A5C.2712-20P | ||
| 40x | A5C.2712-40P | ||
| 60x | A5C.2712-40P | ||
| 100x | A5C.2712-40P | ||
| Infinity phase contrast plan achromatic objective, positive | 10x | A5C.2722-10P | |
| 20x | A5C.2722-20P | ||
| 40x | A5C.2722-40P | ||
| 60x | A5C.2722-60P | ||
| 100x | A5C.2722-100P | ||
| Infinity phase contrast plan achromatic objective, negative | 10x | A5C.2722-10N | |
| 20x | A5C.2722-20N | ||
| 40x | A5C.2722-40N | ||
| 60x | A5C.2722-60N | ||
| 100x | A5C.2722-100N | ||
| Flourescent Attachment | 100W DC mercury lamp house | A5F.2712 | |
| Power supply unit for 100W DC mercury lamp | A5F.2713 | ||
| I-Grade excitation filter (superior grade) | UV | A5F.2710-IUV | |
| V | A5F.2710-IV | ||
| B | A5F.2710-IB | ||
| G | A5F.2710-IG | ||
| C-Grade excitation filter (common grade) | UV | A5F.2711-CUV | |
| V | A5F.2711-CV | ||
| B | A5F.2711-CB | ||
| G | A5F.2711-CG | ||
| Epi-fluorescence illumination | A5F.2714-3 | ||
| UV shield | A5F.2715 | ||
| 100W DC mercury bulb | A5F.2716-H | ||
| 100W DC mercury bulb (Osram) | A5F.2716-I | ||
| Adapter | 1.0x C-Mount | A55.2701-10 | |
| 0.5x C-Mount | A55.2701-05 | ||
| 0.25x C-Mount | A55.2701-25 | ||
| for digital eyepiece (to be used on trinocular tube) | A55.2701-8 | ||
| Digital camera adapter, (Need to know camera model number) | A55.2702-2 | ||
