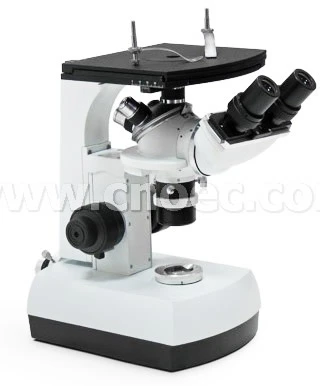

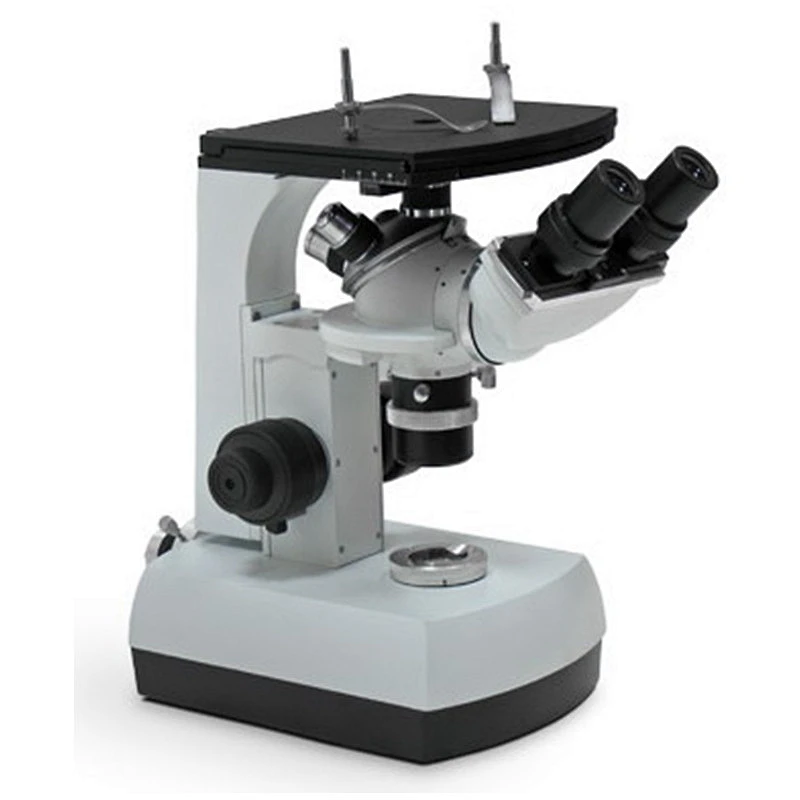

Metallurgical Microscope

A 13.0101 Specification		A	B	C	D
Magnification	40X-1250X	●	●	●	●
Head	Monocular Head, 45°Inclined	●	●	-	-
Head	Sliding Binocular Head, 45°Inclined,Interpupilary Distance 55-75mm	-	-	●	●
Eyepiece	Huygenian Ocular 5x/20mm	●	●	●	●
	Plan Eyepiece WF10X/18mm	●	●	●	●
	Plan Eyepiece WF12.5X/14mm	●	●	●	●
	Plan Reticle Eyepiece 10X/18mm	●	●	●	●
Objective	Achromatic 10X/0.25	●	-	●	-
	Achromatic 40X/0.65, Spring	●	-	●	-
	Achromatic 100X/1.25, Spring, Oil	●	-	●	-
	Plan Achromatic 10X/0.25	-	●	-	●
	Plan Achromatic 40X/0.65, Spring	-	●	-	●
	Plan Achromatic 100X/1.25, Spring, Oil	-	●	-	●
Nosepiece	Triple Revolving Nosepiece	●	●	●	●
Stage	Mechnical Stage180mmX165mm, Vernier Scale Travel Range 28mmx30mm	●	●	●	●
	Stage Plate (Dia.10)	●	●	●	●
	Stage Plate (Dia.15)	●	●	●	●
	Stage Plate (Dia.20)	●	●	●	●
Focusing	Coaxial Coarse and Fine Focusing Knobs	●	●	●	●
Light Source	Light Source Unit	●	●	●	●
	Halogen Lamp 6V15W	●	●	●	●
	Transformer	●	●	●	●
Colour Filter Dia. 32, Green, Yellow, Blue, Gray		●	●	●	●
Gross Glass Dia. 32mm		●	●	●	●

Optional Accessories		Item No.
Objective	Plan Achromatic 2.5X	B-OPr2.5
	Achromatic 4X	B-OAr4
	Plan Achromatic 4X	B-OPr4
Vidio Attachment		ZA-4
0.01mm Micrometer
Photo Attachment		DV02
Sample Holder		SC03
