Metallurgical Microscope
Metallurgical Microscope

A13.0705

Like Favorites

Metallurgical Microscope


Quantity:

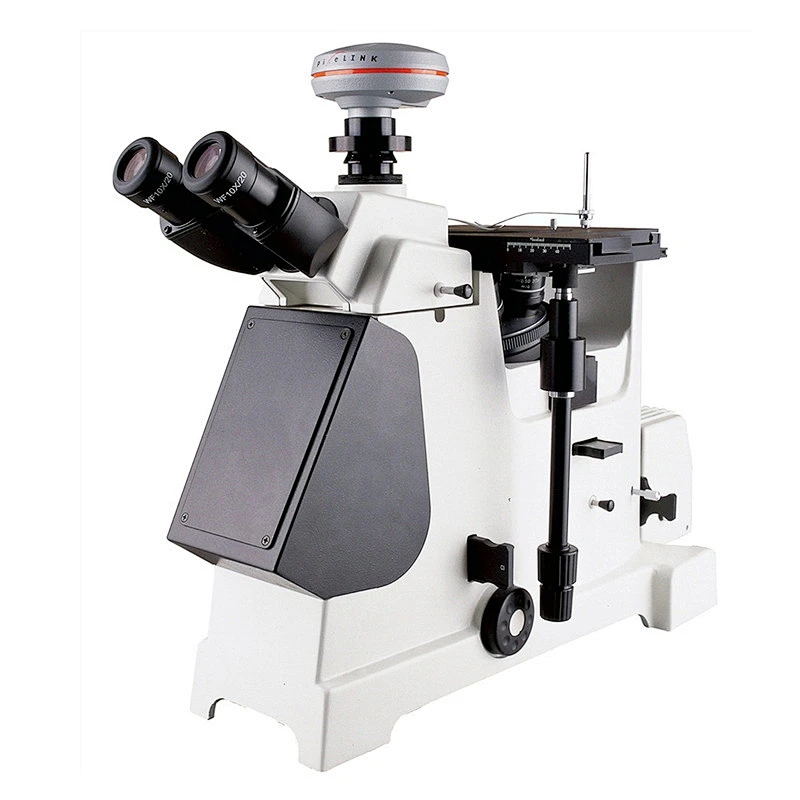

A13.0705 Metallurgical Microscope
A
B
Optical SystemInfinite Optical System
HeadSeidentopf Trinocular Viewing Head, Inclined at 30°
Eyepiece
W10×/20
EW10×/20 Eyepiece with scale of cross hair
Objective
Infinite plan APO Achromatic Objective 5x/0.17/∞/- (BF/DF)WD 8.6mm
Infinite plan APO Achromatic Objective 10x/0.28/∞/-(BF/DF)WD 3.4mm
Infinite plan APO Achromatic Objective 20x/0.5/∞/0(BF/DF)WD 1.1mm
Infinite plan APO Achromatic Objective 50x/0.85/∞/0(BF/DF)WD 0.5mm
Infinite plan APO Achromatic Objective 100x/0.95(Dry)/∞/0(BF)WD 0.1mm
Nosepiece
Quintuple nosepiece
FocusingCoaxial Coarse and Fine Adjustment, Fine Division 0.002mm
Stage
Double layer mechanical stage 200×190mm,Moving range 40mm×40mm
Stage: Φ16, Φ40, Teardrop
Illumination12V/100W Halogen Lamp, Center and Brightness Adjustable
Polarizer and analyzer
Built-in Green, Blue, Yellow, Gray and ground glass
Kohler illumination
DIC
-
MicrometerMicrometer scale 0.01mm
Optional Accessories
Item No.
EyepieceWF15x/16
WF20x/12
ObjectiveInfinite plan APO Achromatic Objective 100x/1.32(Oil)/∞/0(BF)WD 0.1mm
Video Attachment
Photo Attachment
