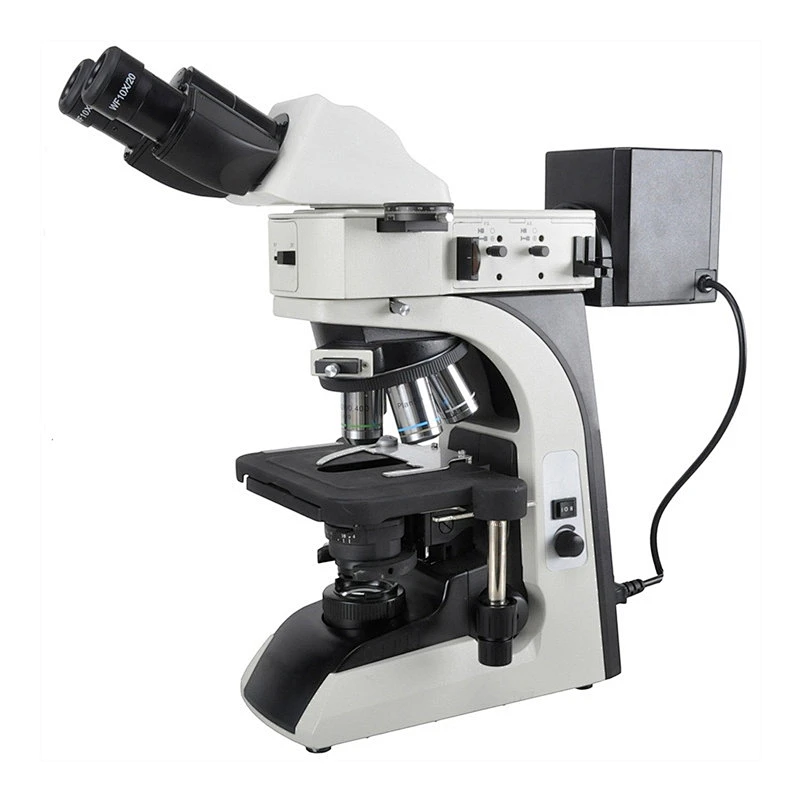

Metallurgical Microscope

A13.0706 Metallurgical Microscope		A	B
Optical System	Infinite Optical System	●	●
Head	Siedentopf binocular viewing head,inclined at 30°	●	●
Eyepiece	EW10×/22	●	●
Eyepiece	EW10×/22 Eyepiece with scale of cross hair	●	●
Objective	Infinite Plan Achromatic Objective 5x/0.12/∞/-(BF/DF) LWD 10mm	●	●
	Infinite Plan Achromatic Objective 10x/0.25/∞/-(BF/DF) LWD 10mm	●	●
	Infinite Plan Achromatic Objective 20x//0.4/∞/0(BF/DF) LWD 5mm	●	●
	Infinite Plan Achromatic Objective 50x/0.75/∞/0(BF/DF) LWD 1.3mm	●	●
	Infinite Plan Achromatic Objective 100x/0.90(Dry)/∞/0(BF) LWD 0.7mm	●	●
	Infinite Plan Achromatic Objective 40x/0.65/∞/0.17(BF) WD 0.6mm	-	●
	Infinite Plan Achromatic Objective 100x/1.25/∞/0.17(BF) WD0.16mm	-	●
Focusing	Coaxial coarse and fine adjustment,fine division 2μm,moving range 30mm	●	●
Nosepiece	Backward quintuple nosepiece	●	●
Stage	Double layer mechanical stage 186×138mm, Moving range 78mm×54mm	●	-
Stage	Double layer mechanical stage 216×150mm, Moving range 78mm×54mm	-	●
Illumination	Reflcted 12V/50W Halogen Lamp,Center and Brightness Adjustable	●	●
	Transmitted 12V/20W Halogen Lamp,Center and Brightness Adjustable	-	●
	Kohler Incident Light	●	●
	Polarizer and analyzer	●	●
	Green,Blue,Yellow,Gray and ground glass	●	●
Micrometer	Scale 0.01mm	●	●

Optional Accessories		Item No.
Head	Siedentopf Tinocular viewing head,inclined at 30°
Eyepiece	EW15×/16
	EW20×/12
Illumination	DIC
Photo attachment	Photo attachment
Other	Specimen Presser
