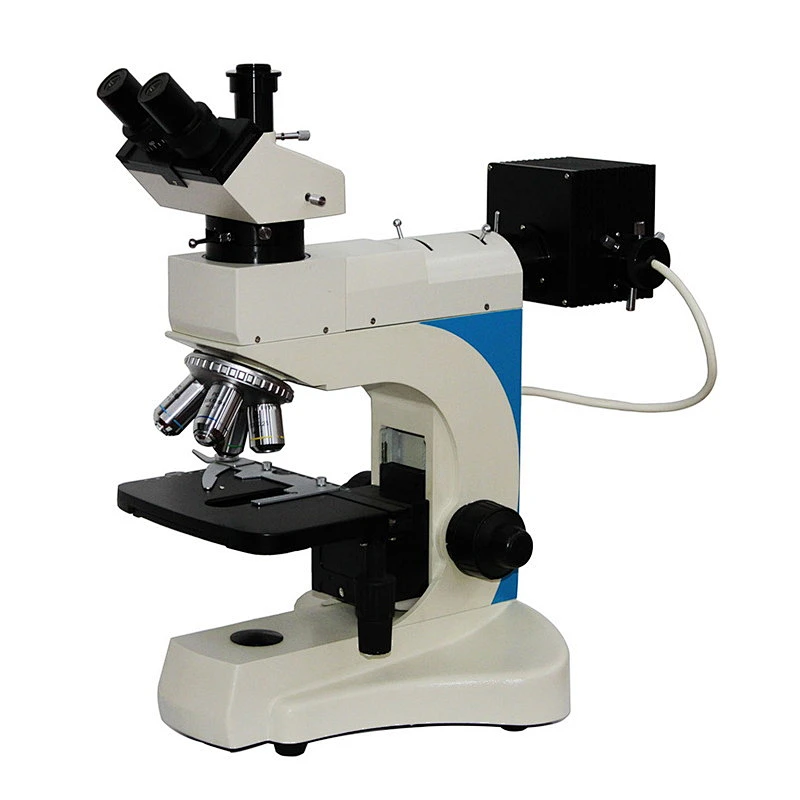

A13.1304 Metallurgical Microscope | |
|---|---|
| Head | Sliding Trinocular Head, 45° Inclined,360°rotatable,interpupillary distance: 55-75mm; |
| Eyepiece | Wide Field Plane-Scope:WF10X/18mm |
| Nosepiece | Quarduple Nosepiece |
| Infitiy Objective | 45mm DINAchromatic 10x,100x(O,S) |
| Plan objective of infinitive correction system: PC10X, PC20X, PC40X, PC80X; | |
| Working Stage | Double Layer Mechanical Stage, Size190*150mm,Moving Range X-Y 90*60mm |
| Condenser | Abbe N.A.1.25, With Dia.2-Dia30mm Iris Diaphragm, |
| Focusing | Coaxial coarse and fine focusing adjustable mechanism,step-by-step variable gear,rack and pinion mechanism,with mechanism for adjusting focusing torque and controlling the upper limit of stage lift. Focusing Range: 36mm, precision: 0.002mm/scale; |
| Polarizer | With polarizer and analyzer.The polarizer can sliding out of optical path; |
| Filters | Five stop and aperture stop,Blue, green filters; |
| Light Source | Vertical illumination system for reflected illumination,12V/50W halogen lamp,light adjustable continuously,bottom light system with extra light LED for transmitted light,light adjustable continuously; |
| Gross Weight | 12KG |
| Package | 1set/carton |
| Dimension | 38*20*46cm |
