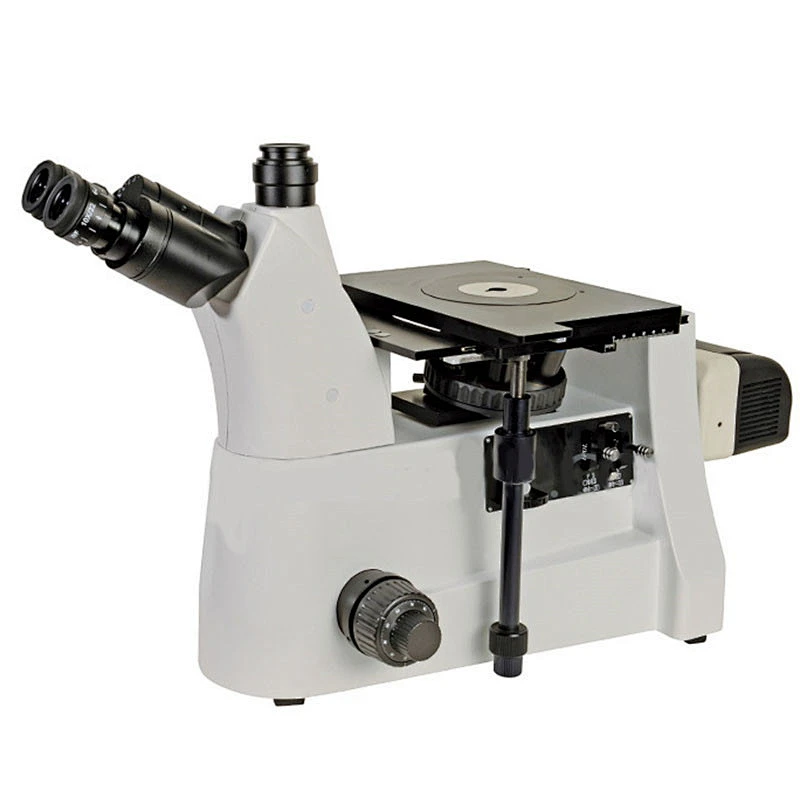

Metallurgical Microscope
Metallurgical Microscope

A13.1112

Like Favorites

Metallurgical Microscope

Quantity：


A13.1112
Head

Compensation Free Trinocular Head Inclined at 45°

interpupillary Distance Adjustable 48mm-75mm

EyepieceWide Field Plan WF10X/22mm
WF10×/20mm,Crosshair With Reticule 0.1mm

Objective


Infinity Plan Working Distance B&D Objective

5×/0.15（W.D.14.47mm）

10×/0.25（W.D.16.01mm）

20×/0.40（W.D.10.5mm）

50×/0.55（W.D.5.1mm）

StageDouble Layer Mechanical Stage
Stage Size: 255mm×170mm
Moving Range：70mm×50mm
Low Located XY Adjusting Hand Wheel
NosepieceQuintuple Nosepiece With DIC Jack
Focusing

Coaxial Coarse & Fine Focusing Adjustment,Fine Focusing

Scale Value 0.001mm

Light Source

Kohler Illumination With Aperture Iris Diaphragm

And Field Iris Diaphragm

Halogen Bulb 12V/100W，AC85V-230V

Brightness Adjustable

Polarizing Device

Analyzer Rotatable 360°,Polarizer & Can Be Seing

Out Of Light Path

FilterGreen、Blue、Neutral
Checking Tool0.01mm Micrometer
