Monocular Zoom Microscope
Monocular Zoom Microscope
Monocular Zoom Microscope

A21.1607

Like Favorites

Monocular Zoom Microscope

Quantity:



A21.1607
    high contrast coaxial illumination zoom
    digital monocular microscope, zoom ration 1.1x-7.5x, its contrast definition
    and depth of field are very good. are characterized by the infinitely far
    and coaxial illuminate optical system, high resolution and high definition.
    They can be used in electric equipments, semi-conductor, LCD, LED etc. for
    observing digital image, checking-up and survey.

    Features
    --Zoom body magnification 1.1x-7.5x, extend total magnification: 84x-540x
    --CCD adapter0.5x, 1.0x (standard outfit), 1.5x, available
    --Full range stand for choice, A54.1601
    ~ A54.1620 Click
    here to see picture
    --Head inclined 45 degree, diopter adjustable +/-6, interpupillary distance
    52-76mm
    --The measurement to match between support and main body: 45mm
    --Standard outfit include 1x CCD adapter and 1x objective (working distance
    73mm)

    Models:
    C Coaxial illumination, including A56.1606-B coaxial illuminator

Main Specification

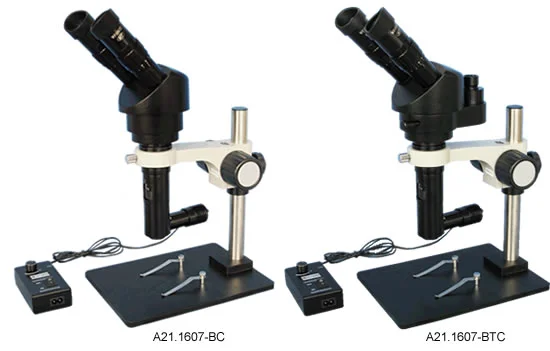

Model
A21.1607-BC
A21.1607-BTC
Head
Binocular
Trinocular
Optical Magnification
1.1x-7.5x
Total Magnification
Total Magnification with 1/3"CCD, 14"monitor : 84x-540x
Zoom Body DiameterThe measurement to match between support and main body: 45mm
Round Post DiameterThe diameter of round post is 25mm
EyepieceWF10x/22mm,
Standard CCD Adapter1.0x
Standard StandA54.1601 pole stand, without light source
Standard Light SourceA56.1606-B coaxial illuminator
*Standard outfit doesn't included CCD camera
Optional Accessories
EyepieceA51.1601-15WF15x/17mm, pair
A51.1601-20WF20x/14mm, pair
A51.1601-30WF30x/9mm, pair
CCD Adapter
A55.1605-05DB-C0.5x
A55.1605-10DB-C1.0x
A55.1605-15DB-C1.5x
Illuminator
A56.1606
Coaxial illuminator, match size Φ9mm, LED 0.1W
A56.1606-A
Coaxial illuminator, match size Φ9mm, LED 0.1W, brightness adjustable
A56.1606-B
Coaxial illuminator, match size Φ9mm, LED 1.0W
Stand
A54.1601~20
20 kinds different stand available. Click here to see picture
Data Sheet
Objective
Eyepiece
10x/22mm
15x/17mm
20x/14mm
30x/9mm
1.0x
Magnification
11x-75x
16.5x-112.5x
22x-150x
33x-225x
Field of View (mm)
Φ20-Φ2.93
Φ15.45-Φ2.27
Φ12.73-Φ1.87
Φ8.18-Φ1.2
Working Distance73mm
CCD Adapter
0.5x
1.0x
Total Video Magnification
0.55x-3.75x
1.1x-7.5x
Field of Viedo (mm)
6.55x8.73-0.96x1.28
3.27x4.36-0.48x0.64
