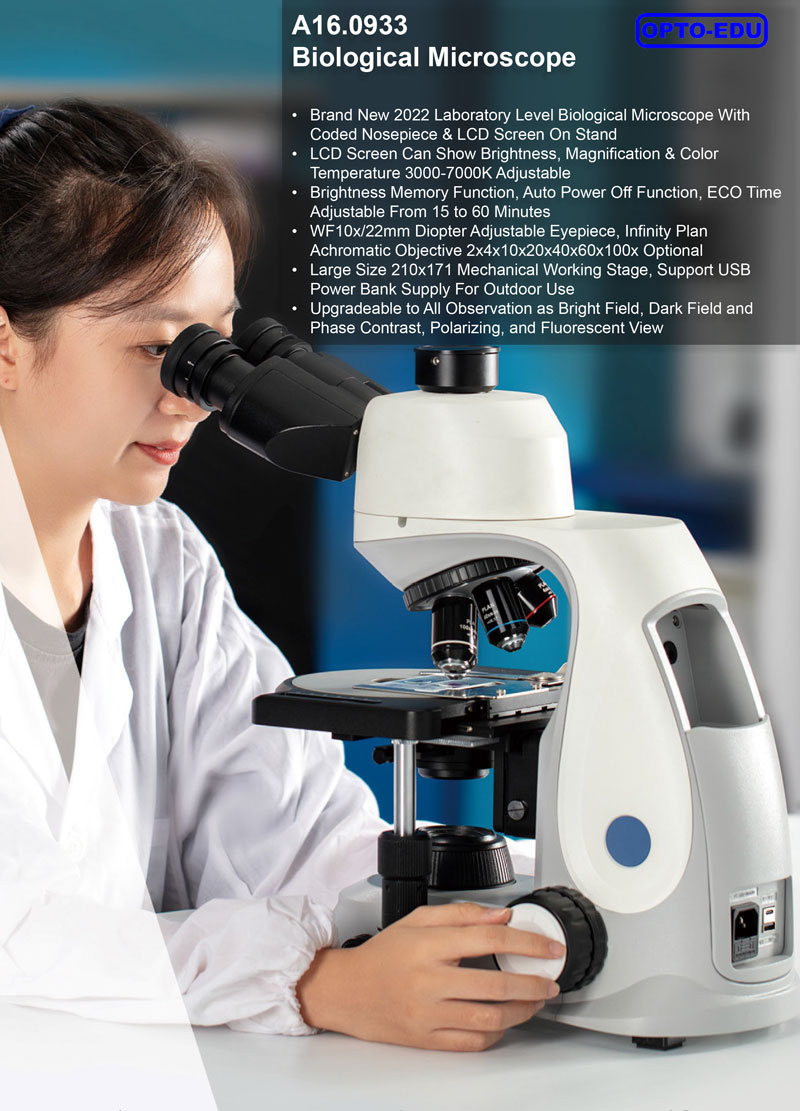

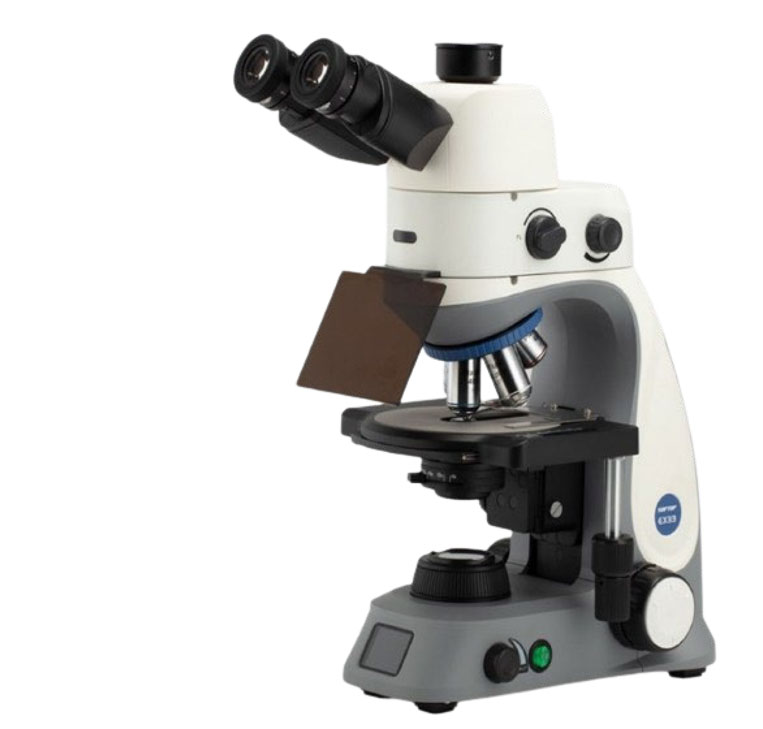

Fluorescent Biological Microscope

A16.0933			Cata. No.
Head	30° inclined ，gemel binocular，360° rotatable ，adjustable eye-point height 375-428.5mm，fixed eyepiece tube ，diopter adjustable 48-76mm	○	A53.0933-B
Head	30° inclined ，gemel trinocular，360° rotatable ，adjustable eye-point height 375-428.5mm，fixed eyepiece tube ，diopter adjustable 48-76mm，spectroscopical ratio R:T=50:50	●	A53.0933-T

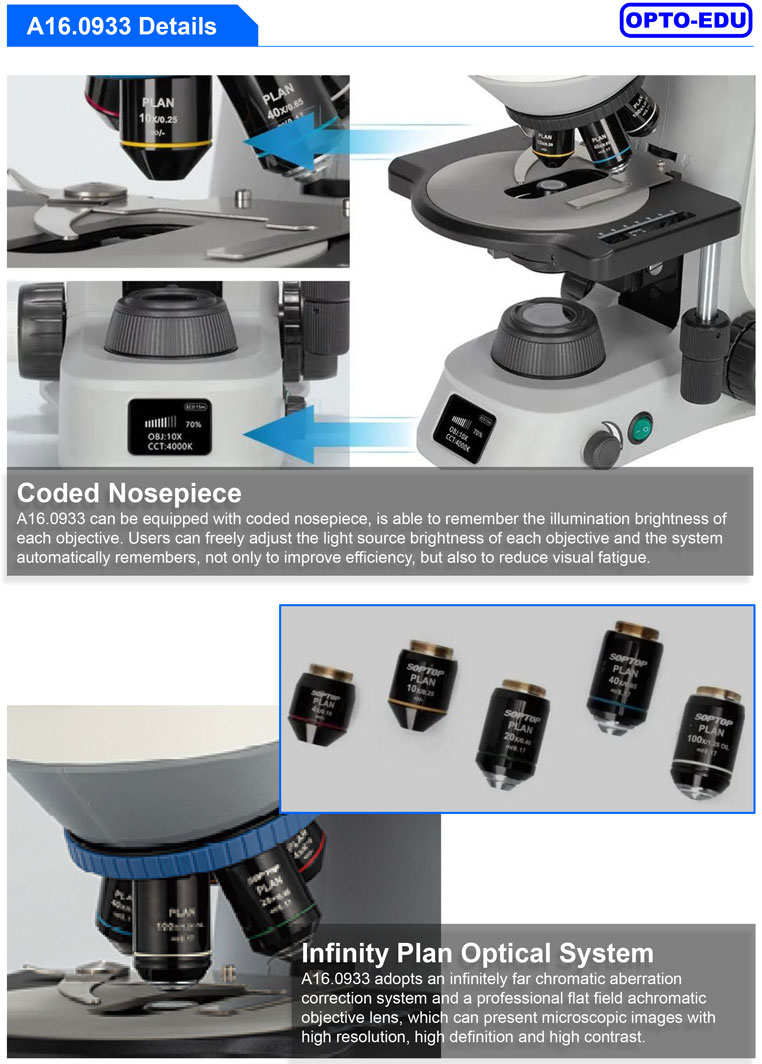

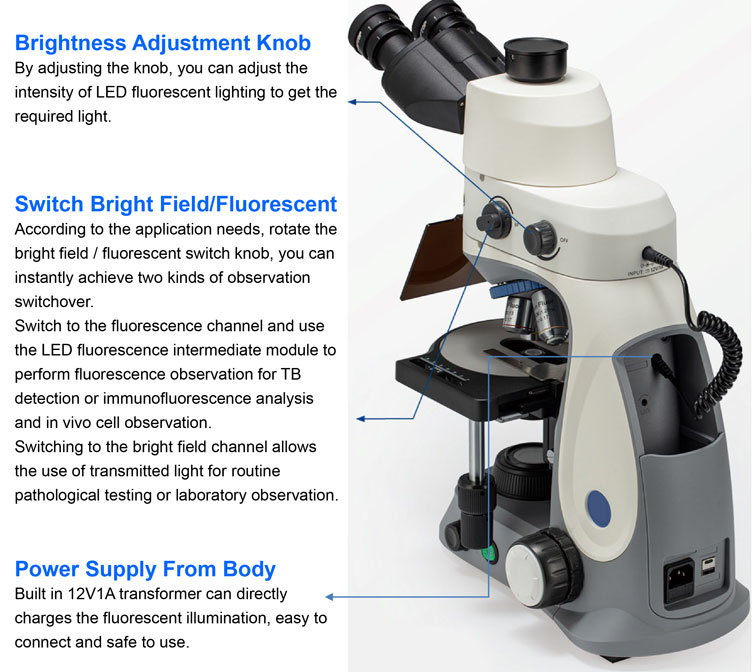

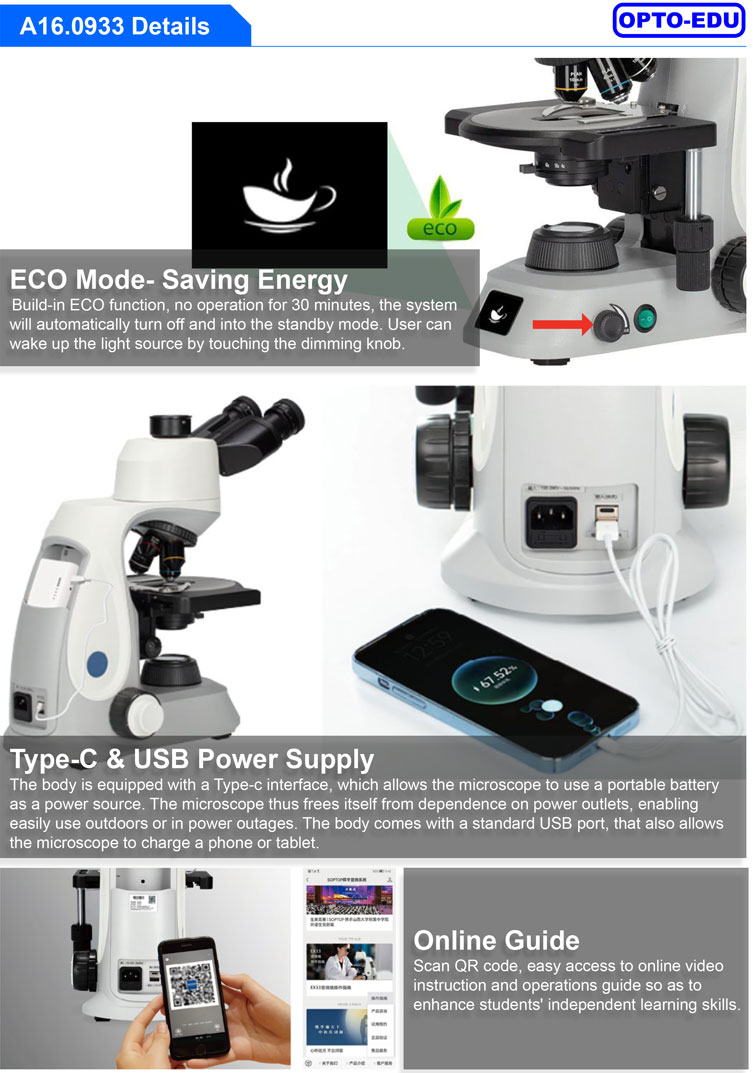

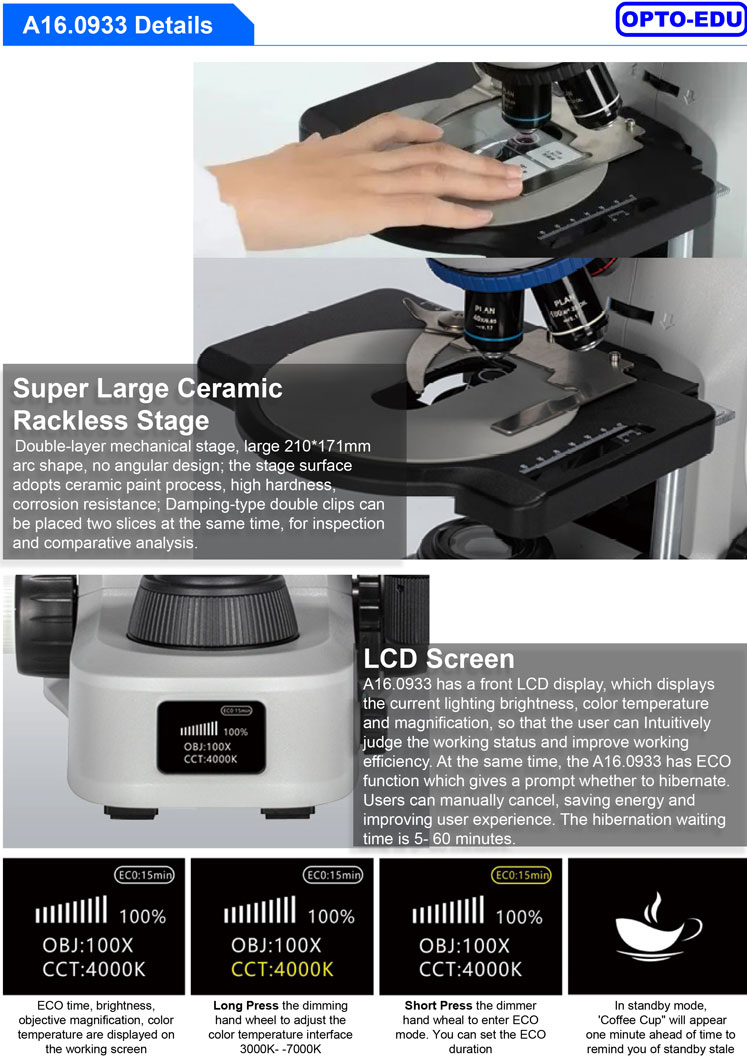

Body	Coaxial focus system with upper limited and tension adjustment, coarse range 27mm, fine precision 0.002mm, focus height adjustable. With quintuple nosepiece with brightness memory . Double layer mechanical stage with ceramic painting, size 210171mm, moving range 7851mm, precision 0.1mm(X-axis rackless ), clips for double sliders. Wide voltage 100-240V, 12V1A power supply from microscope body, 5W LED, intensity adjustable. Allowed to charge the microscope by the portable charge, allowed to charge cell phones and tablets by the microscope . With LCD display(which displays ECO duration, current light brightness, color temperature and objective magnification)With quintuple nosepiece with brightness memory.

A16.0933			Cata. No.
Eyepiece	High eye-point wide-field plan eyepiece, 10X/20mm, diopter adjustable	○	A51.0904-1020T
	High eye-point wide-field plan eyepiece, 10X/20mm，diopter adjustable, with reticle	○	A51.0905-1020RT

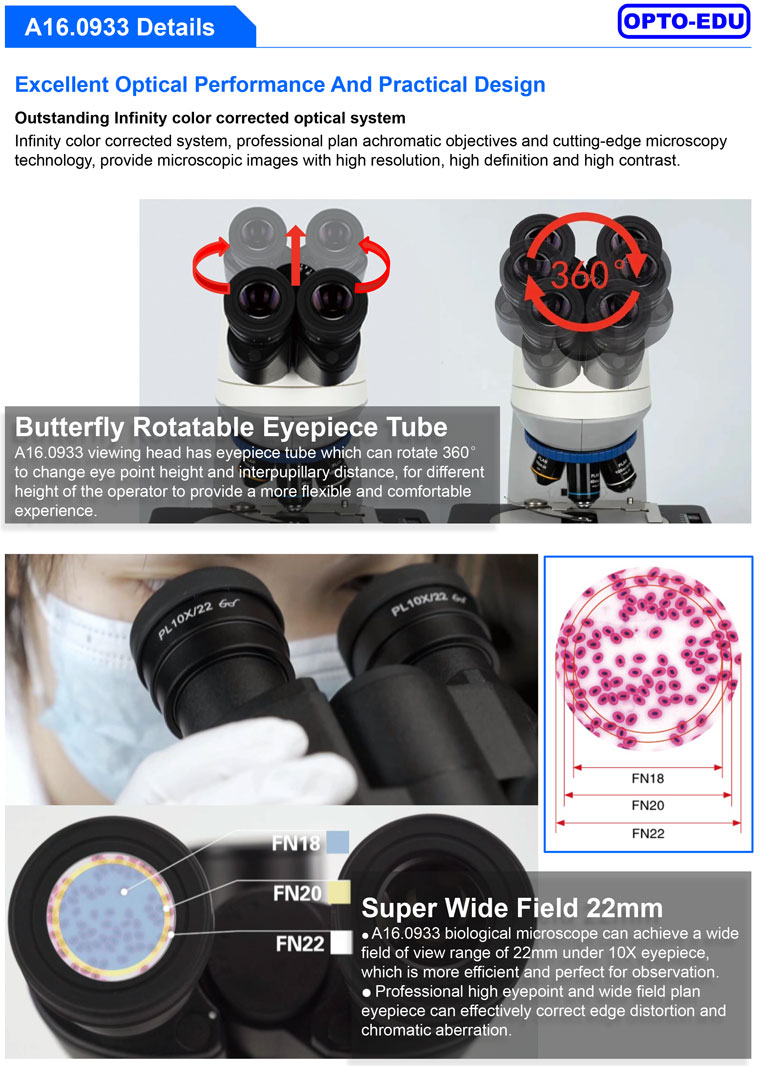

	High eye-point wide-field plan eyepiece, 10X/22mm, diopter adjustable	●●	A51.0904-1022T
	High eye-point wide-field plan eyepiece, 10X/22mm，diopter adjustable, with reticle	○	A51.0905-1022RT
	High eye-point wide-field plan eyepiece, 10X/22mm，diopter adjustable, with grid plate	○	A51.0905-1022GT
Plan Eyepiece	infinite plan achromatic objective 2X/NA0.06 WD=5.00mm(used frosted glasses inserts together)	○	A52.0906-2
	infinite plan achromatic objective 4X/NA0.1 WD=15.00mm	○	A52.0906-4
	infinite plan achromatic objective 10X/NA0.25 WD=10.8mm	●	A52.0906-10
	infinite plan achromatic objective 20X/NA0.40 WD=1.50mm	●	A52.0906-20
	infinite plan achromatic objective 40X/NA0.65 WD=0.80mm	●	A52.0906-40
	infinite plan achromatic objective 60X/NA0.85 WD=0.30mm	○	A52.0906-60
	infinite plan achromatic objective 100X/NA1.25 WD=0.21mm，Oil	●	A52.0906-100
Phase Contrast Objective	infinite plan achromatic phase contrast objective 10X/NA0.25 WD=10.8mm	○	A5C.0937-10
	infinite plan achromatic phase contrast objective 20X/NA0.40 WD=1.50mm	○	A5C.0937-20
	infinite plan achromatic phase contrast objective 40X/NA0.65 WD=0.80mm	○	A5C.0937-40
	infinite plan achromatic phase contrast objective 100X/NA1.25 WD=0.18mm，Oil	○	A5C.0937-100
Fluorescence Objectives	Plan semi-apochromatic fluorescence objectives 4X/0.13 WD16.40MM	○	A5F.0950-4
	Plan semi-apochromatic fluorescence objectives 10X/0.30 WD8.10MM	○	A5F.0950-10
	Plan semi-apochromatic fluorescence objectives 20X/0.50 WD2.00MM	○	A5F.0950-20
	Plan semi-apochromatic fluorescence objectives 40X/0.75 WD0.74MM	○	A5F.0950-40
	Plan semi-apochromatic fluorescence objectives 100X/1.28 WD0.14MM	○	A5F.0950-100
Condenser	Koehler illuminator condenser (with socket for phase contrast and dark field accessories ) with aperture diaphragm	●	A56.0933-E33
Protection Barrier	LED light barrier in LED fluorescence microscopes	●	A5F.0933-LB

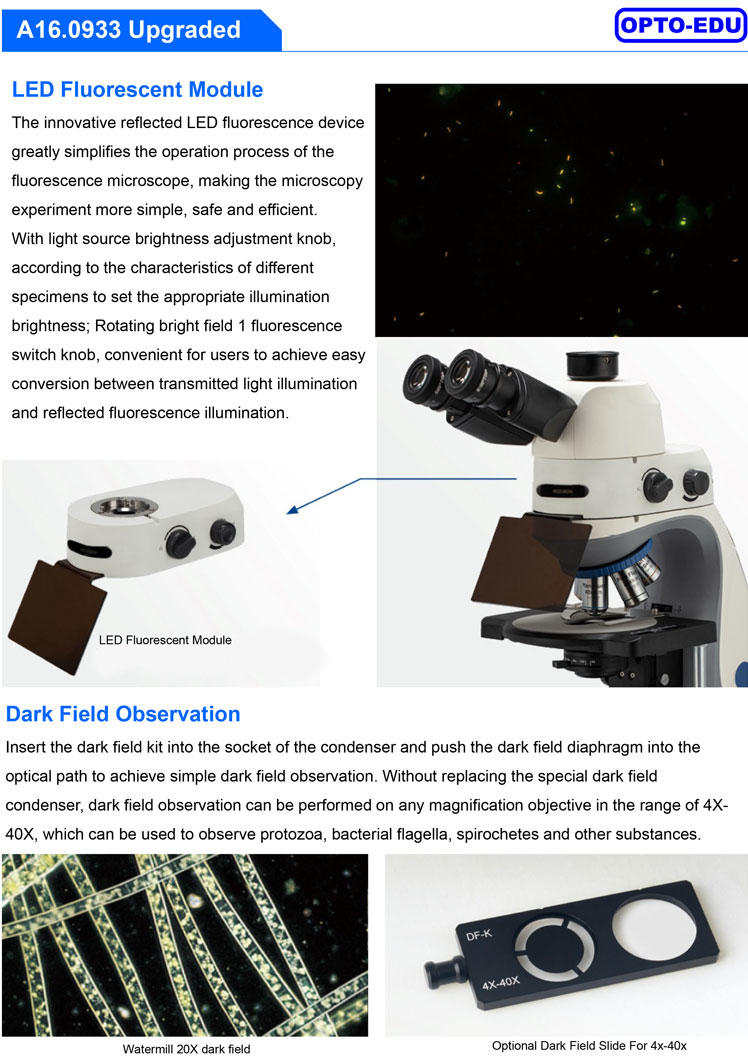

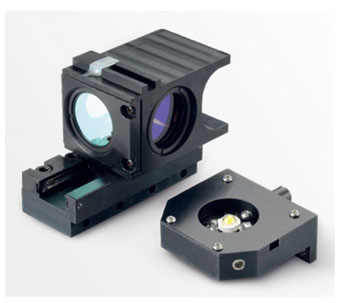

LED Fluorscent Attachment	B1 band pass filter LED fluorescent module, with intensity adjust knob, BF/FL switching knob, central wavelength 470nm.	●	A5F.0933-B1
	B2 long pass filter LED fluorescent module, with intensity adjust knob, BF/FL switching knob, central wavelength 470nm.	○	A5F.0933-B2
	B1 band pass filter LED fluorescent module, with intensity adjust knob, BF/FL switching knob, central wavelength 560nm.	○	A5F.0933-G1
	UV2 long pass filter LED fluorescent module, with intensity adjust knob, BF/FL switching knob, central wavelength 385nm.	○	A5F.0933-UV2
	UV4 long pass filter LED fluorescent module, with intensity adjust knob, BF/FL switching knob, central wavelength 385nm.	○	A5F.0933-UV4
	B4 TB - LED fluorescent module for TB, with intensity adjust knob, BF/FL switching knob, central wavelength 455nm.	○	A5F.0933-B4
Dark Field	dark-filed inserts module，compatible with 4x-40x	○	A5D.0933

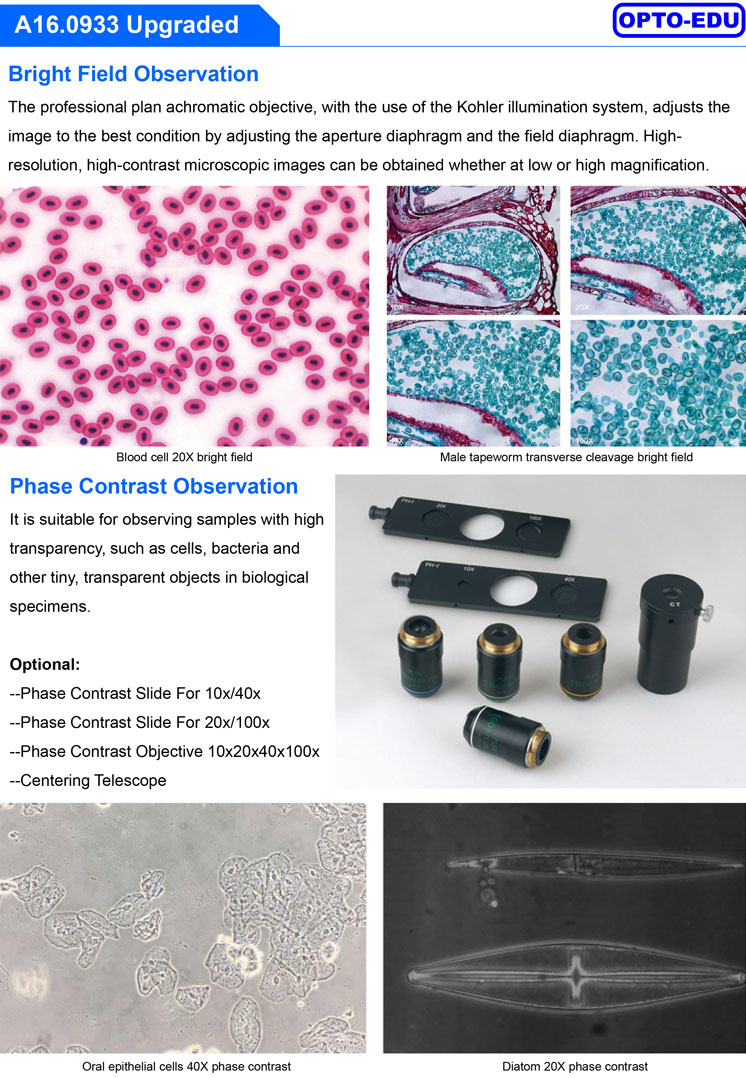

Phase Contrast	phase contrast inserts module ，compatible with 10x、40x phase contrast observation	○	A5C.0913-1040
	phase contrast inserts module ， compatible with 20x、100x phase contrast observation	○	A5C.0913-20100
	telescope（Ø30mm）	○	A5C.0910-30

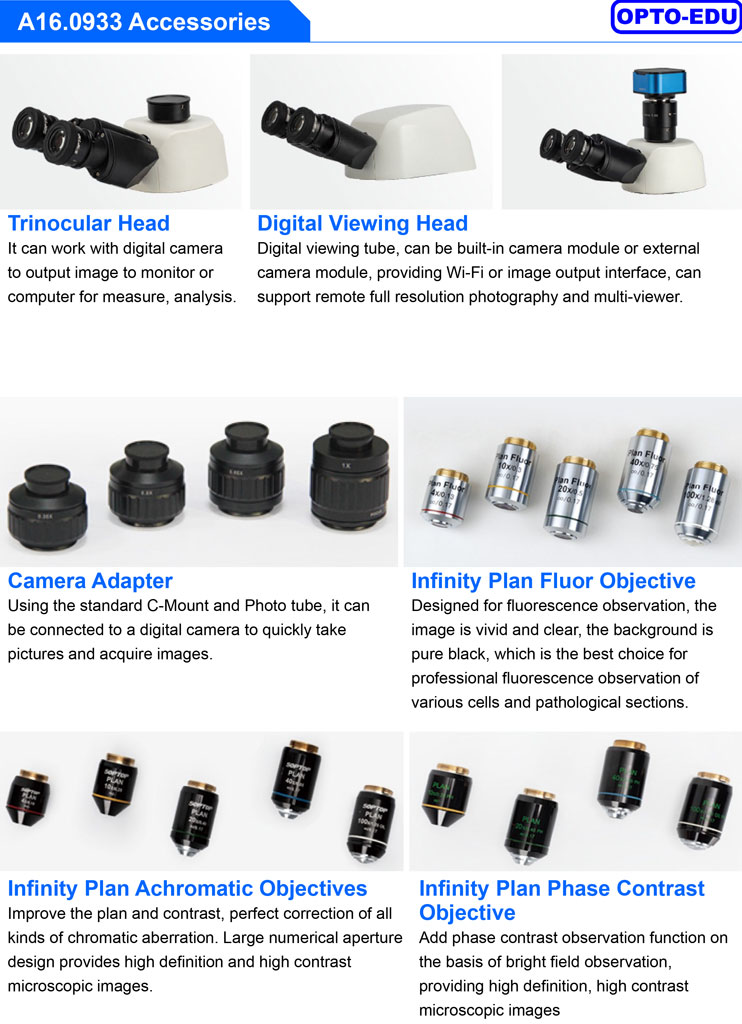

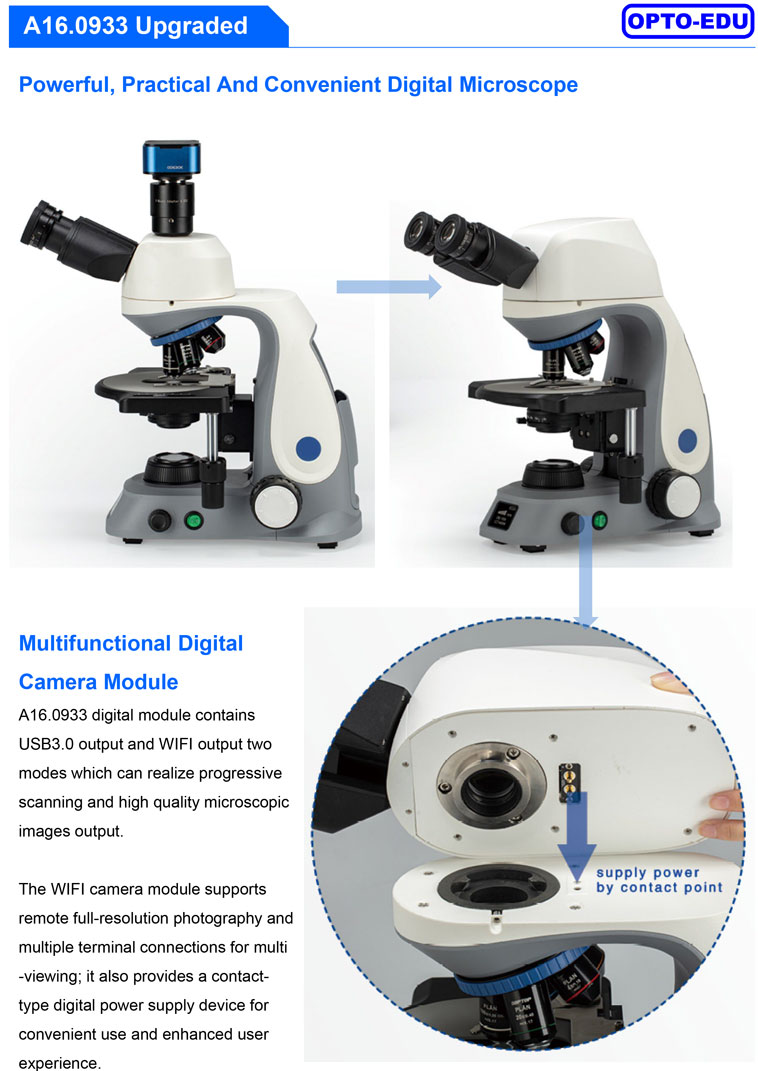

C-Mount	1X camera adapter , C mount , focusing adjustable	○	A5C.0931-10
	0.35X camera adapter , C mount , focusing adjustable	○	A5C.0931-35
	0.5X camera adapter , C mount , focusing adjustable	○	A5C.0931-05
	0.65X camera adapter，C mount，focusing adjustable	○	A5C.0931-65
other annexes	high precision reticle，scale value 0.01mm	○	A58.0903-1
other annexes	general reticle, scale value 0.01mm	○	A58.0903-2

Name	Central Wavelength	Application
UV4 long pass type LED fluorescent	385nm	module for DAPI/Hoechst 33342
B4 TB- specific module LED fluorescent	455nm	module for AuramineO/wtGFP
B1 band pass type LED fluorescent intermediate	470nm	module for GFP/FITC
G1 band pass type LED fluorescent intermediate	560nm	module for TexasRED/Cy3.5

Pictures

Model No.

A16.0933

Strømforsyningstype

AC 110V-240V

Lyskildetype

LED

Lyskildefunksjoner

Lysindikator
Farge Temp. Sett
Kohler
ØKO

Kondensator NA

1,25

Kondensator type

Abbe

Kondensatorfunksjoner

Spor For PH Slide
Spor For DF Slide
Filterholder
Senterjusterbar
Iris diafragma
Tannstangↆ↑

Fokuseringstype

Koaksial Grov & Fin

Fokuseringsfunksjoner

Spenning Justerbar
Sikkerhetsstopp-låsring

Type arbeidsfase

2-lags mekanisk

Funksjoner på arbeidsstadiet

Dobbel skyveholder
Størrelse ≥140x180mm
Rackless Safety Edge

Måltype

Infinity Plan

Nesestykkehull

5 hull

Nesestykke funksjoner

Innover
Kodet

Diameter på okularet

30,0 mm

Okularfunksjoner

Dioptri Justerbar

Head Light Path

E50:P50

Hode interpupillært

48~76 mm

Hoderotasjon

Roter hodet 360°
Øyerør Roter 360°

Hodets helling

30°

Hodetype

Seidentopf Trinocular

Optisk system

Infinity Plan

Funksjoner

evighet
Kodet nesestykke

Oppgraderingsfunksjon

BF+PH+DF+PL+FL

Standard funksjon
