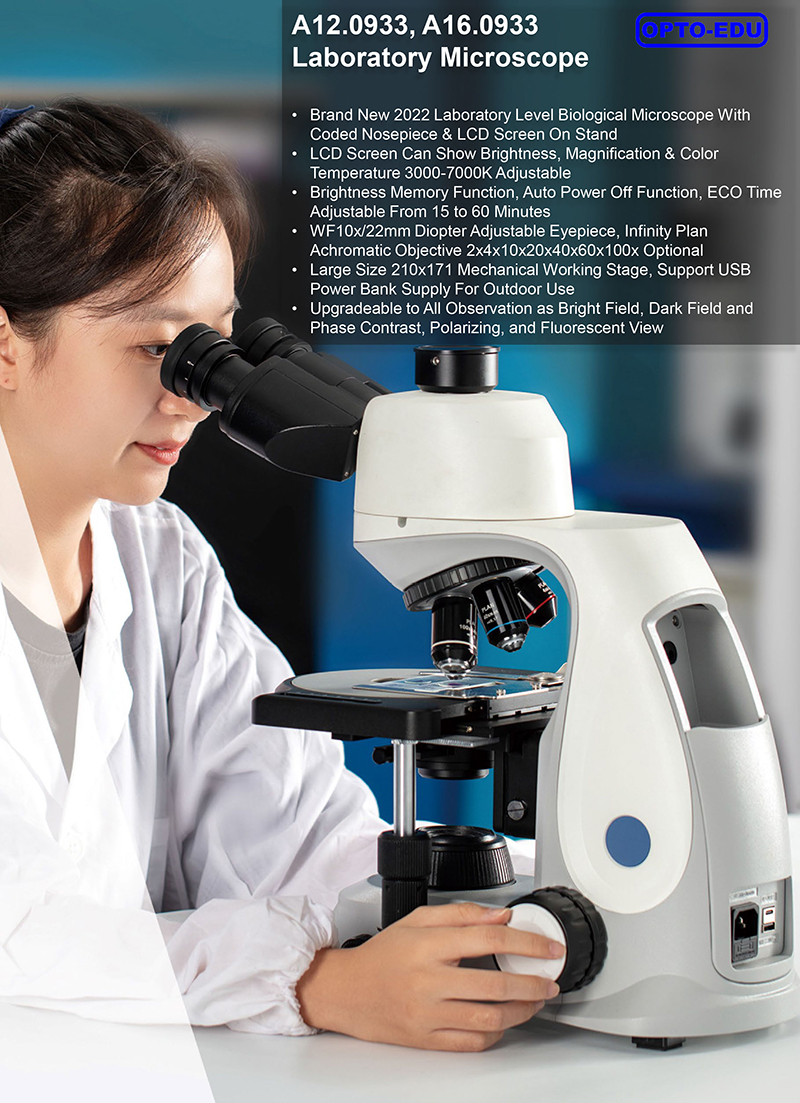

Fluorescent Biological Microscope

Brand New 2022 Laboratory Level Biological Microscope With Coded Nosepiece & LCD Screen On Stand

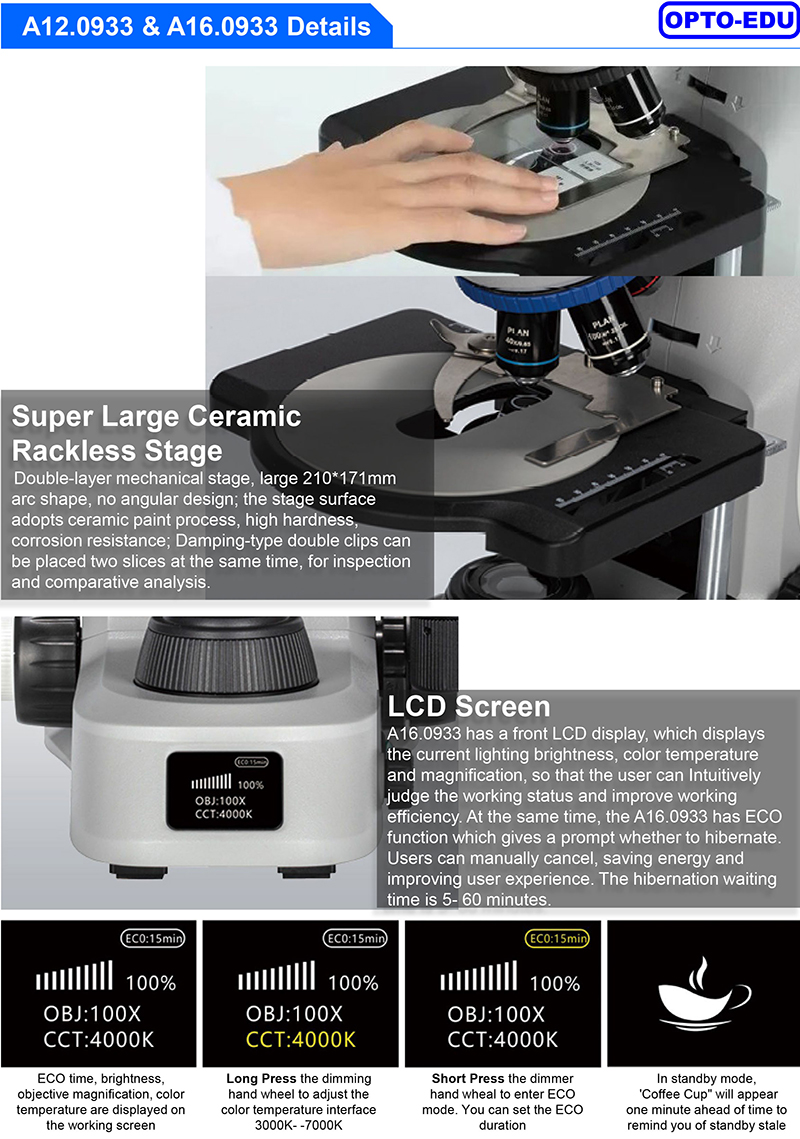

LCD Screen Can Show Brightness, Magnification & Color Temperature 3000-7000K Adjustable

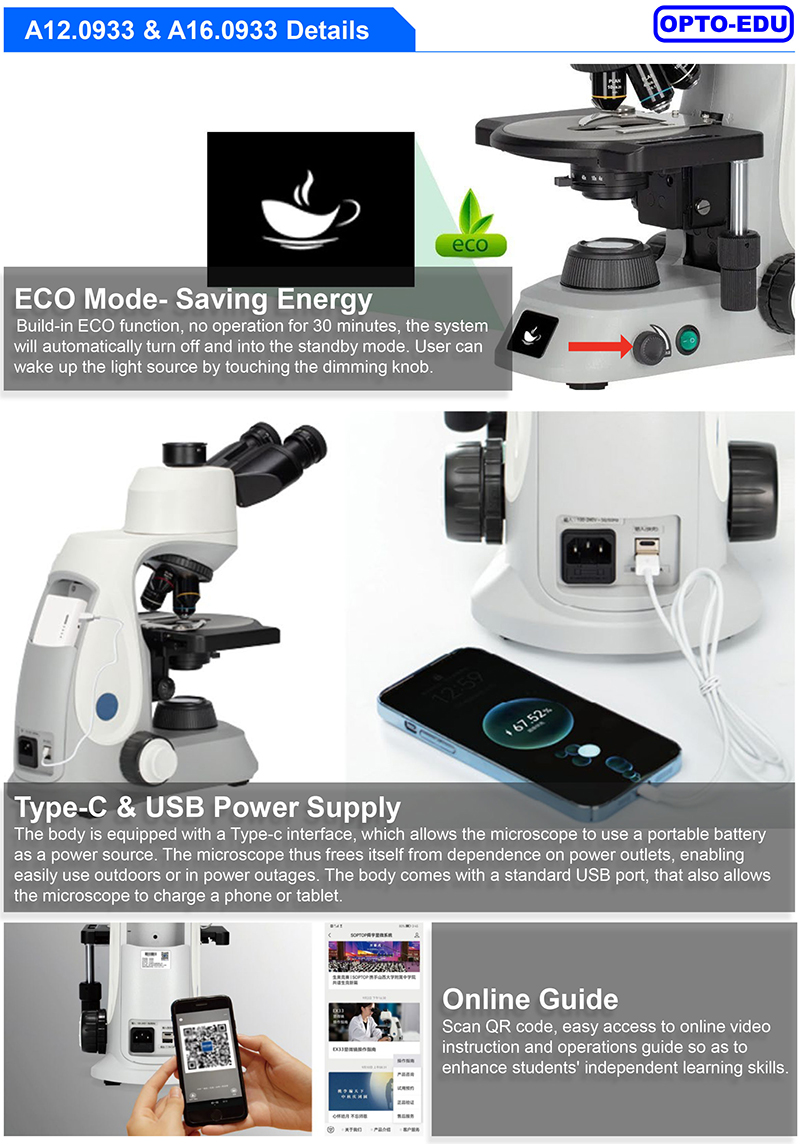

Brightness Memory Function, Auto Power Off Function, ECO Time Adjustable From 15 to 60 Minutes

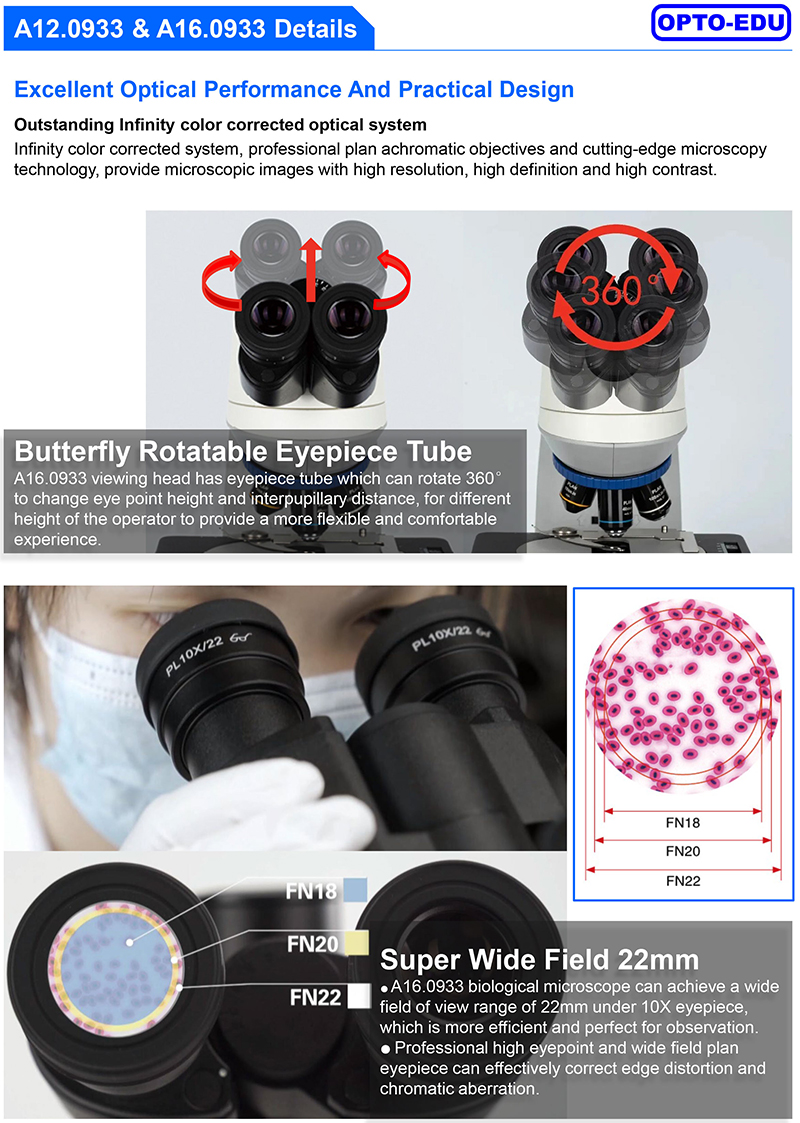

WF10x/22mm Diopter Adjustable Eyepiece, Infinity Plan Achromatic Objective 2x4x10x20x40x60x100x Optional

Large Size 210x171 Mechanical Working Stage, Support USB Power Bank Supply For Outdoor Use

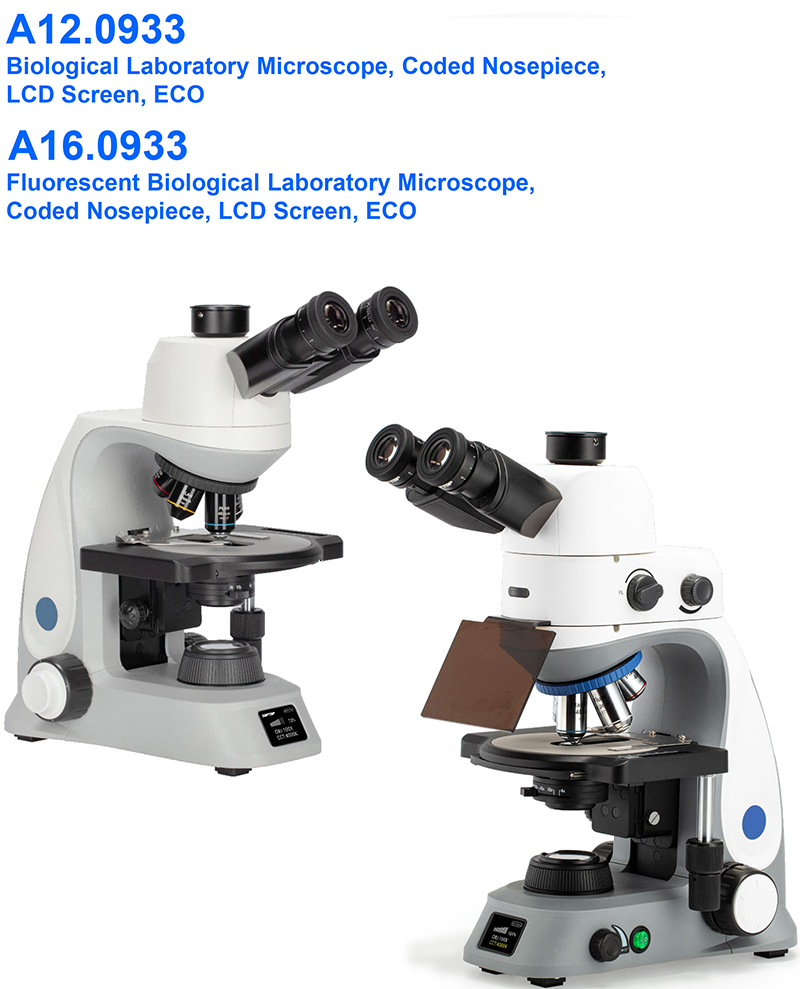

A12.0933 Series Laboratory Microscope		A12.0933	A16.0933	Cata. No.
A16.0933Fluorescent Biological Microscope		A12.0933	A16.0933	Cata. No.
Head	30° Inclined ，Gemel Binocular，360° Rotatable ，Adjustable Eye-point Height 375-428.5mm，fixed Eyepiece Tube ，Diopter Adjustable 48-76mm	○	○	A53.0933-B

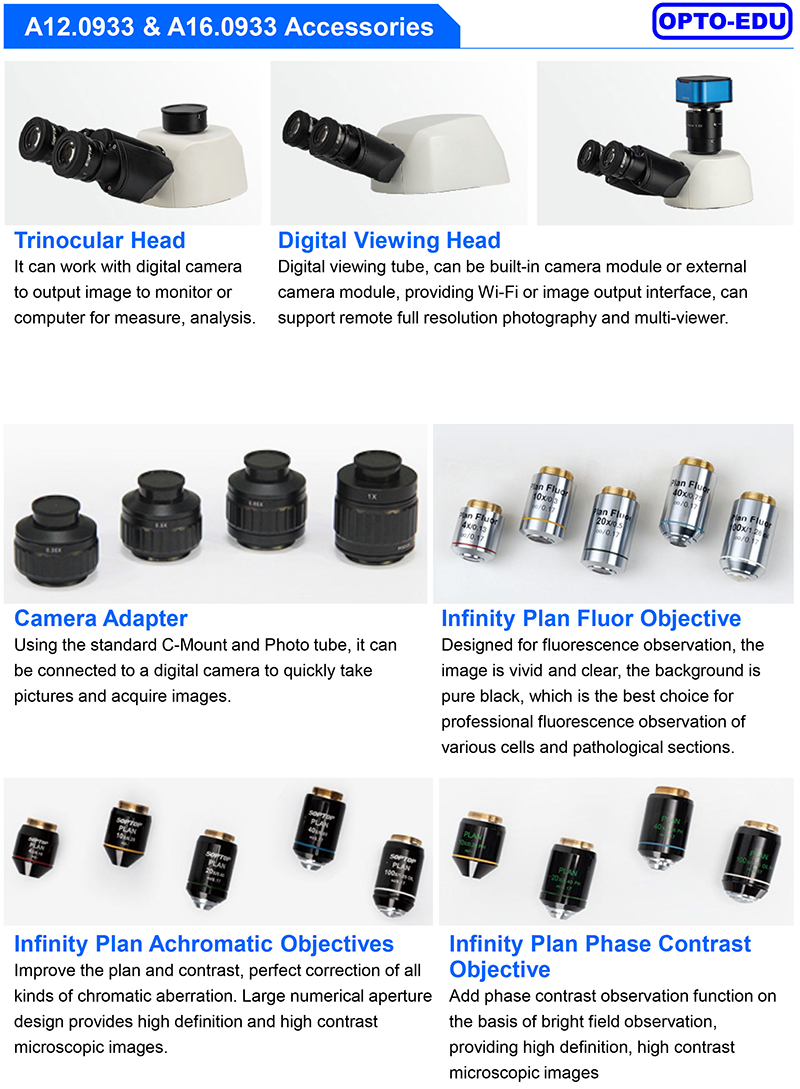

Head	30° Inclined ，Gemel Trinocular，360° Rotatable ，Adjustable Eye-point Height 375-428.5mm，fixed Eyepiece Tube ，Diopter Adjustable 48-76mm，spectroscopical Ratio R:T=50:50	●	●	A53.0933-T
High Eye Point PL Eyepiece	10X/20mm, Diopter Adjustable	○	○	A51.0904-1020T
	10X/20mm，diopter Adjustable, With Reticle	○	○	A51.0905-1020RT
	10X/22mm, Diopter Adjustable	●●	●●	A51.0904-1022T
	10X/22mm，diopter Adjustable, With Reticle	○	○	A51.0905-1022RT
	10X/22mm，diopter Adjustable, With Grid Plate	○	○	A51.0905-1022GT
Nosepiece	Backward 5 Holes Nosepiece	○	○

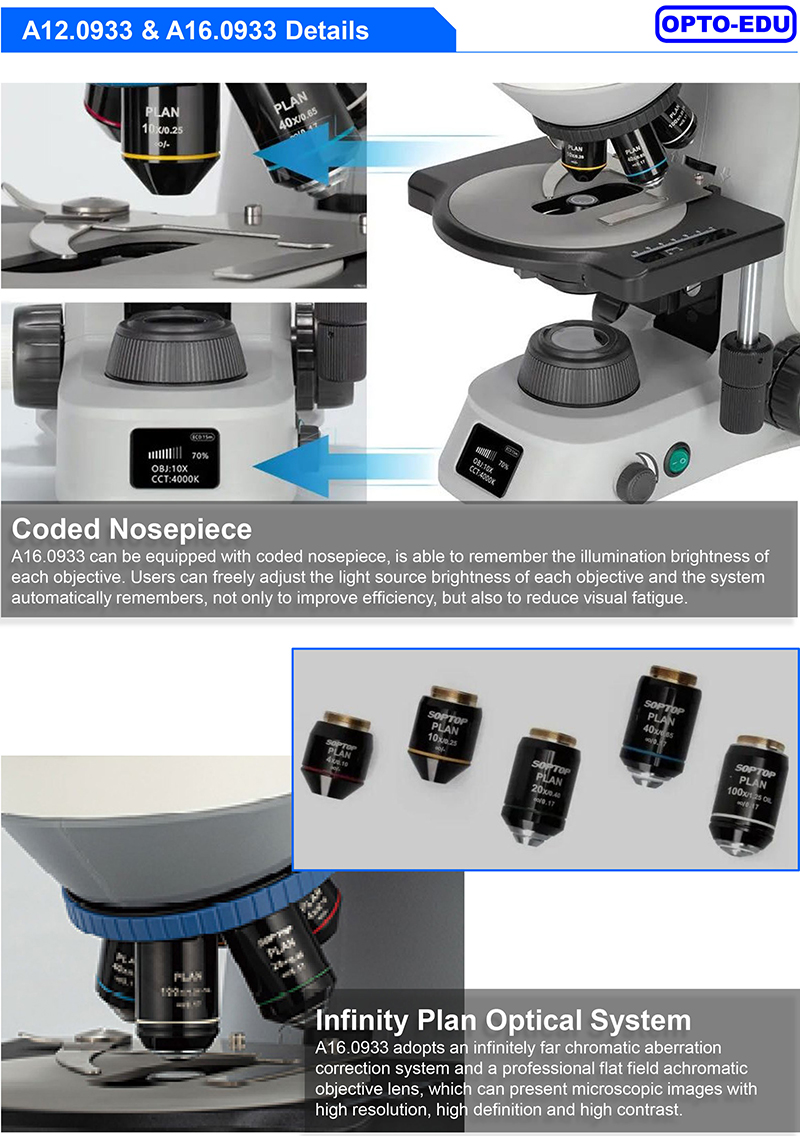

Nosepiece	Backward 5 Holes Coded Nosepiece	●	●
Infinity Plan Achromatic Objective	2x/Na0.06 Wd=5.00mm	○	○	A52.0906-2
	(Used Frosted Glasses Inserts Together)	○	○	A52.0906-2
	4x/Na0.1 Wd=15.00mm	●	○	A52.0906-4
	10x/Na0.25 Wd=10.8mm	●	●	A52.0906-10
	20x/Na0.40 Wd=1.50mm	○	●	A52.0906-20
	40x/Na0.65 Wd=0.80mm	●	●	A52.0906-40
	60x/Na0.85 Wd=0.30mm	○	○	A52.0906-60
	100x/Na1.25 Wd=0.21mm，oil	●	●	A52.0906-100
Infinite Plan Achromatic Phase Contrast Objective	10x/Na0.25 Wd=10.8mm	○	○	A5C.0937-10
	20x/Na0.40 Wd=1.50mm	○	○	A5C.0937-20
	40x/Na0.65 Wd=0.80mm	○	○	A5C.0937-40
	100x/Na1.25 Wd=0.18mm，oil	○	○	A5C.0937-100
Infinity Plan Semi-apo Fluorescence Objectives	4X/0.13 WD16.40MM	-	○	A5F.0950-4
	10x/0.30 Wd8.10mm	-	○	A5F.0950-10
	20x/0.50 Wd2.00mm	-	○	A5F.0950-20
	40x/0.75 Wd0.74mm	-	○	A5F.0950-40
	100x/1.28 Wd0.14mm	-	○	A5F.0950-100
Working Stage	Double Layers Mechanical Stage, Size 210171mm，moving Range 7851mm，scale 0.1mm, Reckless Safety Edge, Double Slide Holder	●	●
Focusing	Low Position Coaxial Coarse & Fine Focusing Knob, With Tension Adjust Ring, With Safety Upper Stop Limit Ring, Coarse Focusing Range 27mm, Fine Focusing Scale 0.002mm	●	●
Main Body	Wide Range Power Supply 100-240V, High Brightness 3W LED, Cold Light Color Temperature 4750-5500K, Brightness Adjustable, With Type-c Port Support Power Supply From USB Power Bank, With ECO Function	○	○
	Wide Range Power Supply 100-240V, High Brightness 3W LED, With LCD Screen On Stand, Color Temperature Adjustable 3000-7000K, Magnification Display, Brightness Memory, ECO Function Time Setup	●	○
	Wide Range Power Supply 100-240V, High Brightness 5W LED, With LCD Screen On Stand, Magnification Display, With Type-c Port Support Power Supply From USB Power Bank, ECO Function Time Setup	○	●
Condenser	Kohler Condenser NA1.25, PH/DF Slide Slot, Iris Diaphragm, Pre-centered.	●	●	A56.0933-E33
Dark Field	Dark Field Slide, For 4x-40x Objective	○	○	A5D.0933
Phase Contrast	Phase Contrast Slide, For 10x, 40x Objective	○	○	A5C.0913-1040
	Phase Contrast Slide, For 20x, 100x Objective	○	○	A5C.0913-20100
	Centering Telescope, Dia.30mm	○	○	A5C.0910-30
Polarizing	Polarizer & Analyzer	○	○	A5P.0915

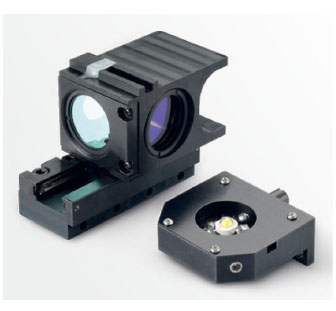

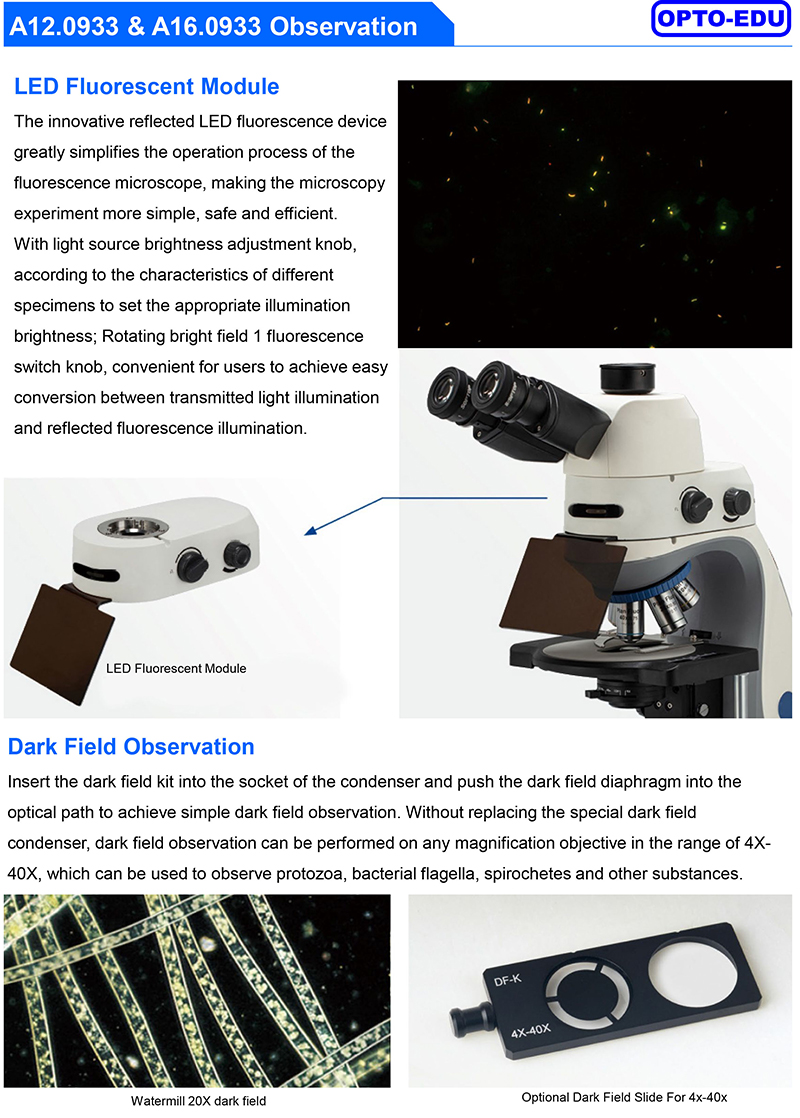

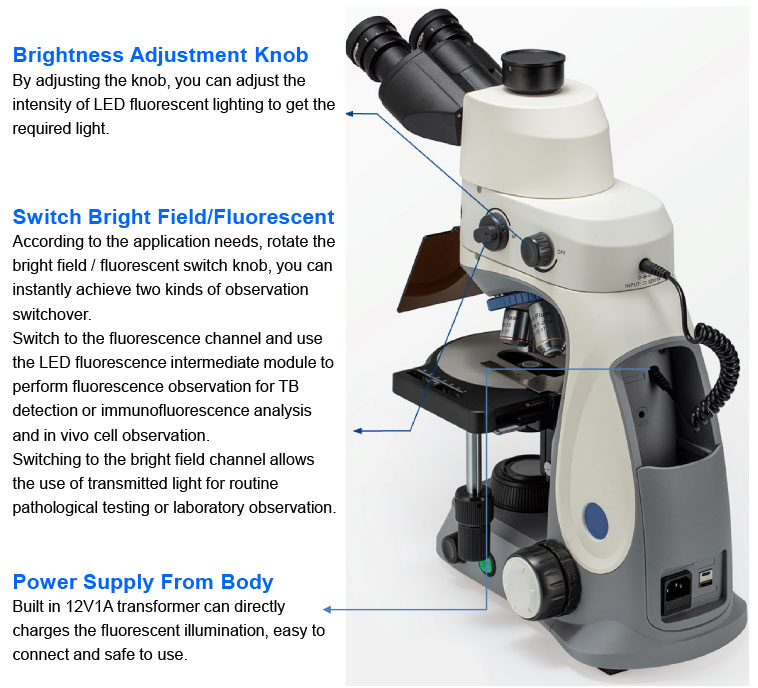

LED Fluorescent Module	LED Fluorescent Module With Intensity Adjust Knob, BF/FL Switching Knob, Band Pass Filter, Central Wavelength 470nm.	○	●	A5F.0933-B1
	LED Fluorescent Module With Intensity Adjust Knob, BF/FL Switching Knob, Long Pass Filter, Central Wavelength 470nm.	○	○	A5F.0933-B2
	LED Fluorescent Module With Intensity Adjust Knob, BF/FL Switching Knob, Band Pass Filter, Central Wavelength 560nm.	○	○	A5F.0933-G1
	LED Fluorescent Module With Intensity Adjust Knob, BF/FL Switching Knob, Long Pass Filter, Central Wavelength 385nm.	○	○	A5F.0933-UV2
	LED Fluorescent Module With Intensity Adjust Knob, BF/FL Switching Knob, Long Pass Filter, Central Wavelength 385nm.	○	○	A5F.0933-UV4
	LED Fluorescent Module With Intensity Adjust Knob, BF/FL Switching Knob, For TB, Central Wavelength 455nm.	○	○	A5F.0933-B4
Stage Micrometer	High Recission Reticle ，Scale Value 0.01mm	○	○	A58.0903-1
Stage Micrometer	General Reticle, Scale Value 0.01mm	○	○	A58.0903-2
Adapter	1.0x C-mount, Focus Adjustable	○	○	A5C.0931-10
	0.35x C-mount, Focus Adjustable	○	○	A5C.0931-35
	0.5x C-mount, Focus Adjustable	○	○	A5C.0931-05
	0.65x C-mount, Focus Adjustable	○	○	A5C.0931-65
Package & Accessory	Inner Hexagon Spanner M4 (L Type)	●	●
	Dust Cover	●	●
	Cleaning Paper	●	●
	Instruction Manual	●	●
	Pearl Sponge Inside, Master Carton	●	●

Name	Central Wavelength	Cata. No.
B1 Band Pass	470nm	A5F.0933-B1
For GFP/FIT
B2 Long Pass	470nm	A5F.0933-B2
G1 Band Pass	560nm	A5F.0933-G1
For Texasred/Cy3.5
UV2 Long Pass	385nm	A5F.0933-UV2
UV4 Long Pass	385nm	A5F.0933-UV4
For DAP/Hoechst 33342
B4 Tb – Led	455nm	A5F.0933-B4
For Auramine/Wtgfp

Pictures

Model No.

A16.0933

Power Supply Type

AC 110V-240V

Transmit Light

3W LED, LCD Screen, Color Temperature Adjustable 3000-7000K, Mangification Display, Brightness Memor

Light Source Type

LED

Light Source Features

Light Indicator
Color Temp. Set
Kohler
ECO

Condenser N.A.

1.25

Condenser Type

Abbe

Condenser Features

Slot For PH Slide
Slot For DF Slide
Filter Holder
Center Adjustable
Iris Diaphragm
Rack & Pinionↆ↑

Focusing Scale

0.002mm

Focusing Range

27mm

Focusing Type

Coaxial Coarse & Fine

Focusing Features

Tension Adjustable
Safety Stop Lock Ring

Working Stage Moving

78×51mm

Working Stage Size

210×171mm

Working Stage Type

2 Layers Mechanical

Working Stage Features

Double Slide Holder
Size ≥140x180mm
Rackless Safety Edge

Objective

Infinity Plan Achromatic 4x10x40x100x

Objective Type

Infinity Plan

Nosepiece Holes

5 Holes

Nosepiece Features

Inward
Coded

Eyepiece

PL10x/22mm, 2 pcs

Eyepiece Diameter

30.0mm

Eyepiece Features

Diopter Adjustable

Head Light Path

E50:P50

Head Interpupillary

48~76mm

Head Rotation

Head Rotate 360°
Eyetube Rotate 360°

Head Inclination

30°

Head Type

Seidentopf Trinocular

Standard Magnification

40x-1000x

Optical System

Infinity Plan

Features

Infinity
Coded Nosepiece

Upgrade Function

BF+PH+DF+PL+FL

Standard Function
