NIS Infinity Optical System
Nis Infinity Plan Objectives Can Provide High Contrast And Very Flat Image
Up To Fn 22. With Fn 22 Wide Field Eyepieces, The System Always Brings You Sharp,
Excellent Resolution And High Signal To Noise Ratio Imaging.

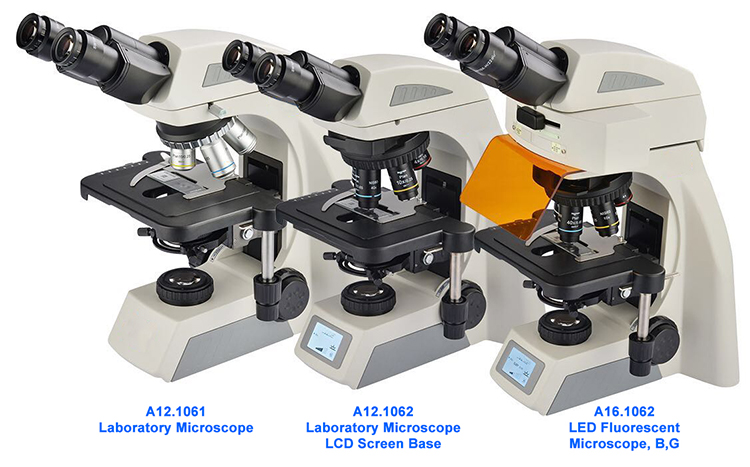

Case For A12.1061, A12.1062, A16.1062, More Details & Pictures
Coded Nosepiece (Available In A12.1062 Series)
It Can Memorize The Illumination Brightness When Using Each Objective.
When Different Objectives Are Converted To Each Other,
The Light Intensity Is Automatically Adjusted To Reduce Visual Fatigue And Improve Work Efficiency.

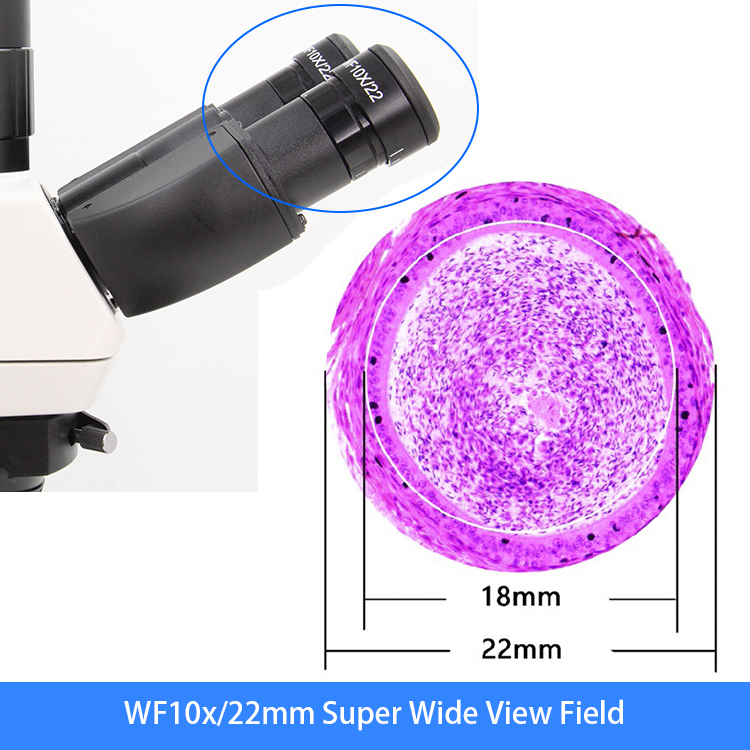

22mm Wide Field Of View

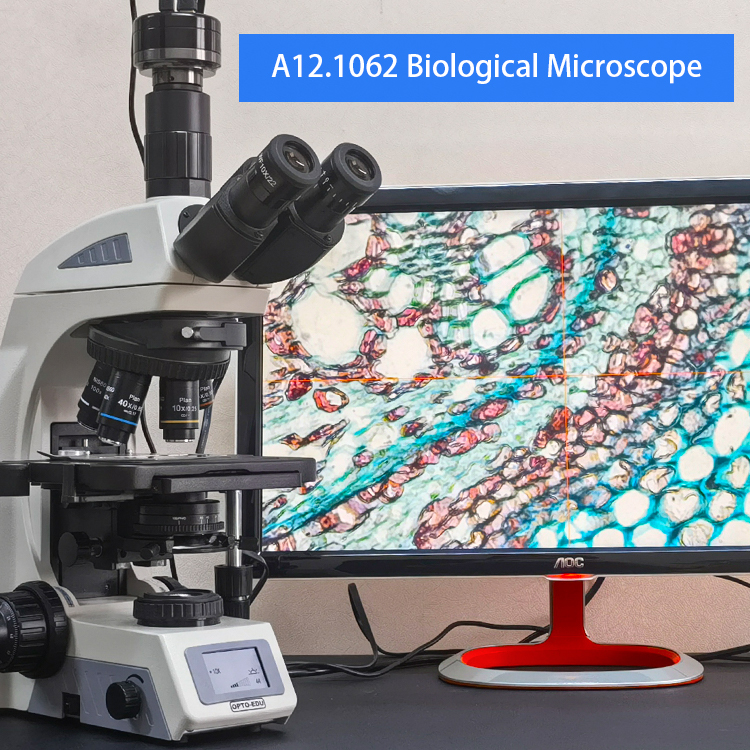

The A12.1062 Microscope Achieves The Wide Field Of 22mm View With 10x Eyepieces
For A More Comprehensive Observation Content And Faster Sample Observation.
The Eyepiece Adopts A Flat Field Distortion-free Design To Prevent The Edge Of The Field From Being Imaginary And Stray Light.

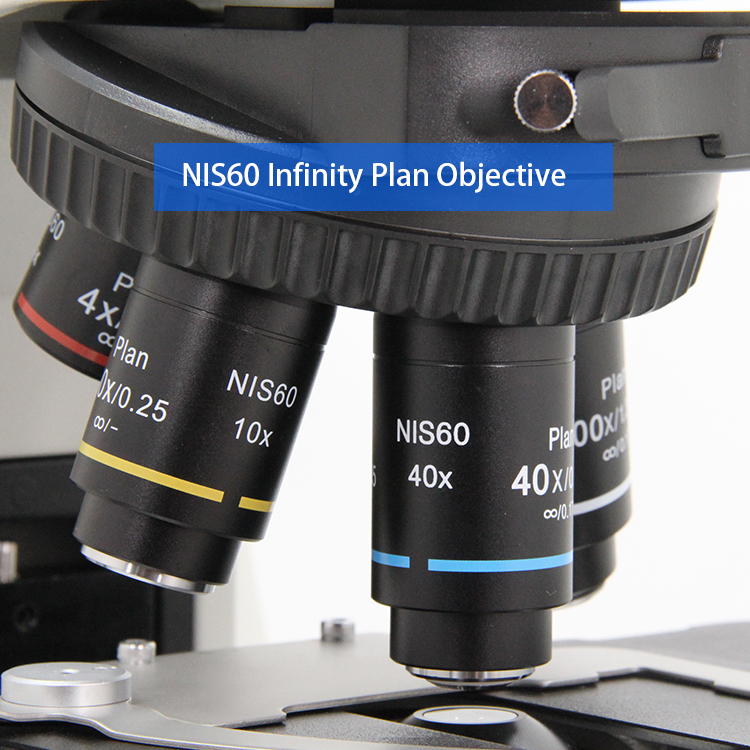

Plan Objective
By Using Infinity Plan Objectives, Flat Image With Higher Imaging Reduction Degree Over
The Entire Field Of View Could Be Achieved.

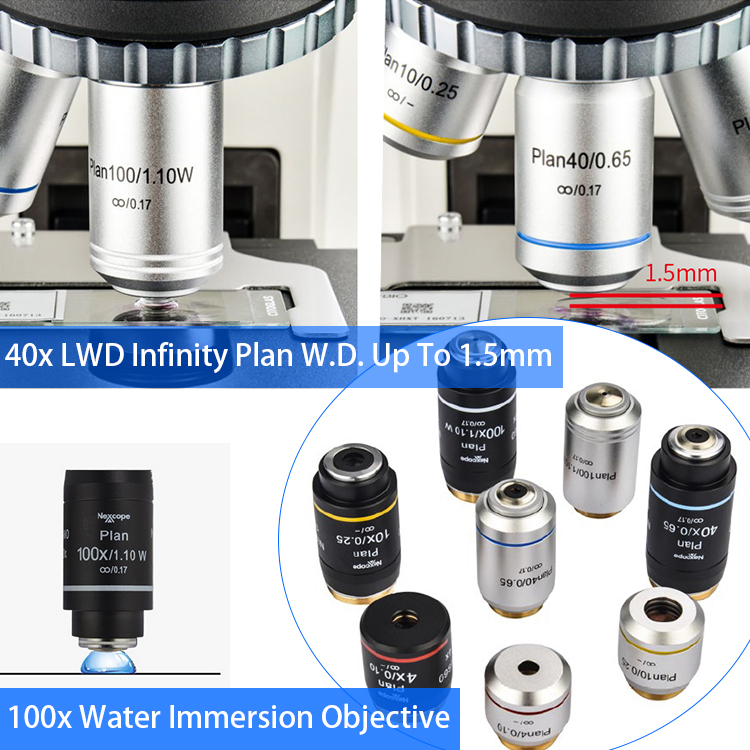

40x LWD Objective
The Working Distance Of 40x Objective Can Be Up To 1.5mm, Avoiding The Erosion From
Residual Immersion Oil And Water When Converted From 100x To 40x Objective.
100x Water-immersion Objective
Ordinary 100x Oil-immersion Objective Needs To Use Cedar Oil As The Observation Medium.
After Use, It Needs To Be Cleaned With Ether Alcohol Or Xylene, Which Is Easy To Cause Air Pollution And Improper Cleaning.
The Water - Immersion Objective Uses Water As A Medium To Solve The Above Problems Perfectly, Reducing The Damage To The Body And Environmental Pollution.

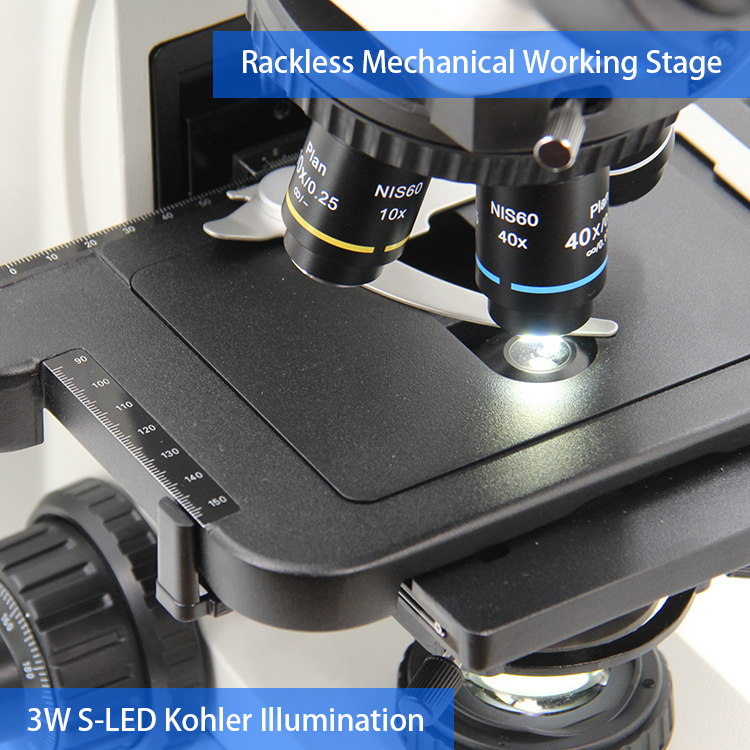

Working Stage
Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm, Anti-Scratch Hard Coating Dural Platform

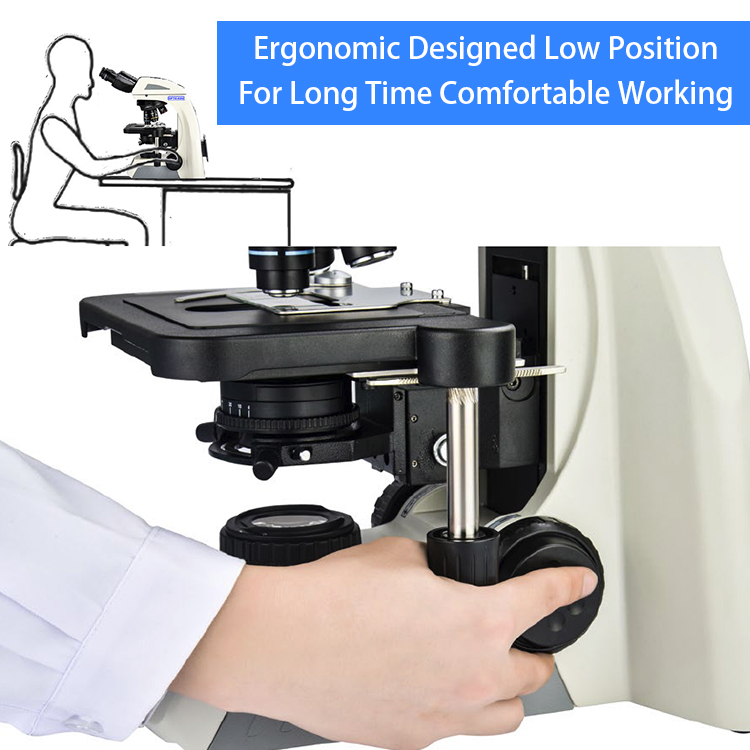

Ergonomic Design
| In Daily Scientific Research Teaching And Pathological Diagnosis, Working In Front Of The Microscope For A Long Time Has Become The Norm, And The Consequent Use Fatigue Often Leads To Physical Discomfort, Thereby Reducing Work Efficiency And Effectiveness. This A12.1062 Microscope Uses An Ergonomic Design, High Eye-point, Low-hand Focus Mechanism, Low-hand Stage And Other Ergonomic Designs To Ensure The User Can Perform Microscope Operation In The Most Comfortable Situation. . The Focus Knob, Illumination Control Knob And Stage Handle Are All In Close Proximity. The User Can Put Both Hands On The Table While Working, And Can Operate A12.1062 With Minimal Movement. |

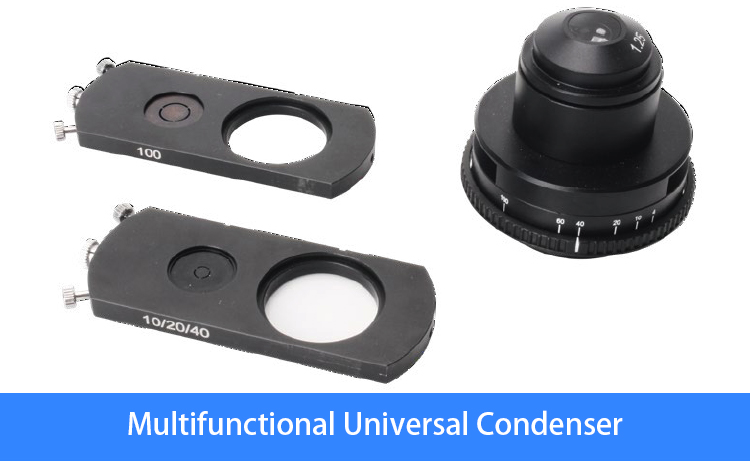

A12.1062 Offers Universal Condensers For Bright Field, Dark Field And Phase Contrast.
The Observation Methods Could Be Quickly Switched By Switching The Slider.
The Phase Contrast And Bright Field Slider Is Universal For 4x- 100x Objectives Also,
Simple And Fast To Use. The N.A. Value Index On The Aperture Diaphragm Of The Condenser Is
Easily Set To Get Exact Size Of Diaphragm To Correspond With The Different Objectives.

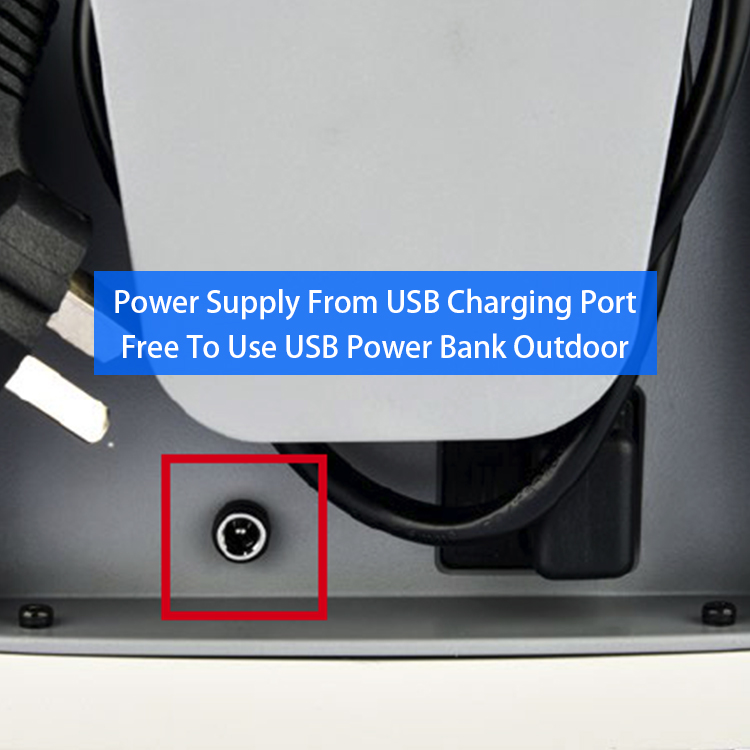

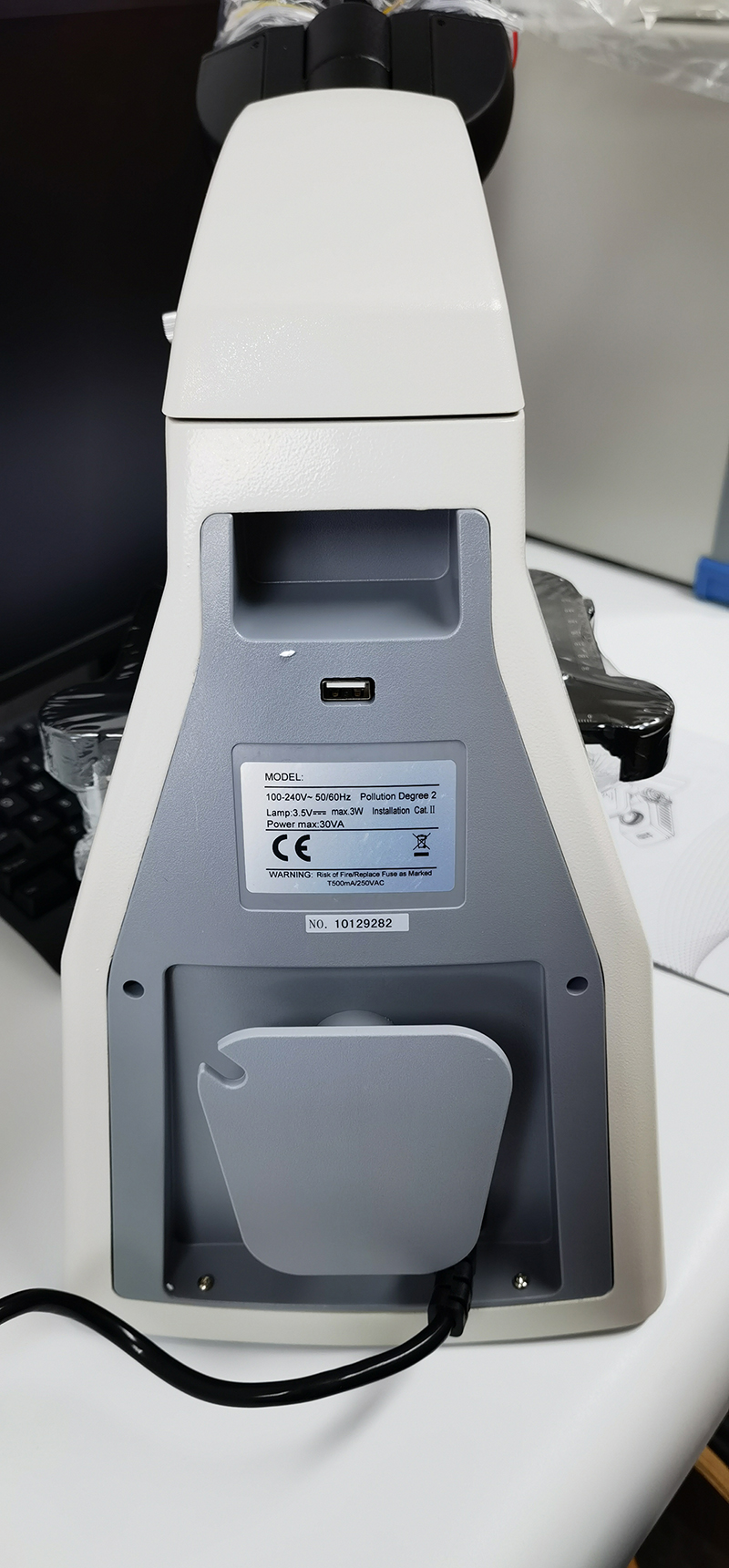

External Rechargeable Battery
A USB Charging Port Is Reserved On The Body, Which Can Be Used As A Microscope Power Source.
This Microscope Can Also Be Used Outside And During Power Outages To Get Rid Of The Microscope's Dependence On The Power Outlet.

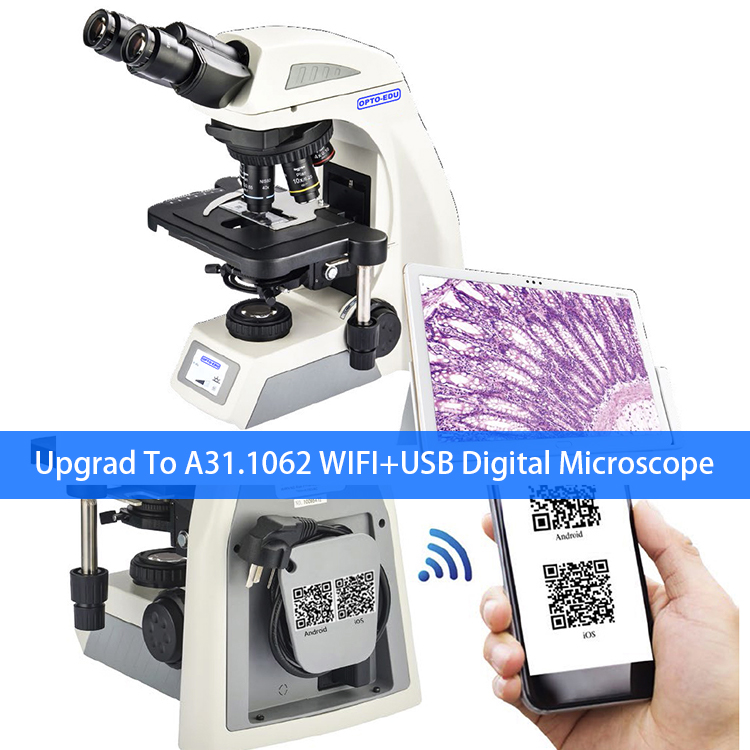

A31.1062 Digital Microscope, WIFI & USB
Built-in Camera 5.0M, USB 2.0 or WIFI Output, Supporting Android, IOS, Windows Operating System,
Wired And Wifi Modes The Image Under The Microscope Can Be Output To
The External Device In Real Time, And There Is No Data Line Connection, And The Operator Can Move More Freely.
| A12.1061, A12.1602 Laboratory Microscope A16.1062 LED Fluorescent Microscope | A12.1061 | A12.1062 | A16.1062 | Cata. No. | ||||
| -B | -T | -B | -T | -B | -T | |||
| Optical System | NIS Infinite Optical System | ● | ● | ● | ● | ● | ● | |
| Observation Method | Bright Field | ● | ● | ● | ● | ● | ● | |
| Dark Field | ○ | ○ | ○ | ○ | ○ | ○ | ||
| Polarizing | ○ | ○ | ○ | ○ | ○ | ○ | ||
| Phase Contrast | - | - | ○ | ○ | ○ | ○ | ||
| Epi-Fluorscence | - | - | ○ | ○ | ● | ● | ||
| Head | Seidentopf Binocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm | ● | ● | ● | A53.1061-B | |||
| Seidentopf Trinocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm, Light Path Fixed 50:50 | ● | ● | ● | A53.1061-T | ||||
| Seidentopf Trinocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm, Light Path Switchable 0:100/100:0 | ○ | ○ | ○ | ○ | ○ | ○ | A53.1061-TS | |
| Tilting Binocular Head, Inclined 5°~35° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm | ○ | ○ | ○ | ○ | ○ | ○ | A53.1061-BS | |
| Digital Head, Built-in Digital Camera 5.0M, Support Android, IOS, Windows, Output Image By WIFI In Real Time Upgrade to A31.1062-5.0M | - | - | ○ | ○ | - | - | A53.1061-5.0M | |
| Digital Head, Built-in Wireless Digital Camera 5.0M, Support Android, IOS, Windows, Output Image By WIFI In Real Time, App Software, By Scanning QR Code On Microscope, Installing App & Identifying Microscope, You Can View Micro Image On Mobile Phone & Tablet. Upgrade to A31.1062-5.0W | - | - | ○ | ○ | - | - | A53.1061-5.0W | |
| Eyepiece | EW10x/22mm, Diopter Adjustable, Dia.30mm | ● | ● | ● | ● | ● | ● | A51.1029-1022 |
| EW15x/16mm, Diopter Adjustable, Dia.30mm | ○ | ○ | ○ | ○ | ○ | ○ | A51.1029-1516 | |
| EW20x/12mm, Diopter Adjustable, Dia.30mm | ○ | ○ | ○ | ○ | ○ | ○ | A51.1029-2012 | |
| Nosepiece | Quintuple Nosepiece, Dovetail Interface | ● | ● | - | - | - | - | |
| Coded Quintuple Nosepiece, Dovetail Interface | - | - | ● | ● | ● | ● | ||
| NIS45 Infinity Plan Objective | 4x/0.10, W.D.20.6mm | ● | ● | - | - | - | - | A52.1045-4 |
| 10x/0.25, W.D.17.9mm | ● | ● | - | - | - | - | A52.1045-10 | |
| 20x/0.40, W.D.6.40mm | ○ | ○ | - | - | - | - | A52.1045-20 | |
| 40x/0.60, W.D.1.50mm | ● | ● | - | - | - | - | A52.1045-40 | |
| 60x/0.80, W.D.0.30mm | ○ | ○ | - | - | - | - | A52.1045-60 | |
| 100x/1.25(Oil), W.D.0.16mm | ● | ● | - | - | - | - | A52.1045-100 | |
| 100x/1.10(Water), W.D.0.16mm | ○ | ○ | - | - | - | - | A52.1045-100W | |
| NIS60 Infinity Plan Objective | 4x/0.10, W.D.30.0mm | - | - | ● | ● | ● | ● | A52.1060-4 |
| 10x/0.25, W.D.10.2mm | - | - | ● | ● | ● | ● | A52.1060-10 | |
| 20x/0.40, W.D.4.8mm | - | - | ○ | ○ | ○ | ○ | A52.1060-20 | |
| 40x/0.65, W.D.1.5mm | - | - | ● | ● | ● | ● | A52.1060-40 | |
| 60x/0.80, W.D.0.30mm | - | - | ○ | ○ | ○ | ○ | A52.1060-60 | |
| 100x/1.25(Oil), W.D.0.3mm | - | - | ● | ● | ● | ● | A52.1060-100 | |
| 100x/1.10(Water), W.D.0.2mm | - | ○ | ○ | ○ | ○ | A52.1060-100W | ||
| NIS60 Infinity Plan Phase Contrast Objective | 10x/0.25, W.D.10.2mm | - | - | ○ | ○ | ○ | ○ | A5C.1060-10 |
| 20x/0.40, W.D.12.0mm | - | - | ○ | ○ | ○ | ○ | A5C.1060-20 | |
| 40x/0.65, W.D.0.7mm | - | - | ○ | ○ | ○ | ○ | A5C.1060-40 | |
| 100x/1.25(Oil), W.D.0.2mm | - | - | ○ | ○ | ○ | ○ | A5C.1060-100 | |
| Focusing | Coaxial Coarse & Fine Adjustment, Tension Adjustable, Fine Division 0.002mm, Coarse Focusing Range 28mm | ● | ● | ● | ● | ● | ● | |
| Working Stage | Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm | ● | ● | - | - | - | - | |
| Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm, Anti-Scratch Hard Coating Dural Platform | - | - | ● | ● | ● | ● | ||

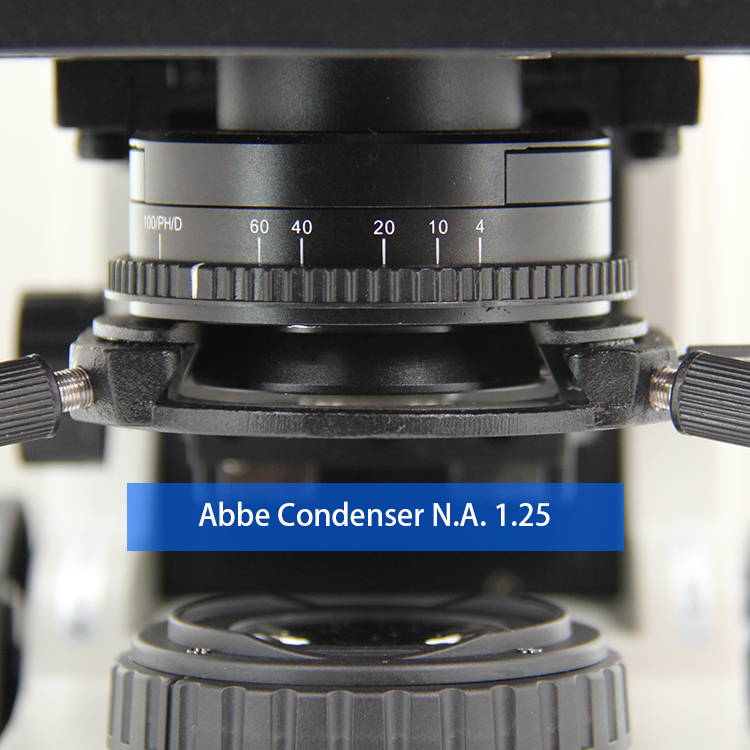

| Condenser | Inserted Abbe Condenser N.A. 1.25, With Slot For Phase Contrast Slide And Dark Field Slide. | ● | ● | ● | ● | ● | ● | |
| Illumination | 1W S-LED Critical Illumination | ● | ● | - | - | - | - | |
| 3W S-LED Kohler Illumination | - | - | ● | ● | ● | ● | ||
| Green Filter | ● | ● | ● | ● | ● | ● | ||
| Dark Field | Dark Field Slide | ○ | ○ | ○ | ○ | ○ | ○ | A5D.1062 |
| Polarizing | Simple Polarizing Set | ○ | ○ | ○ | ○ | ○ | ○ | A5P.1008 |
| Phase Contrast | Phase Slider For 10x-40x | ○ | ○ | ○ | ○ | ○ | ○ | A5C.1062-S1040 |
| Phase Slider For 100x | ○ | ○ | ○ | ○ | ○ | ○ | A5C.1062-S100 | |
| Epi-Fluorescence Attachment | 3W LED Epi-Fluorescence Attachment, Fly-Eye Lens Illumination, With 2 Filter Position + Bright Field Position, Switch Quickly, With Attachable UV Shield, B, G Filters | ○ | ○ | ○ | ○ | ● | ● | A5F.1062 |
| Filter U | ○ | ○ | ○ | ○ | ○ | ○ | A5F.1062-U | |
| Filter V | ○ | ○ | ○ | ○ | ○ | ○ | A5F.1062-V | |
| Photo Adapter | 1.0x C-Mount | ○ | ○ | ○ | ○ | ○ | ○ | A55.1062-1.0 |
| 0.5x C-Mount | ○ | ○ | ○ | ○ | ○ | ○ | A55.1062-0.5 | |
| Power Supply | AC 100-240V,50/60Hz | ● | ● | ● | ● | ● | ● | |
| USB Charging Port, Support To Use Exeternal Rechargeable Battery Power Bank Like Mobile Phone Out Door Freely | ● | ● | ● | ● | ● | ● | ||

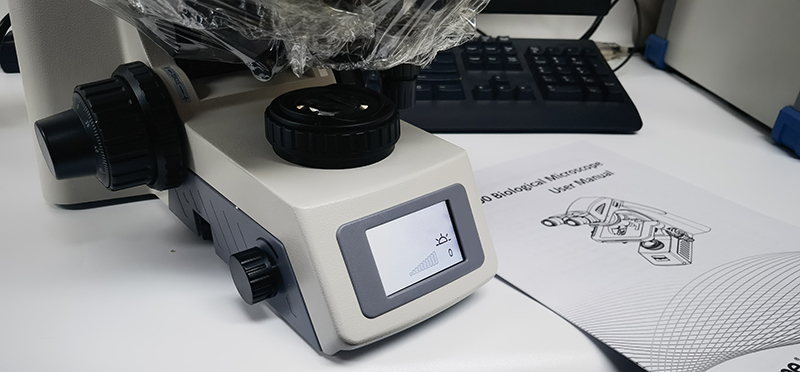

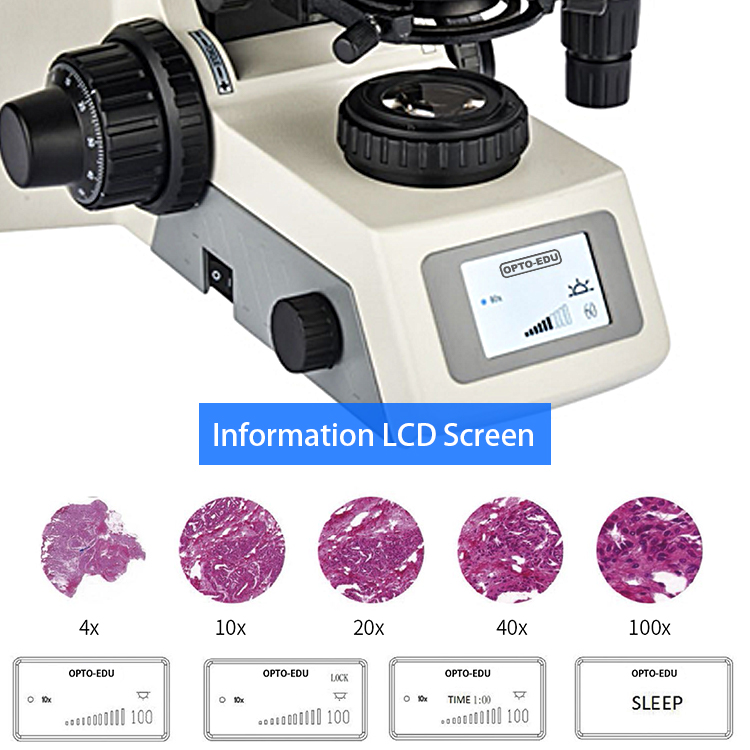

| LCD Screen | LCD Screen On Front Of Body, Display Using State Of Microscope, Including Magnification, Light Intensity, Standby Status, Set Power Off Timer 5 Mins to 8 Hours, And So On. | - | - | ● | ● | ● | ● | |

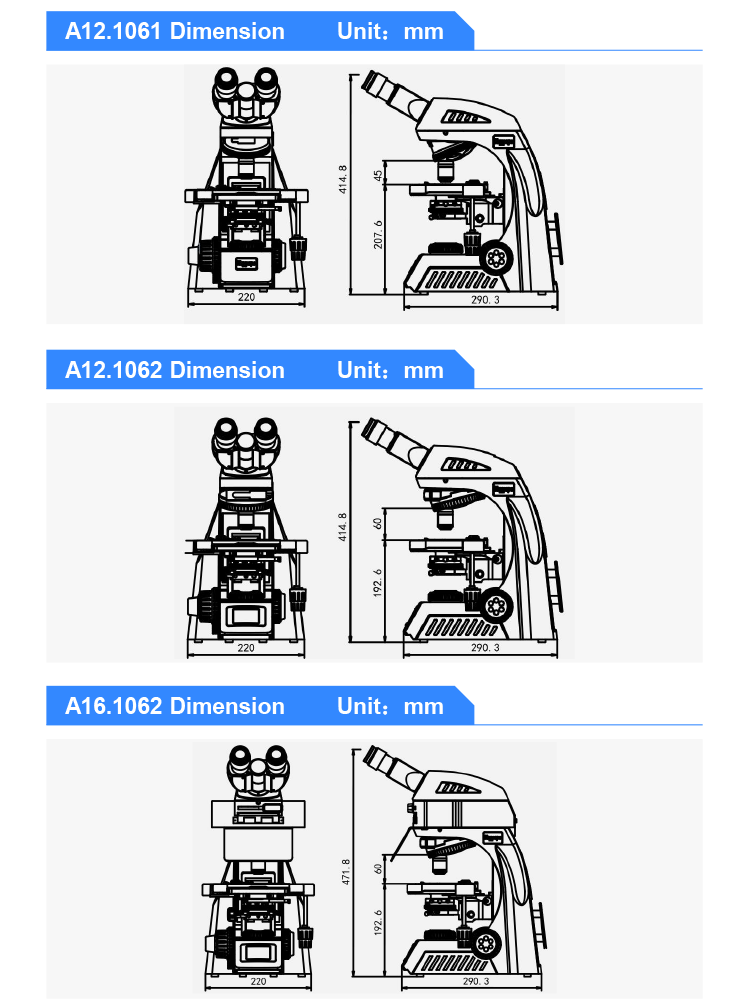

| Dimensions | 220(W)x290(D)x472(H) mm | ● | ● | ● | ● | ● | ● | |
| Note:"●"In Table Is Standard Outfits,"○"Is Optional Accessories"-"Is Unavailable | ||||||||
