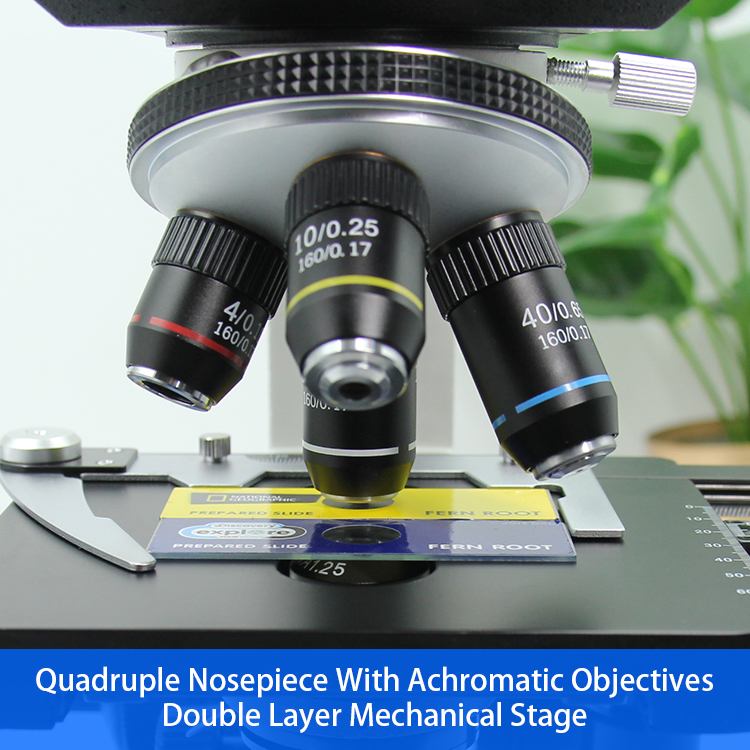

Nosepiece & Objective --Quadruple Nosepiece, With Achromatic Objectives : 4x, 10x, 40x(s), 100x(s). --40x And 100x Objective Lens Has A Spring Design, If The Front Of The Objective Lens Is Automatically Indented, It Will Not Damage The Objective Lens And Sample. --The 100x Objective Lens Is An Oil Objective Lens. When Used, Cedar Oil Is Used As A Medium For Better Observation. Working Stage --Double Layer Mechanical Stage, Size 140x140mm, Moving Range 50x75mm Medium-sized Large Working Stage, You Can Place Two Microscope Slides For Easy Observation And Comparison. |

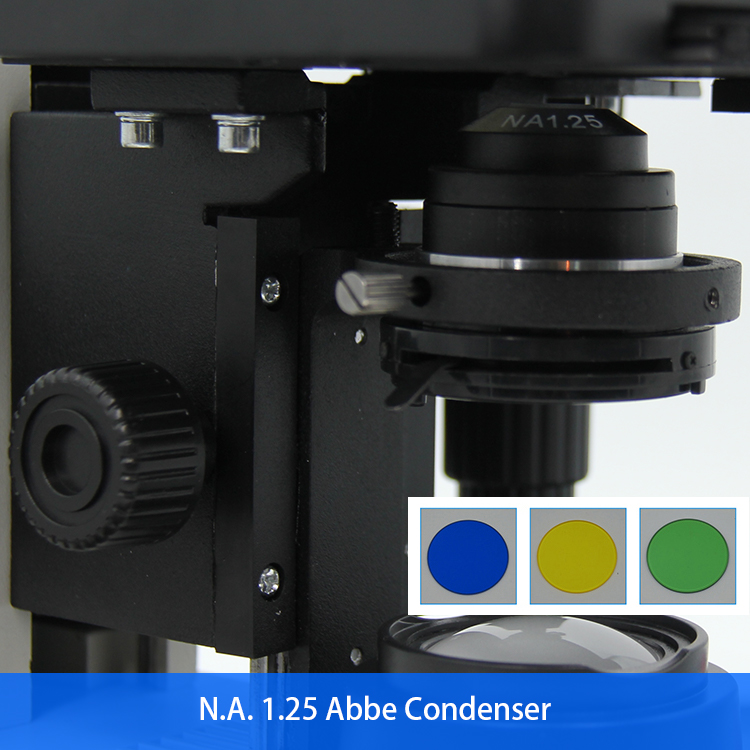

Condenser
--N.A. 1.25 Abbe Condenser, Iris Diaphragm, With Filter Holder.

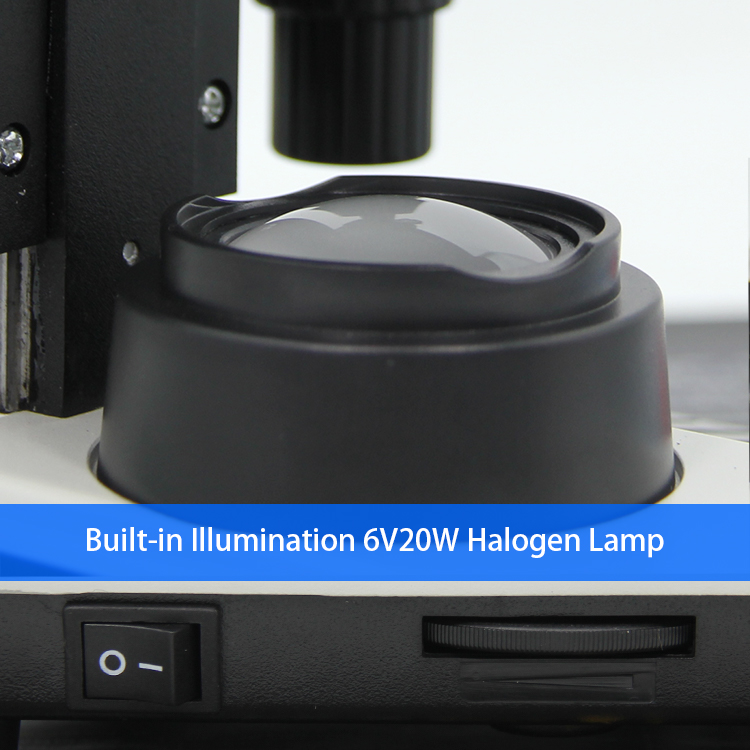

Illumination
--Built-in Illumination 6V20W Halogen Lamp, Can Be Replaced By A Plan-concave Mirror

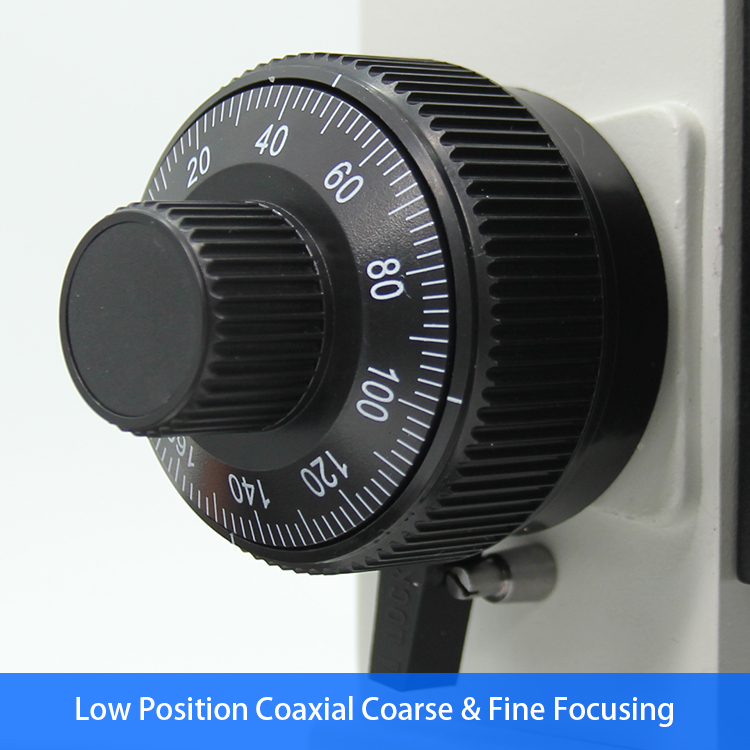

Focusing
--Low Position Coaxial Coarse & Fine
Focusing, Ergonomic, Easier To Operate.
--Fine Focusing Scale 0.002mm.
--With Tension Adjustment, With Up Limit,
Personalized Settings, You Can Adjust The Tension According To Individual Needs.

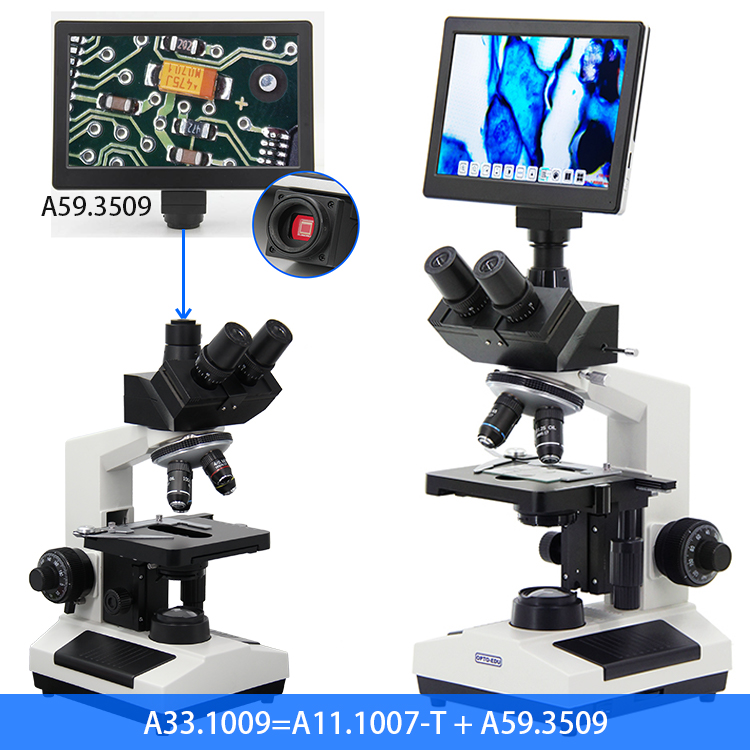

A59.3509
5.0M, 9"LCD, 1/2.8"CMOS, Screen Resolution 1024*600,
USB2.0 Real Time Image Output, TF Card, USB HDMI Mouse Control Menu For Measure

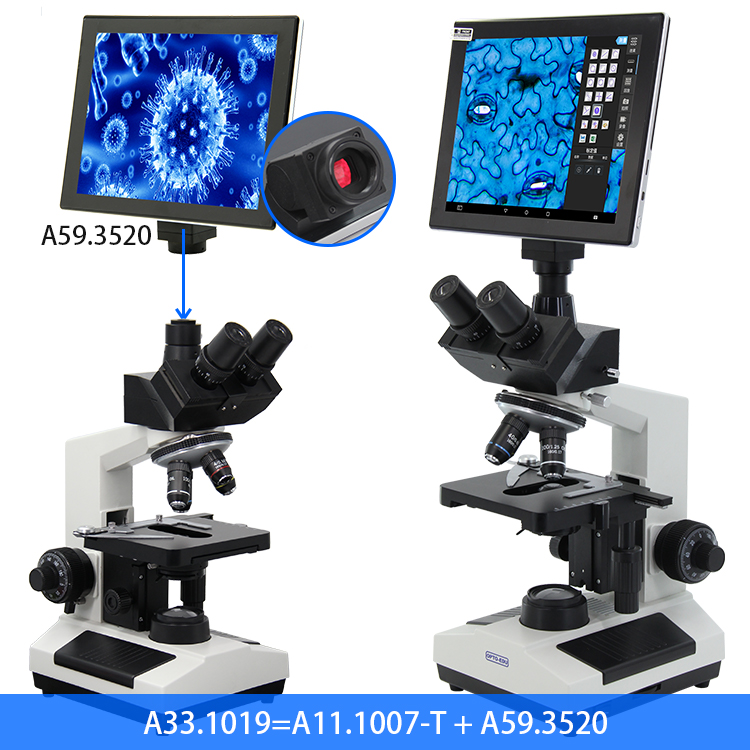

A59.3520
5.0M, 9.7"LCD, Resolution 2048*1536, Android 5.1, CPU 4 Core 1.8G,
RAM 2G ROM 8G, HDMI+TF Card Output, Touch Screen USB Mouse Control,
Installed Measure Software, Chinese/English Manual

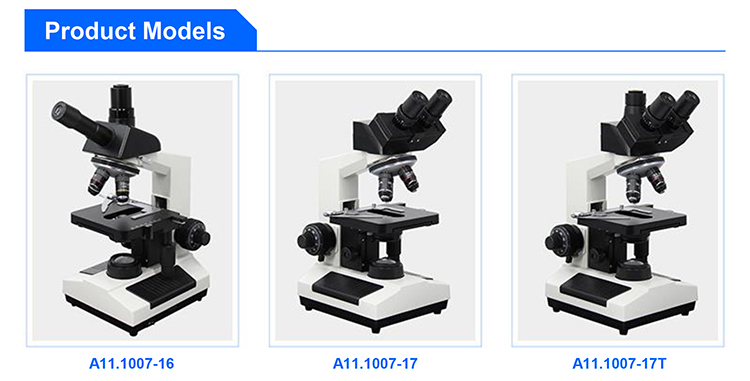

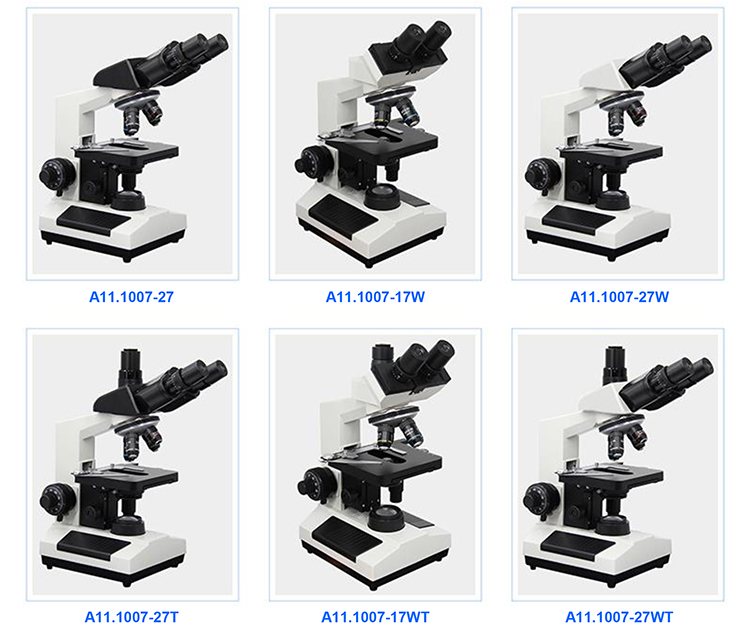

| A11.1007 Biological Microscope | 16 | 17 | 17 T | 27 | 27 T | 17 W | 17 WT | 27 W | 27 WT | |
| Magnification | 40x~1600x | |||||||||
| Head | Black Monocular Teaching Head, 45° Inclined, 360° Rotatable | ● | ||||||||
| Black Sliding Binocular Head, 45° Inclined, 360° Rotatable | ● | |||||||||
| Black Sliding Trinocular Head, 45° Inclined, 360° Rotatable | ● | |||||||||
| Black Seidentopf Binocular Head, 30° Inclined, 360° Rotatable | ● | |||||||||
| Black Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable | ● | |||||||||
| White Sliding Binocular Head, 45° Inclined, 360° Rotatable | ● | |||||||||
| White Sliding Trinocular Head, 45° Inclined, 360° Rotatable | ● | |||||||||
| White Seidentopf Binocular Head, 30° Inclined, 360° Rotatable | ● | |||||||||
| White Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable | ● | |||||||||
| With Eyepiece Adapter & 1.0x C-Mount | ● | ● | ● | ● | ● | |||||

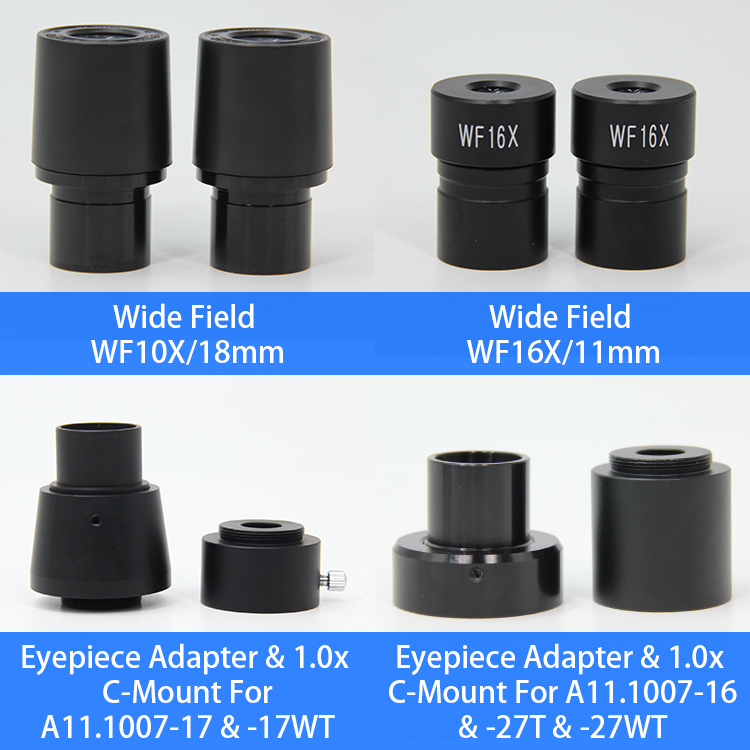

| Eyepiece | Wide Field WF10x/18mm, WF16x/11mm | |||||||||
| Nosepiece | Quadruple Nosepiece | |||||||||

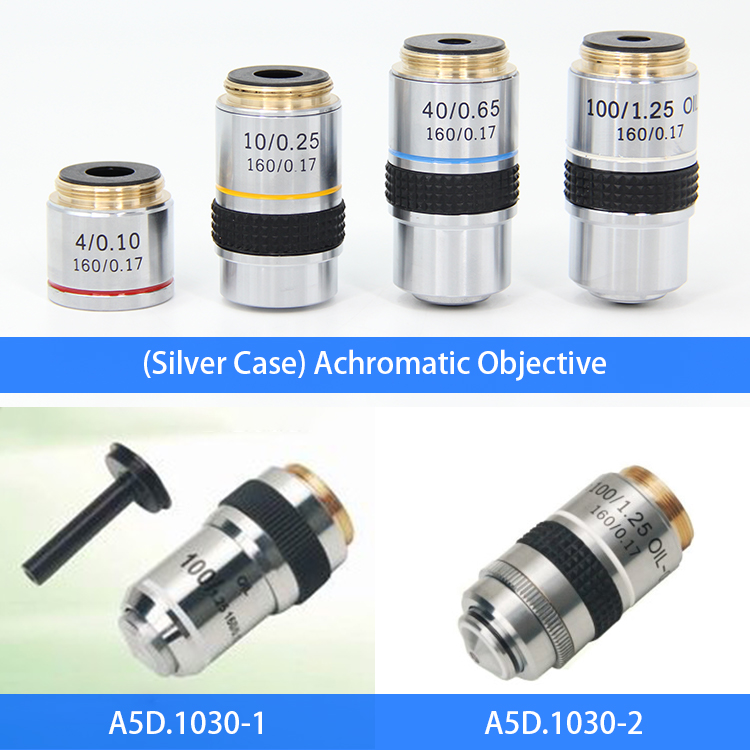

| Objective | Achromatic Objective 4x/0.1, W.D.=25mm 10x/0.25, W.D.=11mm 40x/0.6(S), W.D.=3.8mm 100x/1.25(S,Oil), W.D.=0.1mm | |||||||||
| Stage | Double Layer Mechanical Stage, 140x140mm, Mvoing Range 50x75mm | |||||||||
| Focusing | Low Position Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm, With Tension Adjustment, With Up Limit | |||||||||
| Condenser | N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder | |||||||||
| Filter | Blue, Yellow, Green | |||||||||
| Light Source | Built-in Illumination LED, Brightness Adjustable | |||||||||
| A11.1007 Biological Microscope Optional Accessories | ||||||||||

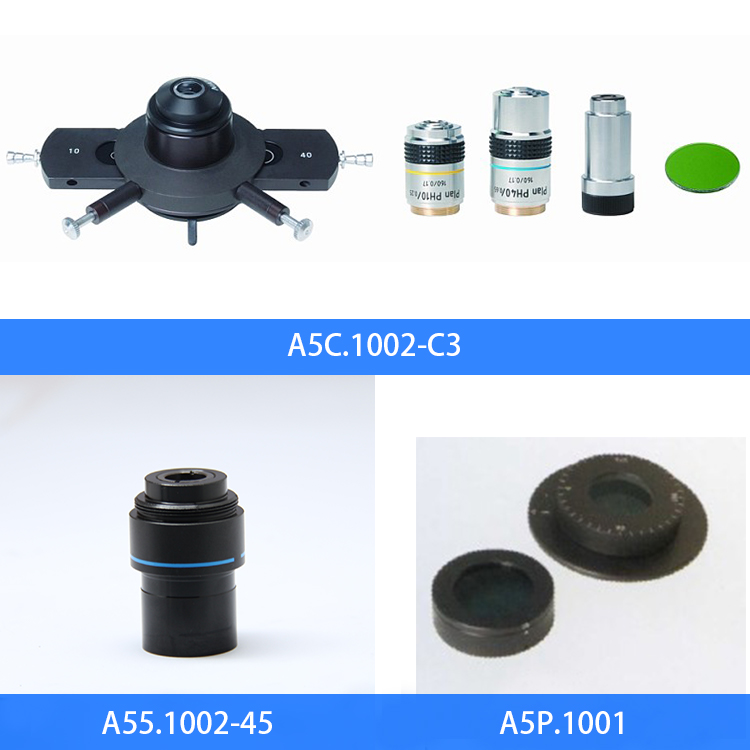

| Video Adapter | 0.45x C-Mount With Reduction Lens | A55.1002-45 | ||||||||
| Objective | Achromatic 20x/0.4, W.D.=9mm | A52.1001-20 | ||||||||
| Achromatic 60x/085(S) | A52.1001-60 | |||||||||
| Light Source | Plan-Concave Mirror | A56.1001-1 | ||||||||

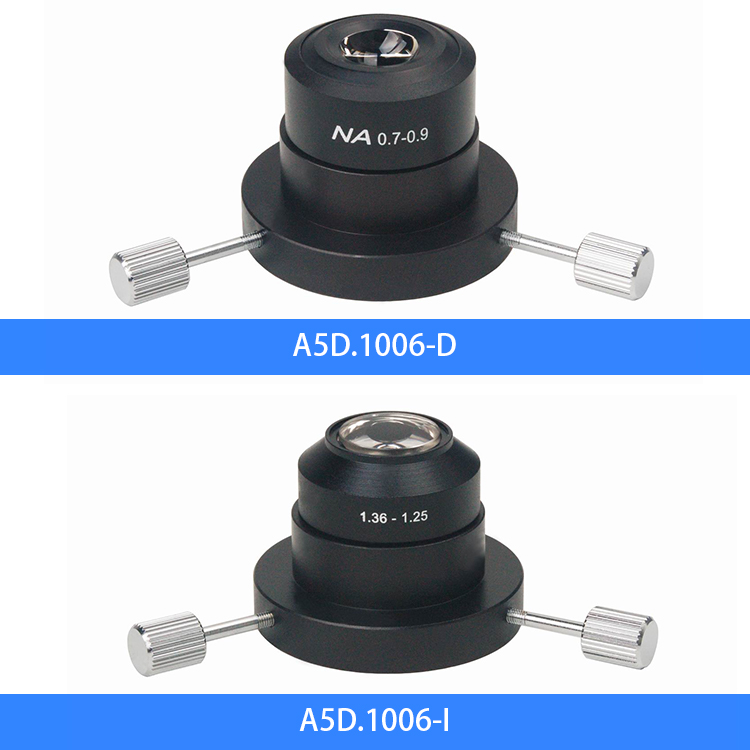

| Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry | A5D.1006-D | ||||||||
| Dark Field Condenser, N.A. 1.25~1.35, Oil Immersion | A5D.1006-I | |||||||||
| Dark Field Objective Achromatic 100x, with Cone Diaphram, Used With A5D.1006-I | A5D.1030-1 | |||||||||
| Dark Field Objective Plan 100x, With Iris Diaphram, Used With A5D.1006-I | A5D.1030-2 | |||||||||
| Polarizing | Simple Polarizing Kit | A5P.1001 | ||||||||
| Phase Contrast | Sliding Phase Contrast Set --Sliding Phase Contrast Condenser --Achromatic Phase Contrast Objective 10x,40x --Centering Telescope --Green Filter | A5C.1002-C3 | ||||||||

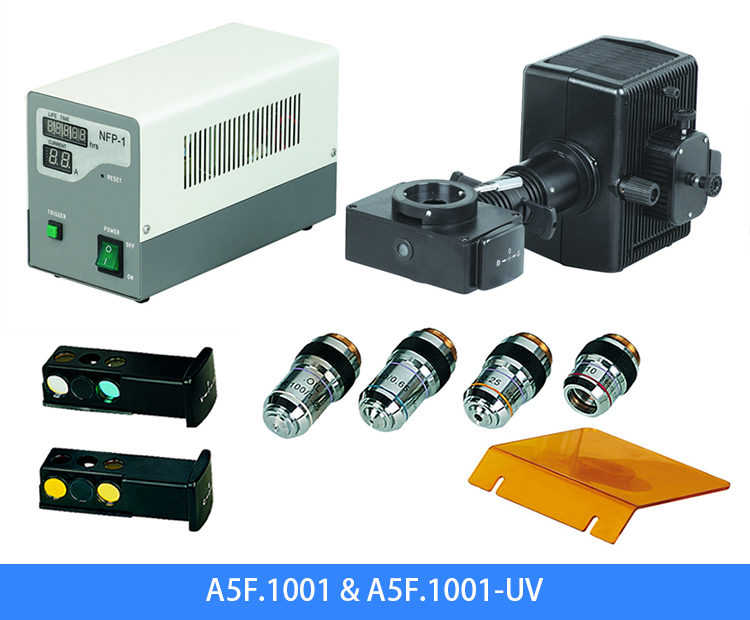

| Fluorescent | EPI-Fluorescent Kit --Power Supplier 220V/110V Interchangeable, Digital Display --100WHBO Ultra Hi-Voltage Spherical Mercury Lamp --Barrier To Resist Ultraviolet Light --Fluorescence Free Oil --Fluorescent Objective 10x,25x,40x,100x --Excitation Filter B/G | A5F.1001 | ||||||||
| --Excitation Filter U/V | A5F.1001-UV | |||||||||
