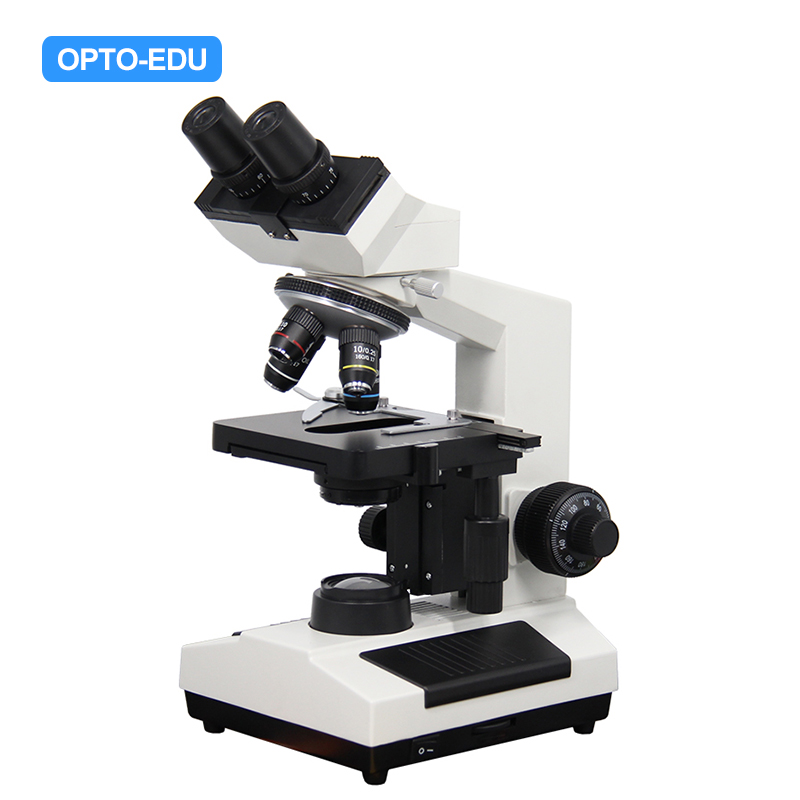

Laboratory Biological Microscope XSZ107BN, White Sliding Binocular Head
Laboratory Biological Microscope XSZ107BN, White Sliding Binocular Head
Laboratory Biological Microscope XSZ107BN, White Sliding Binocular Head
Laboratory Biological Microscope XSZ107BN, White Sliding Binocular Head
Laboratory Biological Microscope XSZ107BN, White Sliding Binocular Head
Laboratory Biological Microscope XSZ107BN, White Sliding Binocular Head
Laboratory Biological Microscope XSZ107BN, White Sliding Binocular Head

Laboratory Biological Microscope XSZ107BN, White Sliding Binocular Head


수량:
Pictures
Model No. A11.1007-17W A11.1007-27WT A11.1007-27T A11.1007-27W A11.1007-27 A11.1007-17WT A11.1007-17T A11.1007-17
Function
BF BF BF BF BF BF BF BF
Optical System
Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic
Standard Magnification
40x-1600x 40x-1600x 40x-1600x 40x-1600x 40x-1600x 40x-1600x 40x-1600x 40x-1600x
Head Type
Sliding Binocular Seidentopf Trinocular Seidentopf Trinocular —— —— Sliding Trinocular Sliding Trinocular Sliding Binocular
Head Inclination
45° 45° 45° 45° 45° 45° 45° 45°
Head Rotation
Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360°
Head Interpupillary
55~75mm 55~75mm 55~75mm 55~75mm 55~75mm 55~75mm 55~75mm 55~75mm
Head Diopter
Both Tube Adjustable Both Tube Adjustable Both Tube Adjustable Both Tube Adjustable Both Tube Adjustable Both Tube Adjustable Both Tube Adjustable Both Tube Adjustable
Head Light Path
—— Switch E100:P0/E0:P100 Switch E100:P0/E0:P100 —— —— Switch E100:P0/E0:P100 Switch E100:P0/E0:P100 ——
Eyepiece Features
Wide Field
High Eyepoint
Wide Field
High Eyepoint
Wide Field
High Eyepoint
Wide Field
High Eyepoint
Wide Field
High Eyepoint
Wide Field
High Eyepoint
Wide Field
High Eyepoint
Wide Field
High Eyepoint
Eyepiece Diameter
23.2mm 23.2mm 23.2mm 23.2mm 23.2mm 23.2mm 23.2mm 23.2mm
Nosepiece Holes
4 Holes 4 Holes 4 Holes 4 Holes 4 Holes 4 Holes 4 Holes 4 Holes
公用.Nosepiece Features
Outward Outward Outward Outward Outward Outward Outward Outward
Objective Type
Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic
Working Stage Type
Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical
Working Stage Feature
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
公用.Focusing Features
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Focusing Type
Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine
公用.Condenser NA
1.25 1.25 1.25 1.25 1.25 1.25 1.25 1.25
Condenser Features
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Light Source Feature
Brightness Adjustable
LED 3W
Brightness Adjustable
LED 3W
Brightness Adjustable
LED 3W
Brightness Adjustable
LED 3W
Brightness Adjustable
LED 3W
Brightness Adjustable
LED 3W
Brightness Adjustable
LED 3W
Brightness Adjustable
LED 3W
Light Source Type
Mirror
LED
Mirror
LED
Mirror
LED
Mirror
LED
Mirror
LED
Mirror
LED
Mirror
LED
Mirror
LED
Power Supply Type
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
公用.Video Adapter
—— Digital Eyepice 23.2mm
C-Mount 1.0x
Digital Eyepice 23.2mm
C-Mount 1.0x
—— —— Digital Eyepice 23.2mm
C-Mount 1.0x
Digital Eyepice 23.2mm
C-Mount 1.0x
——
