Laboratory Biological Microscope XSZ107BN, Black Sliding Trinocular Head
Laboratory Biological Microscope XSZ107BN, Black Sliding Trinocular Head
Laboratory Biological Microscope XSZ107BN, Black Sliding Trinocular Head
Laboratory Biological Microscope XSZ107BN, Black Sliding Trinocular Head
Laboratory Biological Microscope XSZ107BN, Black Sliding Trinocular Head

A11.1007-17T

Like Favorites

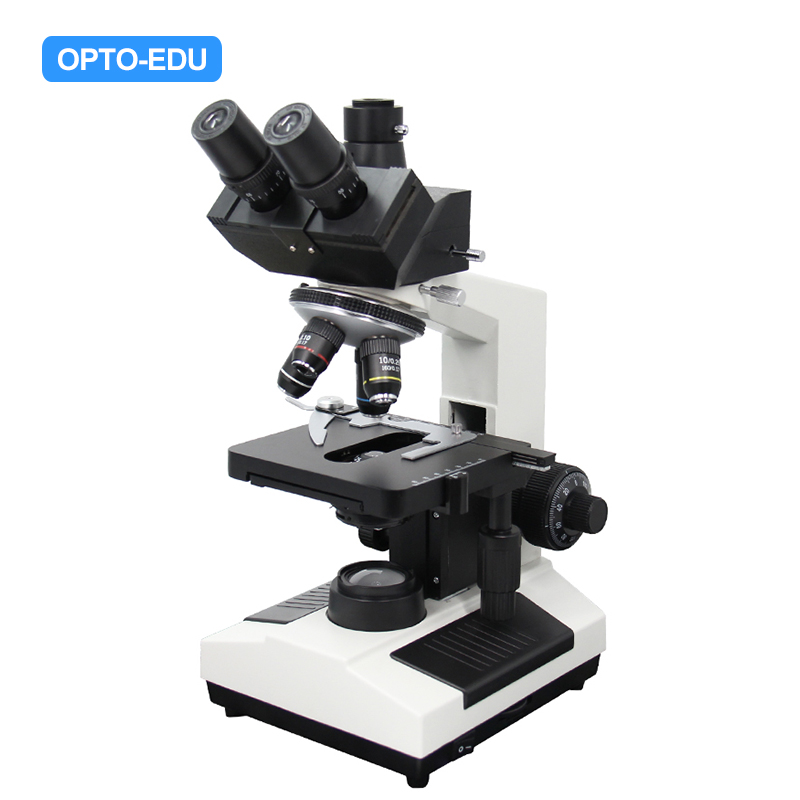

Laboratory Biological Microscope XSZ107BN, Black Sliding Trinocular Head


Quantity:

XSZ-107BN A11.1007 Student & Laboratory Biological Microscope


High-Definition Imaging

Classic, High-profile Biological Microscope With Beautiful Appearance, Excellent Performance And High-definition Imaging.

Wide Range Of Applications

It Is Suitable For Biological And Medical Fields, And Can Be Used For Health And Pathology Education And Professional Research, Clinical Experiments And Routine Medical Tests In Health Institutions, Laboratories, Research Institutes And Universities.





A11.1007 Biological Microscope161717
T
2727
T
17
W
17
WT
27
W
27
WT
Magnification40x~1600x
HeadBlack Monocular Teaching Head, 45° Inclined, 360° Rotatable
Black Sliding Binocular Head, 45° Inclined, 360° Rotatable
Black Sliding Trinocular Head, 45° Inclined, 360° Rotatable
Black Seidentopf Binocular Head, 30° Inclined, 360° Rotatable
Black Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable
White Sliding Binocular Head, 45° Inclined, 360° Rotatable
White Sliding Trinocular Head, 45° Inclined, 360° Rotatable
White Seidentopf Binocular Head, 30° Inclined, 360° Rotatable
White Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable
With Eyepiece Adapter & 1.0x C-Mount
EyepieceWide Field WF10x/18mm, WF16x/11mm
NosepieceQuadruple Nosepiece
ObjectiveAchromatic Objective
4x/0.1, W.D.=25mm
10x/0.25, W.D.=11mm
40x/0.6(S), W.D.=3.8mm
100x/1.25(S,Oil), W.D.=0.1mm
StageDouble Layer Mechanical Stage, 140x140mm, Mvoing Range 50x75mm
FocusingLow Position Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm,
With Tension Adjustment, With Up Limit
CondenserN.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder
FilterBlue, Yellow, Green
Light SourceBuilt-in Illumination LED Brightness Adjustable
A11.1007 Biological Microscope Optional Accessories
Video Adapter0.45x C-Mount With Reduction LensA55.1002-45
ObjectiveAchromatic 20x/0.4, W.D.=9mmA52.1001-20
Achromatic 60x/085(S)A52.1001-60
Light SourcePlan-Concave MirrorA56.1001-1
Dark FieldDark Field Condenser, N.A. 0.7~0.9, DryA5D.1006-D
Dark Field Condenser, N.A. 1.25~1.35, Oil ImmersionA5D.1006-I
Dark Field Objective Achromatic 100x, with Cone Diaphram, Used With A5D.1006-IA5D.1030-1
Dark Field Objective Plan 100x, With Iris Diaphram, Used With A5D.1006-IA5D.1030-2
PolarizingSimple Polarizing KitA5P.1001
Phase ContrastSliding Phase Contrast Set
--Sliding Phase Contrast Condenser
--Achromatic Phase Contrast Objective 10x,40x
--Centering Telescope
--Green Filter
A5C.1002-C3

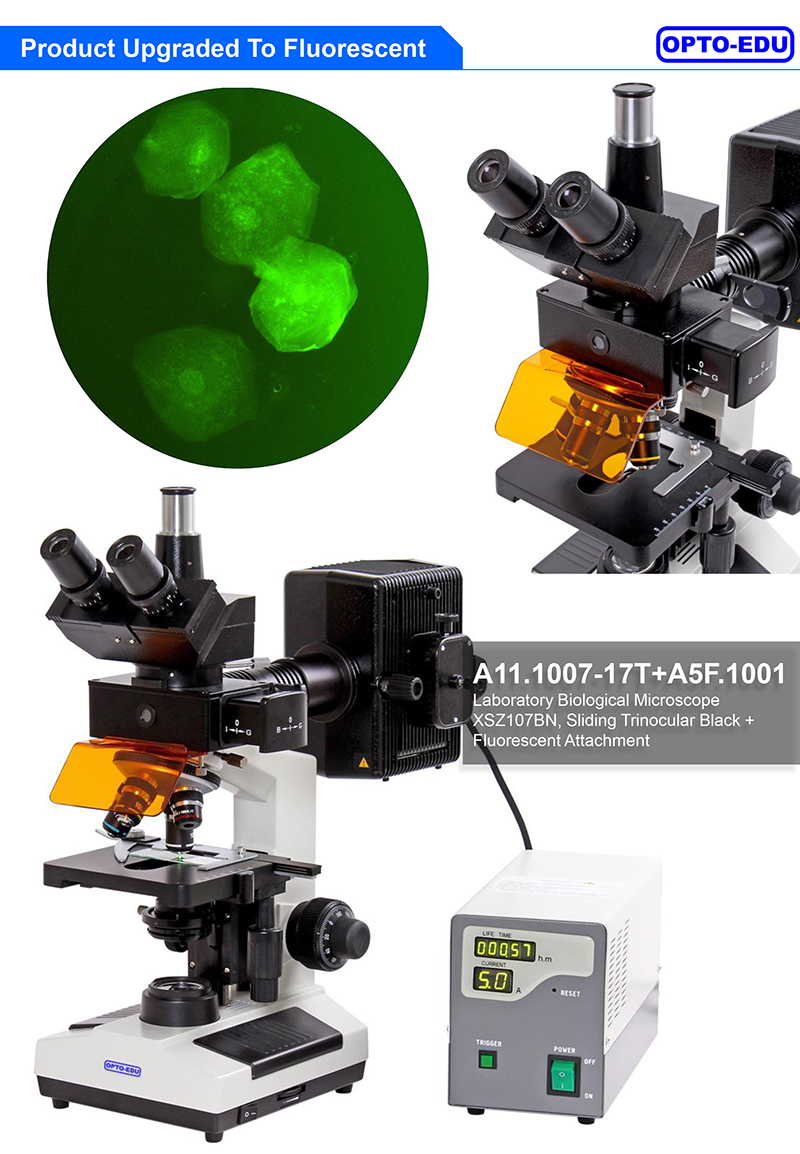

FluorescentEPI-Fluorescent Kit
--Power Supplier 220V/110V Interchangeable, Digital Display
--100WHBO Ultra Hi-Voltage Spherical Mercury Lamp
--Barrier To Resist Ultraviolet Light
--Fluorescence Free Oil
--Fluorescent Objective 10x,25x,40x,100x
--Excitation Filter B/G
A5F.1001
--Excitation Filter U/VA5F.1001-UV




Special Designed Firmware Separately For Biological & Stereo Microscope, For Halogen & LED Light, Can Switch Easily In Menu To Get Best Image
Left/Right & Up/Down View Angle Free Adjustable In All Direction
2 HDMI Input Port
1.5M Line Control Included Avoid Multi Cameras's Interference, Remove Line Control Can Avoid Wrong Settings By Unauotherized People
Strong Metal  Frame & High Quality  Surface Finish
12.5"Full HD 1080p LCD Screen With Better Color Correction
Real Color Reproduction, Clear & High Brightness Image Quality
Independent Developed Color Temeperature Control System, Upgrade For Life Time
Company Information


OPTO-EDU, as one of the most professional manufacturer and supplier of microscope in China, our sub-brand CNOPTEC series high end biological, laboratory, polarizing, metallurgical, fluorescene microscopes, CNCOMPARISON series forensic microscope, A63 series SEM microscope, and .49 series digital camera, LCD camera are very popular in the world market.


Pictures
Model No. A11.1007-17T A11.1007-27WT A11.1007-27T A11.1007-27W A11.1007-27 A11.1007-17WT A11.1007-17W A11.1007-17
Function
BF BF BF BF BF BF BF BF
Optical System
Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic
Standard Magnification
40x-1600x 40x-1600x 40x-1600x 40x-1600x 40x-1600x 40x-1600x 40x-1600x 40x-1600x
Head Type
Sliding Trinocular Seidentopf Trinocular Seidentopf Trinocular —— —— Sliding Trinocular Sliding Binocular Sliding Binocular
Head Inclination
45° 45° 45° 45° 45° 45° 45° 45°
Head Rotation
Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360°
Head Interpupillary
55~75mm 55~75mm 55~75mm 55~75mm 55~75mm 55~75mm 55~75mm 55~75mm
Head Diopter
Both Tube Adjustable Both Tube Adjustable Both Tube Adjustable Both Tube Adjustable Both Tube Adjustable Both Tube Adjustable Both Tube Adjustable Both Tube Adjustable
Head Light Path
Switch E100:P0/E0:P100 Switch E100:P0/E0:P100 Switch E100:P0/E0:P100 —— —— Switch E100:P0/E0:P100 —— ——
Eyepiece Features
Wide Field
High Eyepoint
Wide Field
High Eyepoint
Wide Field
High Eyepoint
Wide Field
High Eyepoint
Wide Field
High Eyepoint
Wide Field
High Eyepoint
Wide Field
High Eyepoint
Wide Field
High Eyepoint
Eyepiece Diameter
23.2mm 23.2mm 23.2mm 23.2mm 23.2mm 23.2mm 23.2mm 23.2mm
Nosepiece Holes
4 Holes 4 Holes 4 Holes 4 Holes 4 Holes 4 Holes 4 Holes 4 Holes
Nosepiece Features
Outward Outward Outward Outward Outward Outward Outward Outward
Objective Type
Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic
Working Stage Type
Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical
Working Stage Feature
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Focusing Features
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Focusing Type
Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine
Condenser N.A.
1.25 1.25 1.25 1.25 1.25 1.25 1.25 1.25
Condenser Features
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Light Source Feature
Brightness Adjustable
LED 3W
Brightness Adjustable
LED 3W
Brightness Adjustable
LED 3W
Brightness Adjustable
LED 3W
Brightness Adjustable
LED 3W
Brightness Adjustable
LED 3W
Brightness Adjustable
LED 3W
Brightness Adjustable
LED 3W
Light Source Type
Mirror
LED
Mirror
LED
Mirror
LED
Mirror
LED
Mirror
LED
Mirror
LED
Mirror
LED
Mirror
LED
Power Supply Type
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
Video Adapter
Digital Eyepice 23.2mm
C-Mount 1.0x
Digital Eyepice 23.2mm
C-Mount 1.0x
Digital Eyepice 23.2mm
C-Mount 1.0x
—— —— Digital Eyepice 23.2mm
C-Mount 1.0x
—— ——
Optional Accessory
0.45x C-Mount

Achromatic 20x/0.4, W.D.=9mm

Achromatic 60x/0.85(S)
0.45x C-Mount

Achromatic 20x/0.4, W.D.=9mm

Achromatic 60x/0.85(S)
0.45x C-Mount

Achromatic 20x/0.4, W.D.=9mm

Achromatic 60x/0.85(S)
0.45x C-Mount

Achromatic 20x/0.4, W.D.=9mm

Achromatic 60x/0.85(S)
0.45x C-Mount

Achromatic 20x/0.4, W.D.=9mm

Achromatic 60x/0.85(S)
0.45x C-Mount

Achromatic 20x/0.4, W.D.=9mm

Achromatic 60x/0.85(S)
0.45x C-Mount

Achromatic 20x/0.4, W.D.=9mm

Achromatic 60x/0.85(S)
0.45x C-Mount

Achromatic 20x/0.4, W.D.=9mm

Achromatic 60x/0.85(S)
