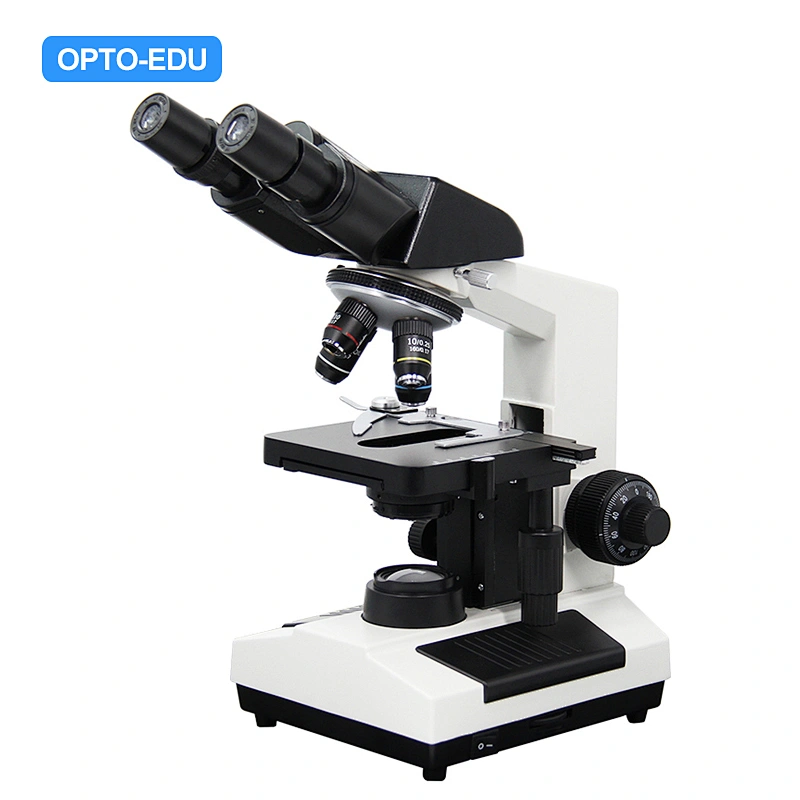

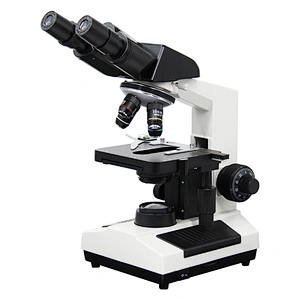

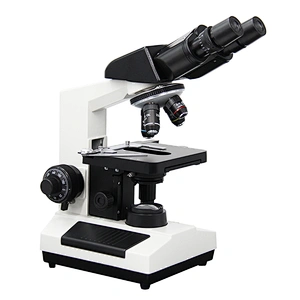

Laboratory Biological Microscope XSZ107BN, Seidentopf Binocular Black


  • Classical 107BN Laboratory Biological Microscope
  • High Quality Optical System Bring Clear & Sharp Image
  • Large Size Mechanical Stage 140x140mm, Moving Range 50x75mm
  • Halogen Lamp 6V20W + Plain-Concave Mirror For Using Without Power Supply
  • Upgrade With Dark Field, Polarizing, Phase Contrast, Fluorescent Function
Quantity:

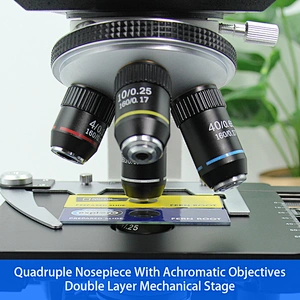

Nosepiece & Objective

--Quadruple Nosepiece, With Achromatic Objectives : 4x, 10x, 40x(s), 100x(s).

--40x And 100x Objective Lens Has A Spring Design, If The Front Of The Objective Lens Is Automatically Indented, It Will Not Damage The Objective Lens And Sample.

--The 100x Objective Lens Is An Oil Objective Lens. When Used, Cedar Oil Is Used As A Medium For Better Observation.

Working Stage

--Double Layer Mechanical Stage, Size 140x140mm, Moving Range 50x75mm

Medium-sized Large Working Stage, You Can Place Two Microscope Slides For Easy Observation And Comparison.

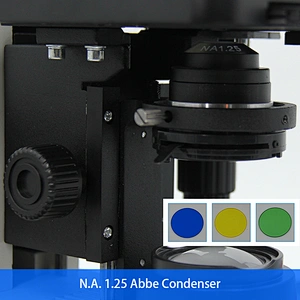

Condenser

--N.A. 1.25 Abbe Condenser, Iris Diaphragm, With Filter Holder.

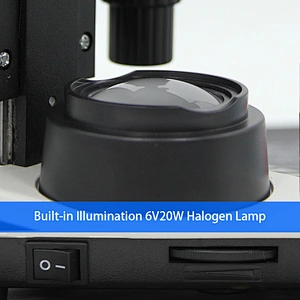

Illumination

--Built-in Illumination 6V20W Halogen Lamp, Can Be Replaced By A Plan-concave Mirror

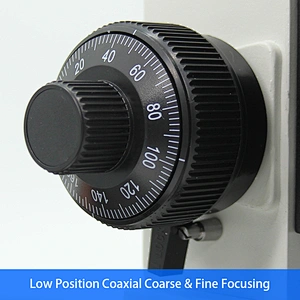

Focusing

--Low Position Coaxial Coarse & Fine

Focusing, Ergonomic, Easier To Operate.

--Fine Focusing Scale 0.002mm.

--With Tension Adjustment, With Up Limit,

Personalized Settings, You Can Adjust The Tension According To Individual Needs.

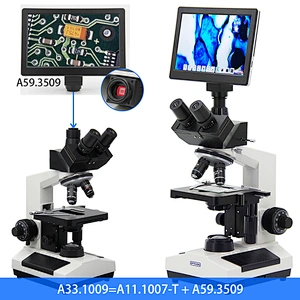

A59.3509

5.0M, 9"LCD, 1/2.8"CMOS, Screen Resolution 1024*600,

USB2.0 Real Time Image Output, TF Card, USB HDMI Mouse Control Menu For Measure

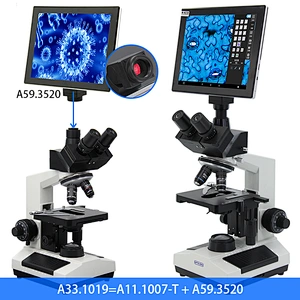

A59.3520

5.0M, 9.7"LCD, Resolution 2048*1536, Android 5.1, CPU 4 Core 1.8G,

RAM 2G ROM 8G, HDMI+TF Card Output, Touch Screen USB Mouse Control,

Installed Measure Software, Chinese/English Manual

A11.1007 Biological Microscope161717
T
2727
T
17
W
17
WT
27
W
27
WT
Magnification40x~1600x
HeadBlack Monocular Teaching Head, 45° Inclined, 360° Rotatable
Black Sliding Binocular Head, 45° Inclined, 360° Rotatable
Black Sliding Trinocular Head, 45° Inclined, 360° Rotatable
Black Seidentopf Binocular Head, 30° Inclined, 360° Rotatable
Black Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable
White Sliding Binocular Head, 45° Inclined, 360° Rotatable
White Sliding Trinocular Head, 45° Inclined, 360° Rotatable
White Seidentopf Binocular Head, 30° Inclined, 360° Rotatable
White Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable
With Eyepiece Adapter & 1.0x C-Mount

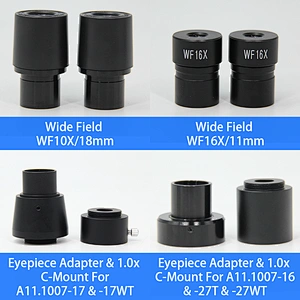

EyepieceWide Field WF10x/18mm, WF16x/11mm
NosepieceQuadruple Nosepiece

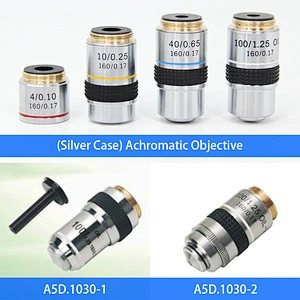

ObjectiveAchromatic Objective
4x/0.1, W.D.=25mm
10x/0.25, W.D.=11mm
40x/0.6(S), W.D.=3.8mm
100x/1.25(S,Oil), W.D.=0.1mm
StageDouble Layer Mechanical Stage, 140x140mm, Mvoing Range 50x75mm
FocusingLow Position Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm,
With Tension Adjustment, With Up Limit
CondenserN.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder
FilterBlue, Yellow, Green
Light SourceBuilt-in Illumination LED, Brightness Adjustable





A11.1007 Biological Microscope Optional Accessories
Video Adapter0.45x C-Mount With Reduction LensA55.1002-45
ObjectiveAchromatic 20x/0.4, W.D.=9mmA52.1001-20
Achromatic 60x/085(S)A52.1001-60
Light SourcePlan-Concave MirrorA56.1001-1
Dark FieldDark Field Condenser, N.A. 0.7~0.9, DryA5D.1006-D
Dark Field Condenser, N.A. 1.25~1.35, Oil ImmersionA5D.1006-I
Dark Field Objective Achromatic 100x, with Cone Diaphram, Used With A5D.1006-IA5D.1030-1
Dark Field Objective Plan 100x, With Iris Diaphram, Used With A5D.1006-IA5D.1030-2
PolarizingSimple Polarizing KitA5P.1001
Phase ContrastSliding Phase Contrast Set
--Sliding Phase Contrast Condenser
--Achromatic Phase Contrast Objective 10x,40x
--Centering Telescope
--Green Filter
A5C.1002-C3

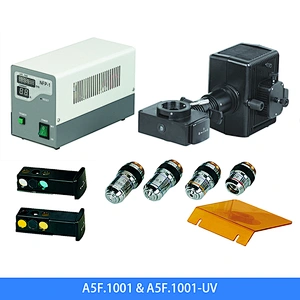

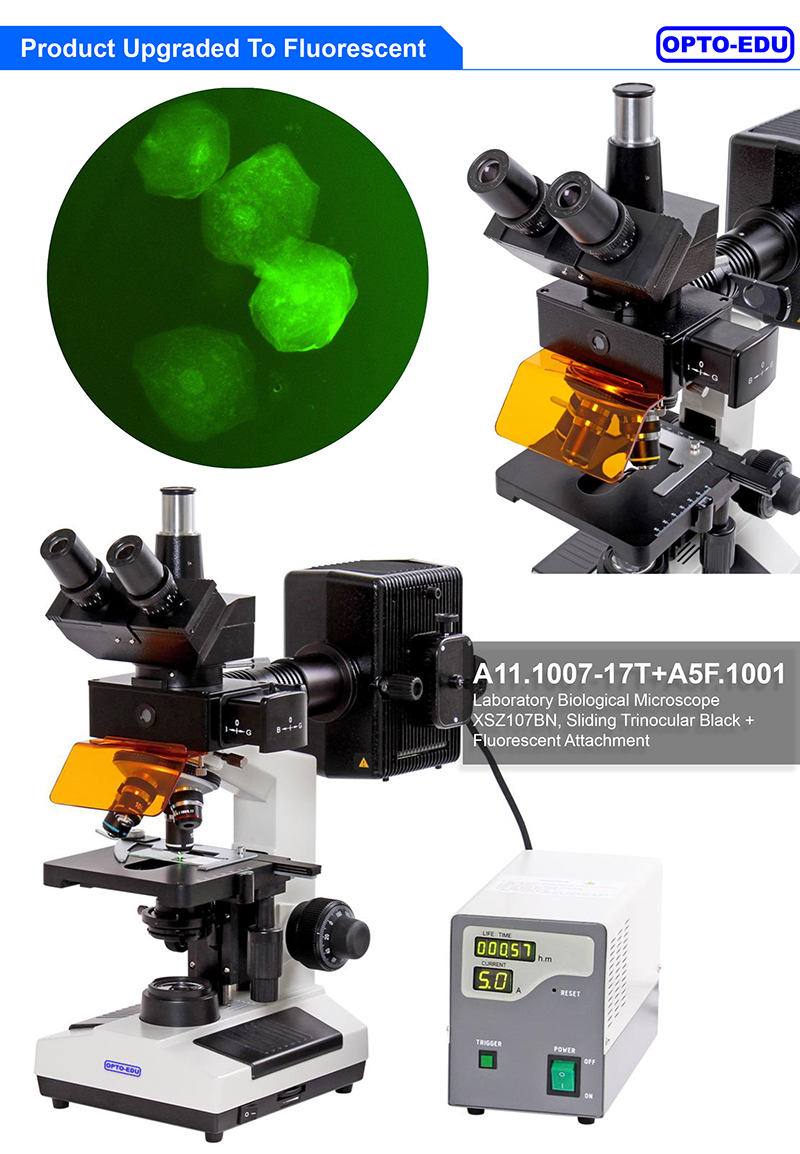

FluorescentEPI-Fluorescent Kit
--Power Supplier 220V/110V Interchangeable, Digital Display
--100WHBO Ultra Hi-Voltage Spherical Mercury Lamp
--Barrier To Resist Ultraviolet Light
--Fluorescence Free Oil
--Fluorescent Objective 10x,25x,40x,100x
--Excitation Filter B/G
A5F.1001
--Excitation Filter U/VA5F.1001-UV
Pictures
Model No. A11.1007-27
Function
BF
Optical System
Achromatic
Standard Magnification
40x-1600x
Head Type
Sedentopf Binocular
Head Inclination
45°
Head Rotation
Head Rotate 360°
Head Interpupillary
55~75mm
Head Diopter
Both Tube Adjustable
Head Specification
Black Color
Eyepiece Features
Wide Field
High Eyepoint
Eyepiece Diameter
23.2mm
Eyepiece
WF10x/18mm, 2 pcs

WF16x/11mm, 2 pcs
Nosepiece Holes
4 Holes
Nosepiece Features
Outward
Objective Type
Achromatic
Objective
Achromatic Objective:

4x/0.1, W.D.=25mm

10x/0.25, W.D.=11mm

40x/0.6(S), W.D.=3.8mm

100x/1.25(S,Oil), W.D.=0.1mm
Working Stage Type
Double Layers Mechanical
Working Stage Feature
Double Slide Holder
Large Size >140x140mm
Working Stage Size
140x140mm
Working Stage Moving
50x75mm, Precision 0.1mm
Focusing Features
Safety Stop Lock Ring
Tension Adjustable
Focusing Type
Coaxial Coarse & Fine
Focusing Scale
0.002mm
Condenser Type
Abbe Condenser
Condenser N.A.
1.25
Condenser Features
Rack & Pinion Up/Down
With Filter Holder
Light Source Feature
Brightness Adjustable
LED 3W
Light Source Type
Mirror
LED
Transmit Light
LED, Brightness Adjustable: Mirror
Power Supply Type
AC 100V-240V Wide Voltage
Power Cord Detachable
Function Upgradeable
Dark Field
Polarizing
Phase Contrast
Fluorescent
