A11.1007-27T

Like Favorites

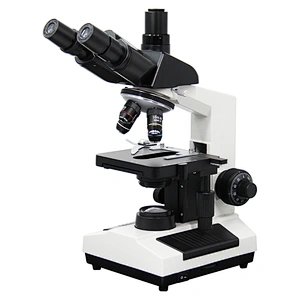

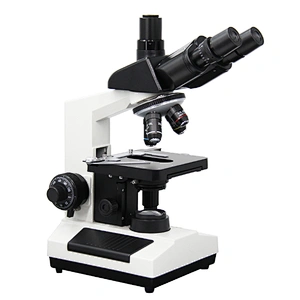

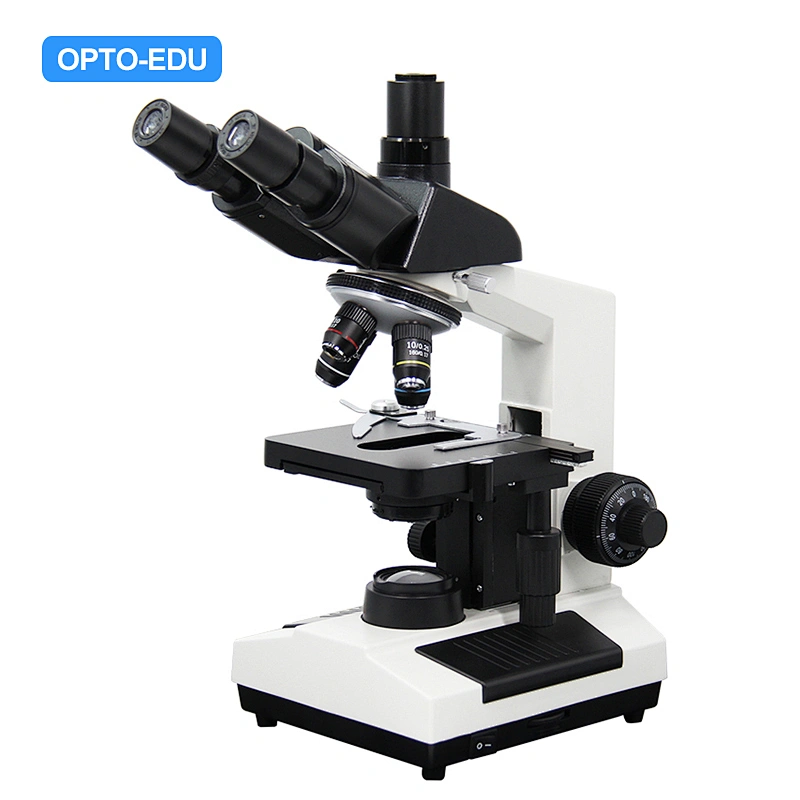

Laboratory Biological Microscope XSZ107BN, Seidentopf Trinocular Black

  • Classical 107BN Laboratory Biological Microscope
  • High Quality Optical System Bring Clear & Sharp Image
  • Large Size Mechanical Stage 140x140mm, Moving Range 50x75mm
  • Halogen Lamp 6V20W + Plain-Concave Mirror For Using Without Power Supply
  • Upgrade With Dark Field, Polarizing, Phase Contrast, Fluorescent Function
Quantity:

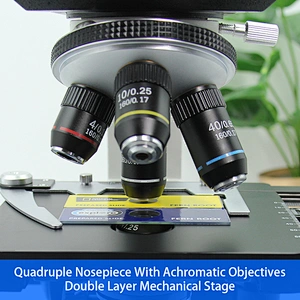

Nosepiece & Objective

--Quadruple Nosepiece, With Achromatic Objectives : 4x, 10x, 40x(s), 100x(s).

--40x And 100x Objective Lens Has A Spring Design, If The Front Of The Objective Lens Is Automatically Indented, It Will Not Damage The Objective Lens And Sample.

--The 100x Objective Lens Is An Oil Objective Lens. When Used, Cedar Oil Is Used As A Medium For Better Observation.

Working Stage

--Double Layer Mechanical Stage, Size 140x140mm, Moving Range 50x75mm

Medium-sized Large Working Stage, You Can Place Two Microscope Slides For Easy Observation And Comparison.


Condenser

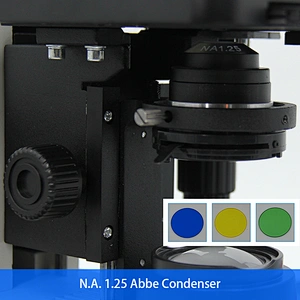

--N.A. 1.25 Abbe Condenser, Iris Diaphragm, With Filter Holder.

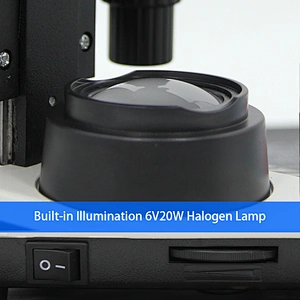

Illumination

--Built-in Illumination 6V20W Halogen Lamp, Can Be Replaced By A Plan-concave Mirror

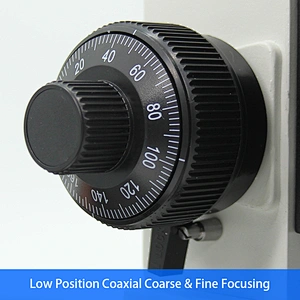

Focusing

--Low Position Coaxial Coarse & Fine

Focusing, Ergonomic, Easier To Operate.

--Fine Focusing Scale 0.002mm.

--With Tension Adjustment, With Up Limit,

Personalized Settings, You Can Adjust The Tension According To Individual Needs.

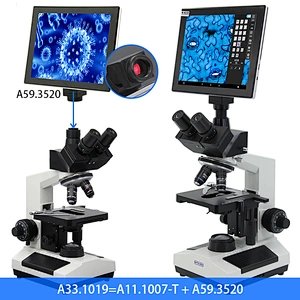

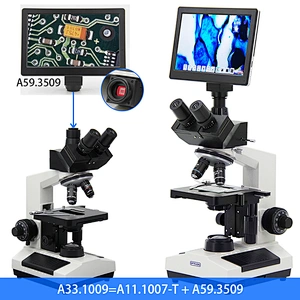

A59.3509

5.0M, 9"LCD, 1/2.8"CMOS, Screen Resolution 1024*600,

USB2.0 Real Time Image Output, TF Card, USB HDMI Mouse Control Menu For Measure

A59.3520

5.0M, 9.7"LCD, Resolution 2048*1536, Android 5.1, CPU 4 Core 1.8G,

RAM 2G ROM 8G, HDMI+TF Card Output, Touch Screen USB Mouse Control,

Installed Measure Software, Chinese/English Manual

A11.1007 Biological Microscope161717
T
2727
T
17
W
17
WT
27
W
27
WT
Magnification40x~1600x
HeadBlack Monocular Teaching Head, 45° Inclined, 360° Rotatable
Black Sliding Binocular Head, 45° Inclined, 360° Rotatable
Black Sliding Trinocular Head, 45° Inclined, 360° Rotatable
Black Seidentopf Binocular Head, 30° Inclined, 360° Rotatable
Black Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable
White Sliding Binocular Head, 45° Inclined, 360° Rotatable
White Sliding Trinocular Head, 45° Inclined, 360° Rotatable
White Seidentopf Binocular Head, 30° Inclined, 360° Rotatable
White Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable

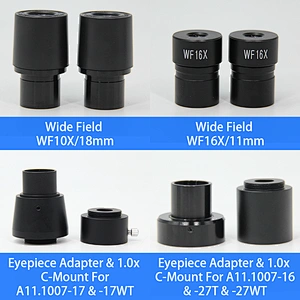

With Eyepiece Adapter & 1.0x C-Mount
EyepieceWide Field WF10x/18mm, WF16x/11mm
NosepieceQuadruple Nosepiece
ObjectiveAchromatic Objective
4x/0.1, W.D.=25mm
10x/0.25, W.D.=11mm
40x/0.6(S), W.D.=3.8mm
100x/1.25(S,Oil), W.D.=0.1mm
StageDouble Layer Mechanical Stage, 140x140mm, Mvoing Range 50x75mm
FocusingLow Position Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm,
With Tension Adjustment, With Up Limit
CondenserN.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder
FilterBlue, Yellow, Green
Light SourceBuilt-in Illumination LED, Brightness Adjustable





A11.1007 Biological Microscope Optional Accessories
Video Adapter0.45x C-Mount With Reduction LensA55.1002-45
ObjectiveAchromatic 20x/0.4, W.D.=9mmA52.1001-20
Achromatic 60x/085(S)A52.1001-60
Light SourcePlan-Concave MirrorA56.1001-1
Dark FieldDark Field Condenser, N.A. 0.7~0.9, DryA5D.1006-D
Dark Field Condenser, N.A. 1.25~1.35, Oil ImmersionA5D.1006-I

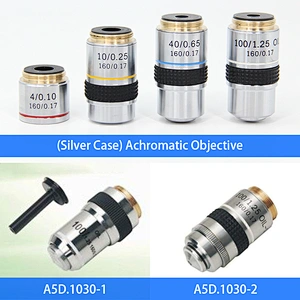

Dark Field Objective Achromatic 100x, with Cone Diaphram, Used With A5D.1006-IA5D.1030-1
Dark Field Objective Plan 100x, With Iris Diaphram, Used With A5D.1006-IA5D.1030-2
PolarizingSimple Polarizing KitA5P.1001
Phase ContrastSliding Phase Contrast Set
--Sliding Phase Contrast Condenser
--Achromatic Phase Contrast Objective 10x,40x
--Centering Telescope
--Green Filter
A5C.1002-C3

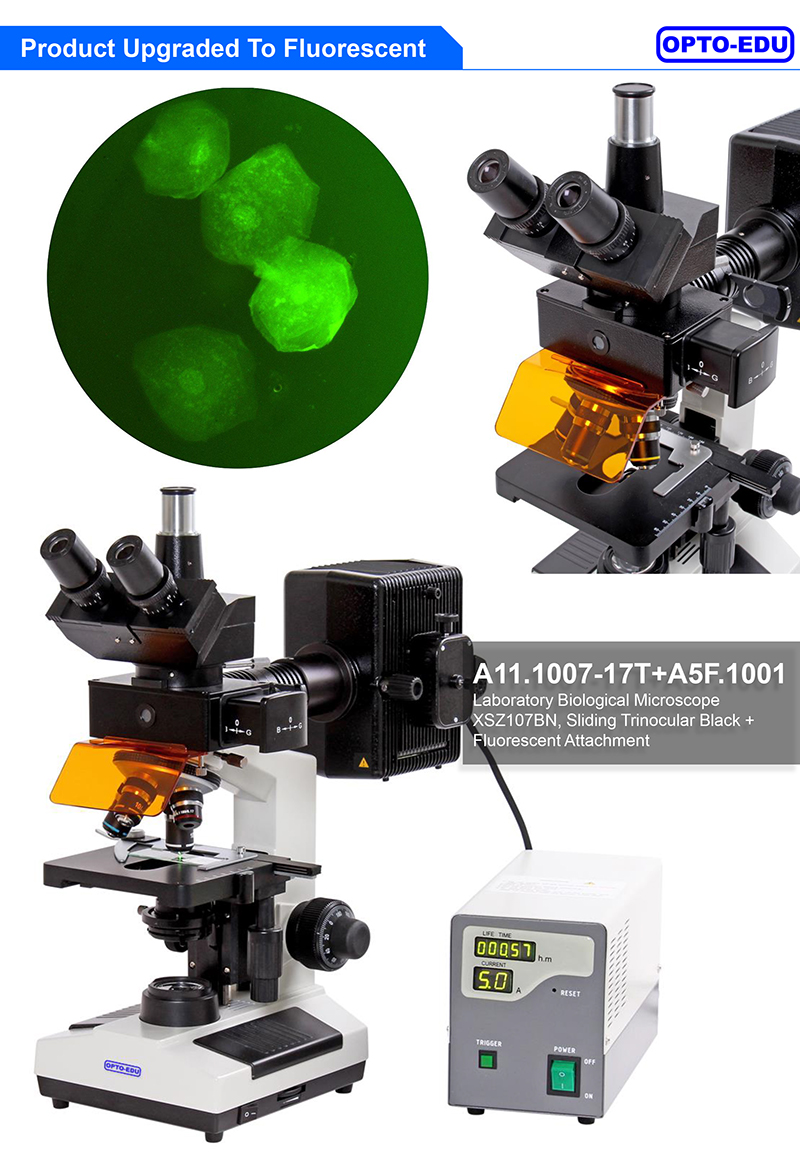

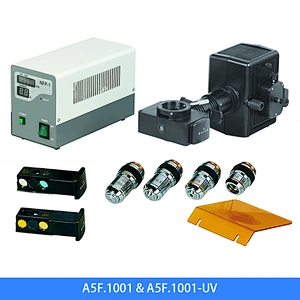

FluorescentEPI-Fluorescent Kit
--Power Supplier 220V/110V Interchangeable, Digital Display
--100WHBO Ultra Hi-Voltage Spherical Mercury Lamp
--Barrier To Resist Ultraviolet Light
--Fluorescence Free Oil
--Fluorescent Objective 10x,25x,40x,100x
--Excitation Filter B/G
A5F.1001
--Excitation Filter U/VA5F.1001-UV
Pictures
Model No. A11.1007-27T A11.1007-16 A11.1007-17 A11.1007-17T A11.1007-17W A11.1007-17WT A11.1007-27 A11.1007-27W A11.1007-27WT
Optical System
Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic
Standard Magnification
—— 40x-1600x —— —— —— —— —— —— ——
Head Type
Seidentopf Trinocular Dual-View Sliding Binocular Sliding Trinocular Sliding Binocular Sliding Trinocular —— —— Seidentopf Trinocular
Head Rotation
Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360°
Head Interpupillary
55~75mm —— 55~75mm 55~75mm 55~75mm 55~75mm 55~75mm 55~75mm 55~75mm
Head Diopter
Both Tube Adjustable —— Both Tube Adjustable Both Tube Adjustable Both Tube Adjustable Both Tube Adjustable Both Tube Adjustable Both Tube Adjustable Both Tube Adjustable
Head Light Path
E100:P0/E0:P100 —— —— E100:P0/E0:P100 —— E100:P0/E0:P100 —— —— E100:P0/E0:P100
Head Specification
Black Color Black Color Black Color Black Color White Color White Color Black Color White Color White Color
Eyepiece Diameter
23.2mm 23.2mm 23.2mm 23.2mm 23.2mm 23.2mm 23.2mm 23.2mm 23.2mm
Eyepiece
WF10x/18mm, 2 pcs

WF16x/11mm, 2 pcs
WF10x/18mm, 2 pcs

WF16x/11mm, 2 pcs
WF10x/18mm, 2 pcs

WF16x/11mm, 2 pcs
WF10x/18mm, 2 pcs

WF16x/11mm, 2 pcs
WF10x/18mm, 2 pcs

WF16x/11mm, 2 pcs
WF10x/18mm, 2 pcs

WF16x/11mm, 2 pcs
WF10x/18mm, 2 pcs

WF16x/11mm, 2 pcs
WF10x/18mm, 2 pcs

WF16x/11mm, 2 pcs
WF10x/18mm, 2 pcs

WF16x/11mm, 2 pcs
Nosepiece Features
Outward Outward Outward Outward Outward Outward Outward Outward Outward
Nosepiece Holes
4 Holes 4 Holes 4 Holes 4 Holes 4 Holes 4 Holes 4 Holes 4 Holes 4 Holes
Objective Type
Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic
Objective
Achromatic Objective:

4x/0.1, W.D.=25mm

10x/0.25, W.D.=11mm

40x/0.6(S), W.D.=3.8mm

100x/1.25(S,Oil), W.D.=0.1mm
Achromatic Objective:

4x/0.1, W.D.=25mm

10x/0.25, W.D.=11mm

40x/0.6(S), W.D.=3.8mm

100x/1.25(S,Oil), W.D.=0.1mm
Achromatic Objective:

4x/0.1, W.D.=25mm

10x/0.25, W.D.=11mm

40x/0.6(S), W.D.=3.8mm

100x/1.25(S,Oil), W.D.=0.1mm
Achromatic Objective:

4x/0.1, W.D.=25mm

10x/0.25, W.D.=11mm

40x/0.6(S), W.D.=3.8mm

100x/1.25(S,Oil), W.D.=0.1mm
Achromatic Objective:

4x/0.1, W.D.=25mm

10x/0.25, W.D.=11mm

40x/0.6(S), W.D.=3.8mm

100x/1.25(S,Oil), W.D.=0.1mm
Achromatic Objective:

4x/0.1, W.D.=25mm

10x/0.25, W.D.=11mm

40x/0.6(S), W.D.=3.8mm

100x/1.25(S,Oil), W.D.=0.1mm
Achromatic Objective:

4x/0.1, W.D.=25mm

10x/0.25, W.D.=11mm

40x/0.6(S), W.D.=3.8mm

100x/1.25(S,Oil), W.D.=0.1mm
Achromatic Objective:

4x/0.1, W.D.=25mm

10x/0.25, W.D.=11mm

40x/0.6(S), W.D.=3.8mm

100x/1.25(S,Oil), W.D.=0.1mm
Achromatic Objective:

4x/0.1, W.D.=25mm

10x/0.25, W.D.=11mm

40x/0.6(S), W.D.=3.8mm

100x/1.25(S,Oil), W.D.=0.1mm
Working Stage Features
Double Slide Holder
Size ≥140x140mm
Double Slide Holder
Size ≥140x140mm
Double Slide Holder
Size ≥140x140mm
Double Slide Holder
Size ≥140x140mm
Double Slide Holder
Size ≥140x140mm
Double Slide Holder
Size ≥140x140mm
Double Slide Holder
Size ≥140x140mm
Double Slide Holder
Size ≥140x140mm
Double Slide Holder
Size ≥140x140mm
Working Stage Type
2 Layers Mechanical 2 Layers Mechanical 2 Layers Mechanical 2 Layers Mechanical 2 Layers Mechanical 2 Layers Mechanical 2 Layers Mechanical 2 Layers Mechanical 2 Layers Mechanical
Working Stage Size
140x140mm 140x140mm 140x140mm 140x140mm 140x140mm 140x140mm 140x140mm 140x140mm 140x140mm
Working Stage Moving
50x75mm, Precision 0.1mm
50x75mm, Precision 0.1mm
50x75mm, Precision 0.1mm
50x75mm, Precision 0.1mm
50x75mm, Precision 0.1mm
50x75mm, Precision 0.1mm
50x75mm, Precision 0.1mm
50x75mm, Precision 0.1mm
50x75mm, Precision 0.1mm
Focusing Features
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Focusing Type
Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine
Focusing Scale
0.002mm 0.002mm 0.002mm 0.002mm 0.002mm 0.002mm 0.002mm 0.002mm 0.002mm
Condenser Features
Rack & Pinionↆ↑
Filter Holder
Rack & Pinionↆ↑
Filter Holder
Iris Diaphragm
Rack & Pinionↆ↑
Filter Holder
Rack & Pinionↆ↑
Filter Holder
Rack & Pinionↆ↑
Filter Holder
Rack & Pinionↆ↑
Filter Holder
Rack & Pinionↆ↑
Filter Holder
Rack & Pinionↆ↑
Filter Holder
Rack & Pinionↆ↑
Filter Holder
Condenser N.A.
1.25 1.25 1.25 1.25 1.25 1.25 1.25 1.25 1.25
Condenser
—— Filter Blue, Yellow, Green —— —— —— —— —— —— ——
Light Source Type
Mirror
LED
Mirror
LED
Mirror
LED
Mirror
LED
Mirror
LED
Mirror
LED
Mirror
LED
Mirror
LED
Mirror
LED
Transmit Light
LED, Brightness Adjustable: Mirror LED, Brightness Adjustable: Mirror LED, Brightness Adjustable: Mirror LED, Brightness Adjustable: Mirror LED, Brightness Adjustable: Mirror LED, Brightness Adjustable: Mirror LED, Brightness Adjustable: Mirror LED, Brightness Adjustable: Mirror LED, Brightness Adjustable: Mirror
New Product Year
—— 2022 —— —— —— —— —— —— ——
Standard Function
—— BF —— —— —— —— —— —— ——
Upgrade Function
—— BF+PH+DF+PL+FL —— —— —— —— —— —— ——
Head Inclination
—— 45° —— —— —— —— —— —— ——
Condenser Type
—— Abbe —— —— —— —— —— —— ——
Power Supply Type
—— AC 110V-240V —— —— —— —— —— —— ——
Video Adapter
—— C-Mount 1.0x
Digital Eyepice 23.2mm
C-Mount 0.3x —— C-Mount 0.3x —— C-Mount 0.3x C-Mount 0.3x ——
