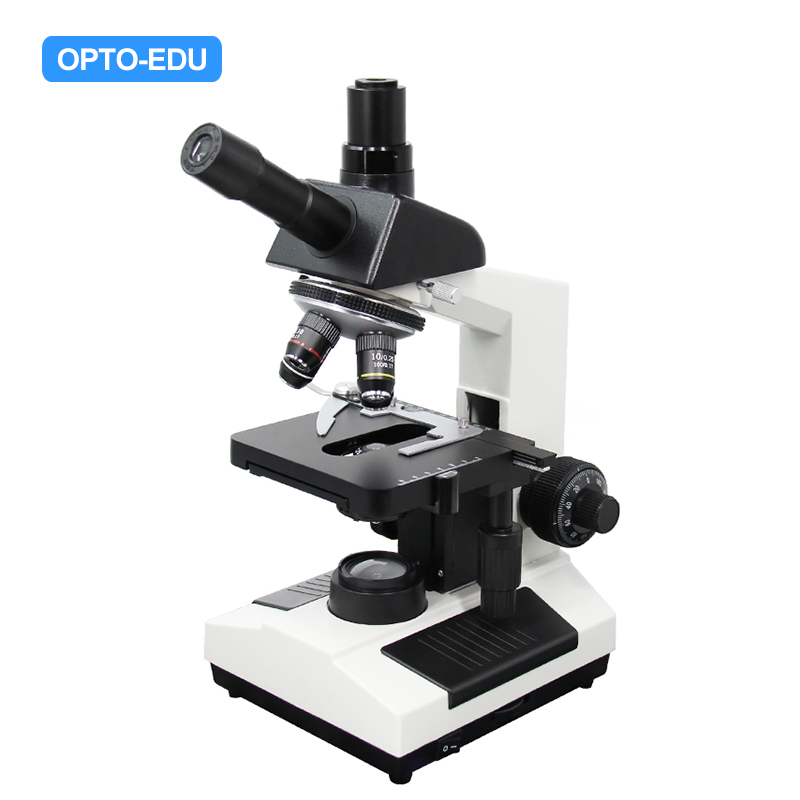

Laboratory Biological Microscope XSZ107BN, Black Dual-View Head


  • Classical 107BN Laboratory Biological Microscope
  • High Quality Optical System Bring Clear & Sharp Image
  • Large Size Mechanical Stage 140x140mm, Moving Range 50x75mm
  • Halogen Lamp 6V20W + Plain-Concave Mirror For Using Without Power Supply
  • Upgrade With Dark Field, Polarizing, Phase Contrast, Fluorescent Function
Quantity:

XSZ-107BN A11.1007 Student & Laboratory Biological Microscope


High-Definition Imaging

Classic, High-profile Biological Microscope With Beautiful Appearance, Excellent Performance And High-definition Imaging.

Wide Range Of Applications

It Is Suitable For Biological And Medical Fields, And Can Be Used For Health And Pathology Education And Professional Research, Clinical Experiments And Routine Medical Tests In Health Institutions, Laboratories, Research Institutes And Universities.





A11.1007 Biological Microscope161717
T
2727
T
17
W
17
WT
27
W
27
WT
Magnification40x~1600x
HeadBlack Monocular Teaching Head, 45° Inclined, 360° Rotatable
Black Sliding Binocular Head, 45° Inclined, 360° Rotatable
Black Sliding Trinocular Head, 45° Inclined, 360° Rotatable
Black Seidentopf Binocular Head, 30° Inclined, 360° Rotatable
Black Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable
White Sliding Binocular Head, 45° Inclined, 360° Rotatable
White Sliding Trinocular Head, 45° Inclined, 360° Rotatable
White Seidentopf Binocular Head, 30° Inclined, 360° Rotatable
White Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable
With Eyepiece Adapter & 1.0x C-Mount
EyepieceWide Field WF10x/18mm, WF16x/11mm
NosepieceQuadruple Nosepiece
ObjectiveAchromatic Objective
4x/0.1, W.D.=25mm
10x/0.25, W.D.=11mm
40x/0.6(S), W.D.=3.8mm
100x/1.25(S,Oil), W.D.=0.1mm
StageDouble Layer Mechanical Stage, 140x140mm, Mvoing Range 50x75mm
FocusingLow Position Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm,
With Tension Adjustment, With Up Limit
CondenserN.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder
FilterBlue, Yellow, Green
Light SourceBuilt-in Illumination LED Brightness Adjustable
A11.1007 Biological Microscope Optional Accessories
Video Adapter0.45x C-Mount With Reduction LensA55.1002-45
ObjectiveAchromatic 20x/0.4, W.D.=9mmA52.1001-20
Achromatic 60x/085(S)A52.1001-60
Light SourcePlan-Concave MirrorA56.1001-1
Dark FieldDark Field Condenser, N.A. 0.7~0.9, DryA5D.1006-D
Dark Field Condenser, N.A. 1.25~1.35, Oil ImmersionA5D.1006-I
Dark Field Objective Achromatic 100x, with Cone Diaphram, Used With A5D.1006-IA5D.1030-1
Dark Field Objective Plan 100x, With Iris Diaphram, Used With A5D.1006-IA5D.1030-2
PolarizingSimple Polarizing KitA5P.1001
Phase ContrastSliding Phase Contrast Set
--Sliding Phase Contrast Condenser
--Achromatic Phase Contrast Objective 10x,40x
--Centering Telescope
--Green Filter
A5C.1002-C3

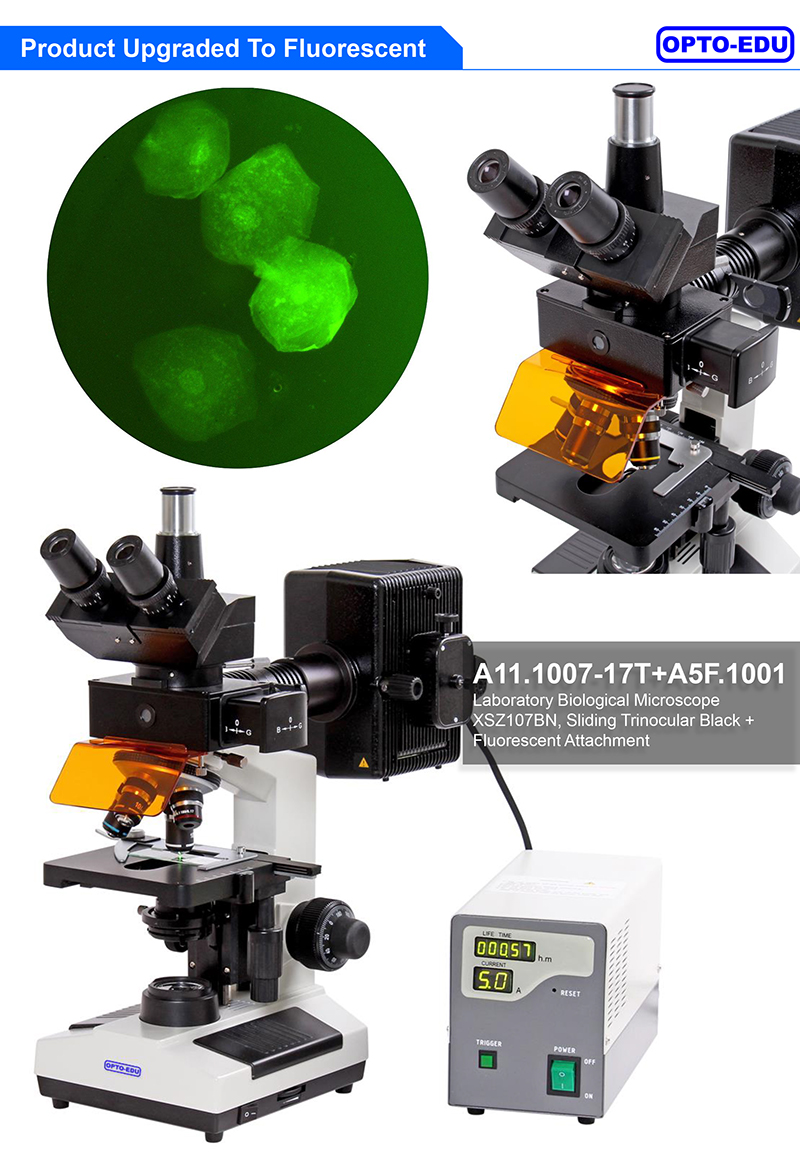

FluorescentEPI-Fluorescent Kit
--Power Supplier 220V/110V Interchangeable, Digital Display
--100WHBO Ultra Hi-Voltage Spherical Mercury Lamp
--Barrier To Resist Ultraviolet Light
--Fluorescence Free Oil
--Fluorescent Objective 10x,25x,40x,100x
--Excitation Filter B/G
A5F.1001
--Excitation Filter U/VA5F.1001-UV




Special Designed Firmware Separately For Biological & Stereo Microscope, For Halogen & LED Light, Can Switch Easily In Menu To Get Best Image
Left/Right & Up/Down View Angle Free Adjustable In All Direction
2 HDMI Input Port
1.5M Line Control Included Avoid Multi Cameras's Interference, Remove Line Control Can Avoid Wrong Settings By Unauotherized People
Strong Metal  Frame & High Quality  Surface Finish
12.5"Full HD 1080p LCD Screen With Better Color Correction
Real Color Reproduction, Clear & High Brightness Image Quality
Independent Developed Color Temeperature Control System, Upgrade For Life Time
Company Information


OPTO-EDU, as one of the most professional manufacturer and supplier of microscope in China, our sub-brand CNOPTEC series high end biological, laboratory, polarizing, metallurgical, fluorescene microscopes, CNCOMPARISON series forensic microscope, A63 series SEM microscope, and .49 series digital camera, LCD camera are very popular in the world market.

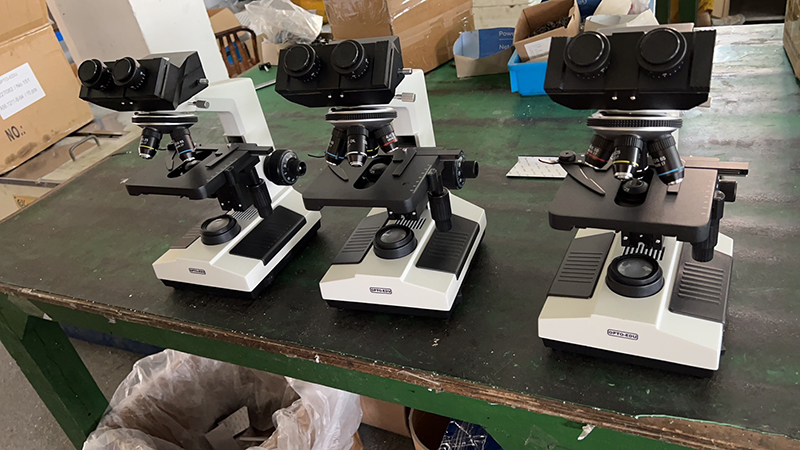

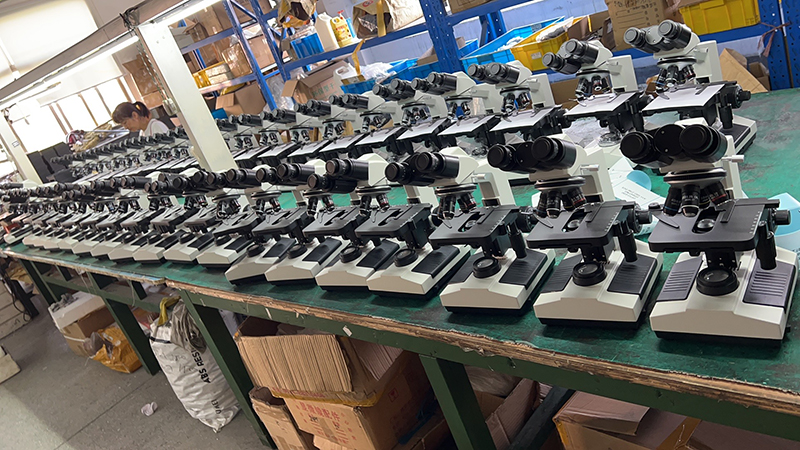

Pictures
Model No. A11.1007-16 A11.1007-27WT A11.1007-27T A11.1007-27W A11.1007-27 A11.1007-17WT A11.1007-17T A11.1007-17W A11.1007-17
Applications
Clinic
Laboratory
Student School
Teaching/Training
Clinic
Laboratory
Student School
Teaching/Training
Clinic
Laboratory
Student School
Teaching/Training
Clinic
Laboratory
Student School
Teaching/Training
Clinic
Laboratory
Student School
Teaching/Training
Clinic
Laboratory
Student School
Teaching/Training
Clinic
Laboratory
Student School
Teaching/Training
Clinic
Laboratory
Student School
Teaching/Training
Clinic
Laboratory
Student School
Teaching/Training
Function
BF BF BF BF BF BF BF BF BF
Optical System
Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic
Standard Magnification
40x-1600x 40x-1600x 40x-1600x 40x-1600x 40x-1600x 40x-1600x 40x-1600x 40x-1600x 40x-1600x
Head Type
Dual-View Seidentopf Trinocular Seidentopf Trinocular Sedentopf Binocular Sedentopf Binocular Sliding Trinocular Sliding Trinocular Sliding Binocular Sliding Binocular
Head Inclination
45° 45° 45° 45° 45° 45° 45° 45° 45°
Head Rotation
Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360°
Head Interpupillary
—— 55~75mm 55~75mm 55~75mm 55~75mm 55~75mm 55~75mm 55~75mm 55~75mm
Head Light Path
—— Switch E100:P0/E0:P100 Switch E100:P0/E0:P100 —— —— Switch E100:P0/E0:P100 Switch E100:P0/E0:P100 —— ——
Head Specification
Black Color White Color Black Color White Color Black Color White Color Black Color White Color Black Color
Eyepiece Features
Wide Field Wide Field Wide Field Wide Field Wide Field Wide Field Wide Field Wide Field Wide Field
Eyepiece Diameter
23.2mm 23.2mm 23.2mm 23.2mm 23.2mm 23.2mm 23.2mm 23.2mm 23.2mm
Eyepiece
WF10x/18mm, 2 pcs

WF16x/11mm, 2 pcs
WF10x/18mm, 2 pcs

WF16x/11mm, 2 pcs
WF10x/18mm, 2 pcs

WF16x/11mm, 2 pcs
WF10x/18mm, 2 pcs

WF16x/11mm, 2 pcs
WF10x/18mm, 2 pcs

WF16x/11mm, 2 pcs
WF10x/18mm, 2 pcs

WF16x/11mm, 2 pcs
WF10x/18mm, 2 pcs

WF16x/11mm, 2 pcs
WF10x/18mm, 2 pcs

WF16x/11mm, 2 pcs
WF10x/18mm, 2 pcs

WF16x/11mm, 2 pcs
Nosepiece Holes
4 Holes 4 Holes 4 Holes 4 Holes 4 Holes 4 Holes 4 Holes 4 Holes 4 Holes
Nosepiece Features
Outward Outward Outward Outward Outward Outward Outward Outward Outward
Objective Type
Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic Achromatic
Objective
Achromatic Objective:

4x/0.1, W.D.=25mm

10x/0.25, W.D.=11mm

40x/0.6(S), W.D.=3.8mm

100x/1.25(S,Oil), W.D.=0.1mm
Achromatic Objective:

4x/0.1, W.D.=25mm

10x/0.25, W.D.=11mm

40x/0.6(S), W.D.=3.8mm

100x/1.25(S,Oil), W.D.=0.1mm
Achromatic Objective:

4x/0.1, W.D.=25mm

10x/0.25, W.D.=11mm

40x/0.6(S), W.D.=3.8mm

100x/1.25(S,Oil), W.D.=0.1mm
Achromatic Objective:

4x/0.1, W.D.=25mm

10x/0.25, W.D.=11mm

40x/0.6(S), W.D.=3.8mm

100x/1.25(S,Oil), W.D.=0.1mm
Achromatic Objective:

4x/0.1, W.D.=25mm

10x/0.25, W.D.=11mm

40x/0.6(S), W.D.=3.8mm

100x/1.25(S,Oil), W.D.=0.1mm
Achromatic Objective:

4x/0.1, W.D.=25mm

10x/0.25, W.D.=11mm

40x/0.6(S), W.D.=3.8mm

100x/1.25(S,Oil), W.D.=0.1mm
Achromatic Objective:

4x/0.1, W.D.=25mm

10x/0.25, W.D.=11mm

40x/0.6(S), W.D.=3.8mm

100x/1.25(S,Oil), W.D.=0.1mm
Achromatic Objective:

4x/0.1, W.D.=25mm

10x/0.25, W.D.=11mm

40x/0.6(S), W.D.=3.8mm

100x/1.25(S,Oil), W.D.=0.1mm
Achromatic Objective:

4x/0.1, W.D.=25mm

10x/0.25, W.D.=11mm

40x/0.6(S), W.D.=3.8mm

100x/1.25(S,Oil), W.D.=0.1mm
Working Stage Type
Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical
Working Stage Feature
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Working Stage Size
140x140mm 140x140mm 140x140mm 140x140mm 140x140mm 140x140mm 140x140mm 140x140mm 140x140mm
Working Stage Moving
50x75mm, Precision 0.1mm
50x75mm, Precision 0.1mm
50x75mm, Precision 0.1mm
50x75mm, Precision 0.1mm
50x75mm, Precision 0.1mm
50x75mm, Precision 0.1mm
50x75mm, Precision 0.1mm
50x75mm, Precision 0.1mm
50x75mm, Precision 0.1mm
Focusing Features
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Focusing Type
Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine
Focusing Scale
0.002mm 0.002mm 0.002mm 0.002mm 0.002mm 0.002mm 0.002mm 0.002mm 0.002mm
Condenser Type
Abbe Condenser Abbe Condenser Abbe Condenser Abbe Condenser Abbe Condenser Abbe Condenser Abbe Condenser Abbe Condenser Abbe Condenser
Condenser N.A.
1.25 1.25 1.25 1.25 1.25 1.25 1.25 1.25 1.25
Condenser Features
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Rack & Pinion Up/Down
With Filter Holder
Light Source Feature
Brightness Adjustable Brightness Adjustable Brightness Adjustable Brightness Adjustable Brightness Adjustable Brightness Adjustable Brightness Adjustable Brightness Adjustable Brightness Adjustable
Light Source Type
LED LED LED LED LED LED LED LED LED
Transmit Light
LED, Brightness Adjustable LED, Brightness Adjustable LED, Brightness Adjustable LED, Brightness Adjustable LED, Brightness Adjustable LED, Brightness Adjustable LED, Brightness Adjustable LED, Brightness Adjustable LED, Brightness Adjustable
Power Supply Type
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
Video Adapter
—— Digital Eyepice 23.2mm
C-Mount 1.0x
Digital Eyepice 23.2mm
C-Mount 1.0x
—— —— Digital Eyepice 23.2mm
C-Mount 1.0x
Digital Eyepice 23.2mm
C-Mount 1.0x
—— ——
Function Upgradeable
Dark Field
Polarizing
Phase Contrast
Fluorescent
Dark Field
Polarizing
Phase Contrast
Fluorescent
Dark Field
Polarizing
Phase Contrast
Fluorescent
Dark Field
Polarizing
Phase Contrast
Fluorescent
Dark Field
Polarizing
Phase Contrast
Fluorescent
Dark Field
Polarizing
Phase Contrast
Fluorescent
Dark Field
Polarizing
Phase Contrast
Fluorescent
Dark Field
Polarizing
Phase Contrast
Fluorescent
Dark Field
Polarizing
Phase Contrast
Fluorescent
Optional Accessory
0.45x C-Mount

Achromatic 20x/0.4, W.D.=9mm

Achromatic 60x/0.85(S)
0.45x C-Mount

Achromatic 20x/0.4, W.D.=9mm

Achromatic 60x/0.85(S)
0.45x C-Mount

Achromatic 20x/0.4, W.D.=9mm

Achromatic 60x/0.85(S)
0.45x C-Mount

Achromatic 20x/0.4, W.D.=9mm

Achromatic 60x/0.85(S)
0.45x C-Mount

Achromatic 20x/0.4, W.D.=9mm

Achromatic 60x/0.85(S)
0.45x C-Mount

Achromatic 20x/0.4, W.D.=9mm

Achromatic 60x/0.85(S)
0.45x C-Mount

Achromatic 20x/0.4, W.D.=9mm

Achromatic 60x/0.85(S)
0.45x C-Mount

Achromatic 20x/0.4, W.D.=9mm

Achromatic 60x/0.85(S)
0.45x C-Mount

Achromatic 20x/0.4, W.D.=9mm

Achromatic 60x/0.85(S)
Download
—— —— —— —— —— —— —— —— https://websitebucket.oss-accelerate.aliyuncs.com/2469193113797632/2020/11/6P55e6sT7G.pdf

Send Message

Service

WeChat

qr codeWelcome WeChat!

INQUIRY LIST

Empty List

COMPARE

Empty List
