Super Wide Field Eyepiece

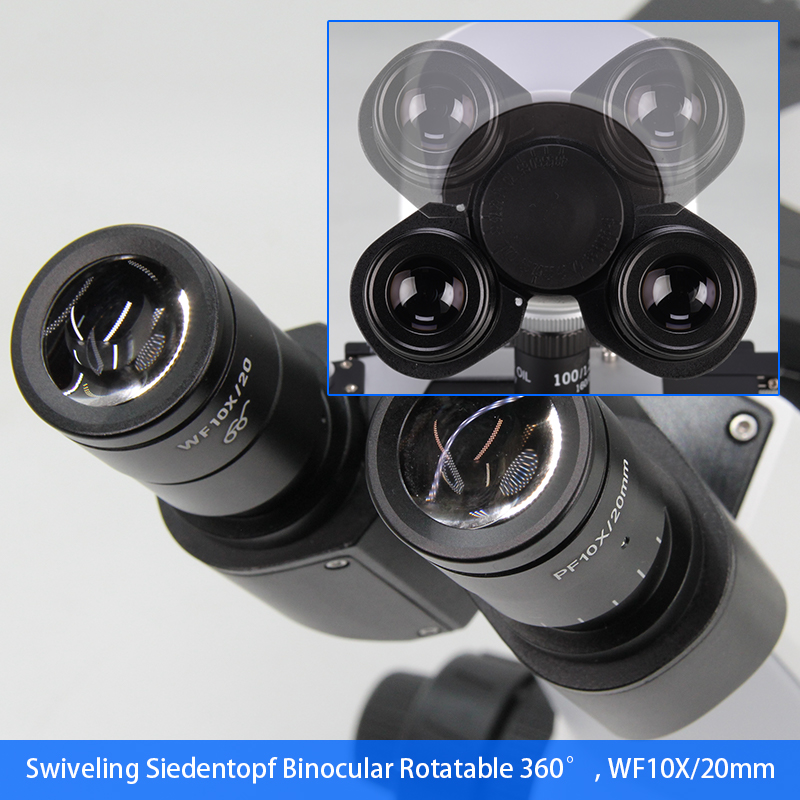

Swiveling Siedentopf Rotatable 360°, Inclined 45°, IPD: 48-75mm,
Light distribution: 70:30(70% For Eyepiece, And 30% For Camera Tube), WF10X/20mm

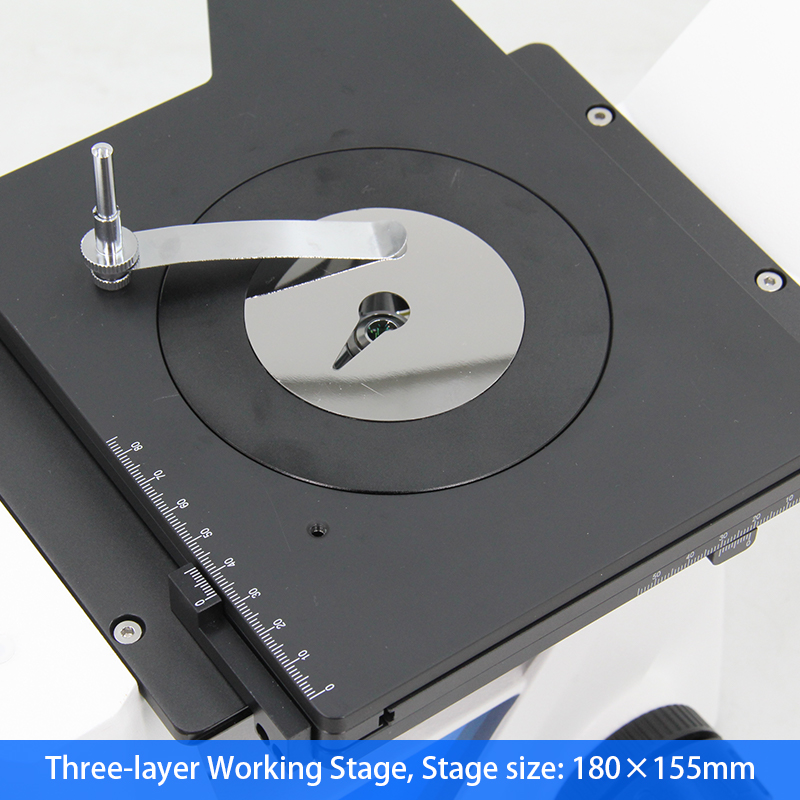

Mechanical Stage
Three-layer Working Stage, Stage size: 180×155mm
Nosepiece & Objectives
Quadruple

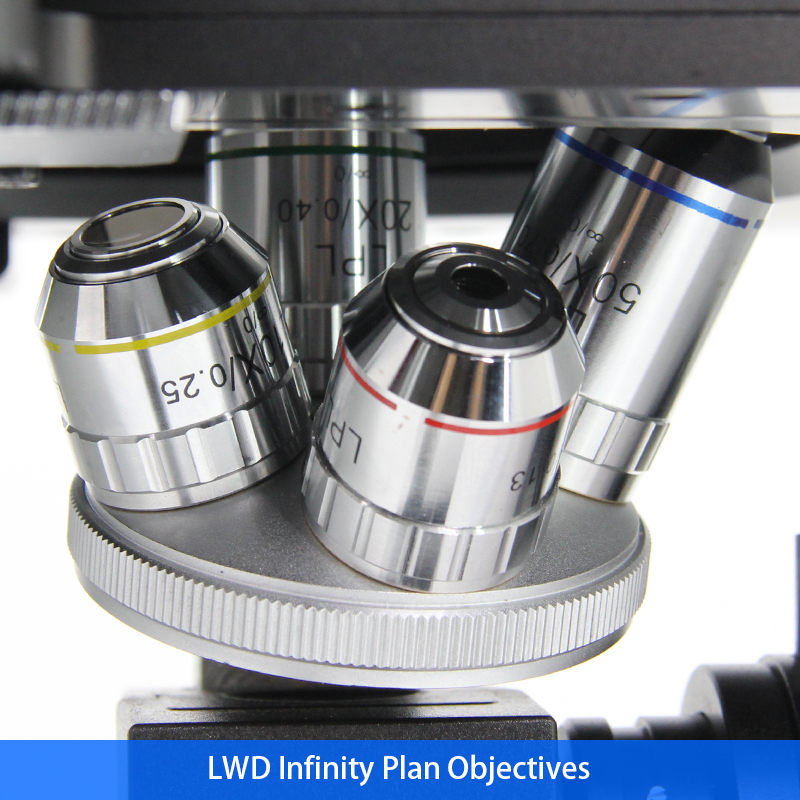

LWD Infinity Plan Objectives
Polarizing

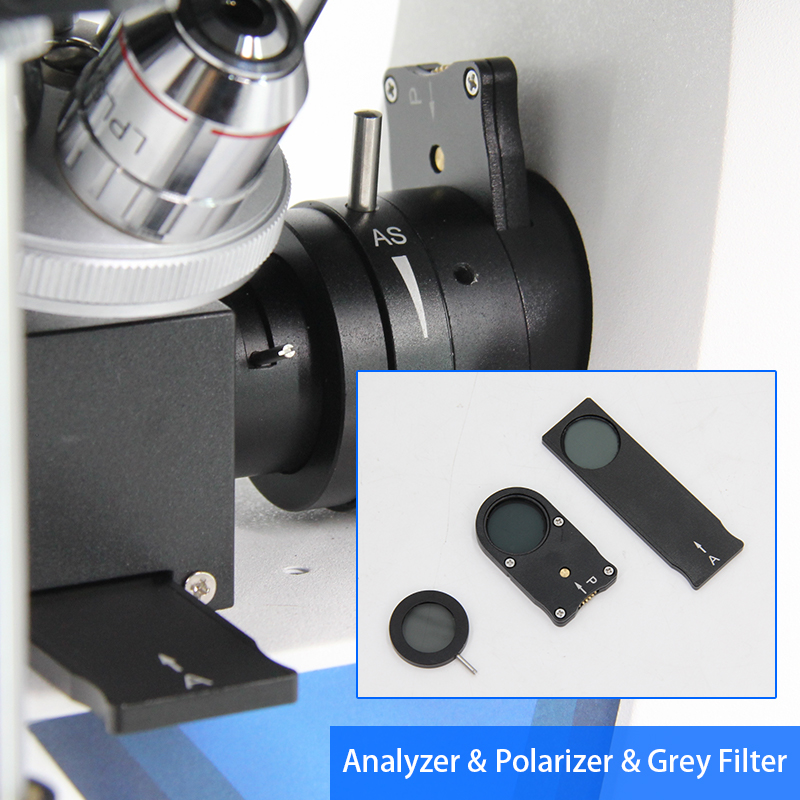

Analyzer & Polarizer & Grey Filter
5W LED Warm Lamp

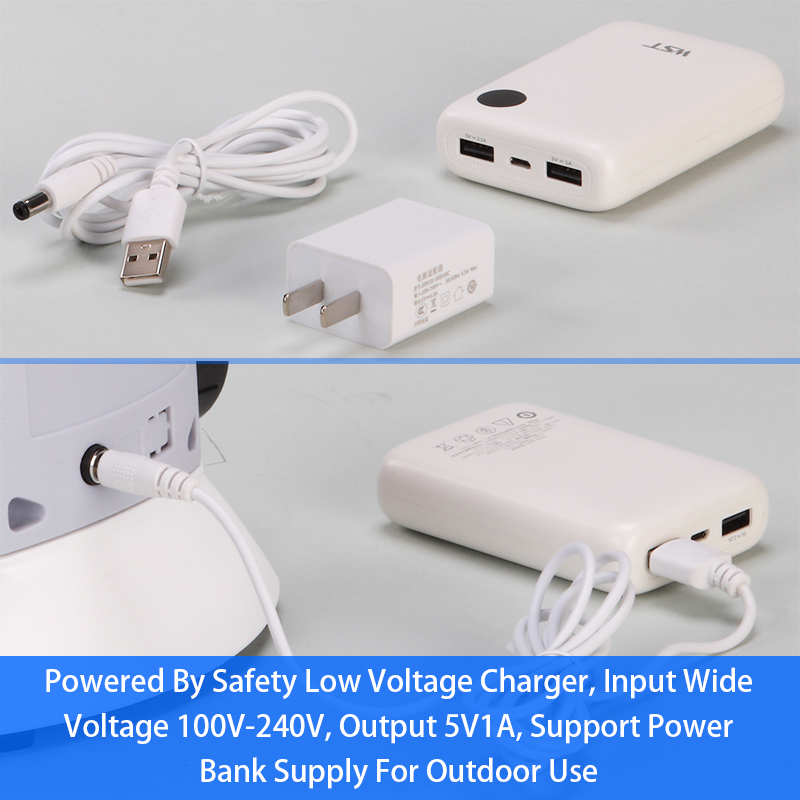

Powered By Safety Low Voltage Charger
Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

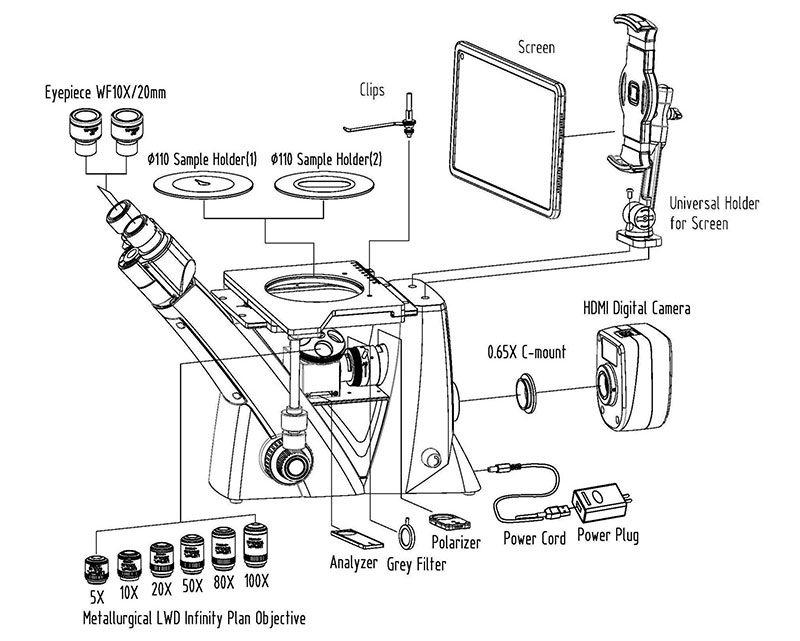

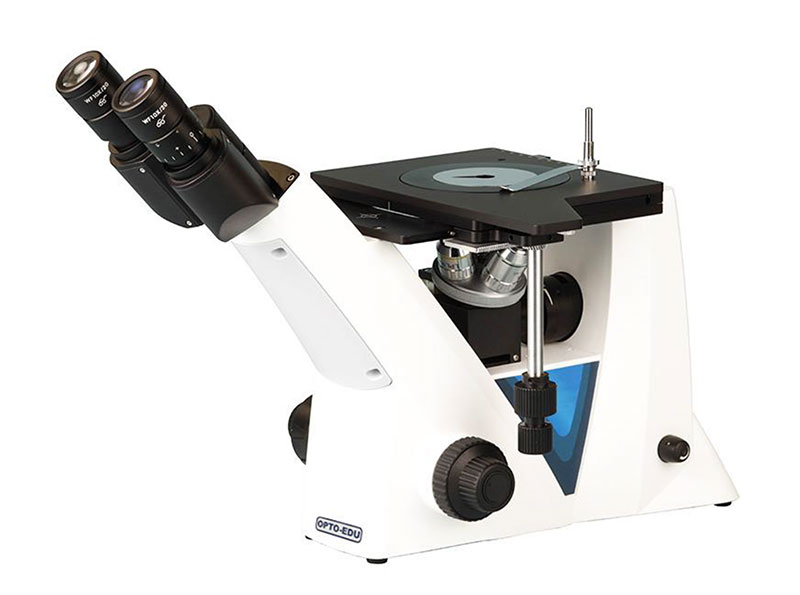

| Items | A13.2607 Inverted Metallurgical Microscope | |
| Head | Swiveling Siedentopf, Inclined 45°, IPD: 48-75mm,Light distribution: 70:30（70% For Eyepiece, And 30% For Camera Tube） | ● |
| Eyepiece | WF10X/20mm, High Eyepoint | ● |
| WF10X/20mm, High Eyepoint, Adjustable Focus, Reticule 0.1mm | ● | |
| LWD Infinity Plan Objectives | LPL 5×／0.13, W.D=16.04mm | ● |
| LPL 10×／0.25, W.D.= 18.48mm | ● | |
| LPL 20×／0.40, W.D.= 8.35mm | ● | |
| LPL 50×／0.70, W.D.= 1.95mm | ● | |
| LPL 80×／0.80, W.D.= 0.85mm | ○ | |
| LMPlan FL 100×／0.85(Dry), W.D.= 3.00mm | ○ | |
| Nosepiece | Quadruple | ● |
| Mechanical Stage | Three-layer Working Stage, Stage size: 180×155mm, Moving Range:75×40mm, Scale: 0.1mm, Round Slide Size：φ110mm | ● |

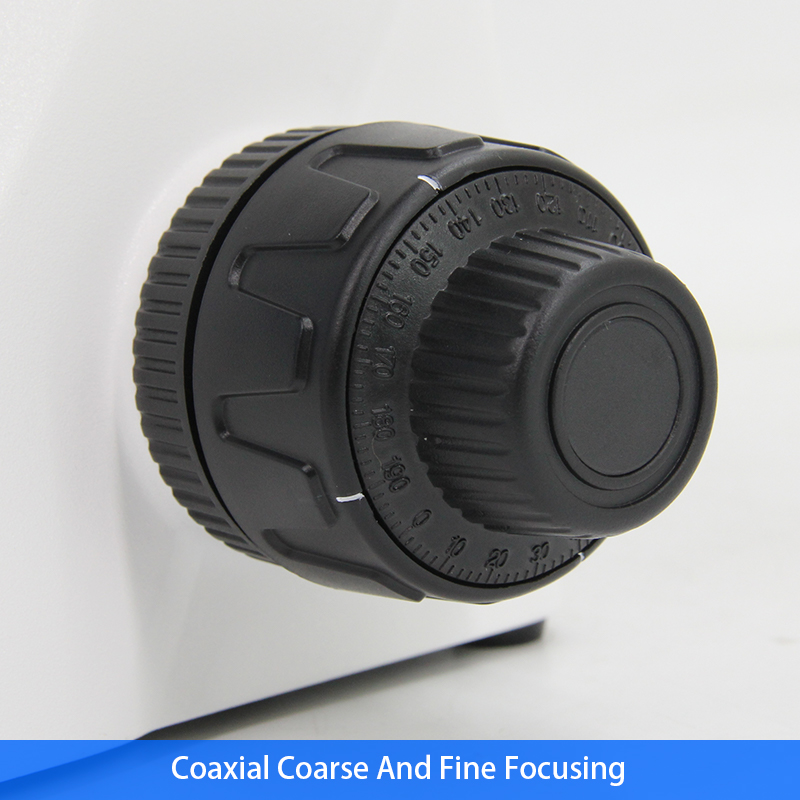

| Focusing | Coaxial Coarse And Fine, Coarse Stroke: 10mm, Fine Stroke PerRrotation: 0.2mm, Fine Division 2 μm. | ● |
| Polarizing Unit | Polarizer, Analyzer | ● |
| llumination | 5W LED Warm Lamp, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | ● |
| Filter | Grey | ○ |

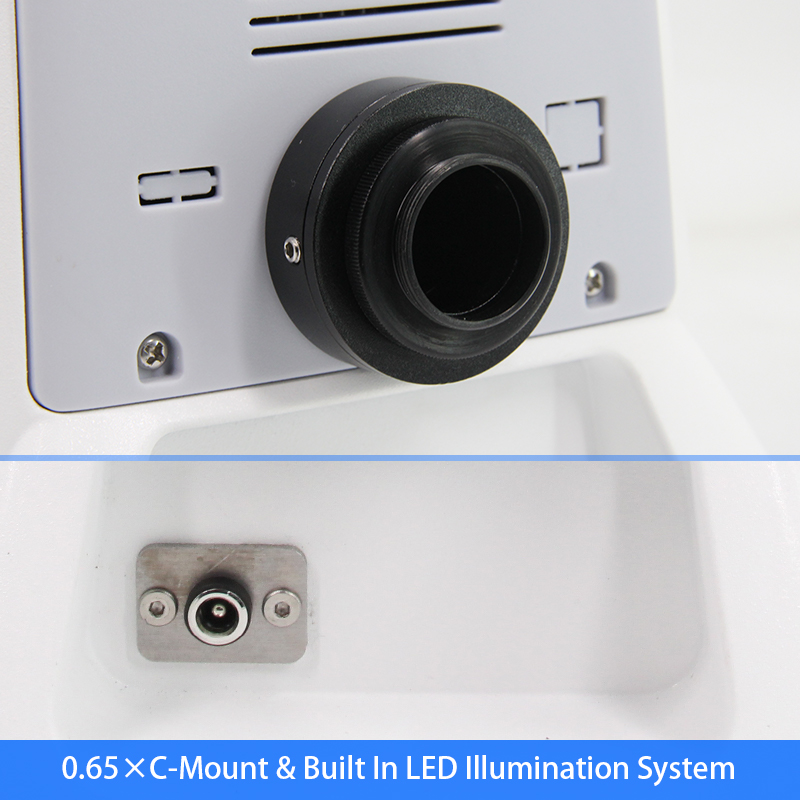

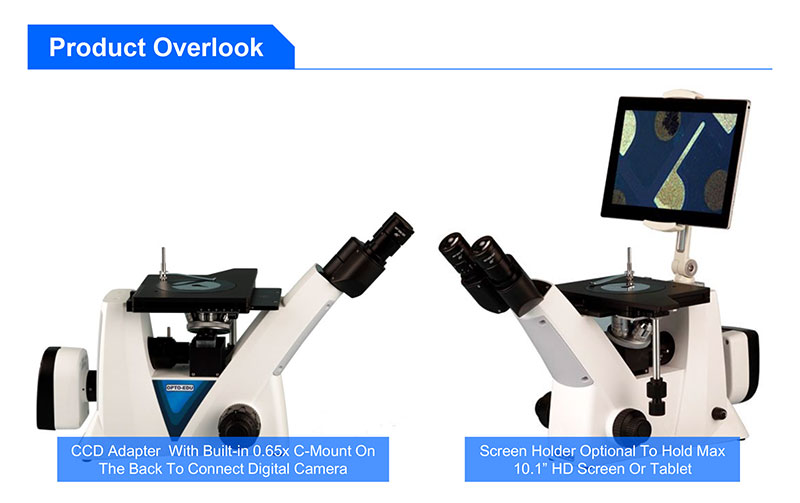

| C-mount | 0.65×C-Mount, Built-in | ● |
| Holder | Universal Holder for HD Screen | ○ |
| HDMI Camera | With Measurement Function | ○ |
| HD Screen | 10.1” HD LCD | ○ |
| Packing Size: 500mm×425mm×305mm Gross Weight:9.0 kgs Net Weight: 7.0 kgs | ||
| Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories. | ||
