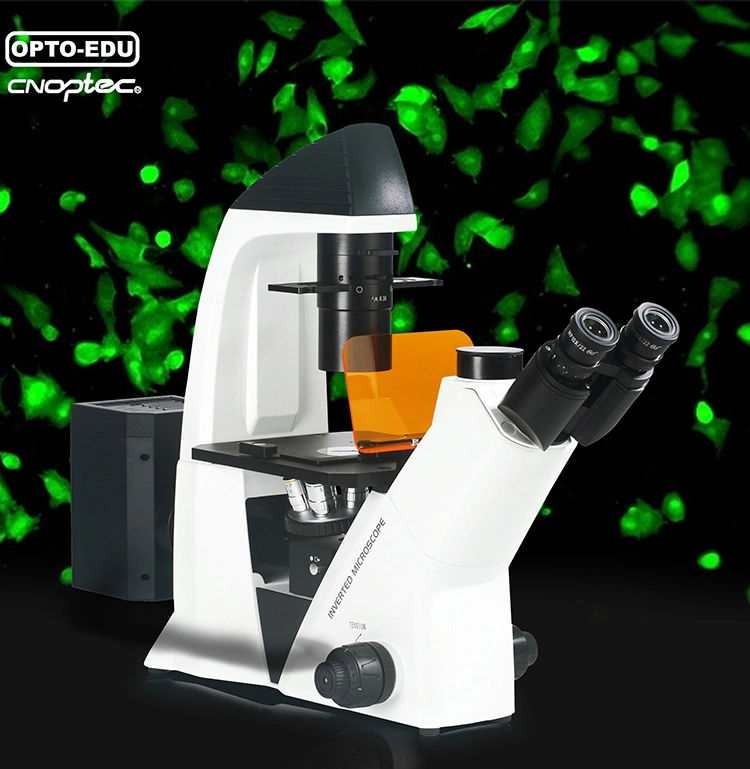

OPTO-EDU A16.2614-4 Professional Inverted Fluorescent System B/G Microscope
A16.2614 Fluorescent Microscope Observation Effect
| Items | A16.2614 Inverted Fluorescent Microscope Specification | A16.2614 -2 | A16.2614 -4 | A16.2614-L -2 | A16.2614-L -4 | Cata. No. |

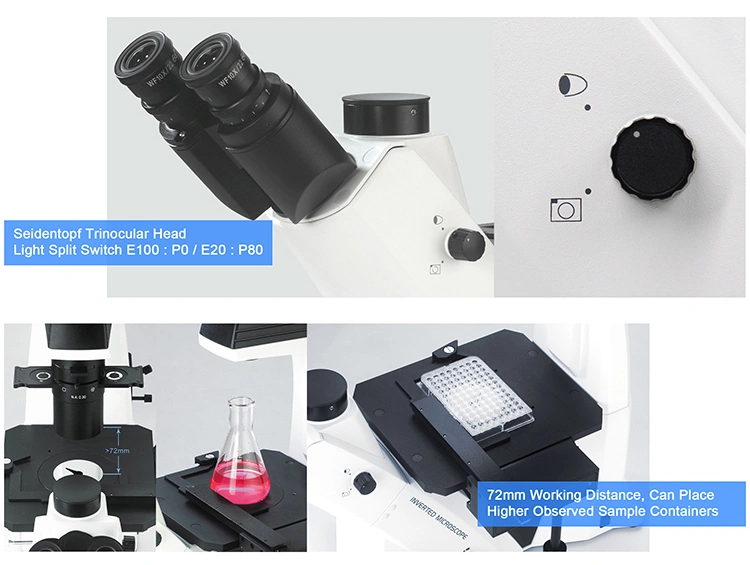

| Head | Seidentopf Trinocular Head Inclined 45°, Interpupilary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80 | ● | ● | ● | ● | A53.2643 |
| Eyepiece | WF10x/22mm, Dia.30mm, High Eyepoint,, Diopter Adjustable | ●● | ●● | ●● | ●● | A51.2621-1022 |
| WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable | ○○ | ○○ | ○○ | ○○ | A51.2621-1516 | |
| WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable | ○○ | ○○ | ○○ | ○○ | A51.2621-2012 | |
| Nosepiece | Quintuple | ● | ● | ● | ● | A54.2610-N925 |
| LWD Infinity Plan Fluorescent Objectives Newly Update 2021 | L Plan FL 4x/0.11 W.D.=12.1mm | ○ | ○ | ○ | ○ | A5F.2635-4 |
| L Plan FL 10x/0.25 W.D.=10.3mm | ● | ● | ● | ● | A5F.2635-10 | |
| L Plan FL 20x/0.45 W.D.=5.8mm | ● | ● | ● | ● | A5F.2635-20 | |
| L Plan FL 40x/0.65 W.D.=5.1mm | ● | ● | ● | ● | A5F.2635-40 | |
| LWD Infinity Plan Phase Contrast Fluorescent Objectives Newly Update 2021 | L Plan FL PHP 4x/0.10 W.D.=9.2mm | ○ | ○ | ○ | ○ | A5C.2635-4 |
| L Plan FL PHP 10x/0.25 W.D.=10.3mm | ○ | ○ | ○ | ○ | A5C.2635-10 | |
| L Plan FL PHP 20x/0.45 W.D.=5.8mm | ● | ● | ● | ● | A5C.2635-20 | |
| L Plan FL PHP 40x/0.65 W.D.=5.1mm | ○ | ○ | ○ | ○ | A5C.2635-40 | |
| Phase Contrast | Centering Telescope 11x | ○ | ○ | ○ | ○ | A5C.2610 |
| Annular Spot 4x | ○ | ○ | ○ | ○ | A5C.2611-4 | |
| Annular Spot 20x/ 40x | ● | ● | ● | ● | A5C.2611-10 | |
| Annular Spot 10x | ● | ● | ● | ● | A5C.2611-20/40 | |
| Working Stage | Mechanical Stage Size 210x241mm, Round Slide Size Φ110mm | ● | ● | ● | ● | A54.2601-D4 |
| Attached Mechanical Stage, Available For 96 Holes Plate, Moving Range 128x80mm | ○ | ○ | ○ | ○ | A54.2605 | |
| Culture Dish Holder 65mm | ○ | ○ | ○ | ○ | A54.2606-65 | |
| Culture Dish Holder 54mm | ● | ● | ● | ● | A54.2606-54 | |
| Culture Dish Holder 35mm | ○ | ○ | ○ | ○ | A54.2606-35 | |
| Holder For Blood Cell Counter | ○ | ○ | ○ | ○ | A54.2606-BC | |
| Universal Holder (New Accessory 2021) | ○ | ○ | ○ | ○ | A54.2606-UH | |
| Round Glass Holder (New Accessory 2021) | ○ | ○ | ○ | ○ | A54.2606-GL | |
| Condenser | Long Working Distance, Quickly Detachable, N.A.0.3, Working Distance 72mm (With Condenser), 195mm (Without Condenser). | ● | ● | ● | ● | A56.2614-D4 |
| Illumination | Koehler Illumination Halogen 6V/30W, Input Voltage 100V~240V | ● | ● | ● | ● | A56.2613-30W |
| Koehler Illumination 5W LED, Input Voltage 100V~240V | ○ | ○ | ○ | ○ | A56.2651-5W | |
| Power | ECO, Auto Power Off System. Power Off Automatically Upon User Leaving 10 Minutes, Power On Automatically Upon User Approaching Detected, This Function Can Be Shut Down Manually | ○ | ○ | ○ | ○ | A56.2660 |
| Filter | Blue, Dia.34mm | ● | ● | ● | ● | A56.2616-34B |
| Green, Dia.34mm | ● | ● | ● | ● | A56.2616-34G | |
| Amber, Dia.34mm | ○ | ○ | ○ | ○ | A56.2616-34A | |
| Grey, Dia.34mm | ○ | ○ | ○ | ○ | A56.2616-34N | |
| Adapter | C-Mount 0.5x, Focus Adjustable | ○ | ○ | ○ | ○ | A55.2601-05 |
| C-Mount 0.75x, Focus Adjustable | ○ | ○ | ○ | ○ | A55.2601-75 | |
| C-Mount1.0x, Focus Adjustable | ○ | ○ | ○ | ○ | A55.2601-10 | |

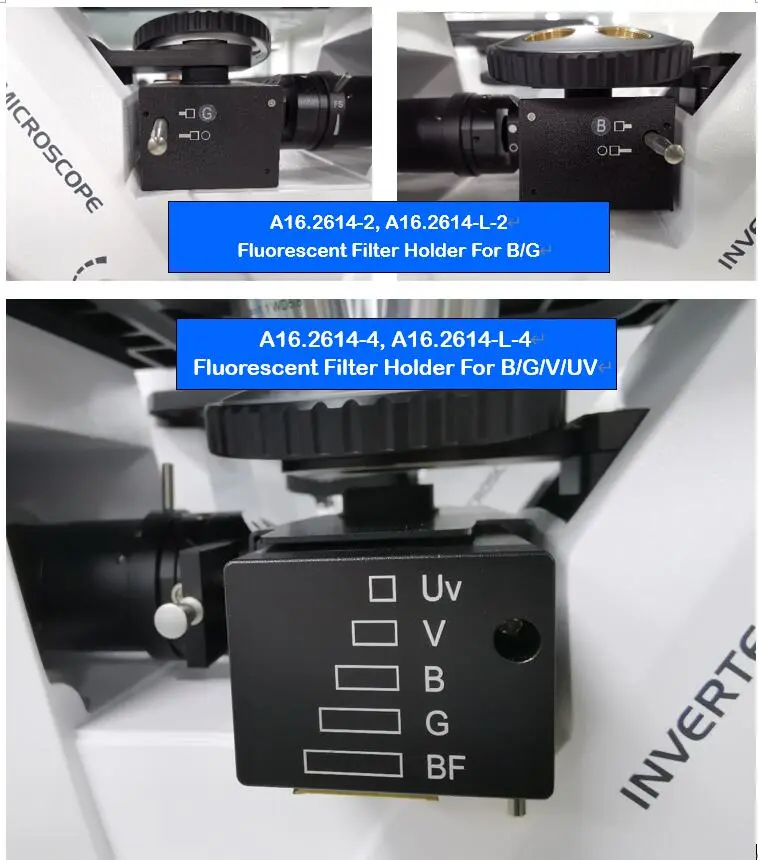

| Epi Fluorescence Illumination | Upgrade From A14.2603 Inverted Microscope With B,G China Fluorescent Filter, 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. Fluorescent Slide 3 Holes Ultraviolet Protection Barrier China 100W Mercury Lamp | ● | ○ | A5F.2603-2 | ||
| Upgrade From A14.2603 Inverted Microscope With B,G,V,VU China Fluorescent Filter, 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. Fluorescent Slide 3 Holes Ultraviolet Protection Barrier China 100W Mercury Lamp | ○ | ● | A5F.2603-4 | |||
| Epi Fluorescence LEDIllumination | Upgrade From A14.2603 Inverted Microscope With B,G China Fluorescent Filter, 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier Fluorescent Slide 3 Holes, With Filter Diaphragm, Center Adjustable 5W LED B,G Lamp Each 1 pc | ● | ○ | A5F.2604-2 | ||
| Upgrade From A14.2603 Inverted Microscope With B,G,V,VU China Fluorescent Filter, 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier Fluorescent Slide 3 Holes, With Filter Diaphragm, Center Adjustable 5W LED B,G,V,VU Lamp Each 1 pc | ○ | ● | A5F.2604-4 | |||
| Fluorescent Filter | Upgrade to Chrome Fluorescent Filters, B,G,V,UV Available | A5F.2621-B,G,U,UV | ||||
| Package | Packing Size: 660mmx590mmx325mm Fluorescence Carton Size 520x470x235mm | |||||
| Weight | Gross Weight: 18 kgs, Net Weight: 13.5 kgs | |||||
| Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories. | ||||||

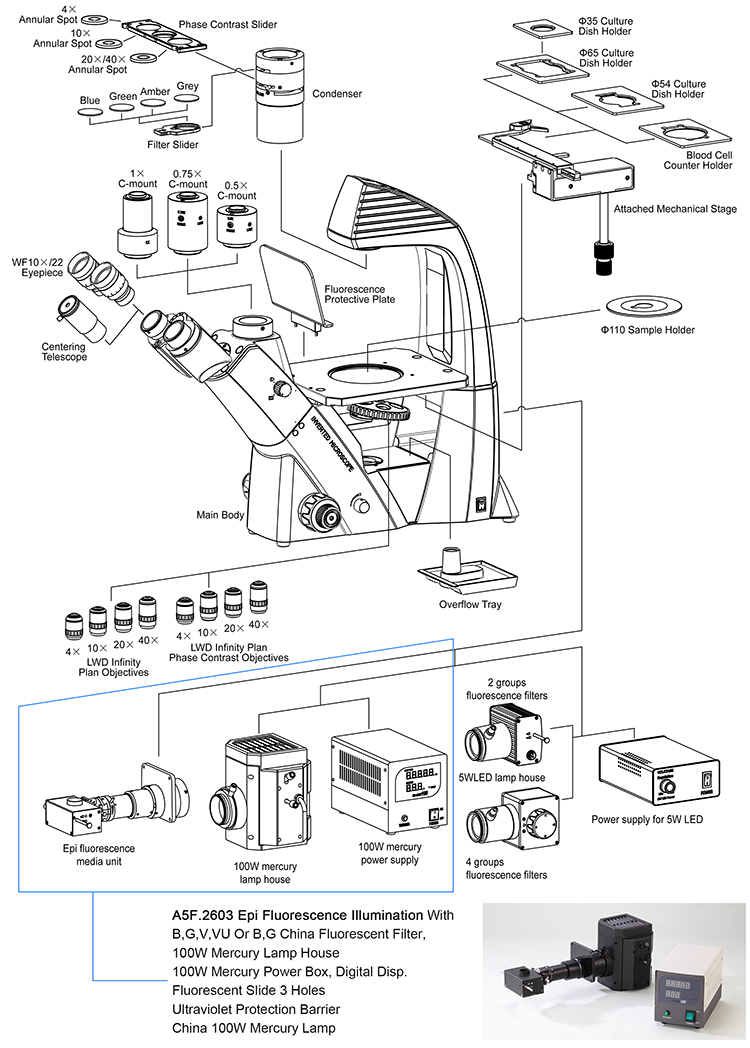

A14.2603 Inverted Biological Microscope General Layout Diagram

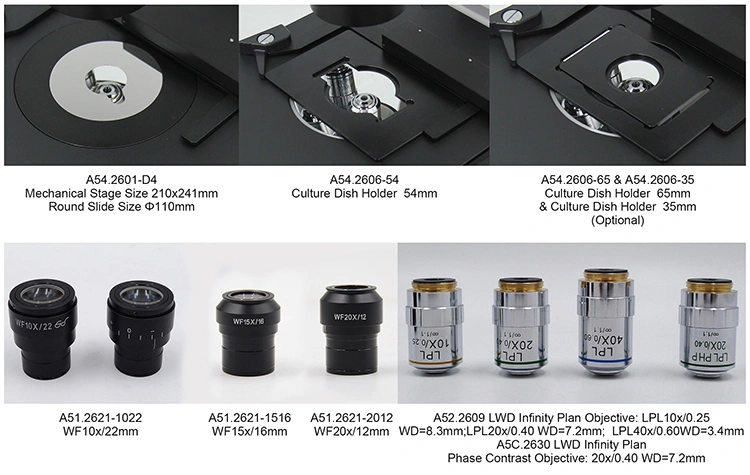

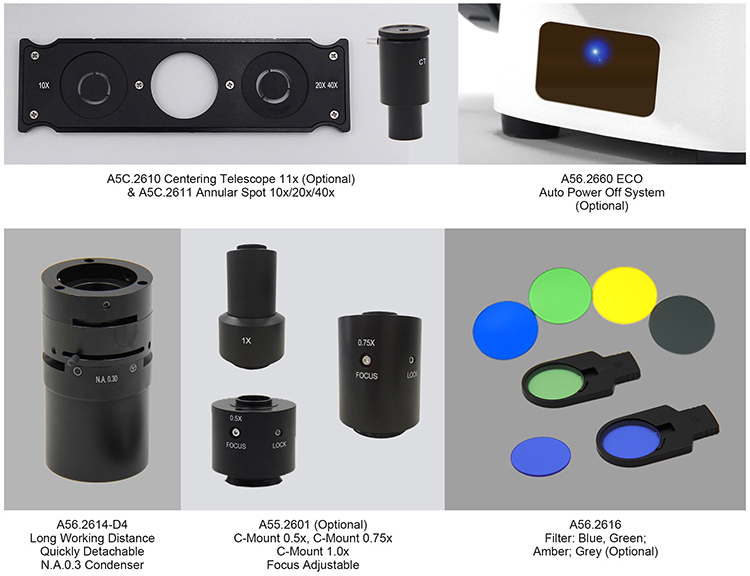

A16.2614 Inverted Biological Microscope Accessories
