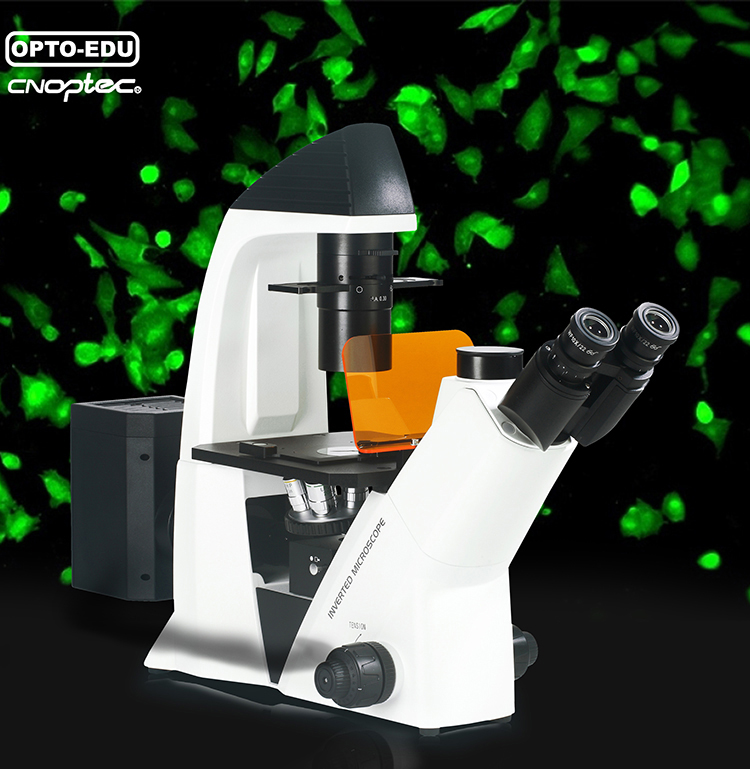

OPTO-EDU A16.2614-4 Propesyonal na Inverted Fluorescent System B/G Microscope

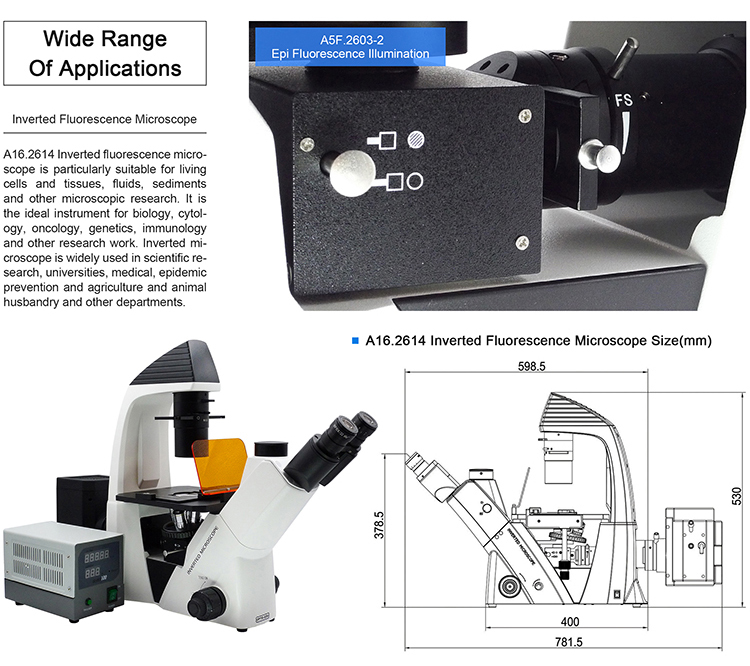

A16.2614 Fluorescent Microscope Observation Effect
| Mga bagay | A16.2614 Inverted Fluorescent Microscope Detalye | A16.2614 -2 | A16.2614 -4 | A16.2614-L -2 | A16.2614-L -4 | Cata. Hindi. |

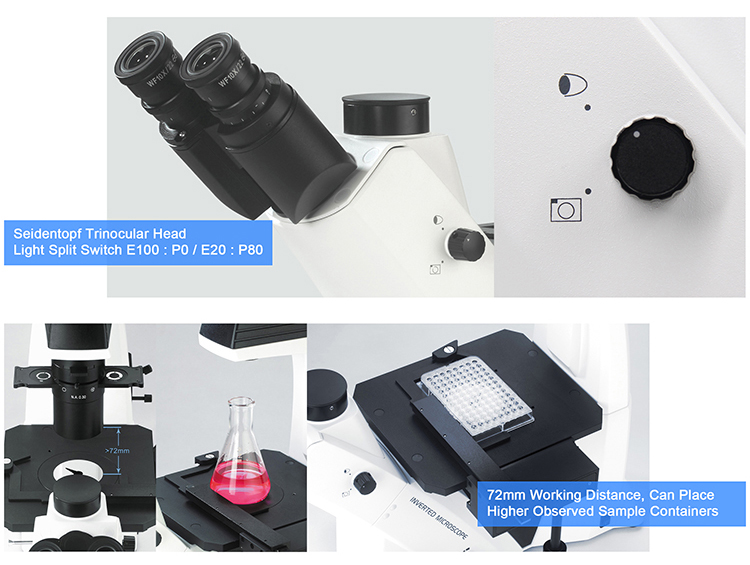

| Ulo | Seidentopf Trinocular Head Inclined 45°, Interpupilary Distansya 48~76mm, Light Split Switch E100:P0 / E20:P80 | ● | ● | ● | ● | A53.2643 |
| Eyepiece | WF10x/22mm, Dia.30mm, High Eyepoint,, Diopter Adjustable | ●● | ●● | ●● | ●● | A51.2621-1022 |
| WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable | ○○ | ○○ | ○○ | ○○ | A51.2621-1516 | |
| WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable | ○○ | ○○ | ○○ | ○○ | A51.2621-2012 | |
| Nosepiece | Quintuple | ● | ● | ● | ● | A54.2610-N925 |
| LWD Infinity Plan Semi-APO Mga layunin Update 2021 | L Plan FL 4x/0.11 WD=12.1mm | ○ | ○ | ○ | ○ | A5F.2635-4 |
| L Plan FL 10x/0.25 WD=10.3mm | ● | ● | ● | ● | A5F.2635-10 | |
| L Plan FL 20x/0.45 WD=5.8mm | ● | ● | ● | ● | A5F.2635-20 | |
| L Plan FL 40x/0.65 WD=5.1mm | ● | ● | ● | ● | A5F.2635-40 | |
| LWD Infinity Plan Phase Contrast Semi-APO Mga layunin Update 2021 | L Plan FL PHP 4x/0.10 WD=9.2mm | ○ | ○ | ○ | ○ | A5C.2635-4 |
| L Plan FL PHP 10x/0.25 WD=10.3mm | ○ | ○ | ○ | ○ | A5C.2635-10 | |
| L Plan FL PHP 20x/0.45 WD=5.8mm | ● | ● | ● | ● | A5C.2635-20 | |
| L Plan FL PHP 40x/0.65 WD=5.1mm | ○ | ○ | ○ | ○ | A5C.2635-40 | |
| Phase Contrast | Pagsentro ng Teleskopyo 11x | ○ | ○ | ○ | ○ | A5C.2610 |
| Annular Spot 4x | ○ | ○ | ○ | ○ | A5C.2611-4 | |
| Annular Spot 20x/ 40x | ● | ● | ● | ● | A5C.2611-10 | |
| Annular Spot 10x | ● | ● | ● | ● | A5C.2611-20/40 | |
| Yugto ng Paggawa | Laki ng Mechanical Stage 210x241mm, Round Slide Size Φ110mm | ● | ● | ● | ● | A54.2601-D4 |
| Naka-attach na Mechanical Stage, Available Para sa 96 Holes Plate, Moving Range 128x80mm | ○ | ○ | ○ | ○ | A54.2605 | |
| Culture Dish Holder 65mm | ○ | ○ | ○ | ○ | A54.2606-65 | |
| Culture Dish Holder 54mm | ● | ● | ● | ● | A54.2606-54 | |
| Culture Dish Holder 35mm | ○ | ○ | ○ | ○ | A54.2606-35 | |
| May hawak ng Blood Cell Counter | ○ | ○ | ○ | ○ | A54.2606-BC | |
| Universal Holder(Bagong Accessory 2021) | ○ | ○ | ○ | ○ | A54.2606-UH | |
| Round Glass Holder(Bagong Accessory 2021) | ○ | ○ | ○ | ○ | A54.2606-GL | |
| Condenser | Mahabang Distansya sa Paggawa, Mabilis na Nababakas, NA0.3, Distansya sa Paggawa 72mm (May Condenser), 195mm (Walang Condenser). | ● | ● | ● | ● | A56.2614-D4 |
| Pag-iilaw | Koehler Illumination Halogen 6V/30W, Input Voltage 100V~240V | ● | ● | ● | ● | A56.2613-30W |
| Koehler Illumination 5W LED, Input Voltage 100V~240V | ○ | ○ | ○ | ○ | A56.2651-5W | |
| kapangyarihan | ECO, Auto Power Off System. Awtomatikong I-off ang User Kapag Umalis ng 10 Minuto, Awtomatikong Naka-on Sa Paglapit ng User, Maaaring Manu-manong I-shut Down ang Function na ito | ○ | ○ | ○ | ○ | A56.2660 |
| Salain | Asul, Dia.34mm | ● | ● | ● | ● | A56.2616-34B |
| Berde, Dia.34mm | ● | ● | ● | ● | A56.2616-34G | |
| Amber, Dia.34mm | ○ | ○ | ○ | ○ | A56.2616-34A | |
| Gray, Dia.34mm | ○ | ○ | ○ | ○ | A56.2616-34N | |
| Adapter | C-Mount 0.5x, Focus Adjustable | ○ | ○ | ○ | ○ | A55.2601-05 |
| C-Mount 0.75x, Focus Adjustable | ○ | ○ | ○ | ○ | A55.2601-75 | |
| C-Mount1.0x, Focus Adjustable | ○ | ○ | ○ | ○ | A55.2601-10 | |

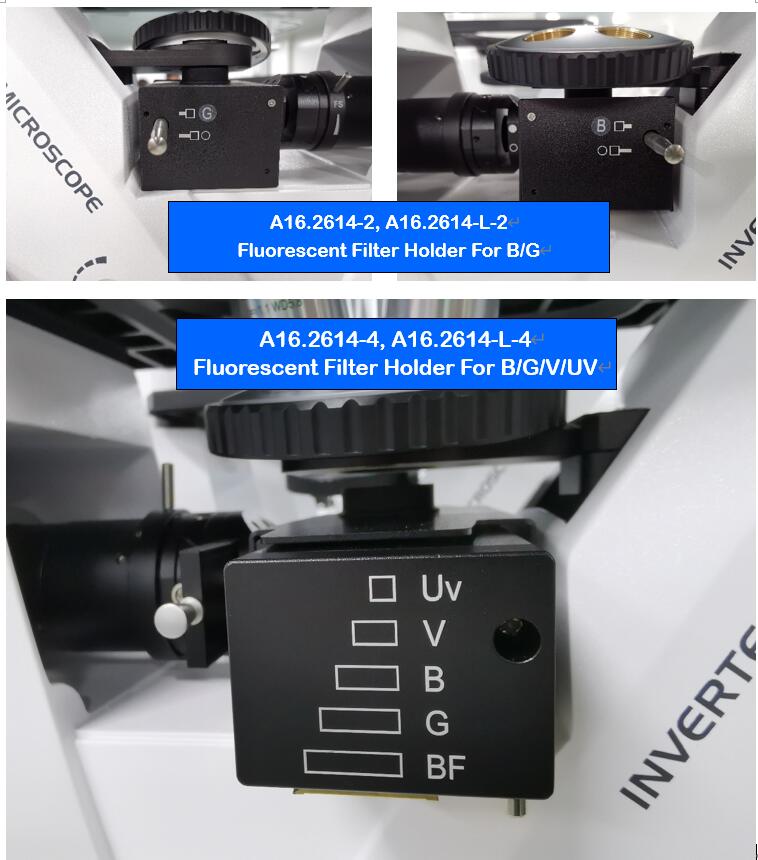

| Pag-iilaw ng Epi Fluorescence | Mag-upgrade Mula sa A14.2603 Inverted Microscope With B,G China Fluorescent Filter, 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. Fluorescent Slide 3 Holes Barrier ng Proteksyon ng Ultraviolet China 100W Mercury Lamp | ● | ○ | A5F.2603-2 | ||
| Mag-upgrade Mula sa A14.2603 Inverted Microscope With B,G,V,VU China Fluorescent Filter, 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. Fluorescent Slide 3 Holes Barrier ng Proteksyon ng Ultraviolet China 100W Mercury Lamp | ○ | ● | A5F.2603-4 | |||
| Epi FluorescenceLEDPag-iilaw | Mag-upgrade Mula sa A14.2603 Inverted Microscope With B,GChina Fluorescent Filter, 5W LED Lamp House 5W LED Power Box Barrier ng Proteksyon ng Ultraviolet Fluorescent Slide 3 Holes, May Filter Diaphragm, Center Adjustable 5W LED B,G Lamp Bawat 1 pc | ● | ○ | A5F.2604-2 | ||
| Mag-upgrade Mula sa A14.2603 Inverted Microscope With B,G,V,VUChina Fluorescent Filter, 5W LED Lamp House 5W LED Power Box Barrier ng Proteksyon ng Ultraviolet Fluorescent Slide 3 Holes, May Filter Diaphragm, Center Adjustable 5W LED B,G,V,VU Lamp Bawat 1 pc | ○ | ● | A5F.2604-4 | |||
| Fluorescent Filter | Mag-upgrade sa Chrome Fluorescent Filters, B,G,V,UV Available | A5F.2621-B,G,U,UV | ||||
| Package | Laki ng Packing: 660mmx590mmx325mm Fluorescence Carton Size 520x470x235mm | |||||
| Timbang | Kabuuang Timbang: 18 kg, Netong Timbang: 13.5 kg | |||||
| Tandaan:"●"In Table Is Standard outfits,"○"Ay Opsyonal na Mga Kagamitan. | ||||||

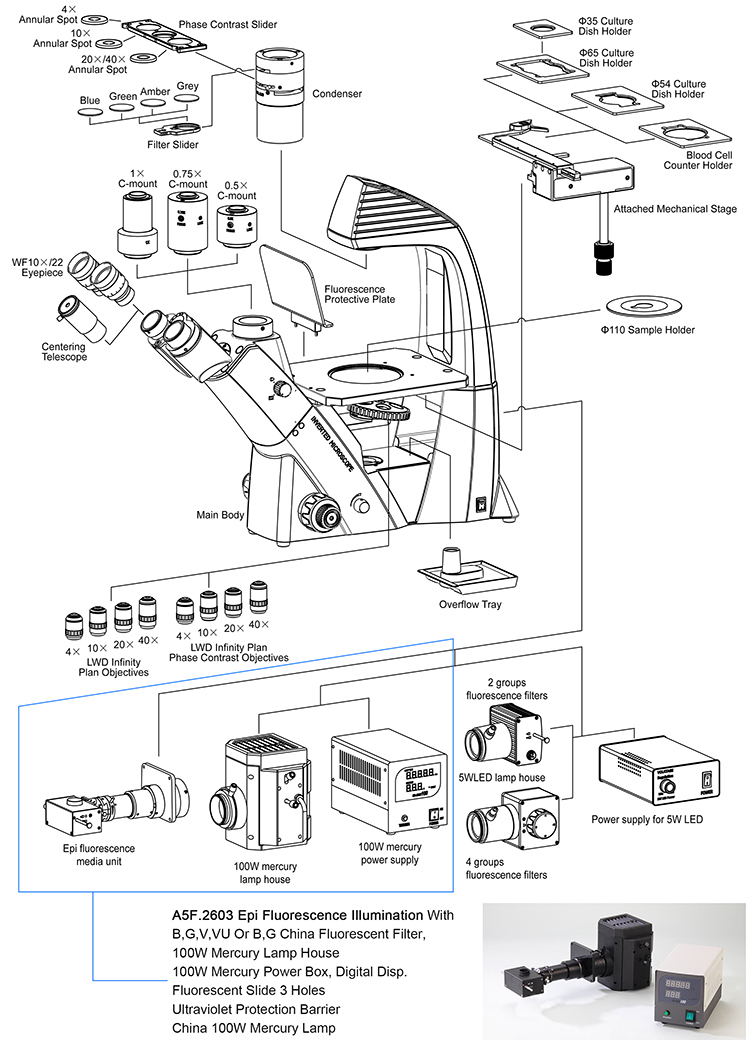

A14.2603 Inverted Biological Microscope Pangkalahatang Layout Diagram

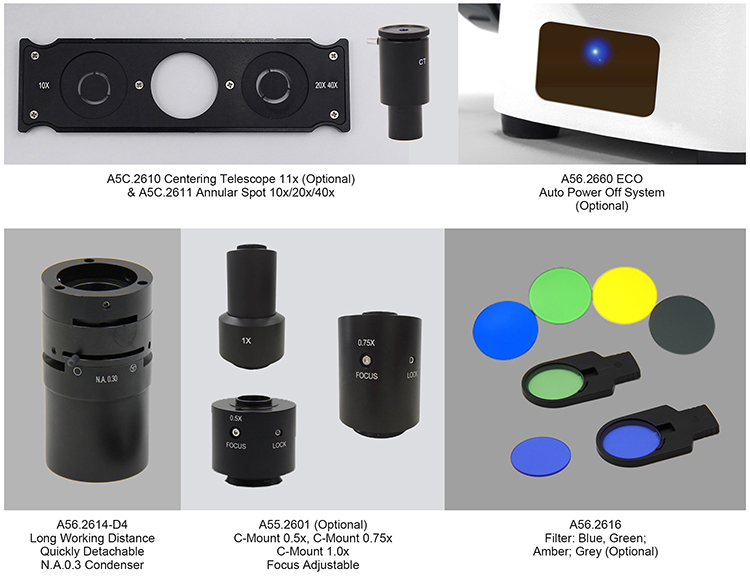

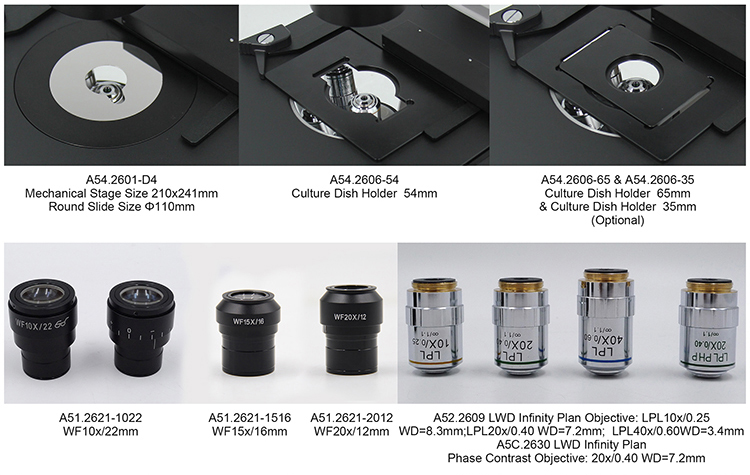

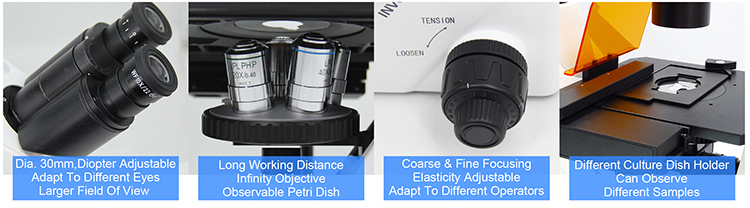

A16.2614 Inverted Biological Microscope Accessories
