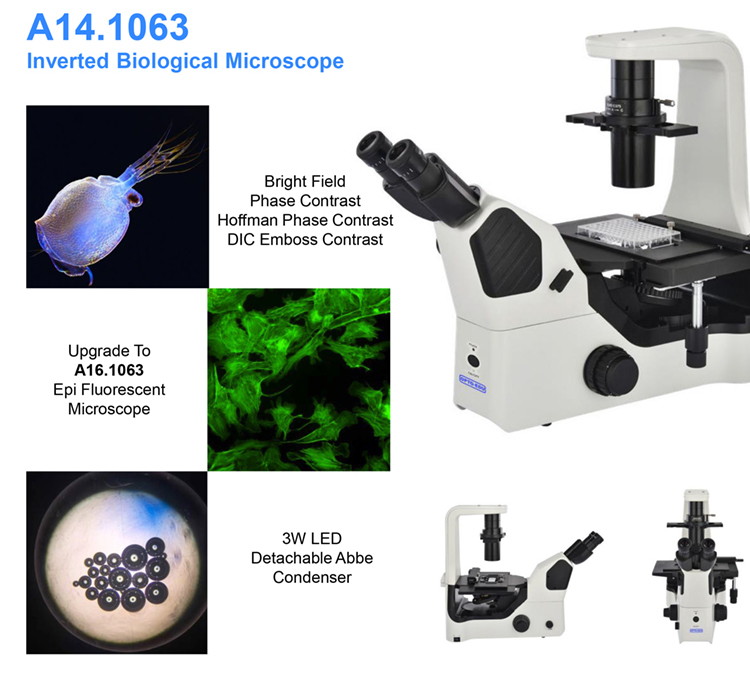

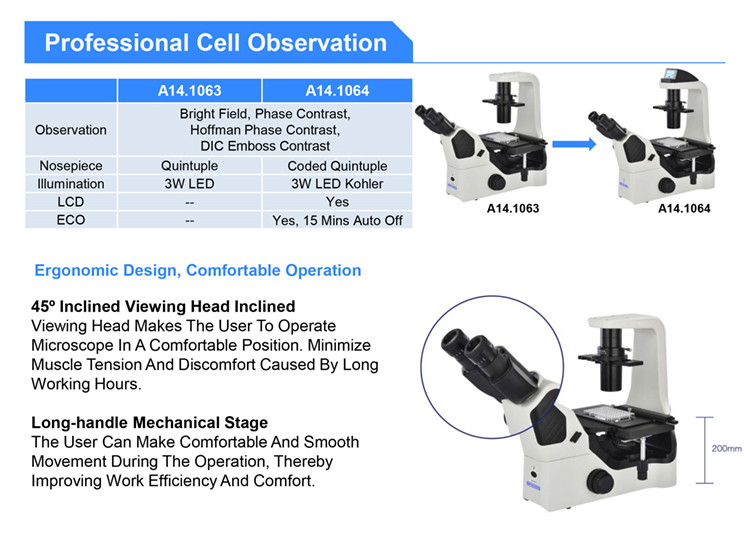

| A14.1063, A14.1604 Inverted Biological Microscope, A16.1063, A16.1064 Inverted LED Fluorescent Microscope | A14.1063 | A14.1064 | A16.1063 | A16.1064 | Cata. No. | |
| Optical System | NIS60 Infinite Optical System (F200) | ● | ● | ● | ● | |
| Observation Method | Bright Field, | ● | ● | ● | ● | |

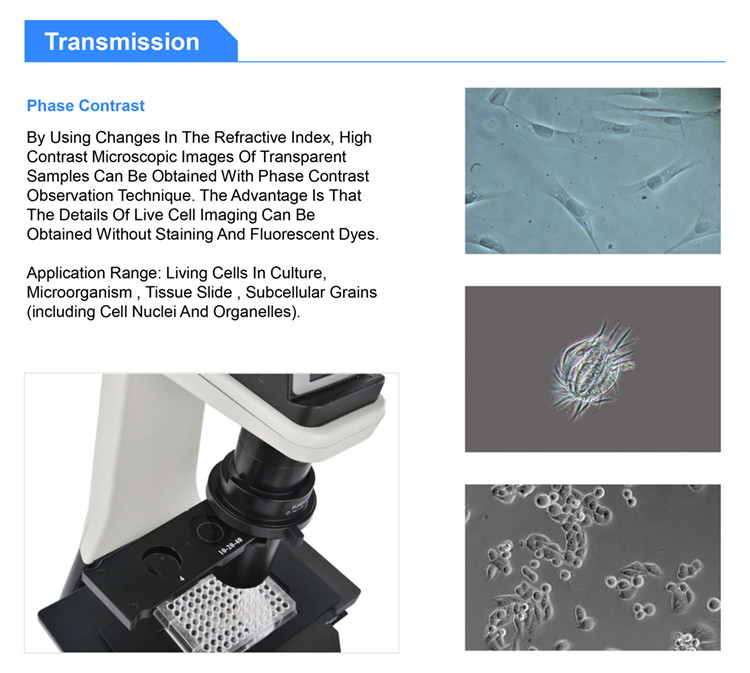

| Phase Contrast | ● | ● | ○ | ○ | ||
| Epi-Fluorscence | ○ | ○ | ● | ● | ||

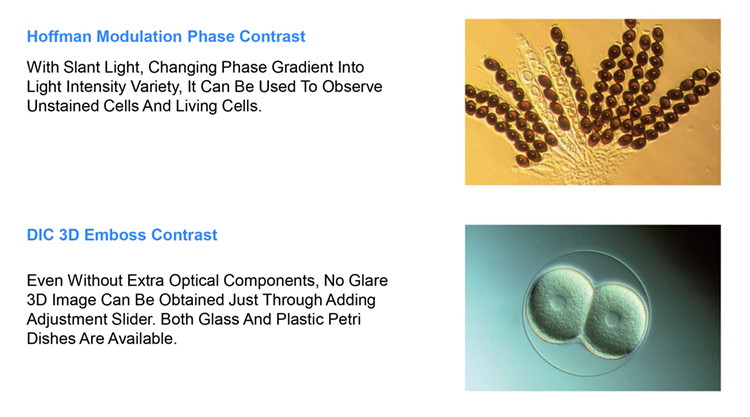

| DIC 3D Emboss Contrast | ○ | ○ | ○ | ○ | ||
| Hoffman Phase Contrast | ○ | ○ | ○ | ○ | ||
| Head | Seidentopf Viewing Head, Inclined At 45° , Interpupillary Distance 48-75mm, Eyepiece Tube Dia.30mm | ● | ● | ● | ● | |
| Eyepiece / F.O.V | EW10x/22mm, Diopter Adjustable, Dia.30mm | ● | ● | ● | ● | A51.1030-1022 |
| EW15x/16mm, Diopter Adjustable, Dia.30mm | ○ | ○ | ○ | ○ | A51.1030-1516 | |
| EW20x/12mm, Diopter Adjustable, Dia.30mm | ○ | ○ | ○ | ○ | A51.1030-2012 | |
| Nosepiece | Quintuple Nosepiece, Dovetail Interface | ● | - | ● | - | |
| Coded Quintuple Nosepiece, Dovetail Interface | - | ● | - | ● | ||
| LWD Infinity Plan Objective | 4x/0.10, W.D.30.0mm | ● | ● | ○ | ○ | A5M.1032-4 |
| 10x/0.25, W.D.10.2mm | ○ | ○ | ○ | ○ | A5M.1032-10 | |
| 20x/0.40, W.D.12.0mm | ○ | ○ | ○ | ○ | A5M.1032-20 | |
| 40x/0.60, W.D.2.20mm | ○ | ○ | ○ | ○ | A5M.1032-40 | |
| LWD Infinity Plan Phase Contrast Objective | 4x/0.10, W.D.30.0mm | ○ | ○ | ○ | ○ | A5C.1038-4 |
| 10x/0.25, W.D.10.2mm | ● | ● | ○ | ○ | A5C.1038-10 | |
| 20x/0.40, W.D.12.0mm | ● | ● | ○ | ○ | A5C.1038-20 | |
| 40x/0.60, W.D.2.20mm | ● | ● | ○ | ○ | A5C.1038-40 | |
| LWD Infinity Plan Semi-APO Phase Contrast Objective | 4x/0.13, W.D.17.0mm | ○ | ○ | ○ | ○ | A5C.1039-4 |
| 10x/0.3, W.D.7.4mm | ○ | ○ | ○ | ○ | A5C.1039-10 | |
| 20x/0.45, W.D.8.0mm | ○ | ○ | ○ | ○ | A5C.1039-20 | |
| 40x/0.60, W.D.3.6mm | ○ | ○ | ○ | ○ | A5C.1039-40 | |
| 20x/0.45, W.D.7.5-8.8mm With Iris Adjustable | ○ | ○ | ○ | ○ | A5C.1040-20 | |
| 40x/0.60, W.D.3.0-4.4mm With Iris Adjustable | ○ | ○ | ○ | ○ | A5C.1040-40 | |
| 60x/0.70, W.D.1.8-2.6mm With Iris Adjustable | ○ | ○ | ○ | ○ | A5C.1040-60 | |
| LWD Infinity Plan Semi-APO Fluorescent Objective | 4x/0.13, W.D.17.0mm, Cover Glass - | - | - | ● | ● | A5F.1032-4 |
| 10x/0.30, W.D.7.4mm, Cover Glass1.2mm | - | - | ● | ● | A5F.1032-10 | |
| 20x/0.45, W.D.8.0mm, Cover Glass1.2mm | - | - | ● | ● | A5F.1032-20 | |
| 40x/0.60, W.D.3.3mm, Cover Glass1.2mm | - | - | ● | ● | A5F.1032-40 | |
| 60x/0.70, W.D.1.8-2.6mm, Cover Glass1.2mm | ○ | ○ | ○ | ○ | A5F.1032-60 | |
| Focusing System | Coaxial Coarse & Fine Adjustment, Tension Adjustable (At Right Hand), Fine Division 0.002mm, Coarse Focusing Range Up 7mm, Down 1.5mm, Max Up To 18.5mm After Removing Focusing Limit. | ● | ● | ● | ● | |

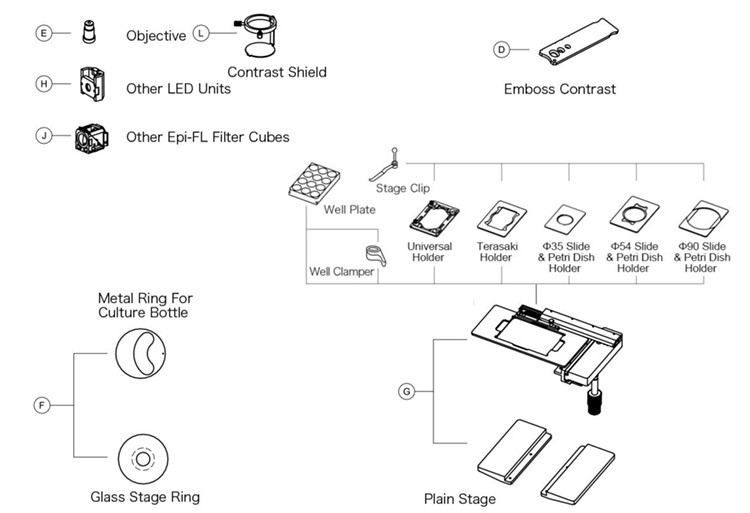

| Working Stage | Plain Working Stage 170(X) x 250(Y)mm, | ● | ● | ● | ● | |
| Attachable Mechanical Moving Stage, X-Y Coaxial Moving 128x80mm | ● | ● | ● | ● | A54.1063-XY | |
| Stage Clip | ● | ● | ● | ● | A54.1063-SC | |
| Well Clamper For Well Plate | ● | ● | ● | ● | A54.1063-WC | |
| Glass Stage Plate | ● | ● | ● | ● | A54.1063-G | |
| Metal Stage Plate For Culture Bottle | ○ | ○ | ○ | ○ | A54.1063-M | |
| Auxilliary Plate 1 Piece | ● | ● | ● | ● | A54.1063-A | |

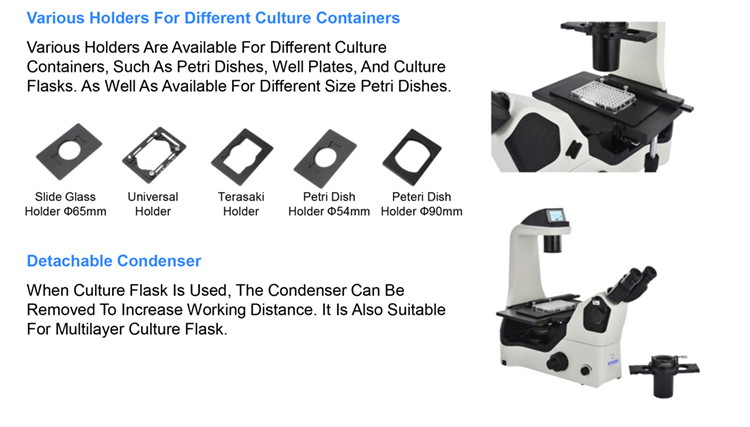

| Universal Holder | ● | ● | ● | ● | A54.1063-U | |
| Terasaki Holder | ○ | ○ | ○ | ○ | A54.1063-T | |
| Dia.35mm Petri Dish Holder | ○ | ○ | ○ | ○ | A54.1063-35 | |
| Dia.54mm Slide & Petri Dish Holder | ○ | ○ | ○ | ○ | A54.1063-54 | |
| Dia.65mm Slide & Petri Dish Holder | ○ | ○ | ○ | ○ | A54.1063-65 | |
| Dia.90mm Petri Dish Holder | ○ | ○ | ○ | ○ | A54.1063-90 | |
| Condenser | Long Working Distance Detachable Condenser NA 0.3, W.D.75mm, Without Condenser W.D.187mm | ● | ● | ● | ● | |

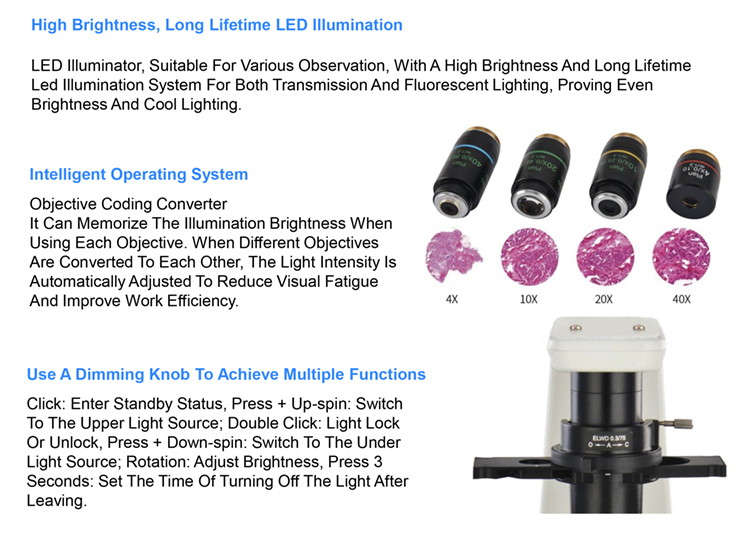

| Illumination | Transmitted Illumination 3W S-LED Critical Illumination | ● | - | ● | - | |
| Transmitted Illumination 3W S-LED Kohler Illumination | - | ● | - | ● | ||
| Reflected Illumination 3W LED, For Epi-Fluorescence | ○ | ○ | ● | ● | ||
| Phase Contrast | Centering Telescope 10x, Tube Dia. 30mm | ● | ● | ○ | ○ | A5C.1063-T |
| Phase Slider For 4x//10x-20x-40x | ● | ● | ○ | ○ | A5C.1063-S | |
| Phase Slider For 10x-20x,40x APO Objectives | ○ | ○ | ○ | ○ | A5C.1063-APOS1 | |
| Phase Slider For 4x,60x APO Objectives | ○ | ○ | ○ | ○ | A5C.1063-APOS2 | |
| Emboss Contrast DIC | Emboss Contrast Slider For 10x-20x-40x Universal Emboss Contrast Plate For 10x-20x-40x | ○ | ○ | ○ | ○ | A5C.1063-DIC |
| Hoffman Phase Contrast | Hoffman Phase Contrast Set: --Hoffman Phase Contrast Condenser, With Polarizer, --Hoffman Phase Contrast Objective 10x, 20x, 40x --Hoffman Phase Slider For 10x, 20x, 40x --Centering Telescope 10x, Tube Dia. 30mm | ○ | ○ | ○ | ○ | A5C.1064 |
| Epi-Fluorescence Attachment | Epi-Fluorescence Attachment, Turret With 3 Holes For Filter Cubes, With Noise Terminator Mechanism, With Attachable UV Shield | ○ | ○ | ● | ● | |
| Filter Cube B + LED Unit, 365nm | ○ | ○ | ● | ● | A5F.1063-B | |
| Filter Cube G + LED Unit, 405nm | ○ | ○ | ● | ● | A5F.1063-G | |
| Filter Cube U + LED Unit, 485nm | ○ | ○ | ● | ● | A5F.1063-U | |
| Filter Cube V + LED Unit, 525nm | ○ | ○ | ○ | ○ | A5F.1063-V | |
| Filter Cube FITC | A5F.1063-FITC | |||||
| Filter Cube DAPI | A5F.1063-DAPI | |||||
| Filter Cube TRITC | A5F.1063-TRITC | |||||

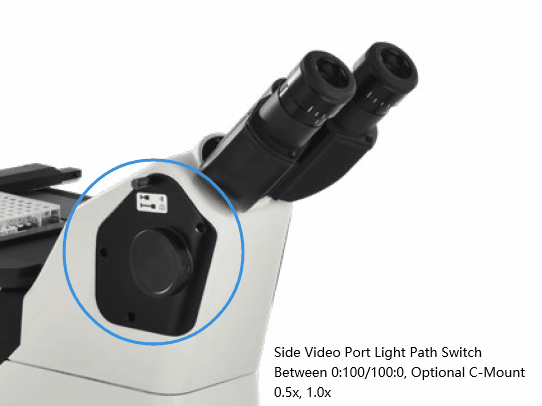

| Photo Port | Head Side Camera Port Switchable 100/0:0/100 | ● | ● | ● | ● | |
| Photo Adapter | 1.0x C-Mount | ○ | ○ | ○ | ○ | A55.1063-1.0 |
| 0.5x C-Mount | ○ | ○ | ○ | ○ | A55.1063-0.5 | |
| 0.7x C-Mount | ○ | ○ | ○ | ○ | A55.1063-0.7 | |
| Power Supply | AC 100-240V,50/60Hz | ● | ● | ● | ● | |
| ECO Function | Auto Power Off 15 Minutes After No Operator Working | ○ | - | ○ | - | |
| LCD Screen | LCD Screen On Front Of Body, Display Using State Of Microscope, Including Magnification, Light Intensity, Standby Status, ECO Set Power Off Timer 5 Mins to 8 Hours, And So On. | - | ● | - | ● | |
| Dimensions | 244(W)x543(D)x526(H) mm | ● | ● | ● | ● | |
| Note:"●"In Table Is Standard Outfits,"○"Is Optional Accessories"-"Is Unavailable | ||||||
