| A33.1009 Biological Microscope Specification | ||
| Magnification | 40x~1600x | |

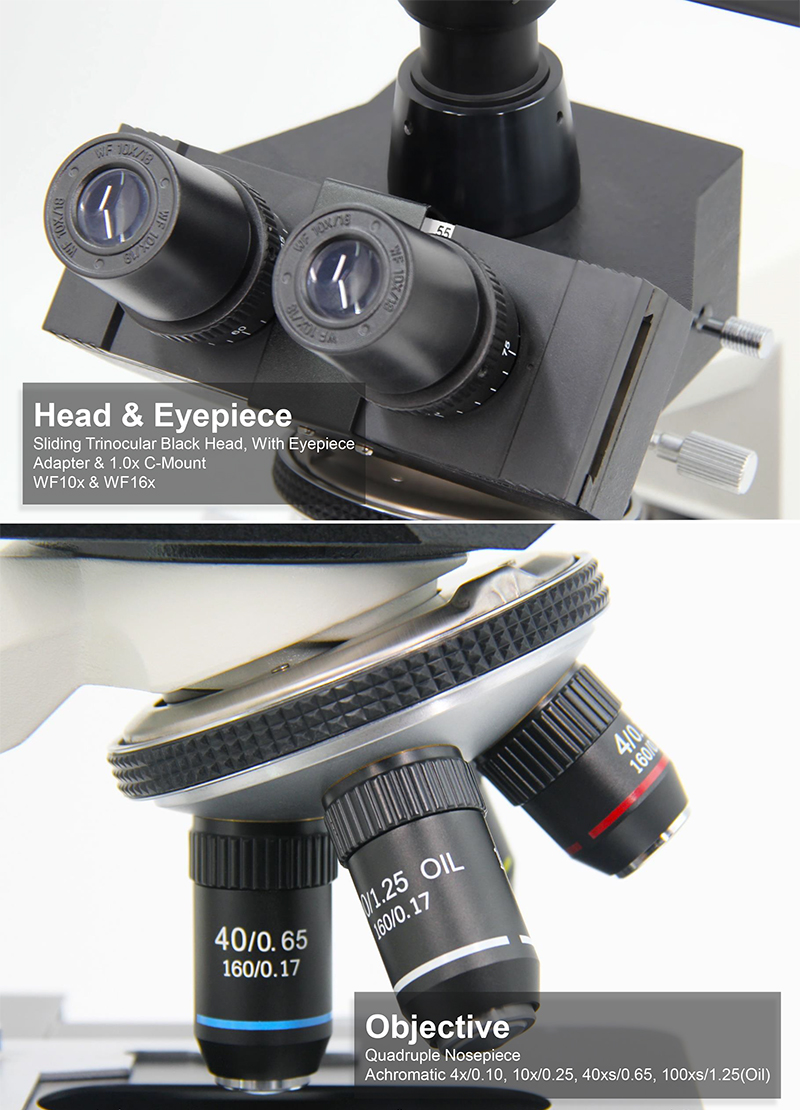

| Head | Sliding Trinocular Black Head, 45° Inclined, 360° Rotatable, With Eyepiece Adapter & 1.0x C-Mount | |

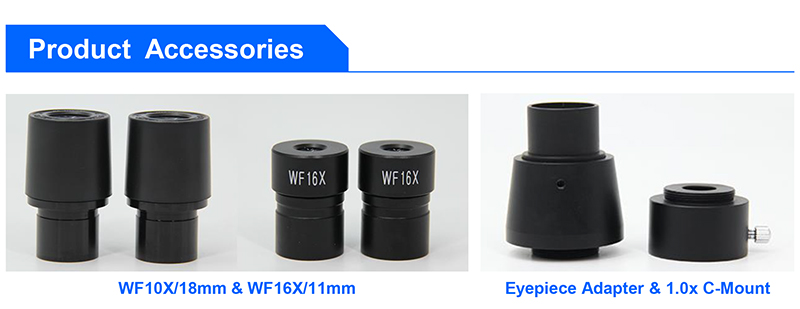

| Eyepiece | Wide Field WF10x/18mm | |
| Wide Field WF16x/11mm | ||
| Nosepiece | Quadruple Nosepiece | |
| Objective | Achromatic 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil) | |

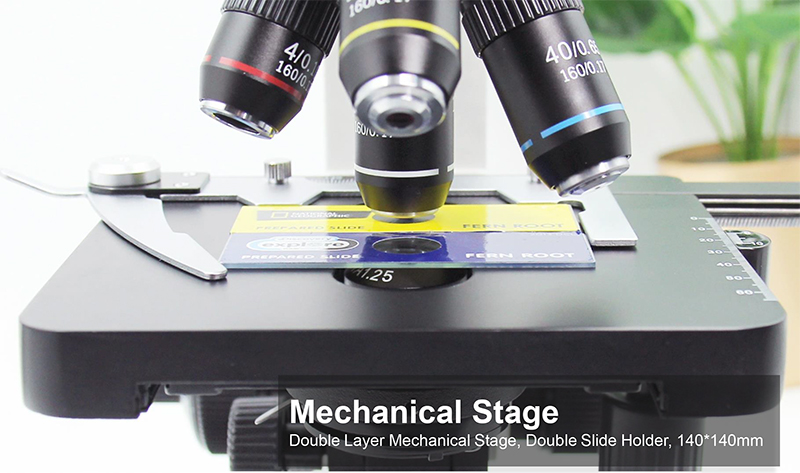

| Stage | Double Layer Mechanical Stage, 140*140mm, Mvoing Range 50*75mm | |

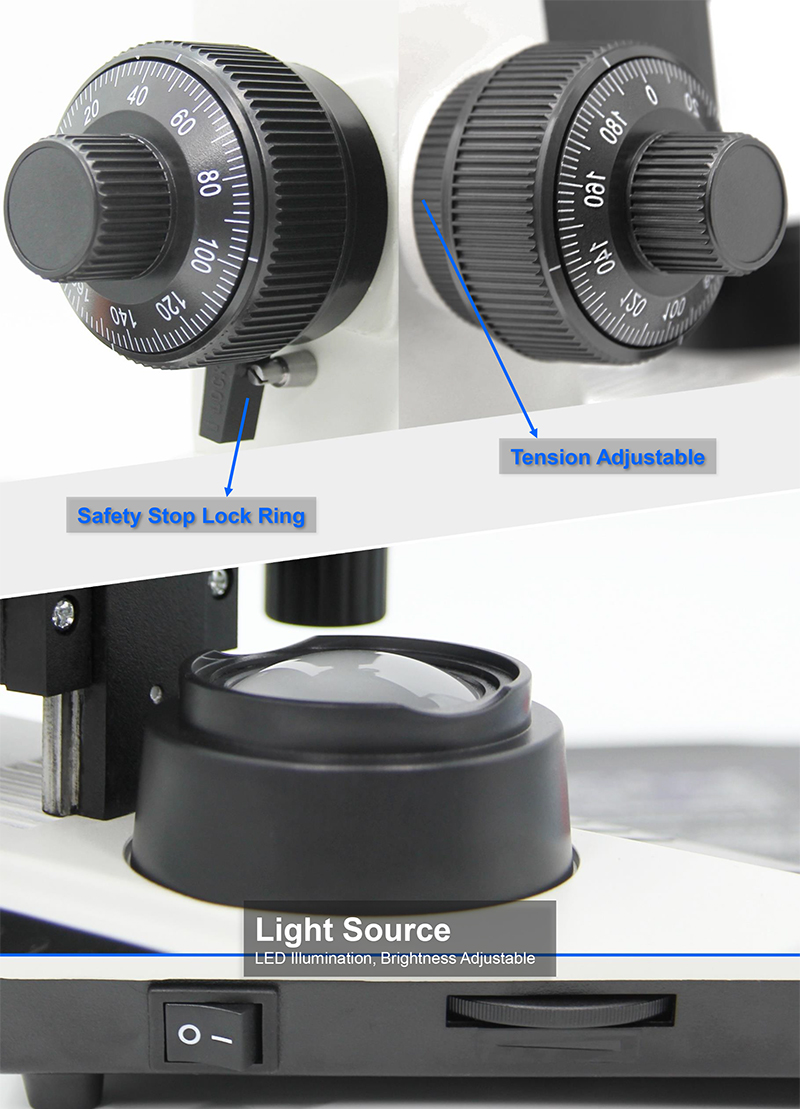

| Focusing | Low Position Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm, With Tension Adjustment, With Up Limit | |

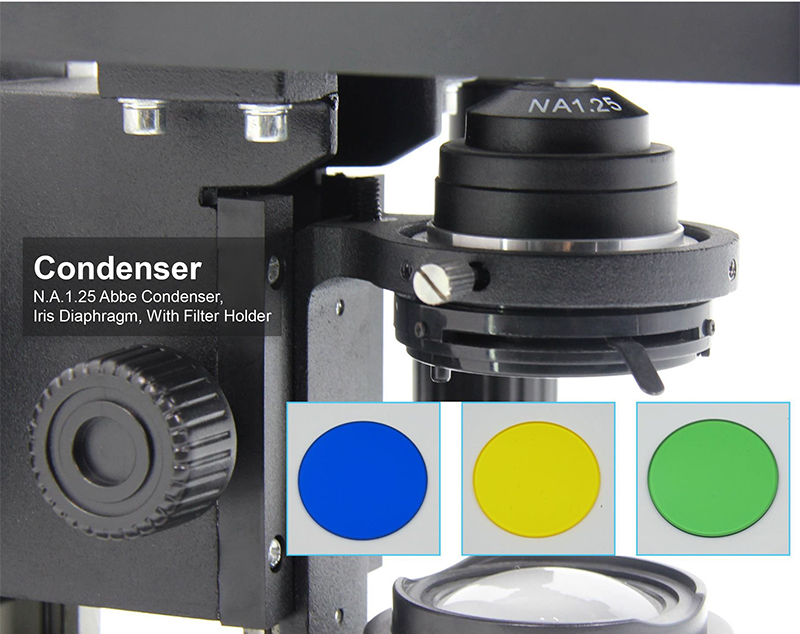

| Condenser | N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder | |
| Filter | Blue, Yellow, Green | |
| Light Source | LED Illumination, Brightness Adjustable | |

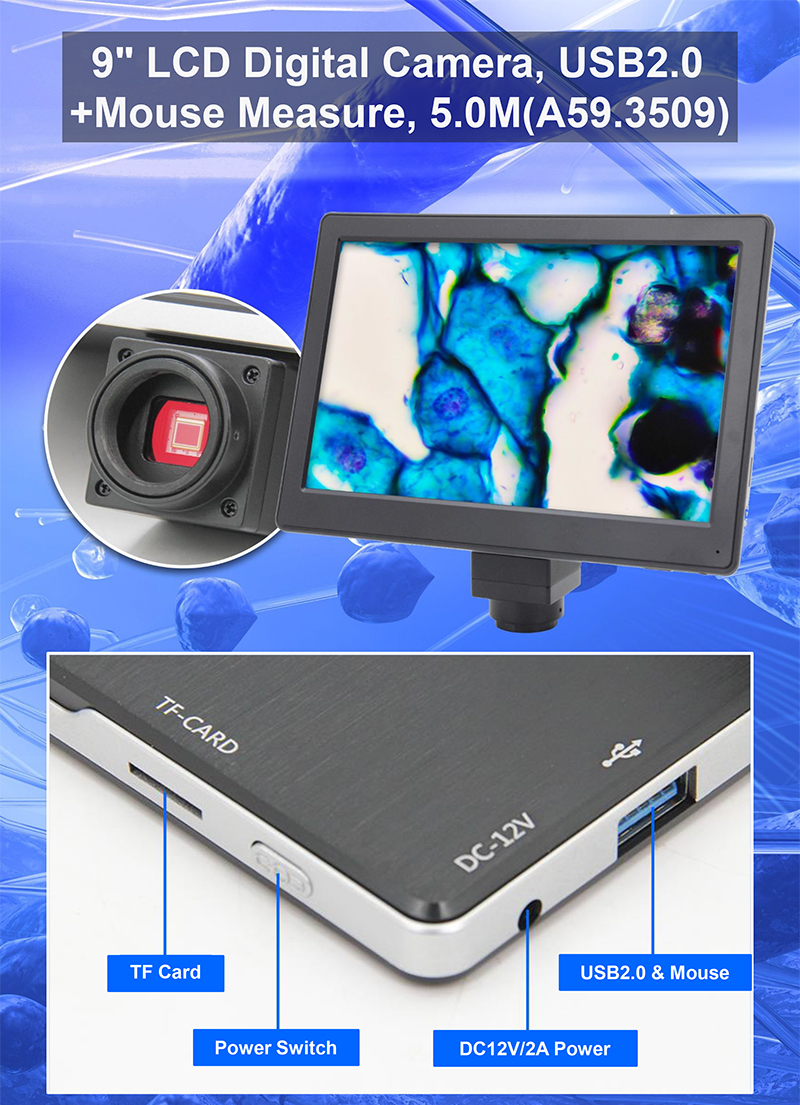

| A33.1009 LCD Digital Camera Specification | ||
| Sensor | 1/2.8"Sony Star Light Level CMOS Sensor | |
| Resolution | 5.0M CMOS | |
| LCD Screen | 9"LCD, Resolution 1024x600 High Clearance Screen | |
| Output | USB 2.0 Type-A, TF Card | |
| Pixel Size | 2.0x2.0um | |
| Power Supply | DC 12V/2A Power Adapter, Input 100-240V AC | |
| Function | Photo, Video, Meaure, Compare | |
| SupportUSB Mouse Control To Capture Photo, Video, Measure, Setting | ||
| USB 2.0 To Win 7, Win10 System, Software S-Eye Included | ||
| Brightness, Contrast, Exposure, White Balance Adjustable | ||
| 10x Digital Zoom, 4 Split/ 2 Split Windows Image Compae | ||
| Storage To TF Card | ||
| Cross Line With Scale, Calibrated | ||
| Net Line 8 Kinds, Width & Color Adjustable | ||
| Size / Weight | Product Size 225x52x175mm, Net Weight 0.7Kg | |
| Standard Package | LCD Camera, USB 2.0 Cable, Mouse, DC12V Power Adapter | |
| USB Mouse Control Operation Manual | 1. Insert the mouse into the camera Type-A USB 2.0 port, connect 12V power supply to camera. | |
| 2. Turn on the power switch, when the camera is running, the LED light turns blue | ||

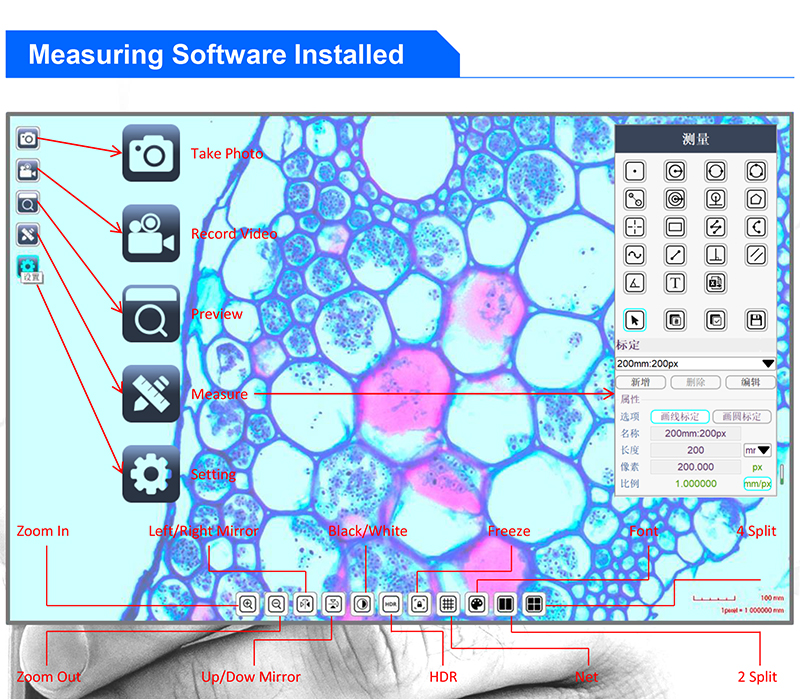

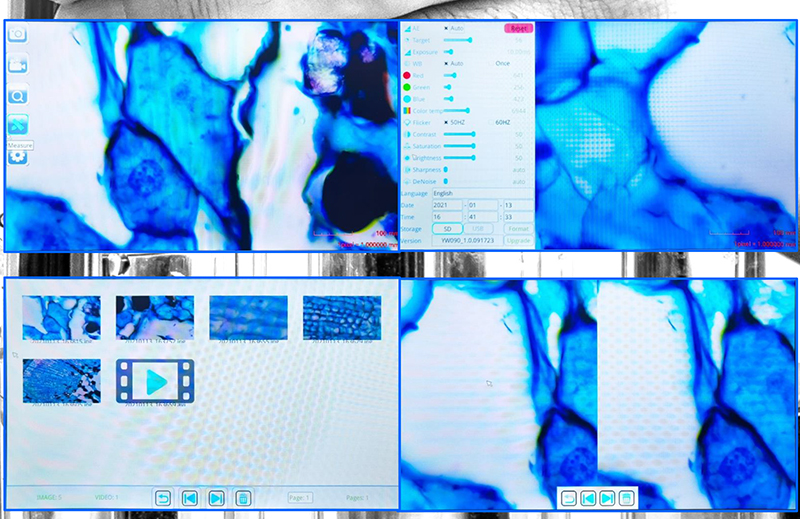

| 3. Move the mouse to the top left corner of the screen to call up the MAIN MENU, including icon : Take Photo, Record Video, Preview, Measure, Setting. | ||
| 4. Move the mouse to the middle position at the bottom of the screen to call up the QUICK MENU, including icon: Zoom In, Zoom Out, Up/Dow Mirror, Left/Right Mirror, Black/White, HDR, Freeze, Net, Font, 2 Split, 4 Split | ||

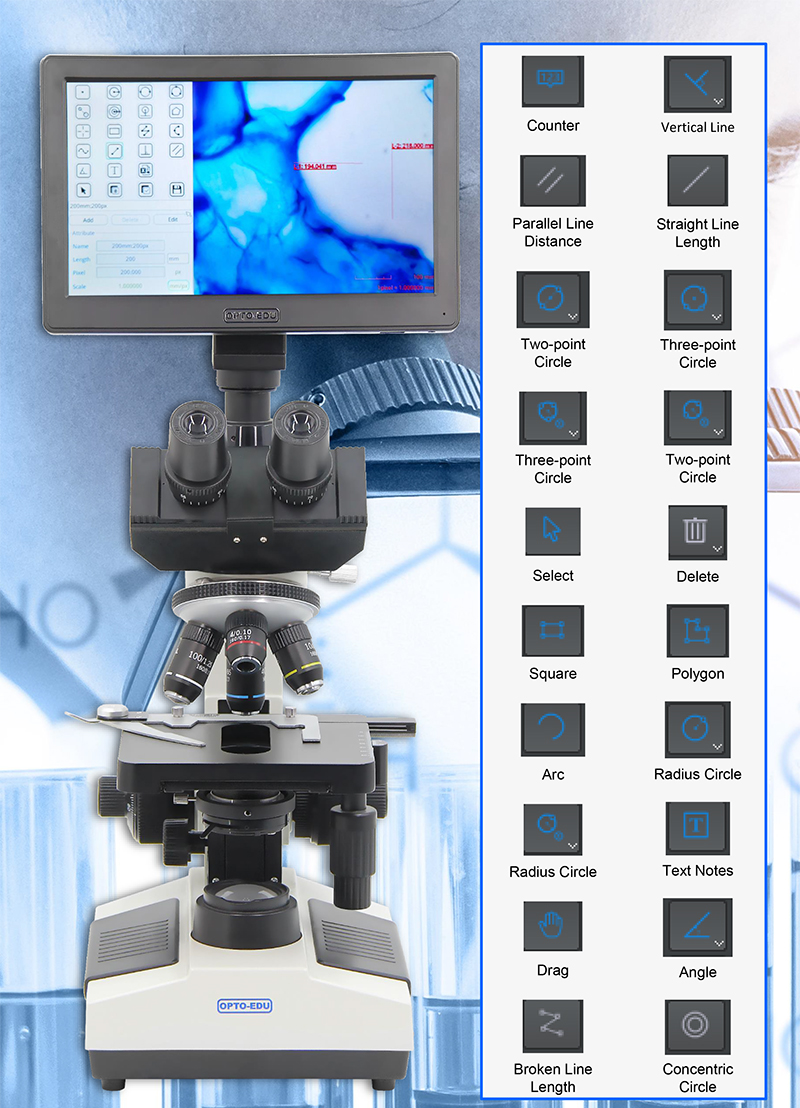

| 5. Click the MEASURE icon to pop up the measure window, which support over 20 kinds of measurement graphics. | ||
| 6. Click the EDIT button and fill in the name to of new ruler to CALIBRATE.Move the mouse to the corresponding standard scale in the image display window and draw a standard length scale line. Then fill in the length column and click SAVE to complete the calibration setting. If you want to add more ruler, just repeat above steps. | ||
| 7.Click mm/PX to open or close the screen scale. | ||
| 8. If the USB port is directly connected to the computer, the screen and the computer can be displayed synchronously (the USB cable must be connected to the computer before the device is powered on) | ||
| A33.1009 LCD Digital Biological Microscope Optional Accessories | Cata. No. | |

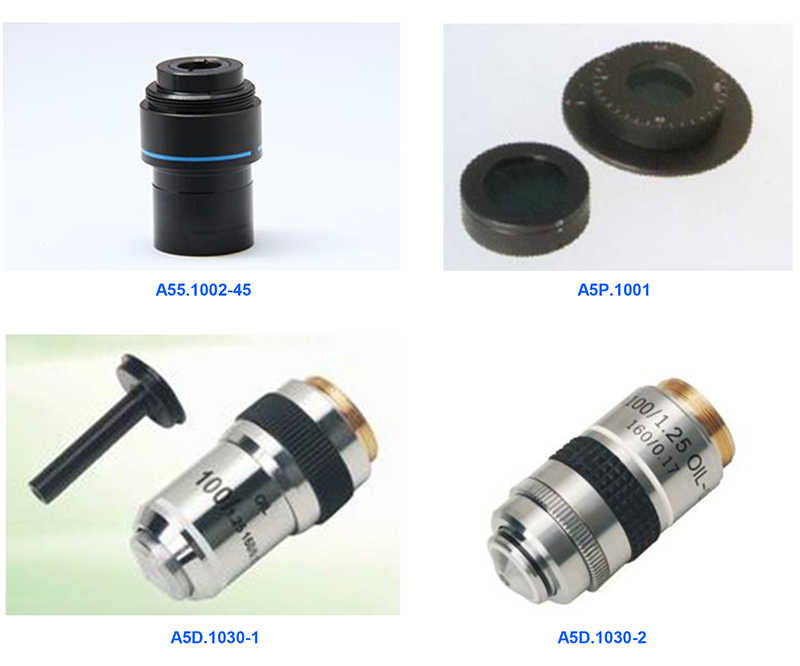

| Adapter | 0.45x C-mount With Reduction | A55.1002-45 |
| Objective | Achromatic 20x/0.4, W.D.=9mm | A52.1001-20 |
| Achromatic 60x/085(S) | A52.1001-60 | |

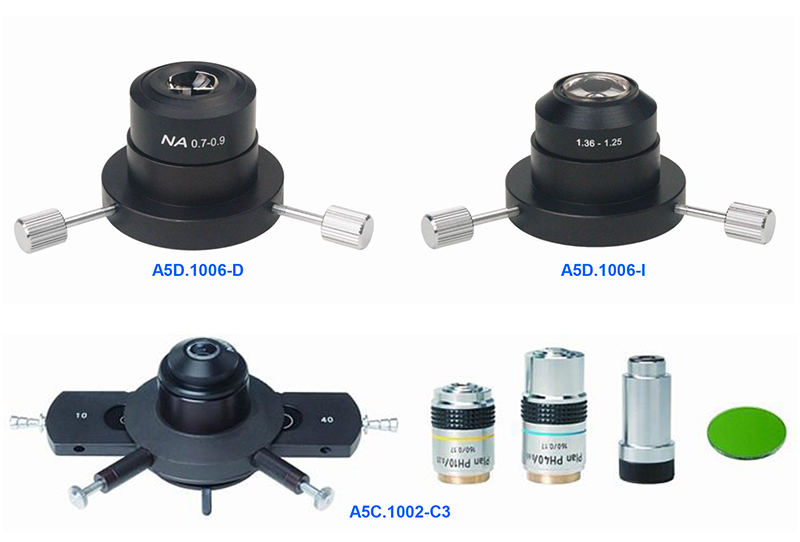

| Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry | A5D.1006-D |
| Dark Field Condenser, N.A. 1.25~1.35, Immersion | A5D.1006-I | |
| Achromatic 100X with Cone Diaphram for Oil Dark Field Observation | A5D.1030-1 | |
| Plan 100X with Iris Diaphram for Oil Dark Field Observation | A5D.1030-2 | |
| Polarizing | Simple Polarizing Kit | A5P.1001 |
| Phase Contrast | Sliding Phase Contrast Set --Sliding Phase Contrast Condenser --Achromatic Phase Contrast Objective 10x,40x --Centering Telescope --Green Filter | A5C.1002-C3 |

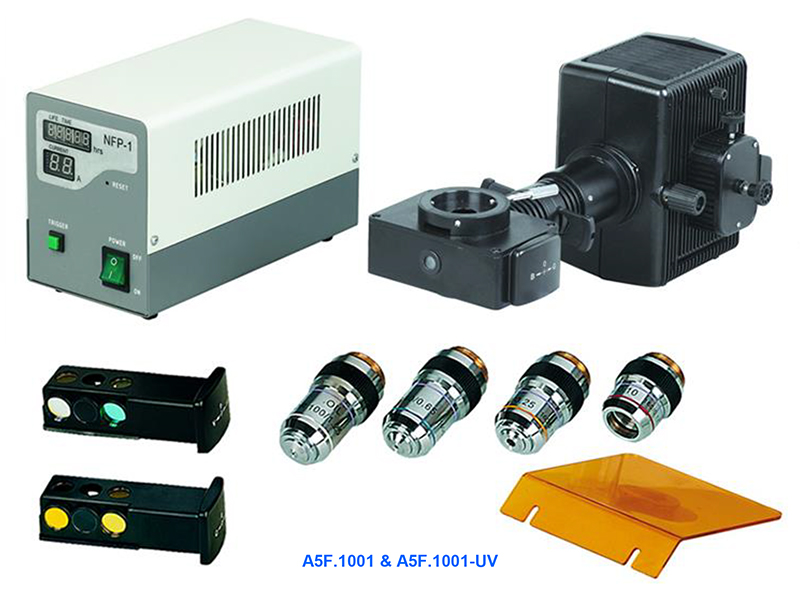

| Fluorescent | EPI-Fluorescent Kit --Power Supplier 220V/110V Interchangeable, Digital Display --100WHBO Ultra Hi-Voltage Spherical Mercury Lamp --Barrier To Resist Ultraviolet Light --Fluorescence Free Oil --Fluorescent Objective 10x,25x,40x,100x --Excitation Filter B/G | A5F.1001 |
| --Excitation Filter U/V | A5F.1001-UV | |
