- Place of Origin:CN;BEI
- Theory:Biological Microscope
- Drawtube:Muti-viewing head
- Brand Name:OPTO-EDU
- Model Number:A17.1026-A
Product Description

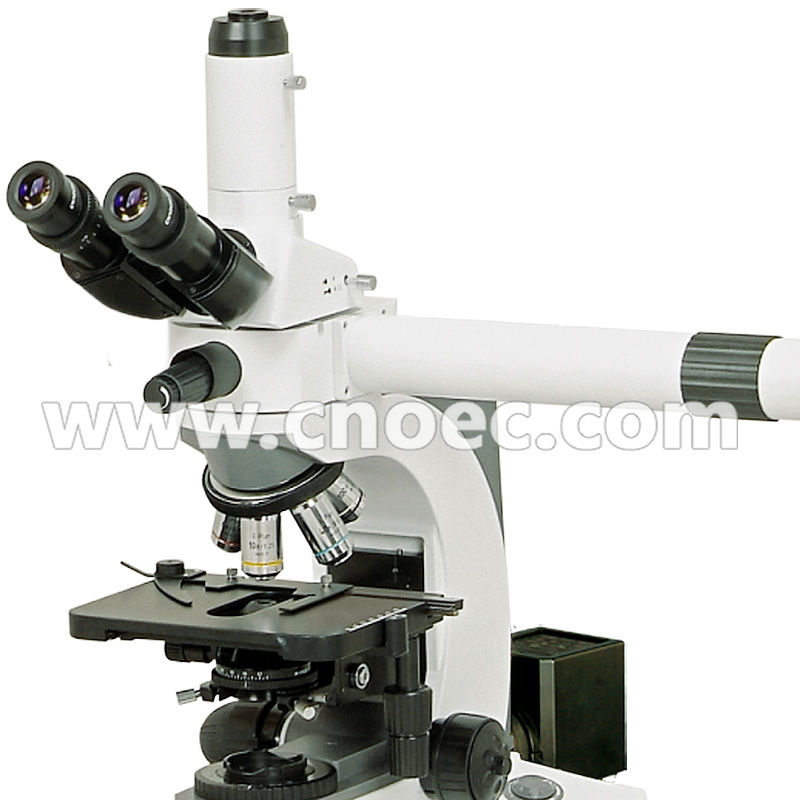

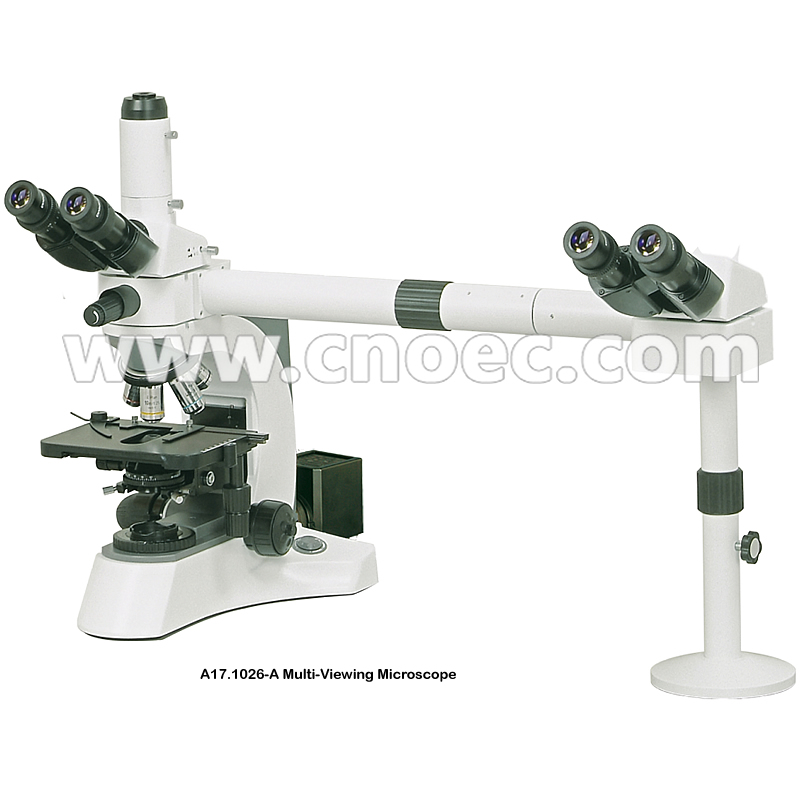

A17.1026-A Multi-Viewing Microscope, 2 Position | ||
|---|---|---|
Optical System | lnfinite Optical System | |
Head | 1 pcs Trinocular Head, 30°Inclined, 360° Rotatable, Interpupilary Distance 48-75mm | |
Eyepiece | WF10X, 4 pcs | |
Objective | Infinity Plan Achromatic 4x, 10x, 40x(s), 100x(s, oil) | |
Nosepiece | Reversed Quintuple Revolving Nosepiece | |
Stage | Double Layers Mechanical Stage 185x142mm, Moving Range 75x55mm | |
Focusing | Coaxial Coarse & Fine Focusing Knobs, Fine division 0.002mm | |
Condenser | Swing Abbe Condenser N.A.0.9/0.25 | |
Light Source | External Kohler Illumination, Halogen Lamp 12V50W | |
| Pointer | Green LED Pointer, Brightness Adjustable | |
A17.1026-A Multi-Viewing Microscope, Optional Accessories | ||
| Adapter | 1.0x C-Mount | A55.1002-10 |
| 0.5x C-Mount | A55.1002-05 | |
Company Information
OPTO-EDU, as one of the most professional manufacturer and supplier of microscope in China, our sub-brand CNOPTEC series high end biological, laboratory, polarizing, metallurgical, fluorescene microscopes, CNCOMPARISON series forensic microscope, A63 series SEM microscope, and .49 series digital camera, LCD camera are very popular in the world market.
Huang Xin
