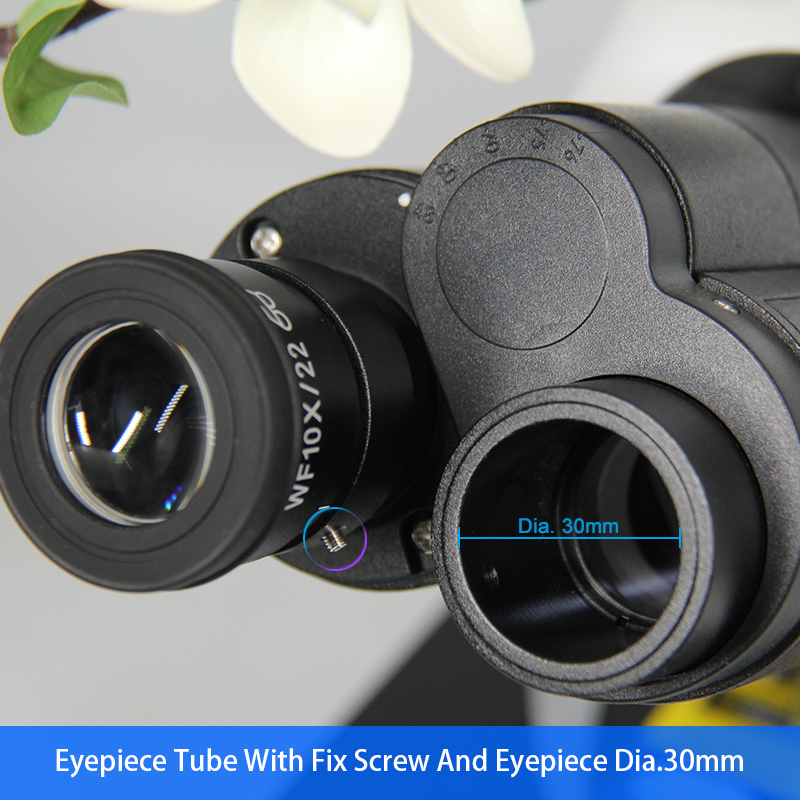

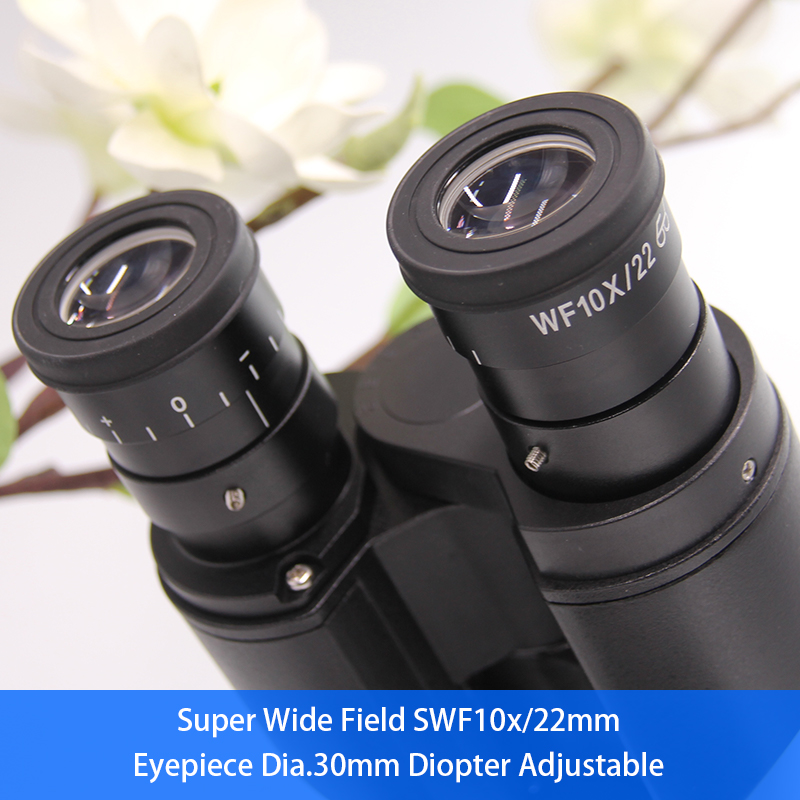

SWF10x/22mm, Eyepiece Dia.30mm Diopter Adjustable
To Prevent Eyepiece Falling Damage During Move

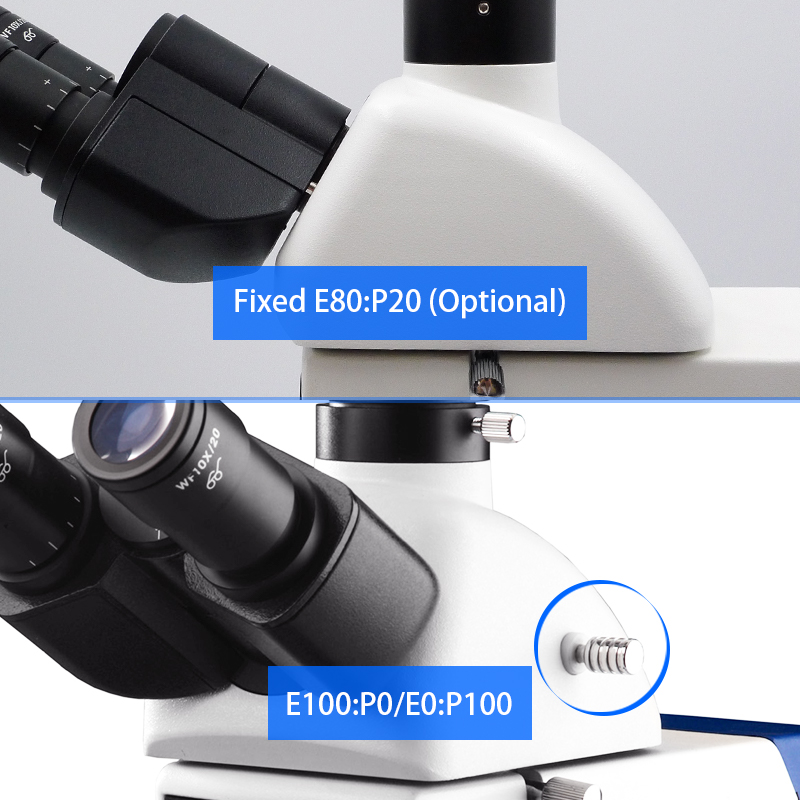

In Fixed Light Split, Eyepiece 80% : Photo 20% User Can View Image At Same Time In Both Path
In Switch Light Split, Eyepiece 100%:Photo 0% / Eyepiece 0%:Photo 100%, Camera Can Have 100% Light For Photo Capture.
Abbe Condenser N.A.1.25

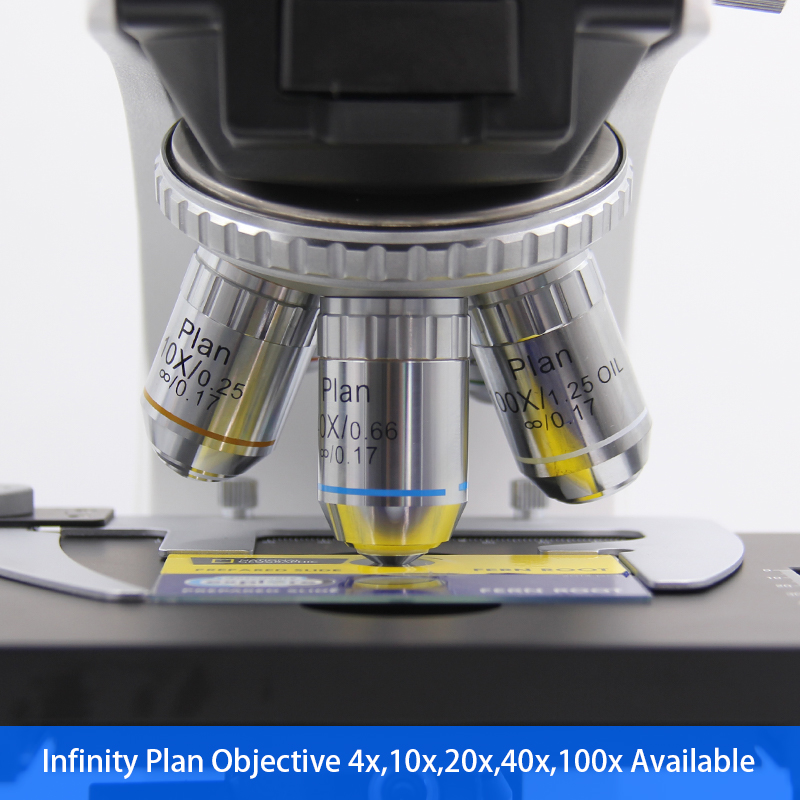

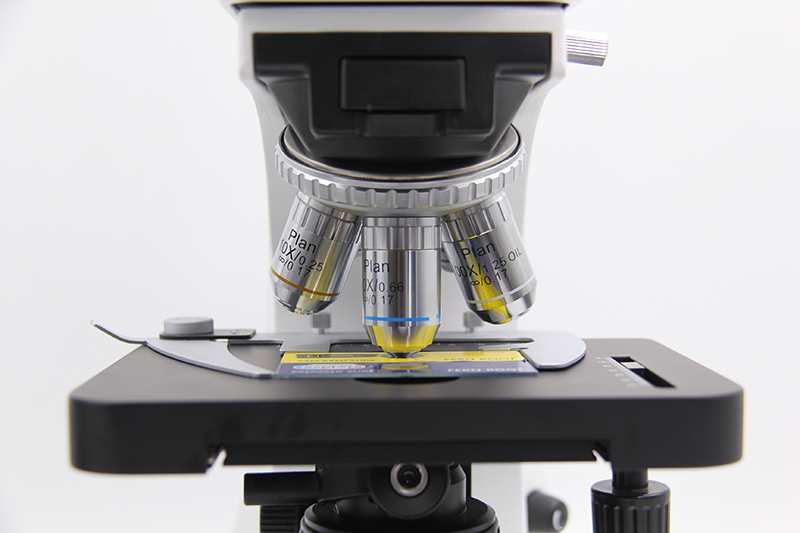

Large Size High Precision Quintuple Nosepiece, With Polarizing Analyzer Slot, Infinity Plan Objective 4x,10x,20x,40x,100x Available
Creative 100X Water Objective (Optional) Instead Of 100X Oil Objective, More Convenient For Using & Cleaning After Use

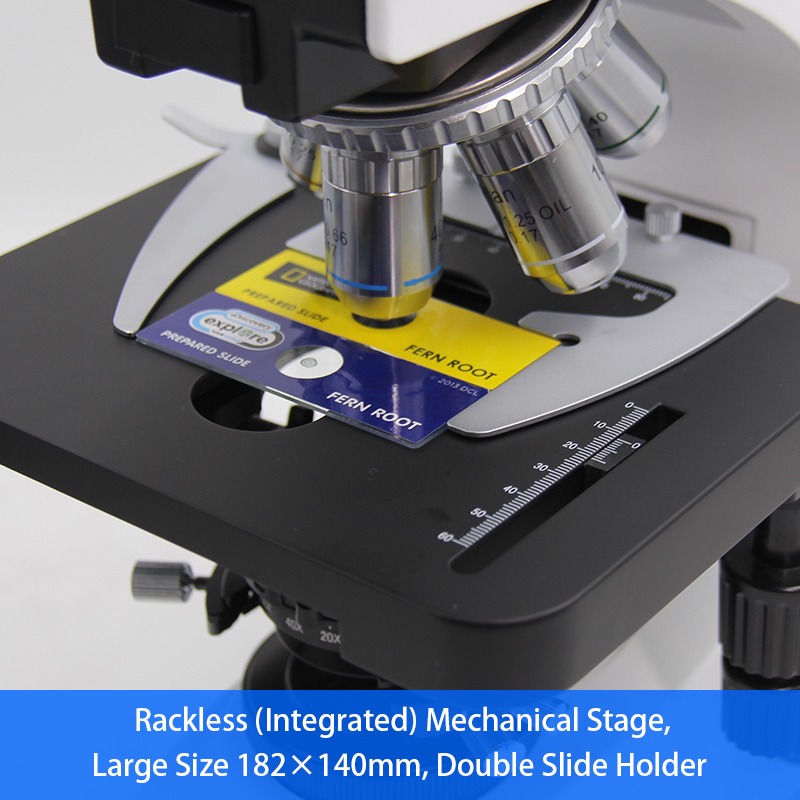

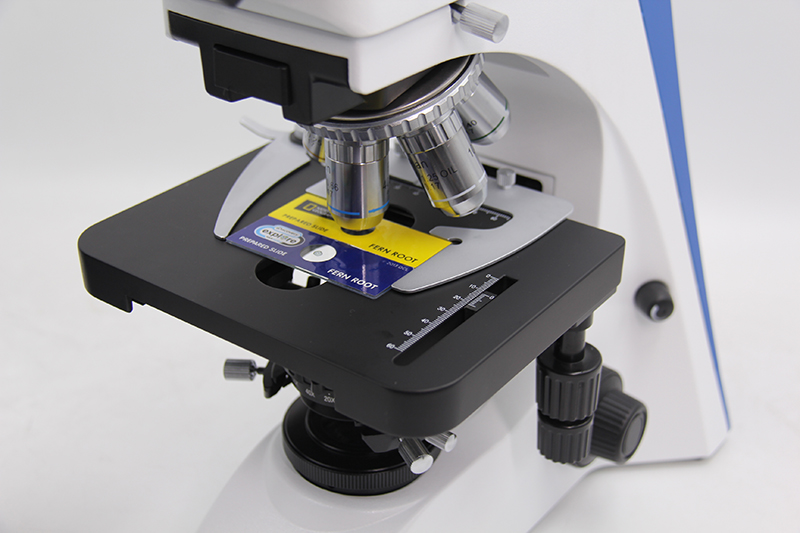

Large Size 182×140mm, Double Slide Holder, Travel Range 77×52mm
Control The Amount Of Light According To Demand, The Effect Is More Perfect.

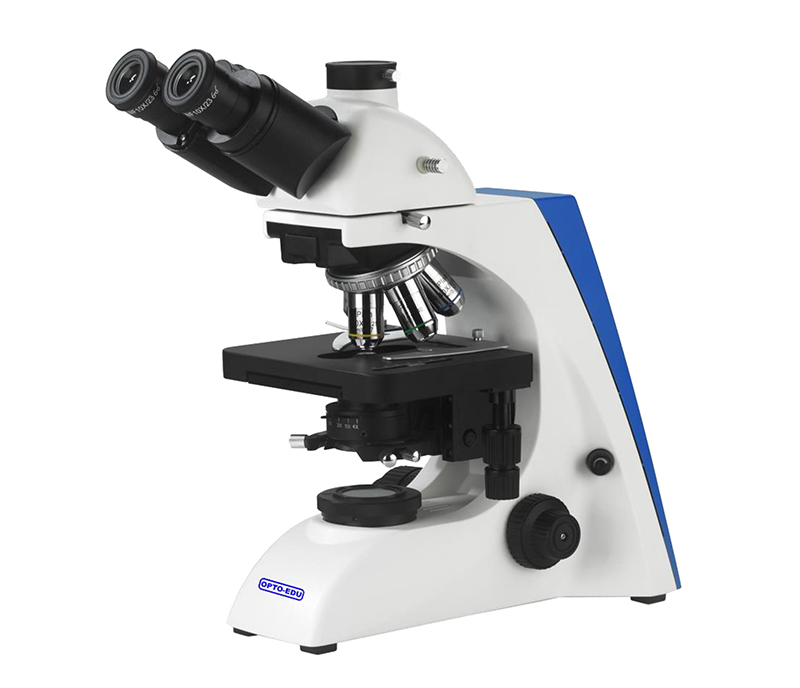

| Items | A12.2603 Laboratory Biological Microscope Specification | -B | -T | Cata. No. |

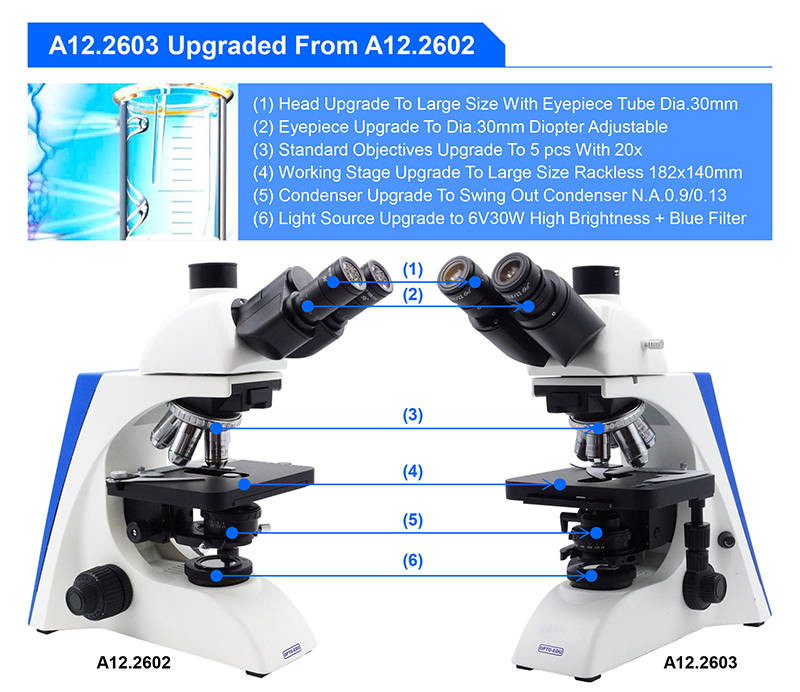

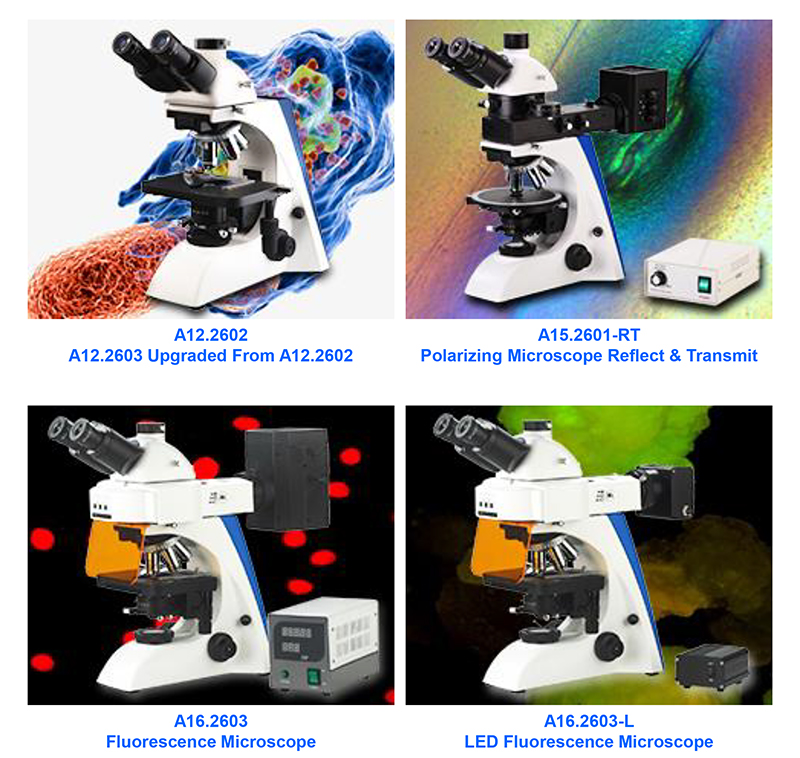

| A12.2603 Upgarde From A12.2602 | --Head Upgrade To Large Size With Eyepiece Tube Dia.30mm --Eyepiece Upgrade To Dia.30mm Diopter Adjustable --Standard Objectives Upgrade To 5 pcs With 20x --Working Stage Upgrade To Large Size Rackless 182x140mm --Condenser Abbe N.A.1.25 Upgrade To Swing Out Condenser N.A.0.9/0.13 --Light Source Upgrade to 6V30W High Brightness + Blue Filter | |||

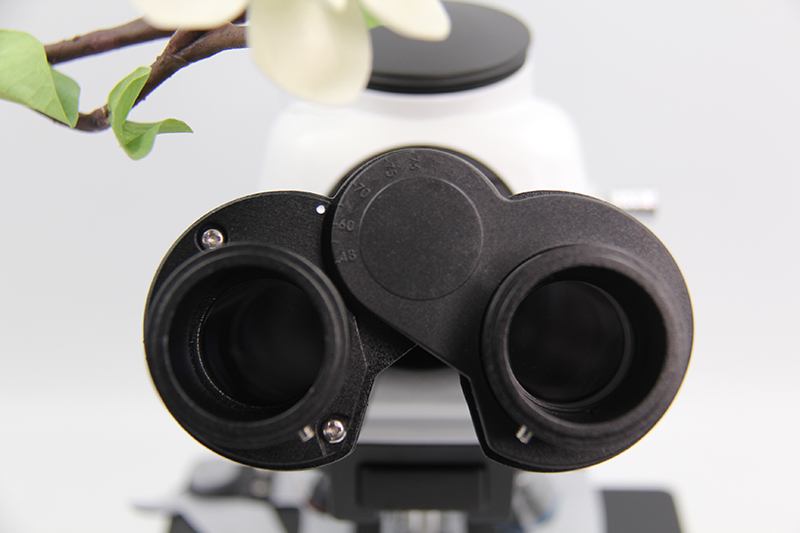

| Head | Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Eyepiece Tube Dia.30mm | ● | ○ | A53.2623-B |
| Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm | ○ | ● | A53.2623-T | |

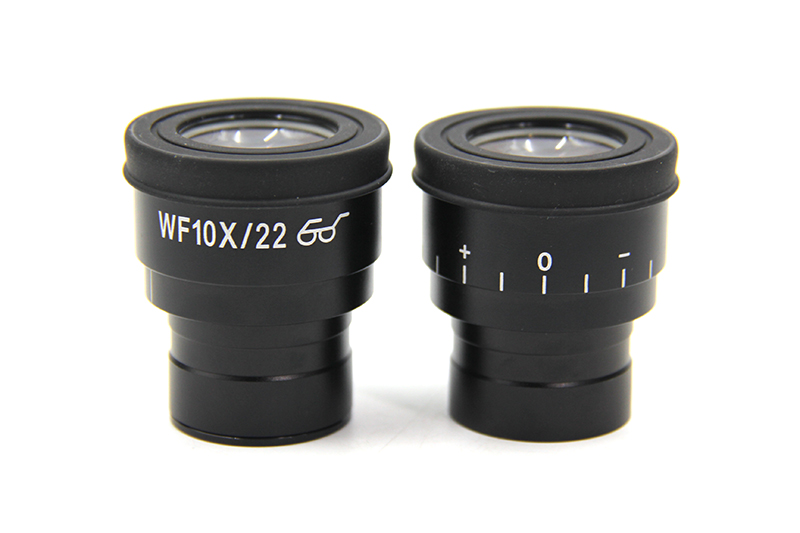

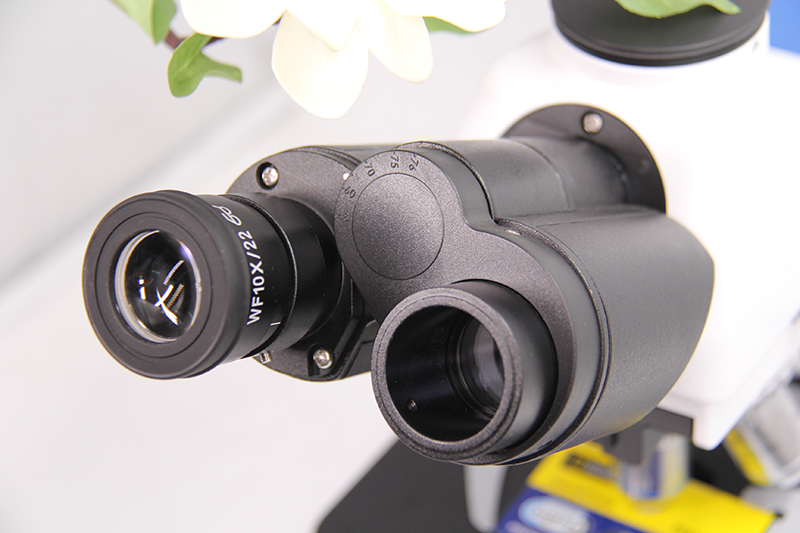

| Eyepiece | WF10x/22mm,Dia.30mm, High Eyepoint, Diopter Adjustable | ●● | ●● | A51.2621-1022 |
| Nosepiece | Quintuple | ● | ● | A54.2610-N01 |

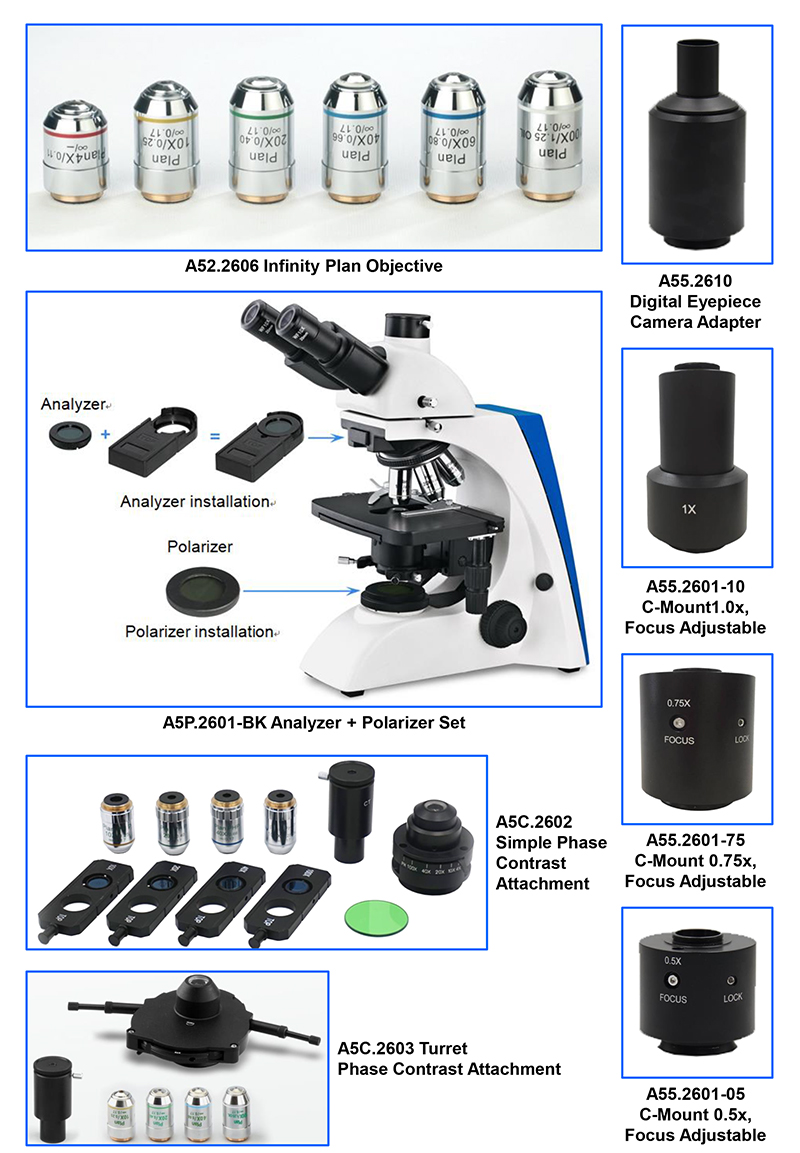

| Infinity Plan Objective | PLAN 2.5X/0.07,W.D.=8.47mm | ○ | ○ | A52.2606-2.5 |
| PLAN 4X/0.10,W.D.=12.10mm | ● | ● | A52.2606-4 | |
| PLAN 10X/0.25,,W.D.=4.64mm | ● | ● | A52.2606-10 | |
| PLAN 20X/0.40(S),W.D.=2.41mm | ● | ● | A52.2606-20 | |
| PLAN 40X/0.66(S),W.D.=0.65mm | ● | ● | A52.2606-40 | |
| PLAN 60X/0.80(S),W.D.=0.33mm | ○ | ○ | A52.2606-60 | |
| PLAN 100X/1.25(S,Oil),W.D.=0.12mm | ● | ● | A52.2606-100 | |
| PLAN 100X/1.15(S,Water),W.D.=0.19mm | ○ | ○ | A52.2606-100W | |
| Working Stage | Rackless (Integrated) Mechanical Stage, Size 182×140mm, Travel Range 77×52mm, Double Slide Holder | ● | ● | A54.2601-S10 |
| Mechanical Stage Size 175 mm×145mm, Travel 76mmX52mm, Scale: 0.1mm, Double Slide Holder | ○ | ○ | A54.2601-S01 | |
| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm | ● | ● | |

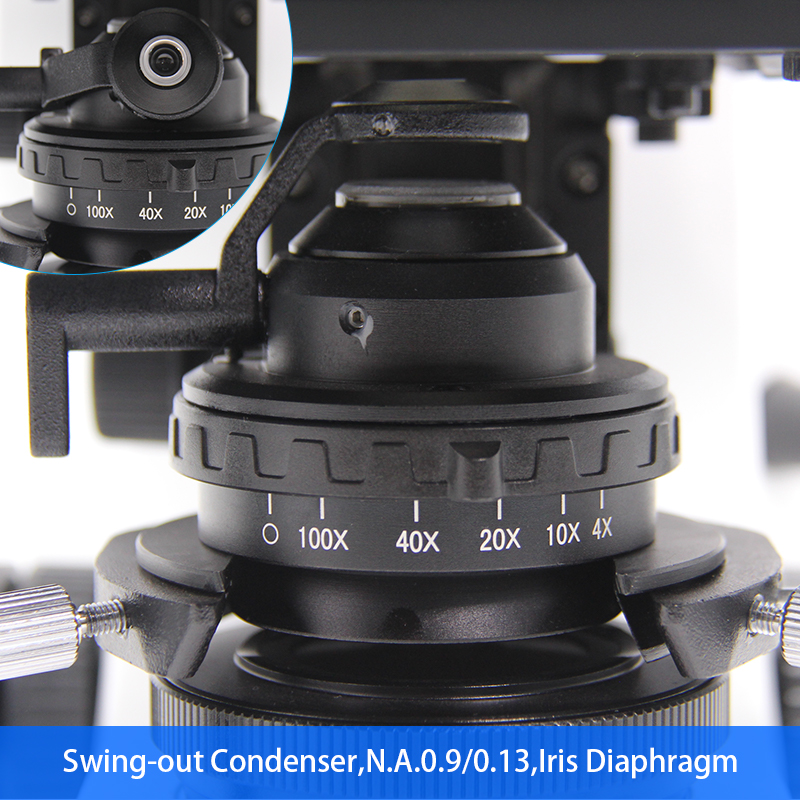

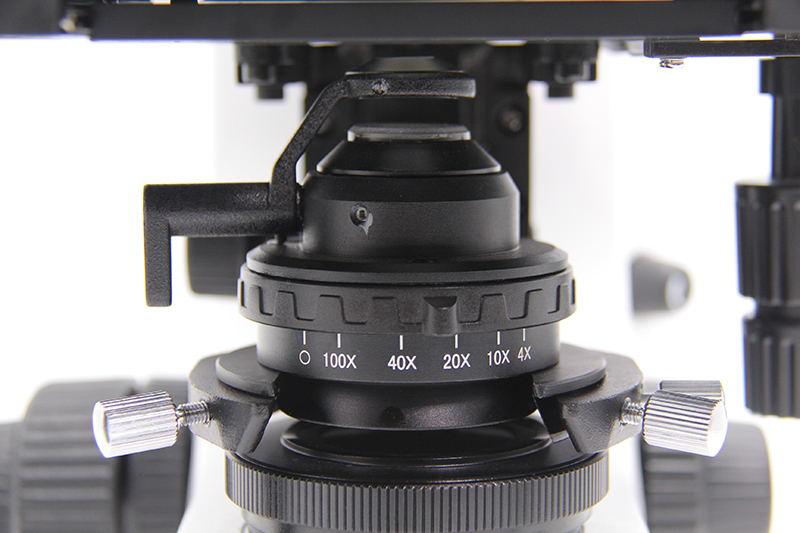

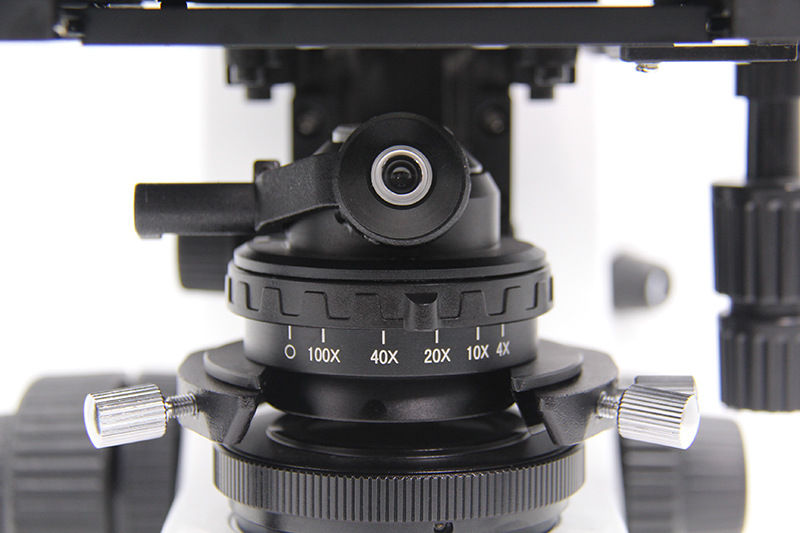

| Condenser | Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm | ● | ● | A56.2614-07a |
| Illumination | 6V30W Halogen Koehler Illumination, With Field Diaphragm Power Supply Wide Voltage 100V~240V | ● | ● | A56.2613-6V30W |

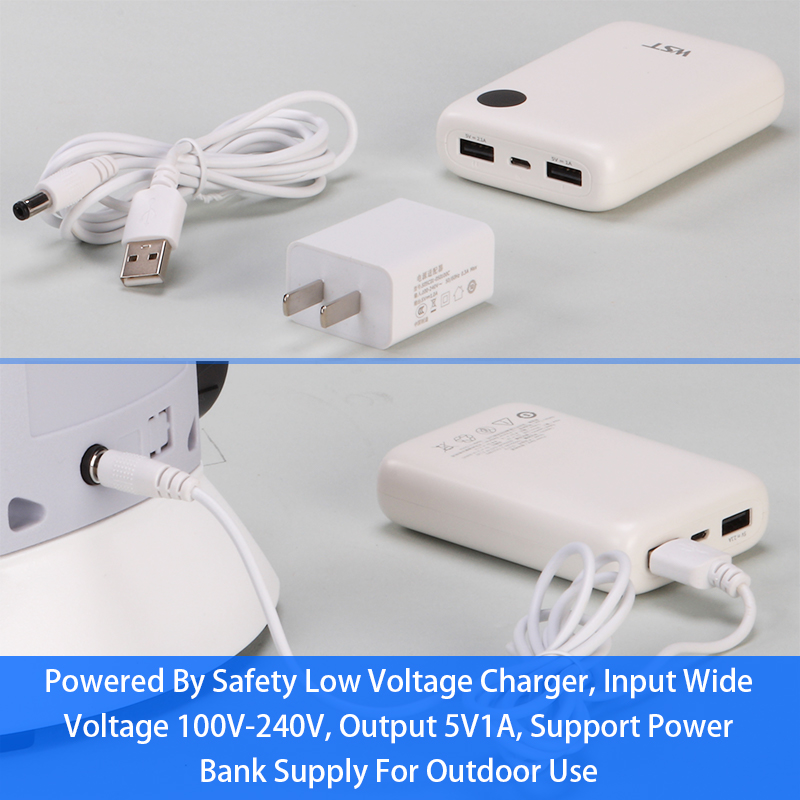

| 3W LED Koehler Illumination, Field Diaphragm Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | ○ | ○ | A56.2651-3W | |
| Field Diaphragm | For Kohler Illumnation | ● | ● | A56.2615-BK |
| Power | ECO, Auto Power Off System. Power Off Automatically Upon User Leaving 10 Minutes, Power On Automatically Upon User Approaching Detected, This Function Can Be Shut Down Manually | ○ | ○ | A56.2660 |
| Filter | Dia.45mm, Blue | ● | ● | A56.2616-45B |
| Dia.45mm, Green | ○ | ○ | A56.2616-45G | |
| Dia.45mm, Yellow | ○ | ○ | A56.2616-45A | |

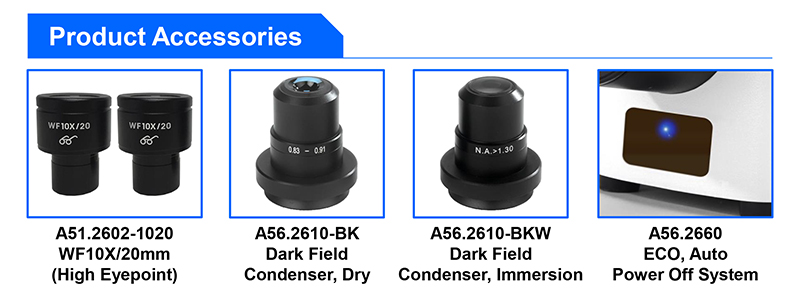

| Dark Field | Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective | ○ | ○ | A5D.2610-BK |
| Dark Field Condenser, Immersion, N.A.1.3, For 100x Objective | A5D.2610-BKW | |||

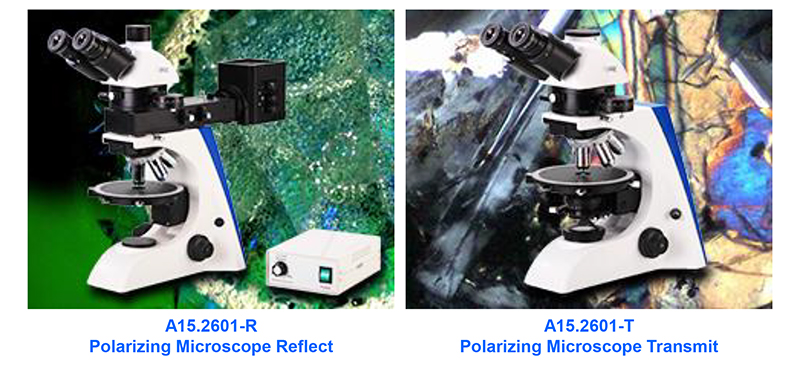

| Polarizing | Analyzer + Polarizer Set | ○ | ○ | A5P.2601-BK |
| Phase Contrast | Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter | ○ | ○ | A5C.2602-10 |
| Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter | ○ | ○ | A5C.2602-20 | |
| Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter | ○ | ○ | A5C.2602-40 | |
| Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter | ○ | ○ | A5C.2602-100 | |
| Turret Phase Contrast Attachment Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter | ○ | ○ | A5C.2603-BK | |
| Fluorescence | Upgrade to A16.2604-T2 Fluorescence Microscope With A5F.2601-2: B,G China Fluorescent Set 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. 6 Holes Disc Fluorescent Unit Ultraviolet Protection Barrier Centering Objective China 100W Mercury Lamp 2 pcs | ○ | A5F.2601-2 | |
| Upgrade to A16.2604-T4 Fluorescence Microscope With A5F.2601-4: B,G,U,UV China Fluorescent Set 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. 6 Holes Disc Fluorescent Unit Ultraviolet Protection Barrier Centering Objective China 100W Mercury Lamp 2 pcs | ○ | A5F.2601-4 | ||
| Upgrade to A16.2604-LT2 Fluorescence Microscope With A5F.2602-2: B,G China Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier | ○ | A5F.2602-2 | ||
| Upgrade to A16.2604-LT4 Fluorescence Microscope With A5F.2602-4: B,G,U,UV China Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier | ○ | A5F.2602-4 | ||

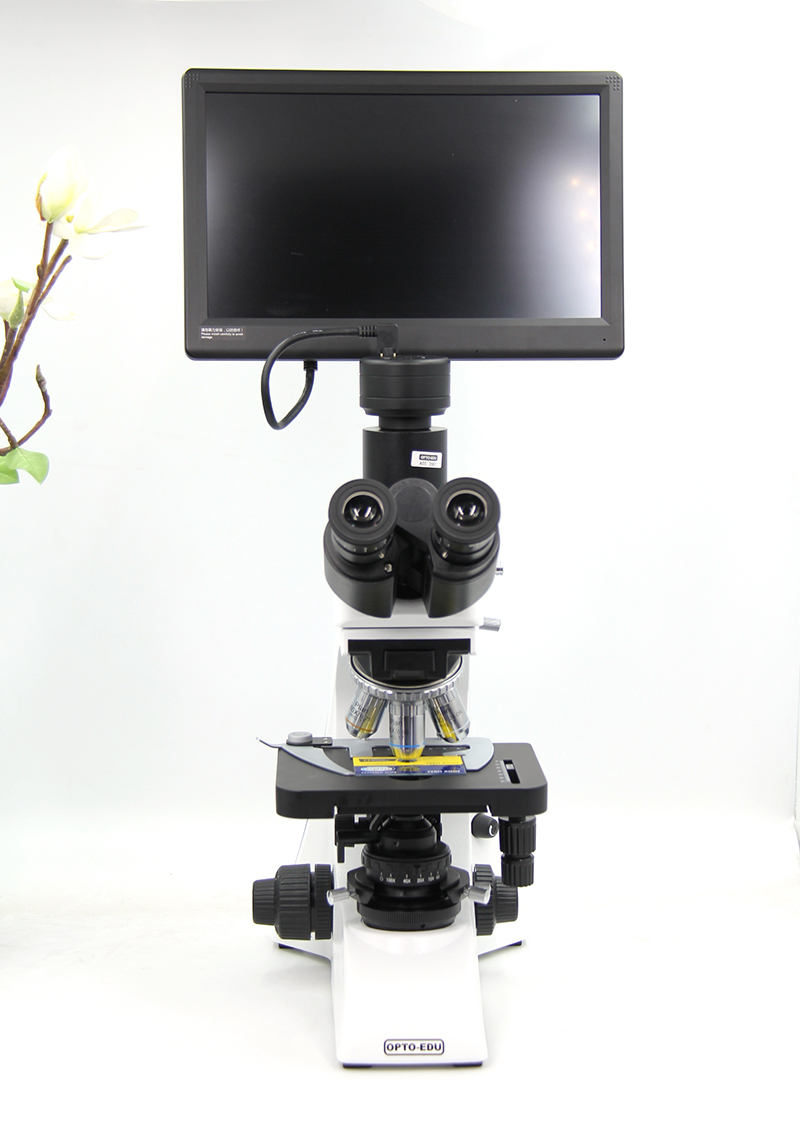

| Adapter | C-Mount 0.5x, Focus Adjustable | ○ | ○ | A55.2601-05 |
| C-Mount 0.75x, Focus Adjustable | ○ | ○ | A55.2601-75 | |
| C-Mount 1.0x, Focus Adjustable | ○ | ○ | A55.2601-10 | |
| Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm | ○ | ○ | A55.2610 | |
| Package | Carton Size 520×475×285mm, 1 Unit/Ctn | |||
| Weight | Gross Weight: 12 kgs, Net Weight: 10 kgs | |||
| Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories | ||||
