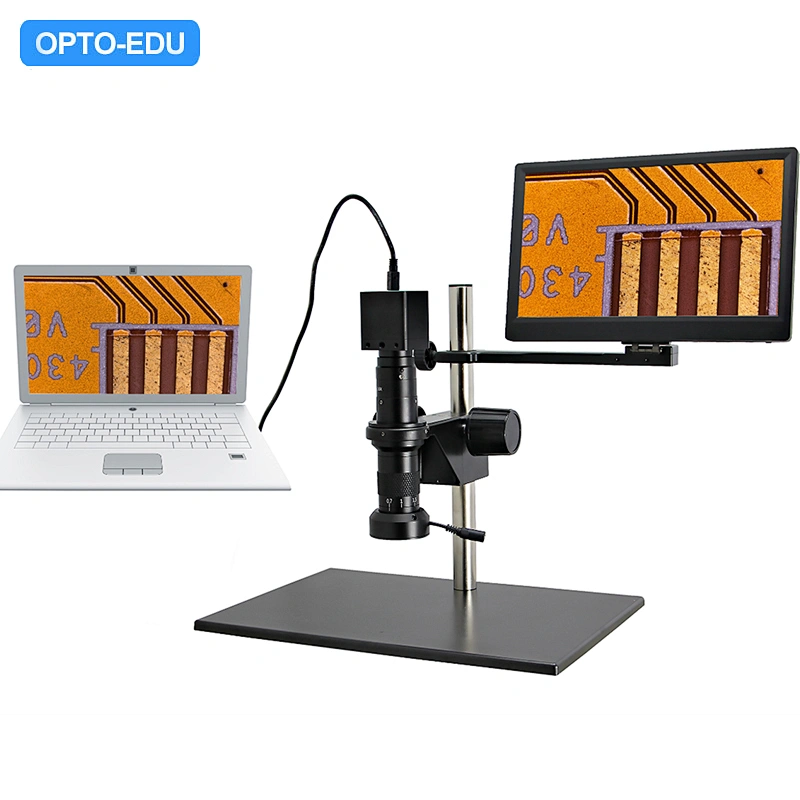

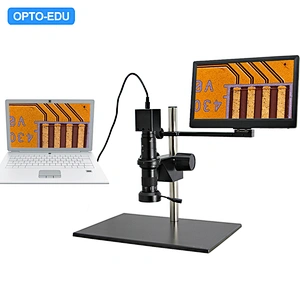

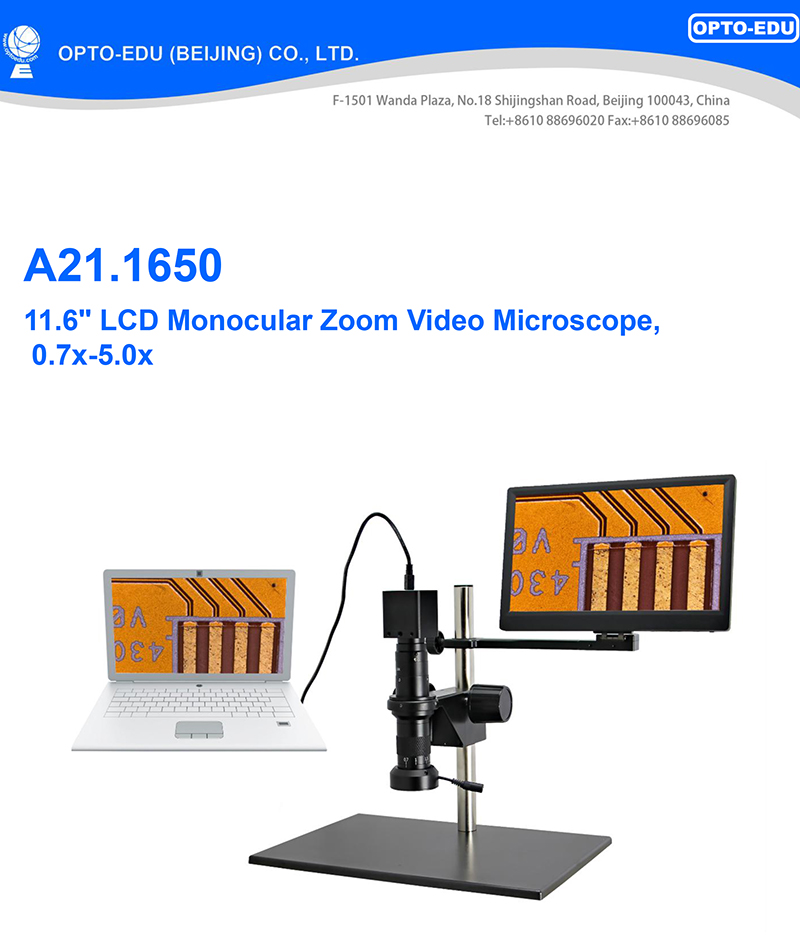

| A21.1650 11.6"LCD Monocular Zoom Video Microscope, 0.7x-5.0x |
| Optical System |
| Zoom Body | 0.7x-5.0x Patuloy na Pag-zoom |
| Kabuuang Magnification | 16x-115x sa 11.6"Monitor, 80x-575x na May Digital Zoom |
| Larangan ng Pananaw | 16*9-2.24*1.26mm |
| Distansya ng Trabaho | 86mm |
| I-install ang Diameter | Dia.50mm |

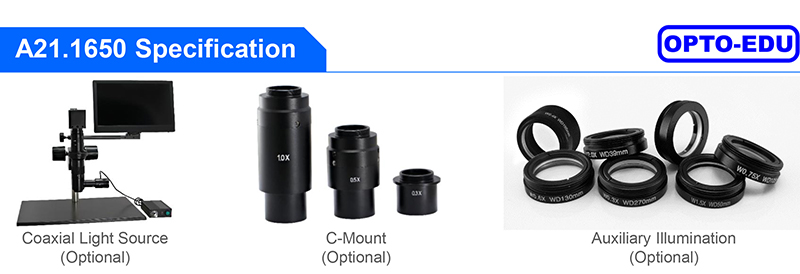

| C-Mount (Karaniwan) | 0.5x |
| C-Mount (Opsyonal) | A21.1650-C03 C-Mount 0.3x |
| A21.1650-C10 C-Mount 1.0x |
| Auxilary (Karaniwan) | 1.0x |
| Auxilary (Opsyonal) | A21.1650-L03, Auxiliary Lens 0.3x, WD;270mm |
| A21.1650-L04, Auxiliary Lens 0.4x, WD:195mm |
| A21.1650-L05, Auxiliary Lens 0.5x, WD:160mm |
| A21.1650-L06, Auxiliary Lens 0.6x, WD:130mm |
| A21.1650-L75, Pantulong na Lens 0.75x, WD:105mm |
| A21.1650-L15, Auxiliary Lens 1.5x, WD:50mm |
| A21.1650-L20, Auxiliary Lens 2.0x, WD:39mm |
| Tumayo |
| Sukat ng Base | L*W 380*260mm |
| Taas ng Pole | 320mm |
| Diameter ng Pole | Dia.25mm |
| Nakatutok | Coarse Focus Knob |
| Pinagmulan ng Banayad |
| Liwanag | LED Ring Light |
| Input Voltage (AC) | AC110-240V |
| Output Voltage (DC) | 12V |
| kapangyarihan | 5W |
| Kulay | Kulay Puti (Pula/Dilaw/Asul/Berde/Iinfrared 850nm/950nm Opsyonal) |
| Inner Diameter | 32mm |
| Panlabas na Diameter | 58mm |
| Dami ng LED | 52pcs na LED |
| Camera |
| Sensor | 16M 1/2.33” CMOS |
| Laki ng Pixel | 1.335µm × 1.335µm |
| Digital Zoom | 1.0x-5.0x |
| HDMI Output | 1920*1080 60fps |
| USB Output | 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG) |
| Bundok | C/CS |
| Pagkalantad | Manual/Auto, Suporta sa Exposure Compensation |
| White Balance | Manu-mano/auto, suportahan ang RGB adjustable |
| Alaala | TF Card Slot, Suporta Hanggang 64GB |
| Input Voltage (AC) | DC 5V—12V |
| Crosshair | Sinusuportahan ang 8 Crosshair Lines, May Naaayos na Kulay, Lapad, Posisyon |
| Wika | EN/CN |
| Software | View ng Imahe Para sa Windows, Larawan ng Suporta, Pagkuha ng Video, Setting ng Camera, Lahat ng Uri ng Pagsukat, Pag-andar ng Pagsusuri, I-download Mula sa www.optoedu.com/download. |
