A16.2601-B2

Nais na mangolekta

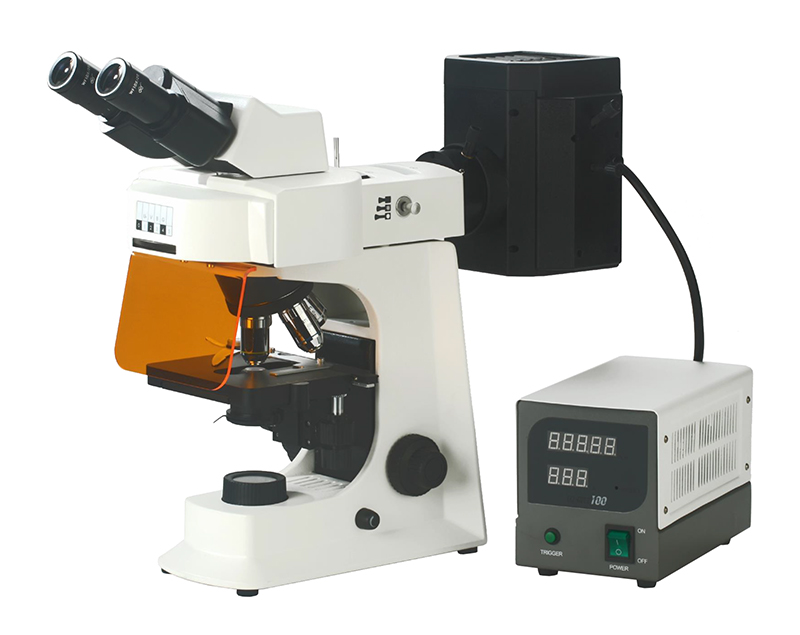

Fluorescent Microscope, Binocular, B/G

Ang Anim na Butas na Fluorescent Unit ay Maaaring Maglaman ng Hanggang 5 Fluorescent Filter + Maliwanag na Field View
100W Mercury Fluorescent Light Source Para Pagmasdan Sa Patolohiya, Paggamit ng Clinical Lab

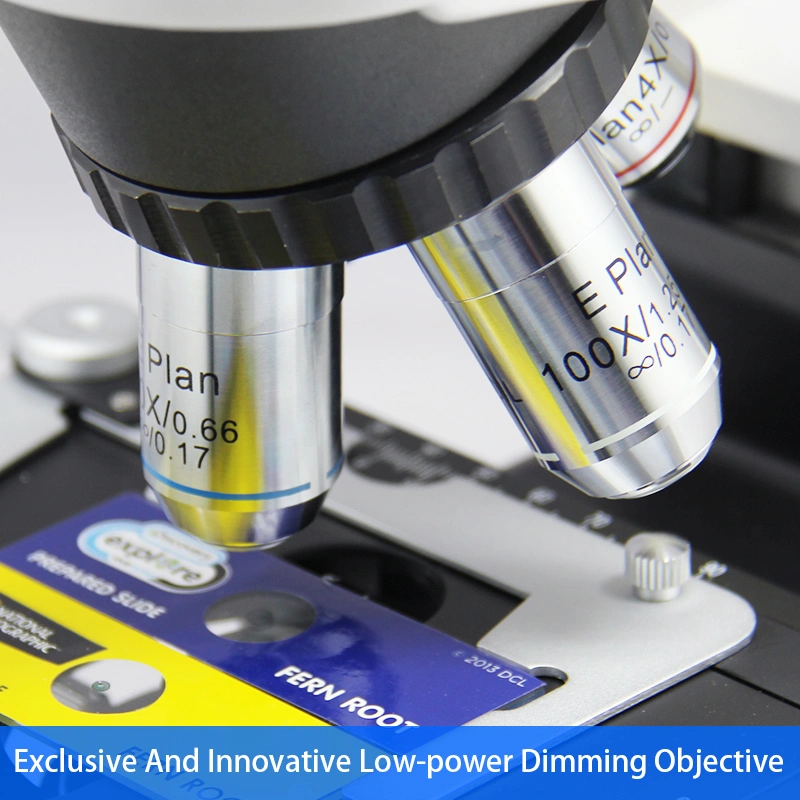

Creative 100x Water Objective Sa halip na I00x Oil Objective Para Madaling Gamitin Nang Walang Langis

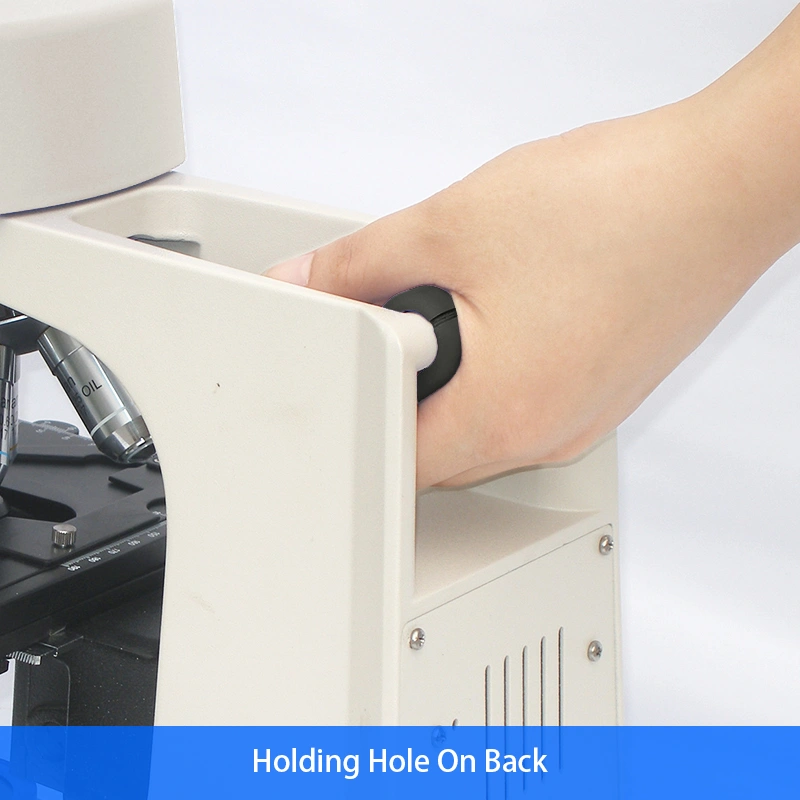

High Rigidity Body Structure Design Supply High Steady At Easy Handle
Iba't Ibang Kulay na Magagamit Para I-customize ang Iyong Modelo!

Specification:

A16.2601-B2

A16.2601-T2

Fluorescent Microscope, Binocular, B/G/U/UV

A16.2601-B4

Fluorescent Microscope, Trinocular, B/G/U/UV

A16.2601-T4

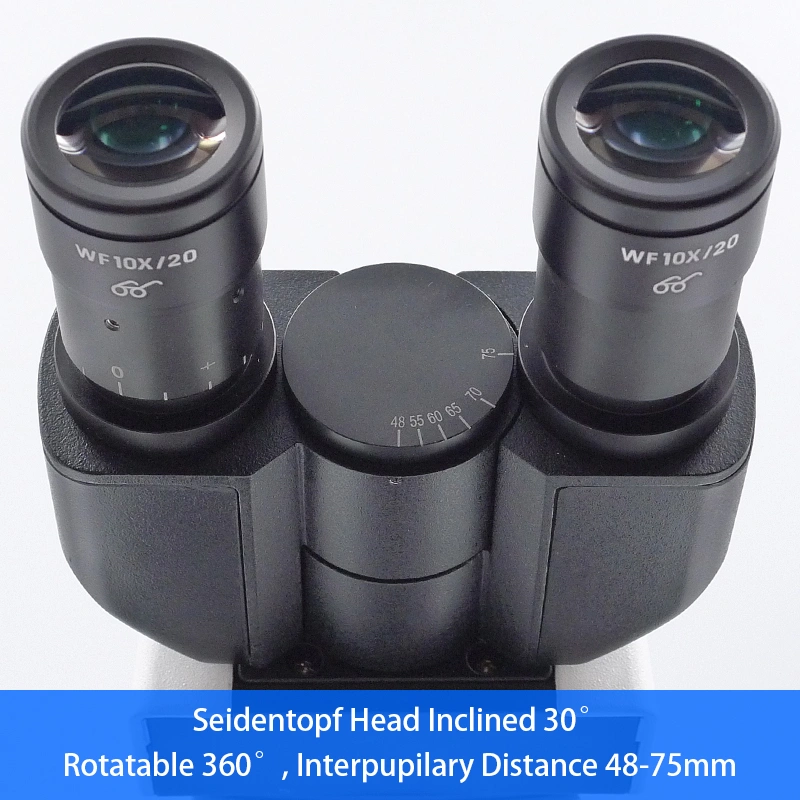

Seidentopf Head
Inclined 30°,Rotatable 360°, Interpupillary Distance 48-75mm, High Eyepoint Eyepiece, Na Maginhawa Para sa Mga Taong May Iba't ibang Taas ng Pag-upo;
Ang Pinagsamang Disenyo Ng Eyepiece Lens Barrel, Iniiwasan Ang Pagkawala At Contamination Ng Eyepiece At Pinahuhusay ang Pinagsanib na Pagganap Ng Microscope

Quadruple, Paatras
4 na Set na Layunin na Available: Achromatic, Plan, Infinity E-Plan, Infinity Plan.

Yugto ng Paggawa ng Double Slide Holder

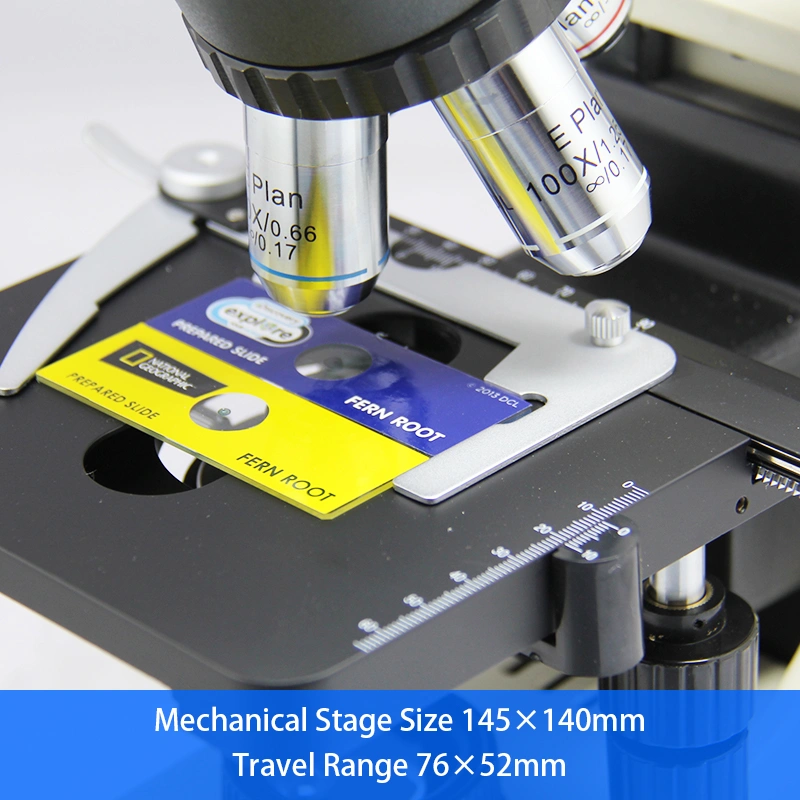

Laki ng Mechanical Stage: 145 mm×140mm, Paglalakbay: 76mmX52mm, Scale: 0.1mm

Condenser at Light Source

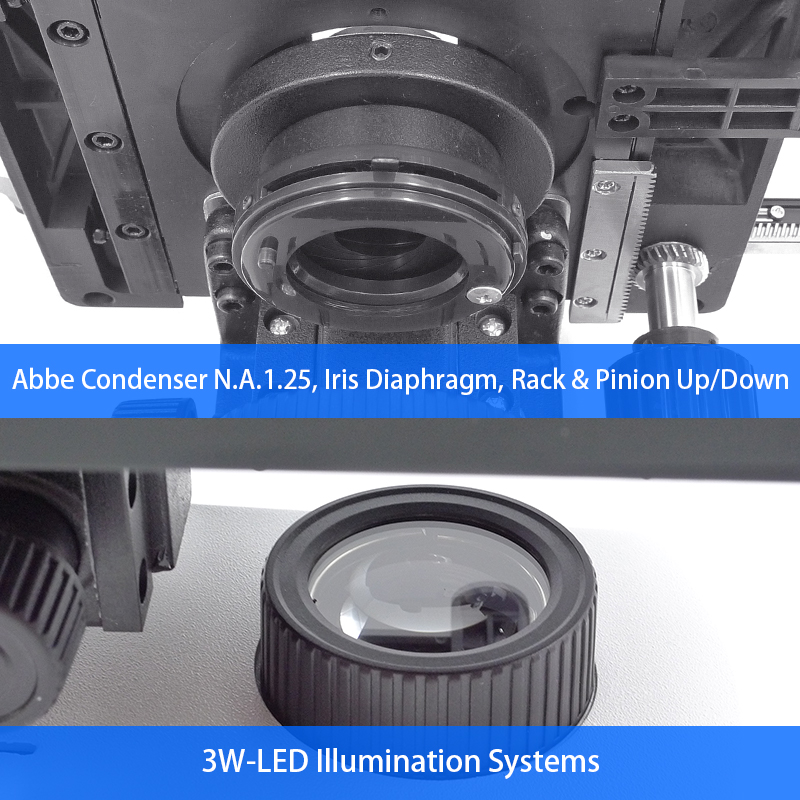

Abbe Condenser NA1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder
3W-LED na mga Sistema ng Pag-iilaw

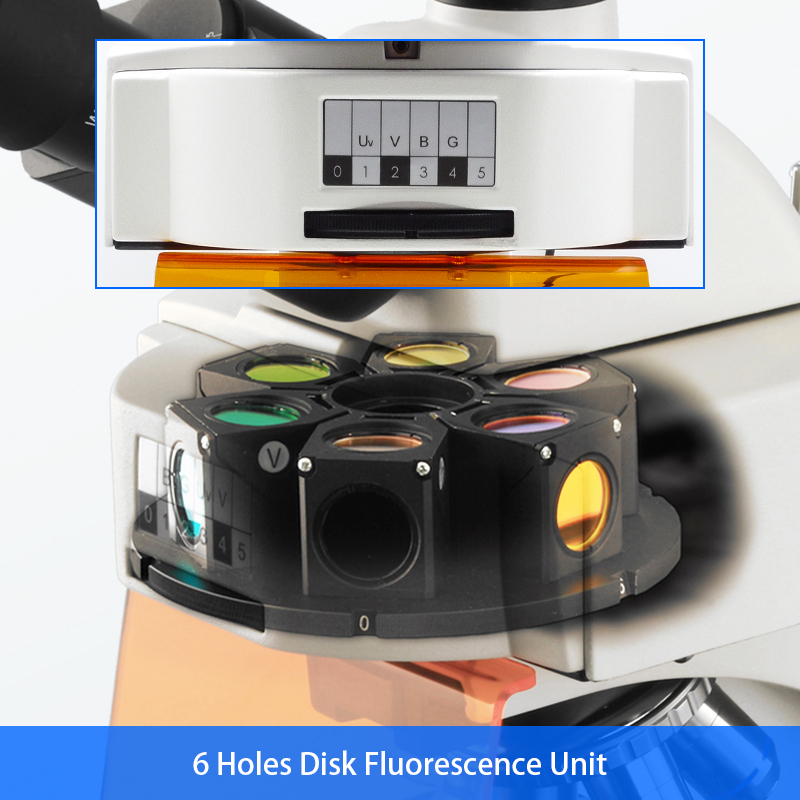

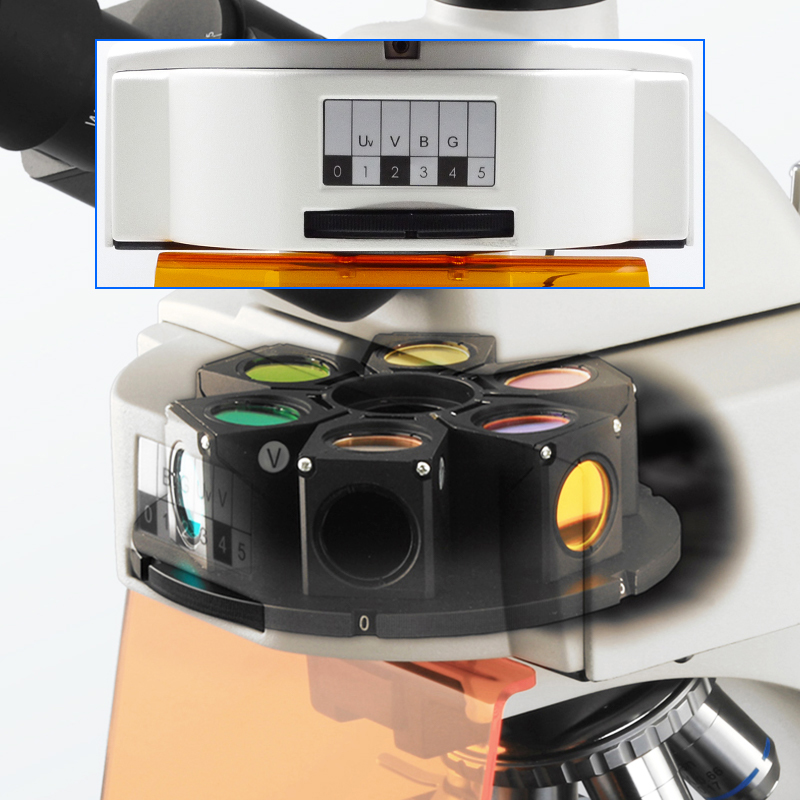

6 na butas na Yunit ng Fluorescence ng Disk
Maaaring Mag-load ng Hanggang 5 Fluorescence Filter + 1 Hole Para sa Maliwanag na Field View,

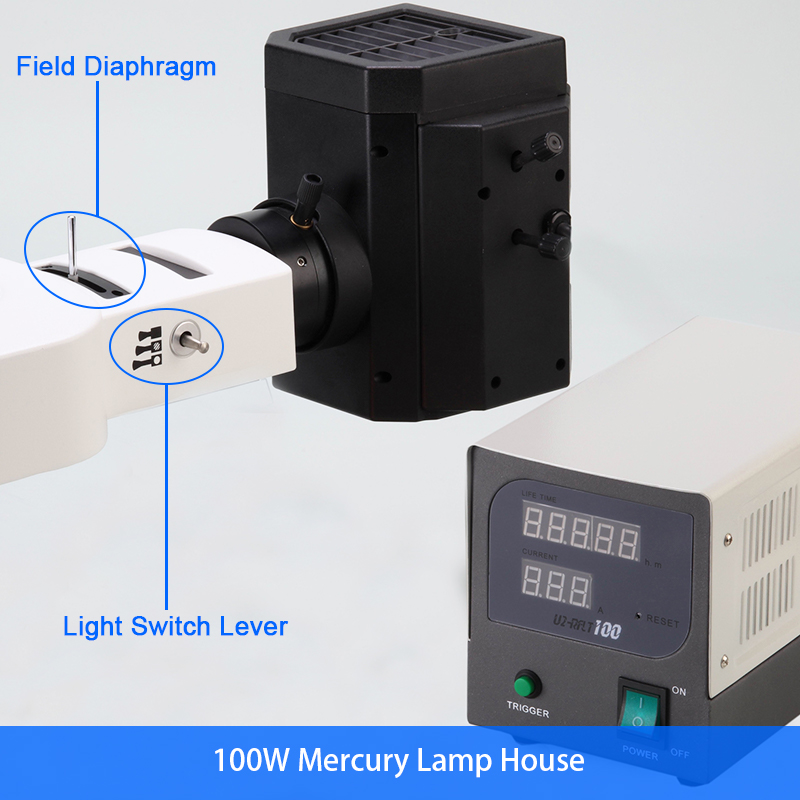

100W Mercury Lamp Fluorescent
Yunit ng Pag-iilaw, May Field Diaphragm, Light Switch Lever.

Mga bagay	A16.2601 Fluorescent Microscope Detalye	-B2	-T2	-B4	-T4	Cata. Hindi.
Ulo	Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm	●		●		A53.2621-B
Ulo	Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Disstance 48-75mm, , Light Split Fixed P20:E80		●		●	A53.2621-T
Eyepiece	WF10X/20mm (Mataas na Eyepoint)	●●	●●	●●	●●	A51.2602-1020
Nosepiece	Quadruple, Paatras	●	●	●	●	A54.2610-N734
Nosepiece	Quintuple, Paatras	○	○	○	○	A54.2610-N735
Layunin ng Infinity E-Plan	EPLAN 4x/0.10,WD=12.1mm	●	●	●	●	A52.2605-4
	EPLAN 10x/0.25,WD=4.14mm	●	●	●	●	A52.2605-10
	EPLAN 40x/0.65(S),WD=0.58mm	●	●	●	●	A52.2605-40
	EPLAN 100x/1.25(S, Langis),WD=0.19mm	●	●	●	●	A52.2605-100

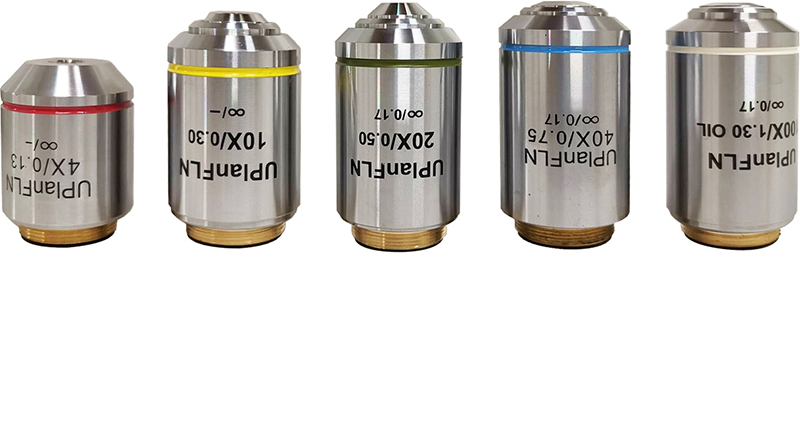

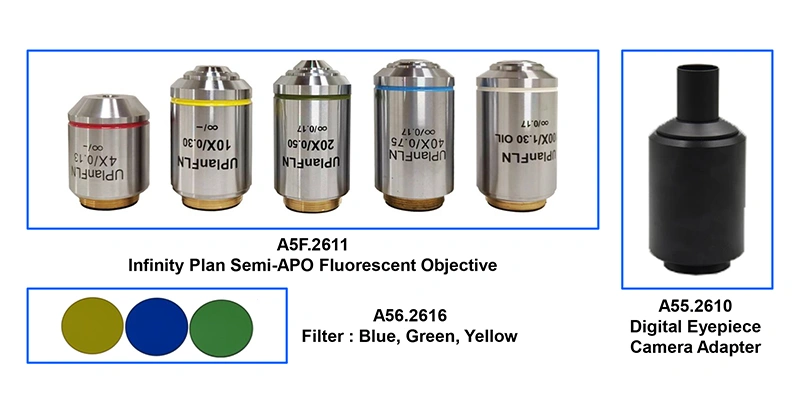

Infinity Plan Layunin ng Semi-APO Fluorescent	UplanFLN 4x, NA0.16，WD=17.151mm	○	○	○	○	A5F.2611-4
	UplanFLN 10x, NA0.30，WD=7.68mm	○	○	○	○	A5F.2611-10
	UplanFLN 20x, NA0.50，WD=1.96mm	○	○	○	○	A5F.2611-20
	UplanFLN 40x, NA0.75，WD=0.78mm	○	○	○	○	A5F.2611-40
	UplanFLN 100x(Oil), NA1.30，WD=0.15mm	○	○	○	○	A5F.2611-100
Yugto ng Paggawa	Laki ng Mechanical Stage: 145 mm×140mm, Paglalakbay: 76mmX52mm, Scale: 0.1mm, Double Slide Holder	●	●	●	●	A54.2601-S04
Yugto ng Paggawa	Rackless (Integrated) Stage, Sukat 140×135mm, Saklaw ng Paglalakbay 75×35mm, Double Slide Holder	○	○	○	○	A54.2601-S12

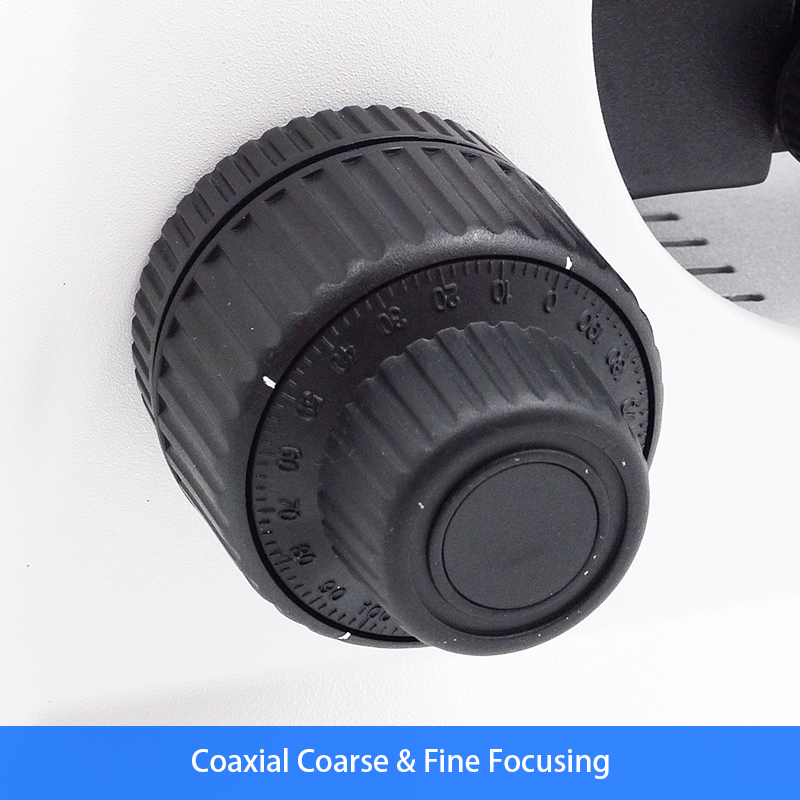

Nakatutok	Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division	●	●	●	●
Condenser	Abbe Condenser NA1.25, Iris Diaphragm, Rack at Pinion Pataas/Pababa	●	●	●	●	A56.2614-C06b

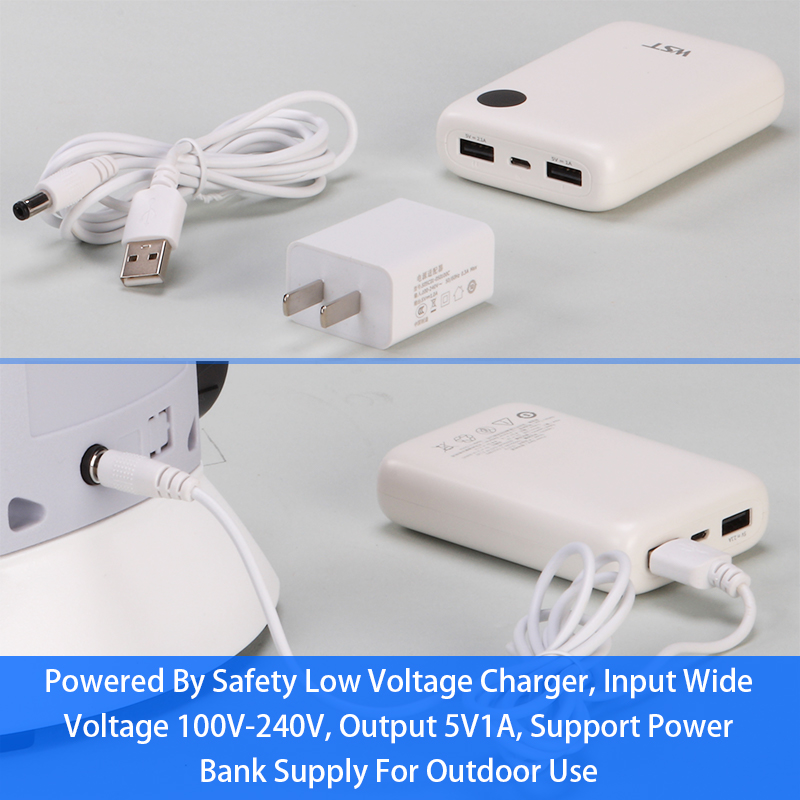

Pag-iilaw	3W-LED na mga Sistema ng Pag-iilaw Pinapatakbo Ng Kaligtasan na Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Suporta sa Power Bank Supply Para sa Outdoor na Paggamit	●	●	●	●	A56.2613-3W
	12V/20W Halogen Lamp	○	○	○	○	A56.2650-20W
	6V/30W Halogen Lamp	○	○	○	○	A56.2650-30W

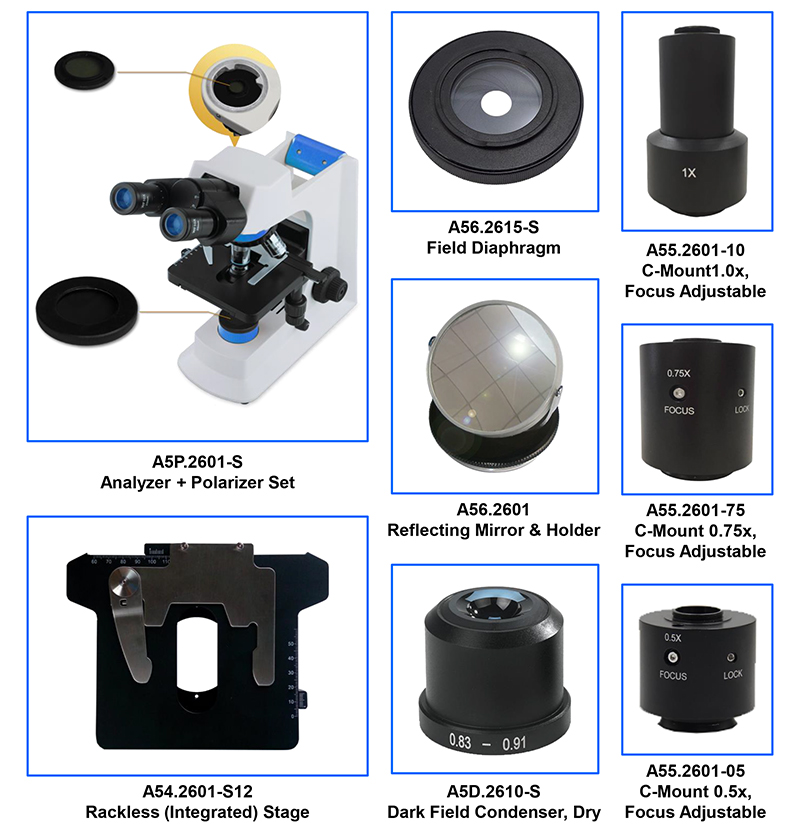

Field Diaphragm	Mag-upgrade sa Kohler Illumnation	○	○	○	○	A56.2615-S
Salain	Dia.45mm, Asul	○	○	○	○	A56.2616-45B
	Dia.45mm, Berde	○	○	○	○	A56.2616-45G
	Dia.45mm, Dilaw	○	○	○	○	A56.2616-45A
Madilim na Patlang	Dark Field Condenser, Dry, NA0.83-0.91, Para sa 4x10x40x Layunin	○	○	○	○	A5D.2610-S
Polarizing	Analyzer + Polarizer Set	○	○	○	○	A5P.2601-S

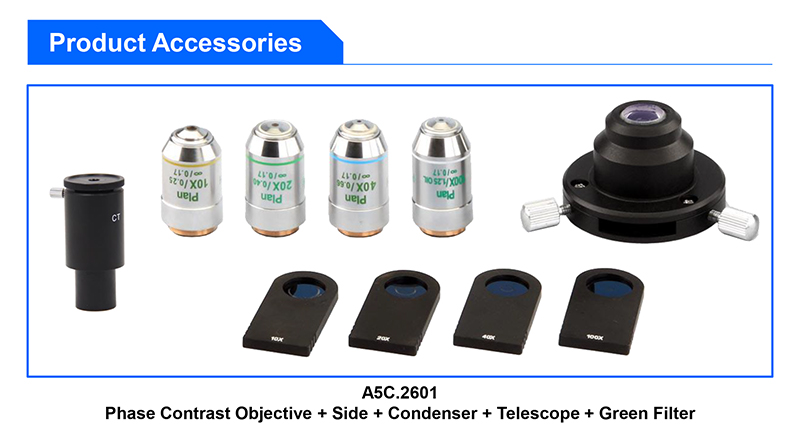

Phase Contrast	Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	○	○	A5C.2601-10
	Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	○	○	A5C.2601-20
	Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	○	○	A5C.2601-40
	Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	○	○	A5C.2601-100

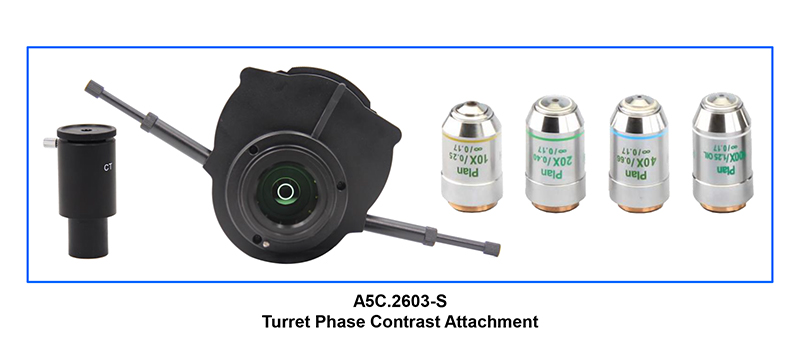

	Turret Phase Contrast Attachment Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Hole, Telescope 11x, Green Filter	○	○	○	○	A5C.2603-S
Yunit ng Fluorescence	Mag-upgrade Mula sa A12.2601-C/CT Biological Microscope Gamit ang: B,GChina Fluorescent Set 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. 6 na butas na Disc Fluorescent Unit Barrier ng Proteksyon ng Ultraviolet Layunin ng Pagsentro China 100W Mercury Lamp 2 pcs	●	●			A5F.2601-2
Yunit ng Fluorescence	Mag-upgrade Mula sa A12.2601-C/CT Biological Microscope Gamit ang: B,G,U,UVChina Fluorescent Set 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. 6 na butas na Disc Fluorescent Unit Barrier ng Proteksyon ng Ultraviolet Layunin ng Pagsentro China 100W Mercury Lamp 2 pcs			●	●	A5F.2601-4
Adapter	C-Mount 0.5x, Focus Adjustable	○	○	○	○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable	○	○	○	○	A55.2601-75
	C-Mount1.0x, Focus Adjustable	○	○	○	○	A55.2601-10
	Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm	○	○	○	○	A55.2610
Salamin	Sumasalamin sa Salamin at Hawak	○	○	○	○	A56.2601

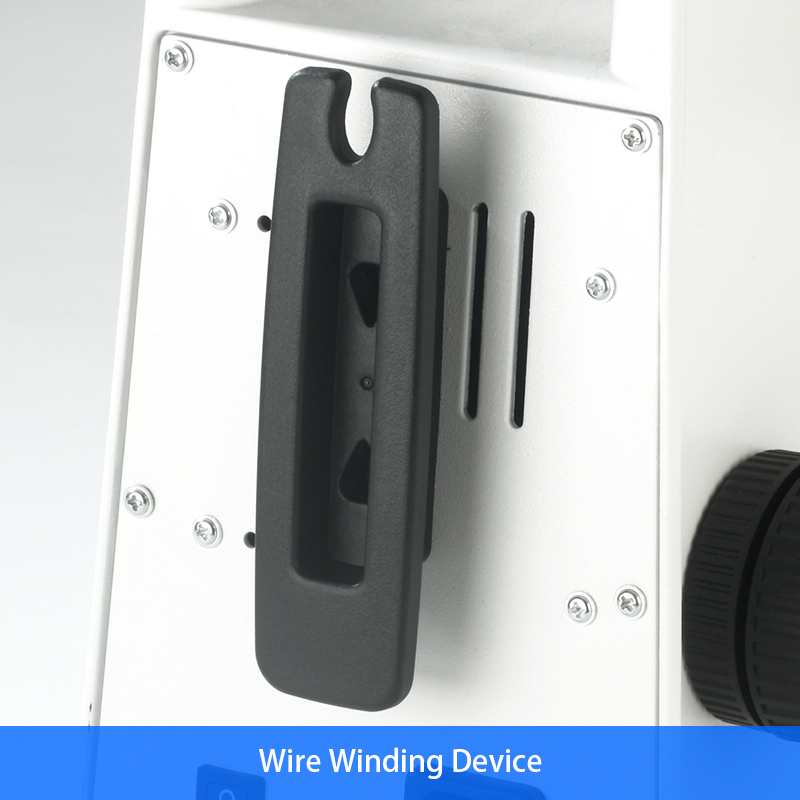

Kalakip	Wire Winding Device	○	○	○	○	A50.2602-S

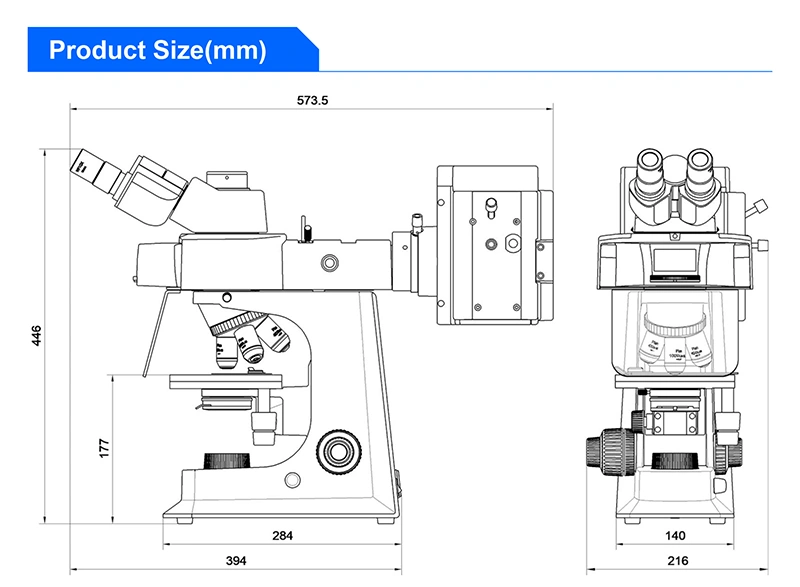

Package	Sukat ng karton 970×340×440mm, 1 pc / Ctn
Timbang	Kabuuang Timbang: 22 kg, Netong Timbang: 18 kg
Tandaan:"●"In Table Is Standard outfits,"○"Ay Opsyonal na Mga Kagamitan

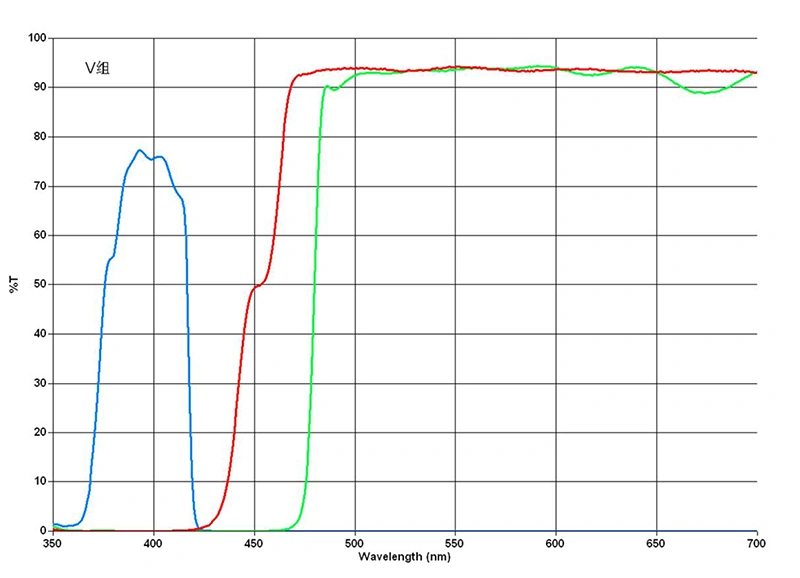

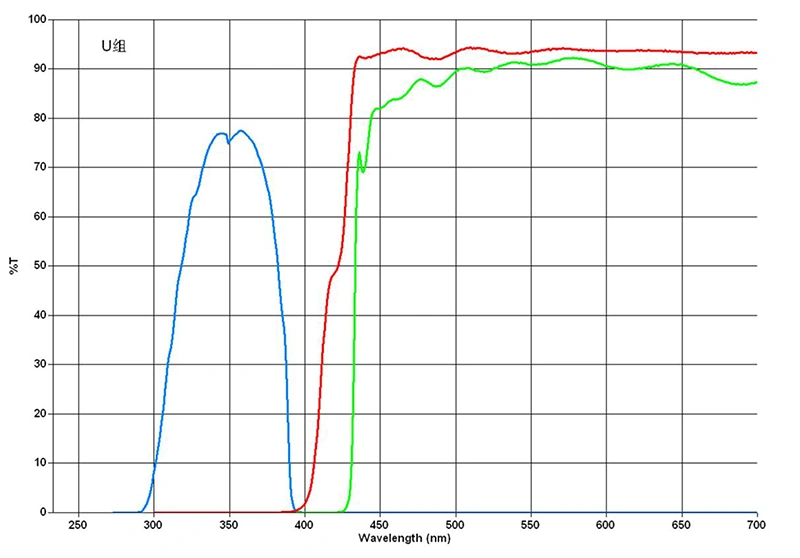

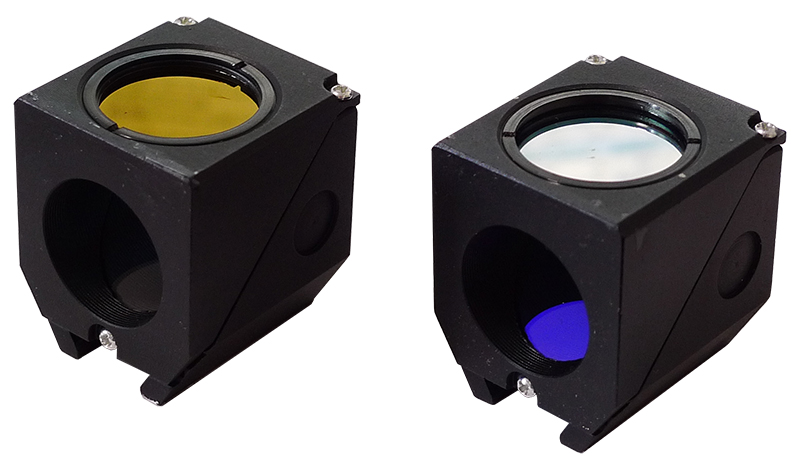

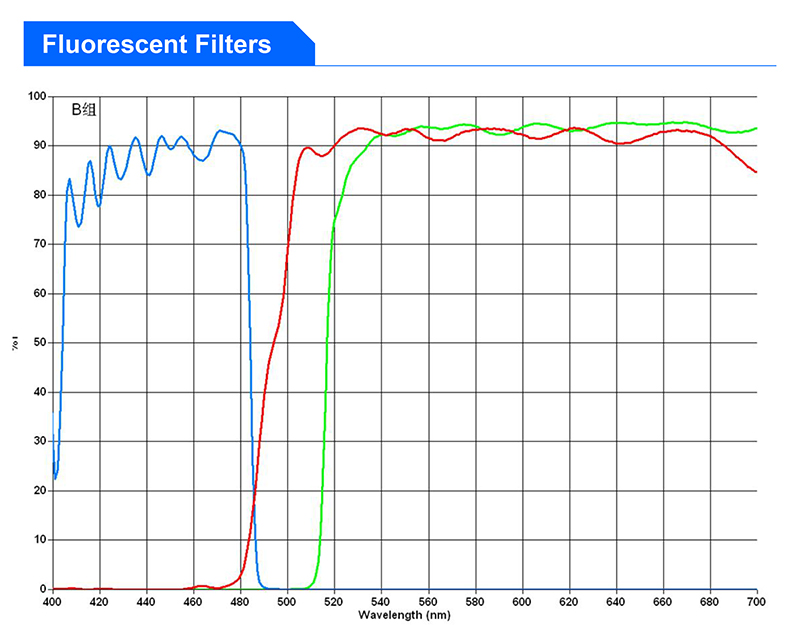

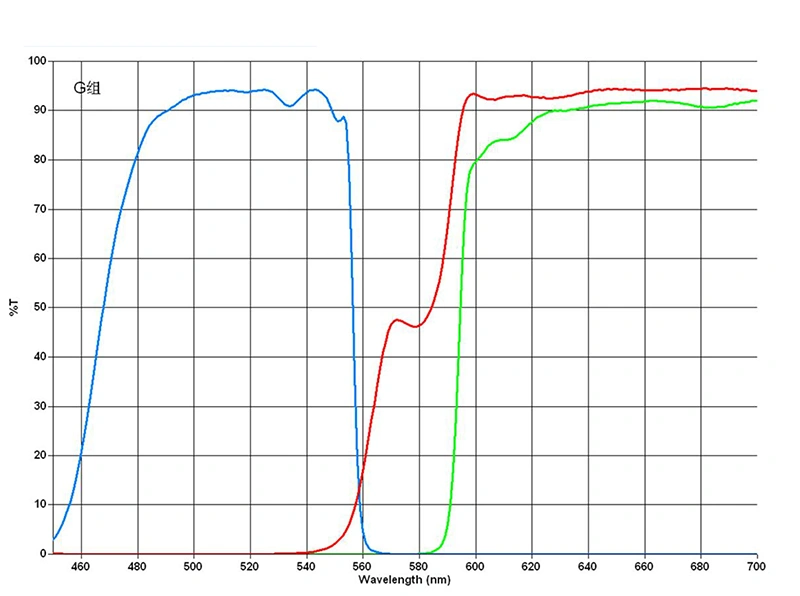

Mga Fluorescent na Filter	Exciter (nm)	Dichroic (nm)	Emitter (nm)
UV	330-380	400	435
V	380-420	430	460
B	420-490	505	520
G	500-550	575	590

Mas marami pang litrato

Pictures Hide Same Show Difference
Model No.	A16.2601-B2	A16.2601-T2	A16.2601-B4	A16.2601-T4
Fluorescene	B,G China Fluorescent Set 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. 6 na butas na disc fluorescent unit na ultraviolet na proteksyon ng hadlang sa pagsentro layunin ng china 100w mercury lamp	B,G China Fluorescent Set 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. 6 na butas na disc fluorescent unit na ultraviolet na proteksyon ng hadlang sa pagsentro layunin ng china 100w mercury lamp	B,G,U,UV China Fluorescent Set 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. 6 Holes Disc Fluorescent Unit Layunin ng Pagsentro ng Barrier ng Ultraviolet Protection sa China 100W Mercury	B,G,U,UV China Fluorescent Set 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. 6 Holes Disc Fluorescent Unit Layunin ng Pagsentro ng Barrier ng Ultraviolet Protection sa China 100W Mercury
Fluorescent Band	2 banda	3 banda	——	——
Uri ng Power Supply	AC 110V-240V	DC Adapter AC 110V/220V	DC Adapter AC 110V/220V	DC Adapter AC 110V/220V
Sumasalamin sa Liwanag	100W Mercury Fluorescent Light Source	100W Mercury Fluorescent Light Source	100W Mercury Fluorescent Light Source	100W Mercury Fluorescent Light Source
Magpadala ng Liwanag	3W LED	3W LED	3W LED	3W LED
Uri ng Light Source	Mercury LED Fluorescent	Fluurescent LED	Fluurescent LED	Fluurescent LED
Mga Tampok ng Light Source	Fluorcent 100W Magpadala at Magmuni-muni	Fluorcent 100W Magpadala at Magmuni-muni	Fluorcent 100W Magpadala at Magmuni-muni	Fluorcent 100W Magpadala at Magmuni-muni
Condenser NA	1.25	1.25	1.25	1.25
Uri ng Condenser	Abbe	Abbe	Abbe	Abbe
Mga Tampok ng Condenser	Iris diaphragm Rack at Pinionↆ↑	Tagahawak ng Filter Rack at Pinionↆ↑	Tagahawak ng Filter Rack at Pinionↆ↑	Tagahawak ng Filter Rack at Pinionↆ↑
Scale ng Pagtutok	0.002mm	0.002mm	0.002mm	0.002mm
Saklaw ng Pagtutok	26mm	26mm	26mm	26mm
Uri ng Pagtutok	Coaxial Coarse & Fine	——	——	——
Mga Tampok na Tumututok	Madaling iakma ang pag-igting	Madaling iakma ang pag-igting Safety Stop Screw	Madaling iakma ang pag-igting Safety Stop Screw	Madaling iakma ang pag-igting Safety Stop Screw
Paglipat ng Yugto ng Paggawa	76x52mm	76x52mm	76x52mm	76x52mm
Laki ng Yugto ng Paggawa	145x140mm	145x140mm	145x140mm	145x140mm
Uri ng Yugto ng Paggawa	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical
Mga Tampok sa Yugto ng Paggawa	Double Slide Holder Sukat ≥140x140mm	Double Slide Holder Sukat ≥140x140mm	Double Slide Holder Sukat ≥140x140mm	Double Slide Holder Sukat ≥140x140mm
Layunin	Infinity E-Plan: EPLAN 4x/0.10, WD=12.1mm EPLAN 10x/0.25, WD=4.14mm EPLAN 40x/0.65, WD=0.58mm EPLAN 100x/1.25, WD=0.19mm	Infinity E-Plan: EPLAN 4x/0.10, WD=12.1mm EPLAN 10x/0.25, WD=4.14mm EPLAN 40x/0.65, WD=0.58mm EPLAN 100x/1.25, WD=0.19mm	Infinity E-Plan: EPLAN 4x/0.10, WD=12.1mm EPLAN 10x/0.25, WD=4.14mm EPLAN 40x/0.65, WD=0.58mm EPLAN 100x/1.25, WD=0.19mm	Infinity E-Plan: EPLAN 4x/0.10, WD=12.1mm EPLAN 10x/0.25, WD=4.14mm EPLAN 40x/0.65, WD=0.58mm EPLAN 100x/1.25, WD=0.19mm
Uri ng Layunin	Infinity E-Plan	Infinity E-Plan	Infinity E-Plan	Infinity E-Plan
Mga butas ng ilong	4 na butas	4 na butas	4 na butas	4 na butas
Mga Tampok ng Nosepiece	Sa loob	Sa loob	Sa loob	Sa loob
Eyepiece	WF 10x/20mm, 2 pc.	WF 10x/20mm, 2 pc.	WF 10x/20mm, 2 pc.	WF 10x/20mm, 2 pc.
Diameter ng eyepiece	23.2mm	23.2mm	23.2mm	23.2mm
Head Diopter	Naisasaayos ang Kaliwang Tube	Naisasaayos ang Kaliwang Tube	Naisasaayos ang Kaliwang Tube	Naisasaayos ang Kaliwang Tube
Head Interpupillary	48~75mm	48~75mm	48~75mm	48~75mm
Pag-ikot ng Ulo	Iikot ang Ulo 360° Umiikot ang Eyetube 360°	Umiikot ang Eyetube 360°	Umiikot ang Eyetube 360°	Umiikot ang Eyetube 360°
Pagkahilig sa Ulo	30°	——	——	——
Uri ng Ulo	Seidentopf Binocular	Seidentopf Trinocular	Seidentopf Binocular	Seidentopf Trinocular
Standard Magnification	40x-1000x	——	——	——
Optical System	Infinity Semi-Plan	Infinity Semi-Plan	Infinity Semi-Plan	Infinity Semi-Plan
Mga tampok	Infinity	Infinity	Infinity	Infinity
I-upgrade ang Function	BF+PH+DF+PL+FL	——	——	——
Karaniwang Pag-andar	BF+FL	——	——	——
Video Adapter	——	C-Mount 0.3x	C-Mount 0.3x	C-Mount 0.3x
Mga Tampok ng Layunin	——	Iris diaphragm	Iris diaphragm	Iris diaphragm
Mga Tampok ng Eyepiece	——	Diopter Adjustable	Diopter Adjustable	Diopter Adjustable
Daan ng Head Light	——	E80:P20	——	E80:P20
