A16.2601-B2

Like Favorites

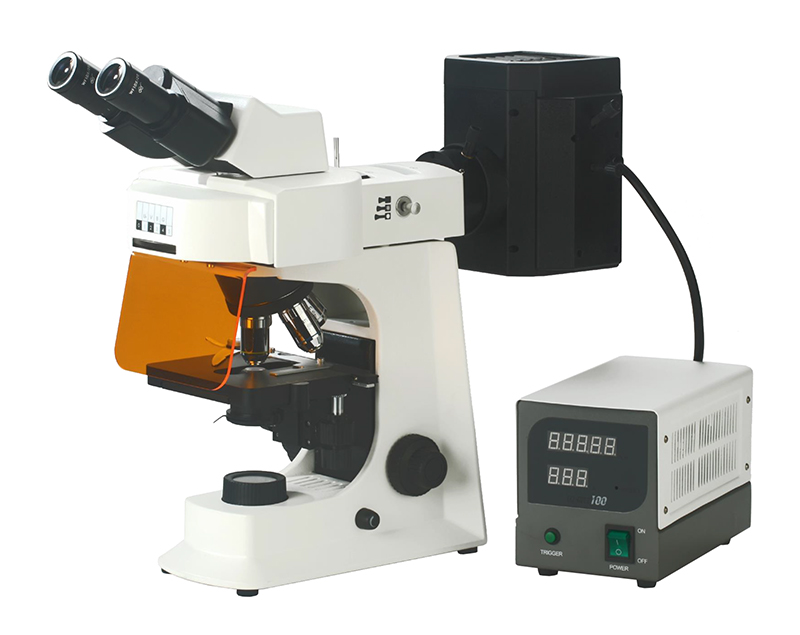

Fluorescent Microscope, Binocular, B/G

Six Holes Fluorescent Unit Can Hold Up To 5 Fluorescent Filter + Bright Field View
100W Mercury Fluorescent Light Source For Observe In Pathology, Clinical Lab Use

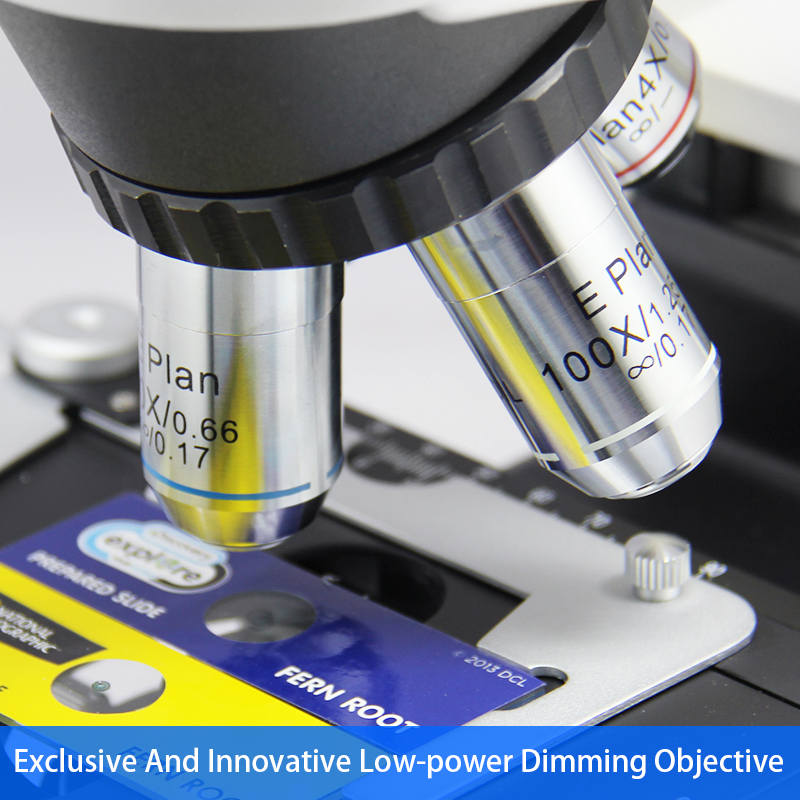

Creative 100x Water Objective Instead Of I00x Oil Objective For Easy Use Without Oil
High Rigidity Body Structure Design Supply High Steady And Easy Handle
Different Color Available To Customize Your Model!

Specification:

A16.2601-B2

A16.2601-T2

Fluorescent Microscope, Binocular, B/G/U/UV

A16.2601-B4

Fluorescent Microscope, Trinocular, B/G/U/UV

A16.2601-T4

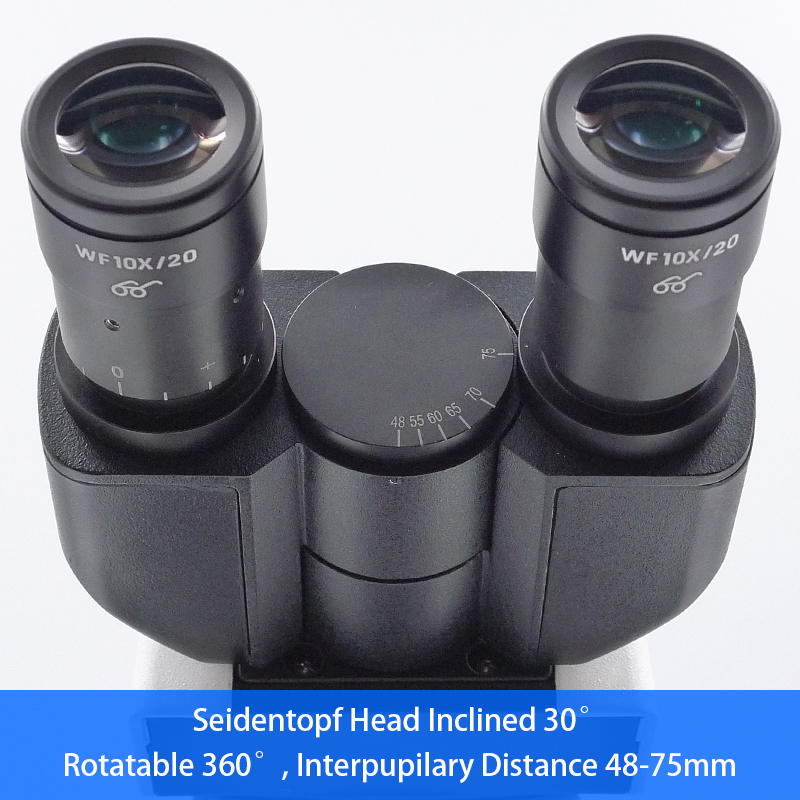

Seidentopf Head
Inclined 30°,Rotatable 360°, Interpupillary Distance 48-75mm, High Eyepoint Eyepiece, Which Is Convenient For People With Different Sitting Height;
The Integrated Design Of The Eyepiece Lens Barrel, Avoids The Loss And Contamination Of The Eyepiece And Enhances The Integrated Performance Of The Microscope

Quadruple, Backward
4 Sets Objective Available: Achromatic, Plan, Infinity E-Plan, Infinity Plan.

Double Slide Holder Working Stage

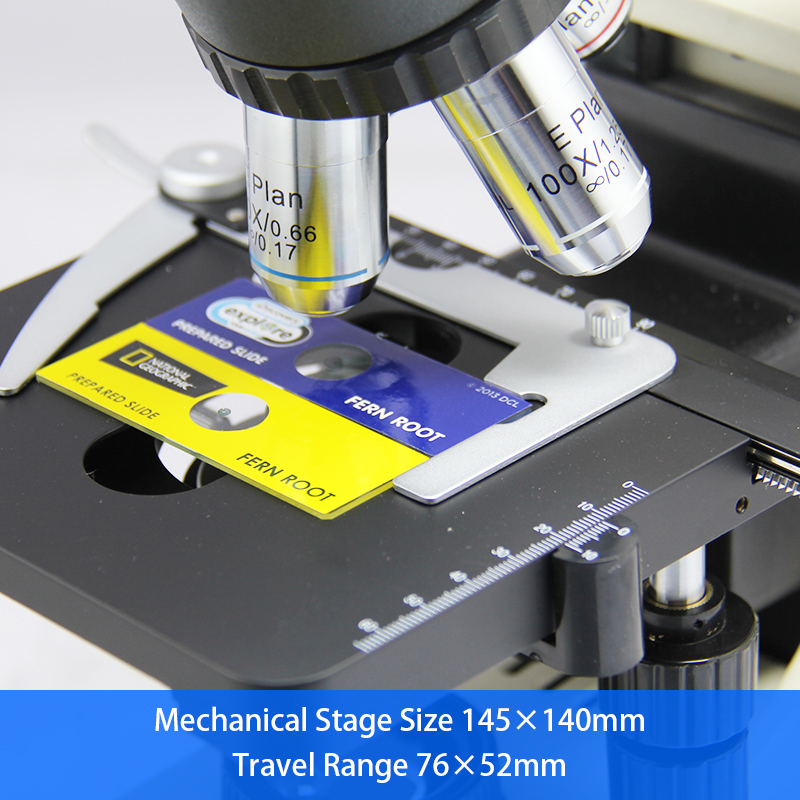

Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm

Condenser & Light Source

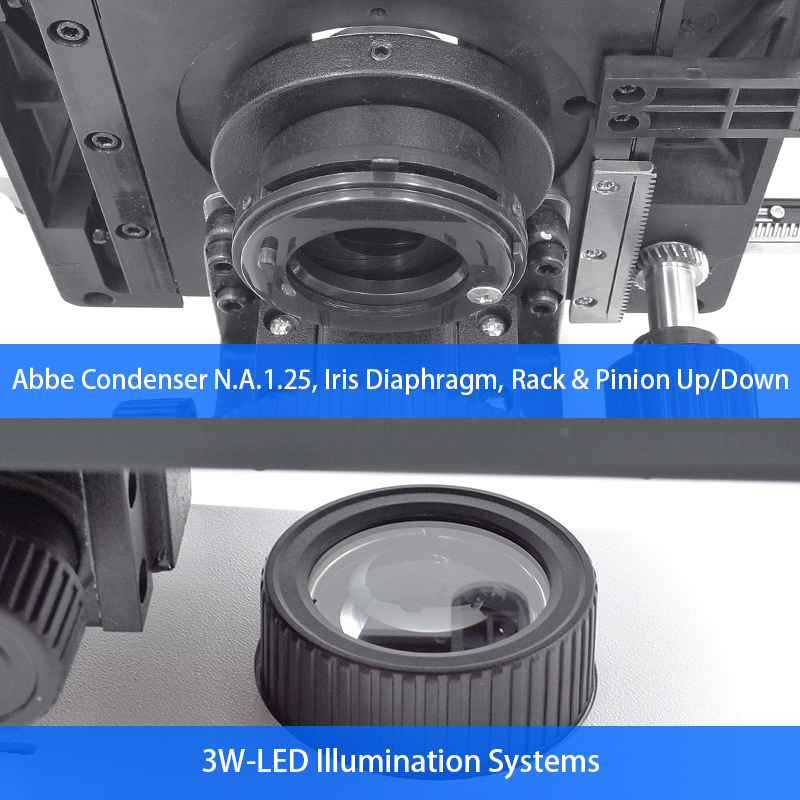

Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder
3W-LED Illumination Systems

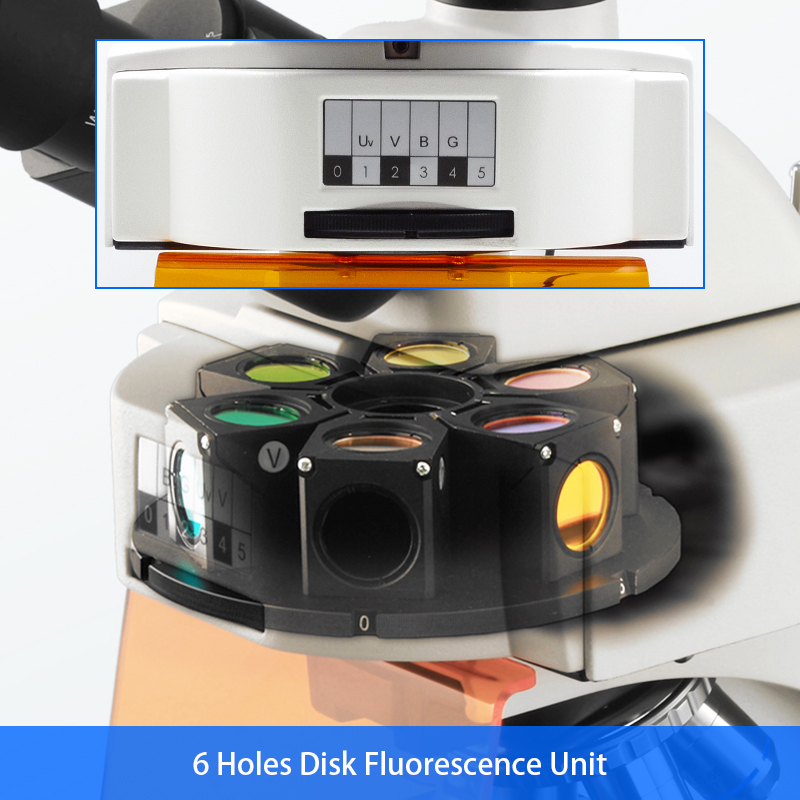

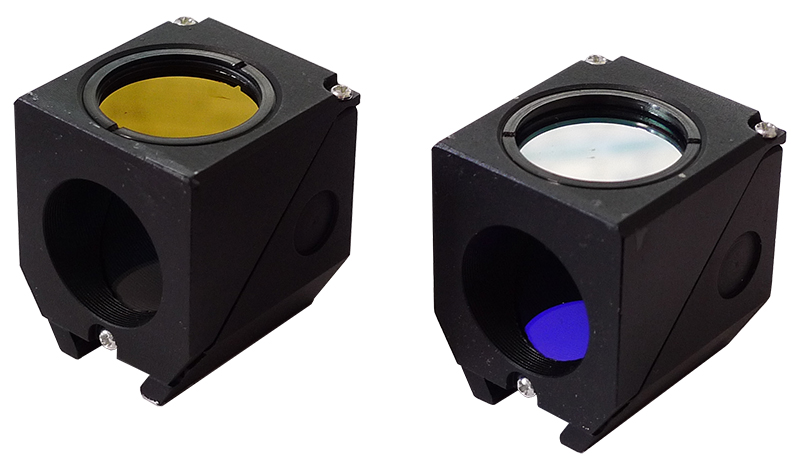

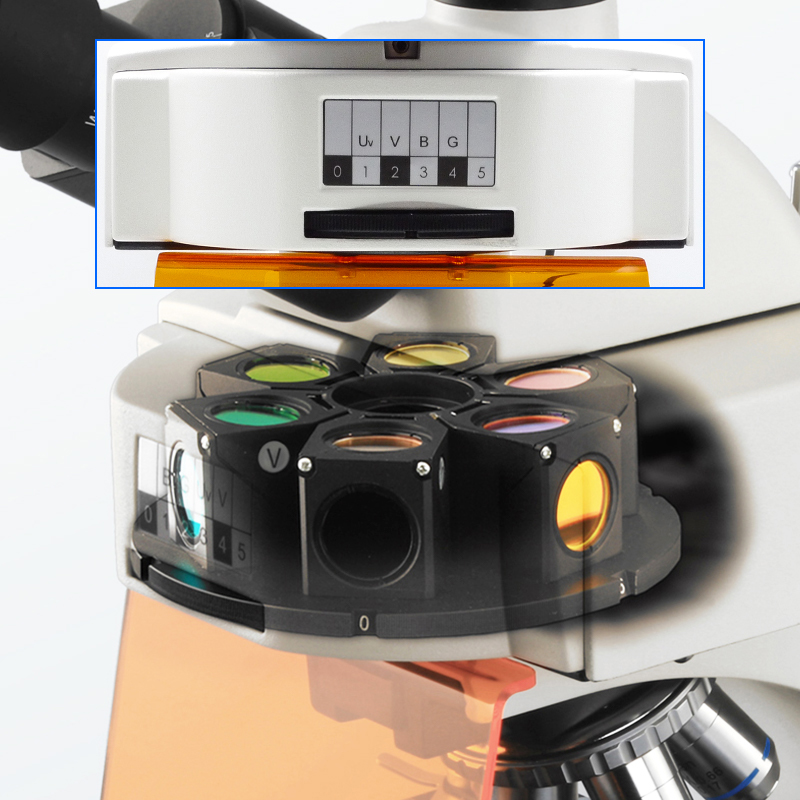

6 Holes Disk Fluorescence Unit
Can Load Up to 5 Fluorescence Filters + 1 Hole For Bright Field View,

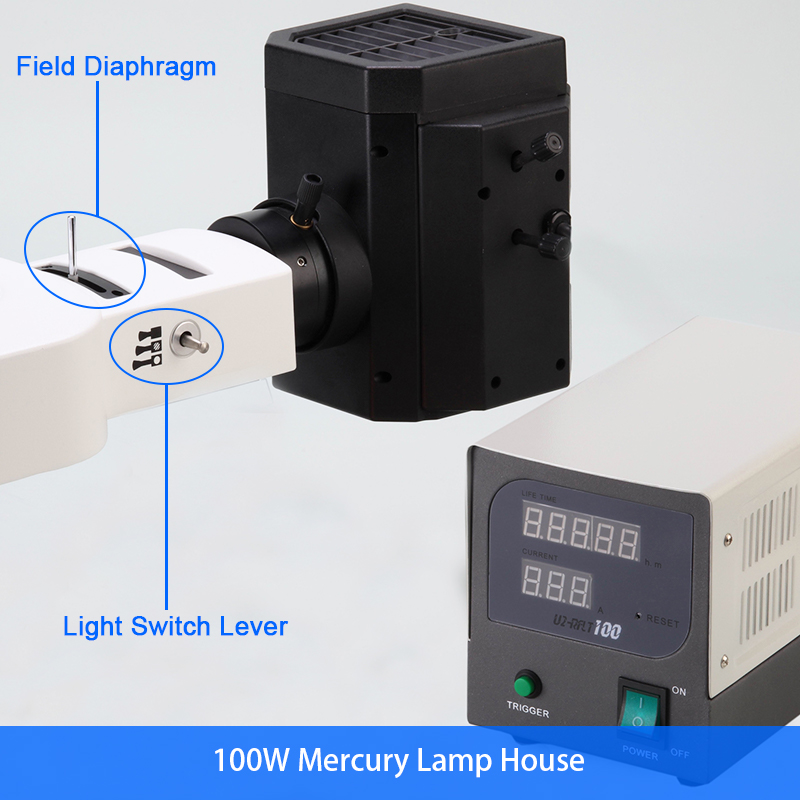

100W Mercury Lamp Fluorescent
Illumination Unit, With Field Diaphragm, Light Switch Lever.

Items	A16.2601 Fluorescent Microscope Specification	-B2	-T2	-B4	-T4	Cata. No.
Head	Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm	●		●		A53.2621-B
Head	Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, , Light Split Fixed P20:E80		●		●	A53.2621-T
Eyepiece	WF10X/20mm (High Eyepoint)	●●	●●	●●	●●	A51.2602-1020
Nosepiece	Quadruple, Backward	●	●	●	●	A54.2610-N734
Nosepiece	Quintuple, Backward	○	○	○	○	A54.2610-N735
Infinity Plan Objective	PLAN 4x/0.10,W.D.=12.1mm	●	●	●	●	A52.2606-4
	PLAN 10x/0.25,W.D.=4.64mm	●	●	●	●	A52.2606-10
	PLAN 40x/0.66,W.D.=0.65mm	●	●	●	●	A52.2606-40
	PLAN 100x/1.25(S, Oil),W.D.=0.12mm	●	●	●	●	A52.2606-100

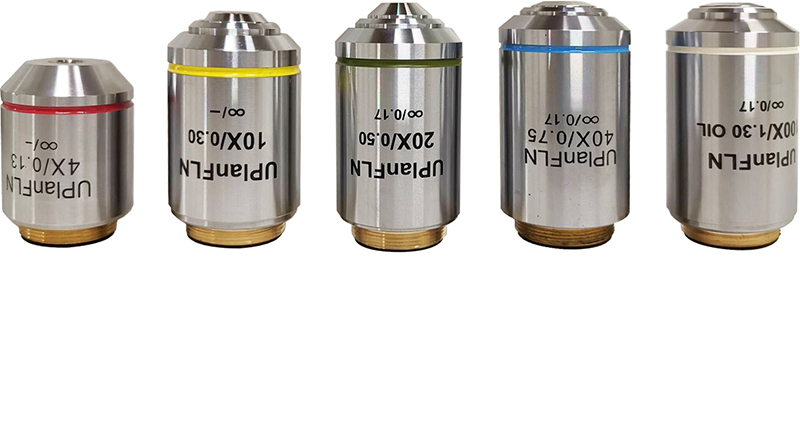

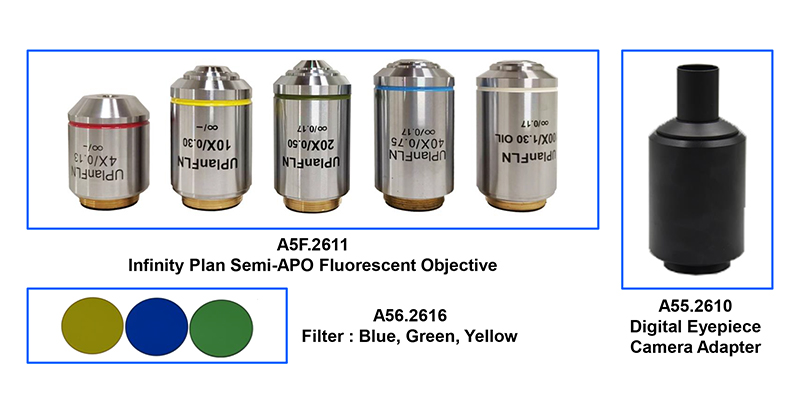

Infinity Plan Semi-APO Fluorescent Objective	UplanFLN 4x, N.A.0.16，W.D.=17.151mm	○	○	○	○	A5F.2611-4
	UplanFLN 10x, N.A.0.30，W.D.=7.68mm	○	○	○	○	A5F.2611-10
	UplanFLN 20x, N.A.0.50，W.D.=1.96mm	○	○	○	○	A5F.2611-20
	UplanFLN 40x, N.A.0.75，W.D.=0.78mm	○	○	○	○	A5F.2611-40
	UplanFLN 100x(Oil), N.A.1.30，W.D.=0.15mm	○	○	○	○	A5F.2611-100
Working Stage	Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder	●	●	●	●	A54.2601-S04
Working Stage	Rackless (Integrated) Stage, Size 140×135mm, Travel Range 75×35mm, Double Slide Holder	○	○	○	○	A54.2601-S12

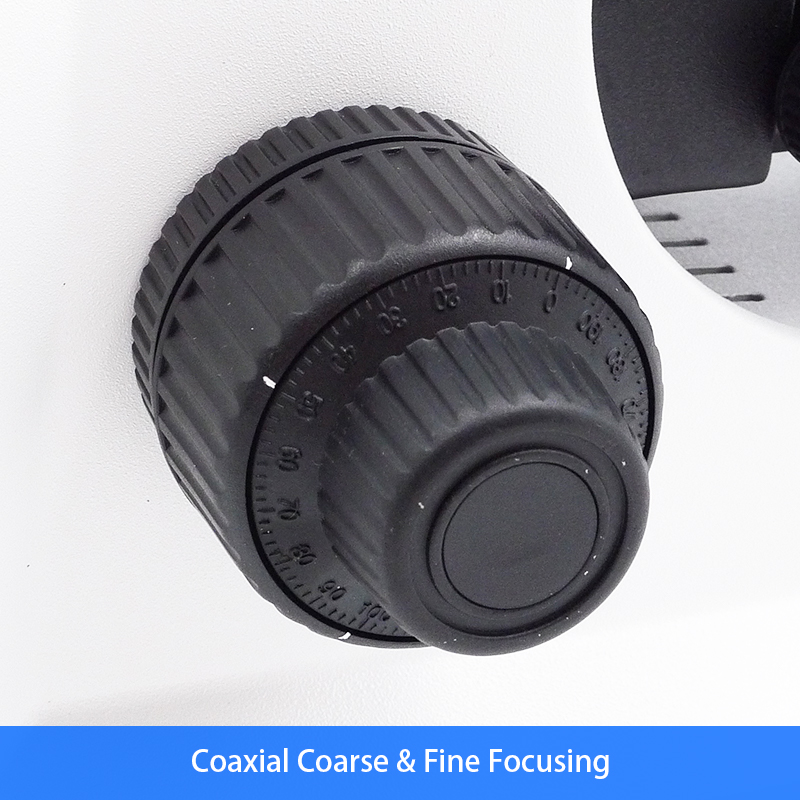

Focusing	Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division	●	●	●	●
Condenser	Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down	●	●	●	●	A56.2614-C06b

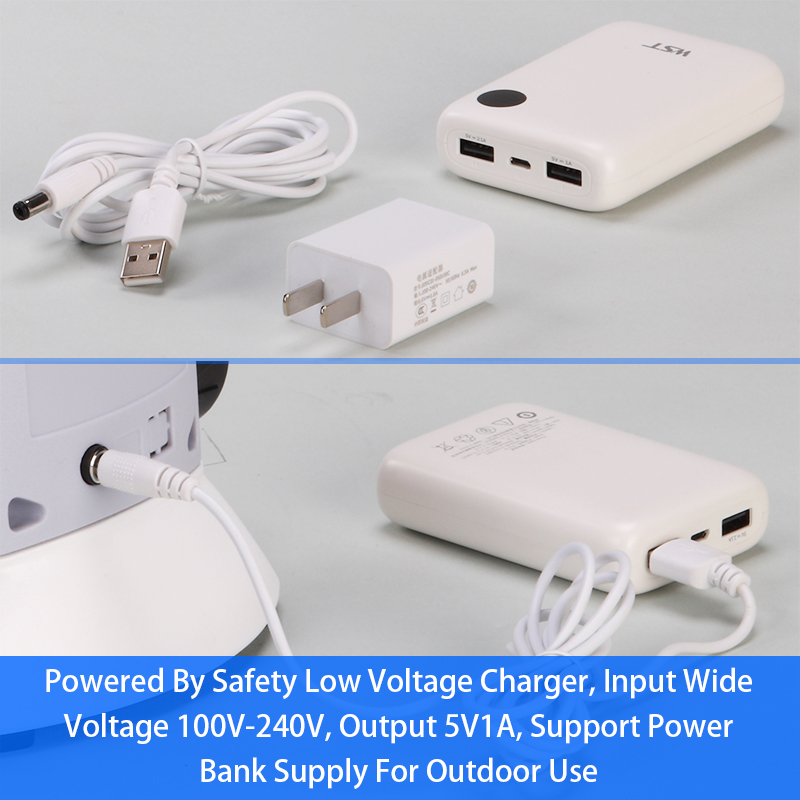

Illumination	3W-LED Illumination Systems Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	●	●	●	●	A56.2650-3WLED
	12V/20W Halogen Lamp	○	○	○	○	A56.2650-12V20WH
	6V/30W Halogen Lamp	○	○	○	○	A56.2650-6V30WH

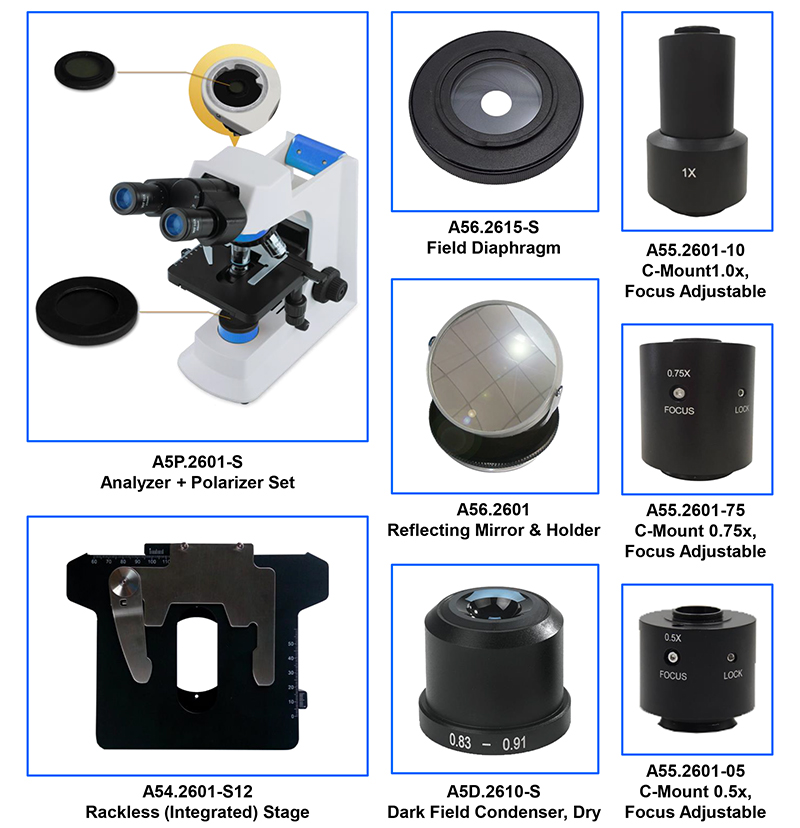

Field Diaphragm	Upgrade To Kohler Illumnation	○	○	○	○	A56.2615-S
Filter	Dia.45mm, Blue	○	○	○	○	A56.2616-45B
	Dia.45mm, Green	○	○	○	○	A56.2616-45G
	Dia.45mm, Yellow	○	○	○	○	A56.2616-45A
Dark Field	Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective	○	○	○	○	A5D.2610-S
Polarizing	Analyzer + Polarizer Set	○	○	○	○	A5P.2601-S

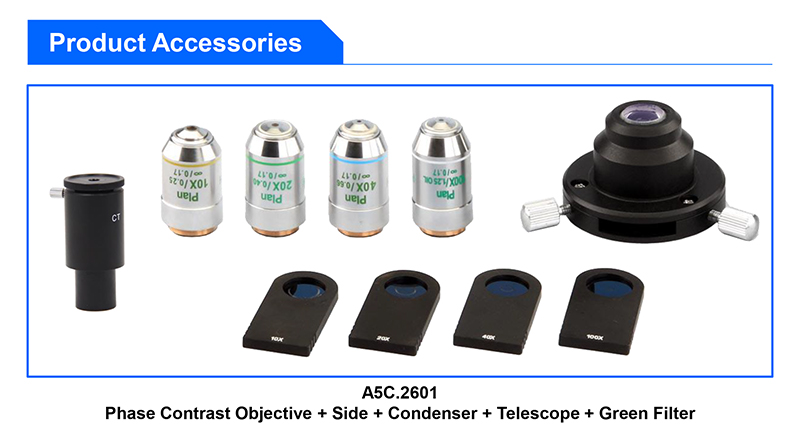

Phase Contrast	Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	○	○	A5C.2601-10
	Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	○	○	A5C.2601-20
	Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	○	○	A5C.2601-40
	Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	○	○	A5C.2601-100

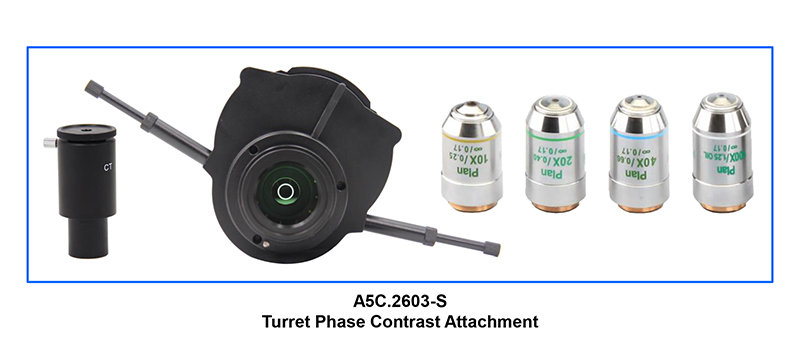

	Turret Phase Contrast Attachment Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter	○	○	○	○	A5C.2603-S
Fluorescence Unit	Upgrade From A12.2601-C/CT Biological Microscope With: B,GChina Fluorescent Set 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. 6 Holes Disc Fluorescent Unit Ultraviolet Protection Barrier Centering Objective China 100W Mercury Lamp 2 pcs	●	●			A5F.2601-2
Fluorescence Unit	Upgrade From A12.2601-C/CT Biological Microscope With: B,G,U,UV China Fluorescent Set 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. 6 Holes Disc Fluorescent Unit Ultraviolet Protection Barrier Centering Objective China 100W Mercury Lamp 2 pcs			●	●	A5F.2601-4
Adapter	C-Mount 0.5x, Focus Adjustable	○	○	○	○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable	○	○	○	○	A55.2601-75
	C-Mount1.0x, Focus Adjustable	○	○	○	○	A55.2601-10
	Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm	○	○	○	○	A55.2610
Mirror	Reflecting Mirror & Holder	○	○	○	○	A56.2601

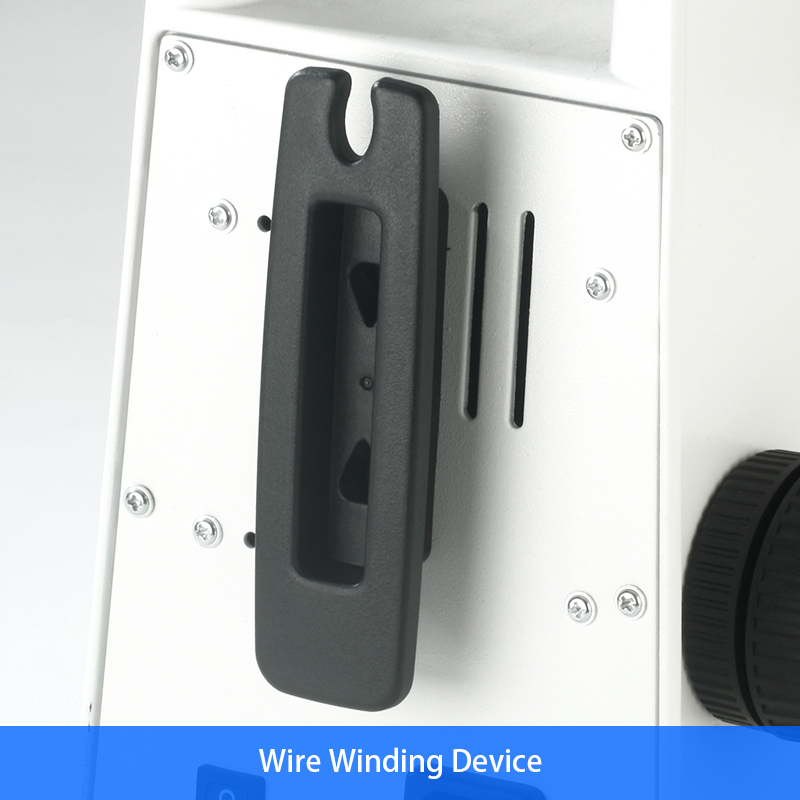

Attachment	Wire Winding Device	○	○	○	○	A50.2602-S

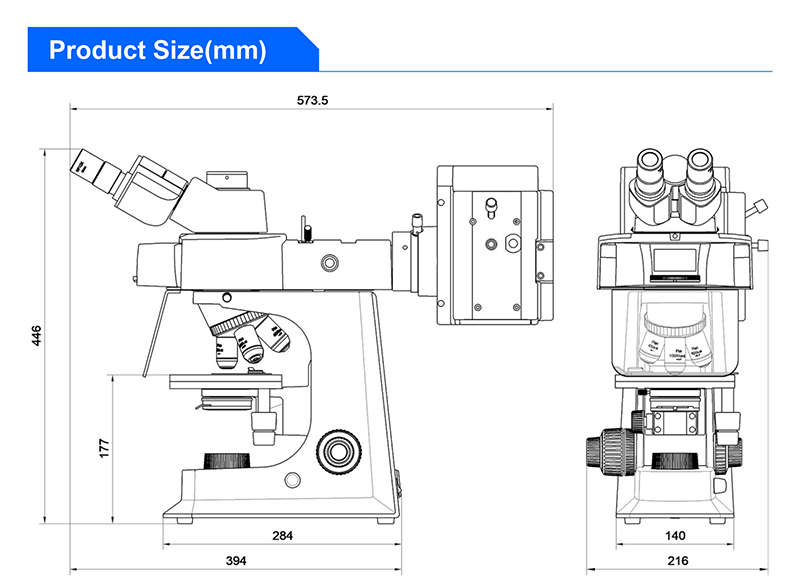

Package	Carton Size 970×340×440mm, 1 pc / Ctn
Weight	Gross Weight: 22 kgs, Net Weight: 18 kgs
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories

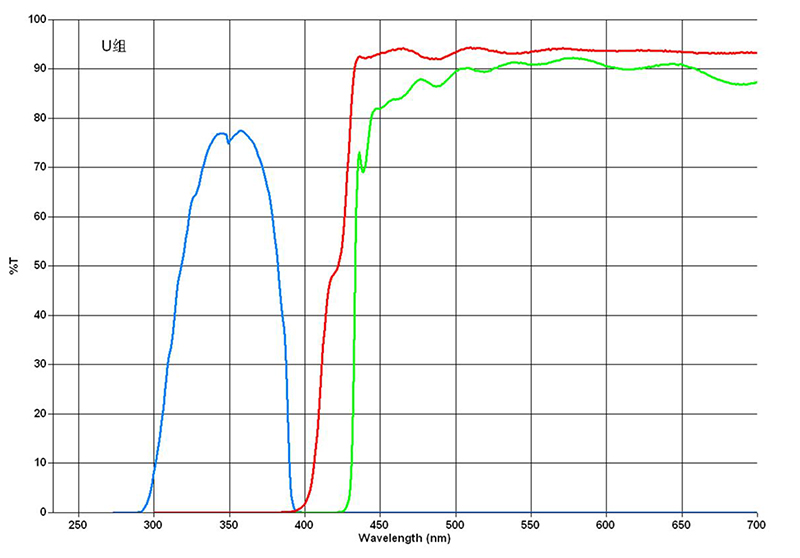

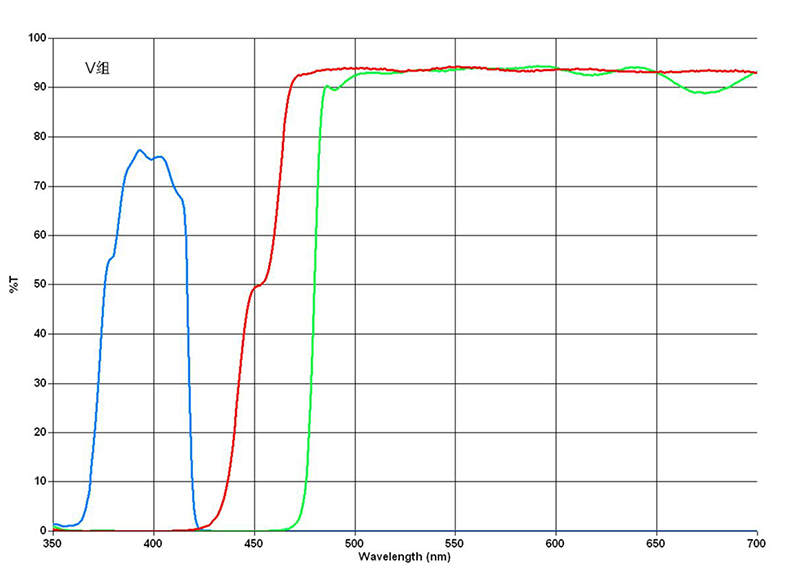

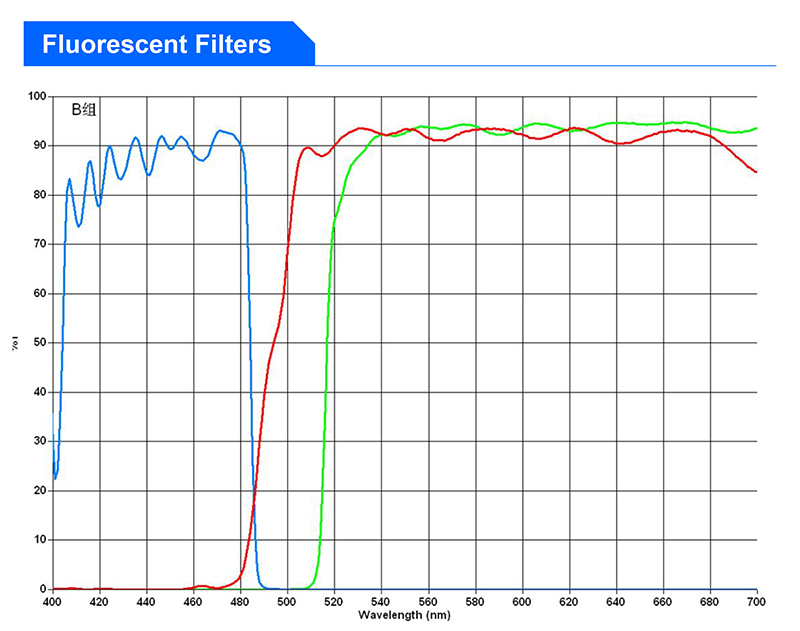

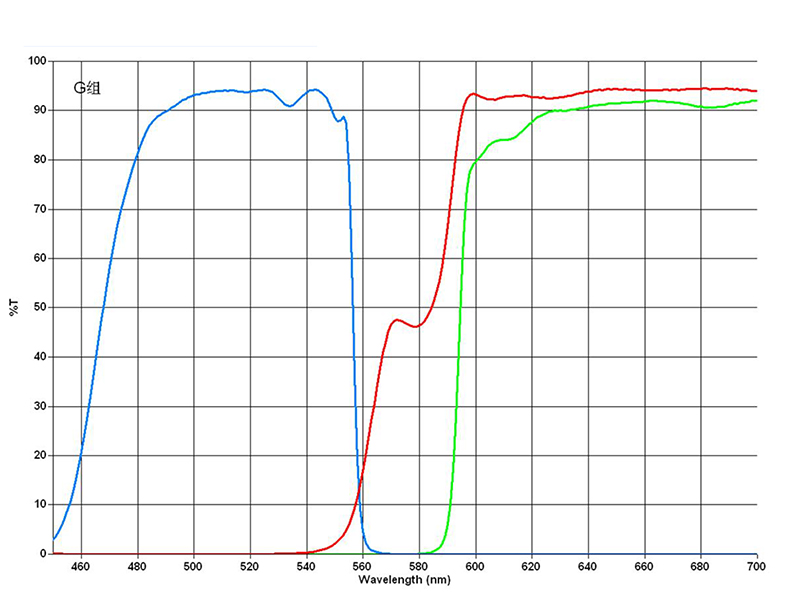

Fluorescent Filters	Exciter (nm)	Dichroic (nm)	Emitter (nm)
UV	330-380	400	435
V	380-420	430	460
B	420-490	505	520
G	500-550	575	590

More Pictures

Pictures Hide Same Show Difference
Model No.	A16.2601-B2	A16.2601-T2	A16.2601-B4	A16.2601-T4
Fluorescene	B,G China Fluorescent Set 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. 6 Holes Disc Fluorescent Unit Ultraviolet Protection Barrier Centering Objective China 100W Mercury Lamp	B,G China Fluorescent Set 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. 6 Holes Disc Fluorescent Unit Ultraviolet Protection Barrier Centering Objective China 100W Mercury Lamp	B,G,U,UV China Fluorescent Set 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. 6 Holes Disc Fluorescent Unit Ultraviolet Protection Barrier Centering Objective China 100W Mercury	B,G,U,UV China Fluorescent Set 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. 6 Holes Disc Fluorescent Unit Ultraviolet Protection Barrier Centering Objective China 100W Mercury
Fluorescent Band	2 Bands	3 Bands	——	——
Power Supply Type	AC 110V-240V	DC Adapter AC 110V/220V	DC Adapter AC 110V/220V	DC Adapter AC 110V/220V
Reflect Light	100W Mercury Fluorescent Light Source	100W Mercury Fluorescent Light Source	100W Mercury Fluorescent Light Source	100W Mercury Fluorescent Light Source
Transmit Light	3W LED	3W LED	3W LED	3W LED
Light Source Type	Mercury LED Fluorescent	Flourescent LED	Flourescent LED	Flourescent LED
Light Source Features	Fluorscent 100W Transmit & Reflect	Fluorscent 100W Transmit & Reflect	Fluorscent 100W Transmit & Reflect	Fluorscent 100W Transmit & Reflect
Condenser N.A.	1.25	1.25	1.25	1.25
Condenser Type	Abbe	Abbe	Abbe	Abbe
Condenser Features	Iris Diaphragm Rack & Pinionↆ↑	Filter Holder Rack & Pinionↆ↑	Filter Holder Rack & Pinionↆ↑	Filter Holder Rack & Pinionↆ↑
Focusing Scale	0.002mm	0.002mm	0.002mm	0.002mm
Focusing Range	26mm	26mm	26mm	26mm
Focusing Type	Coaxial Coarse & Fine	——	——	——
Focusing Features	Tension Adjustable	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw
Working Stage Moving	76x52mm	76x52mm	76x52mm	76x52mm
Working Stage Size	145x140mm	145x140mm	145x140mm	145x140mm
Working Stage Type	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical
Working Stage Features	Double Slide Holder Size ≥140x140mm	Double Slide Holder Size ≥140x140mm	Double Slide Holder Size ≥140x140mm	Double Slide Holder Size ≥140x140mm
Objective	Infinity E-Plan: EPLAN 4x/0.10, W.D.=12.1mm EPLAN 10x/0.25, W.D.=4.14mm EPLAN 40x/0.65, W.D.=0.58mm EPLAN 100x/1.25, W.D.=0.19mm	Infinity E-Plan: EPLAN 4x/0.10, W.D.=12.1mm EPLAN 10x/0.25, W.D.=4.14mm EPLAN 40x/0.65, W.D.=0.58mm EPLAN 100x/1.25, W.D.=0.19mm	Infinity E-Plan: EPLAN 4x/0.10, W.D.=12.1mm EPLAN 10x/0.25, W.D.=4.14mm EPLAN 40x/0.65, W.D.=0.58mm EPLAN 100x/1.25, W.D.=0.19mm	Infinity E-Plan: EPLAN 4x/0.10, W.D.=12.1mm EPLAN 10x/0.25, W.D.=4.14mm EPLAN 40x/0.65, W.D.=0.58mm EPLAN 100x/1.25, W.D.=0.19mm
Objective Type	Infinity E-Plan	Infinity E-Plan	Infinity E-Plan	Infinity E-Plan
Nosepiece Holes	4 Holes	4 Holes	4 Holes	4 Holes
Nosepiece Features	Inward	Inward	Inward	Inward
Eyepiece	WF 10x/20mm, 2 pc.	WF 10x/20mm, 2 pc.	WF 10x/20mm, 2 pc.	WF 10x/20mm, 2 pc.
Eyepiece Diameter	23.2mm	23.2mm	23.2mm	23.2mm
Head Diopter	Left Tube Adjustable	Left Tube Adjustable	Left Tube Adjustable	Left Tube Adjustable
Head Interpupillary	48~75mm	48~75mm	48~75mm	48~75mm
Head Rotation	Head Rotate 360° Eyetube Rotate 360°	Eyetube Rotate 360°	Eyetube Rotate 360°	Eyetube Rotate 360°
Head Inclination	30°	——	——	——
Head Type	Seidentopf Binocular	Seidentopf Trinocular	Seidentopf Binocular	Seidentopf Trinocular
Standard Magnification	40x-1000x	——	——	——
Optical System	Infinity Semi-Plan	Infinity Semi-Plan	Infinity Semi-Plan	Infinity Semi-Plan
Features	Infinity	Infinity	Infinity	Infinity
Upgrade Function	BF+PH+DF+PL+FL	——	——	——
Standard Function	BF+FL	——	——	——
Video Adapter	——	C-Mount 0.3x	C-Mount 0.3x	C-Mount 0.3x
Objective Features	——	Iris Diaphragm	Iris Diaphragm	Iris Diaphragm
Eyepiece Features	——	Diopter Adjustable	Diopter Adjustable	Diopter Adjustable
Head Light Path	——	E80:P20	——	E80:P20
