Ulo at Eyepiece

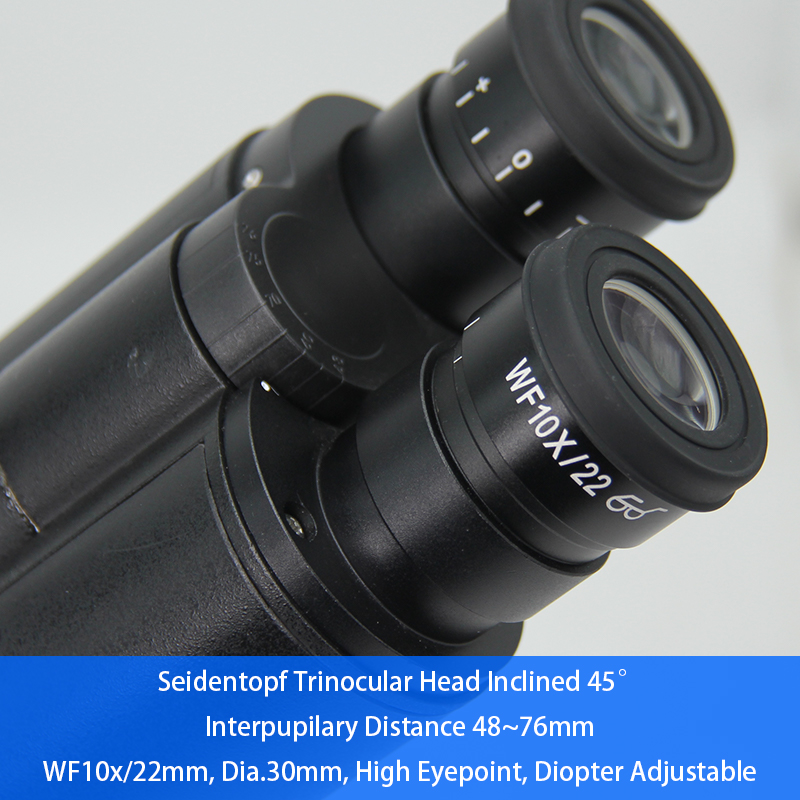

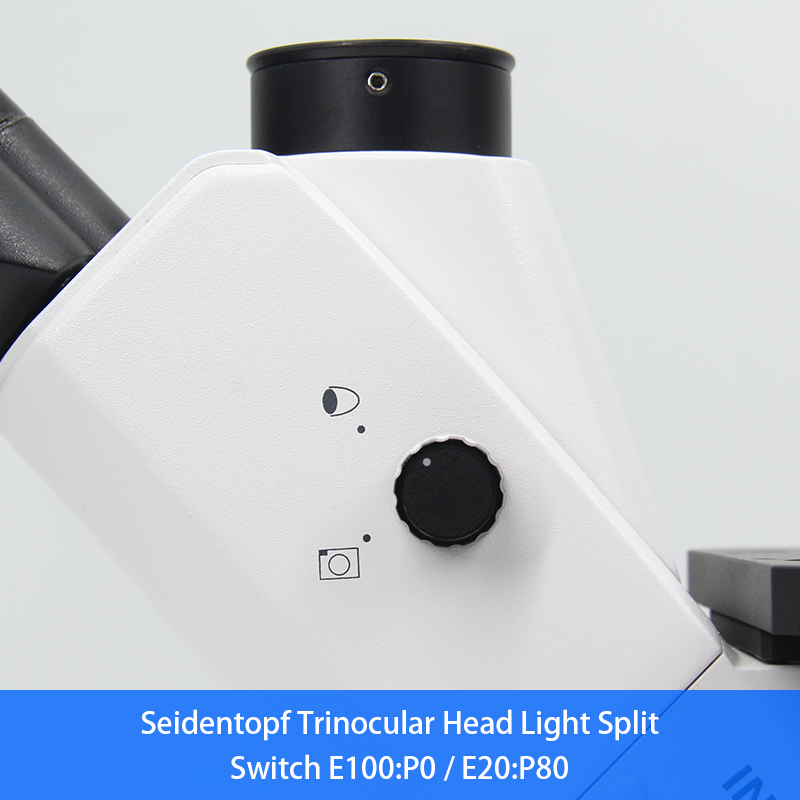

Seidentopf Trinocular Head Inclined 45°Interpupillary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80
WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable
Magpadala ng Liwanag
Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V
Condenser

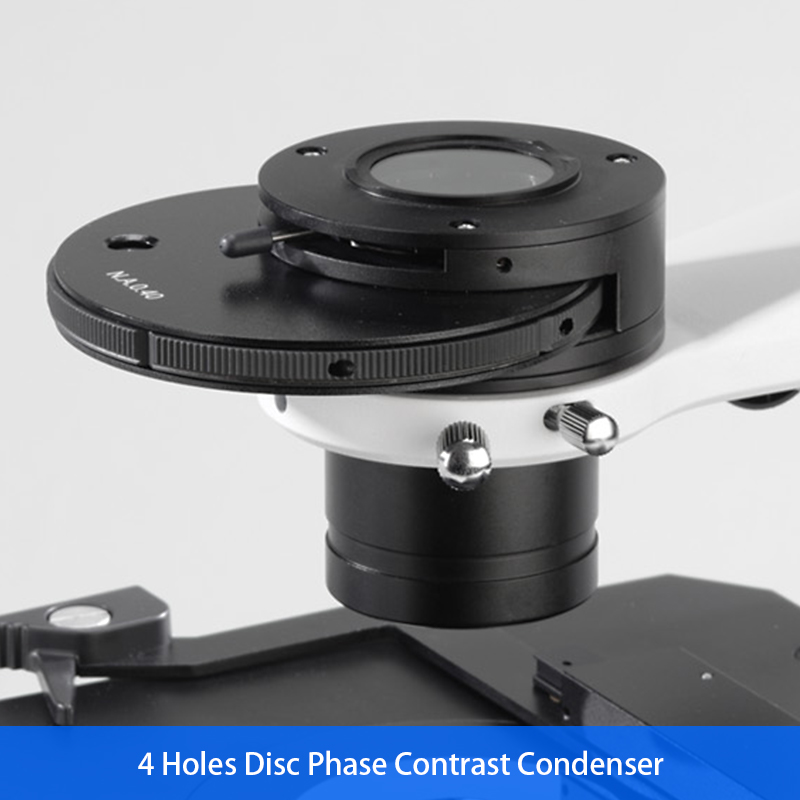

4 na butas na Umiikot na Disc Phase Contrast Condenser
NA0.4, WD 45mm, Naaayos ang Pataas/Pababa

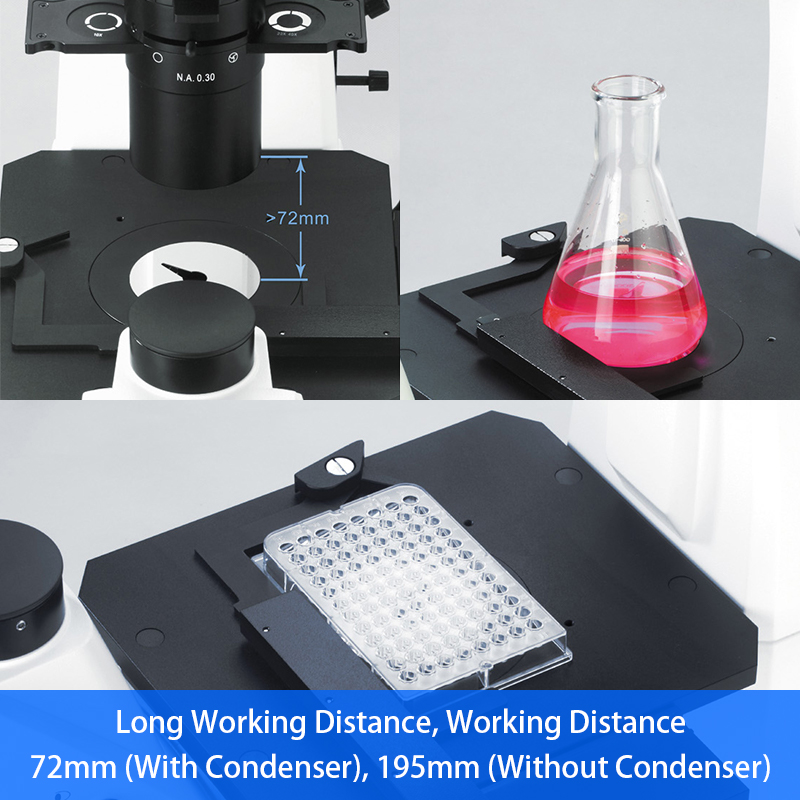

Long Working Distansya
Distansya ng Paggawa 72mm (May Condenser), 195mm (Walang Condenser)
Mga layunin

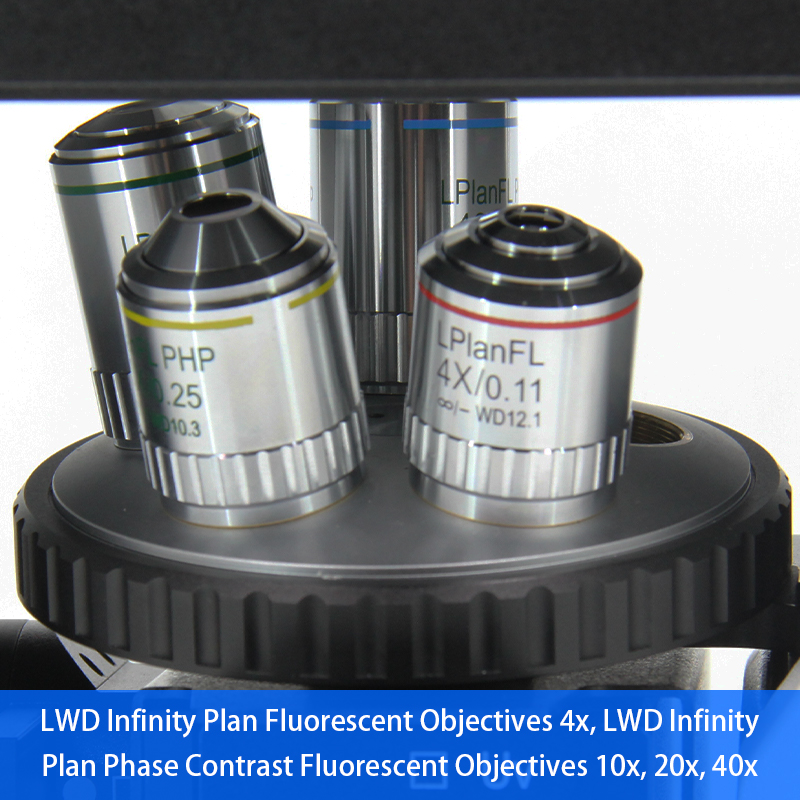

LWD Infinity Plan Fluorescent Objectives 4x, LWD Infinity
Plan Phase Contrast Fluorescent Objectives 10x, 20x, 40x
Yugto ng Paggawa

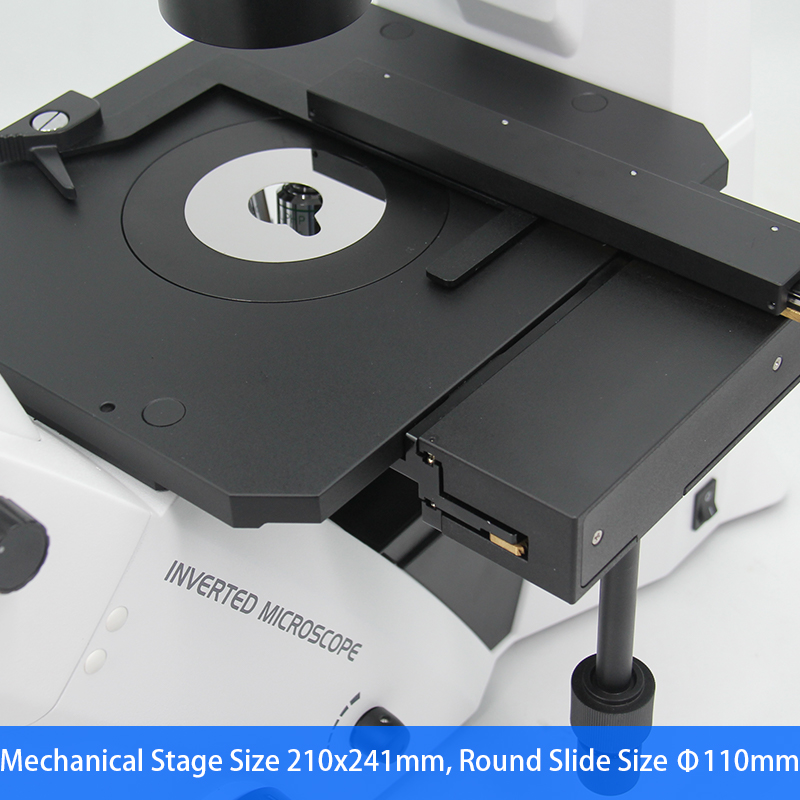

Laki ng Mechanical Stage 210x241mm, Round Slide Size Φ110mm
Culture Dish Holder 54mm

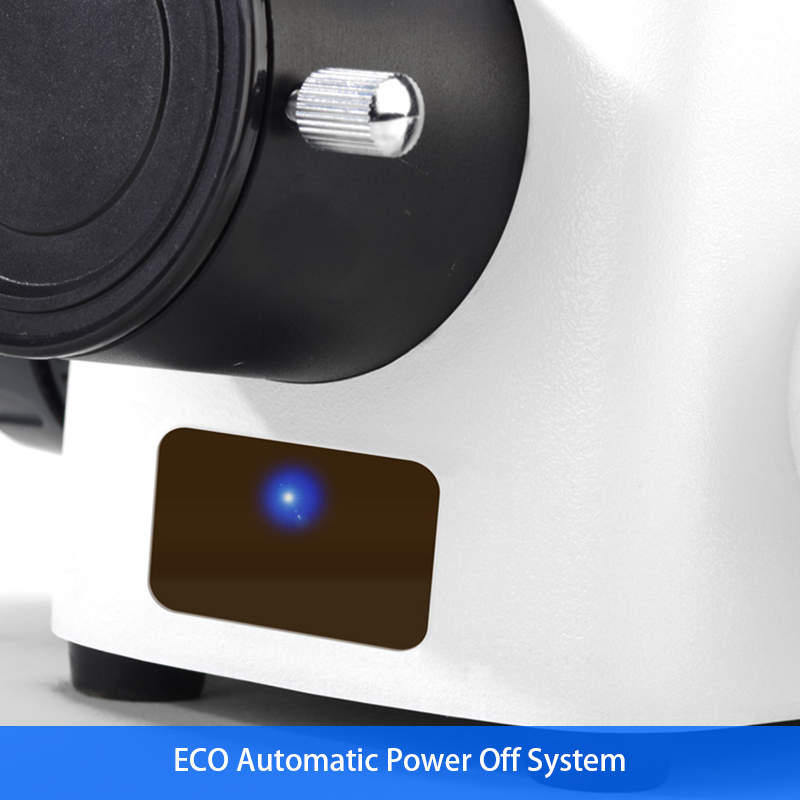

ECO, Auto Power Off System
Awtomatikong I-off ang User Kapag Umalis ng 10 Minuto,
Awtomatikong Naka-on Sa Paglapit ng User,
Maaaring Manu-manong I-shut Down ang Function na ito
Adapter

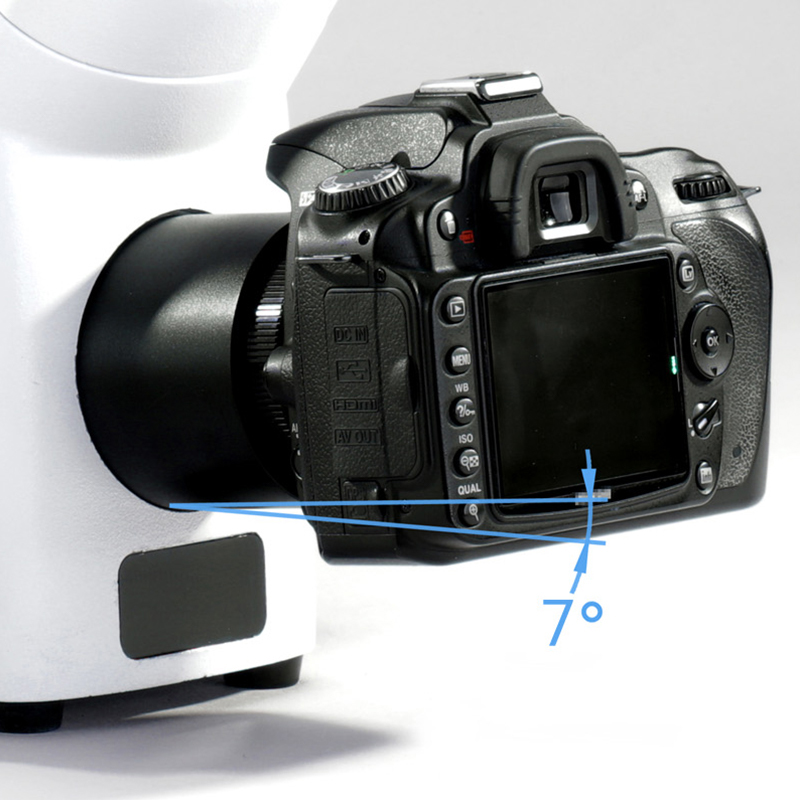

Photo Adapter na May 1.7x Photo Eyepiece, 100% Light Para sa Camera Port,
Para sa Canon SLR Digital Camera

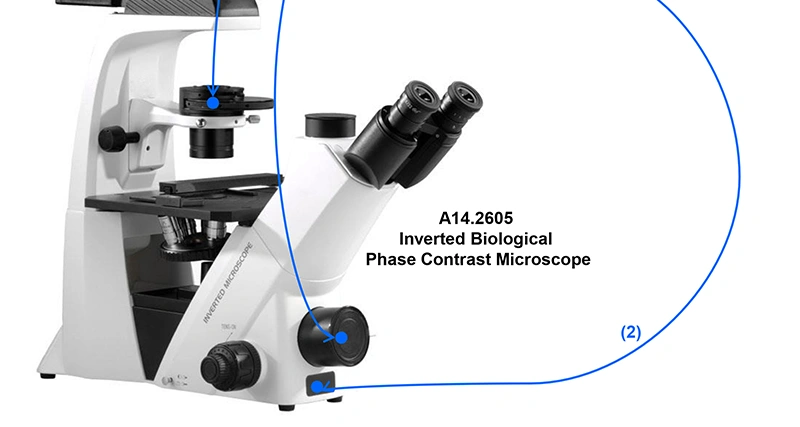

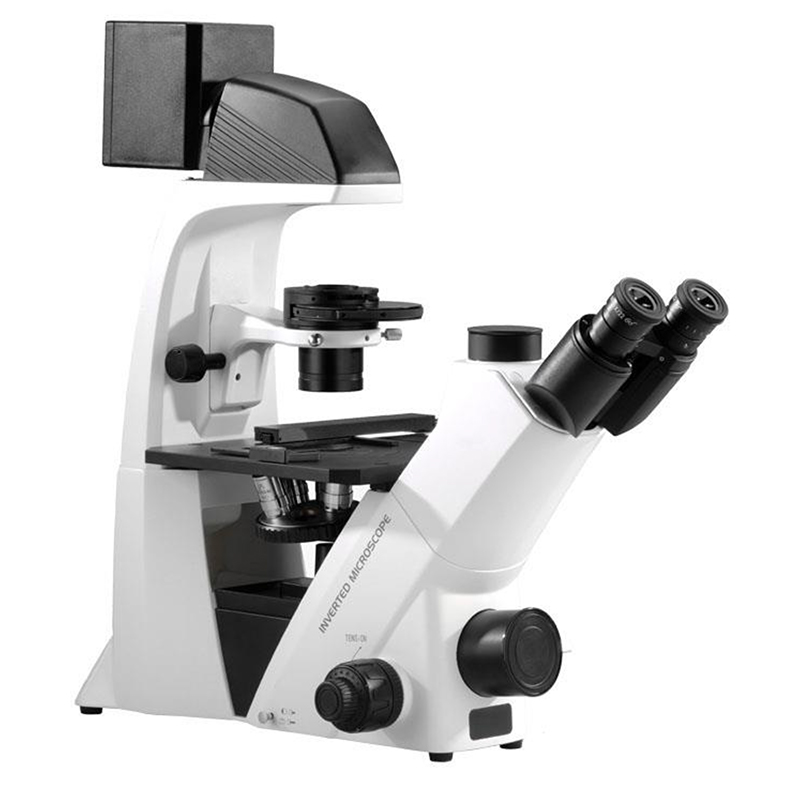

| Mga bagay | A14.2605 Inverted Biological Microscope Specification | Cata. Hindi. | |

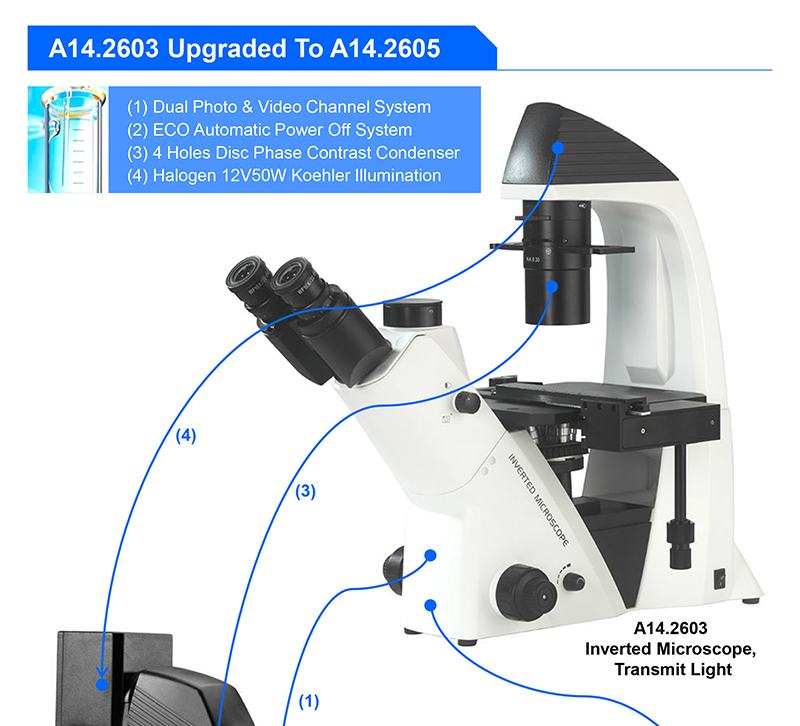

| A14.2605 Na-upgrade Mula sa A14.2603 | --Dual na Larawan at Video Channel System --ECO Automatic Power Off System --4 Holes Disc Phase Contrast Condenser --Halogen 12V50W Koehler Illumnation | ||

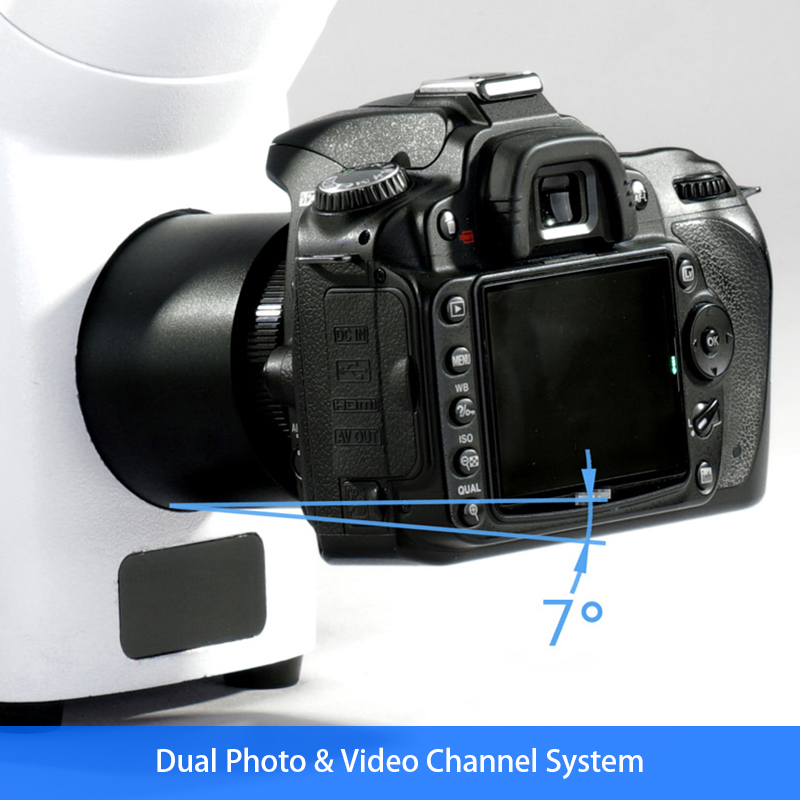

| Ulo | Seidentopf Trinocular Head Inclined 45°, Interpupilary Distansya 48~76mm, , Light Split Switch E100:P0 / E20:P80 Suporta sa Dual Photo & Video Channel Eyepiece View / Digital Camera/SLR Camera Kumuha ng Larawan at Mag-record ng Video nang Sabay-sabay: --Eyepiece View May 100% O 20% Light Switchable --Ang Digital Camera Port ay May 0% O 80% Light Switchable --Photography Port 100% Light Para sa SLR Camera (Karaniwang Outfit Kasama ang SLR Camera Adapter 1pc) | ● | A53.2643 |
| Eyepiece | WF10x/22mm, Dia.30mm, High Eyepoint,, Diopter Adjustable | ●● | A51.2621-1022 |
| WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable | ○○ | A51.2621-1516 | |
| WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable | ○○ | A51.2621-2012 | |
| Nosepiece | Quintuple | ● | A54.2610-N925 |

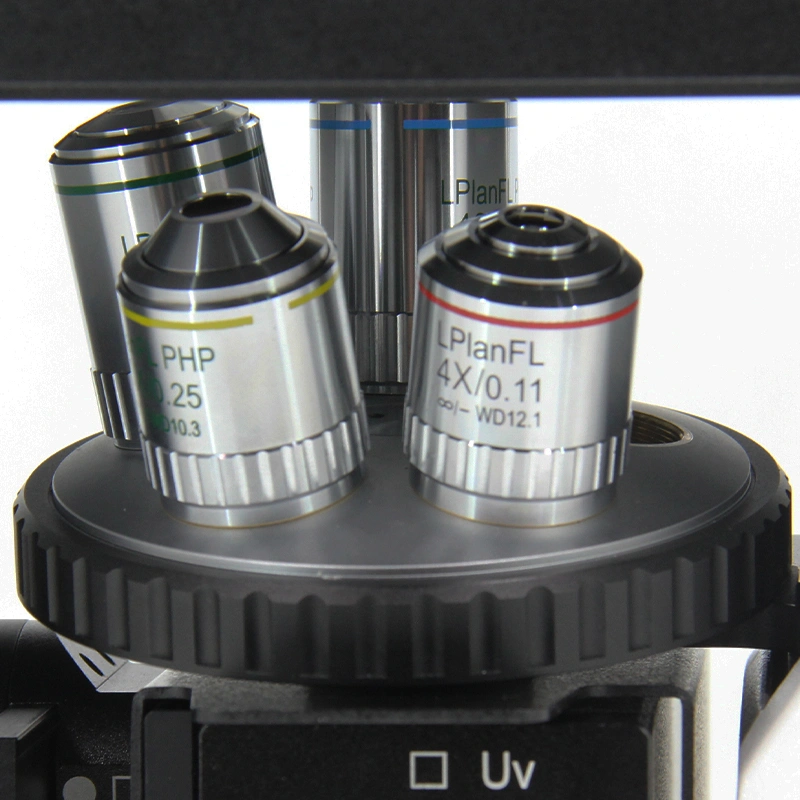

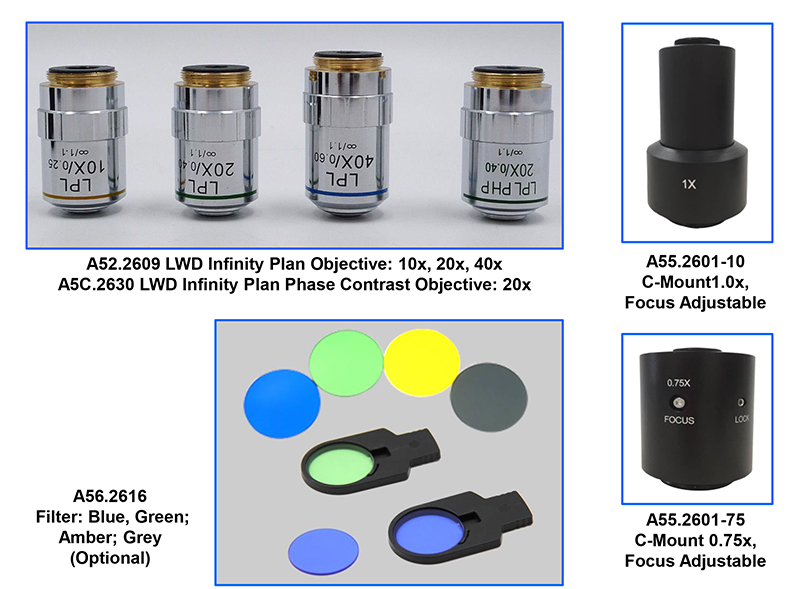

| LWD Infinity Plan Semi-APOMga layunin Update 2021 | L Plan FL 4x/0.11 WD=12.1mm | ● | A5F.2635-4 |
| L Plan FL 10x/0.25 WD=10.3mm | ○ | A5F.2635-10 | |
| L Plan FL 20x/0.45 WD=5.8mm | ○ | A5F.2635-20 | |
| L Plan FL 40x/0.65 WD=5.1mm | ○ | A5F.2635-40 | |
| LWD Infinity Plan Phase Contrast Semi-APOMga layunin Update 2021 | L Plan FL PHP 4x/0.10 WD=9.2mm | ○ | A5C.2635-4 |
| L Plan FL PHP 10x/0.25 WD=10.3mm | ● | A5C.2635-10 | |
| L Plan FL PHP 20x/0.45 WD=5.8mm | ● | A5C.2635-20 | |
| L Plan FL PHP 40x/0.65 WD=5.1mm | ● | A5C.2635-40 | |

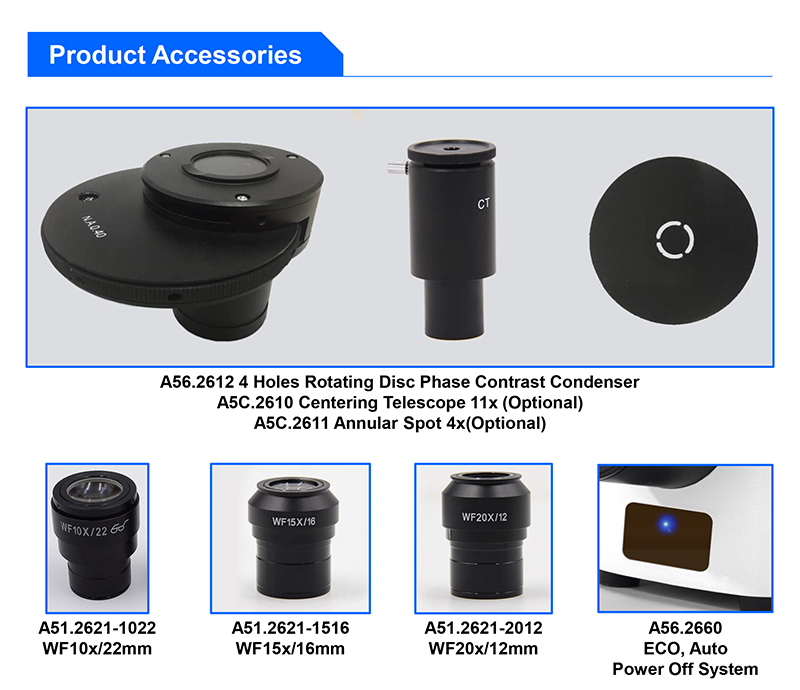

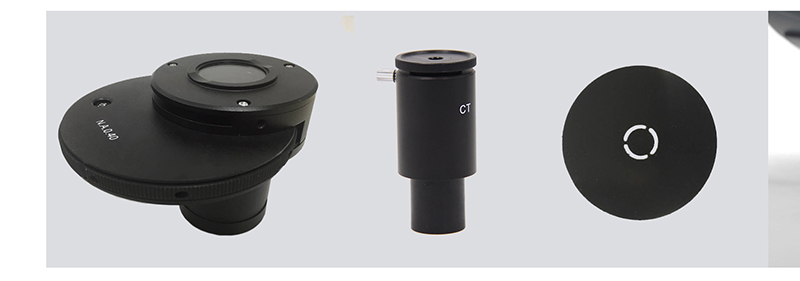

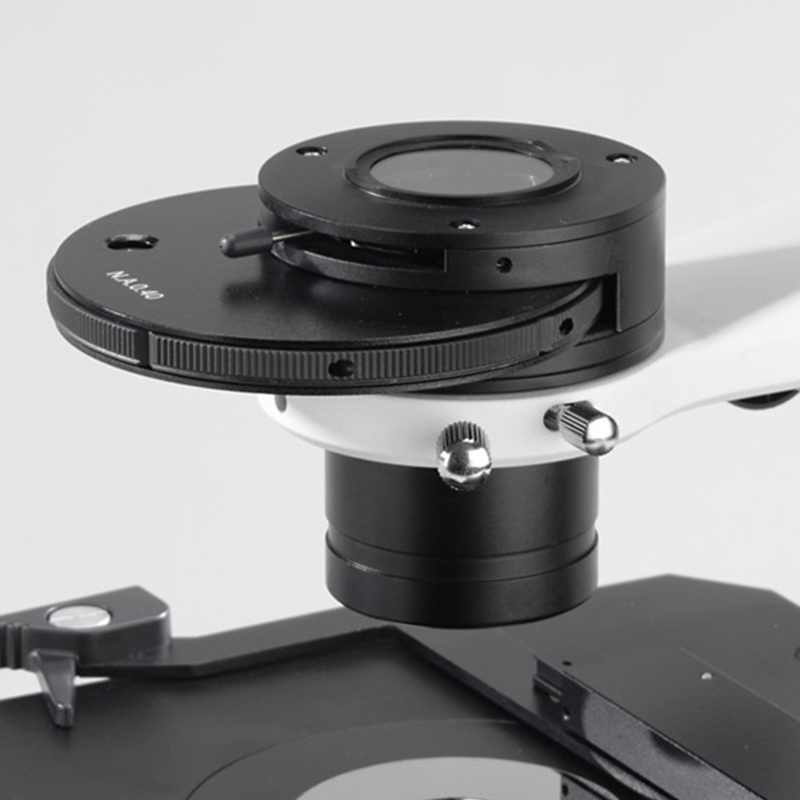

| Phase Contrast | 4 na butas na Umiikot na Disc Phase Contrast Condenser NA0.4, WD 45mm, Naaayos ang Pataas/Pababa | ● | A56.2612 |
| Pagsentro ng Teleskopyo 11x | ● | A5C.2610 | |

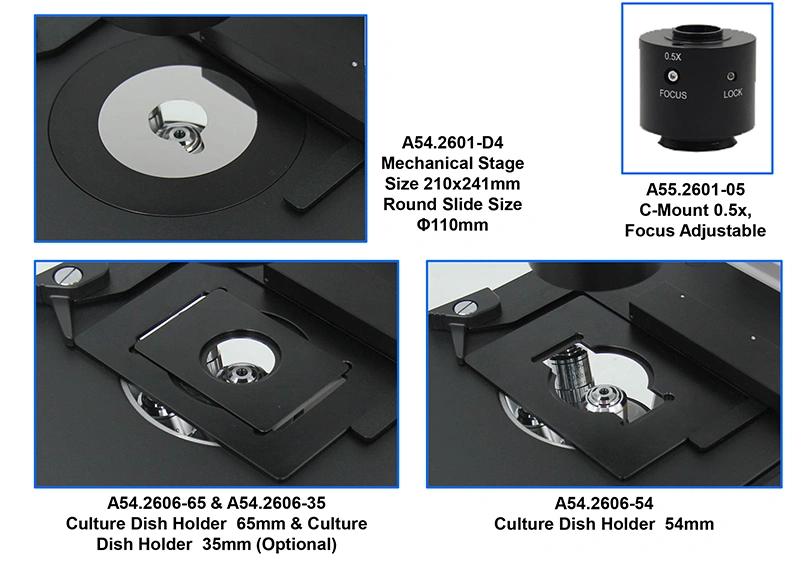

| Yugto ng Paggawa | Laki ng Mechanical Stage 210x241mm, Round Slide Size Φ110mm | ● | A54.2601-D4 |
| Attachable Mechanical Stage Para sa 96 Holes Plate Moving Range 128x80mm | ● | A54.2605 | |
| Culture Dish Holder 65mm | ○ | A54.2606-65 | |
| Culture Dish Holder 54mm | ● | A54.2606-54 | |
| Culture Dish Holder 35mm | ○ | A54.2606-35 | |
| May hawak ng Blood Cell Counter | ○ | A54.2606-BC | |
| Universal Holder(Bagong Accessory 2021) | ○ | A54.2606-UH | |
| Round Glass Holder(Bagong Accessory 2021) | ○ | A54.2606-GL | |

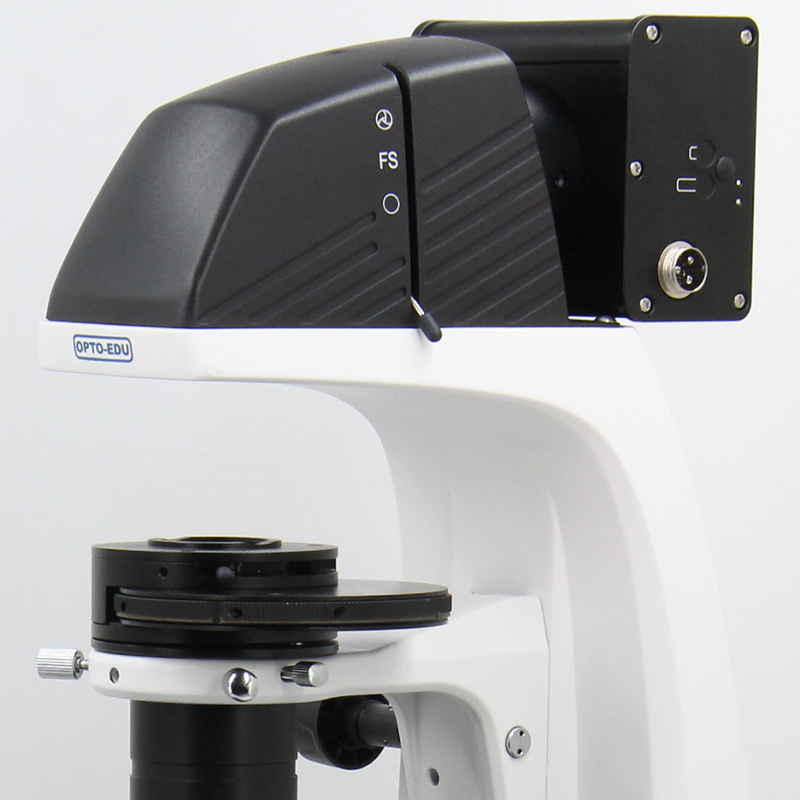

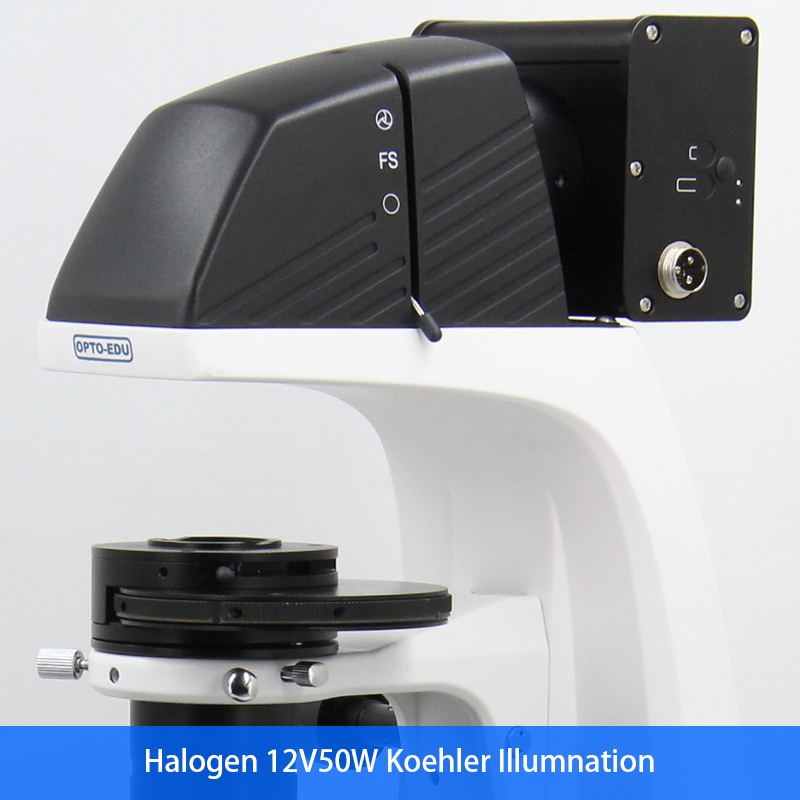

| Pag-iilaw | Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V | ● | A56.2613-50W |
| Koehler Illumination 5W LED, Input Voltage 100V~240V | ○ | A56.2651-5W | |

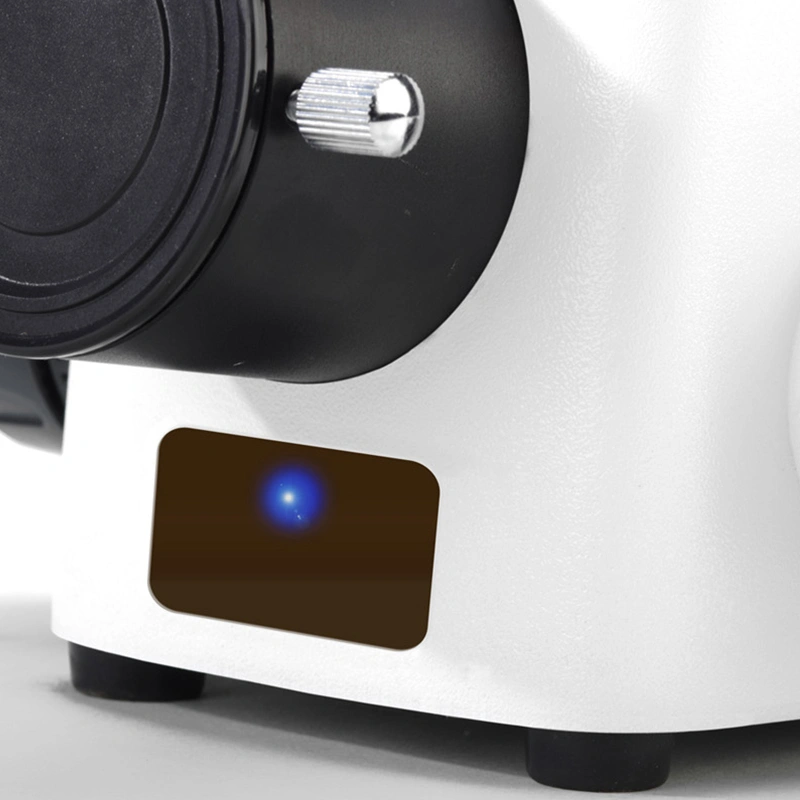

| kapangyarihan | ECO, Auto Power Off System. Awtomatikong I-off ang User Kapag Umalis ng 10 Minuto, Awtomatikong Naka-on Sa Paglapit ng User, Maaaring Manu-manong I-shut Down ang Function na ito | ● | A56.2660 |
| Salain | Asul, Dia.34mm | ● | A56.2616-34B |
| Berde, Dia.34mm | ● | A56.2616-34G | |
| Amber, Dia.34mm | ○ | A56.2616-34A | |
| Gray, Dia.34mm | ○ | A56.2616-34N | |
| Adapter | Photo Adapter na May 1.7x Photo Eyepiece, 100% Light Para sa Camera Port, Para sa Canon SLR Digital Camera | ● | A55.2622-BC17 |
| Photo Adapter na May 1.7x Photo Eyepiece, 100% Light Para sa Camera Port, Para sa Nikon SLR Digital Camera | ○ | A55.2622-BN17 | |
| Photo Adapter na May 2.5x Photo Eyepiece, 100% Light Para sa Camera Port, Para sa Canon SLR Digital Camera na May 1"CCD Sensor | ○ | A55.2622-BC25 | |
| Photo Adapter na May 2.5x Photo Eyepiece, 100% Light Para sa Camera Port, Para sa Nikon SLR Digital Camera na May 1"CCD Sensor | ○ | A55.2622-BN25 | |
| C-Mount 0.5x, Focus Adjustable | ○ | A55.2601-05 | |
| C-Mount 0.75x, Focus Adjustable | ○ | A55.2601-75 | |
| C-Mount1.0x, Focus Adjustable | ○ | A55.2601-10 | |

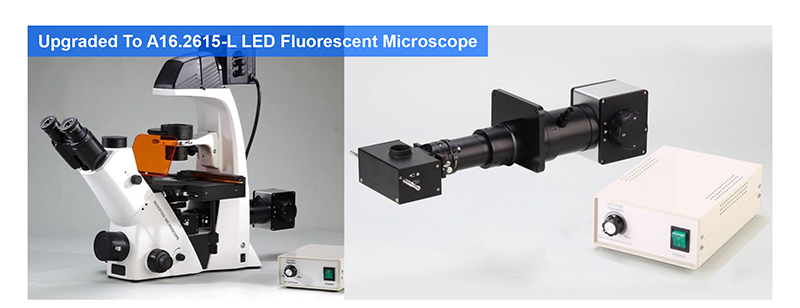

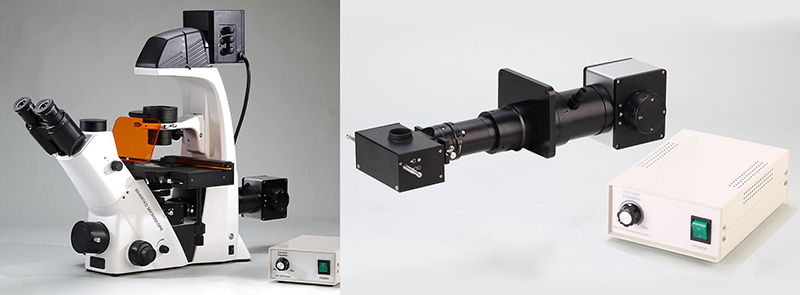

| Fluorescence | Mag-upgrade sa A16.2615-L2 Inverted Fluorescence Microscope Gamit ang: B,G China Fluorescent Filter 3 Holes Fluorescent Slide Unit, May Field Diaphragm, Center Adjustable 5W LED Lamp House 5W LED Power Box Barrier ng Proteksyon ng Ultraviolet | ○ | A5F.2604-2 |
| Mag-upgrade sa A16.2615-L4 Inverted Fluorescence Microscope Gamit ang: B,G,U,UV China Fluorescent Filter 3 Holes Fluorescent Slide Unit, May Field Diaphragm, Center Adjustable 5W LED Lamp House 5W LED Power Box Barrier ng Proteksyon ng Ultraviolet | ○ | A5F.2604-4 | |
| Package | Laki ng Packing: 660mmx590mmx325mm | ||
| Timbang | Kabuuang Timbang: 18 kg, Netong Timbang: 13.5 kg | ||
| Tandaan:"●"In Table Is Standard outfits,"○"Ay Opsyonal na Mga Kagamitan. | |||
| Mas marami pang litrato |
