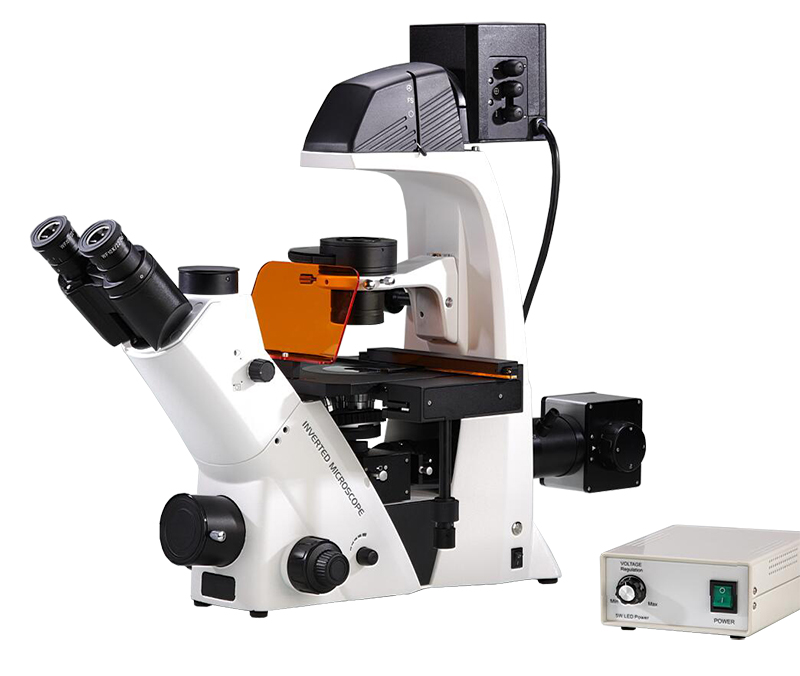

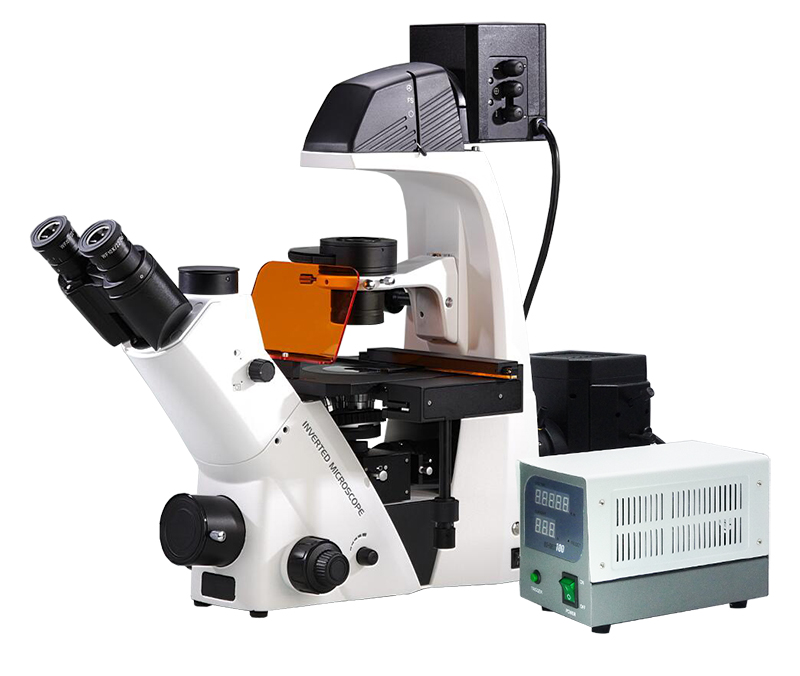

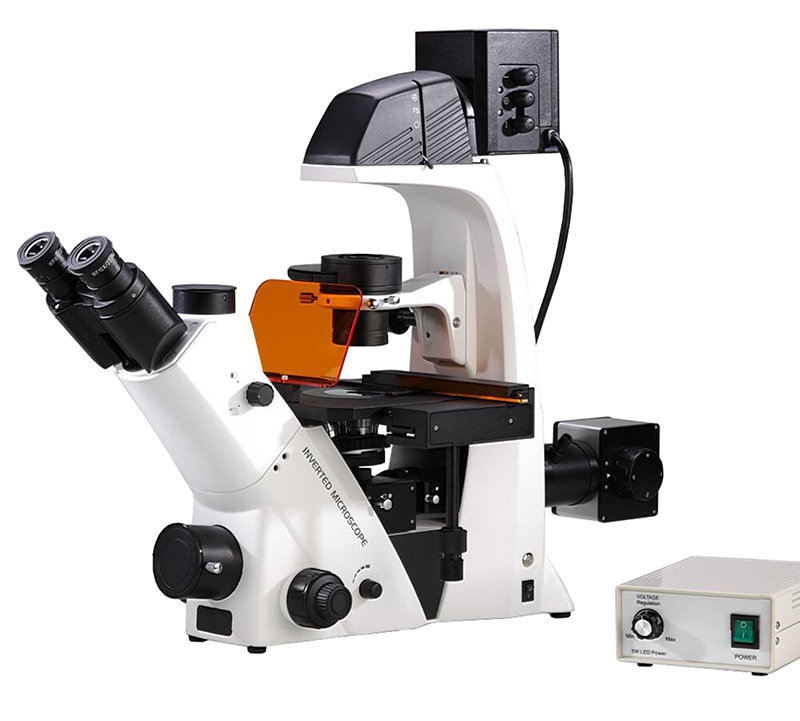

OPTO-EDU A16.2615-L2 Inverted LED Fluorescent Microscope, B,G

Inverted LED Fluorescent Microscope, Trinocular, B/G

3 Butas Fluorescent Slide + 5W LED Fluorescent Illumination

Awtomatikong Pag-off ng ECO Sa Pag-alis ng User ng 10 Minuto at Pag-on Sa Pagbabalik ng User

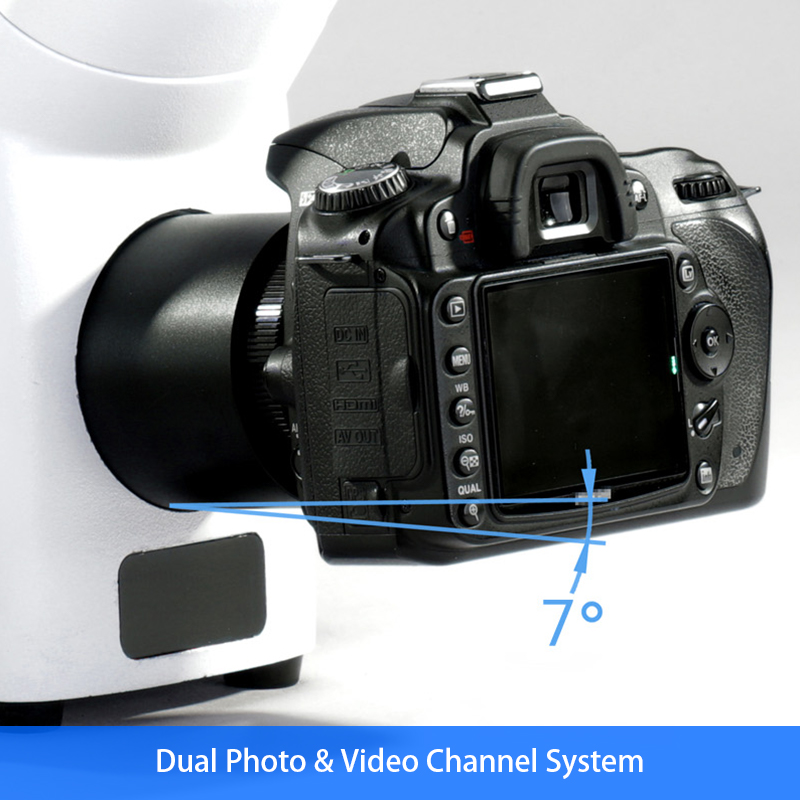

Suporta sa Dual Photo & Video Channel Eyepiece / Digital Camera / SLR Camera View Sa Sabay Time

Mga Layunin ng LWD Infinity Plan na Sinusuportahan ang Bright Field at Phase Contrast Observation

4 Holes Disc Phase Contrast Condenser + Halogen 12V50W Koehler Illumination

Ulo at Eyepiece

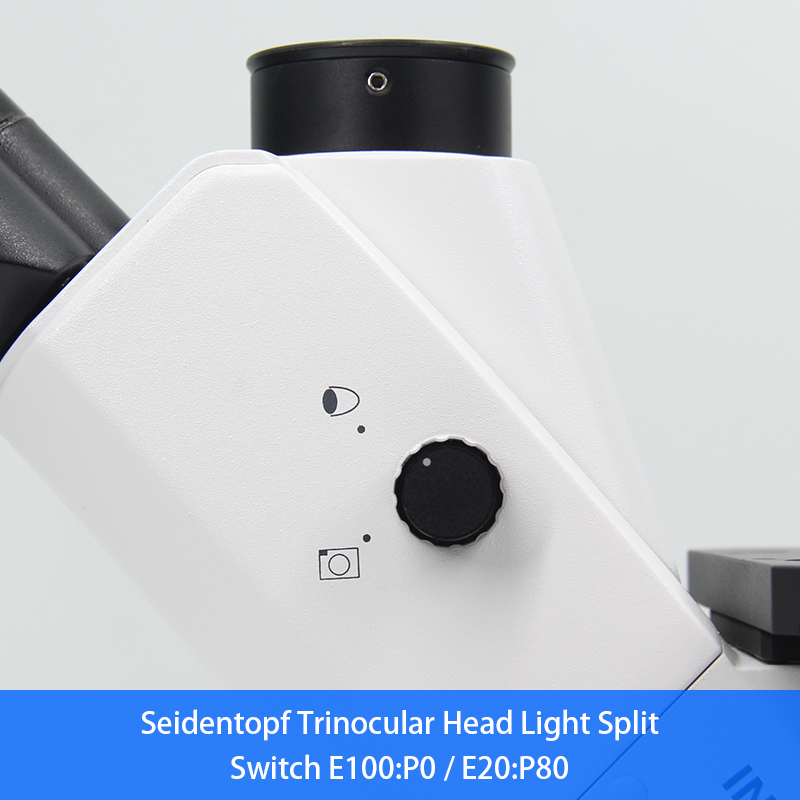

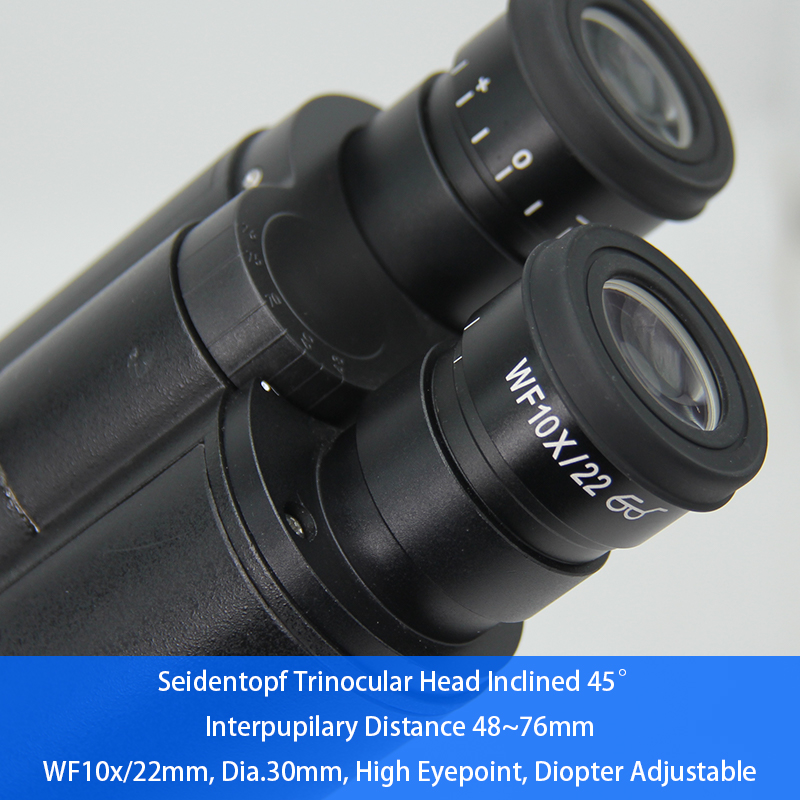

Seidentopf Trinocular Head Inclined 45°Interpupillary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80
WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable

Sumasalamin sa Liwanag

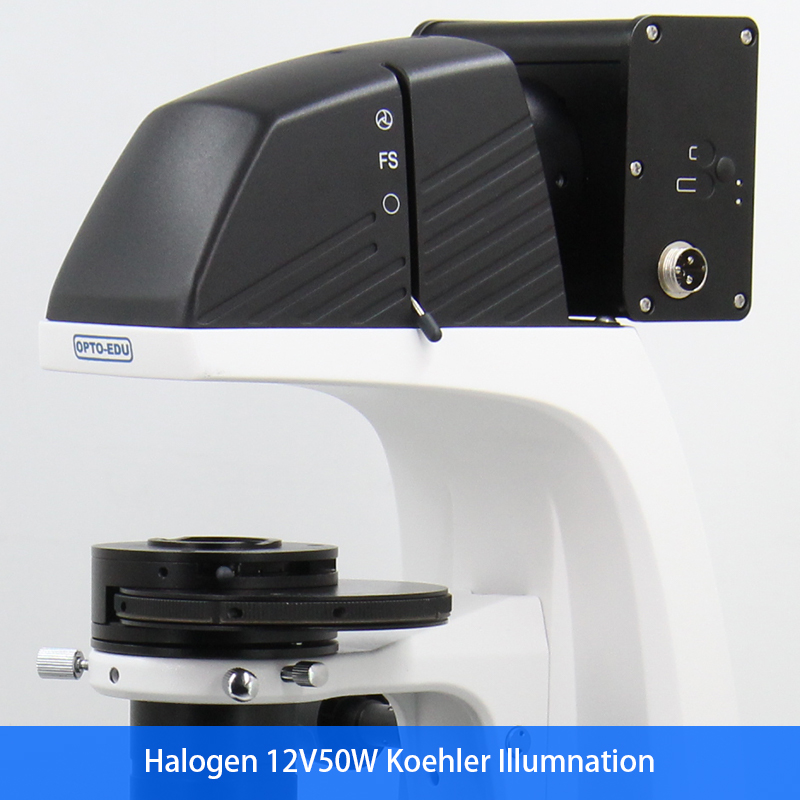

Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V

Condenser

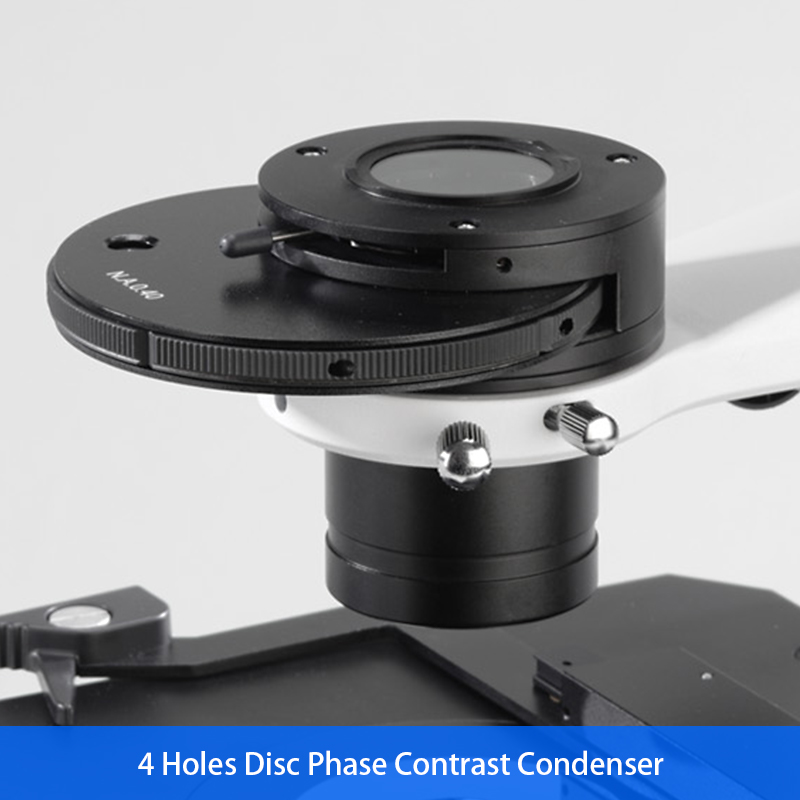

4 na butas na Umiikot na Disc Phase Contrast Condenser
NA0.4, WD 45mm, Naaayos ang Pataas/Pababa

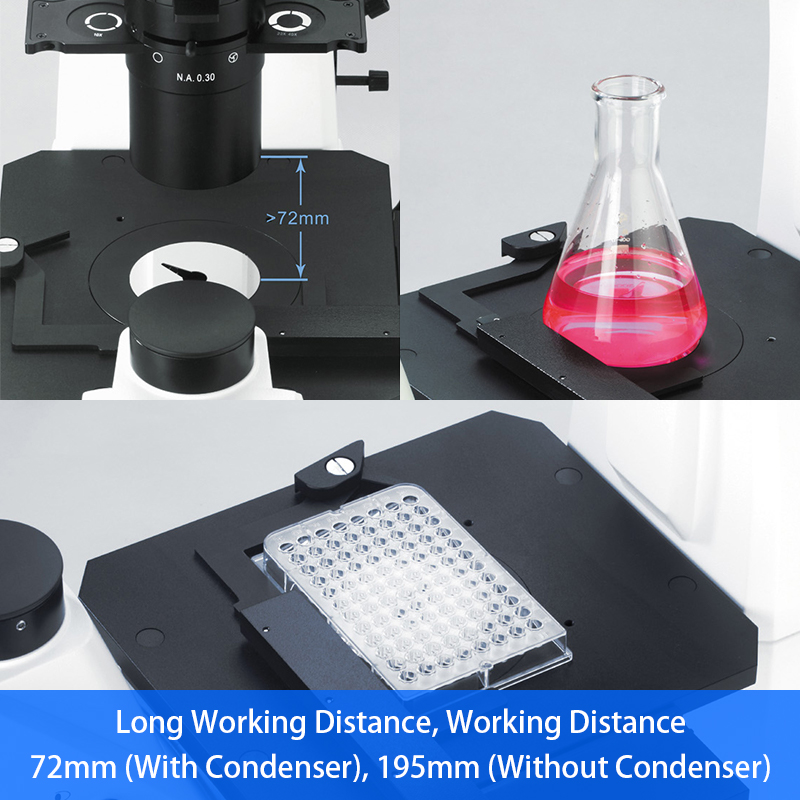

Long Working Distansya
Distansya ng Paggawa 72mm (May Condenser), 195mm (Walang Condenser)

Mga layunin

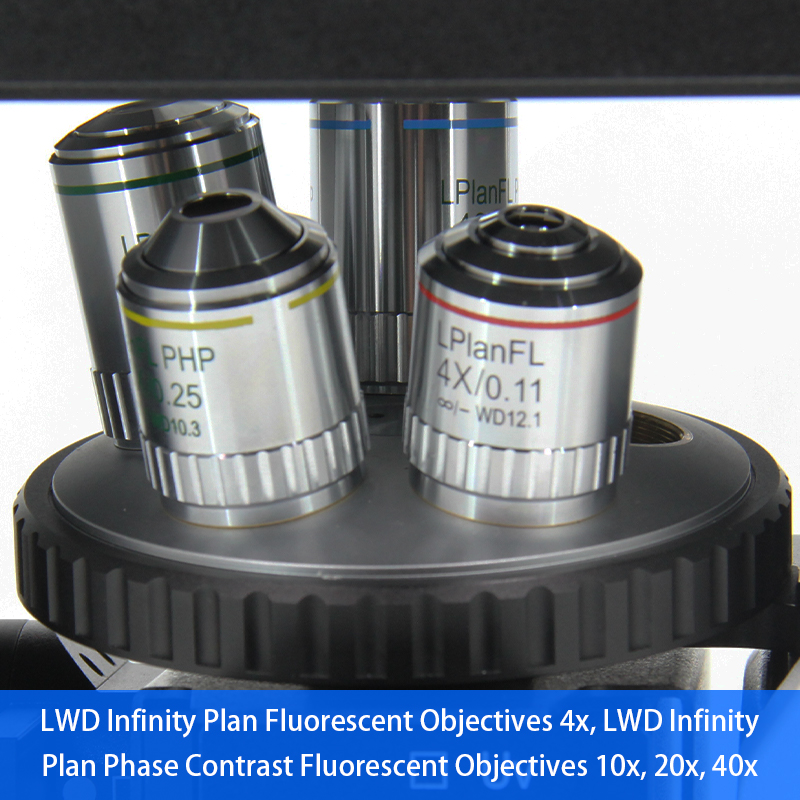

LWD Infinity Plan Fluorescent Objectives 4x, LWD Infinity
Plan Phase Contrast Fluorescent Objectives 10x, 20x, 40x

Yugto ng Paggawa

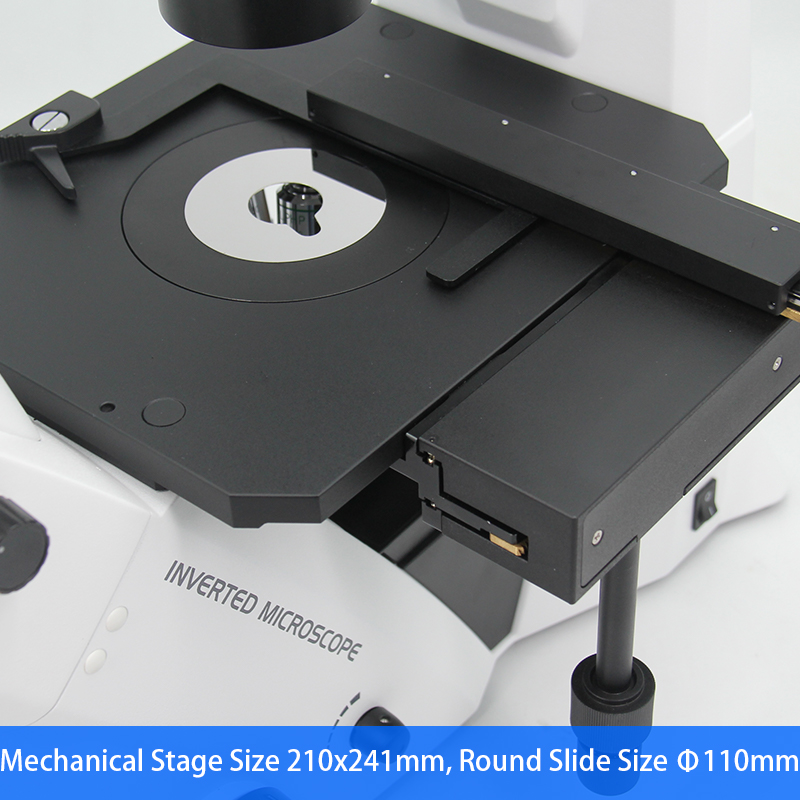

Laki ng Mechanical Stage 210x241mm, Round Slide Size Φ110mm
Culture Dish Holder 54mm

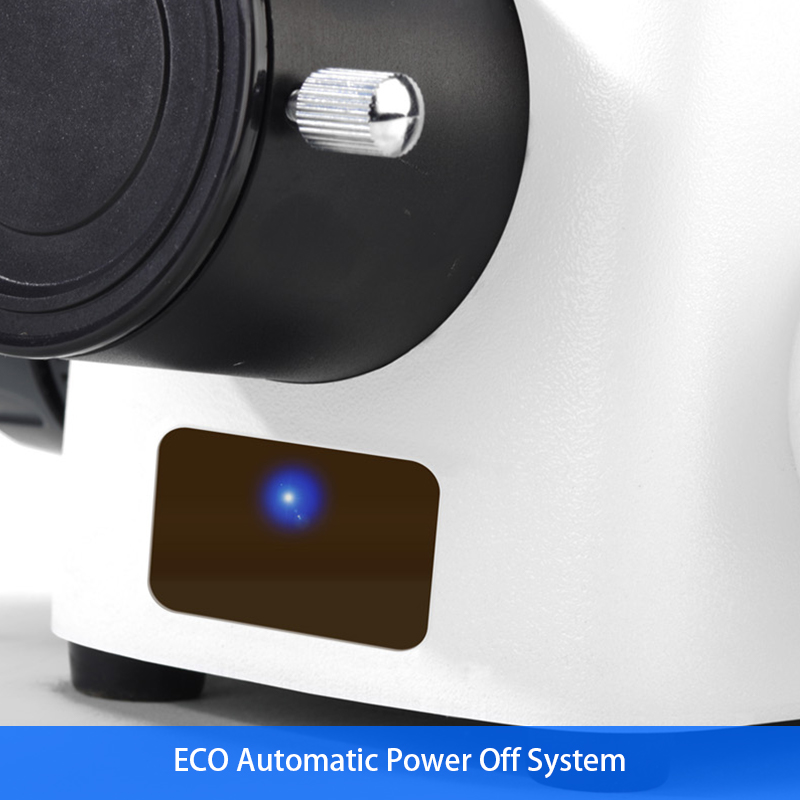

ECO, Auto Power Off System
Awtomatikong I-off ang User Kapag Umalis ng 10 Minuto,
Awtomatikong Naka-on Sa Paglapit ng User,
Maaaring Manu-manong I-shut Down ang Function na ito

Adapter
Photo Adapter na May 1.7x Photo Eyepiece, 100% Light Para sa Camera Port,
Para sa Canon SLR Digital Camera

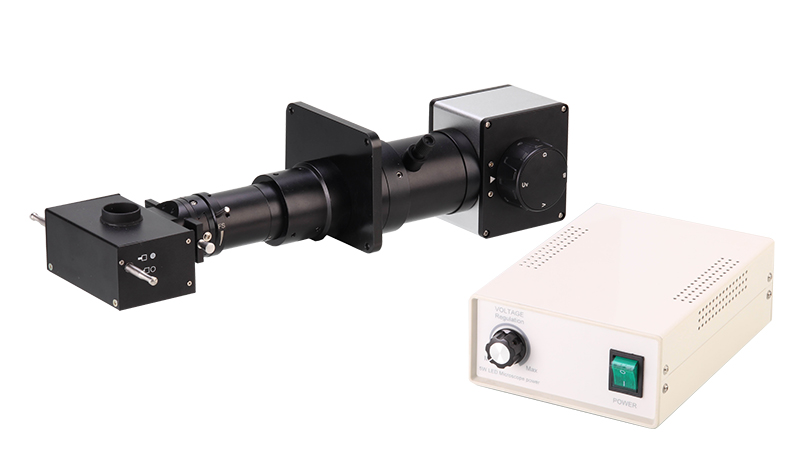

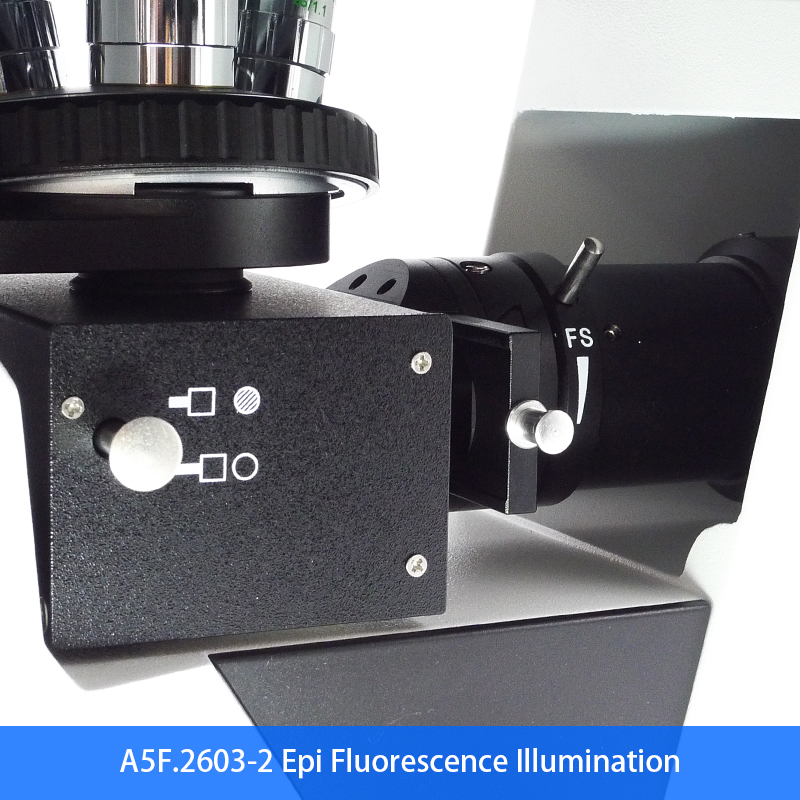

A5F.2603 Epi Fluorescence Illumination
China Fluorescent Filter,

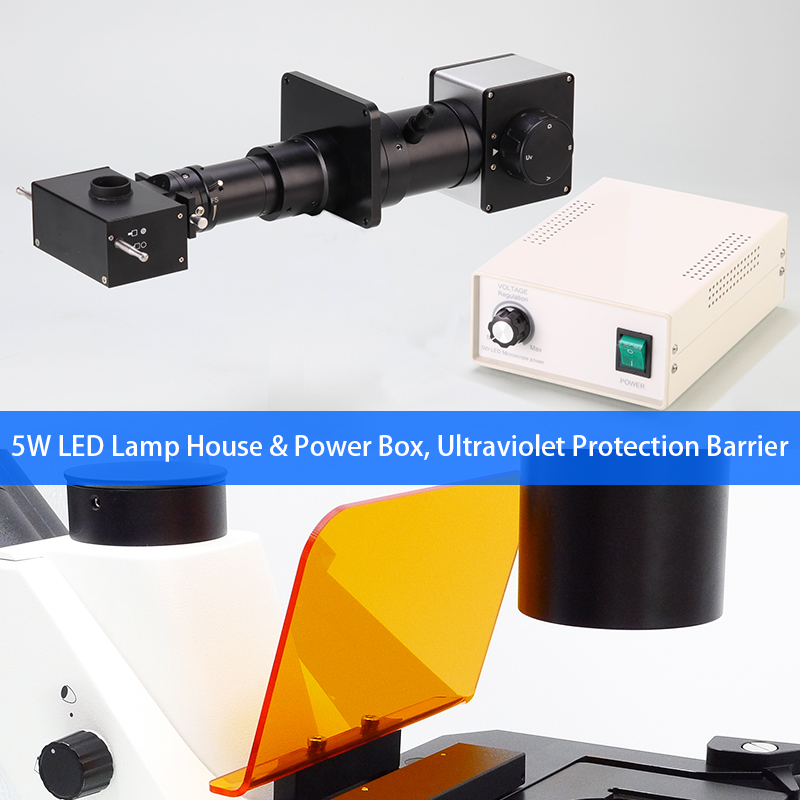

5W LED Lamp House
5W LED Power Box
Barrier ng Proteksyon ng Ultraviolet
Fluorescent Slide Unit 3 Holes, May Filter Diaphragm, Center Adjustable
5W LED B,G Lamp Bawat 1 pc

Mga bagay	A16.2615-L Inverted LED Fluorescent Microscope	-2	-4	Cata. Hindi.
Ulo	Seidentopf Trinocular Head Inclined 45°, Interpupilary Distansya 48~76mm, , Light Split Switch E100:P0 / E20:P80 Suporta sa Dual Photo & Video Channel Eyepiece View / Digital Camera/SLR Camera Kumuha ng Larawan at Mag-record ng Video nang Sabay-sabay: --Eyepiece View May 100% O 20% Light Switchable --Ang Digital Camera Port ay May 0% O 80% Light Switchable --Photography Port 100% Light Para sa SLR Camera (Karaniwang Outfit Kasama ang SLR Camera Adapter 1pc, Canon o Nikon)	●	●	A53.2643
Eyepiece	WF10x/22mm, Dia.30mm, High Eyepoint,, Diopter Adjustable	●●	●●	A51.2621-1022
	WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable	○○	○○	A51.2621-1516
	WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable	○○	○○	A51.2621-2012
Nosepiece	Quintuple	●	●	A54.2610-N925

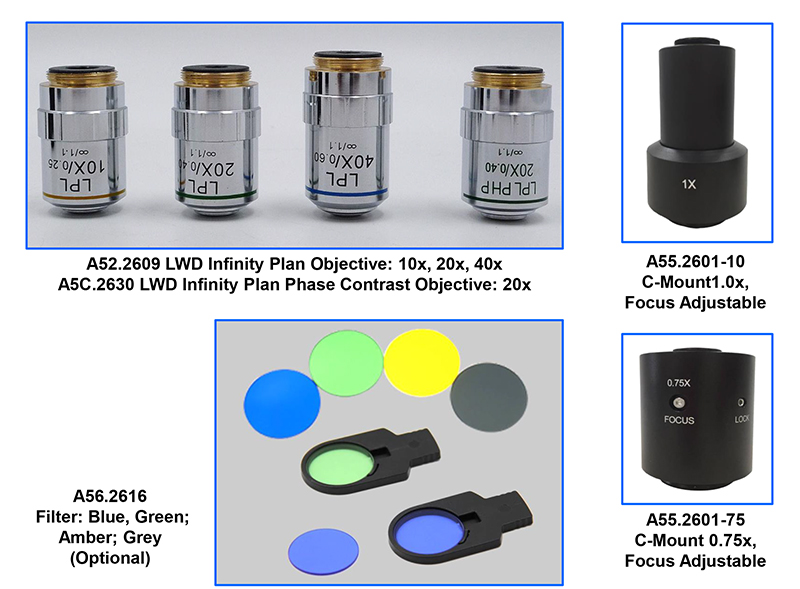

Mga Layunin ng LWD Infinity Plan	LPL 4x/0.11, WD=12.1mm	●	●	A52.2609-4
	LPL10x/0.25, WD=8.3mm	○	○	A52.2609-10
	LPL 20x/0.40, WD=7.2mm	○	○	A52.2609-20
	LPL 40x/0.60, WD=3.4mm	○	○	A52.2609-40
LWD Infinity Plan Phase Contrast Objectives	LPL Ph P 4x/0.10, WD=9.2mm	○	○	A5C.2630-4
	LPL Ph P 10x/0.25, WD=8.3mm	●	●	A5C.2630-10
	LPL Ph P 20x/0.40, WD=7.2mm	●	●	A5C.2630-20
	LPL Ph P 40x/0.60, WD=3.4mm	●	●	A5C.2630-40

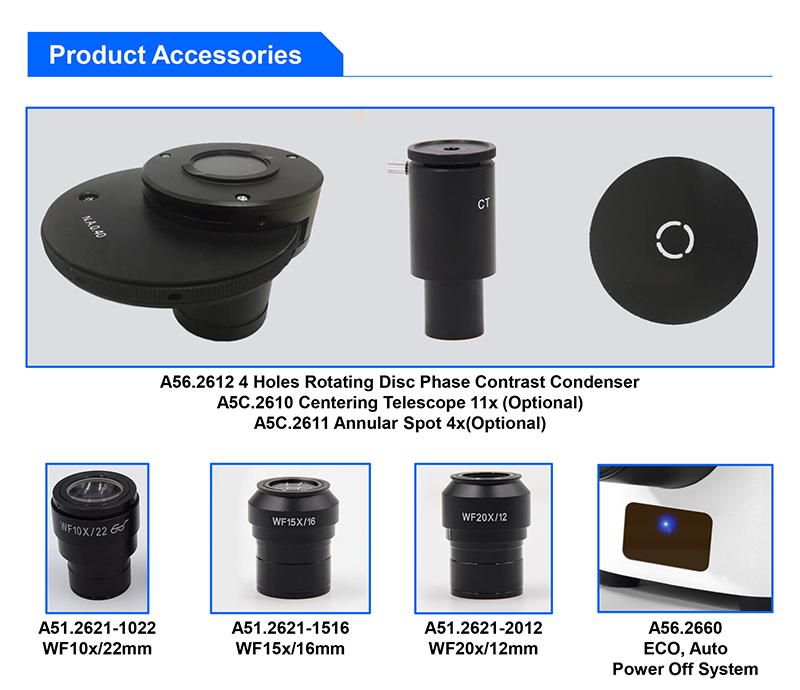

Phase Contrast	4 na butas na Umiikot na Disc Phase Contrast Condenser NA0.4, WD 45mm, Naaayos ang Pataas/Pababa	●	●	A56.2612
	Pagsentro ng Teleskopyo 11x	●	●	A5C.2610
	Annular Spot 4x	○	○	A5C.2611-4
	Annular Spot 20x/ 40x	●	●	A5C.2611-10
	Annular Spot 10x	●	●	A5C.2611-20/40

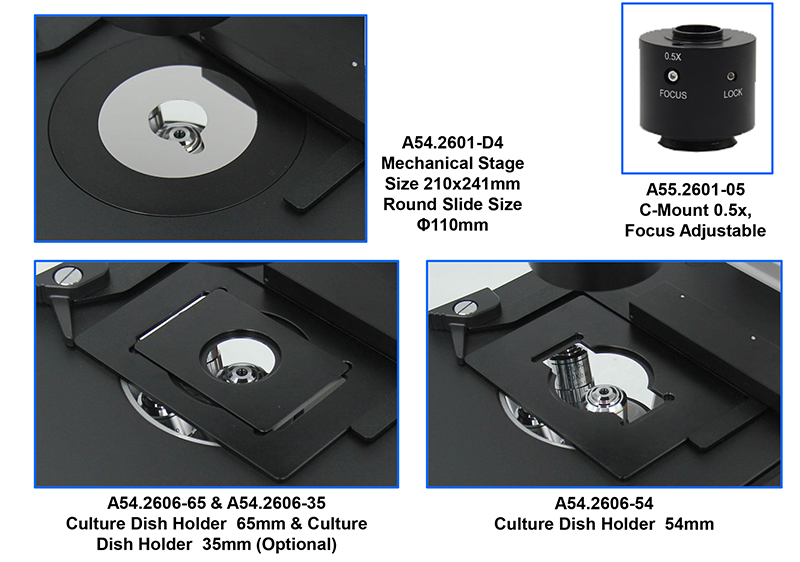

Yugto ng Paggawa	Laki ng Mechanical Stage 210x241mm, Round Slide Size Φ110mm	●	●	A54.2601-D4
	Naka-attach na Mechanical Stage, Available Para sa 96 Holes Plate, Moving Range 128x80mm	●	●	A54.2605
	Culture Dish Holder 65mm	○	○	A54.2606-65
	Culture Dish Holder 54mm	●	●	A54.2606-54
	Culture Dish Holder 35mm	○	○	A54.2606-35
	May hawak ng Blood Cell Counter	○	○	A54.2606-BC
Pag-iilaw	Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V	●	●	A56.2650-50W
Pag-iilaw	Koehler Illumination 5W LED, Input Voltage 100V~240V	○	○	A56.2651-5W
kapangyarihan	ECO, Auto Power Off System. Awtomatikong I-off ang User Kapag Umalis ng 10 Minuto, Awtomatikong Naka-on Sa Paglapit ng User, Maaaring Manu-manong I-shut Down ang Function na ito	●	●	A56.2660
Salain	Asul, Dia.34mm	●	●	A56.2616-34B
	Berde, Dia.34mm	●	●	A56.2616-34G
	Amber, Dia.34mm	○	○	A56.2616-34A
	Gray, Dia.34mm	○	○	A56.2616-34N
Adapter	Photo Adapter na May 1.7x Photo Eyepiece, 100% Light Para sa Camera Port, Para sa Canon SLR Digital Camera	●	●	A55.2622-BC17
	Photo Adapter na May 1.7x Photo Eyepiece, 100% Light Para sa Camera Port, Para sa Nikon SLR Digital Camera	○	○	A55.2622-BN17
	Photo Adapter na May 2.5x Photo Eyepiece, 100% Light Para sa Camera Port, Para sa Canon SLR Digital Camera na May 1"CCD Sensor	○	○	A55.2622-BC25
	Photo Adapter na May 2.5x Photo Eyepiece, 100% Light Para sa Camera Port, Para sa Nikon SLR Digital Camera na May 1"CCD Sensor	○	○	A55.2622-BN25
	C-Mount 0.5x, Focus Adjustable	○	○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable	○	○	A55.2601-75
	C-Mount1.0x, Focus Adjustable	○	○	A55.2601-10

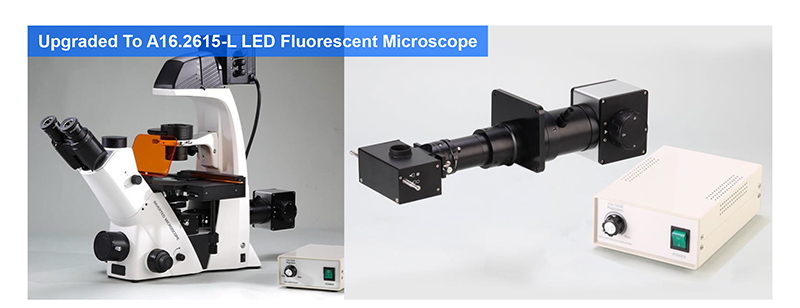

Fluorescence	Mag-upgrade Mula sa A14.2605 Inverted Microscope With B,GChina Fluorescent Filter, 5W LED Lamp House 5W LED Power Box Barrier ng Proteksyon ng Ultraviolet Fluorescent Slide Unit 3 Holes, May Filter Diaphragm, Center Adjustable 5W LED B,G Lamp Bawat 1 pc	●	○	A5F.2604-2
Fluorescence	Mag-upgrade Mula sa A14.2605 Inverted Microscope With B,G,V,VUChina Fluorescent Filter, 5W LED Lamp House 5W LED Power Box Barrier ng Proteksyon ng Ultraviolet Fluorescent Slide Unit 3 Holes, May Filter Diaphragm, Center Adjustable 5W LED B,G,V,VU Lamp Bawat 1 pc	○	●	A5F.2604-4

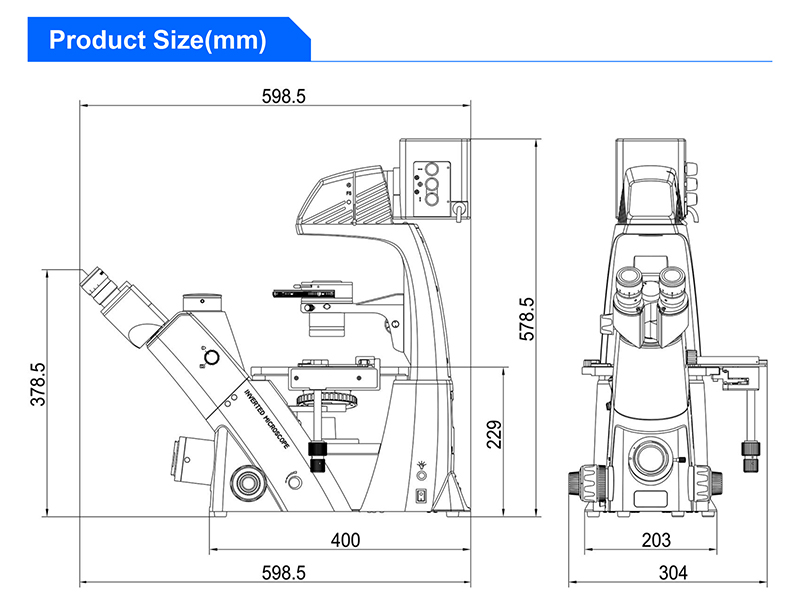

Package	Sukat ng Packing: 660mmx600mmx330mm
Timbang	Kabuuang Timbang: 17 kg, Netong Timbang: 13.5 kg
Tandaan:"●"In Table Is Standard outfits,"○"Ay Opsyonal na Mga Kagamitan.

Mas marami pang litrato

Pictures Hide Same Show Difference
Model No.	A16.2615-L-2	A16.2615-L-4
Iba pang Pagtutukoy	I-filter ang Asul at Berde, Dia.34mm	——
Fluorescene	B,G China Fluorescent Filter, 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier Fluorescent Slide Unit 3 Holes, May Filter Diaphragm, Center Adjustable 5W LED B,G Lamp Bawat 1 pc	B,G,V,VU China Fluorescent Filter, 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier Fluorescent Slide Unit 3 Holes, May Filter Diaphragm, Center Adjustable 5W LED B,G,V,VU Lamp
Fluorescent Band	2 banda	——
Phase Contrast	Nakasentro teleskopyo 11x Phase Contrast Annular 10x,20x/40x	Nakasentro teleskopyo 11x Phase Contrast Annular 10x,20x/40x
Power Supply	ECO, Auto Power Off System. Awtomatikong I-off ang User Sa Umalis ng 10 Minuto, Awtomatikong I-on ang Awtomatikong Paglalapit sa User, Maaaring I-shut Down ang Function na Ito nang Manual	ECO, Auto Power Off System. Awtomatikong I-off ang User Sa Umalis ng 10 Minuto, Awtomatikong I-on ang Awtomatikong Paglalapit sa User, Maaaring I-shut Down ang Function na Ito nang Manual
Uri ng Power Supply	AC 110V-240V	——
Sumasalamin sa Liwanag	5W LED Fluorescent	5W LED Fluorescent
Magpadala ng Liwanag	12V50W Halogen	12V50W Halogen
Uri ng Light Source	LED Halogen Fluorescent	Fluurescent Halogen
Mga Tampok ng Light Source	Halogen 50W LED 5W Magpadala at Magmuni-muni Kohler	Halogen 30W LED 5W Magpadala at Magmuni-muni Kohler
Condenser	4 na Butas na Umiikot na Disc Phase Contrast Condenser, WD 45mm, Up/Down Adjustable	4 na Butas na Umiikot na Disc Phase Contrast Condenser, WD 45mm
Condenser NA	0.4	0.4
Uri ng Condenser	Phase Contrast	Phase Contrast
Mga Tampok ng Condenser	Slot Para sa PH Slide	Slot Para sa PH Slide

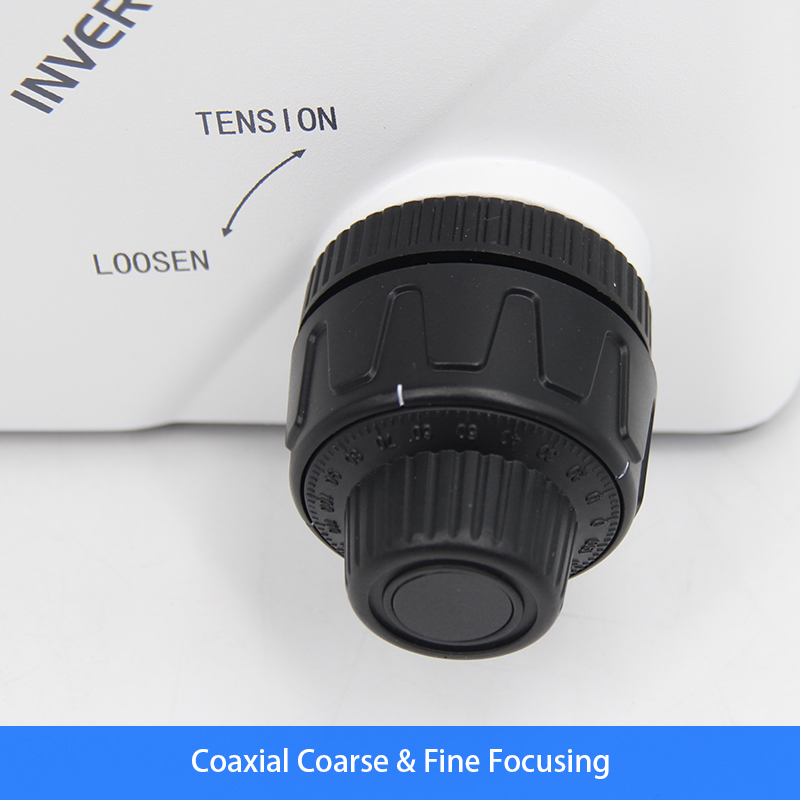

Uri ng Pagtutok	Coaxial Coarse & Fine	——
Mga Tampok na Tumututok	Madaling iakma ang pag-igting	Madaling iakma ang pag-igting
Yugto ng Paggawa	Round Slide Size, Dia. 110mm Culture Dish Holder 54mm	Round Slide Size, Dia. 110mm
Paglipat ng Yugto ng Paggawa	128x80mm	128x80mm
Laki ng Yugto ng Paggawa	210x241mm	210x241mm
Uri ng Yugto ng Paggawa	Fixed + Attachable	Fixed + Attachable
Mga Tampok sa Yugto ng Paggawa	Sukat ≥140x180mm	Sukat ≥140x140mm
Layunin	LWD Infinity Plan LPL 4x/0.11, WD=12.1mm LWD Infinity Plan Phase Contrast LPL Ph P 10x/0.25, WD=8.3mm LPL Ph P 20x/0.40, WD=7.2mm LPL Ph P 40x/0.60, WD=3.4mm	LWD Infinity Plan LPL 4x/0.11, WD=12.1mm LWD Infinity Plan Phase Contrast LPL Ph P 10x/0.25, WD=8.3mm LPL Ph P 20x/0.40, WD=7.2mm LPL Ph P 40x/0.60, WD=3.4mm
Uri ng Layunin	Infinity Plan Phase Contrast	Infinity Plan Phase Contrast
Mga Tampok ng Layunin	LWD	LWD
Mga butas ng ilong	5 butas	5 butas
Eyepiece	WF10x/22mm, 2 pc.	WF10x/22mm, 2 pc.
Diameter ng eyepiece	30.0mm	30.0mm
Mga Tampok ng Eyepiece	Diopter Adjustable	Diopter Adjustable
Daan ng Head Light	E100:P0/E20:P80	E100:P0/E20:P80
Head Interpupillary	48~76mm	48~76mm
Pagkahilig sa Ulo	45°	——
Uri ng Ulo	Seidentopf Trinocular	Seidentopf Trinocular
Standard Magnification	40x-400x	——
Optical System	Infinity Plan	Infinity Plan
Mga tampok	Infinity Dalawahang Port ng Larawan	Infinity Dalawahang Port ng Larawan ECO (Auto Power Off)
Karaniwang Pag-andar	BF+FL+PH	——
Video Adapter	——	C-Mount 0.3x

Pictures

Hide Same

Show Difference

Inverted LED Fluorescent Microscope, Trinocular, B/G

Inverted LED Fluorescent Microscope, Trinocular, B/G/U/UV

Model No.

A16.2615-L-2

A16.2615-L-4

Iba pang Pagtutukoy

I-filter ang Asul at Berde, Dia.34mm

——

Fluorescene

B,G China Fluorescent Filter, 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier Fluorescent Slide Unit 3 Holes, May Filter Diaphragm, Center Adjustable 5W LED B,G Lamp Bawat 1 pc

B,G,V,VU China Fluorescent Filter, 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier Fluorescent Slide Unit 3 Holes, May Filter Diaphragm, Center Adjustable 5W LED B,G,V,VU Lamp

Fluorescent Band

2 banda

——

Phase Contrast

Nakasentro teleskopyo 11x
Phase Contrast Annular 10x,20x/40x

Power Supply

ECO, Auto Power Off System. Awtomatikong I-off ang User Sa Umalis ng 10 Minuto, Awtomatikong I-on ang Awtomatikong Paglalapit sa User, Maaaring I-shut Down ang Function na Ito nang Manual

Uri ng Power Supply

AC 110V-240V

——

Sumasalamin sa Liwanag

5W LED Fluorescent

Magpadala ng Liwanag

12V50W Halogen

Uri ng Light Source

LED
Halogen
Fluorescent

Fluurescent
Halogen

Mga Tampok ng Light Source

Halogen 50W
LED 5W
Magpadala at Magmuni-muni
Kohler

Halogen 30W
LED 5W
Magpadala at Magmuni-muni
Kohler

Condenser

4 na Butas na Umiikot na Disc Phase Contrast Condenser, WD 45mm, Up/Down Adjustable

4 na Butas na Umiikot na Disc Phase Contrast Condenser, WD 45mm

Condenser NA

0.4

Uri ng Condenser

Phase Contrast

Mga Tampok ng Condenser

Slot Para sa PH Slide

Uri ng Pagtutok

Coaxial Coarse & Fine

——

Mga Tampok na Tumututok

Madaling iakma ang pag-igting

Yugto ng Paggawa

Round Slide Size, Dia. 110mm Culture Dish Holder 54mm

Round Slide Size, Dia. 110mm

Paglipat ng Yugto ng Paggawa

128x80mm

Laki ng Yugto ng Paggawa

210x241mm

Uri ng Yugto ng Paggawa

Fixed + Attachable

Mga Tampok sa Yugto ng Paggawa

Sukat ≥140x180mm

Sukat ≥140x140mm

Layunin

LWD Infinity Plan
LPL 4x/0.11, WD=12.1mm
LWD Infinity Plan Phase Contrast
LPL Ph P 10x/0.25, WD=8.3mm
LPL Ph P 20x/0.40, WD=7.2mm
LPL Ph P 40x/0.60, WD=3.4mm

Uri ng Layunin

Infinity Plan
Phase Contrast

Mga Tampok ng Layunin

LWD

Mga butas ng ilong

5 butas

Eyepiece

WF10x/22mm, 2 pc.

Diameter ng eyepiece

30.0mm

Mga Tampok ng Eyepiece

Diopter Adjustable

Daan ng Head Light

E100:P0/E20:P80

Head Interpupillary

48~76mm

Pagkahilig sa Ulo

45°

——

Uri ng Ulo

Seidentopf Trinocular

Standard Magnification

40x-400x

——

Optical System

Infinity Plan

Mga tampok

Infinity
Dalawahang Port ng Larawan

Infinity
Dalawahang Port ng Larawan
ECO (Auto Power Off)

Karaniwang Pag-andar

BF+FL+PH

——

Video Adapter

——

C-Mount 0.3x
