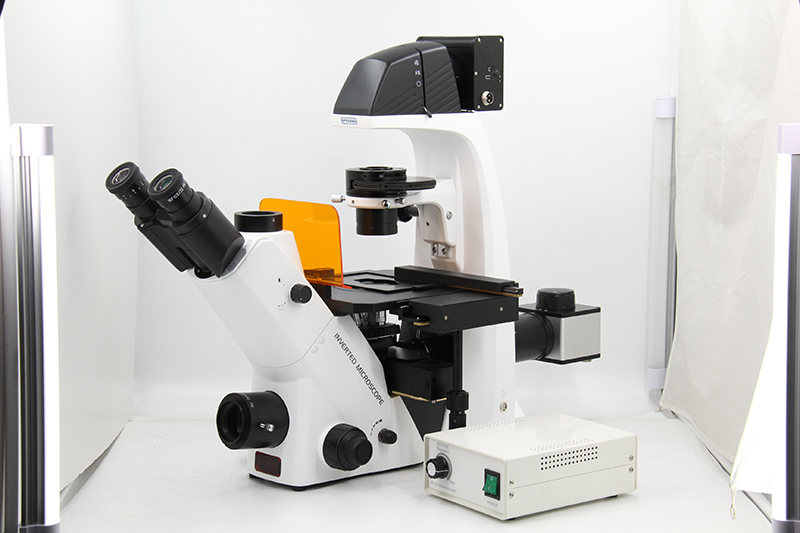

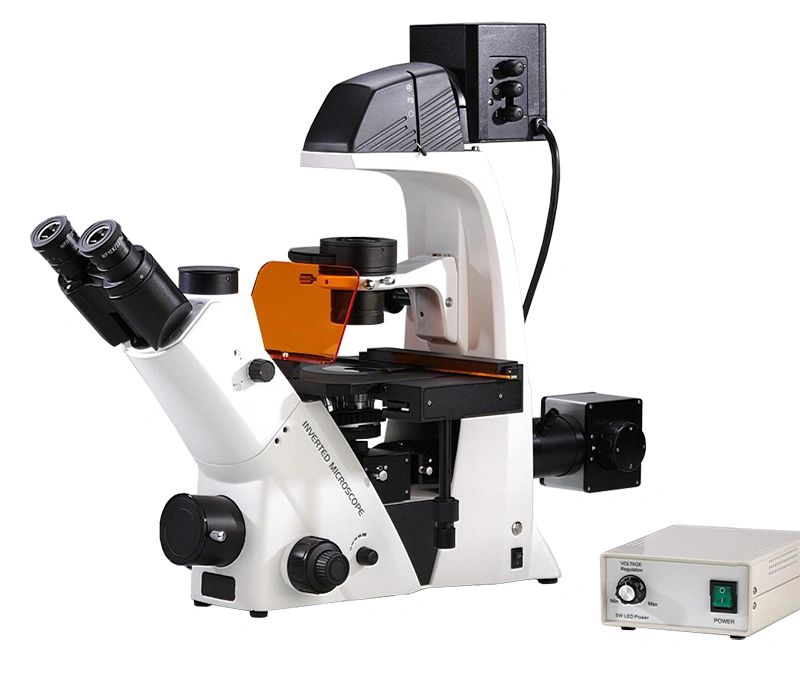

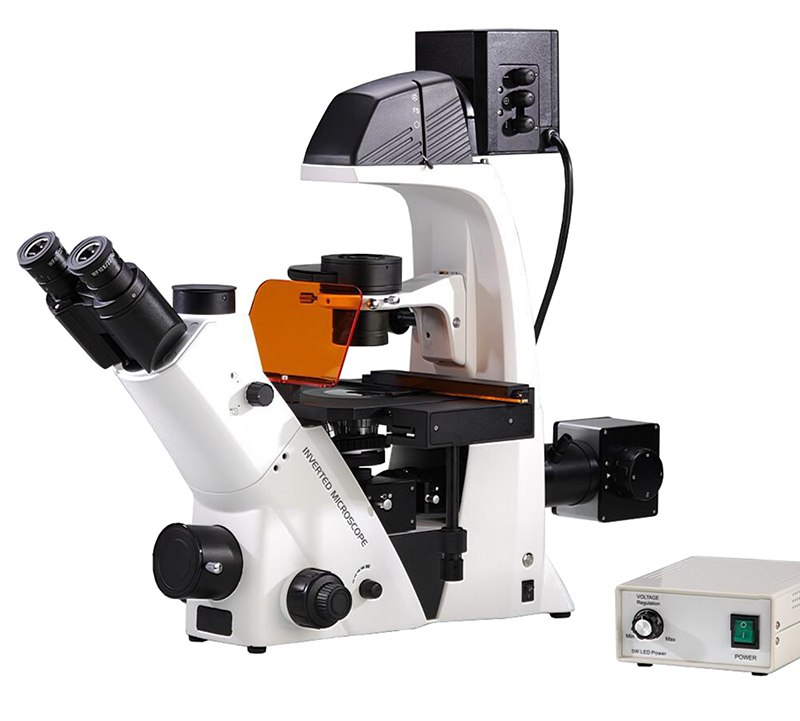

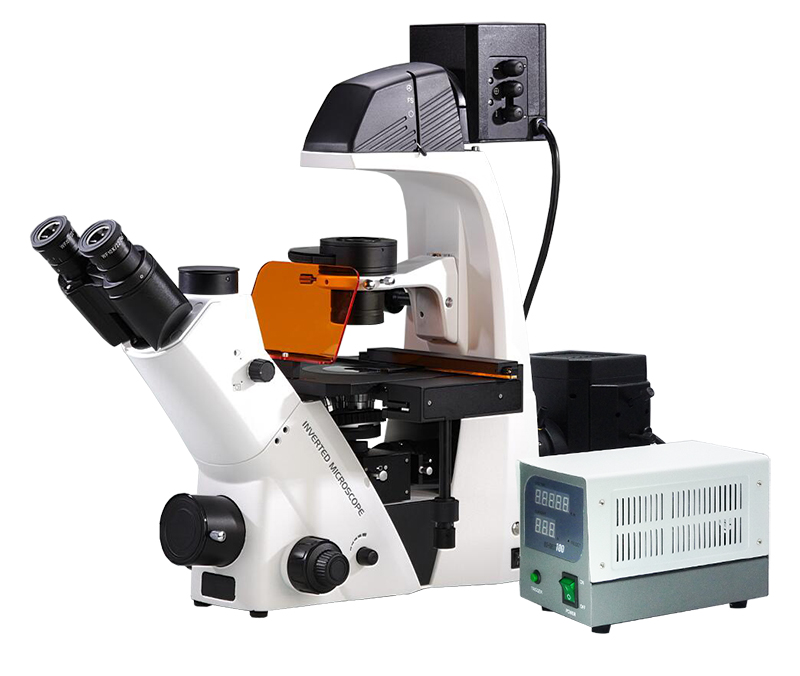

OPTO-EDU A16.2615-L2 Inverted LED Fluorescent Microscope, B,G

Inverted LED Fluorescent Microscope, Trinocular, B/G

3 Holes Fluorescent Slide + 5W LED Fluorescent Illumination

ECO Automatic Power Off Upon User Leaving 10 Minutes & Power On Upon User Back

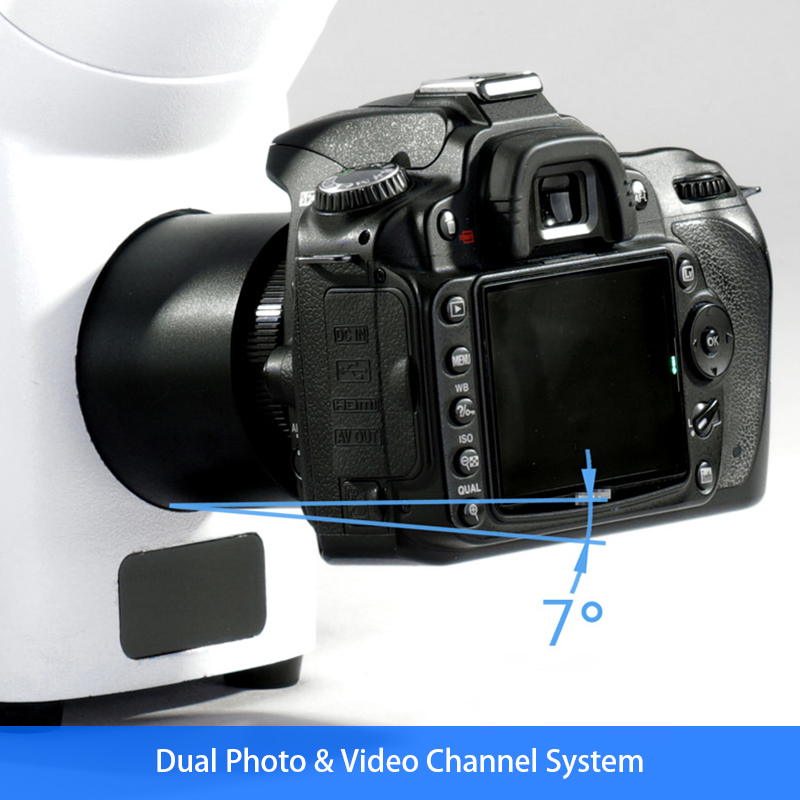

Dual Photo & Video Channel Support Eyepiece / Digital Camera / SLR Camera View At Same Time

LWD Infinity Plan Objectives Bright Field & Phase Contrast Observation Supported

4 Holes Disc Phase Contrast Condenser + Halogen 12V50W Koehler Illumination

Head & Eyepiece

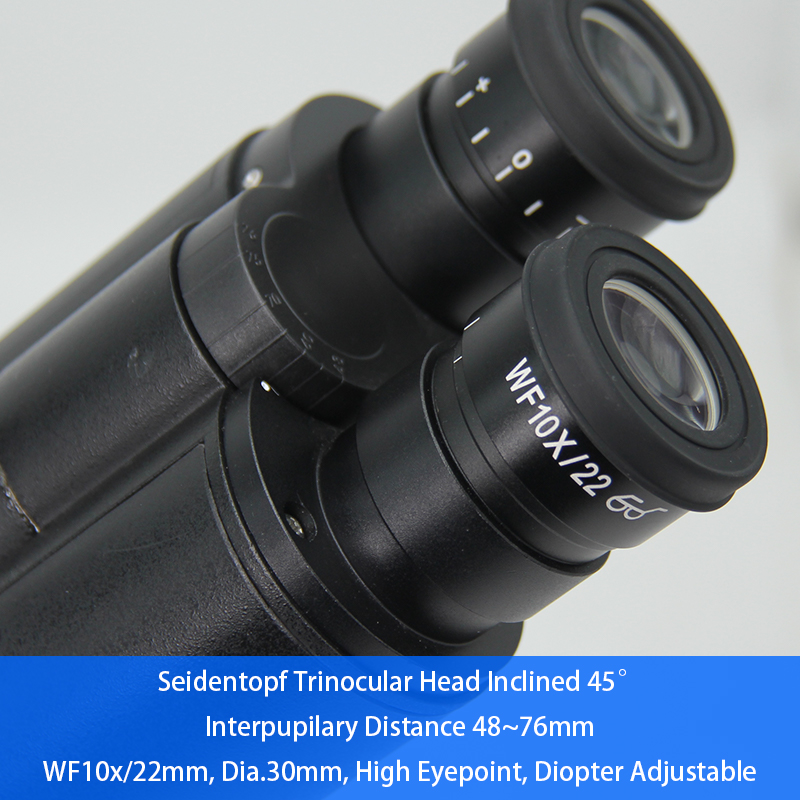

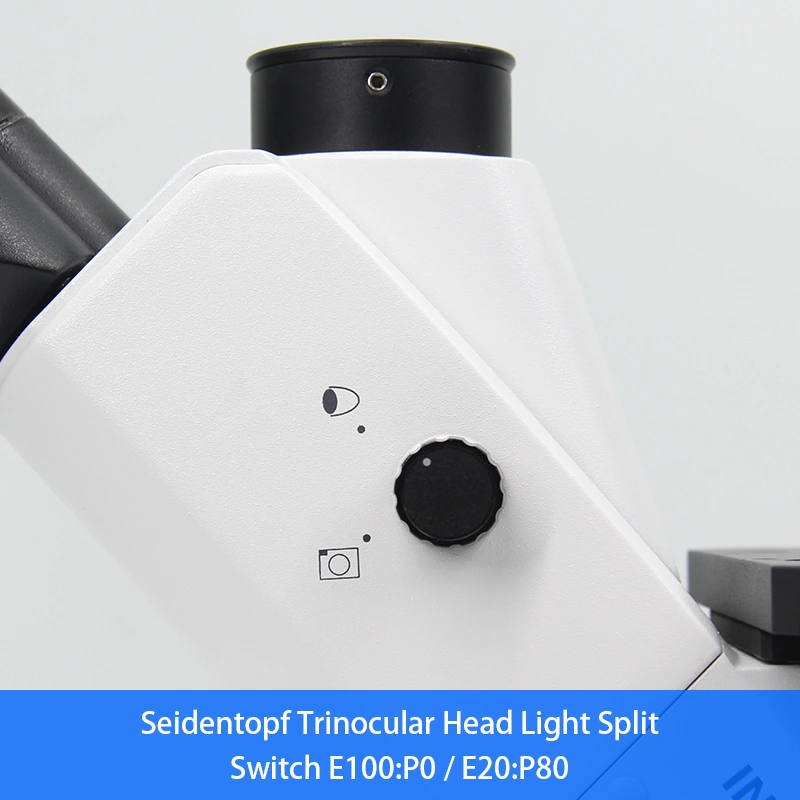

Seidentopf Trinocular Head Inclined 45°Interpupillary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80
WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable

Reflect Light

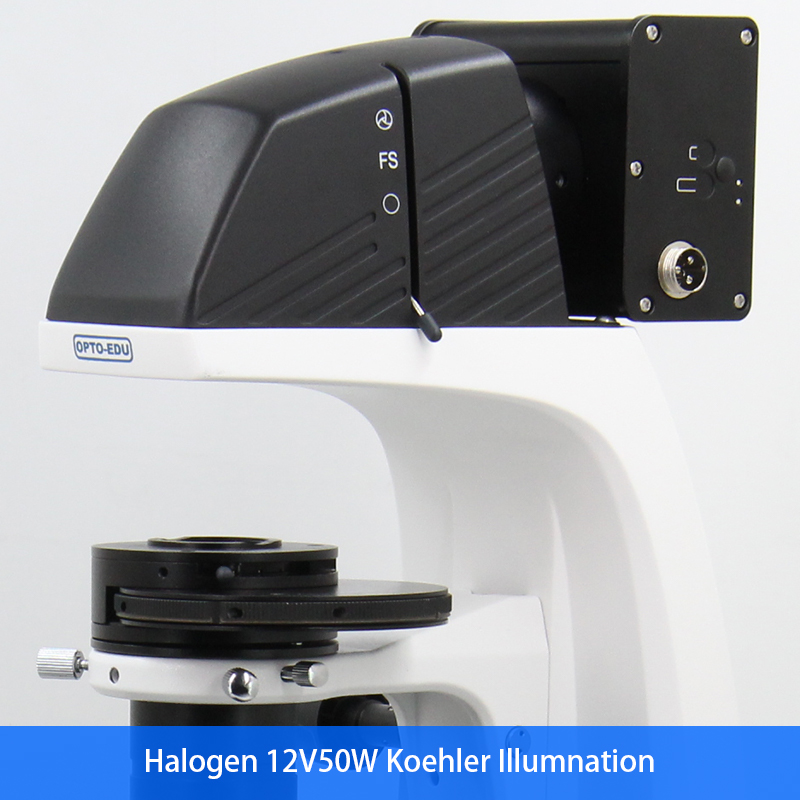

Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V

Condenser

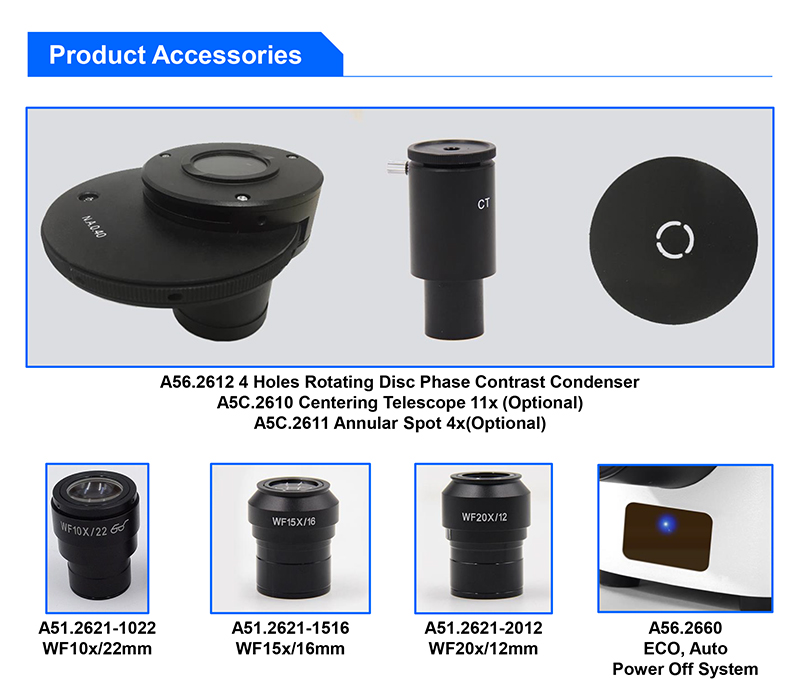

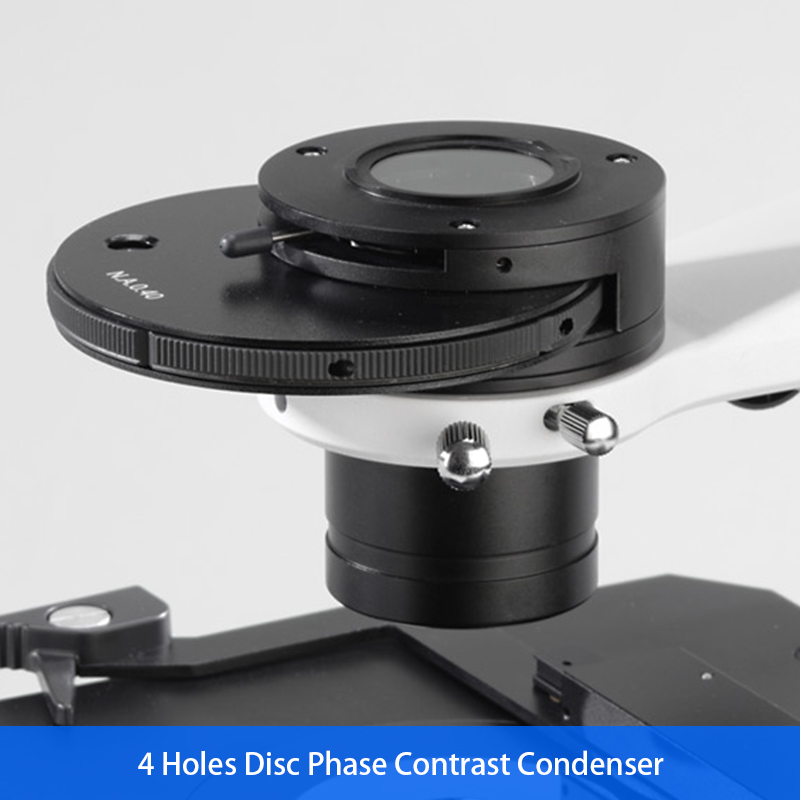

4 Holes Rotating Disc Phase Contrast Condenser
N.A.0.4, W.D. 45mm, Up/Down Adjustable

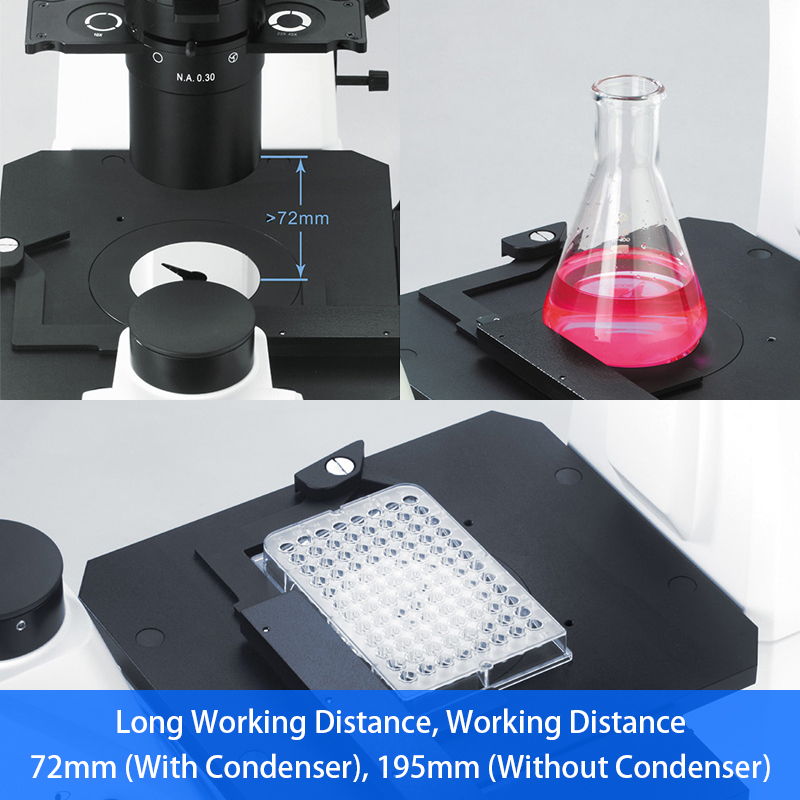

Long Working Distance
Working Distance 72mm (With Condenser), 195mm (Without Condenser)

Objectives

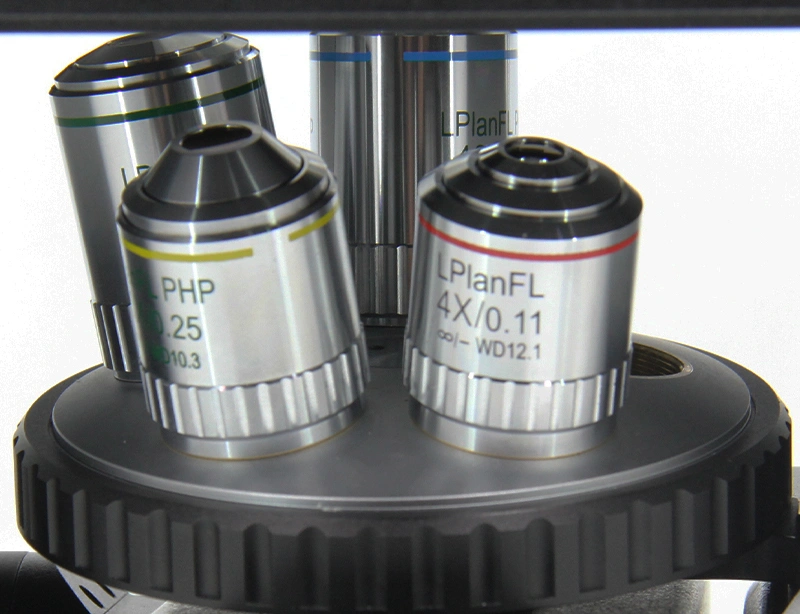

LWD Infinity Plan FL Semi-APO Objectives 4x,

LWD Infinity Plan FL Semi-APO BF+PHObjectives 10x, 20x, 40x

Working Stage

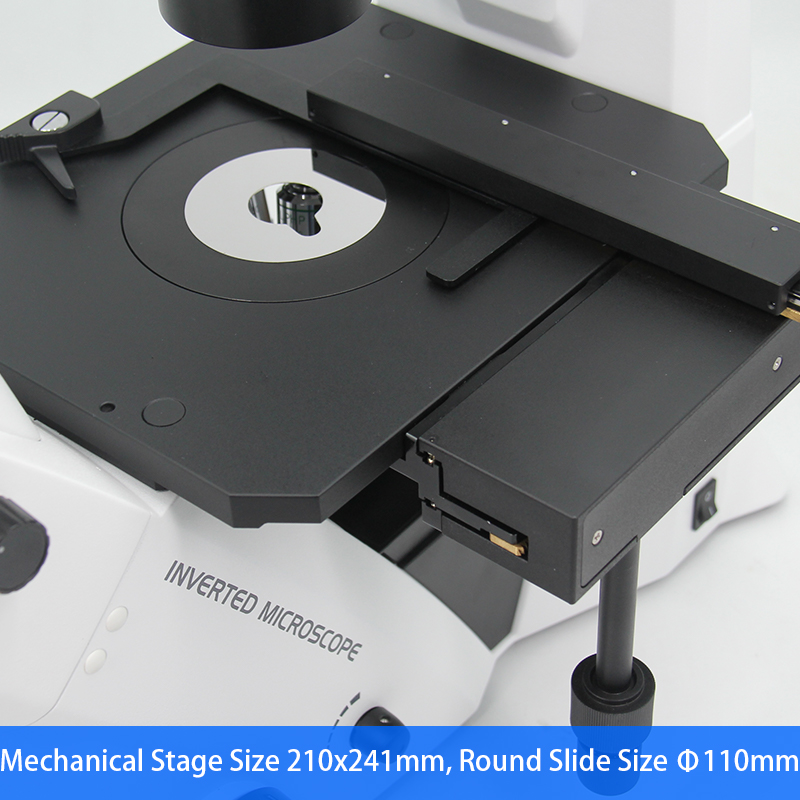

Mechanical Stage Size 210x241mm, Round Slide Size Φ110mm
Culture Dish Holder 54mm

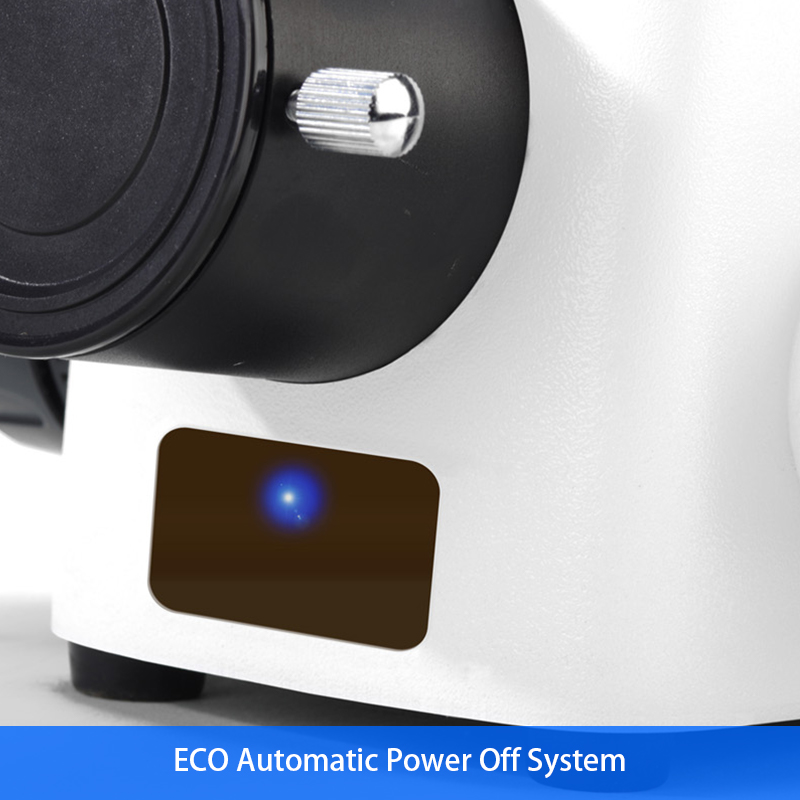

ECO, Auto Power Off System
Power Off Automatically Upon User Leaving 10 Minutes,
Power On Automatically Upon User Approaching Detected,
This Function Can Be Shut Down Manually

Adapter
Photo Adapter With 1.7x Photo Eyepiece,100% Light For Camera Port,
For Canon SLR Digital Camera

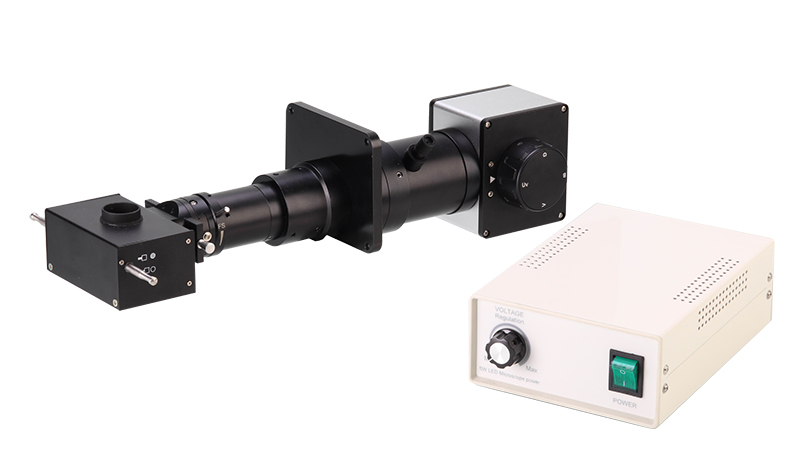

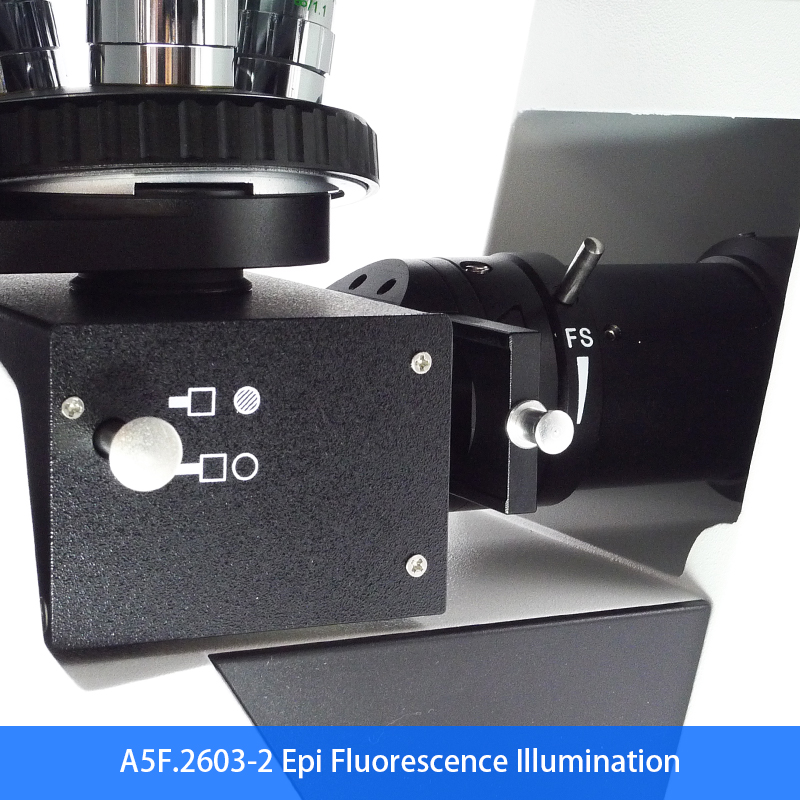

A5F.2603 Epi Fluorescence Illumination
China Fluorescent Filter,

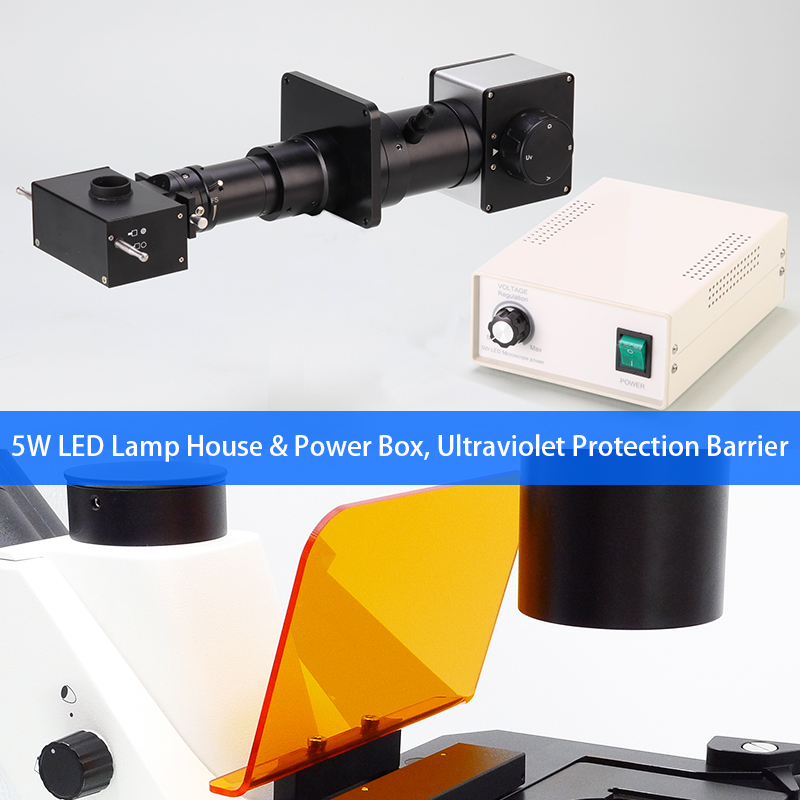

5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier

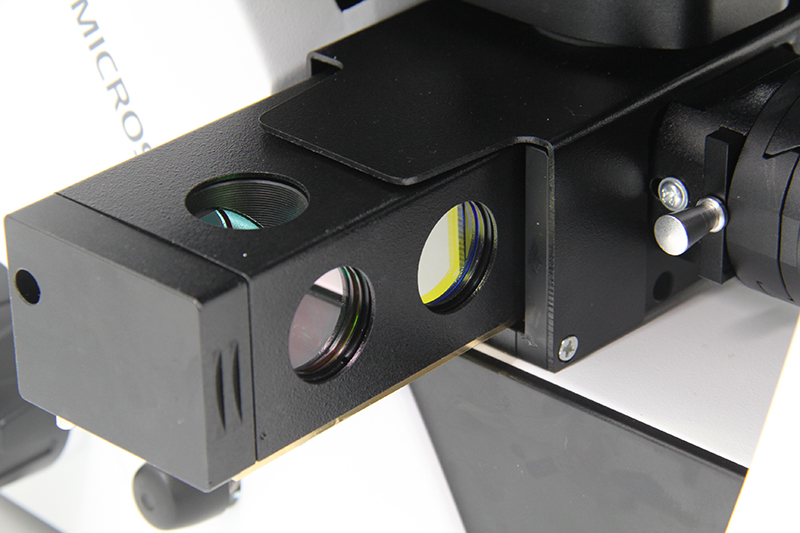

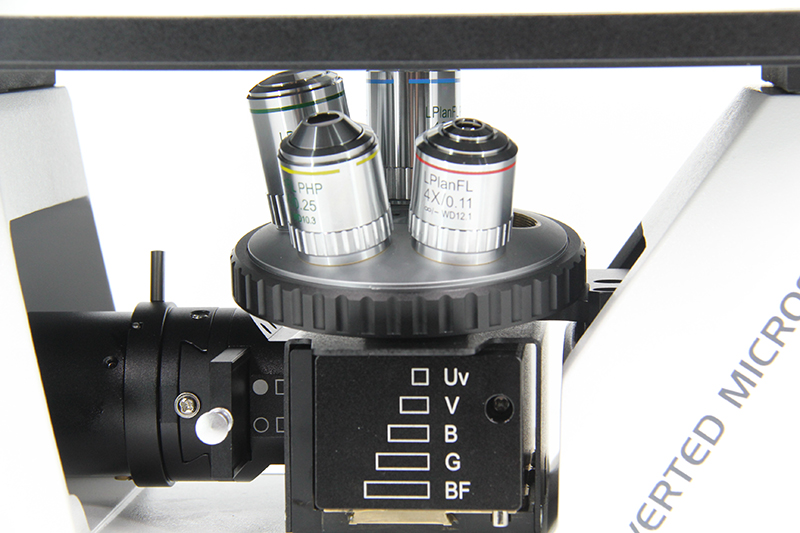

Fluorescent Slide Unit 3 Holes, With Filter Diaphragm, Center Adjustable
5W LED B,G Lamp Each 1 pc

Items	A14.2605 Inverted Biological Microscope A16.2615 Inverted Fluorescent Microscope	A14.2605	A16.2615 -L2	A16.2615 -L4	Cata. No.
A14.2604 Upgraded To A14.2605	+Dual Photo & Video Channel System +ECO Automatic Power Off System +4 Holes Disc Phase Contrast Condenser +Halogen 12V50W Koehler Illumnation
Head	Seidentopf Trinocular Head Inclined 45°, Interpupilary Distance 48~76mm, , Light Split Switch E100:P0 / E20:P80 Dual Photo & Video Channel Support Eyepiece View / Digital Camera/SLR Camera Take Picture & Record Video At Same Time: --Eyepiece View Has 100% Or 20% Light Switchable --Digital Camera Port Has 0% Or 80% Light Switchable --Photography Port 100% Light For SLR Camera (Standard Outfit Including SLR Camera Adapter 1pc)	●	●	●	A53.2643
Eyepiece	WF10x/22mm, Dia.30mm, High Eyepoint,, Diopter Adjustable	●●	●●	●●	A51.2621-1022
	WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable	○○	○○	○○	A51.2621-1516
	WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable	○○	○○	○○	A51.2621-2012
Nosepiece	Quintuple	●	●	●	A54.2610-N925
LWD Infinity Plan FL Semi-APO Objectives	Plan FL 2x/0.06 W.D.=7.2mm	○	○	○
	L Plan FL 4x/0.11 W.D.=12.1mm	●	●	●	A5F.2635-4
	L Plan FL 10x/0.25 W.D.=10.3mm	○	○	○	A5F.2635-10
	L Plan FL 20x/0.45 W.D.=5.8mm	○	○	○	A5F.2635-20
	L Plan FL 40x/0.65 W.D.=5.1mm	○	○	○	A5F.2635-40
LWD Infinity Plan FL Semi-APO BF+PH Objectives	L Plan FL PHP 4x/0.10 W.D.=9.2mm	○	○	○	A5C.2635-4
	L Plan FL PHP 10x/0.25 W.D.=10.3mm	●	●	●	A5C.2635-10
	L Plan FL PHP 20x/0.45 W.D.=5.8mm	●	●	●	A5C.2635-20
	L Plan FL PHP 40x/0.65 W.D.=5.1mm	●	●	●	A5C.2635-40
LWD Infinity Plan Fluorescent Objectives	New Update 2024 Specialized For Fluorescent Observation!
	L PLAN Fluor 10x, N.A.0.3，W.D.=14.0mm	-	●	●	A5F.2636-10
	L PLAN Fluor 20x, N.A.0.45，W.D.=6.6mm	-	●	●	A5F.2636-20
	L PLAN Fluor 40x, N.A.0.65，W.D.=3.9mm	-	○	○	A5F.2636-40
Phase Contrast	4 Holes Rotating Disc Phase Contrast Condenser N.A.0.4, W.D. 45mm, Up/Down Adjustable	●	●	●	A56.2612
Phase Contrast	Centering Telescope 11x	●	●	●	A5C.2610

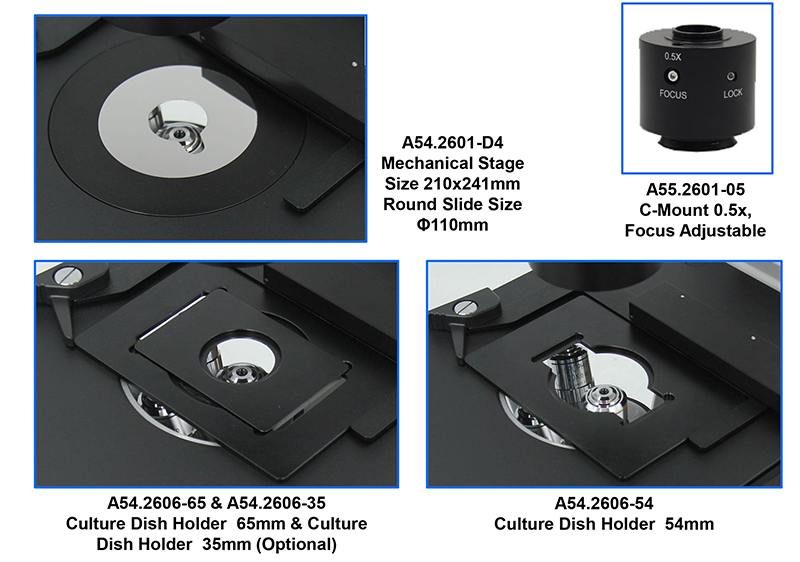

Working Stage	Mechanical Stage Size 210x241mm, Round Slide Size Φ110mm	●	●	●	A54.2601-D4

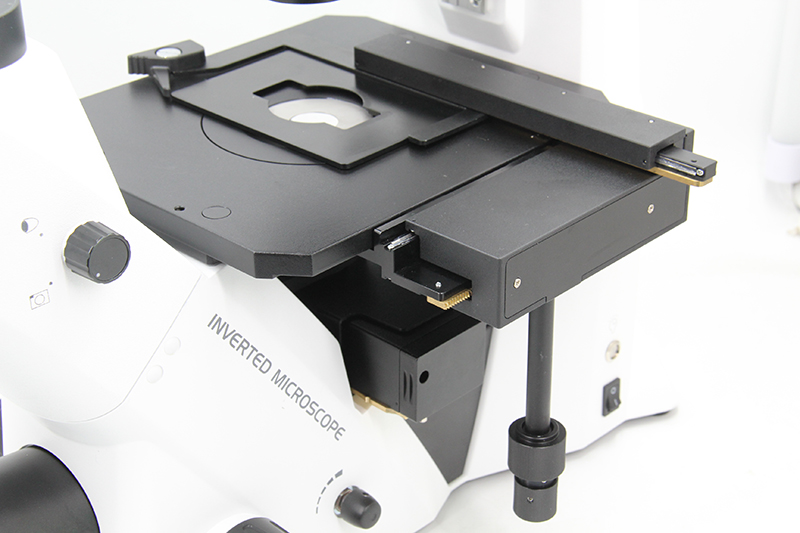

	Attachable Mechanical Stage For 96 Holes Plate Moving Range 128x80mm	●	●	●	A54.2605
	Culture Dish Holder 65mm	○	○	○	A54.2606-65
	Culture Dish Holder 54mm	●	●	●	A54.2606-54
	Culture Dish Holder 35mm	○	○	○	A54.2606-35
	Holder For Blood Cell Counter	○	○	○	A54.2606-BC
	Universal Holder (New Accessory 2021)	○	○	○	A54.2606-UH
	Round Glass Holder (New Accessory 2021)	○	○	○	A54.2606-GL
Illumination	Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V	●	●	●	A56.2650-12V50WH
Illumination	Koehler Illumination 5W LED, Input Voltage 100V~240V	○	○	○	A56.265-5WLED
Power	ECO, Auto Power Off System. Power Off Automatically Upon User Leaving 10 Minutes, Power On Automatically Upon User Approaching Detected, This Function Can Be Shut Down Manually	●	●	●	A56.2660

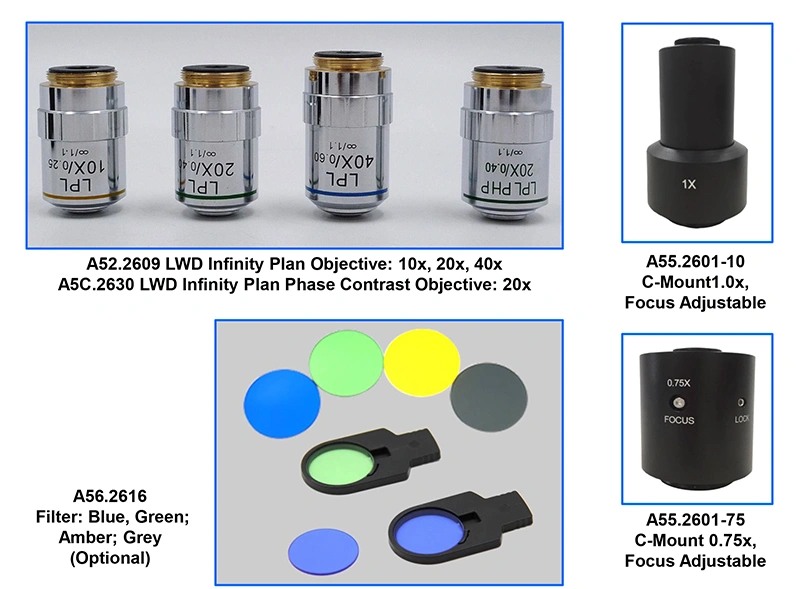

Filter	Blue, Dia.34mm	●	●	●	A56.2616-34B
	Green, Dia.34mm	●	●	●	A56.2616-34G
	Amber, Dia.34mm	○	○	○	A56.2616-34A
	Grey, Dia.34mm	○	○	○	A56.2616-34N
Adapter	Photo Adapter With 1.7x Photo Eyepiece,100% Light For Camera Port, For Canon SLR Digital Camera	●	●	●	A55.2622-BC17
	Photo Adapter With 1.7x Photo Eyepiece,100% Light For Camera Port, For Nikon SLR Digital Camera	○	○	○	A55.2622-BN17
	Photo Adapter With 2.5x Photo Eyepiece,100% Light For Camera Port, For Canon SLR Digital Camera With 1"CCD Sensor	○	○	○	A55.2622-BC25
	Photo Adapter With 2.5x Photo Eyepiece,100% Light For Camera Port, For Nikon SLR Digital Camera With 1"CCD Sensor	○	○	○	A55.2622-BN25
	C-Mount 0.5x, Focus Adjustable	○	○	○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable	○	○	○	A55.2601-75
	C-Mount1.0x, Focus Adjustable	○	○	○	A55.2601-10

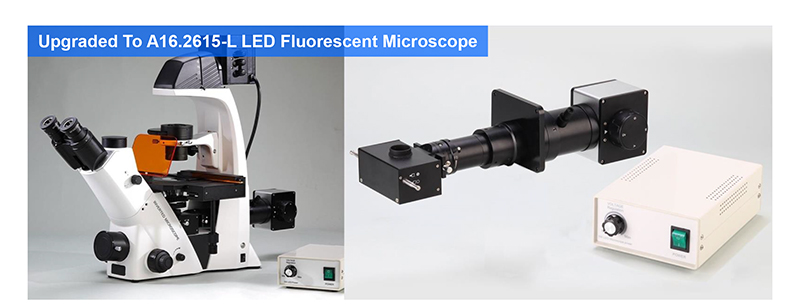

Fluorescence	Upgrade to A16.2615-L2 Inverted Fluorescence Microscope With: B,G China Fluorescent Filter 3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier	○	●	○	A5F.2604-2
Fluorescence	Upgrade to A16.2615-L4 Inverted Fluorescence Microscope With: B,G,U,UV China Fluorescent Filter 3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier	○	○	●	A5F.2604-4

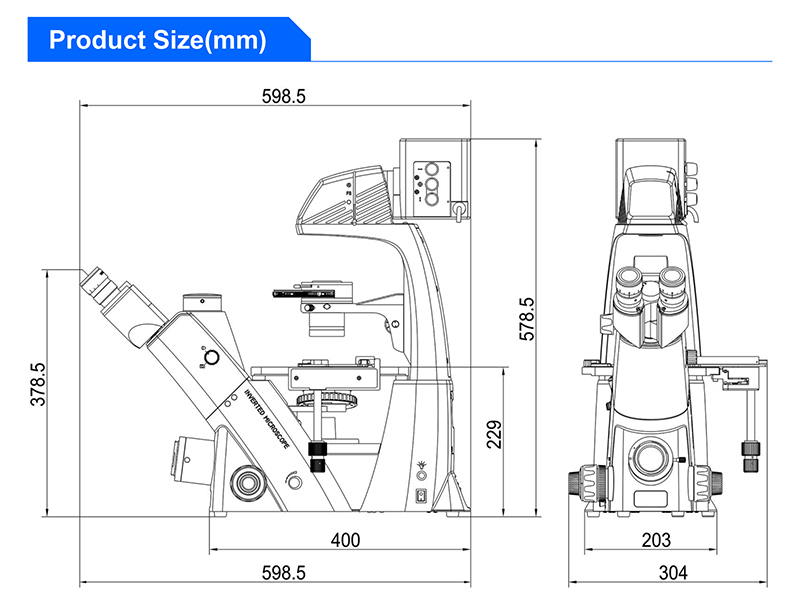

Package	Packing Size: 660mmx590mmx325mm
Weight	Gross Weight: 18 kgs, Net Weight: 13.5 kgs
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories.

Pictures Hide Same Show Difference
Model No.	A16.2615-L-2	A16.2615-L-4
Other Specification	Filter Blue&Green, Dia.34mm	——
Fluorescene	B,G China Fluorescent Filter, 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier Fluorescent Slide Unit 3 Holes, With Filter Diaphragm, Center Adjustable 5W LED B,G Lamp Each 1 pc	B,G,V,VU China Fluorescent Filter, 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier Fluorescent Slide Unit 3 Holes, With Filter Diaphragm, Center Adjustable 5W LED B,G,V,VU Lamp
Fluorescent Band	2 Bands	——
Phase Contrast	Centering telescope 11x Phase Contrast Annular 10x,20x/40x	Centering telescope 11x Phase Contrast Annular 10x,20x/40x
Power Supply	ECO, Auto Power Off System. Power Off Automatically Upon User Leaving 10 Minutes, Power On Automatically Upon User Approaching Detected, This Function Can Be Shut Down Manually	ECO, Auto Power Off System. Power Off Automatically Upon User Leaving 10 Minutes, Power On Automatically Upon User Approaching Detected, This Function Can Be Shut Down Manually
Power Supply Type	AC 110V-240V	——
Reflect Light	5W LED Fluorescent	5W LED Fluorescent
Transmit Light	12V50W Halogen	12V50W Halogen
Light Source Type	LED Halogen Fluorescent	Flourescent Halogen
Light Source Features	Halogen 50W LED 5W Transmit & Reflect Kohler	Halogen 30W LED 5W Transmit & Reflect Kohler
Condenser	4 Holes Rotating Disc Phase Contrast Condenser, W.D. 45mm, Up/Down Adjustable	4 Holes Rotating Disc Phase Contrast Condenser, W.D. 45mm
Condenser N.A.	0.4	0.4
Condenser Type	Phase Contrast	Phase Contrast
Condenser Features	Slot For PH Slide	Slot For PH Slide

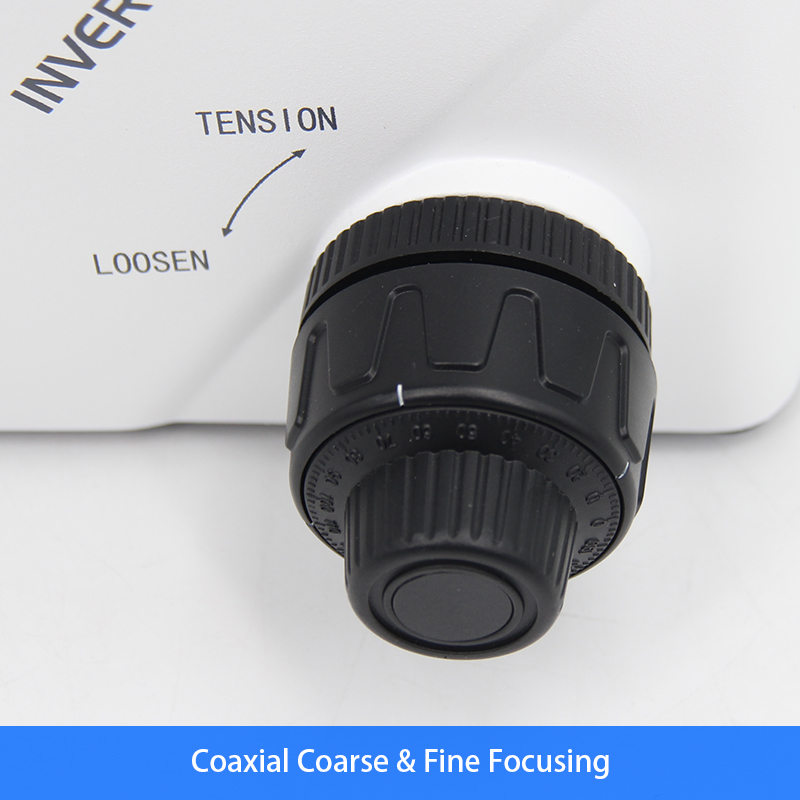

Focusing Type	Coaxial Coarse & Fine	——
Focusing Features	Tension Adjustable	Tension Adjustable
Working Stage	Round Slide Size, Dia. 110mm Culture Dish Holder 54mm	Round Slide Size, Dia. 110mm
Working Stage Moving	128x80mm	128x80mm
Working Stage Size	210x241mm	210x241mm
Working Stage Type	Fixed + Attachable	Fixed + Attachable
Working Stage Features	Size ≥140x180mm	Size ≥140x140mm
Objective	LWD Infinity Plan LPL 4x/0.11, W.D.=12.1mm LWD Infinity Plan Phase Contrast LPL Ph P 10x/0.25, W.D.=8.3mm LPL Ph P 20x/0.40, W.D.=7.2mm LPL Ph P 40x/0.60, W.D.=3.4mm	LWD Infinity Plan LPL 4x/0.11, W.D.=12.1mm LWD Infinity Plan Phase Contrast LPL Ph P 10x/0.25, W.D.=8.3mm LPL Ph P 20x/0.40, W.D.=7.2mm LPL Ph P 40x/0.60, W.D.=3.4mm
Objective Type	Infinity Plan Phase Contrast	Infinity Plan Phase Contrast
Objective Features	LWD	LWD
Nosepiece Holes	5 Holes	5 Holes
Eyepiece	WF10x/22mm, 2 pc.	WF10x/22mm, 2 pc.
Eyepiece Diameter	30.0mm	30.0mm
Eyepiece Features	Diopter Adjustable	Diopter Adjustable
Head Light Path	E100:P0/E20:P80	E100:P0/E20:P80
Head Interpupillary	48~76mm	48~76mm
Head Inclination	45°	——
Head Type	Seidentopf Trinocular	Seidentopf Trinocular
Standard Magnification	40x-400x	——
Optical System	Infinity Plan	Infinity Plan
Features	Infinity Dual Photo Port	Infinity Dual Photo Port ECO (Auto Power Off)
Standard Function	BF+FL+PH	——
Video Adapter	——	C-Mount 0.3x

Pictures

Hide Same

Show Difference

Inverted LED Fluorescent Microscope, Trinocular, B/G

Inverted LED Fluorescent Microscope, Trinocular, B/G/U/UV

Model No.

A16.2615-L-2

A16.2615-L-4

Other Specification

Filter Blue&Green, Dia.34mm

——

Fluorescene

B,G China Fluorescent Filter,
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
Fluorescent Slide Unit 3 Holes, With Filter Diaphragm, Center Adjustable
5W LED B,G Lamp Each 1 pc

B,G,V,VU China Fluorescent Filter,
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
Fluorescent Slide Unit 3 Holes, With Filter Diaphragm, Center Adjustable
5W LED B,G,V,VU Lamp

Fluorescent Band

2 Bands

——

Phase Contrast

Centering telescope 11x

Phase Contrast Annular 10x,20x/40x

Power Supply

ECO, Auto Power Off System.
Power Off Automatically Upon User Leaving 10 Minutes,
Power On Automatically Upon User Approaching Detected,
This Function Can Be Shut Down Manually

Power Supply Type

AC 110V-240V

——

Reflect Light

5W LED Fluorescent

Transmit Light

12V50W Halogen

Light Source Type

LED
Halogen
Fluorescent

Flourescent
Halogen

Light Source Features

Halogen 50W
LED 5W
Transmit & Reflect
Kohler

Halogen 30W
LED 5W
Transmit & Reflect
Kohler

Condenser

4 Holes Rotating Disc Phase Contrast Condenser, W.D. 45mm, Up/Down Adjustable

4 Holes Rotating Disc Phase Contrast Condenser, W.D. 45mm

Condenser N.A.

0.4

Condenser Type

Phase Contrast

Condenser Features

Slot For PH Slide

Focusing Type

Coaxial Coarse & Fine

——

Focusing Features

Tension Adjustable

Working Stage

Round Slide Size, Dia. 110mm Culture Dish Holder 54mm

Round Slide Size, Dia. 110mm

Working Stage Moving

128x80mm

Working Stage Size

210x241mm

Working Stage Type

Fixed + Attachable

Working Stage Features

Size ≥140x180mm

Size ≥140x140mm

Objective

LWD Infinity Plan

LPL 4x/0.11, W.D.=12.1mm

LWD Infinity Plan Phase Contrast

LPL Ph P 10x/0.25, W.D.=8.3mm

LPL Ph P 20x/0.40, W.D.=7.2mm

LPL Ph P 40x/0.60, W.D.=3.4mm

Objective Type

Infinity Plan
Phase Contrast

Objective Features

LWD

Nosepiece Holes

5 Holes

Eyepiece

WF10x/22mm, 2 pc.

Eyepiece Diameter

30.0mm

Eyepiece Features

Diopter Adjustable

Head Light Path

E100:P0/E20:P80

Head Interpupillary

48~76mm

Head Inclination

45°

——

Head Type

Seidentopf Trinocular

Standard Magnification

40x-400x

——

Optical System

Infinity Plan

Features

Infinity
Dual Photo Port

Infinity
Dual Photo Port
ECO (Auto Power Off)

Standard Function

BF+FL+PH

——

Video Adapter

——

C-Mount 0.3x
