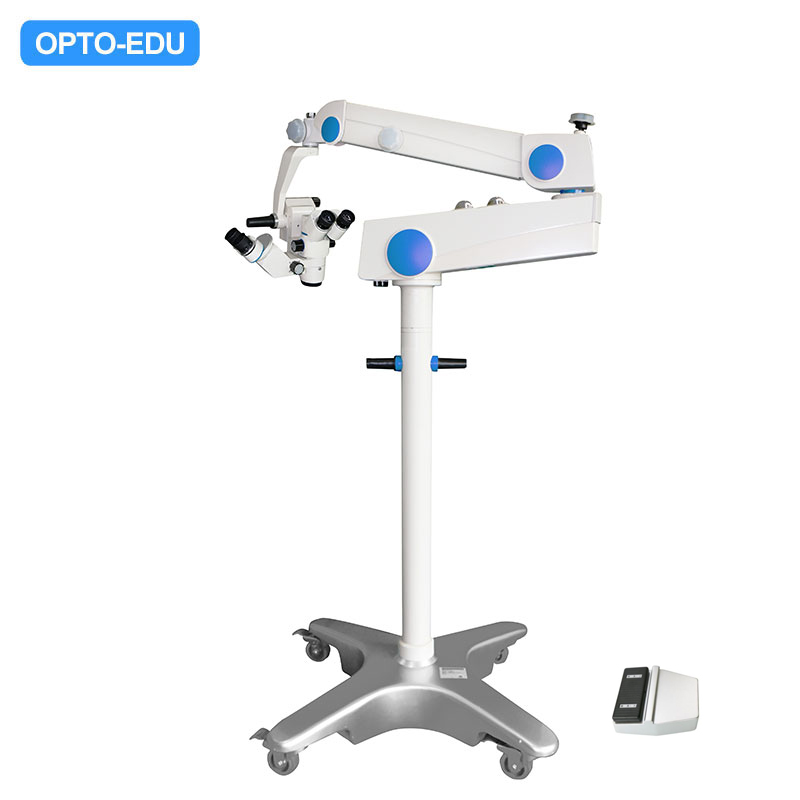

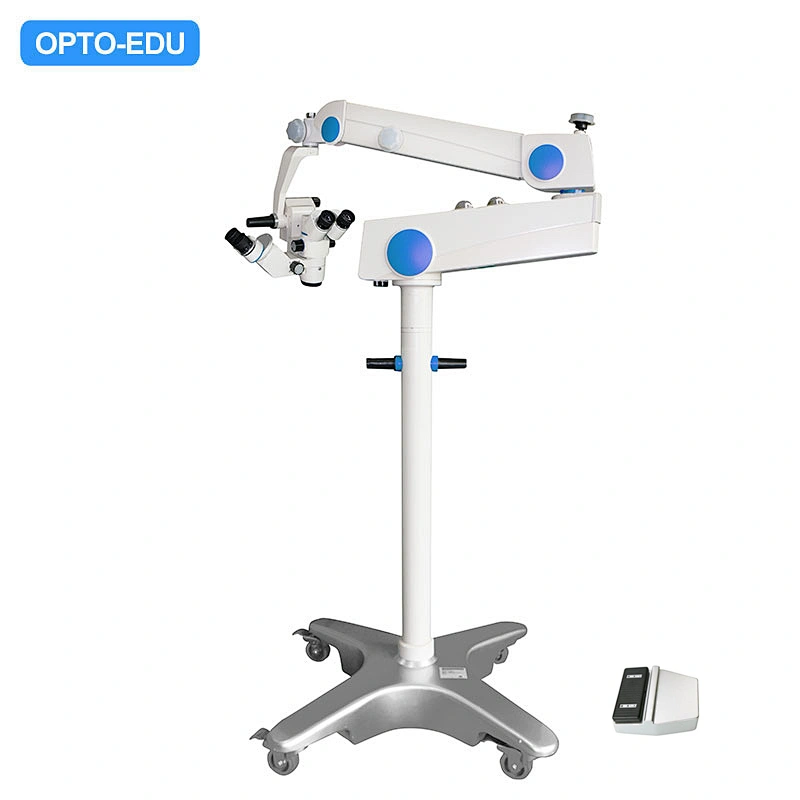

| A41.1931 Operating Microscope, Dual Head, Manual 3 Step, 6x10x16x, 2 Function Foot Switch, Para sa Ophthalmology Ang A41.1931 operation microscope ay gumagamit ng mataas na resolution at high definition na optical system, malakas na stereo sense, malaking depth of field, cold light source single fiber coaxial lighting, bright field brightness, foot controlled auto fretting focus, manual four gear times, the same sight field ng parehong hand mirror, visual, telebisyon at video photography. Ophthalmology, Kagawaran ng ENT at iba pang microsurgery at demonstrasyon sa pagtuturo. ● Dual Head 90° Opposite, With Red Reflection & Macular Protector, Para sa Ophthalmology ● Eyepiece 12.5x, 3 Steps Manual Zoom, Manification 6x10x16x, View Field Dia. 34,20,13mm ● Layunin F=200mm, 2nd Layunin F=125mm, Halogen Cold Light, Max Brightness 60000Lux ● 2 Function na Foot Switch, Motorized Zoom, Four Wheels Stand, Max Extend Range 1100mm ● Four Wheels Stand Swing Angle ng Carry Arm 0~300°, Taas Mula Objective hanggang Floor 800mm |
| Sistema ng Camera I-configure ang pagpapatakbo ng wireless mouse, nang walang computer, libreng access sa mga high definition na larawan. Ang interface ng produkto ay mayaman, ang HDMI at USB ay sabay-sabay na output, ang mga high speed na SD card ay nakuhanan ng larawan o nai-record na video. Kasabay nito, mayroon itong parehong screen image contrast, HDR (wide dynamic), image freezing, image inversion, digital amplification at iba pang function. Ito ay malawakang ginagamit sa video conferencing, telemedicine, micrograph, video projection at iba pang larangan. |
| A41.1931, A41.1932, A41.1935 Surgical Operation Microscope | |||
| A41.1931Operating Microscope, ayPinakamahusay na Pagpipilian para sa Operasyon ng Ophthalmology.Mayroon itong dalawang ulo na parehong inclined 45°, gamit ang fiber-optic cable para sa coaxial illumination hanggang 60000 lux, manual 3 steps zoom body, kabuuang magnification 6x,10x,16x, standard objective F=200mm, opsyonal na layunin F=175mm, 250mm, 300mm, 350mm, 400mm, 450mm. Itinatampok na may 2 function na foot switch upang kontrolin ang naka-motor na Z focus, malawak itong ginagamit sa ospital para sa Ophthalmology. | |||
| A41.1932ay upgraded na bersyon, na may 6 na function na foot switch upang kontrolin ang motorized X/Y move, Z focus. | |||
| A41.1935ay ang pinakamataas na modelo sa seryeng ito, na may motorized zoom 4.5x~27.3x na layunin, dual fiber halogen fiber light 100000 lux, 8 function na foot switch para kontrolin ang motorized X/Y move, Z focus at Zoom. | |||
| Lahat ng 3 modelo ay maaaring mag-upgrade gamit ang opsyonal na beam splitter, SLR camera adapter, phone holder, CCD adapter para sa digital camera, para sa pagbabahagi ng real time na imahe sa LCD monitor, mobile phone o computer. | |||
| Mga Tampok: | |||
| --Dual Head 90° Opposite, With Red Reflection & Macular Protector, Para sa Ophthalmology | |||
| --Eyepiece 12.5x, 3 Steps Manual Zoom 6x10x16x, o Continuous Zoom 4.5x~27.3x | |||
| --Layunin F=200mm, 2nd Layunin F=125mm, Halogen Cold Light, Max Liwanag 60000 Lux hanggang 100000 Lux | |||
| --2 Function, 6 Function, 8 Function Foot Switch, Control X/Y Movie, Z Focus, Zoom | |||
| --Four Wheels Stand Swing Angle ng Carry Arm 0~300°, Taas Mula sa Layunin hanggang Sahig 800mm | |||
| A41.1931 | A41.1932 | A41.1935 | |
| Pangunahing Paggamit | May Red Reflection at Macular Protector, Para sa Ophthalmology | ||
| Eyepiece | WF12.5x | ||
| Ulo | Dalawahang Ulo Para sa Dalawang Taong Operasyon, Sa tapat Sa 90°, | ||
| Interpupillary Distansya 55~75mm, Parehong Kaliwa at Kanan Eyetube Diopter Adjustable ±6D | |||
| Pangunahing Ulo | Nakahilig 45° | Nakahilig 45° | Nakahilig 30°~90° |
| Pagpapalaki | 3 Hakbang 6x, 10x, 16x | 3 Hakbang 6x, 10x, 16x | 4.5x~27.3x Patuloy na Pag-zoom |
| Tingnan ang Field | Dia.34mm, 20mm, 13mm | Dia.34mm, 20mm, 13mm | Dia.44~7.7mm |
| Zoom Body | 1:6 Motorized Continuous Zoom, Parallel Light System | ||
| Assistant Head | Nakahilig 45° | ||
| Pagpapalaki | 3 Hakbang 6x, 10x, 16x | 3 Hakbang 6x, 10x, 16x | 3 Hakbang 6.5x, 10.8x, 17.3x |
| Tingnan ang Field | Dia.34mm, 20mm, 13mm | Dia.34mm, 20mm, 13mm | Dia.30.5mm, 18.3mm, 11.4mm |
| Pangunahing Layunin | F=200mm, Opsyonal F=175mm, 250mm, 300mm, 350mm, 400mm, 450mm | ||
| Assistant Obj. | F=125mm | ||
| Focus | Motorized Focus, Saklaw +/-50mm, Bilis 33s/Buong Distansya | ||
| Kontrolin | 2 Function na Foot Switch, | 6 na Function na Foot Switch, | 8 Function na Foot Switch, |
| Kontrolin ang Z Focus | Kontrolin ang X/Y Move, Z Focus | Kontrolin ang X/Y Move, Z Focus, Zoom | |
| Tumayo | Four Wheels Moving Stand | ||
| --Max na Pinalawak na Haba 1100mm | |||
| --Max Rotatable Swing Angle ng Arm 0~300° | |||
| --Distansya sa Pagitan ng Layunin At Ground Surface 800mm~1250mm | |||
| Pag-iilaw | Optical Fiber Coaxial Halogen Cold Light, | Dual Optical Fiber Coaxial Halogen Cold Light, | |
| Light Spot Dia.50mm, Intensity 60000 Lux. | Light Spot Dia.50mm, Intensity 100000 Lux. | ||
| Pag-iimpake | 3 Karton Kabuuang GW 104Kg, Dami 0.3462CBM | 4 Karton Kabuuang GW 165Kg Dami 0.45CBM | |
| Ulo: 595×460×230(mm)/14kg | Ulo：595×460×230(mm)/14KG | ||
| Katawan: 1180*535*230 (mm)/45kg | Katawan：890×650×265(mm)/41KG | ||
| Stand:775*775*230(mm)/45kg | Kontrol：1025×260×300(mm)/32KG | ||
| Stand：890×865×200(mm)/78KG | |||
| Sukat | 138*50*170mm |
| Timbang | 0.5kg |
| Mga Kondisyon sa Imbakan at Operasyon | Temperatura:+10℃ Hanggang +40℃ |
| Sterility | I-sterilize Bago Gamitin |
| Mga materyales | Mga Materyales ng Surgical Grade |
| Condenser Lens Assembly | Manwal |
| Yunit sa Pagpoposisyon ng Lens | Rotational Assembly |
| Mga lente | 130° |
| 90° | |
| Mga Mounting Kit | Zeiss |
| Leica | |
| Topcon | |
| Takagi |
