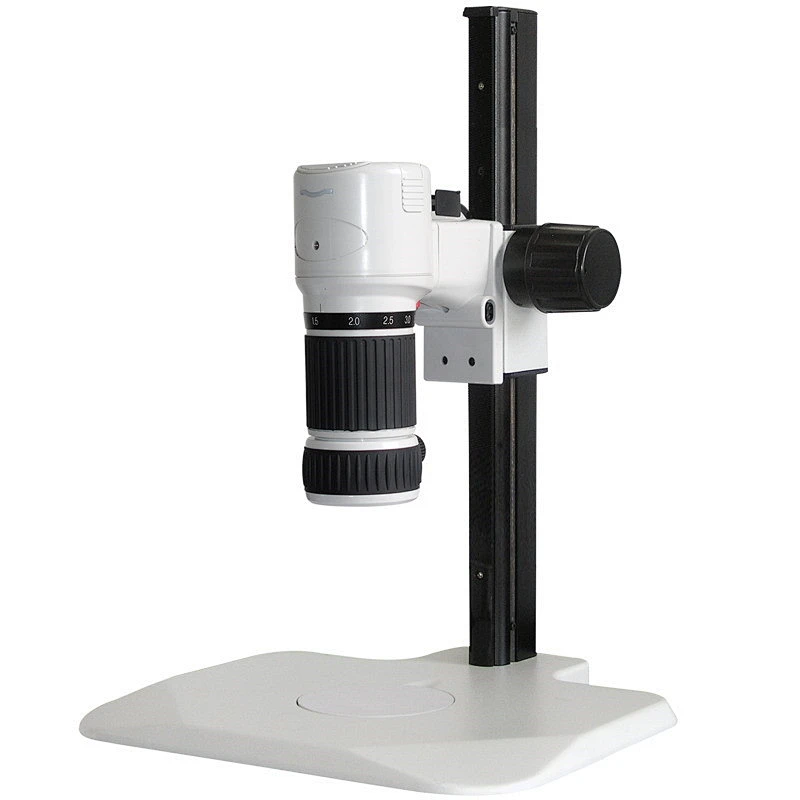

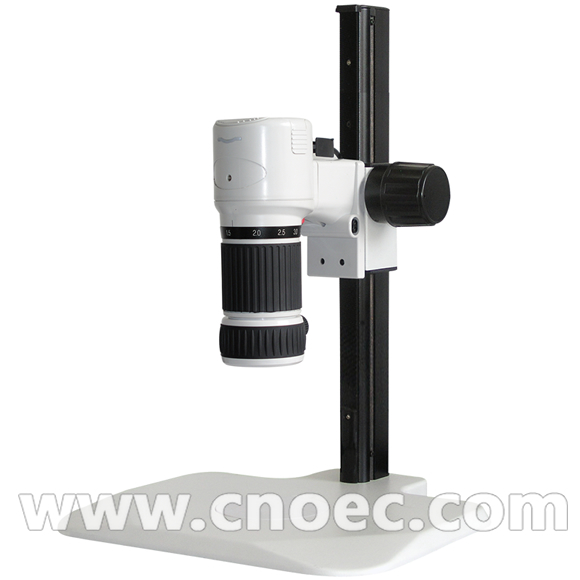

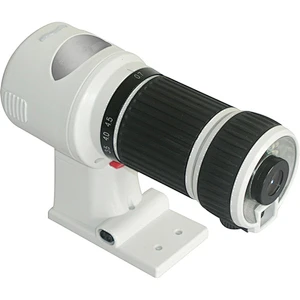

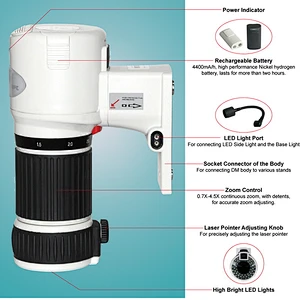

A32.0601-200 Digital Video Zoom Specification | ||
Optical Magnification | 0.7x-4.5x | |
Zoom Ratio | 1:6.5 | |
Built-in Photo Lens | 0.5x | |
Total Magnification | 4.7x-1000x (with 14"Monitor, 0.3x and 10x objective optional) | |
Semi-plan Ach.Objective | 0.3x, 0.5x, 0.75x, 1.5x and 2x (optional) | |
High-Power Objective Lens | 5x and 10x (optional) | |
Image Sensor | 3.0M pixel 1/2"color CMOS | |
Pixel Size | 3.2um x 3.2um | |
Spectrum Response | 400nm-1000nm | |
Scanning Type | Progressive scanning | |
Exposal Type | ERS | |
Resolution | 2048×1536（3.0M） | |
Transmission Rate | 6f/s@2048×1536（3.0M） | |
White Balance | Automatic/Manual | |
Exposal Control | Automatic/Manual | |
Image Output | USB2.0, 480Mb/s | |
| Function | Image capture, video recording and measuring function | |
| Laser Pointer | Wave length: 650nm | |
| Working Temperature | 0-50 degree | |
| Minimum System Requirement | Windows 2000, XP and Vista Operation System | |
| PIII 800 CPU or above | ||
| 256MB Memory or above | ||
| 64MB video memory or above | ||
| USB2.0 interfaces | ||
| 1024*768 resolution monitor or above | ||
Dimensions of Body | 212x90x148mm | |
| Weight of Body | 1.235kg/2.723Ib | |
| Stand | 76mm track stand | |
Optional Accessories | ||
Objectives | 0.3x, Semi-Plan, Outer Dia.30mm, W.D.331mm | A52.0626-03 |
| 0.5x, Semi-Plan, Outer Dia.30mm, W.D.198mm | A52.0626-05 | |
| 0.75x, Semi-Plan, Outer Dia.30mm, W.D.131mm | A52.0626-75 | |
| 1.5x, Semi-Plan, Outer Dia.30mm, W.D.63mm | A52.0626-15 | |
| 2.0x, Semi-Plan, Outer Dia.30mm, W.D.46mm | A52.0626-20 | |
| 5x Infinity corrected long working distance objective | A52.0627-5 | |
| 10x Infinity corrected long working distance objective | A52.0627-10 | |
Illumination Accessories | Iris Diaphragm | A56.0606 |
| LED side light | A56.0607 | |
Tripod & Accessories | Tripod,Full Size, 3.5Kgs, with Panhead. | A50.0604-11 |
| Tilt Ball Head | A50.0604-12 | |
| Super Mag Slider, Made of Magnesium Alloy | A50.0604-13 | |
| Extension Bar, Total Length 600mm | A50.0604-14 | |
| Laptop Tray | A50.0604-15 | |
| Tilt Ball Head Adapte | A50.0604-16 | |
| Polarizing Microscope | Polarizer | A5P.0602 |
Rechargeable Battery | 4.8V 2200mA/h, Nickel hydrogen battery | A50.0602 |
| Battery Charger, Input Voltage 100-240V 50/60Hz, Output Voltage 6.0-6.5V, Current 250-350mA | A50.0602-R | |
