What is Comparison Microscope? Comparison Microscope, also known as Forensic Microscope. A comparison microscope consists of two separate microscope heads, each with its own viewing eyepiece, objective lens, and light source. The two heads are connected by a bridge, which allows the specimens to be viewed side-by-side in the same field of view. The two specimens are usually placed on separate stages, which can be adjusted independently to allow for precise comparison. It is an important instrument mainly used in forensic labs, security printing works, banks, industry quality control dept., for comparison investigation of bullets & cartridges case, tool marks, currency, coins, banknotes, documents, stamps, seals, fingerprint, fiber, and more small evidence.

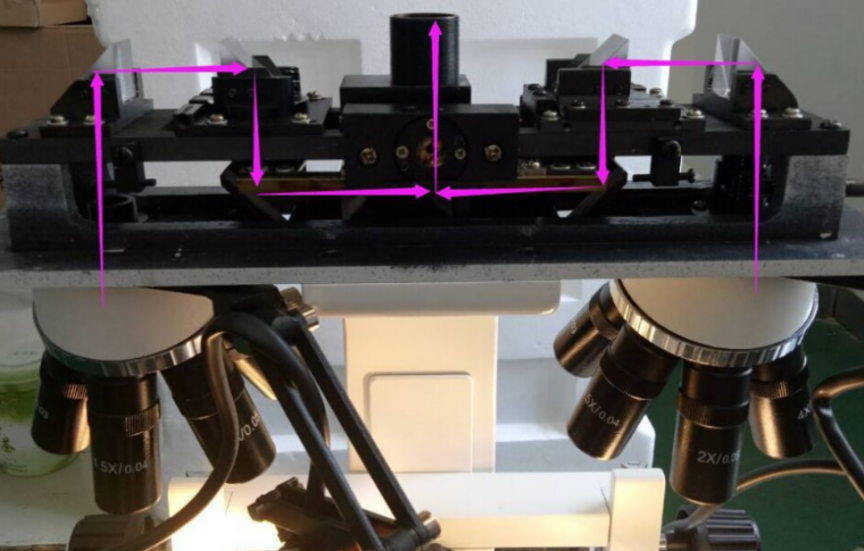

 In the comparison microscope, the most important part is optical bridge. As shown in the picture below, it can bring two separate optical light paths into one view field, combining two images into one view field, enabling users to view both objects at the same real time, under same magnification, similar illumination conditions.

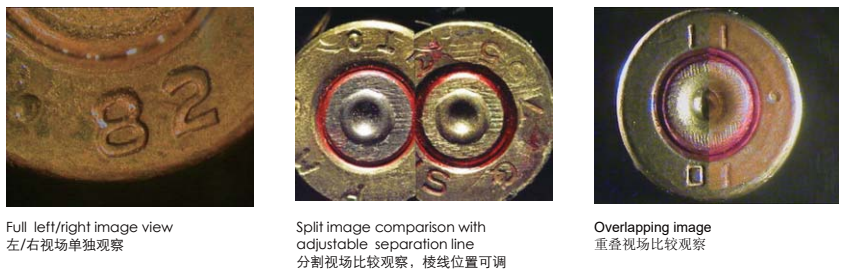

 Through the two separate optical systems of the instrument, you can view the individual full left or full right object, or compare the two objects in split-image and overlapping image, in the same view field, to find out the micro difference between them.

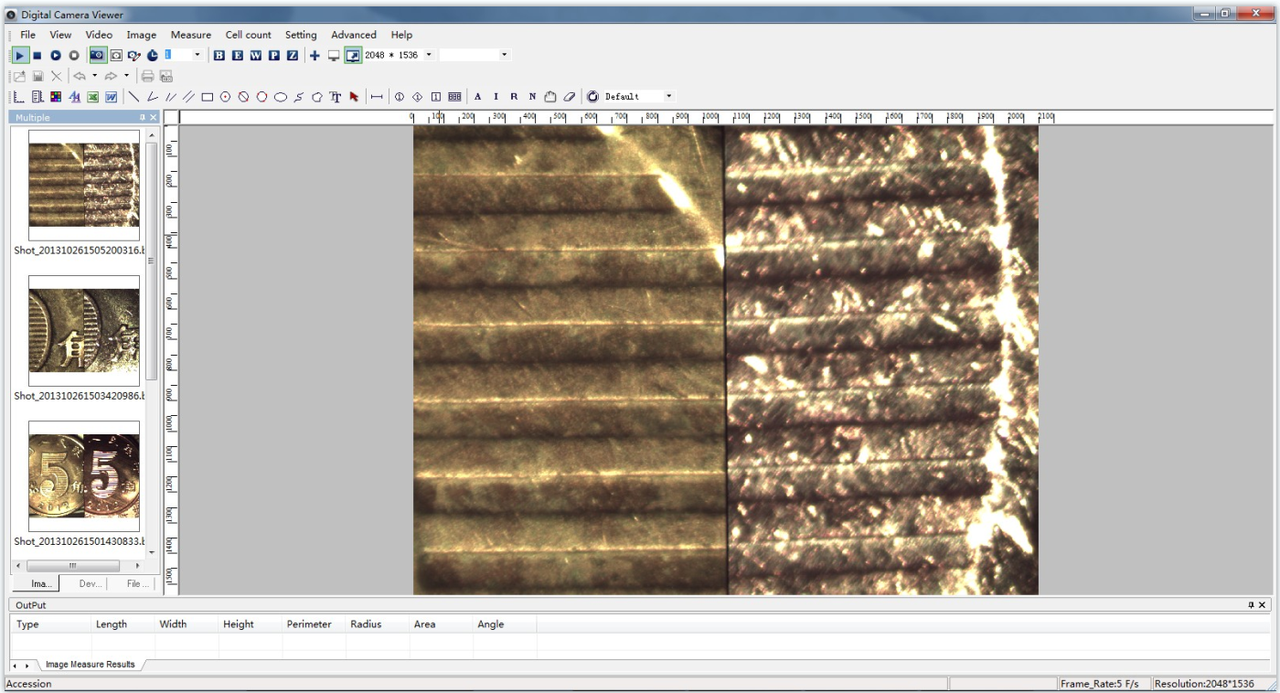

 Modern technologies have made many improvements to the basic comparison microscope. We also supply professional comparison image analysis software, and digital cameras, LCD screens, which can show real time images to all people for teaching or demostration. With digital cameras and professional crime image analysis software, it can provide multiple functions for comparing images on a computer.
 Comparison microscope is important in law enforcement, in the fields of criminal forensics and ballistics analysis. It allows bullets and bullet fragments as well as other forensic evidence to be compared with each other, which can be used to prove guilt or to exonerate a suspect in some crimes. The instrument is mainly used in forensic labs, security printing works, banks, industry quality control dept, for comparison investigation of bullets & cartridges case, tool marks, currency, coins, banknotes, documents, stamps, seals, fingerprint, fiber, and more small evidence.
 Comparison microscopes are often used to compare two bullets or other small projectiles to determine if they were fired from the same firearm. They can also be used to compare fibers, hairs, and other materials to determine if they came from the same source. In forensic science, comparison microscopes are an important tool for identifying and linking evidence to specific individuals or sources.
 In addition to forensic science, comparison microscopes are also used in a variety of other fields, including materials science, geology, and archaeology. They can be used to compare the properties and characteristics of two different samples, providing valuable insights into their origins and behavior.
|
