A33.3733-5.0M

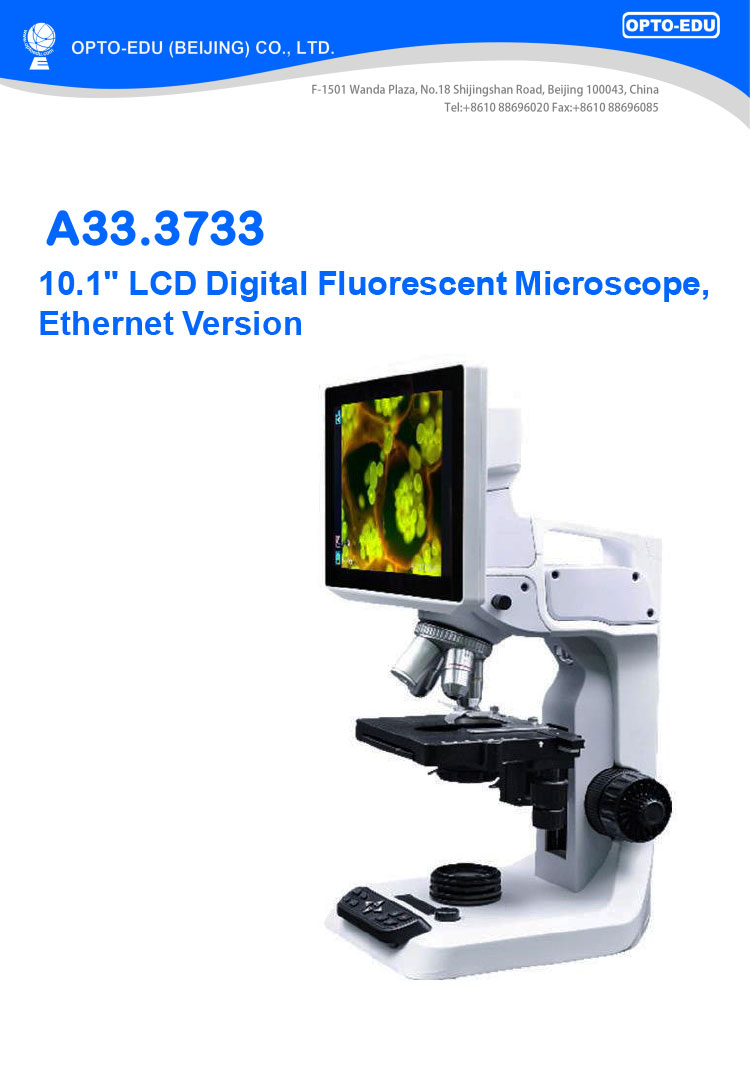

Like Favorites10.1" LCD Digital Fluorescent Microscope, Ethernet Version
- Built-in 8G Memory For Picture & Video Capture, Output To USB And WIFI
- With Ethernet Connection Port & Interactive Software For Teaching
- Fluorescent + Biological Infinity Plan 4x10x40x100x + Stereo 1x Lens Low Power Combined In One
- Up & Bottom LED Light Source For All Specimen View

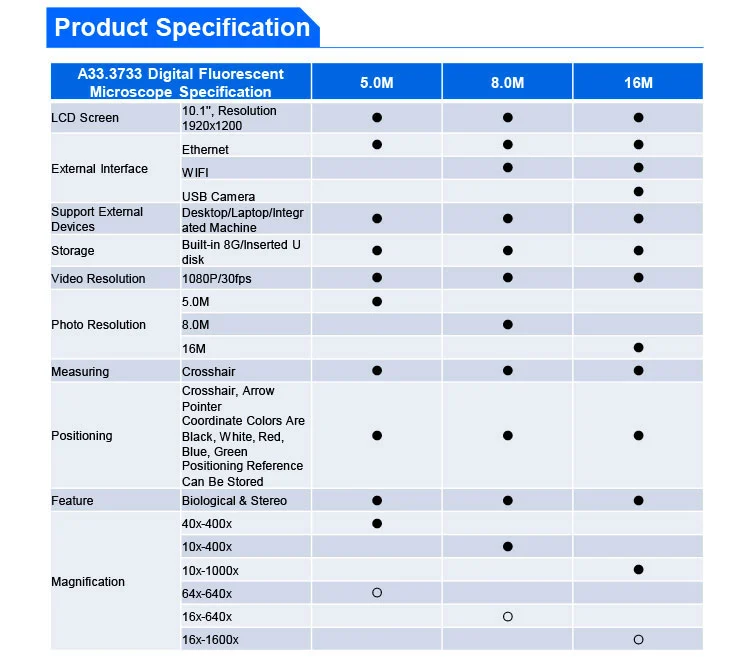

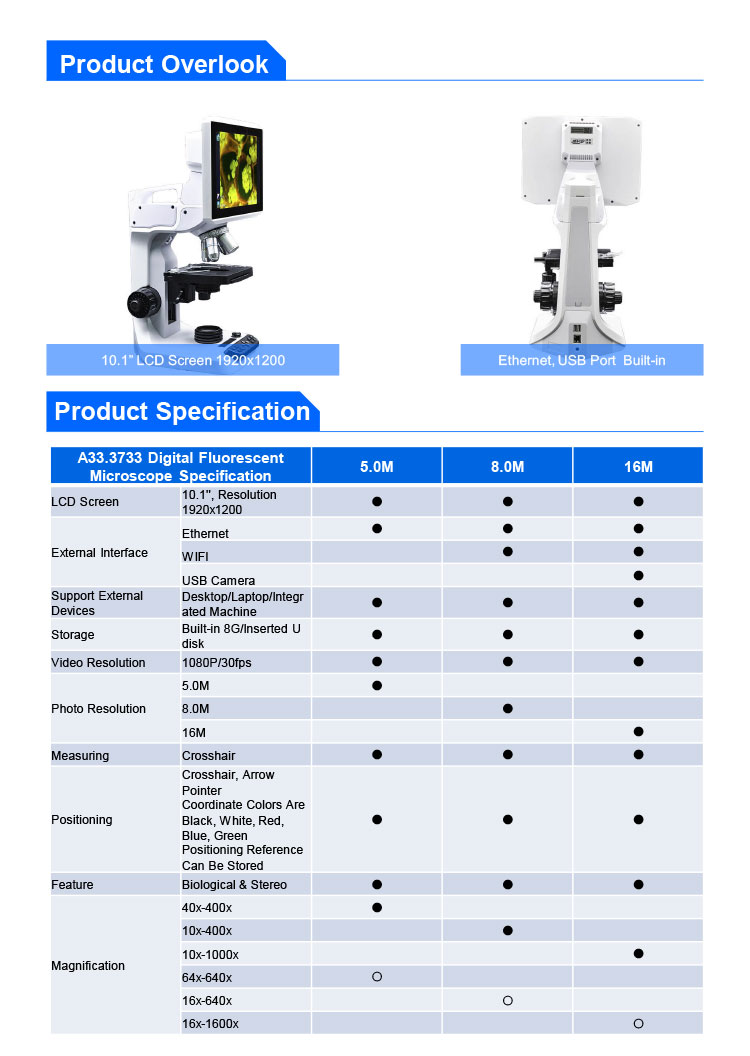

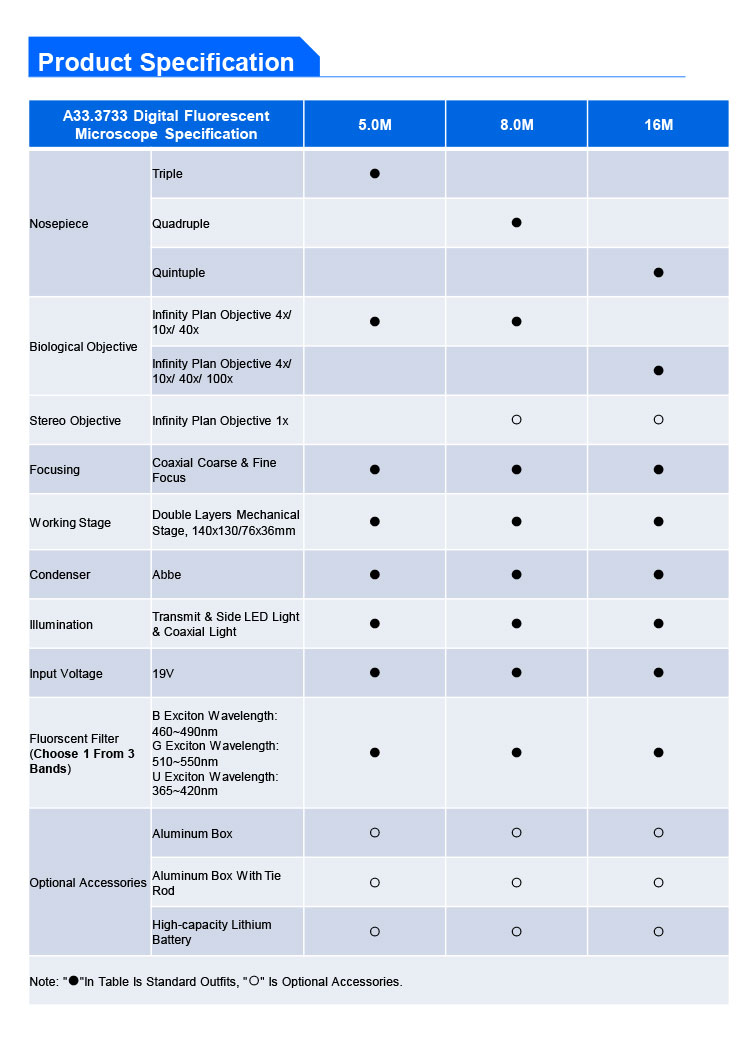

Specification:
|
Pictures
|
|
|
|
|
|---|---|---|---|---|
| Model No. | A33.3733-5.0M | |||
|
Other Specification
|
Function Key Panel | —— | —— | |
|
Optional Accessory
|
Aluminum Box | —— | —— | |
|
Camera Output
|
Ethernet USB Hard Disk |
Ethernet USB Hard Disk 4G WIFI USB2.0 |
Ethernet USB Hard Disk 4G WIFI |
|
|
Camera Screen Size
|
10.1" | 10.1" | 10.1" | |
|
Camera Pixel
|
5.0MP | 16MP | 8.0MP | |
|
Fluorescene
|
Fluorescent Filter 1 Band Choose From B(460~490nm), G(510~550nm), U(365~420nm), | Fluorescent Filter 1 Band Choose From B(460~490nm), G(510~550nm), U(365~420nm), | Fluorescent Filter 1 Band Choose From B(460~490nm), G(510~550nm), U(365~420nm), | |
|
Power Supply
|
Input Voltage 19V | —— | —— | |
|
Power Supply Type
|
AC 110V/220V Optional | AC 110V/220V Optional | AC 110V/220V Optional | |
|
Reflect Light
|
LED | LED | LED | |
|
Transmit Light
|
LED | LED | LED | |
|
Light Source Type
|
LED Fluorescent |
LED Fluorescent |
LED Fluorescent |
|
|
Light Source Features
|
Transmit & Reflect Coaxial |
Transmit & Reflect Coaxial |
Transmit & Reflect Coaxial |
|
|
Condenser Type
|
Abbe | Abbe | Abbe | |
|
Focusing Type
|
Coaxial Coarse & Fine | Coaxial Coarse & Fine | Coaxial Coarse & Fine | |
|
Working Stage Moving
|
76x36mm | 76x36mm | 76x36mm | |
|
Working Stage Size
|
140x130mm | 140x130mm | 140x130mm | |
|
Working Stage Type
|
Double Layers Mechanical | Double Layers Mechanical | Double Layers Mechanical | |
|
Objective
|
Infinity Plan 4x10x40x | Infinity Plan 4x10x40x100x + Stereo 1x | Infinity Plan 4x10x40x + Stereo 1x | |
|
Objective Type
|
Infinity Plan CMO (Stereo) |
Infinity Plan CMO (Stereo) |
Infinity Plan CMO (Stereo) |
|
|
Nosepiece Holes
|
3 Holes | 5 Holes | 4 Holes | |
|
Standard Magnification
|
40x-400x | 10x-1000x | 10x-400x | |
|
Optical System
|
Infinity Plan | Infinity Plan | Infinity Plan | |
|
Features
|
—— | Biological + Stereo | Biological + Stereo | |
|
Standard Function
|
BF+FL | BF+FL | BF+FL | |
|
New Product Year
|
2019 | 2019 | 2019 |
