A11.1002-B

Like Favorites

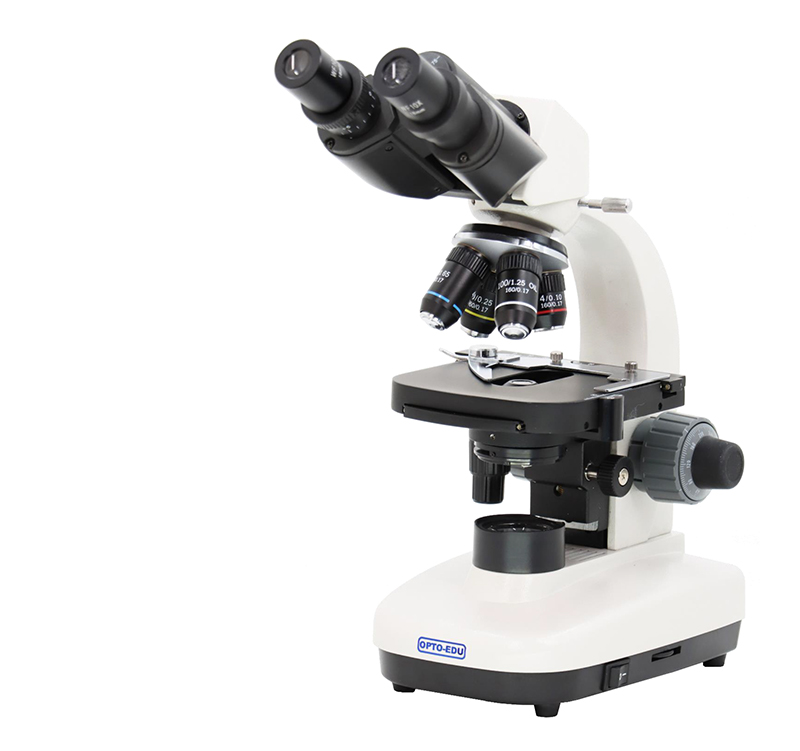

Binocular Biological Microscope

Compact Design Student Biological Microscope

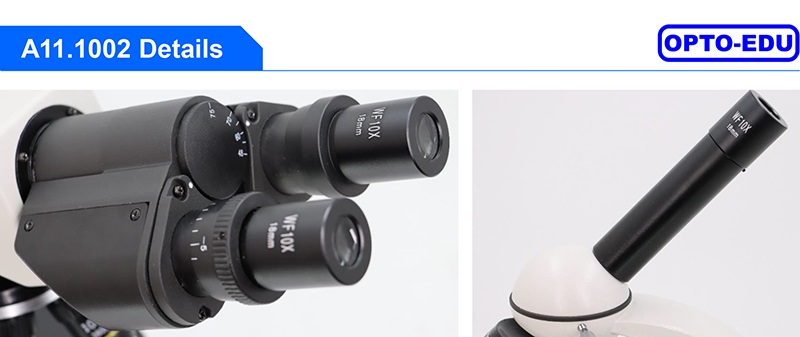

Monocular, Binocular Head Available, With WF10x/18mm Eyepiece

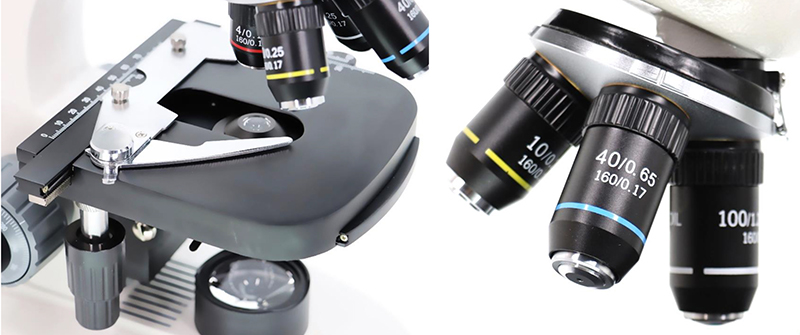

Quadruple Nosepiece With Achromatic Objective 4x10x40x100x
Attachable Mechanical Stage, Double Layer Mechanical Stage Optional
Coaxial Coarse & Fine Focuing, S-LED Illumination, Brightness Adjustable

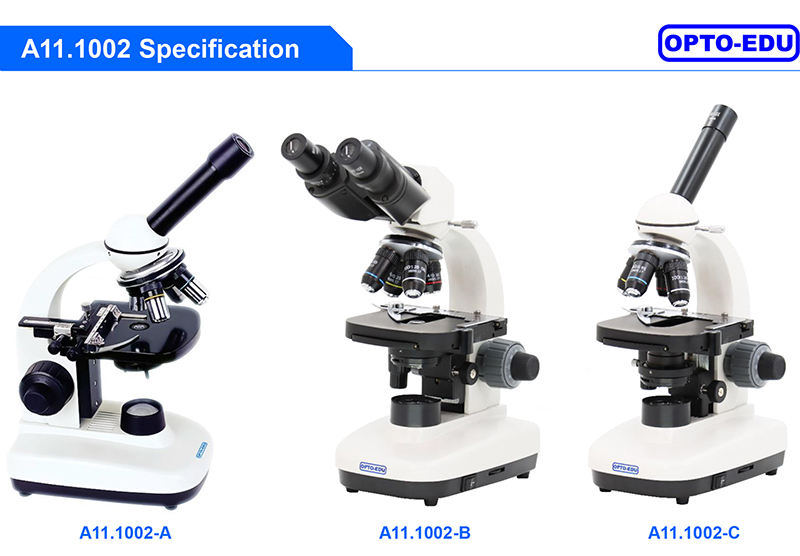

Specification:

A11.1002-C

A11.1002-A

A11.1002-B

Binocular Head, Inclined 30° for A11.1002-B

Monocular Head, Inclined 45°for A11.1002-A/C

Double Layer Mechanical Stage for A11.1002-B/C

Achromatic Objective 4x,10x,40x,100x

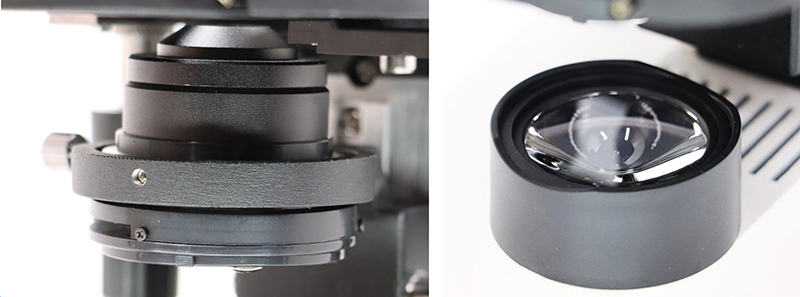

Abbe N.A.1.2 With Iris

S-LED Illumination, Brightness Adjustable

A11.1002 Biological Microscope		A	B	C
Head	Monocular Head, Inclined 45°	●		●
Head	Binocular Head, Inclined 30°		●
Eyepiece	Wide Field Eyepiece WF10x/18	●	●	●
Objective	Achromatic Objective 4x	●	●	●
	Achromatic Objective 10x	●	●	●
	Achromatic Objective 40x	●	●	●
	Achromatic Objective 100x	●	●	●
Nosepiece	Quadruple Nosepiece	●	●	●
Focusing	Coaxial Coarse & Fine Focusing, Fine Division 0.004mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.4mm Per Rotation, Moving Range 24mm	●	●	●
Stage	Attachable Mechanical Stage, Size 110120mm,Moving Range 6030mm	●
Stage	Double Layer Mechanical Stage, Size 125120mm,Moving Range 6030mm		●	●
Condenser	Abbe NA1.2 With Iris, Spiral Up & Down	●
Condenser	Abbe N.A.1.2 With Iris, Rack & Pinion Adjustment		●	●
Illumination	S-LED Illumination, Brightness Adjustable	●	●	●
Filter	Blue Filter	●	●	●
Filter	Green Filter	●	●	●
Optional Accessories		Item No.
Head	Duel Viewing Head	A53.1003-1
Eyepiece	Wide Field Eyepiece P16x	A51.1002-16
IIlumination	Plan-concave Mirror	A56.1001-1

Pictures Hide Same Show Difference
Model No.	A11.1002-B	A11.1002-C
System Support	Iris Diaphragm	Iris Diaphragm
Power Supply	S-LED	S-LED
Power Supply Type	110/220V Optional	110/220V Optional
Reflect Light	None	None
Transmit Light	LED	LED
Light Source Type	LED	LED
Light Source Features	Brightness Adjustable	Brightness Adjustable
Condenser N.A.	1.20	1.20
Condenser Type	Abbe	Abbe
Condenser Features	Rack & Pinion Up/Down With Iris Diaphragm	Rack & Pinion Up/Down With Iris Diaphragm
Focusing Scale	0.004000	0.004000
Focusing Range	24.000000	24.000000
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Working Stage Moving	60*30	60*30
Working Stage Size	125*120	125*120
Working Stage Type	Double Layer Mechanical	Double Layer Mechanical
Objective Type	Achromatic	Achromatic
Nosepiece Holes	4 Holes	4 Holes
Nosepiece Features	Outward	Outward
Eyepiece	WF10x/18mm, 2 pcs	WF10x/18mm, 2 pcs
Eyepiece Features	Wide Field	Wide Field
Head Diopter	None	——
Head Interpupillary	55~75mm	——
Head Rotation	360°	360°
Head Inclination	30°	45°
Head Type	Seidentopf Binocular	Monocular
Standard Magnification	40x-1000x	40x-1000x
Optical System	Achromatic	Achromatic
Upgrade Function	Blue & Green Filter	Blue & Green Filter
