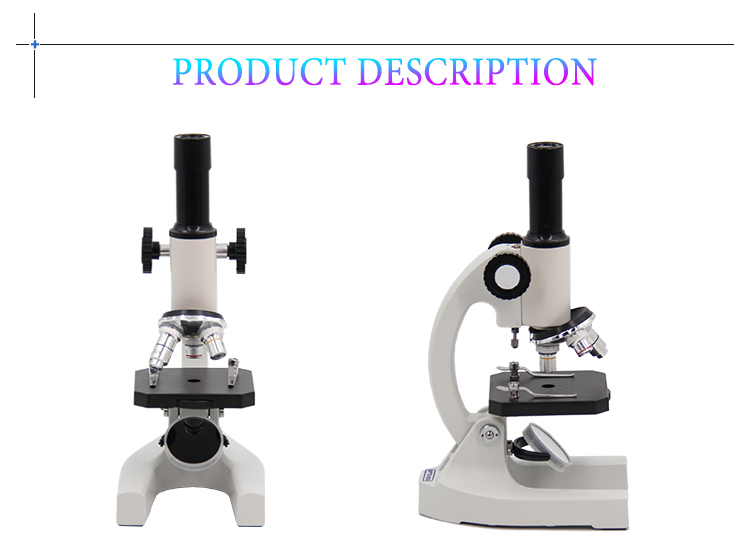

Student Biological Microscope, Vertical Monocular Head, Coarse Focus


  • Monocular Vertical Head, Whole Body Inclination Adjustable
  • 40x~400x, WF10x Eyepiece, Achromatic 4x, 10x, 40x Objective
  • Coarse Focusing Knob, Single Layer Stage
  • Single Lens Condenser With Disc Diaphragm
  • Plan-Concave Mirror Dia. 40mm
Quantity:

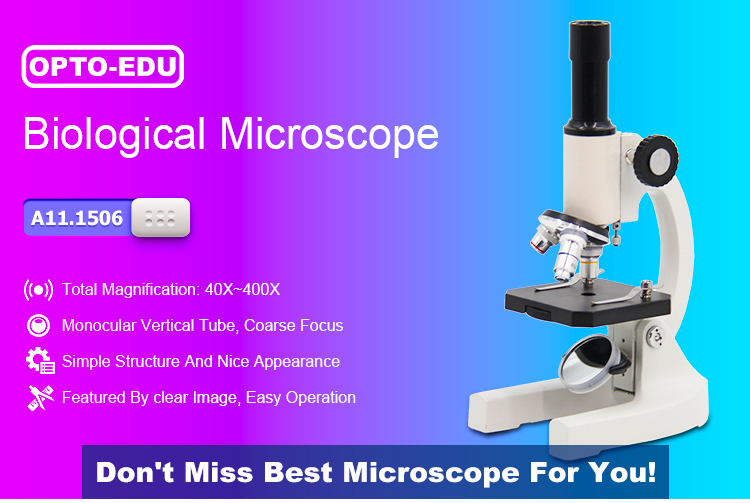

The Biological Microscope Model A11.1506, Can Be Used In Teaching Experiment For Primary And Secondary Schools. It Is Featured By Clear Image, Easy Operation, Simple But Reliable Structure And Nice Appearance. Stration And Other Occasions.

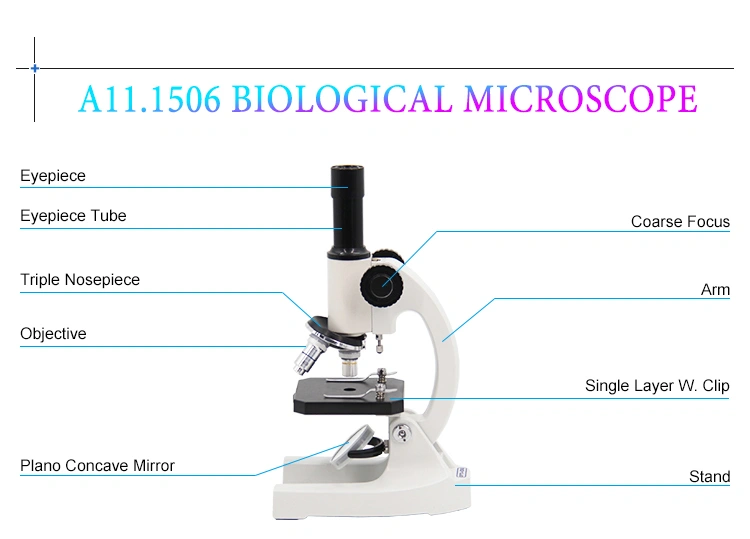

A11.1506 Student Biological Microscope A1A2A3
Total Magnification40x~400x
Main BodyFull Metal Solid Body, Arm Inclination Adjustable Freely
HeadMonocular Vertical Head Tube-

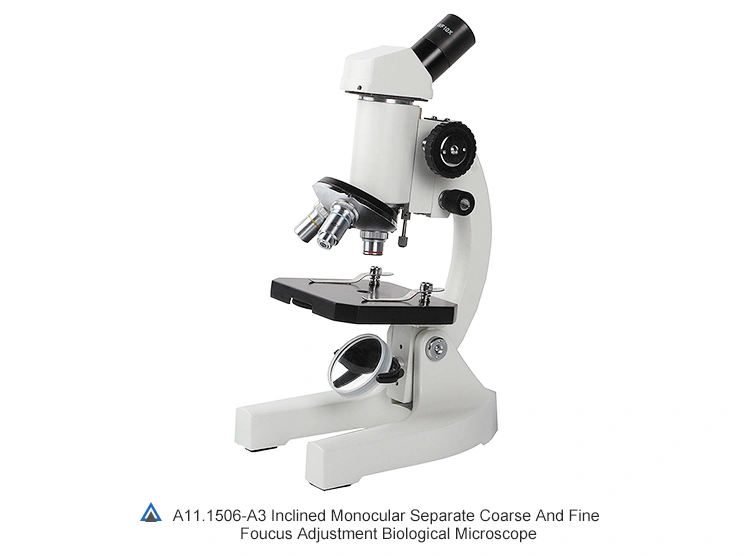

Monocular 45°inclined, 360°Rotatable--
EyepieceWF10x

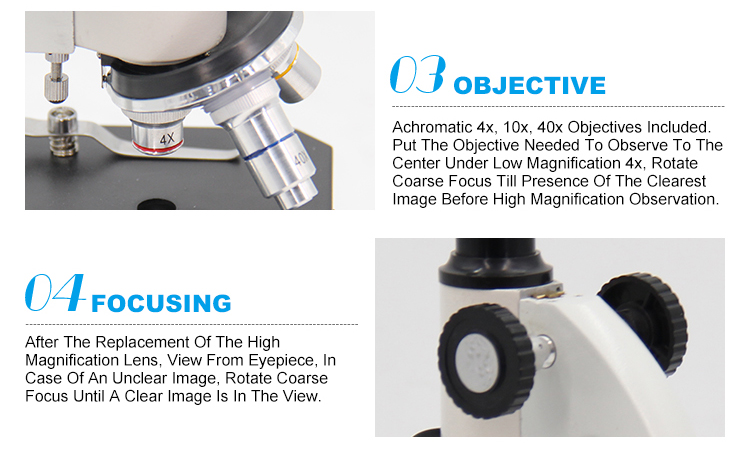

ObjectiveAchromatic Objective 4x, 10x, 40x(S)
FocusingCoarse Adjustment Range: 20mm--

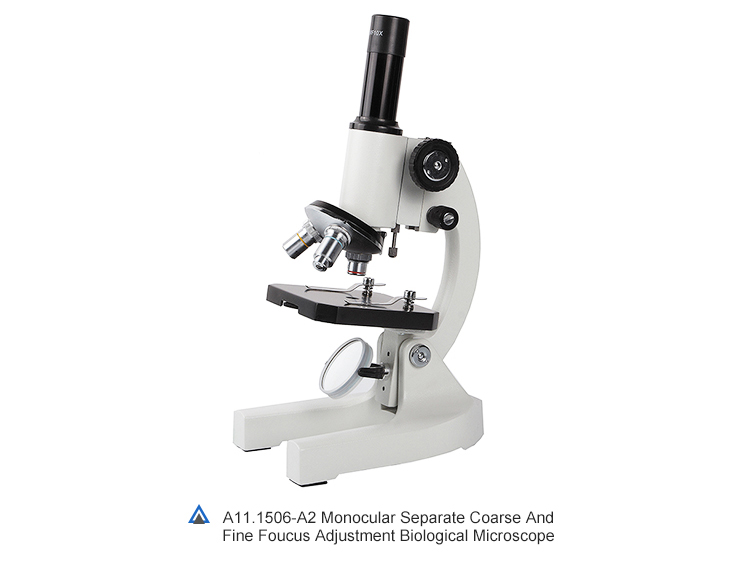

Seperate Coarse & Fine Focusing, Coarse Focusing Range 20mm, Fine Focusing Range 1.4~1.6mm-

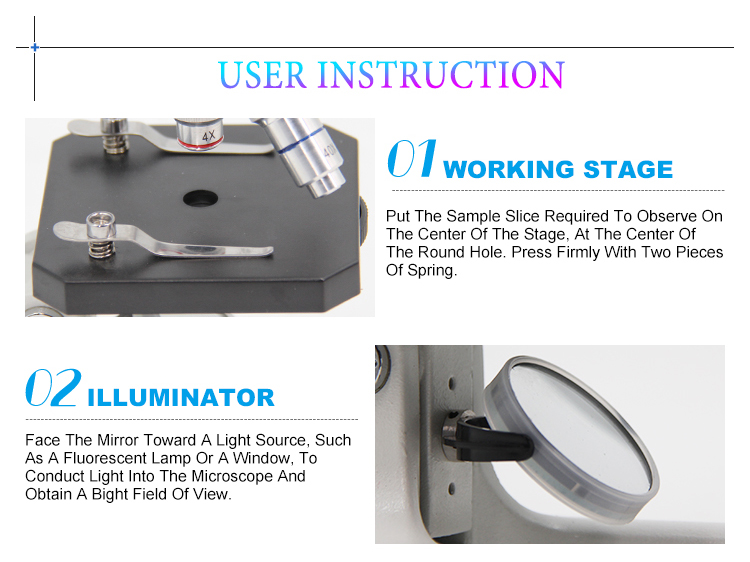

Working StagePlain Stage With Clips,100x90mm
CondenserSingle Lens Condenser With Disc Diaphragm
Light SourcePlan-Concave Mirror Dia. 40mm
Optional Accessories
Light SourceAttachable Electrical Illuminator (110V/220V 20W)A56.1501



Company Information


Pictures

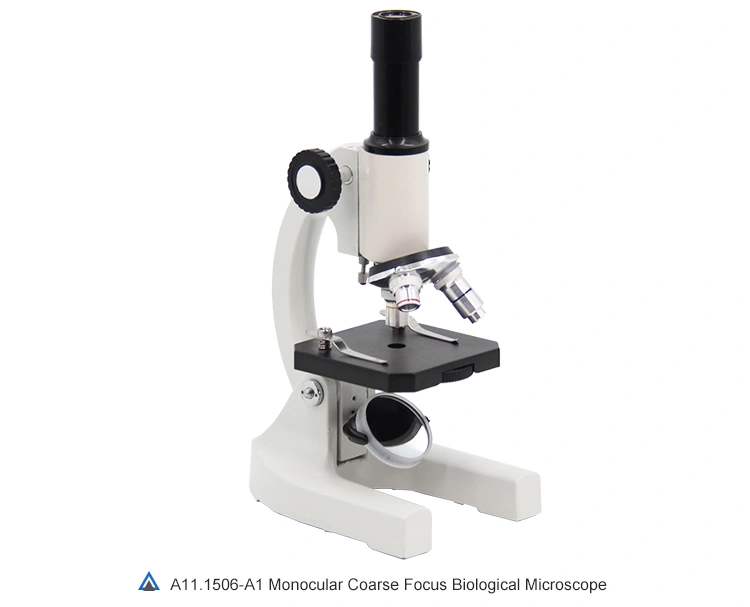

Model No. A11.1506-A1 A11.1506-A2 A11.1506-A3
Optical System
Achromatic Achromatic Achromatic
Standard Magnification
40x-400x 40x-400x 40x-400x
Head Type
Monocular Monocular Monocular
Head Inclination
0-90° Tiltable 0-90° Tiltable 0-35° Tiltable
Head Rotation
—— —— Head Rotate 360°
Head Interpupillary
54~75mm 54~75mm 54~75mm
Head Specification
Monocular Vertical Head Tube Monocular Vertical Head Tube Monocular Head 45° Inclined, 360° Rotatable
Eyepiece Features
Wide Field Wide Field Wide Field
Eyepiece Diameter
23.2mm 23.2mm 23.2mm
Eyepiece
WF10x 1 pc WF10x 1 pc WF10x 1 pc
Nosepiece Holes
3 Holes 3 Holes 3 Holes
Nosepiece Features
Backward Backward Backward
Objective Type
Achromatic Achromatic Achromatic
Objective
Achromatic Objective

4x, 10x, 40x
Achromatic Objective

4x, 10x, 40x
Achromatic Objective

4x, 10x, 40x
Working Stage Type
Single Layer W. Clip Single Layer W. Clip Single Layer W. Clip
Working Stage Size
100x90mm 100x90mm 100x90mm
Focusing Features
Safety Stop Screw Safety Stop Screw Safety Stop Screw
Focusing Range
20mm 20mm 20mm
Condenser Type
Single Lens + Disc Diaphragm Single Lens + Disc Diaphragm Single Lens + Disc Diaphragm
Transmit Light
Plan-Concave Mirror Dia. 40mm Plan-Concave Mirror Dia. 40mm Plan-Concave Mirror Dia. 40mm
Optional Accessory
Attachable Electrical Illuminator (110V/220V 20W)
Attachable Electrical Illuminator (110V/220V 20W)
Attachable Electrical Illuminator (110V/220V 20W)
