Student Biological Microscope, Monocular, Plastic Body
Student Biological Microscope, Monocular, Plastic Body
Student Biological Microscope, Monocular, Plastic Body
Student Biological Microscope, Monocular, Plastic Body
Student Biological Microscope, Monocular, Plastic Body
Student Biological Microscope, Monocular, Plastic Body
Student Biological Microscope, Monocular, Plastic Body

A11.1521-M1

Like Favorites

Student Biological Microscope, Monocular, Plastic Body


Quantity:


A11.1521-M1 is a kind of student microscope with very high cost-effective. All the body is metal, it is sturdy for long time use. Bottom LED is brightness adjustable. Achromatic 4x, 10x, 40x objective enable utmost 400X optical magnification, which can clearly observe biological slices, biological cells, bacteria and living tissue culture etc.


Parameter
A11.1521-M1 Biological Microscope
HeadMonocular Head, 45° Inclined, 360° Rotatable
EyepieceWF10x/16mm
NosepieceTriple Nosepiece, Outward, Ball Bearing Inner Locating

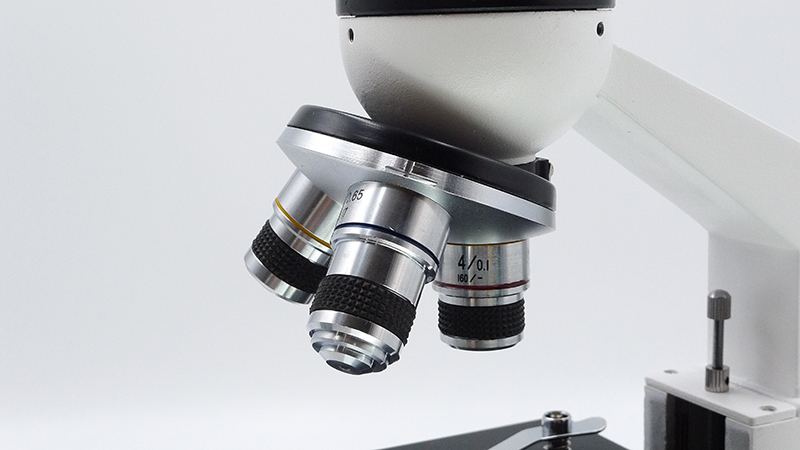

ObjectiveAchromatic 4x,10x, 40x(s)

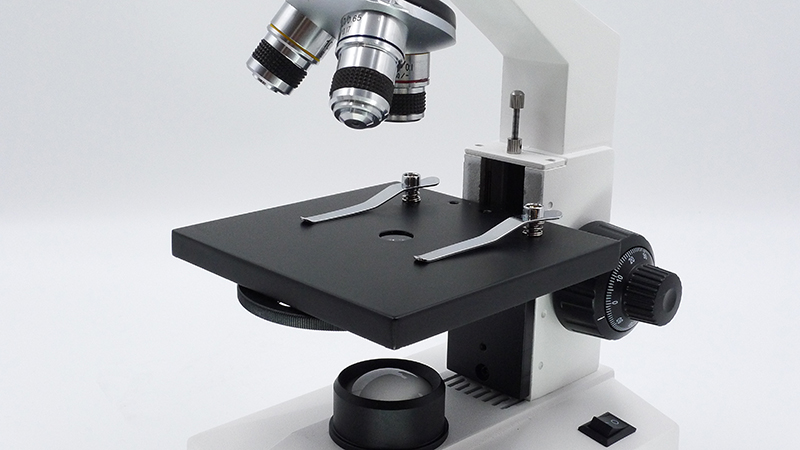

Working StageMetal Plain Stage, With Clips, 120x120mm
FocusingCoaxial Coarse & Fine Focus Knob, Coarse Focusing Range 33mm

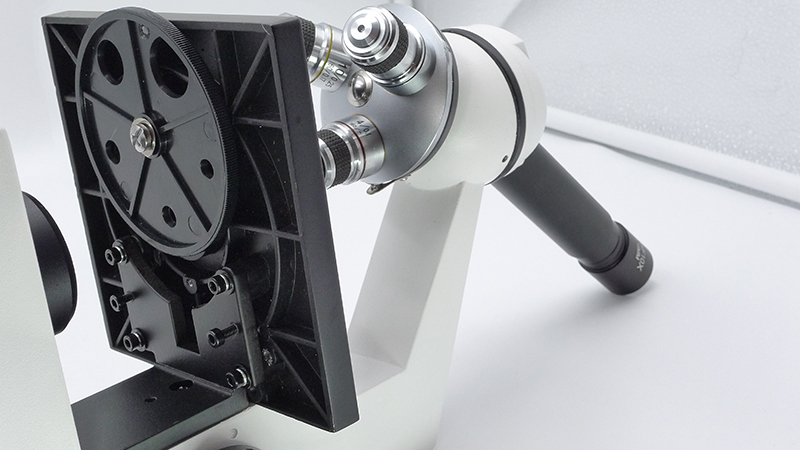

CondenserCondenser N.A.0.65, Disc Diaphragm
Light SourceLED
A11.1521-M1 Biological Microscope Optional Accessories
EyepieceWF16xA51.1503-16
Product Display



Product Details


Related Products


Product Application

Student microscope is designed for tertiary institutions and primary and secondary schools, which convenient to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research. It is widely used in teaching demonstration, biochemical experiments, clinical research etc.


Packaging & Shipping



Package2 Sets/Carton, 45x27x41CM
Gross Weight6KG
PackingPolyfoam Protection And Strong Carton
Shipping Time5~20 Days After Receive The Deposit


Pictures
Model No. A11.1521-M1
Download
https://oss.site.joinf.com/2469193113797632/2020/05/25872a7f73f725888d21d9a02d3a7142.pdf
Applications
Student School
Function
Bright Field
Optical System
Achromatic
Standard Magnification
40x-400x
Optional Magnification
64x-640x
Head Type
Monocular
Head Inclination
45°
Head Rotation
Head Rotate 360°
Eyepiece Features
Wide Field
Eyepiece
WF10x/16mm
Nosepiece Holes
3 Holes
Nosepiece Features
Outward
Objective Type
Achromatic
Objective
Ach. 4x,10x,40x(s)
Working Stage Type
Single Layer W. Clip
Working Stage Size
120x120mm
Working Stage Spec.
Plain Stage with Clips, Size: 120mmx120mm
Focusing Type
Coaxial Coarse & Fine
Focusing Range
33mm
Condenser Type
Single Lens
Condenser N.A.
0.65
Condenser Features
With Iris Diaphragm
Condenser Specification
0.65 Condenser + Iris Diaphragm
Light Source Feature
Transmit Light
Light Source Type
LED
Transmit Light
LED
Brightness Adjustable
Power Supply Type
AC 110V/220V Optional
Power Cord Detachable
Optional Accessory
