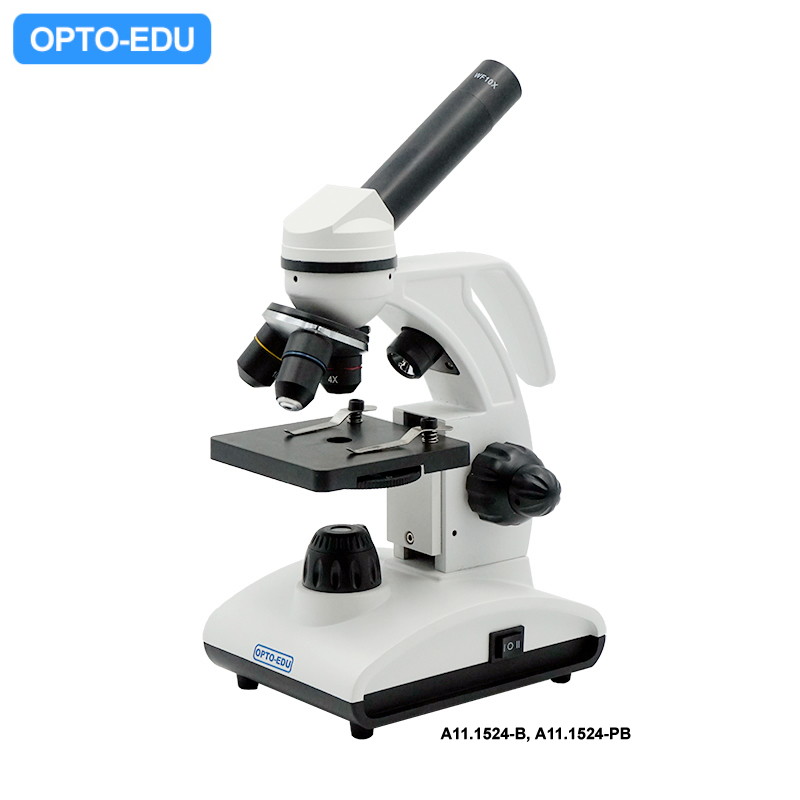

Monocular Student Microscope, Plastic Body, Coarse Focusing


  • Monocular Head 45° Inclined 360° Rotateable
  • Black 185 Achromatic Objective 4x,10x,40x(Spring)
  • Up/Bottom LED Light Source Both Brightness Adjustable
  • A/PA With Coarse Focusing, B/PB With Coaxial Coarse & Fine Focusing
  • A/B WIth Full Metal Body, PA/PB With Plastic Body
Quantity:

A11.1524 Single Lens Mono Student Microscope

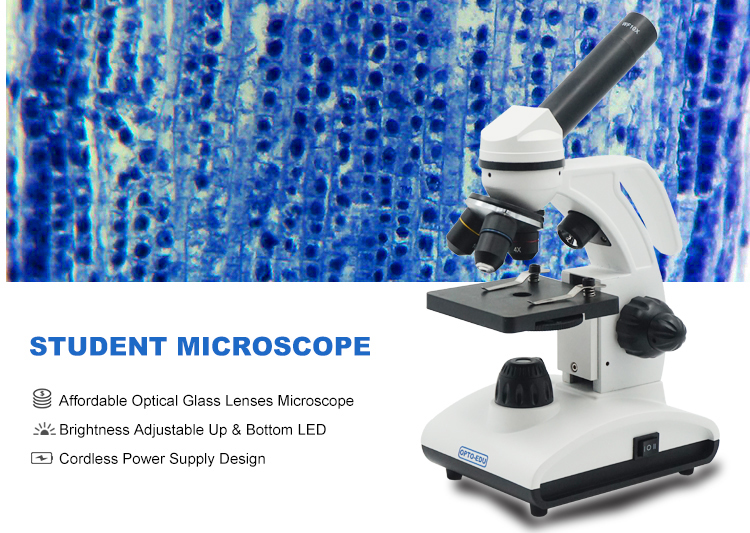

A11.1524 is the micro-microscope with affordable price, which is very suit for students. The body is plastic with all-optical glass system, cordless operation design make it portable and easy to use. There is up and bottom LED, both can adjust brightness. Achromatic 4X, 10X, 40Xs objective enable utmost 400X optical magnification, which can clearly observe biological slices, biological cells, bacteria and living tissue culture etc.


Parameter
 A11.1524-AA11.1524-BA11.1524-PAA11.1524-PB
HeadMonocular, 45° Inclined,360° Rotatable
EyepieceIWF10x/16mm
NosepieceAchromatic4x,10x,40x Spring

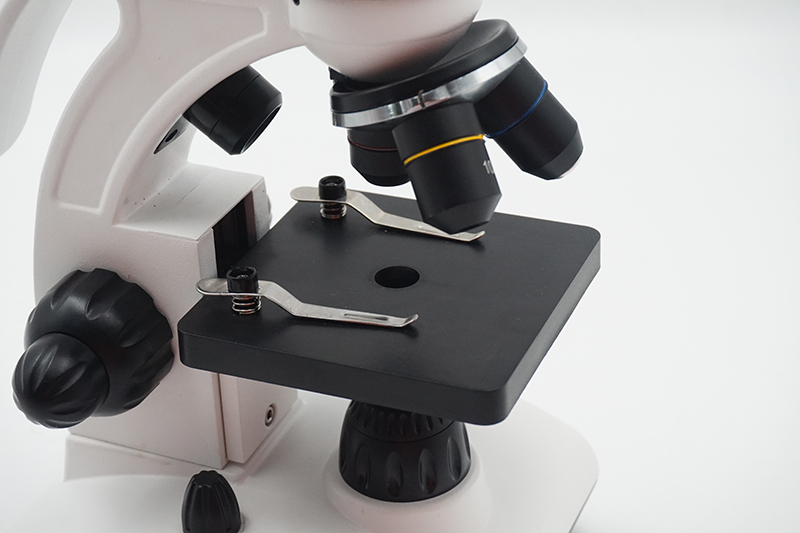

Working StagePlain Stage With Clips,Size 90x90mm

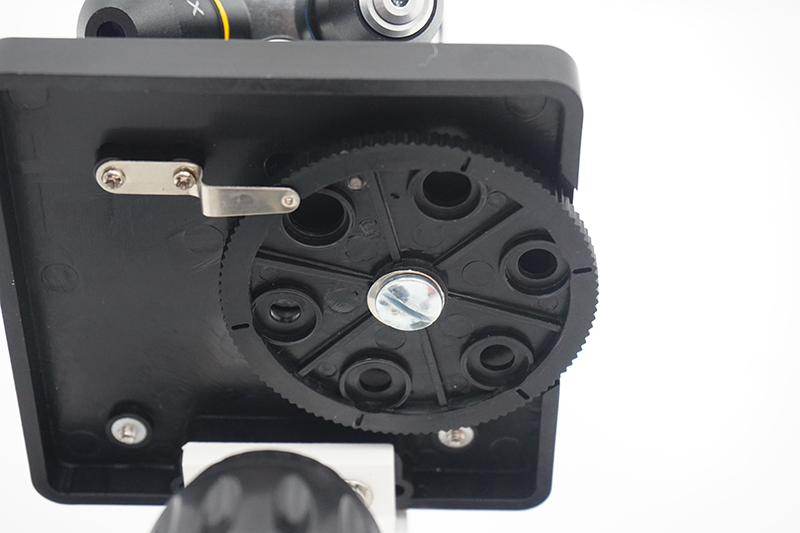

CondenserSingle Lens Condenser,6 Holes Disc Diaphragm with 5 Filters Built-in
Body MaterialFull MetalPlastic Arm and Working Stage
FocusingCoarse FocusingCoxial Coarse & Fine FocusingCoarse Focusingcoxial Coarse&Fine Focusing
IlluminationUp&Bottom LED Light,Both Brightness Adjustable
PowerCordless Batteries(3xAA Batteries NOT Included)
Adapter Included(110V/220V Optional)

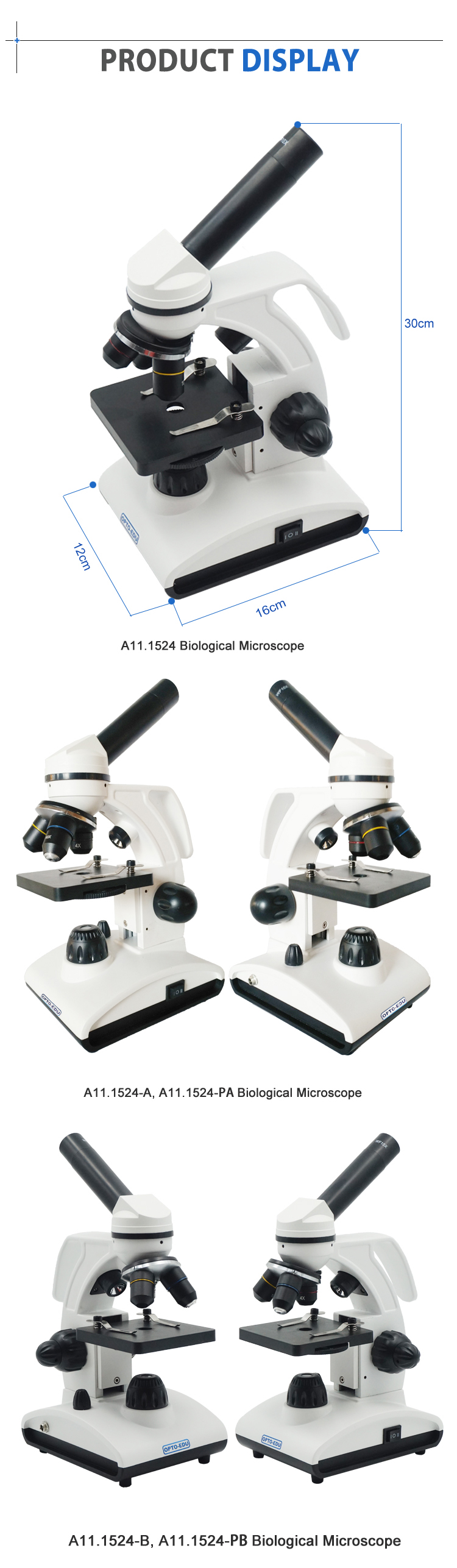

Product Display

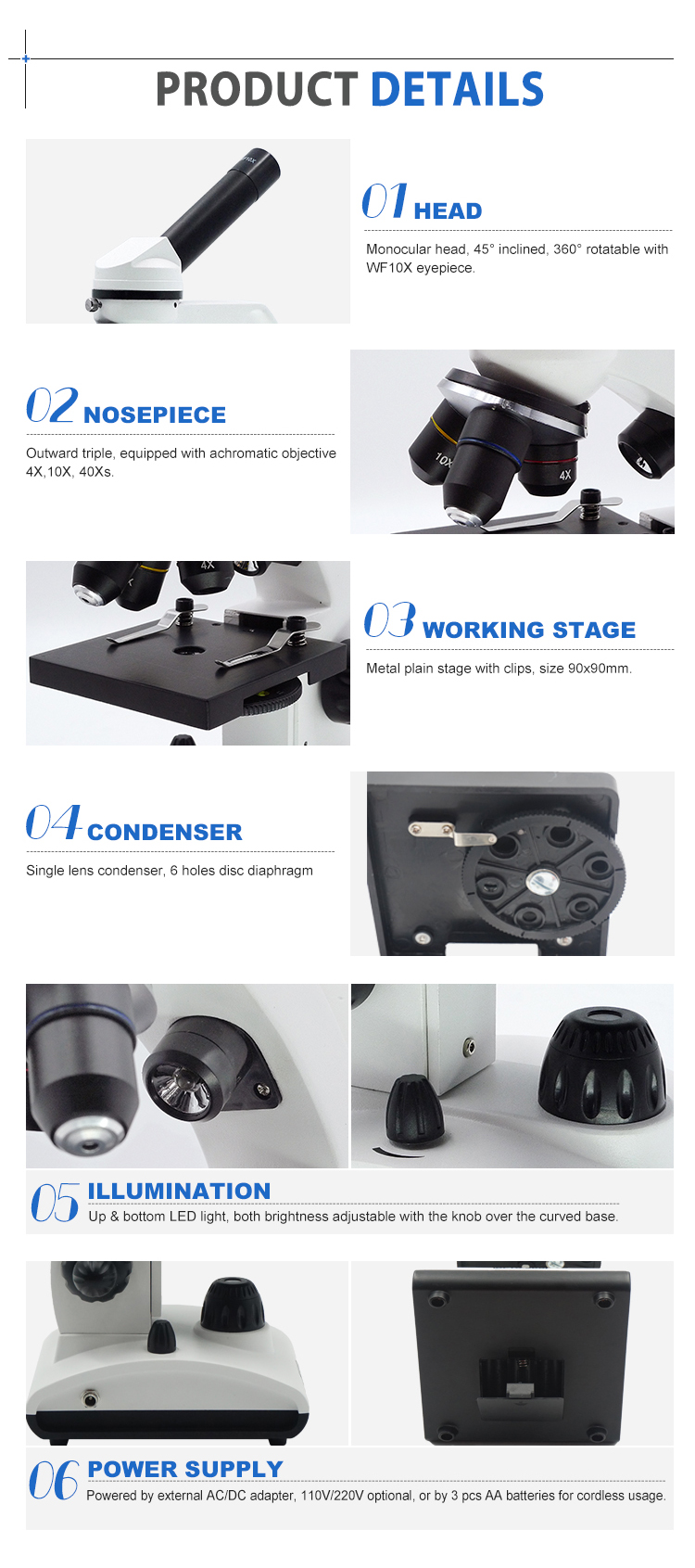

Product Details


Related Products


Product Application


Student microscope is designed for tertiary institutions and primary and secondary schools, which convenient to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research. It is widely used in teaching demonstration, biochemical experiments, clinical research etc.


Packaging & Shipping


Company Information


OPTO-EDU, as one of the most professional manufacturer and supplier of microscope in China, our sub-brand CNOPTEC series high end biological, laboratory, polarizing, metallurgical, fluorescene microscopes, CNCOMPARISON series forensic microscope, A63 series SEM microscope, and .49 series digital camera, LCD camera are very popular in the world market.


Pictures
Model No. A11.1524-PA A11.1524-PB A11.1524-B
Download
https://oss.site.joinf.com/2469193113797632/2020/05/4796b4e763da973254390f22ecffa50a.pdf https://oss.site.joinf.com/2469193113797632/2020/05/b9c4c0912b3548aac2e530d8764d13ea.pdf https://oss.site.joinf.com/2469193113797632/2020/05/7015b42432f3d0fc06893aaeb9da01e5.pdf
Applications
Student School Student School Student School
Function
BF BF BF
New Product Year
2017 2017 2017
Optical System
Achromatic Achromatic Achromatic
Standard Magnification
40x-400x 40x-400x 40x-400x
Head Type
Monocular Monocular Monocular
Head Inclination
45° 45° 45°
Head Rotation
Head Rotate 360° Head Rotate 360° Head Rotate 360°
Head Specification
Monocular, 45° Inclined,360° Rotatable Monocular, 45° Inclined,360° Rotatable Monocular, 45° Inclined,360° Rotatable
Eyepiece Features
Wide Field Wide Field Wide Field
Eyepiece
WF10x/16mm WF10x/16mm WF10x/16mm
Nosepiece Holes
3 Holes 3 Holes 3 Holes
Nosepiece Features
Outward Outward Outward
Objective Type
185 Achromatic 185 Achromatic 185 Achromatic
Objective
Black Color Black Color Black Color
Working Stage Type
Single Layer W. Clip Single Layer W. Clip Single Layer W. Clip
Working Stage Size
90x90mm 90x90mm 90x90mm
Working Stage Spec.
Plain Stage With Clips,Size 90x90mm Plain Stage With Clips,Size 90x90mm Plain Stage With Clips,Size 90x90mm
Focusing Type
Coarse Only Coaxial Coarse & Fine Focus Coaxial Coarse & Fine Focus
Condenser Type
Single Lens Single Lens Single Lens
Condenser N.A.
0.65 0.65 0.65
Condenser Features
With Filter Holder With Filter Holder With Filter Holder
Condenser Specification
6 Holes With 5 Filters Built-in 6 Holes With 5 Filters Built-in 6 Holes With 5 Filters Built-in
Light Source Feature
Brightness Adjustable Brightness Adjustable Brightness Adjustable
Light Source Type
LED LED LED
Transmit Light
LED
Brightness Adjustable
LED
Brightness Adjustable
LED
Brightness Adjustable
Reflect Light
LED
Brightness Adjustable
LED
Brightness Adjustable
LED
Brightness Adjustable
Power Supply Type
Cordless Battery
AC 110V/220V Optional
External AC/DC Adapter
Power Cord Detachable
Cordless Battery
AC 110V/220V Optional
External AC/DC Adapter
Power Cord Detachable
Cordless Battery
AC 110V/220V Optional
External AC/DC Adapter
Power Cord Detachable
Power Supply
Switch Between Up and Bottom LED, Both Brightness Adjustable Switch Between Up and Bottom LED, Both Brightness Adjustable Switch Between Up and Bottom LED, Both Brightness Adjustable
Other Specification
Plastic Arm and Working Stage Plastic Arm and Working Stage Full Metal Body
