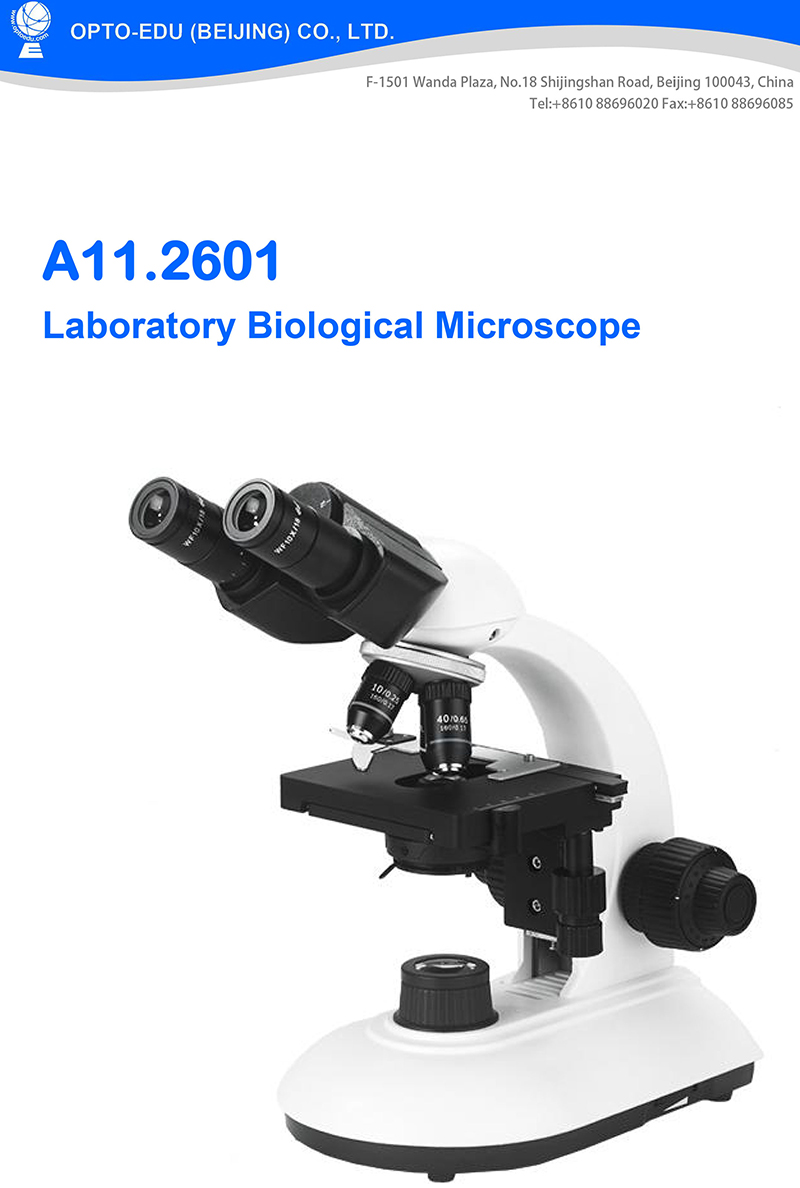

Laboratory Biological Microscope, Achromatic, Binocular

A11.2601-B

Like Favorites

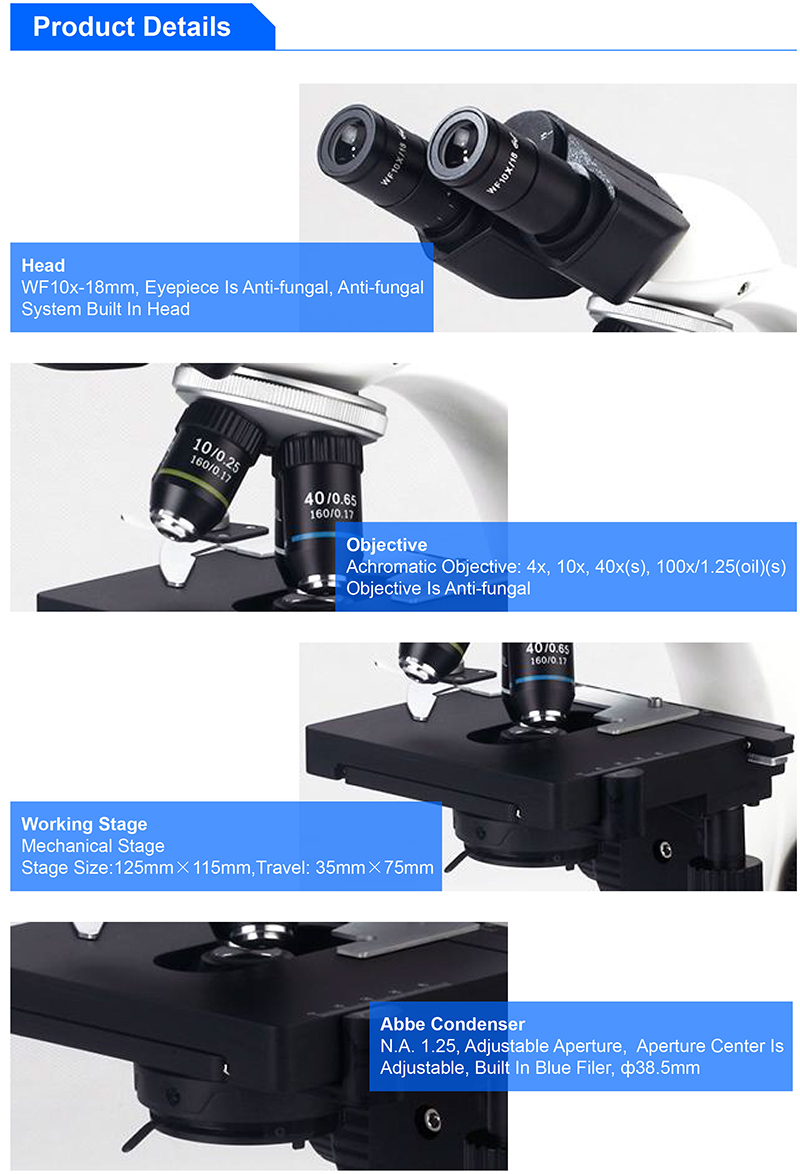

Laboratory Biological Microscope, Achromatic, Binocular

Wide Field Eyepiece WF10x/18mm, High Contrast Achromatic Objective 4x,10x,40x,100x
Double Layers Mechanical Stage 115x125mm Moving Range 70x35mm
Full Metal Body High Rigid Construction For Long Working Life Time
3W LED Illumination With Cordless Rechargeable Function Optional
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

Specification:

A11.2601-B

Student Biological Microscope, Achromatic, Binocular

A11.2601-B-1

Student Biological Microscope, Achromatic, Trinocular

A11.2601-T

Student Biological Microscope, Plan, Trinocular

A11.2601-TP

Student Biological Microscope, Plan, Binocular

A11.2601-BP

Student Biological Microscope, Achromatic, Monocular

A11.2601-M

Items	A11.2601 Laboratory Biological Microscope Specification	-M	-B	-T	-BP	-TP	Cata. No.
Head	Monocular Head Inclined 30°, Rotatable 360°	●					A53.2601-M
	Seidentopf Binocular Head Inclined 30°, Rotatable 360°, Interpupilary Distance 48-75mm		●		●		A53.2601-B
	Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20/E80			●		●	A53.2601-T
Eyepiece	WF10x/18mm	●	●●	●●	●●	●●	A51.2602-1018
	WF16x/13mm	○	○	○	○	○	A51.2602-1613
	WF10x/18mm With Pionter	○	○	○	○	○	A51.2604-1018
	WF10x/18mm, With Micrometer X-0.1mm*180 Div / Y-Single Line	○	○	○	○	○	A51.2605-1018
	WF10x/18mm With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable	○	○	○	○	○	A51.2605-1018D
Nosepiece	Quadruple, Backward	●	●	●	●	●	A54.2610-N03
Achromatic Objective	4x/0.1, W.D.=18.6mm	●	●	●			A52.2601-4
	10x/0.25, W.D.=6.5mm	●	●	●			A52.2601-10
	20x/0.40, W.D.=1.75mm	○	○	○			A52.2601-20
	40x/0.6(S), W.D.=0.47mm	●	●	●			A52.2601-40
	60x/0.80(S), W.D.=0.10mm	○	○	○			A52.2601-60
	100x/1.25(S,O), W.D.=0.07mm	●	●	●			A52.2601-100
Plan Objective	4x/0.1, W.D.=14.5mm				●	●	A52.2603-4
	10x/0.25, W.D.=5.65mm				●	●	A52.2603-10
	20x/0.40, W.D.=5.65mm				○	○	A52.2603-20
	40x/0.6(S), W.D.=0.85mm				●	●	A52.2603-40
	100x/1.25(S,O), W.D.=0.07mm				●	●	A52.2603-100
Stage	Double Layer Mechanical Size 125×115mm, Travel Range 35×75mm	●	●	●	●	●	A54.2601-S03
Condenser	Abbe N.A. 1.25(Iris Diaphragm)	●	●	●	●	●	A56.2614-09

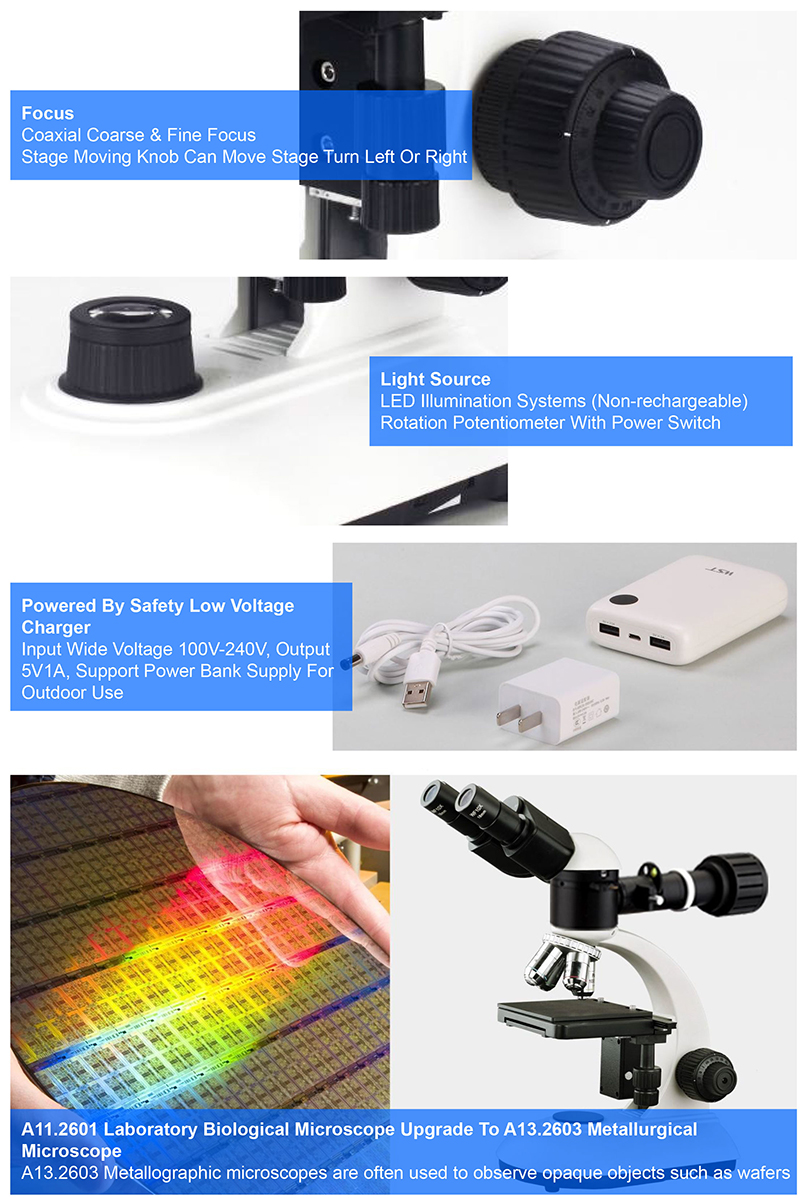

Focusing	Coaxial Coarse And Fine Focusing Knobs, Travel Range: 22mm, Scale: 2µm	●	●	●	●	●
C-mount	1.0x (Focus Adjustable)			○		○	A55.2601-B10
C-mount	0.5x (Focus Adjustable)			○		○	A55.2601-B05
Light Source	3W LED Illumination, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	●	●	●	●	●	A56.2650-3WLED
	12V 20W Halogen Lamp, Wide Voltage: 100V-240V	○	○	○	○	○	A56.2650-12V20WH
	Plano-Concave Mirror	○	○	○	○	○	A56.2601-B
Dark Field	Dark Field Ring, For 4x~40x Objective	○	○	○	○	○	A5D.2611-B
Polarizing	Analyzer + Polarizer Set	○	○	○	○	○	A5P.2601-B
Package	Carton Size 337242417mm, 1 Unit/Ctn
Weight	Gross Weight 7.0kgs, Net Weigth 5.5kgs
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories.

Pictures Hide Same Show Difference
Model No.	A11.2601-B	A11.2601-B-1	A11.2601-T	A11.2601-TP	A11.2601-BP	A11.2601-M
Power Supply	Safety Low Voltage Charger	Safety Low Voltage Charger	Safety Low Voltage Charger	Safety Low Voltage Charger	Safety Low Voltage Charger	Safety Low Voltage Charger
Power Supply Type	DC USB Adapter	DC USB Adapter	DC USB Adapter	DC USB Adapter	DC USB Adapter	DC USB Adapter
Transmit Light	3W LED, Brightness Adjustable Optional: 3W LED (Rechargeable) 12V 20W Halogen, 100V-2	3W LED, Brightness Adjustable Optional: 3W LED (Rechargeable) 12V 20W Halogen, 100V-2	3W LED, Brightness Adjustable Optional: 3W LED (Rechargeable) 12V 20W Halogen, 100V-2	3W LED, Brightness Adjustable Optional: 3W LED (Rechargeable) 12V 20W Halogen, 100V-2	3W LED, Brightness Adjustable Optional: 3W LED (Rechargeable) 12V 20W Halogen, 100V-2	3W LED, Brightness Adjustable Optional: 3W LED (Rechargeable) 12V 20W Halogen, 100V-2
Light Source Type	LED	LED	LED	LED	LED	LED
Condenser N.A.	1.25	1.25	1.25	1.25	1.25	1.25
Condenser Type	Abbe	Abbe	Abbe	Abbe	Abbe	Abbe
Condenser Features	Filter Holder Iris Diaphragm	Filter Holder Iris Diaphragm	Filter Holder Iris Diaphragm	Filter Holder Iris Diaphragm	Filter Holder Iris Diaphragm	Filter Holder Iris Diaphragm Sprial ↆ↑
Focusing Scale	0.002mm	0.002mm	0.002mm	0.002mm	0.002mm	0.002mm
Focusing Range	22mm	22mm	22mm	22mm	22mm	22mm
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Focusing Features	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw
Working Stage Moving	35x75mm	35x75mm	35x75mm	35x75mm	35x75mm	35x75mm
Working Stage Size	125x115mm	125x115mm	125x115mm	125x115mm	125x115mm	125x115mm
Working Stage Type	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical
Objective	Achromatic Objective 4x,10x,40x,100x	Achromatic Objective 4x,10x,40x,100x	Achromatic Objective 4x,10x,40x,100x	Plan Objective 4x,10x,40x,100x	Plan Objective 4x,10x,40x,100x	Achromatic Objective 4x,10x,40x,100x
Objective Type	Achromatic	Achromatic	Achromatic	Plan	Plan	Achromatic
Nosepiece Holes	4 Holes	4 Holes	4 Holes	4 Holes	4 Holes	4 Holes
Nosepiece Features	Outward	Outward	Outward	Outward	Outward	Outward
Eyepiece	WF10x/18mm, 2 pcs	WF10x/18mm, 2 pcs	WF10x/18mm, 2 pcs	WF10x/18mm, 2 pcs	WF10x/18mm, 2 pcs	WF10x/18mm, 1 pc
Eyepiece Diameter	23.2mm	23.2mm	23.2mm	23.2mm	23.2mm	23.2mm
Eyepiece Features	Diopter Adjustable	Diopter Adjustable	Diopter Adjustable	Diopter Adjustable	Diopter Adjustable	Diopter Adjustable
Head Diopter	Left Adjustable	Left Adjustable	Left Adjustable	Left Adjustable	Left Adjustable	——
Head Interpupillary	48~75mm	48~75mm	48~75mm	48~75mm	48~75mm	——
Head Rotation	Eyetube Rotate 360°	Eyetube Rotate 360°	Eyetube Rotate 360°	Eyetube Rotate 360°	Eyetube Rotate 360°	Eyetube Rotate 360°
Head Inclination	30°	30°	30°	30°	30°	30°
Head Type	Seidentopf Binocular	Seidentopf Binocular	Seidentopf Trinocular	Seidentopf Trinocular	Seidentopf Binocular	Monocular
Standard Magnification	40x-1000x	40x-1000x	40x-1000x	40x-1000x	40x-1000x	40x-1000x
Optical System	Achromatic	Achromatic	Achromatic	Achromatic	Achromatic	Achromatic
Upgrade Function	BF+DF+PL	BF+DF+PL	BF+DF+PL	BF+DF+PL	BF+DF+PL	BF+DF+PL
Standard Function	BF	BF	BF	BF	BF	BF
New Product Year	2011	2011	2011	2011	2011	2011
Head Light Path	——	——	E80:P20	E80:P20	——	——
