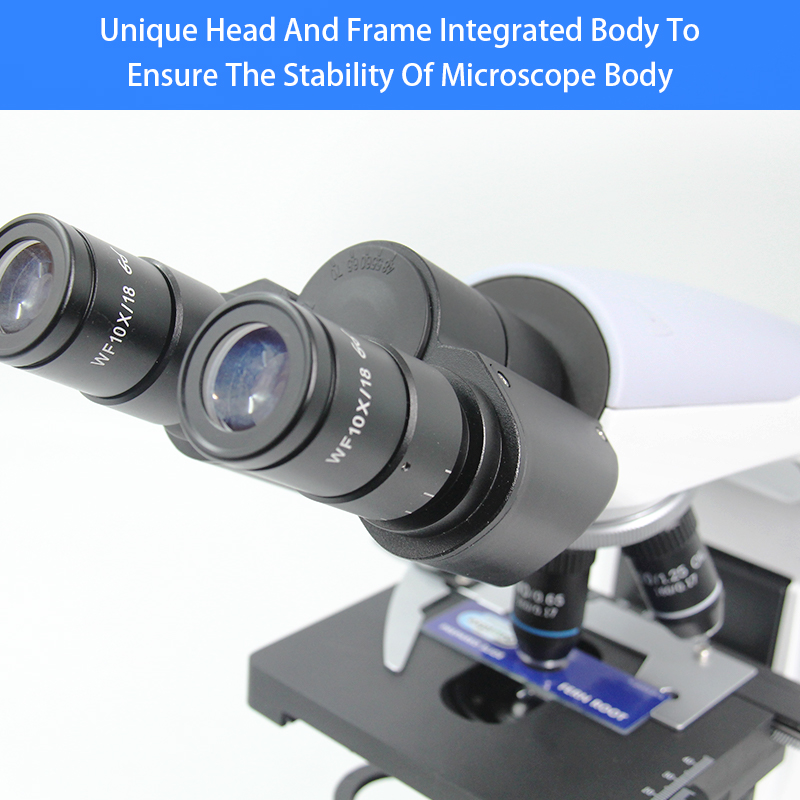

Butterfly Type (Butterfly) Binocular Design, The Lens Barrel Can Be Rotated 360°, The Height Of The Eye Point Is 44mm,
Which Is Convenient For People With Different Sitting Height; The Integrated Design Of The Eyepiece Lens Barrel, Avoids The Loss And
Contamination Of The Eyepiece And Enhances The Integrated Performance Of The Microscope

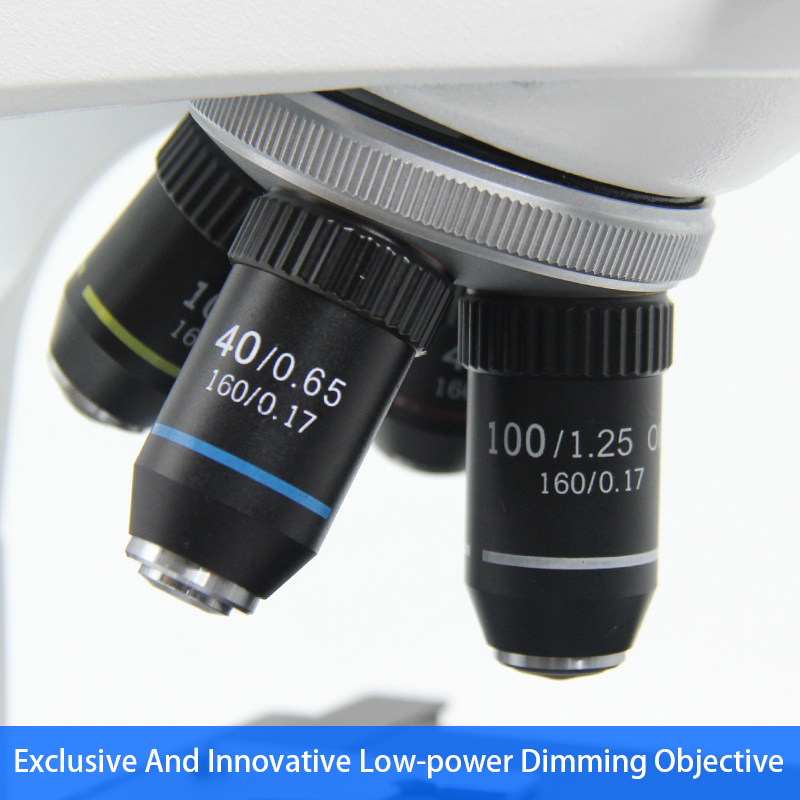

Exclusive And Innovative Low-power Dimming Objective
No Need To Adjust The Brightness Between High And Low Power Objectives

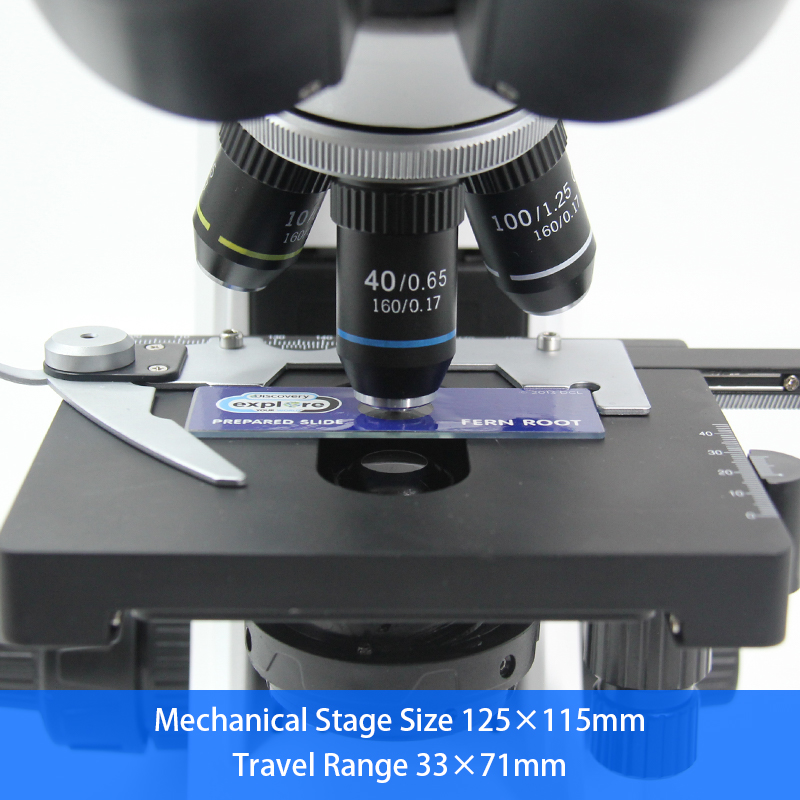

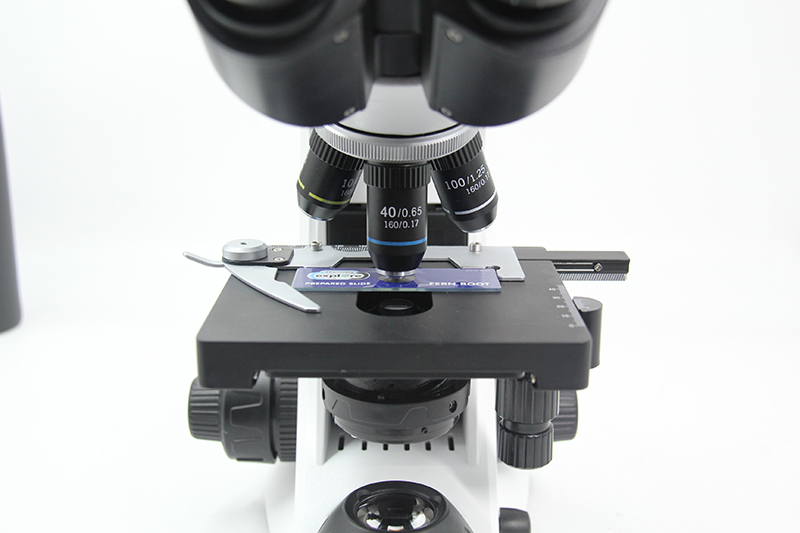

Mechanical Stage Size 125×115mm, Travel Range 33×71mm

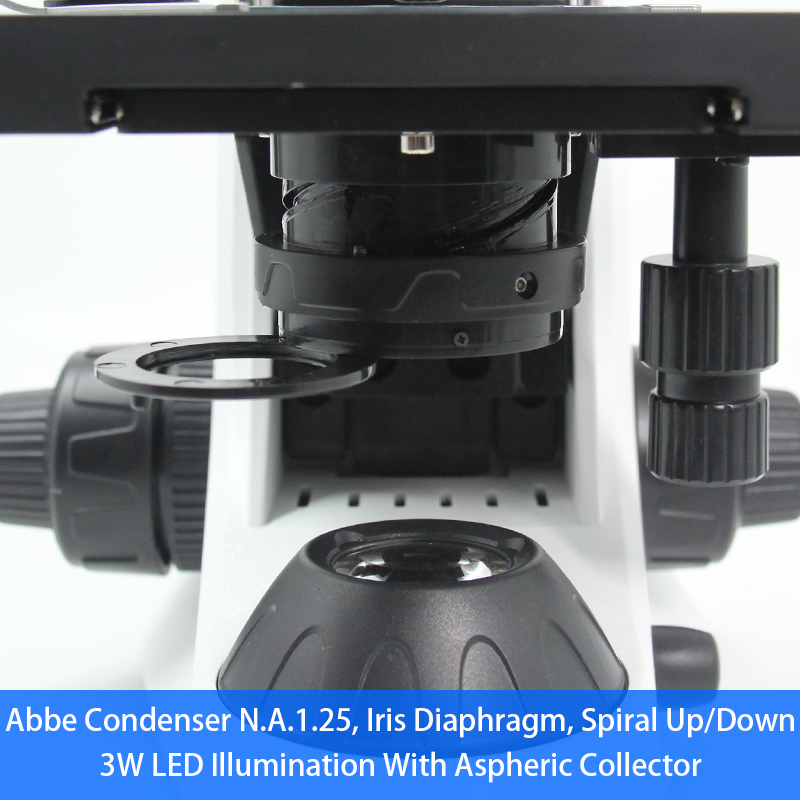

Abbe Condenser N.A.1.25, Iris Diaphragm, Spiral Up/Down, With Filter Holder
3W LED Illumination With Aspheric Collector

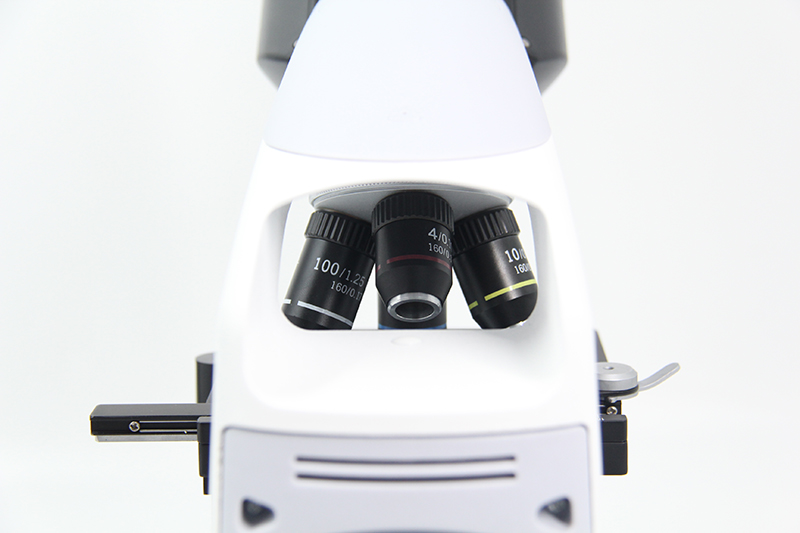

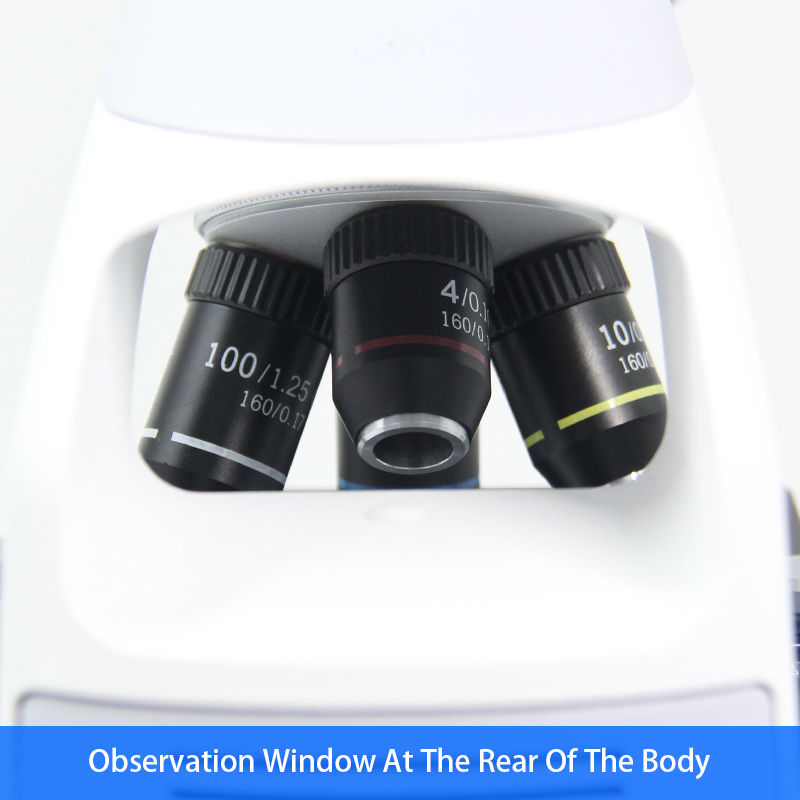

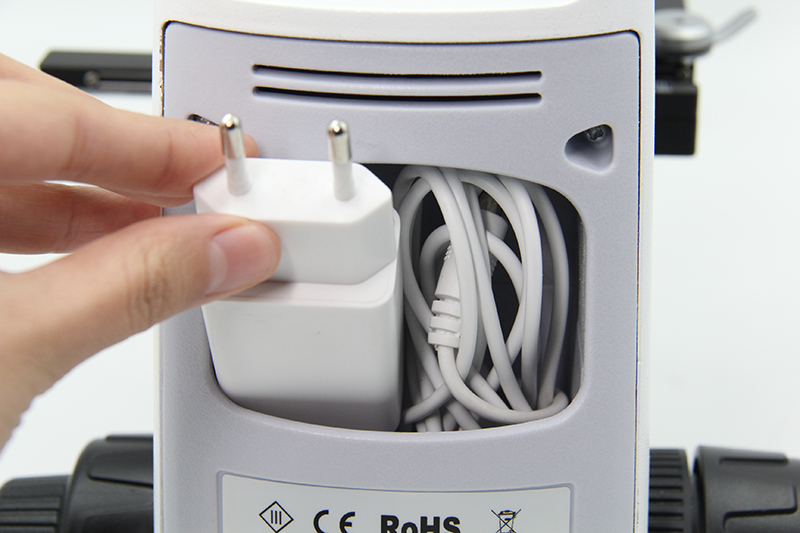

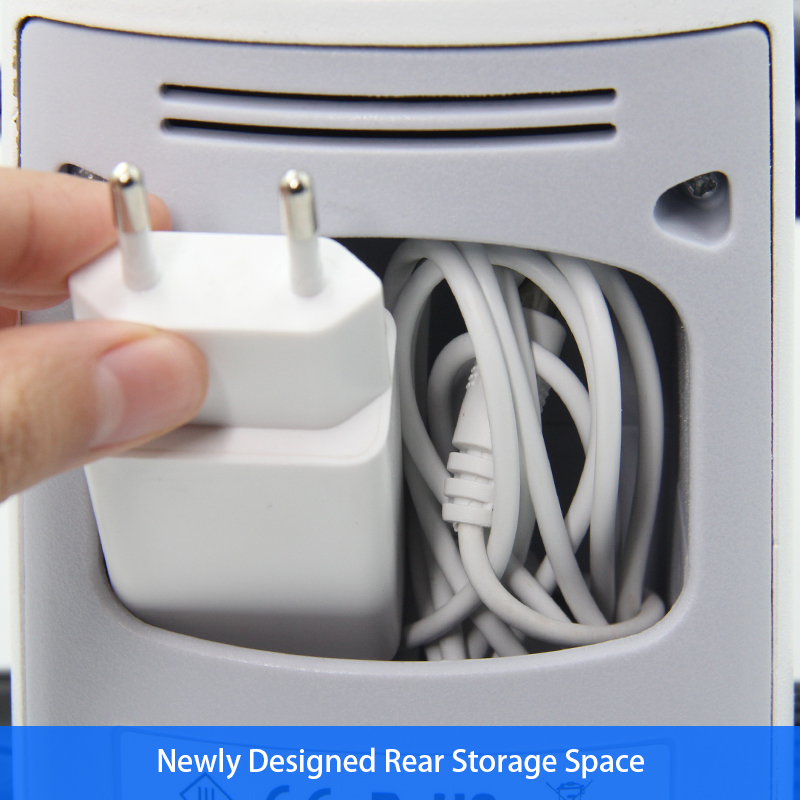

For Easy Handling And Storage; You Can See The Change Of Objective Magnification Even From The Back
For Easy Handling And Storage; You Can See The Change Of Objective Magnification Even From The Back

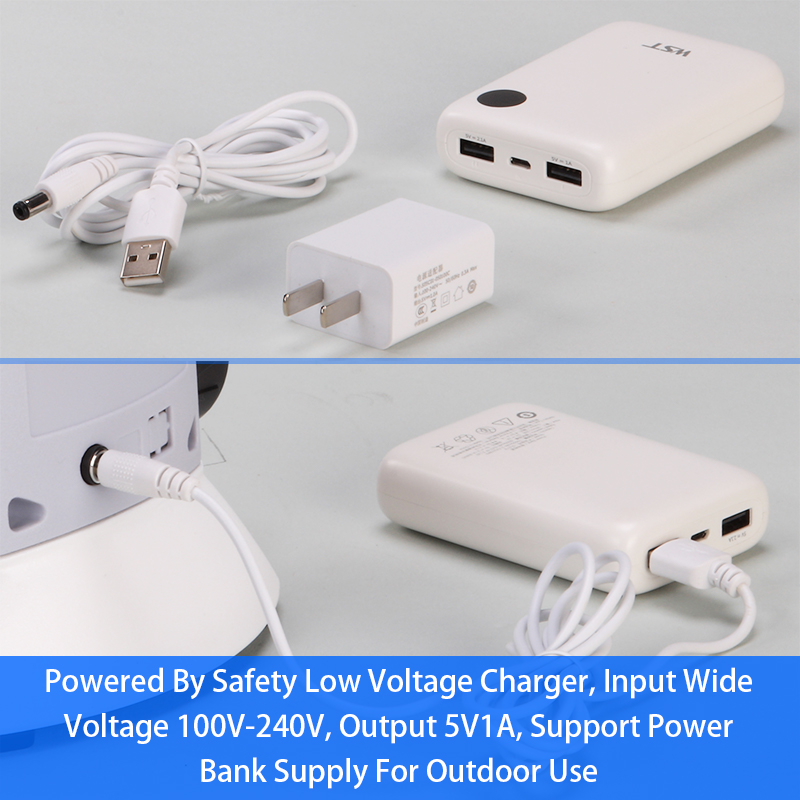

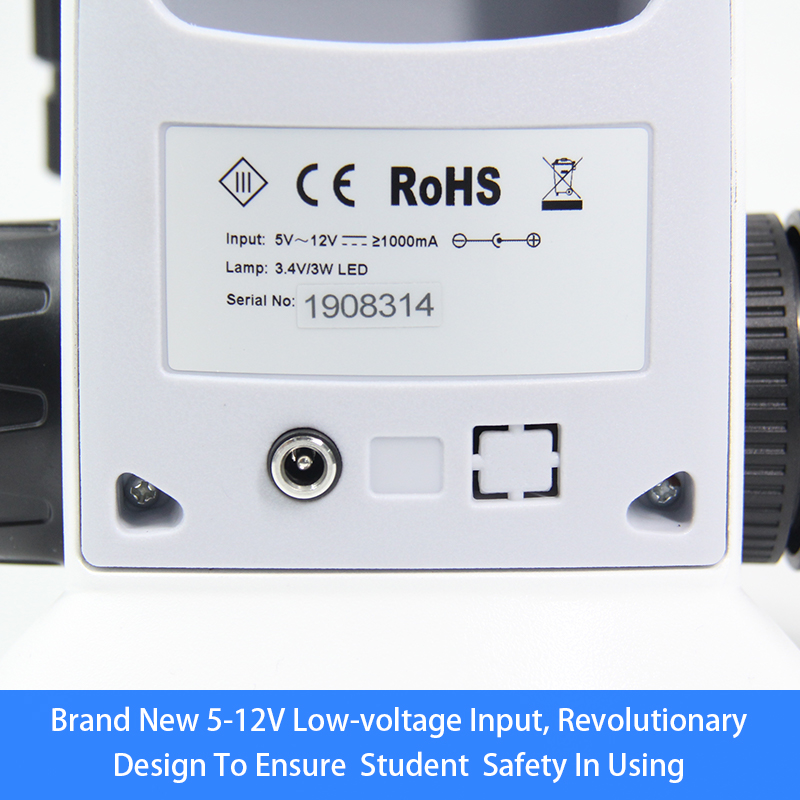

Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

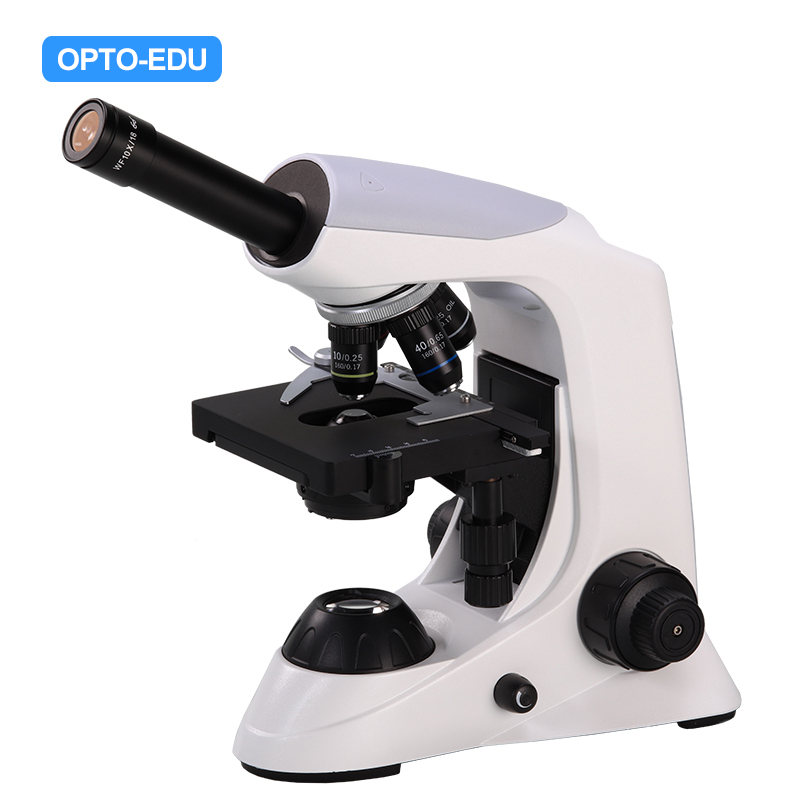

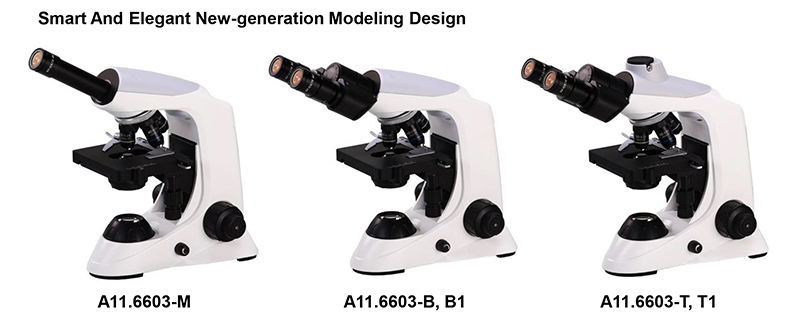

| Items | A11.6603 Student Biological Microscope Specification | M | B | T | B1 | T1 | Cata. No. |

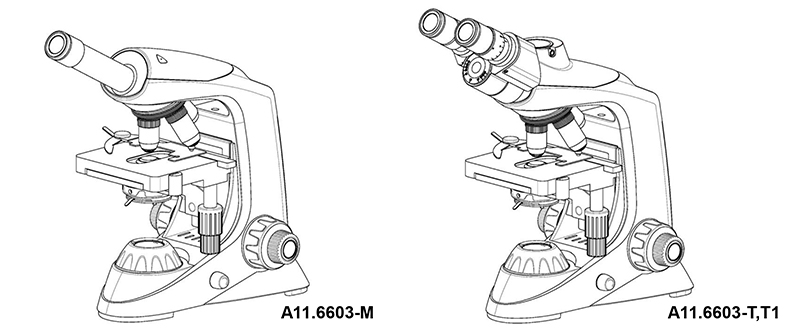

| Head | Monocular Head, Inclined 30° | ● | A53.2603-M | ||||
| Seidentopf Binocular Head, Inclined 30°, Swiveling Siedentopf Head, Interpupilary Distance: 48-75mm | ● | ● | A53.2603-B | ||||
| Seidentopf Trinocular Head, Swiveling Siedentopf Head, Interpupilary Distance: 48-75mm, Light Split Fixed P20:E80 | ● | ● | A53.2603-T | ||||
| Eyepiece | WF10x/18mm | ●● | ●● | ●● | ●● | ●● | A51.2602-1018 |
| WF16x/13mm | ○○ | ○○ | ○○ | ○○ | ○○ | A51.2602-1613 | |
| WF10x/18mm With Pointer | ○○ | ○○ | ○○ | ○○ | ○○ | A51.2604-1018 | |
| WF10x/18mm (Non-adjustable, Reticule 0.1mm) | ○○ | ○○ | ○○ | ○○ | ○○ | A51.2605-1018 | |
| WF10x/18mm (Adjustable, Reticule 0.1mm) | ○○ | ○○ | ○○ | ○○ | ○○ | A51.2605-1018D | |
| Nosepiece | Quadruple, Backward | ● | ● | ● | ● | ● | A54.2610-N03 |

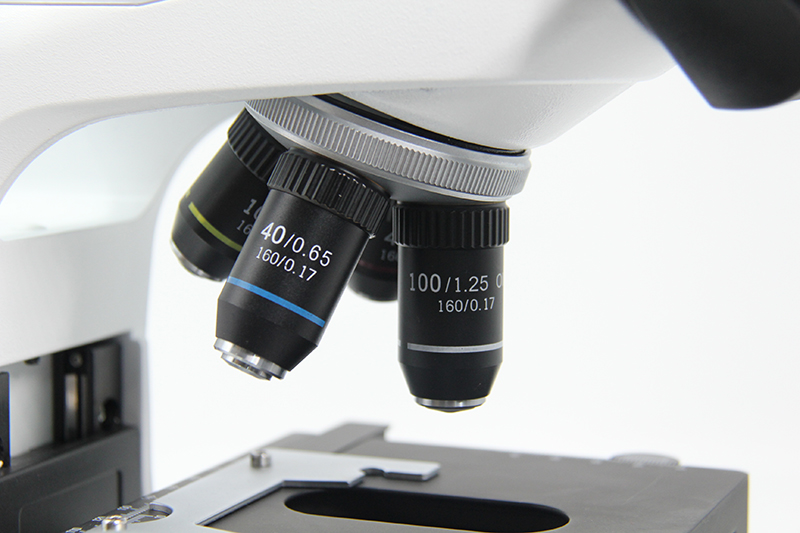

| Achromatic Objective | 4x/0.1, W.D.=18.6mm | ● | ● | ● | A52.2601-4 | ||
| 10x/0.25, W.D.=6.5mm | ● | ● | ● | A52.2601-10 | |||
| 20x/0.40, W.D.=1.75mm | ○ | ○ | ○ | A52.2601-20 | |||
| 40x/0.6(S), W.D.=0.47mm | ● | ● | ● | A52.2601-40 | |||
| 60x/0.80(S), W.D.=0.10mm | ○ | ○ | ○ | A52.2601-60 | |||
| 100x/1.25(S,O), W.D.=0.07mm | ● | ● | ● | A52.2601-100 | |||
| Plan Objective | 4x/0.1, W.D.=14.5mm | ● | ● | A52.2603-4 | |||
| 10x/0.25, W.D.=5.65mm | ● | ● | A52.2603-10 | ||||
| 40x/0.6(S), W.D.=0.85mm | ● | ● | A52.2603-40 | ||||
| 100x/1.25(S,O), W.D.=0.07mm | ● | ● | A52.2603-100 | ||||
| Working Stage | Mechanical Stage Size 125×115mm, Travel Range 33×71mm | ● | ● | ● | ● | ● | A54.2601-S03 |
| Condenser | Abbe Condenser N.A.1.25, Iris Diaphragm, Spiral Up/Down, With Filter Holder | ● | ● | ● | ● | ● | A56.2614-09 |

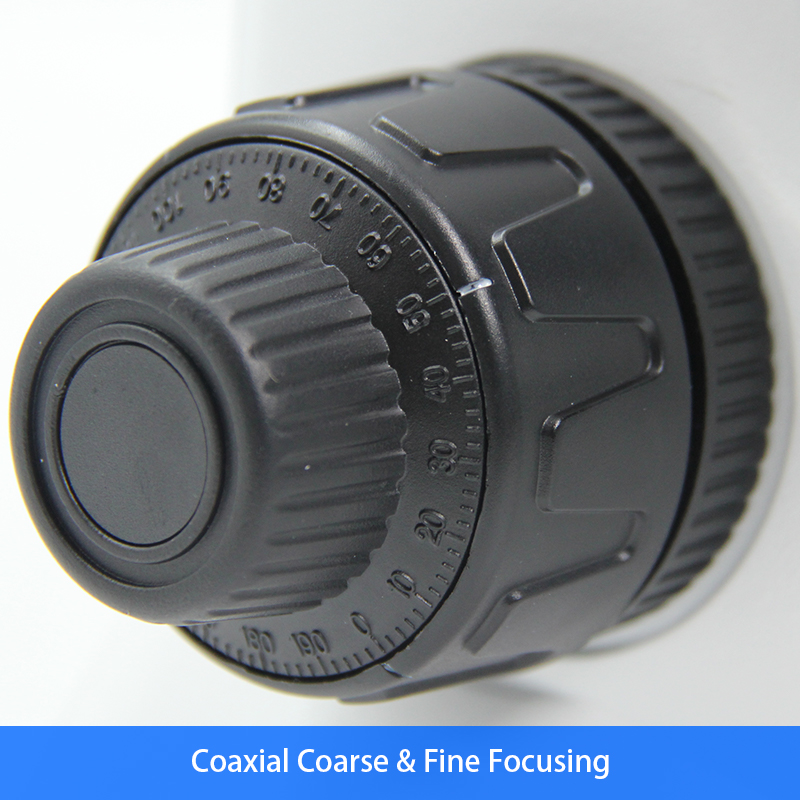

| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 25mm, Fine Focusing Scale 2µm/Division | ● | ● | ● | ● | ● | |

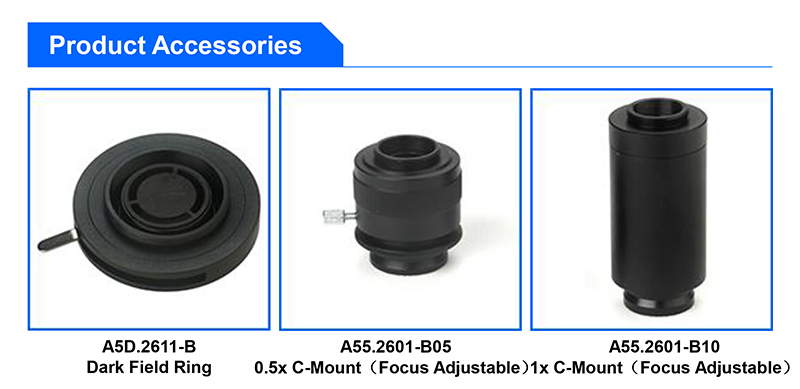

| Adapter | 1.0x C-Mount | ○ | ○ | A55.2601-B10 | |||
| 0.5x C-Mount Focus Adjustable | ○ | ○ | A55.2601-B05 | ||||
| Dark Field | Dark Field Ring, For 4x~40x Objective | ○ | ○ | ○ | ○ | ○ | A5D.2611-B |
| Light Source | 3W LED Illumination With Aspheric Collector, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | ● | ● | ● | ● | ● | A56.2650-3WLED |
| Package | Carton Size 26x35x46cm, 1 Unit/Ctn | ||||||
| Weight | Gross Weight 7.0kgs, Net Weigth 5.5kgs | ||||||
| Note:"●"In Table Is Standard Outfits,"○"Is Optional Accessories. | |||||||
