OPTO-EDU A13.0910-RT Metallurgical Microscope, BF/DF, DIC, Semi-APO, PL, Transmit & Reflect Light

Metallurgical Microscope, BF/DF, DIC, Semi-APO, PL, Transmit & Reflect Light

BF/DF, Polarzing, DIC, Semi-APO View Under Transmit & Reflect Light Source

30° Trinocular Head With Erect Image Light Spiltting Ratio Switch E100:P0/E0:P100

Super Wide Field Plan Eyepiece 10x/25mm, 10x/26.5mm Optional

LWD Infinity Plan Metallurgical BF/DF DIC & Semi-APO Objectives

A13.0910 Upright Metallurgical Microscope, BF/DF, DIC, Semi-APO, Polarizing		R	RT	Cata. No.
Infinity Optical System	BF/DF, Bright Field/Dark Field, Reflect Light	●
	BF/DF, Bright Field/Dark Field, Transmit & Reflect Light		●
	PL, Polarzing	●	●
	DIC, Different Interference Contrast	○	○

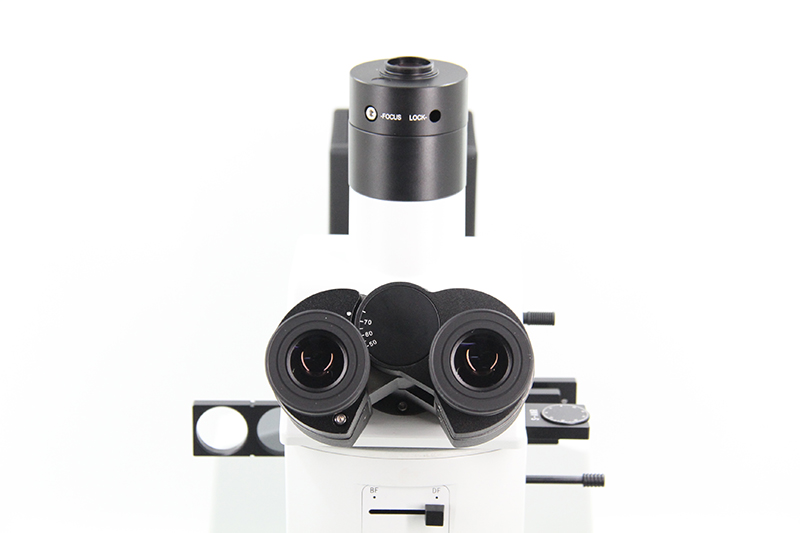

Head	30° Inclined Erect Image Infinity Gemel Trinocular Head, Interpupillary Distance 50~76mm, Light Spiltting Ratio Switch E100:P0/E0:P100,	●	●	A53.0913-T30E
	30° Inclined, Invert Image Infinity Gemel Trinocular Head, Interpupillary Distance 50~76mm; Light Splitting Ratio Switch R:T=100:0 or 20:80 or 0:100	○	○	A53.0913-T30
	5-35° Tiltable, Inverted Image, Infinity Gemel Trinocular Head, Interpupillary Distance 50~76mm; Light Splitting Ratio 50:50 or 100:0 or 0:100	○	○	A53.0913-T535
CCD Adapter	0.5x C-Mount, For 1/2"CCD, Focus Adjustable	○	○	A55.0930-05
	0.35x C-Mount, For 1/2"CCD, Focus Adjustable	○	○	A55.0930-35
	0.65x C-Mount, For 1/2"CCD, Focus Adjustable	○	○	A55.0930-65
	1.0x C-Mount, For 1"CCD, Focus Adjustable	○	○	A55.0930-10
Eyepiece	High Eyepoint Plan PL10x/25mm, Diopter Adjustable	●●	●●	A51.0904-1025T
	High Eyepoint Plan PL10x/26.5mm, Diopter Adjustable	○	○	A51.0904-10265T
	High Eyepoint Plan PL10x/25mm, Diopter Adjustable, With Reticle	○	○	A51.0905-1025T
	High Eyepoint Plan PL10x/26.5mm, Diopter Adjustable, With Reticle	○	○	A51.0905-10265T
Objective	Infinity Plan Semi-APO LWD Metallurgical BF/DF DIC Objective
	5x/0.15, W.D.=13.5mm	●	●	A5M.0941-5
	10x/0.30, W.D.=9mm	●	●	A5M.0941-10
	20x/0.50, W.D.=2.5mm	●	●	A5M.0941-20
	20x/0.40, W.D.=8.5mm	○	○	A5M.0941-20A
	50x/0.80, W.D.=1.0mm	●	●	A5M.0941-50
	100x/0.90, W.D.=1.0mm	●	●	A5M.0941-100
	Infinity Plan Semi-APO LWD Metallurgical BF DIC Objective
	5x/0.15, W.D..=19.5mm	○	○	A5M.0942-5
	10x/0.30, W.D..=10.9mm	○	○	A5M.0942-10
	20x/0.50, W.D.=3.20mm	○	○	A5M.0942-20
	50x/0.80, W.D.=1.20mm	○	○	A5M.0942-50
	100x/0.90, W.D.=1.0mm	○	○	A5M.0942-100
	Semi-APO Objective With Correcting Ring 50X/0.70, WD=2.3~2.9mm	○	○	A5M.0945-50

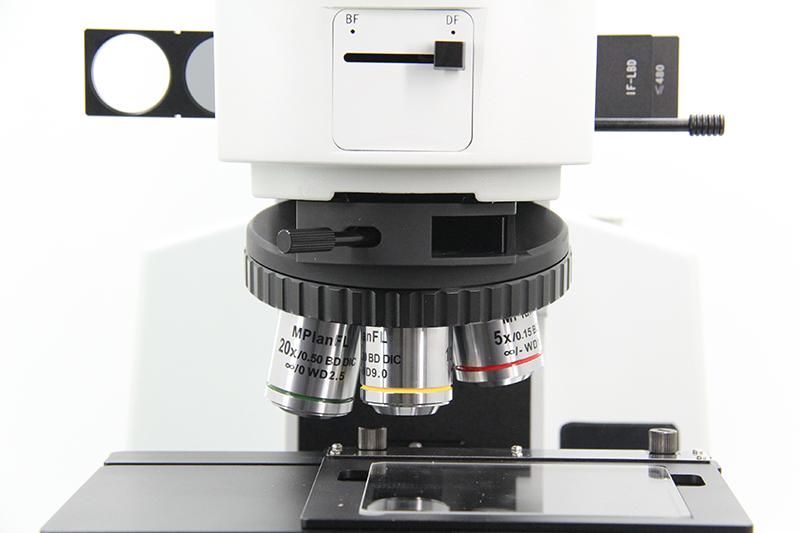

Nosepiece	BF/DF 5 Holes, With Socket For DIC Slide & Polaring Analyzer Slide, For Metallurgical	○	○	A54.0930-RM5BD
	BF/DF 6 Holes, With Socket For DIC Slide & Polaring Analyzer Slide, For Metallurgical	●	●	A54.0930-RM6BD
	BF 6 Holes, With Socket For DIC Slide & Polaring Analyzer Slide, For Metallurgical	○	○	A54.0930-RM6
	BF 7 Holes, With Socket For DIC Slide & Polaring Analyzer Slide, For Metallurgical	○	○	A54.0930-RM7
DIC	DIC Attachment, Apply For BD Objective	○	○	A5M.0952

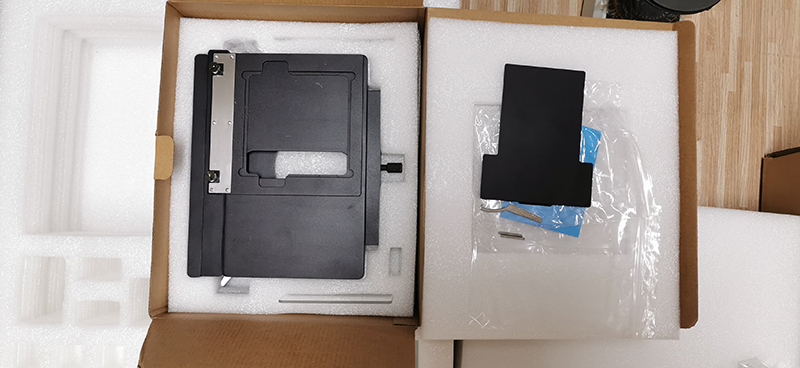

Working Stage	4"Three Layer Mechanical Stage, For Transmit & Reflect Light Moving Range 102*105mm, Low Position X/Y Moving Handle, With Glass Plate For RT Model, With Metal Plate For R Model	●	●	A54.0950-M4
Working Stage	Rotatable Working Stage 4", For Wafer 2", 3", 4"	○	○	A54.0950-W234
Focusing	Low-Position Coaxial Coarse & Fine Adjustment, Coarse Adjustment Distance: 25mm; Fine Precision: 0.001Mm. With Coarse Adjustment Stop And Tightness Adjustment.	●	●
Main Body	ReflectedBody, Digital Dimming System With Light Indicator, Brightness Set & Reset Function	●
Main Body	Reflected/TransmittedBody, Digital Dimming System With Light Indicator, Brightness Set & Reset Function, With Condenser Holder		●
Transmit Light	12V100W Halogen Lamp House, Pre-Centered		●	A56.0915-LH
	12V100W Halogen Bulb (Philps 7724)		●	A56.0923-12100

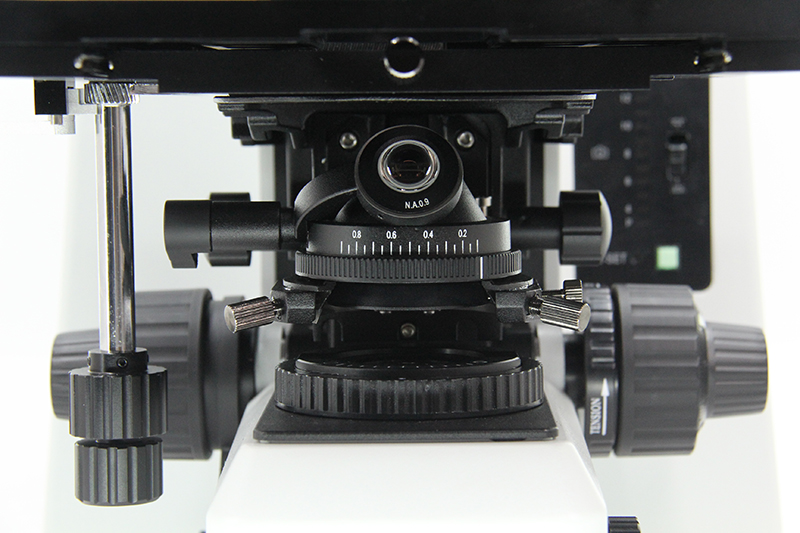

	Swing-out Type Achromatic Condenser, N.A.0.9/0.25		●	A56.0934-R
	Built-In Transmit Filters LBD/ND6/ND25		●
Reflect Light	BF/DF Reflect Illuminator, With Iris Field Diaphragm and Aperture Diaphragm, Both Central Adjustable, With Filter Slot and Polarizing Slot, With BF/DF Switch	●	●	A56.0915-RL
	12V100W Halogen Lamp House, Pre-Centered	●	●	A56.0915-LH
	12V100W Halogen Bulb (Philps 7724)	●	●	A56.0923-12100
	Interference Filter, For Reflect Light, Netural White	●	●	A5M.0953-LBD
	Interference Filter, For Reflect Light, Blue, <480nm	○	○	A5M.0953-B
	Interference Filter, For Reflect Light, Green, 520~570nm	○	○	A5M.0953-G
	Interference Filter, For Reflect Light, Red, 630~750nm	○	○	A5M.0953-R
Polarizing For Reflect Light	Fixed Polarizer Flashboard	●	●	A5P.0924-RP
	360° Rotatable Analyzer Flashboard	●	●	A5P.0924-RA360
	Fixed Analyzer Flashboard	○	○	A5P.0924-RA
Power	Built-In 100-240V Wide Voltage Transformer, One Way Power Output	●
Power	Built-In 100-240V Wide Voltage Transformer, Double-Way Power Output.		●
Other	Allen Key M3	●	●
	Allen Key M4	●	●
	Specimen Presser	○	○	A5M.0920
Upgrade Series Model
Bilogical	A13.0910 DIC Metallurgical Microscope, APO			A13.0910
Remark: '●' Means Standard Outfit, '○' Means Optional

Pictures Hide Same Show Difference
Model No.	A13.0910-RT	A13.0910-R
Other Specification	Interference Filter, For Reflect Light, Netural, Blue, Green, Red Switch For Reflection And Transmission Light Built-In Transmitted Filters LBD/ND6/ND25	Interference Filter, For Reflect Light, Netural, Blue, Green, Red
Polarizing	Fixed Polarizer Flashboard & 360° Rotatable Analyzer Flashboard	Fixed Polarizer Flashboard & 360° Rotatable Analyzer Flashboard
Dark Field	——	BF/DF Switch On Reflect Light
Power Supply	Double Way Power Output	——
Power Supply Type	AC 110V-240V	AC 110V-240V
Reflect Light	BF/DF 12V100W Halogen	BF/DF 12V100W Halogen
Transmit Light	12V100W Halogen Light Box, Pre Centered	——
Light Source Type	Halogen	Halogen
Light Source Features	Halogen 100W Light Indicator Transmit & Reflect Aspheric Collector Kohler	Halogen 100W Light Indicator Aspheric Collector Kohler
Condenser N.A.	0.9/0.25	0.9/0.25
Condenser Type	Swing-Out	Swing-Out
Condenser Features	Rack & Pinionↆ↑	Rack & Pinionↆ↑
Focusing Scale	0.001mm	0.001mm
Focusing Range	25mm	25mm
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Focusing Features	Tension Adjustable Safety Stop Lock Ring	Tension Adjustable Safety Stop Lock Ring
Working Stage Moving	105x102mm	105x102mm
Working Stage Size	230x215mm	230x215mm
Working Stage Type	3 Layers Mechanical	3 Layers Mechanical
Working Stage Features	Size ≥140x180mm	Size ≥140x180mm
Objective	LWD Infinity Plan Metallurgical BF/DF DIC Semi-APO Objective 5x10x20x50x100x	LWD Infinity Plan Metallurgical BF/DF DIC Semi-APO Objective 5x10x20x50x100x
Objective Type	Infinity Plan Metallurgical	Infinity Plan Metallurgical
Objective Features	DIC APO LWD BF+DF Covreless	DIC APO LWD BF+DF Covreless
Nosepiece Holes	6 Holes	6 Holes
Nosepiece Features	Inward With DIC Slot	Inward With DIC Slot
Eyepiece	High Eyepoint Plan PL10x/25mm, Diopter Adjustable, 2 pcs	High Eyepoint Plan PL10x/25mm, Diopter Adjustable, 2 pcs
Eyepiece Diameter	30.0mm	30.0mm
Eyepiece Features	Diopter Adjustable Super WF ≥23mm	Diopter Adjustable Super WF ≥23mm
Head Specification	Erect Image	Erect Image
Head Light Path	E100:P0/E0:P100	E100:P0/E0:P100
Head Interpupillary	50~76mm	50~76mm
Head Rotation	Head Rotate 360°	Head Rotate 360°
Head Inclination	30°	30°
Head Type	Seidentopf Trinocular	Seidentopf Trinocular
Standard Magnification	50x-1000x	50x-1000x
Optical System	Infinity Plan	Infinity Plan
Features	Infinity APO DIC	Infinity APO DIC
Standard Function	BF+DF+PL+DIC	BF+DF+PL+DIC
New Product Year	2015	2015

A13.0910 Catalogue.pdf 3.93M 2022/10/09
