OPTO-EDU A15.0701-TRT Polarizing Microscope, Transmit & Reflect

Polarizing Microscope, Transmit & Reflect

Swing-out NA0.9/0.25 Abbe Condenser With Iris Diaphragm & Filter

Bertrand Lens, Focus/Center Adjustable Sliding In/Out Of Optical Path

12V/50W Halogen Lamp With Iris Aperture Diaphragm And Iris Field Diaphragm, Brightness Adjustable

Attachable Mechanical Stage, Moving Range 30x40mm

Rotatable Analyzer With Gradation 0°-360°, 360° Rotatable Under The Condenser

Pictures Hide Same Show Difference
Model No.	A15.0701-TRT	A15.0701-TB	A15.0701-TT	A15.0701-TRB
Polarizing Features	Center Adj. Condenser Center Adj. Nosepiece	Center Adj. Condenser Center Adj. Nosepiece	Center Adj. Condenser Center Adj. Nosepiece	Center Adj. Condenser Center Adj. Nosepiece
Reflect Light	12V/50W Halogen Lamp With Iris Aperture Diaphragm And Iris Field Diaphragm, Brightness Adjustable	——	——	12V/50W Halogen Lamp With Iris Aperture Diaphragm And Iris Field Diaphragm, Brightness Adjustable
Transmit Light	12V/20W Halogen Lamp, Brightness Adjustable, With Filiter Upgradable To 5W LED	12V/20W Halogen Lamp, Brightness Adjustable, With Filiter Upgradable To 5W LED	12V/20W Halogen Lamp, Brightness Adjustable, With Filiter Upgradable To 5W LED	12V/20W Halogen Lamp, Brightness Adjustable, With Filiter Upgradable To 5W LED
Light Source Type	Halogen	Halogen	LED Halogen	LED Halogen
Condenser	Swing-out NA0.9/0.25 Abbe Condenser With Iris Diaphragm & Filter	Swing-out NA0.9/0.25 Abbe Condenser With Iris Diaphragm & Filter	Swing-out NA0.9/0.25 Abbe Condenser With Iris Diaphragm & Filter	——
Condenser N.A.	1.25	1.25	0.9/0.25	0.9/0.25
Condenser Type	Swing-Out Abbe	Swing-Out Abbe	Swing-Out Abbe	Swing-Out Abbe + Iris Diaphragm
Condenser Features	Slot For PH Slide Rack & Pinionↆ↑	Slot For PH Slide Rack & Pinionↆ↑	Filter Holder Center Adjustable Iris Diaphragm Rack & Pinionↆ↑	Filter Holder Center Adjustable Iris Diaphragm Rack & Pinionↆ↑
Focusing Scale	0.002mm	0.002mm	0.002mm	0.002mm
Focusing Range	24mm	24mm	24mm	24mm
Focusing Features	Safety Stop Lock Ring	Safety Stop Lock Ring	Safety Stop Lock Ring	Safety Stop Lock Ring
Working Stage	——	——	Attachable Mechanical Stage	——
Working Stage Moving	——	——	30x40mm	30x40mm
Working Stage Size	Diameter Φ160mm, Graduated in 1° Increments, Minim	Diameter Φ160mm, Graduated in 1° Increments, Minim	Diameter Φ160mm, Graduated in 1° Increments, Minim	Diameter Φ160mm, Graduated in 1° Increments, Minim
Working Stage Type	Round Stage	Round Stage	Round Stage	Round Stage
Objective	Infinity Plan Achromatic Objective 4x,10x for Reflected/Transmitted System， Infinity Plan Achromatic Objective 20x, 40x, 60x for Reflected System	Infinity Plan Achromatic Objective 4x,10x for Reflected/Transmitted System， Infinity Plan Achromatic Objective 20x, 40x, 60x for Transmitted System	Infinity Plan Achromatic Objective 4x,10x for Reflected/Transmitted System， Infinity Plan Achromatic Objective 20x, 40x, 60x for Transmitted System	Infinity Plan Achromatic Objective 4x,10x for Reflected/Transmitted System， Infinity Plan Achromatic Objective 20x, 40x, 60x for Reflected System
Objective Type	Infinity Plan	Infinity Plan	Infinity Plan	Infinity Plan
Objective Features	BF+DF	BF+DF	Center Adjustable Iris Diaphragm	Center Adjustable
Nosepiece Holes	4 Holes	4 Holes	4 Holes	4 Holes
Nosepiece Features	Center Adjustable	Center Adjustable	Inward	——
Eyepiece	WF10x/20mm, 2pcs WF10x/20mm, With Cross Hair, 2pcs WF10x/20mm, With Graticule, 2pcs	WF10x/20mm, 2pcs WF10x/20mm, With Cross Hair, 2pcs WF10x/20mm, With Graticule, 2pcs	WF10x/20mm, 2pcs WF10x/20mm, With Cross Hair, 2pcs WF10x/20mm, With Graticule, 2pcs	WF10x/20mm, 2pcs WF10x/20mm, With Cross Hair, 2pcs WF10x/20mm, With Graticule, 2pcs
Eyepiece Diameter	23.2mm	23.2mm	23.2mm	23.2mm
Eyepiece Features	Micrometer Diopter Adjustable	Micrometer Diopter Adjustable	Diopter Adjustable	Diopter Adjustable
Head Rotation	Eyetube Rotate 360°	Head Rotate 360°	Head Rotate 360°	Eyetube Rotate 360°
Head Type	Seidentopf Trinocular	Seidentopf Binocular	Seidentopf Trinocular	Seidentopf Binocular
Standard Magnification	——	——	40x-600x	40x-600x
Optical System	Infinity Achromatic	Infinity Achromatic	Infinity Plan	Infinity Plan
Features	Infinity	Infinity	Infinity	Infinity
Power Supply Type	——	——	AC 110V-240V	AC 110V-240V
Light Source Features	——	——	LED 5W	Halogen 50W LED 5W Transmit & Reflect
Focusing Type	——	——	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Head Interpupillary	——	——	50~75mm	50~75mm
Head Inclination	——	——	30°	——
Standard Function	——	——	BF+PL	BF+PL

Advanced Cookie Settings

Essential Cookies

These cookies enable core functionality such as security, verification of identity and network management. These cookies can’t be disabled.

Enable Marketing Cookies

These cookies are used to track advertising performance, consent to the sending of advertising-related user data to Google, and consent for the website to serve personalized advertising to provide more relevant services.

Enable Functional Cookies

These cookies collect data to remember choices users make to improve and give a more personalised experience.

Enable Analytics Cookies

These cookies help us to understand how visitors interact with our website, discover errors and provide a better overall analytics.

Items	A15.0701 Polarizing Microscope	A15.0701-T		A15.0701-TR
Items	A15.0701 Polarizing Microscope	B	T	B	T
Head	Seidentopf Binocular Viewing Head, Inclined at 30°	●		●

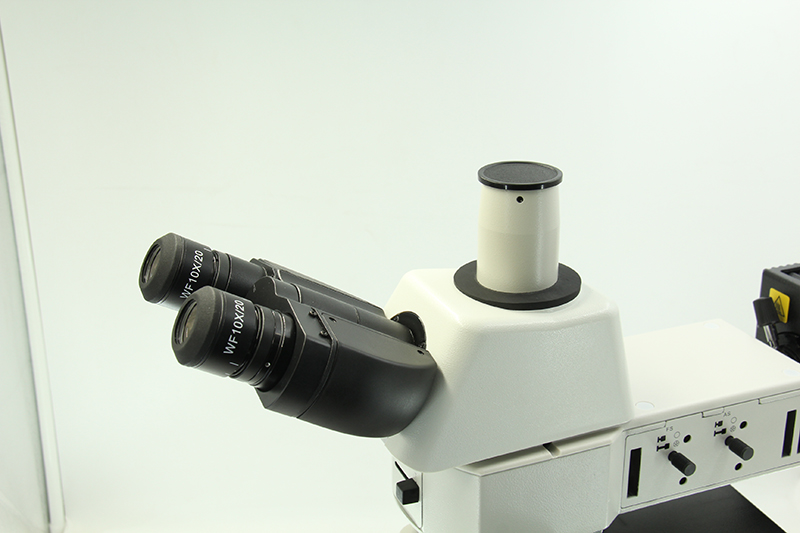

Head	Seidentopf Trinocular Viewing Head, Inclined at 30°		●		●

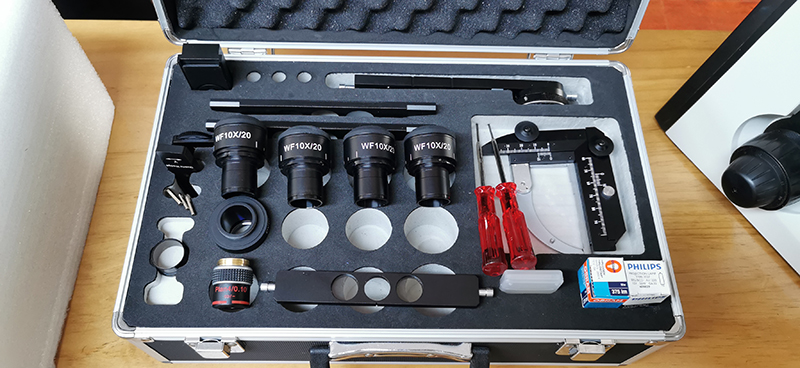

Eyepiece	WF10x/20 With Cross Hair, Diopter Adjustable, Dia.23.2mm, 1pcs	●	●	●	●
	WF10x/20 With Graticule, Diopter Adjustable, Dia.23.2mm, 1pcs	●	●	●	●
	WF10x/20, Diopter Adjustable,Dia.23.2mm, 2pcs	●	●	●	●

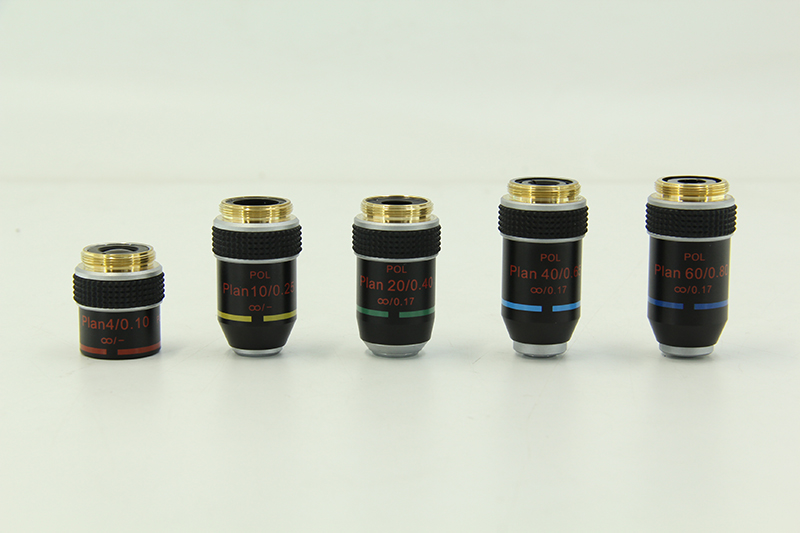

Objective	Infinity Plan Achromatic Objective 4x,10x for Reflected/Transmitted System	●	●	●	●
	Infinity Plan Achromatic Objective 20x, 40x, 60x for Transmitted System	●	●
	Infinity Plan Achromatic Objective 20x, 40x, 60x for Reflected System			●	●
Nosepiece	Backward Quadruple Nosepiece, Center Adjustable	●	●	●	●
Focusing	Coaxial Coarse & Fine Adjustment, Range 24mm,Fine Division 0.002mm	●	●	●	●
Stage	Attachable Mechanical Stage, Moving Range 30x40mm	●	●	●	●
Stage	Diameter Φ160mm, Graduated in 1° Increments, Minimum resolution 6’ when using vernier scale	●	●	●	●
Analyzer	Rotatable Analyzer With Gradation 0°-360°	●	●	●	●
Polarizer	360° Rotatable Under The Condenser	●	●	●	●
Bertrand Lens	Bertrand Lens, Focus/Center Adjustable Sliding In/Out Of Optical Path	●	●	●	●
Optical Compensator	λ Slip（First Class Red）, 1/ 4λ Slip, Quartz Wedge	●	●	●	●
Condenser	Swing-out NA0.9/0.25 Abbe Condenser With Iris Diaphragm & Filter	●	●	●	●
Transmit Light	12V/20W Halogen Lamp, Brightness Adjustable, With Filter, Upgradable To 5W LED	●	●	●	●

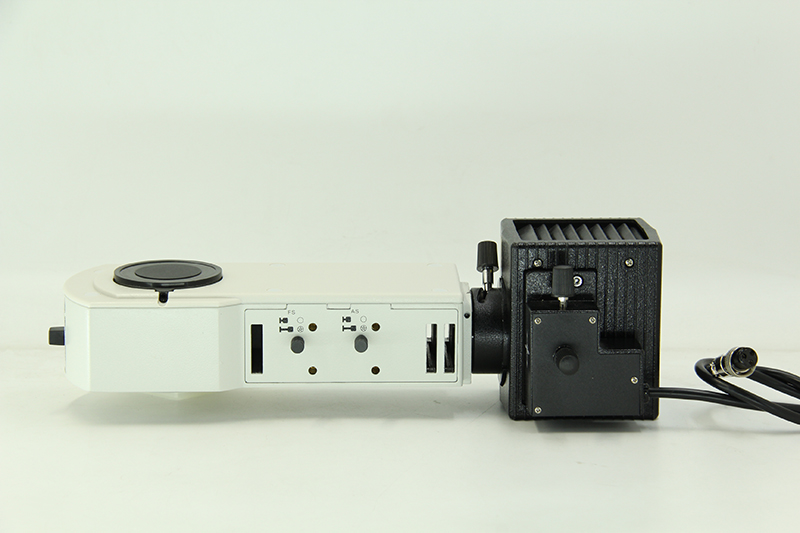

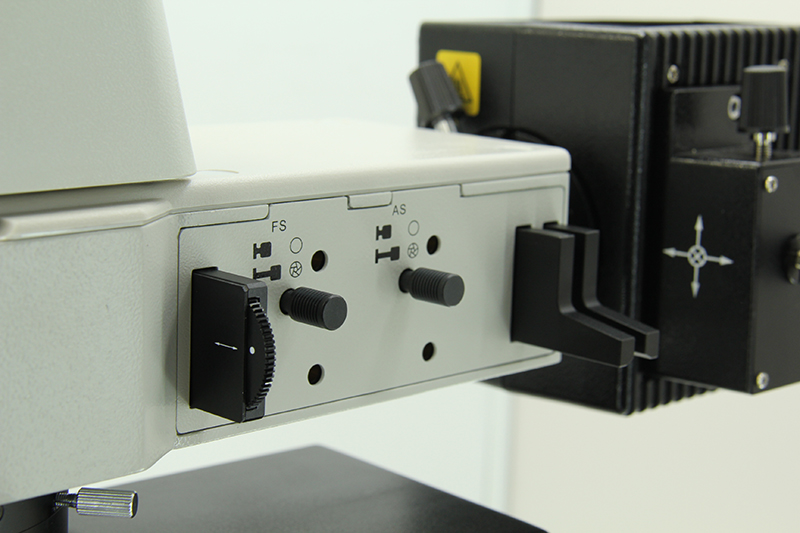

Reflect Light	12V/50W Halogen Lamp With Iris Aperture Diaphragm And Iris Field Diaphragm, Brightness Adjustable			●	●
Adapter	C-Mount 0.4x		○		○
Filter	Blue Filter	○	○	○	○
Note:"●"In Table Is Standard Outfits,"○"Is Optional Accessories.
