Inverted Ultra LED Fluorescent Microscope

Ultra LED High Brightness Fluorescent Reflect Illumination Inverted Microscope

Seidentopf Trinocular Head, Light Split Switch E100:P0 / E20:P80

Infinity Plan LWD Semi-APO BF+PH Objective 10x20x40x, Infinity Plan Fluorescent 10x,20x,

LWD Condenser N.A.0.3 Working Distance 72mm, Up To 195mm Without Condenser

Transmit Halogen 6V30W Koehler Illumination, 5W LED Optional For Choice

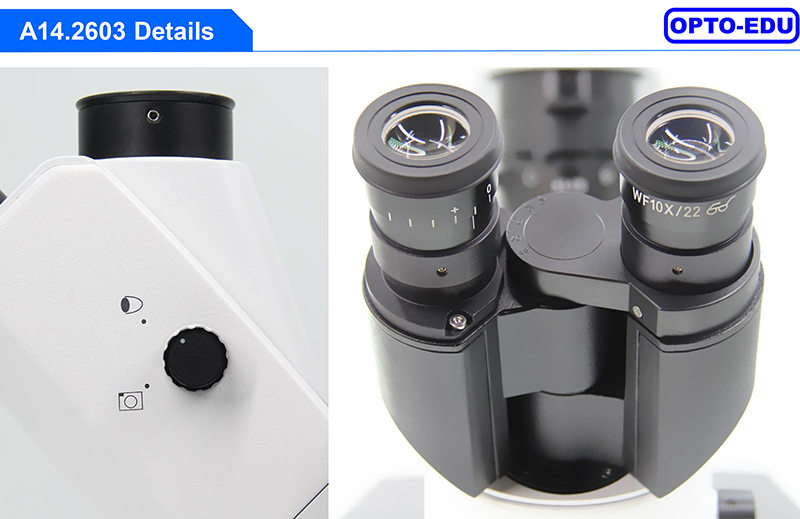

Head & Eyepiece

Seidentopf Trinocular Head Inclined 45°Interpupillary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80;WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable

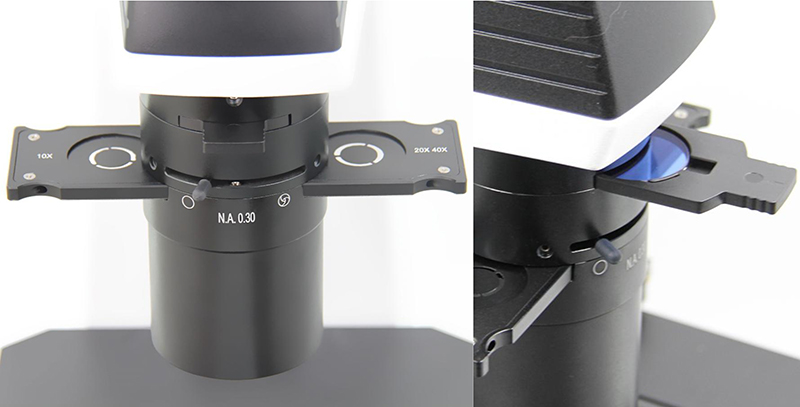

Condenser & Light Source

Condenser & Light Source With Filters: Blue, Dia.34mm; Green, Dia.34mm

Koehler Illumination Halogen 6V/30W For A14.2603

Koehler Illumination 5W LED For A14.2603-TR

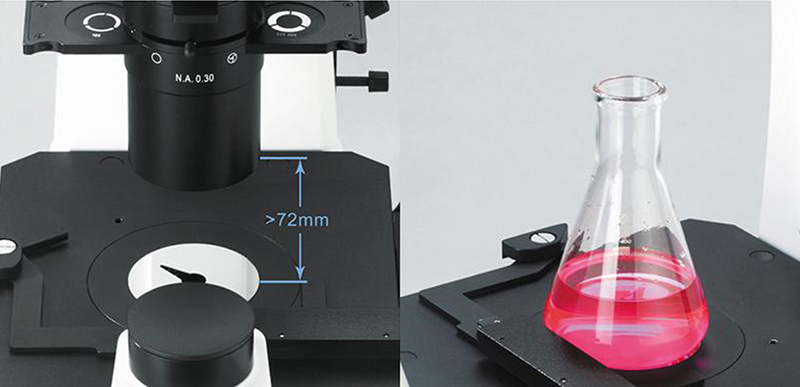

Long Working Distance

Working Distance 72mm (With Condenser), 195mm (Without Condenser)

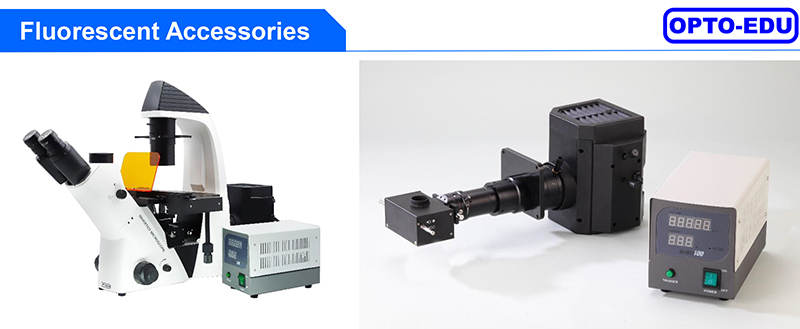

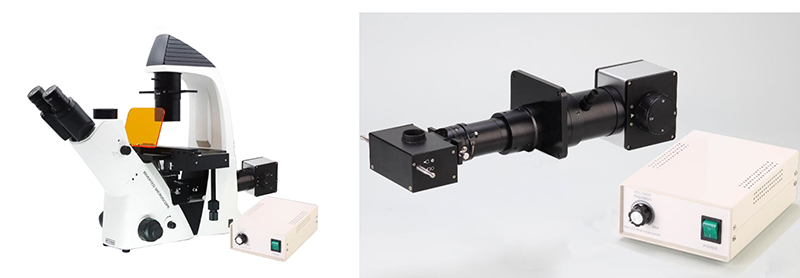

A5F.2603 Epi Fluorescent System For A16.2614

3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable
100W Mercury Lamp House, 100W Mercury Power Box, Digital Disp. Ultraviolet Protection Barrier

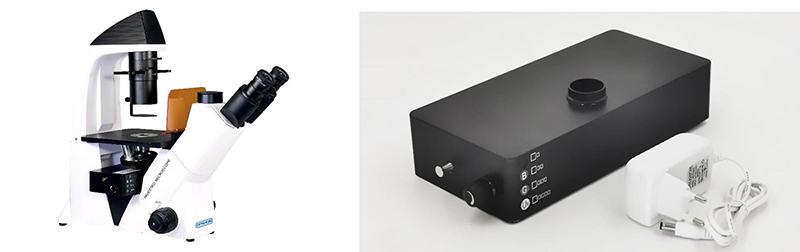

A5F.2604 Epi LED Fluorescent System For A16.2614-L

3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable
5W LED Lamp House, 5W LED Power Box. Ultraviolet Protection Barrier

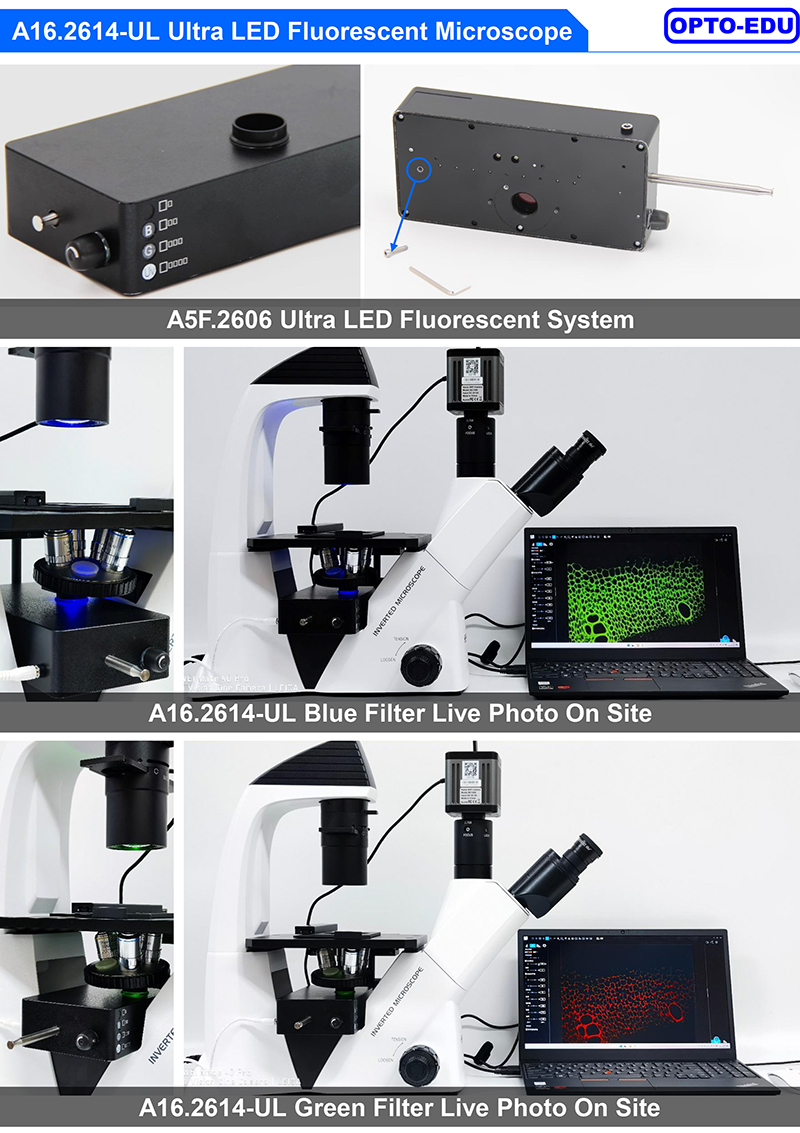

A5F.2606 Ultra LED Fluorescent System For A16.2614-UL

5W LED + Fluorescent Filter Fix & Move Together

Providing Ultra-high Brightness Fluorescent Light Source

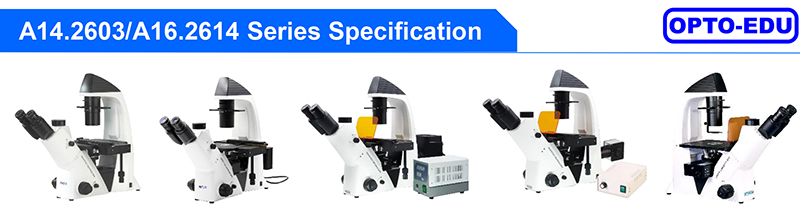

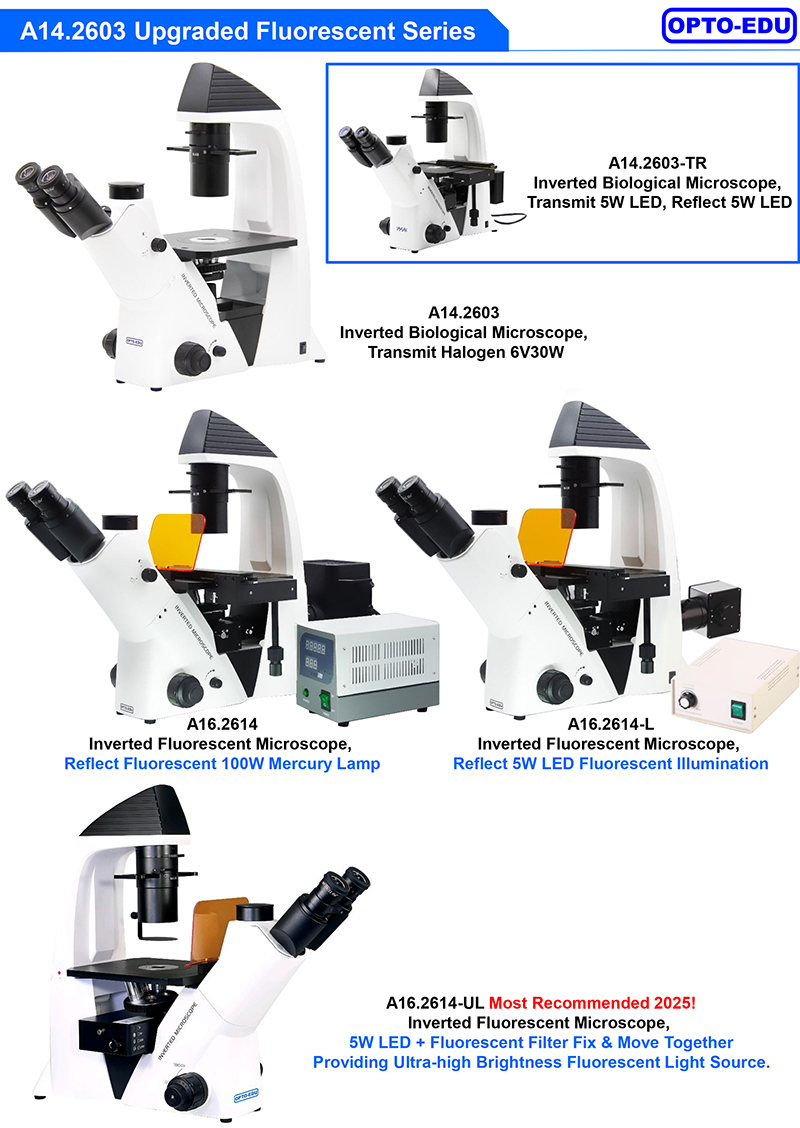

Items	A14.2603 Inverted Biological Microscope A16.2614 Inverted Fluorescent Microscope	A14.2603		A16.2614			Cata. No.
Items			-TR		-L	-UL
Head	Seidentopf Trinocular Head Inclined 45°, Interpupilary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80	●	●	●	●	●	A53.2643

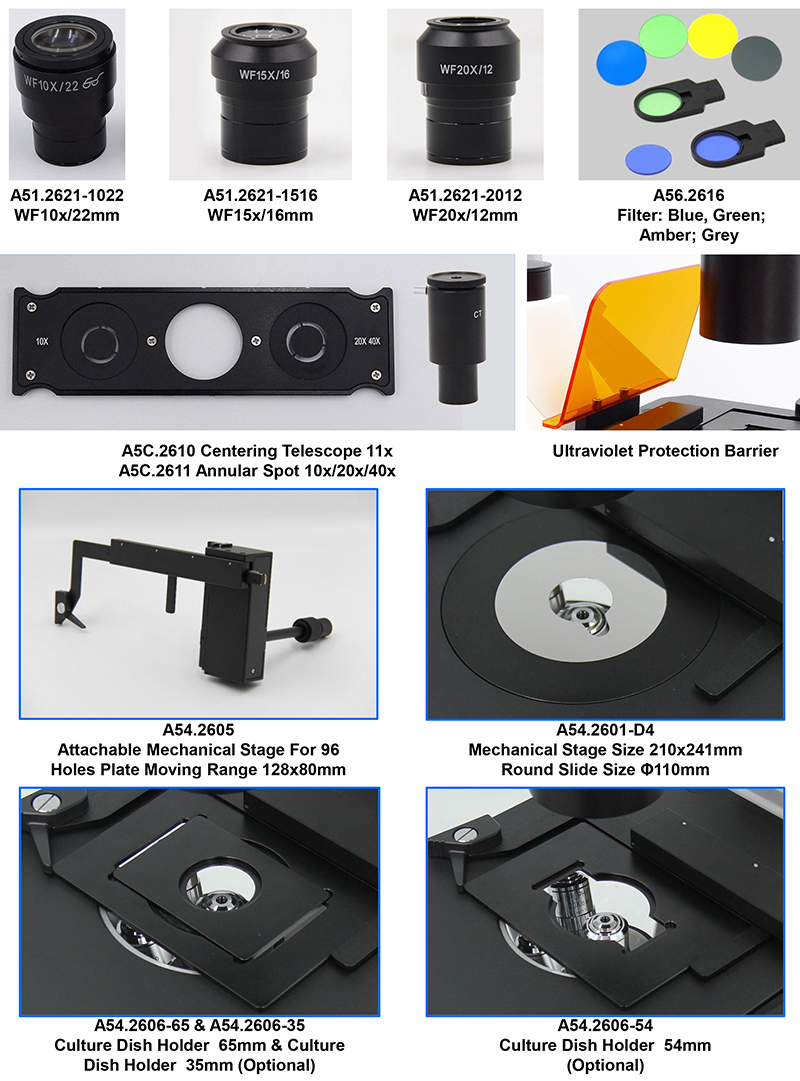

Eyepiece	WF10x/22mm, Dia.30mm, High Eyepoint,, Diopter Adjustable	●	●	●	●	●	A51.2621-1022
	WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable	○	○	○	○	○	A51.2621-1516
	WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable	○	○	○	○	○	A51.2621-2012
Nosepiece	Quintuple	●	●	●	●	●	A54.2610-N925
LWD Infinity Plan FL Semi-APO Objectives	Plan FL 2x/0.06 W.D.=7.2mm	○	○	○	○	○	A5F.2635-2
	L Plan FL 4x/0.11 W.D.=12.1mm	○	○	○	○	○	A5F.2635-4
	L Plan FL 10x/0.25 W.D.=10.3mm	○	○	○	○	○	A5F.2635-10
	L Plan FL 20x/0.45 W.D.=5.8mm	○	○	○	○	○	A5F.2635-20
	L Plan FL 40x/0.65 W.D.=5.1mm	○	○	○	○	○	A5F.2635-40

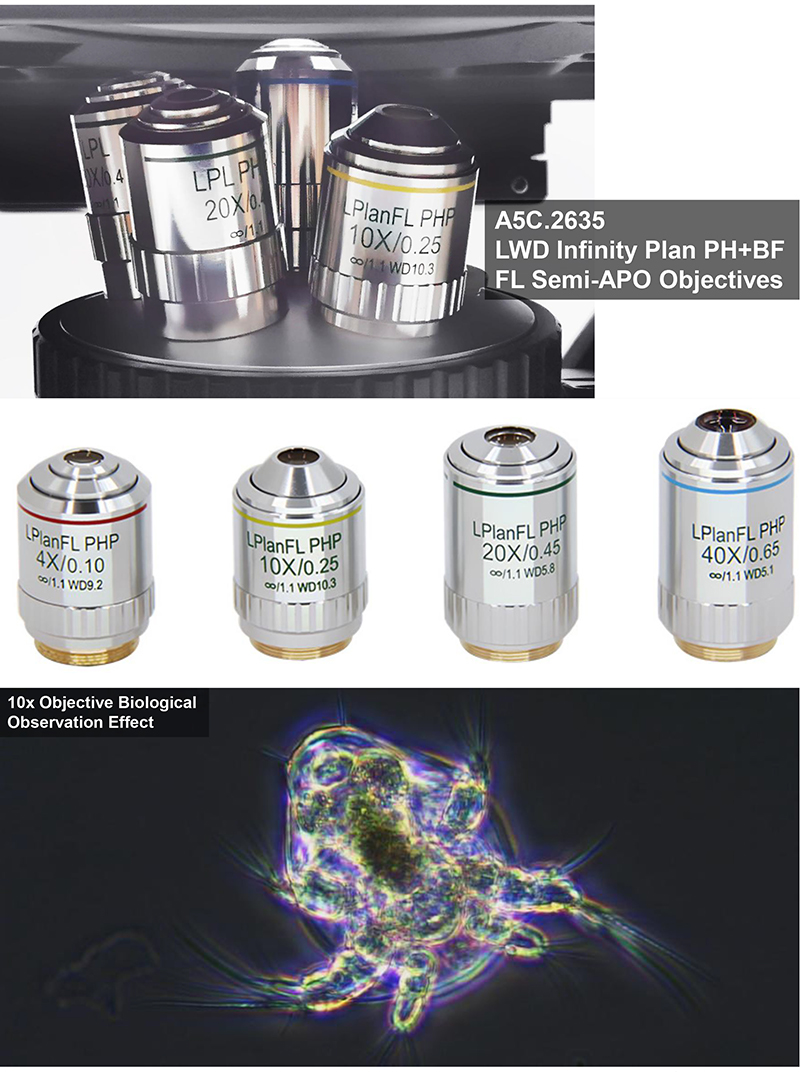

LWD Infinity Plan FL Semi-APO BF+PH Objectives	L Plan FL PHP 4x/0.10 W.D.=9.2mm	○	○	○	○	○	A5C.2635-4
	L Plan FL PHP 10x/0.25 W.D.=10.3mm	●	●	●	●	●	A5C.2635-10
	L Plan FL PHP 20x/0.45 W.D.=5.8mm	●	●	●	●	●	A5C.2635-20
	L Plan FL PHP 40x/0.65 W.D.=5.1mm	●	●	●	●	●	A5C.2635-40
LWD Infinity Plan Fluorescent Objectives	New Update 2024 Specialized For Fluorescent Observation!
	L PLAN Fluor 10x, N.A.0.3，W.D.=14.0mm	-	-	●	●	●	A5F.2636-10
	L PLAN Fluor 20x, N.A.0.45，W.D.=6.6mm	-	-	●	●	●	A5F.2636-20
	L PLAN Fluor 40x, N.A.0.65，W.D.=3.9mm	-	-	○	○	○	A5F.2636-40
Phase Contrast	Centering Telescope 11x	○	○	○	○	○	A5C.2610
	Annular Spot 4x	○	○	○	○	○	A5C.2611-4
	Annular Spot 20x/ 40x	●	●	●	●	●	A5C.2611-10
	Annular Spot 10x	●	●	●	●	●	A5C.2611-20/40

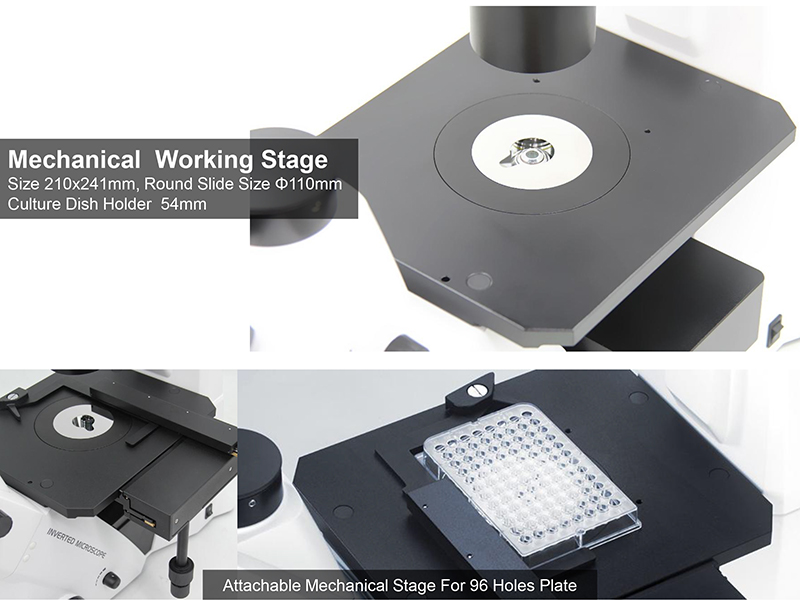

Working Stage	Mechanical Stage Size 210x241mm, Round Slide Size Φ110mm	●	●	●	●	●	A54.2601-D4
	Attachable Mechanical Stage For 96 Holes Plate Moving Range 128x80mm	○	○	○	○	○	A54.2605
	Culture Dish Holder 65mm	○	○	○	○	○	A54.2606-65
	Culture Dish Holder 54mm	○	○	○	○	○	A54.2606-54
	Culture Dish Holder 35mm	○	○	○	○	○	A54.2606-35
	Holder For Blood Cell Counter	○	○	○	○	○	A54.2606-BC
	Universal Holder (New Accessory 2021)	○	○	○	○	○	A54.2606-UH
	Round Glass Holder (New Accessory 2021)	○	○	○	○	○	A54.2606-GL
Condenser	Long Working Distance, Quickly Detachable, N.A.0.3, Working Distance 72mm (With Condenser), 195mm (Without Condenser).	●	●	●	●	●	A56.2614-D4
Tranmist Illumination	Koehler Illumination Halogen 6V/30W, Input Voltage 100V~240V	●	○	●	●	●	A56.2650-6V30WH
Tranmist Illumination	Koehler Illumination 5W LED, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	○	●	○	○	○	A56.2650-5WLED
Reflect Illumination	Koehler Illumination 5W LED, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	-	●	-	-	-	A56.2650-5WLED
Reflect Illumination	Polarizing Set	-	●	-	-	-
Power	ECO, Auto Power Off System. Power Off Automatically Upon User Leaving 10 Minutes, Power On Automatically Upon User Approaching Detected, This Function Can Be Shut Down Manually	○	○	○	○	○	A56.2660
Filter	Blue, Dia.34mm	●	●	●	●	●	A56.2616-34B
	Green, Dia.34mm	●	●	●	●	●	A56.2616-34G
	Amber, Dia.34mm	○	○	○	○	○	A56.2616-34A
	Grey, Dia.34mm	○	○	○	○	○	A56.2616-34N
Adapter	C-Mount 0.35x, Focus Adjustable	○	○	○	○	○	A55.2601-35
	C-Mount 0.5x, Focus Adjustable	○	○	○	○	○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable	○	○	○	○	○	A55.2601-75
	C-Mount1.0x, Focus Adjustable	○	○	○	○	○	A55.2601-10
Epi Fluorescence Illumination	A16.2614 Inverted Fluorescence Microscope With: 3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. Ultraviolet Protection Barrier A16.2614-2 B,G China Fluorescent Filters A16.2614-4 B,G,U,UV China Fluorescent Filters	○	-	●	-	-	A5F.2603
	A16.2614-L Inverted LED Fluorescence Microscope With: 3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier A16.2614-L2 B,G China Fluorescent Filters A16.2614-L4 B,G,U,UV China Fluorescent Filters	○	-	-	●	-	A5F.2604
	Most Recommended 2025! A16.2614-UL Ultra LED Inverted Fluorescent Microscope With All-in-One Filter + 5W LED System The LED Fluorescent Light Source And The Fluorescent Filter Are Fixed as One Unit And Move Together, Switch Easily And Providing An Ultra-high Brightness Fluorescent Light Source. A16.2614-UL2 B,G China Fluorescent Filters A16.2614-UL3 B,G,UV China Fluorescent Filters A16.2614-UL4 B,G,U,UV China Fluorescent Filters	○	-	-	-	●	A5F.2606

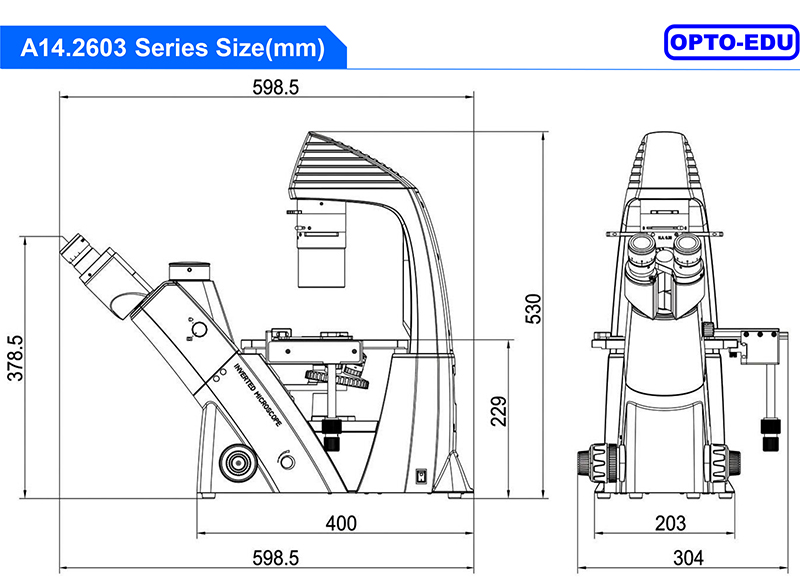

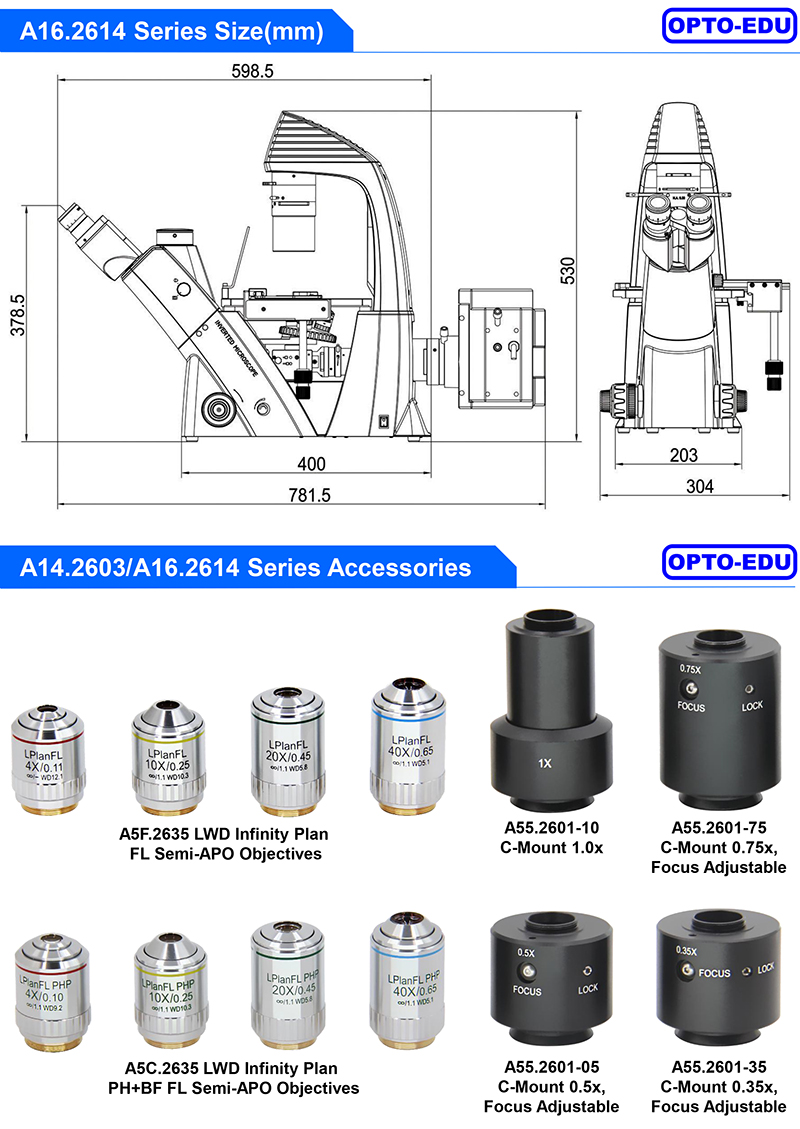

Package	Microscope Packing Size: 660mmx590mmx325mm Fluorescence Carton Size: 520x470x235mm
Weight	Gross Weight: 18 kgs, Net Weight: 13.5 kgs
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories.

Pictures

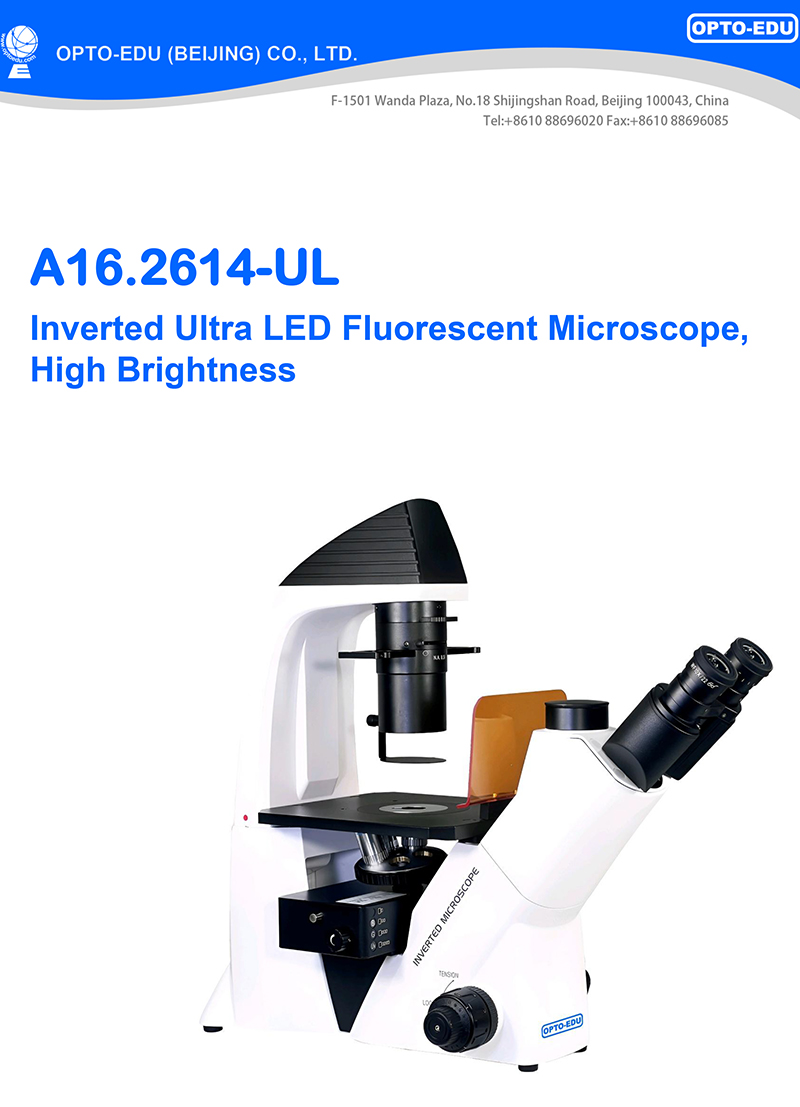

Inverted Ultra LED Fluorescent Microscope

Model No.

A16.2614-UL

Other Specification

Filter Blue, Green, Dia.34mm

Fluorescene

B,G China Fluorescent Filter,
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
Fluorescent Slide Unit 3 Holes, With Filter Diaphragm, Center Adjustable
5W LED B,G Lamp Each 1 pc

Fluorescent Band

2 Bands

Phase Contrast

Annular Spot 10x, 20x/ 40x

Power Supply Type

AC 110V-240V

Reflect Light

5W LED Fluorescent

Transmit Light

6V30W Halogen

Light Source Type

LED
Halogen
Fluorescent

Light Source Features

Halogen 30W
LED 5W
Transmit & Reflect
Kohler

Condenser

Quickly Detachable, N.A.0.3, Working Distance 72mm (With Condenser), 195mm (Without Condenser).

Condenser N.A.

0.3

Condenser Type

LWD/ELWD

Focusing Knob

Coarse Stroke 42.4mm/Rotation, Fine Stroke 2.0mm/Rotation

Focusing Scale

0.002mm

Focusing Range

10mm

Focusing Type

Coaxial Coarse & Fine

Focusing Features

Tension Adjustable

Working Stage

Round Slide Dia. 110mm,
Culture Dish Dolder 54mm

Working Stage Size

210x241mm

Working Stage Type

Fixed Plain Stage

Working Stage Features

Size ≥140x180mm

Objective

LWD Infinity Plan:
LPL 10x/0.25, W.D.=8.3mm
LPL 20x/0.40, W.D.=7.2mm
LPL 40x/0.60, W.D.=3.4mm

LWD Infinity Plan Phase Contrast:
LPL Ph P 20x/0.40, W.D.=7.2mm

Objective Type

Infinity Plan
Phase Contrast

Objective Features

LWD

Nosepiece Holes

5 Holes

Eyepiece

WF10x/22mm, 2 pc.

Eyepiece Diameter

30.0mm

Eyepiece Features

Diopter Adjustable

Head Light Path

E100:P0/E20:P80

Head Interpupillary

48~76mm

Head Inclination

45°

Head Type

Seidentopf Trinocular

Standard Magnification

100x-400x

Optical System

Infinity Plan

Features

Infinity
APO

Standard Function

BF+FL+PH

公用.产品备忘

LED荧光光源和荧光滤色片一体固定，一体移动，超高亮度荧光光源
The LED fluorescent light source and the fluorescent filter are fixed as one unit and move together, providing an ultra-high brightness fluorescent light source.

2025-04-29 A16.2614-NL 改为-UL
