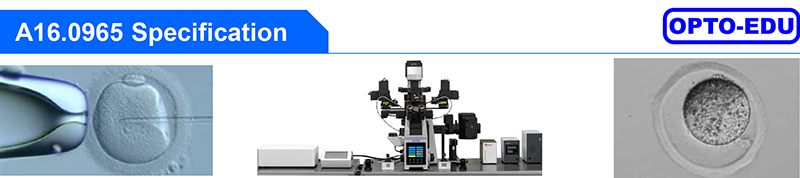

Research Level Inverted Fluorescent Microscope + Micromanipulators, BF+FL+RPC

A16.0965

Like Favorites

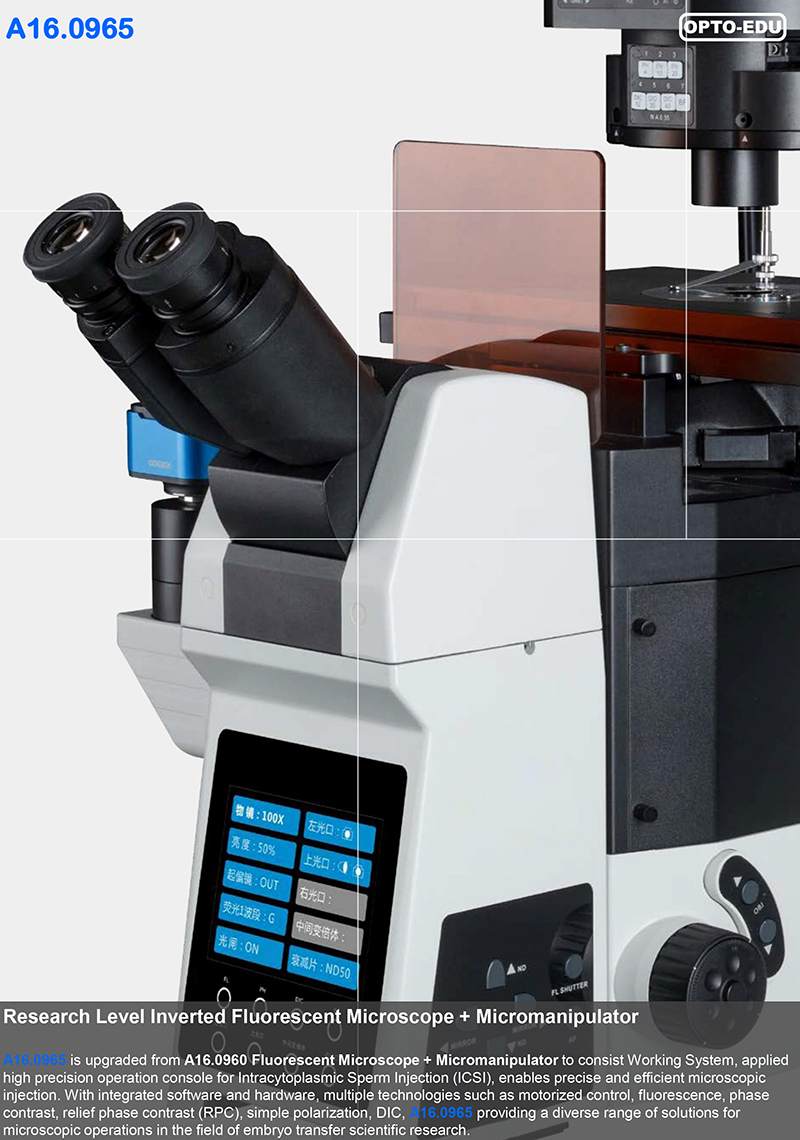

Research Level Inverted Fluorescent Microscope + Micromanipulators, BF+FL+RPC

Motorized Micromanipulators, Motorized XYZ Precision 100um, Manual RT
Injector Precision 8nl, Capacity 8ul/120ul, Per Capacity 0.4ul/6ul
Motorized 6 Holes Nosepiece, Infinity Plan LWD Semi-APO Hoffman RPC Objective 10x,20x,40x
Motorized 7 Holes LWD Condenser NA0.3 WD73mm, With Hoffman RPC Module 10x20x40x
Reflect 10W LED Fluorescent Illuminator, 8 Holes Turret, Chroma Filter B,G,UV,R1

A16.0965 Inverted Biological Fluorescent Microscope, Full Auto Micromanipulators			Cata. No.

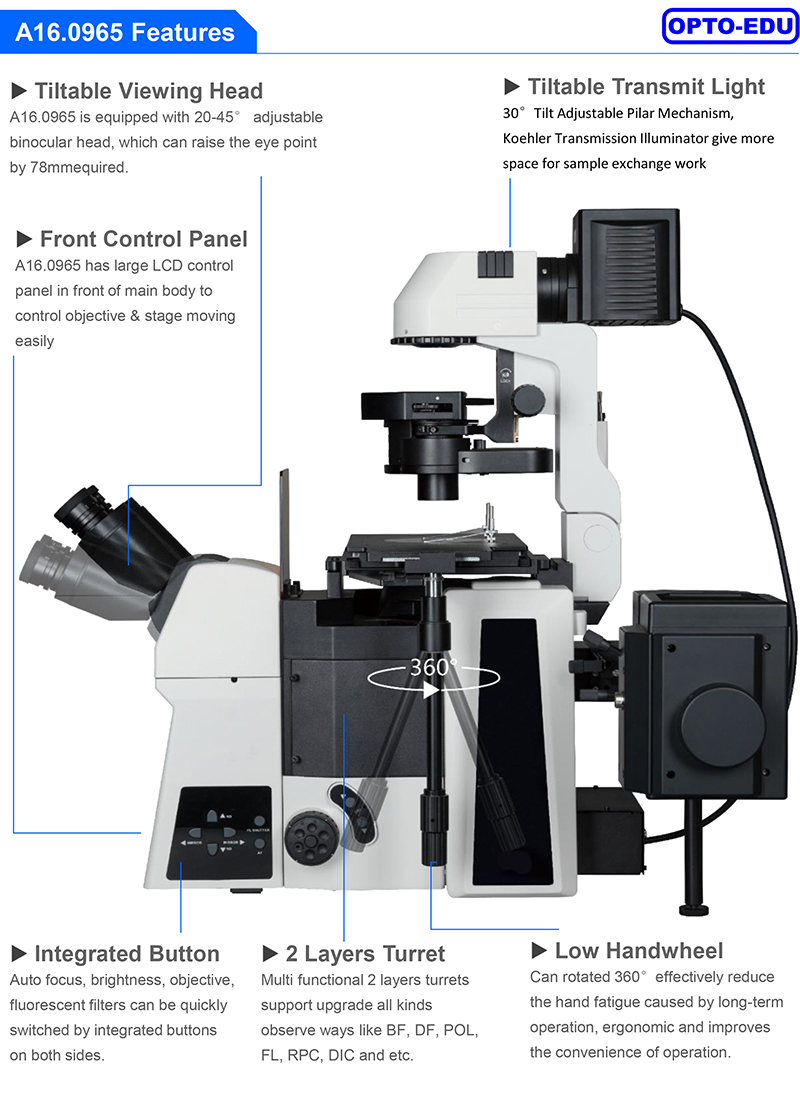

Head	20-45°Tilting Binocular Head, Interpupillary Distance 50~76mm	●	A53.0960
Eyepiece	High Eyepoint Plan Eyepiece PL10X/22mm, Diopter Adjustable	●●	A51.0904-1022T
Telescope	Centering Telescope Φ30, For Relief Phase Contrast	●	A5C.0910-30

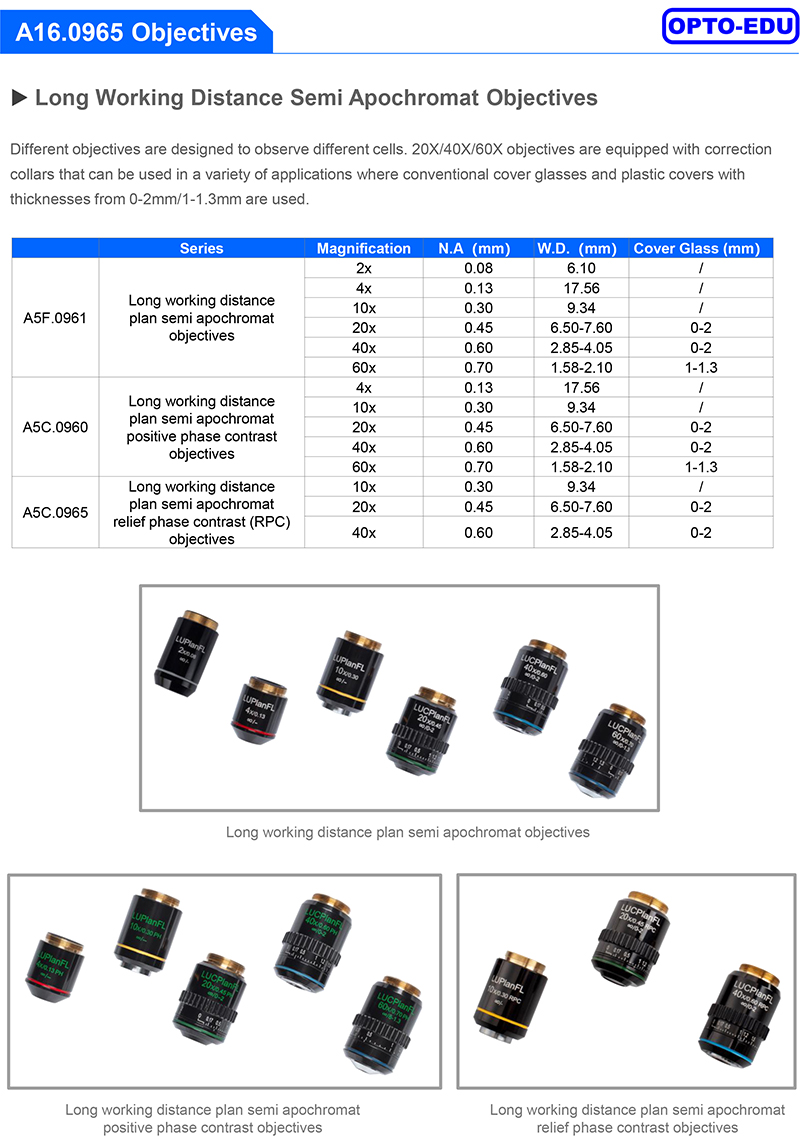

Objective	LWD Plan Semi-APO Relief Contrast 10x/0.30, WD=8.8mm	●	A5C.0965-10
	LWD Plan Semi-APO Relief Contrast 20x/0.45, WD=6.5~7.6mm, 0~2mm Cover Glass	●	A5C.0965-20
	LWD Plan Semi-APO Relief Contrast 40x/0.45, WD=2.85~4.05mm, 0~2mm Cover Glass	●	A5C.0965-40
Nosepiece	Motorized Bright Field Sextuple Nosepiece (With DIC Slot)	●
Stand &	Motorized Z-Axis Focusing System, Precision 1um, Moving Range 10.5mm	●
Camera Port	--Built-in Upper Camera Port, Light Split Ratio E100:P0/E0:P100,
	--Built-in Left Side Camera Port, Light Split Ratio E0:P100/E50:P50/E100:P0,
	--Two Layers of Turret Disc In Light Path For All Kinds Function Filters

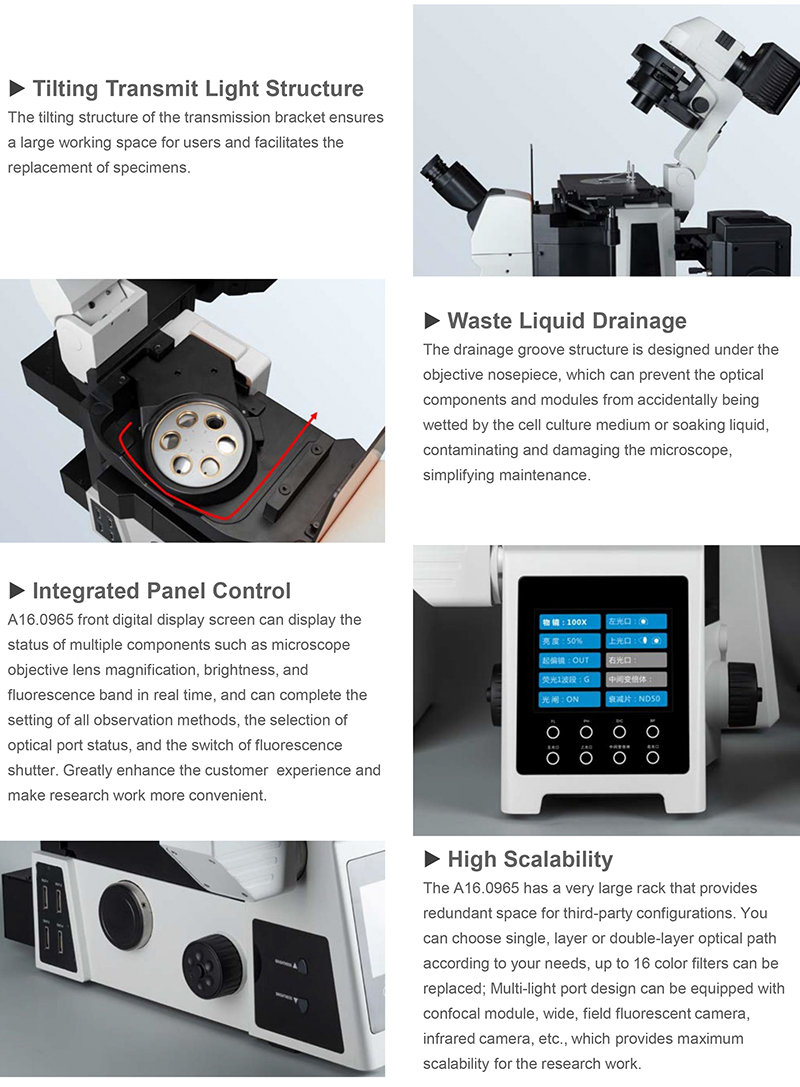

Illumination	30°Tilt Adjustable Pilar Mechanism, Koehler Transmission Illuminator, Condenser Holder With 65mm Stroke, 4 Filters Holders, With LBD, Green, Neutral Filter	●	A56.0960
Illumination	12V/100W Halogen Lamp House, Preseted Center	●	A56.0960-HAL
Condensor	Manual 5 Positions LWD Condenser, N.A.0.30, W.D.73mm, For 4x-60x Phase Contrast, Simple Polarization And 10x-40x Hoffman Relief Phase Contrast (RPC), Work For BF, PH, POL, Relief	●	A56.0963
Relief Phase Contrast	10X Aperture Group, For Hoffman Relief Phase Contrast (RPC)	●	A5C.0965-10S
	20X Aperture Group, For Hoffman Relief Phase Contrast (RPC)	●	A5C.0965-20S
	40X Aperture Group, For Hoffman Relief Phase Contrast (RPC)	●	A5C.0965-40S
Polarizing	360° Polarizer, Use With RPC	●	A5P.0963-P
Stage	Manual Mechanical Working Stage, Size 300x240mm, Moving 135x85mm, Stage Thickness 30mm, Lower Universal Right Side Handle. With Lock Function, During Locking, Moving Range 50x50mm, Can Use With 35mm Petri Dish Holder, Culture Flask Holder, Slide Holder, Dia.110mm Replaceable Disc Stage With Clips	●	A54.0960
Power Supply Controller	External Power Supply System Controller, Supply Power To All Motorized Units,	●
	Input Voltage 90-265V, Output 12V100W/24V5A/15V5A/5V5A	●
	External Connecting Cable 200cm, Connect Power Supply To Microscope	●
	7"LCD Screen In Front of Body, Can Control Motorized Units	●
	USB-CAN Card (Use On Computer)	●

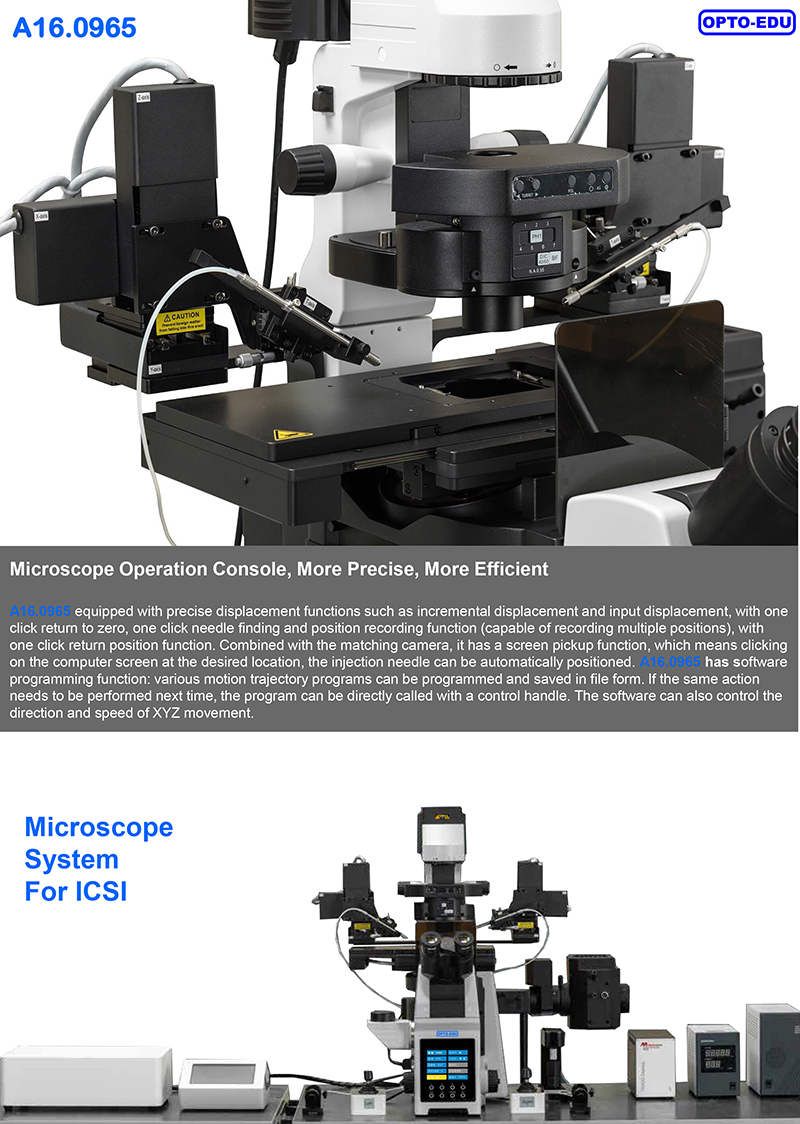

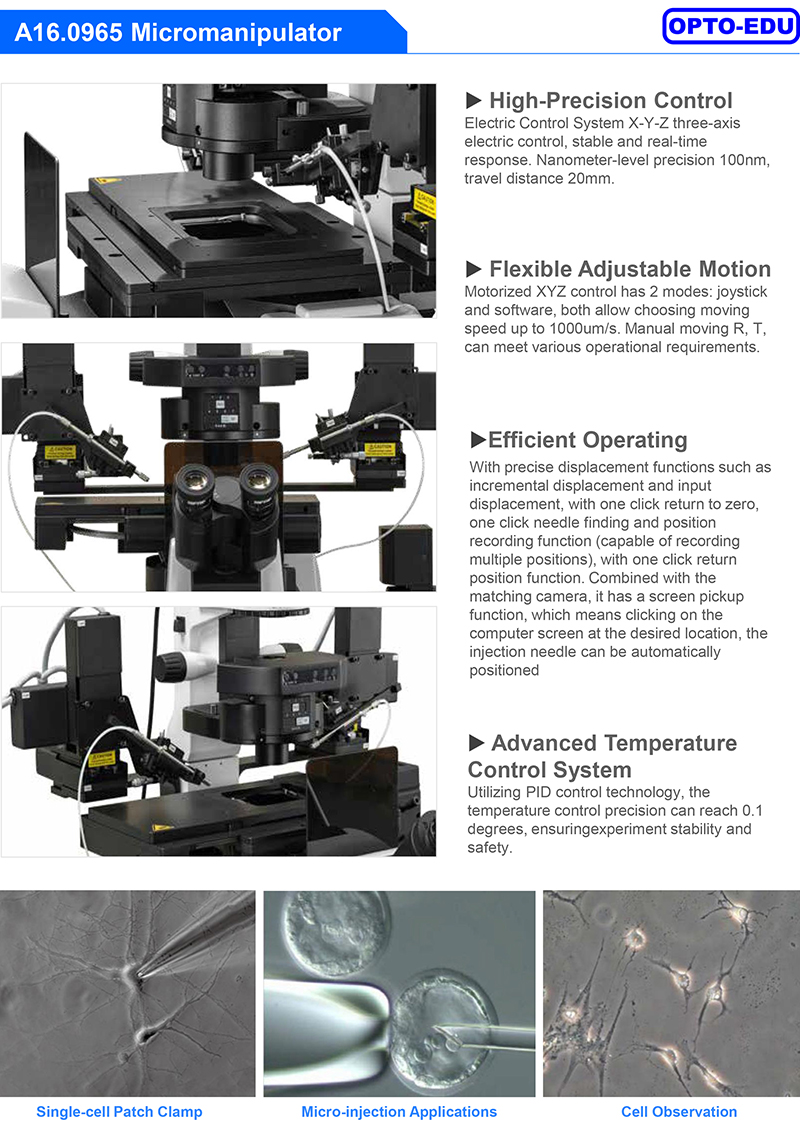

Micro Manipulators	Motorized Micromanipulators, For Right (Or Left) Hand Position	●●	A54.0964
	1. Motorized Moving X, Y, Z, Precision 100nm, Moving Range 20mm, Moving Speed 1000um/s, 200um/s, 20um/s 3 Levels Controlled By Software
	2. Manual Moving For R Range 20-90° Precision 10'
	3. Manual Moving For T Moving Range 100mm
	Injector Precision 8nl (0.008ul)	●●
	Capacity Max 8ul (Fine), 120ul (Coarse)
	Per Capacity Max 0.4ul (Fine), 6ul (Coarse)
	Including Microscope Adapter, Motorized Moving Controller, Joystick, Software	●
Heating Stage	Heating Stage 50W, Temperature Range 5~50°C, Precision +/-0.1°C, PID Control	o	A54.0964-H

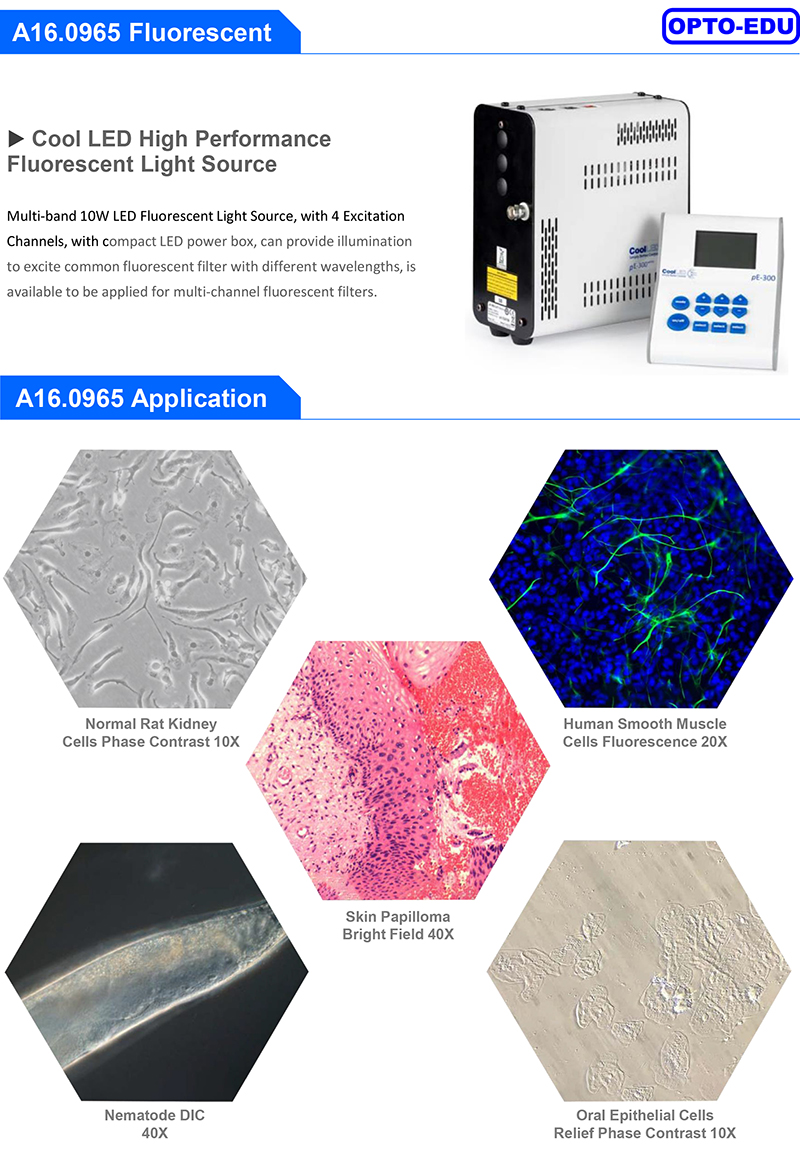

Fluorescent	Multi-band 10W LED Fluorescent Light Source, With 4 Excitation Channels	●	A5F.0960-LED4
	Motorized Turret With 8 Positions, Built-in Shutter, External Connecting Cable 20cm	●	A5F.0960-60
	Rotary Disk Dustproof Box	●	A5F.0960-DB
	Fluorescence Filter CHROMA B	●	A5F.0960-B
	Fluorescence Filter CHROMA G	●	A5F.0960-G
	Fluorescence Filter CHROMA UV	●	A5F.0960-UV
	Fluorescence Filter CHROMA R1, EX AT620/50X, BS AT655DC, EM AT690/50M	●

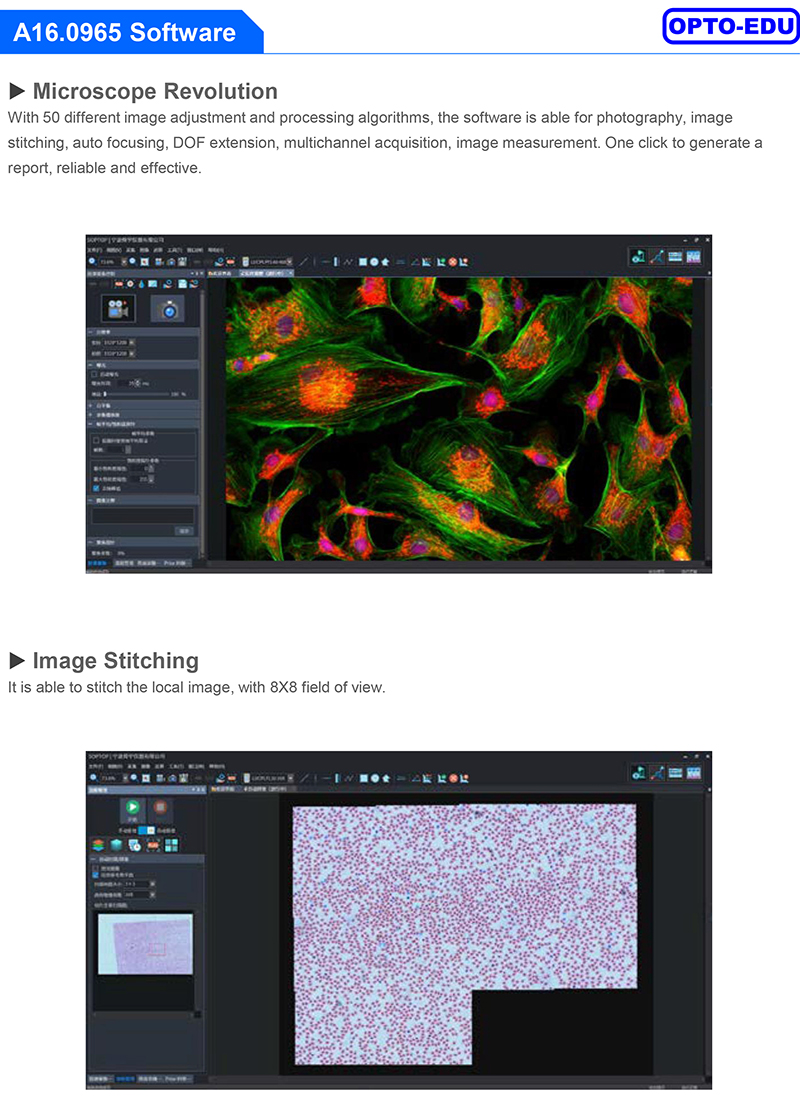

Camera	5M CMOS Pixel, USB 3.0 Output, MV Image View Software	●
C-Mount	0.65x C-mount	●
Computer	Real-time Configuration	●
Package	Spange With Carton	●

Pictures
Model No.	A16.0965
System Support	Win11 Win10
Camera Output	USB
Camera Mounting	C-Mount
Camera Sensor Size	2/3”
Camera Pixel	5.0MP
Phase Contrast	Phase Contrast Aperture In Condenser , for 4X,10X, 20X/40X/60X
Video Adapter	C-Mount 0.65x
Power Supply	External system controller.All motorized units are powered by this. Voltage input:90-265V,output:12V100W/24V5A/15V5A/5V5A
Power Supply Type	AC 110V-240V
Transmit Light	Tilting transmited light system, transmited Kohler light system, Condenser lifting adjustable
Light Source Type	Halogen
Light Source Features	Halogen 100W Kohler
Condenser	Mortorized LWD unviersal 7 positions condensor with N.A.0.55, W.D.27mm. 3 positions ø30mm for Phase contrast observation. 4 positions ø38mm, External connecting cable 100cm Work For BF, PH, DIC
Condenser N.A.	0.55
Condenser Type	DIC Phase Contrast Abbe
Condenser Features	Slot For DIC Slide Slot For PH Slide Rack & Pinionↆ↑
Focusing Scale	0.001mm
Focusing Range	10.5mm
Focusing Type	Coaxial Coarse & Fine
Focusing Features	Motorized Auto Focus
Working Stage	With lock function. During locking, moving range 50mm (X) × 50mm (Y). It can use with 35mm petri dish holder, culture flask holder, sliced holder, Φ110mm replaceable disc stage with clips.
Working Stage Moving	135x85mm
Working Stage Size	300x240mm
Working Stage Type	3 Layers Mechanical
Working Stage Features	Size ≥140x140mm
Objective	LWD Infinity Plan Semi-APO Positive Phase Contrast Objective 4x,10x,20x,40x,60x
Objective Type	Infinity Plan Phase Contrast
Objective Features	APO LWD
Nosepiece Holes	6 Holes
Nosepiece Features	With DIC Slot Coded Motorized
Eyepiece	High Eyepoint PL10X/22mm
Eyepiece Diameter	30.0mm
Eyepiece Features	Diopter Adjustable
Head Specification	Inverted Image
Head Interpupillary	50~76mm
Head Inclination	45°
Head Type	Seidentopf Binocular
Standard Magnification	40x-600x
Optical System	Infinity Plan
Features	APO DIC Hoffman Coded Nosepiece
Upgrade Function	POL+DIC+Relief Hoffoman PH
Standard Function	BF+PH
New Product Year	2022
