A16.2702-2i

Like Favorites

Inverted Fluorescent Microscope, B/G

Epi Fluorescent 100W Fluorescent Light & OMEGA Filter B/G/U/UV
Binocular Head With Side Phote Port For Standard C-Mount Digital Camera
LWD Infinity Plan 10x20x40x & LWD Infinity Plan Phase Contrast 20x
Large Size Working Stage 240x260mm Moving Range 135x85mm
Right Hand Univeral Joint Moving Knob ForX/Y Movement Control

Specification:

A16.2702-2i

Inverted Fluorescent Microscope, B/G/U/UV

A16.2702-4i

Specification	A16.2702 Inverted Fluorescent Microscope	2i	4i
Optical System	UCIS Infinity Independent Achromatic Optical System
Frame	One-piece Construction from Arm to Base
Head	Seidentopf Binocular Head, 45° Inclined, Interpupillary Distance 52-75mm, Left Tube ±5 Diopter Adjustment
Eyepiece	WF10x/20mm, Plan, High Eyepoint up to 21mm,
Centering Attachment	Centering Telescope 10x For Phase Contrast

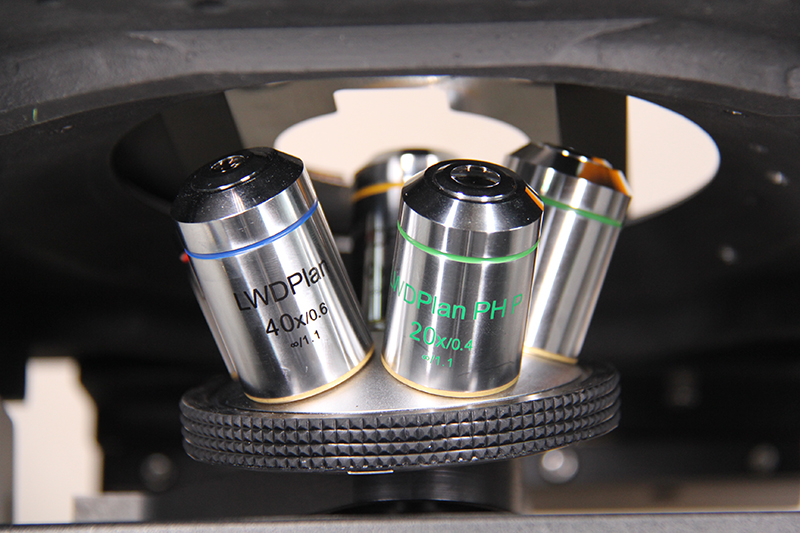

Objective	Infinity LWD Plan Achromatic Objective 10x/0.25 W.D.9.67
	Infinity LWD Plan Achromatic Objective 20x/0.40 W.D.7.97
	Infinity LWD Plan Achromatic Objective 40x/0.60 W.D.3.76
	Infinity LWD Plan Phase-Contrast Objective (Positive) 20x/0.40 W.D.7.97

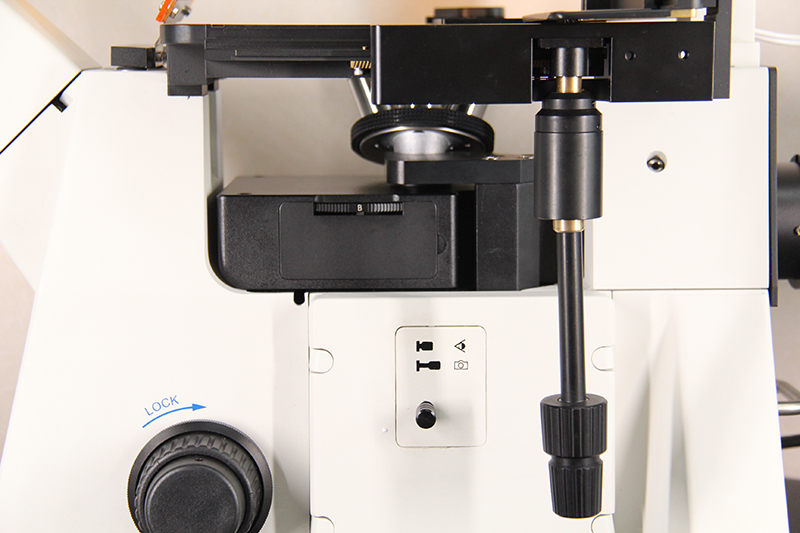

Focus System	Low Positioned, Coaxial Coarse & Fine Focusing System with Adjustable Tension Control and Upper Limit Stop, Minimum Reading 1μm, Moving Range 12mm
Nosepiece	Quintuple, Reversed Type with Positive Click Stops
Condenser	Abbe CondenserN.A. 0.30 with Iris Diaphragm, with Phase Contrast Slider & Filter (φ34) Blue,Green & Yellow, Long Work Distance 72mm

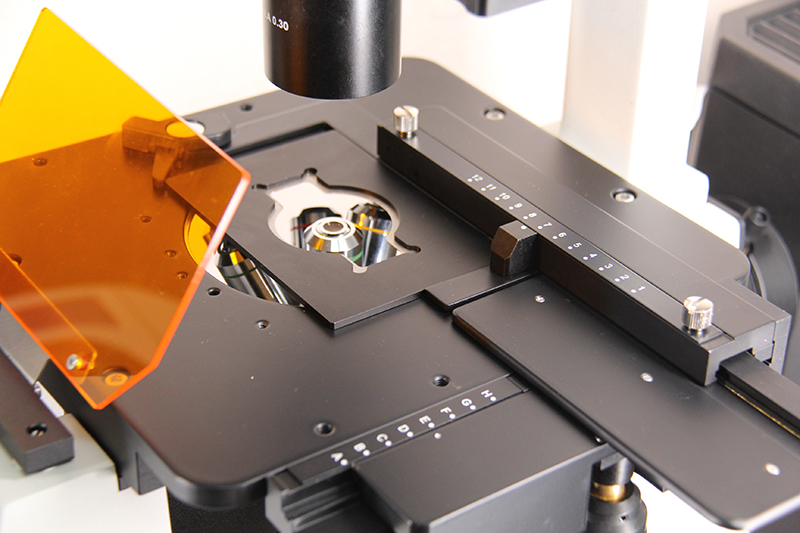

Stage	Right Hand Controls, Low Position, Mechanical Stage, Size 240x260mm, Moving Range 135x85mm. Right Hand Universal Joint Moving Knob For X/Y Movement Control
	Drop Specimen Holder(φ118)
	Slide Specimen Holder (76x26, φ54)
Light Source	6V30W Halogen Lamp House
	Electrical Part for 6V30W Halogen lmap
	6V30W Halogen Bulb (Osram)
	250V/3.15A Φ5X20 Fuse
	Power Supply 110-240V，50/60Hz
Epi-Fluorescent Illumination	100W DC Mercury Lamp House, Multi-Functional Semi-Reflector
	Power Supply Unit for 100W DC Mercury Lamp
	5 Holes Turret Fluorscent Filter Disc, Can Hold Max 4 Bands Filters + 1 Hole For Bright Field View
	100W Mercury Bulb (Osram)
	250V/5A Φ5X20 Fuse
	Excitation Filter B/G, CHROMA Brand	o
	--Blue Excitation Filter, BP460~490, DM500, BA520
	--Green Excitation Filter, BP510~550, DM570, BA590
	Excitation Filter B/G/U/V, CHROMA Brand		o
	--Blue Excitation Filter, BP460~490, DM500, BA520
	--Green Excitation Filter, BP510~550, DM570, BA590
	--Ultraviolet Excitation Filter, BP330~385, DM400, BA420
	--Violet Excitation Filter, BP400~410, DM455, BA455
Phase Contrast	Phase Contrast Slider for 10x,20x,40x
Adapter	Camera Port On Right Side Of Base With 0.5x C-Mount
Other	Allen Screw Driver 2mm
	Allen Screw Driver 2.5mm
	Dust Cover
	Power Cord
Optional Accessories		Item No.
Head	Seidentopf Binocular Head, 45° Inclined, Interpupillary Distance 48-75mm, Diopter Adjustable	A53.2702-1A
Eyepiece	WF10x/22mm Plan Eyepiece, High Eyepoint	A51.2701-10C
	WF10x/20mm, Plan, High Eyepoint Up to 21mm, Diopter Adjustable	A51.2701-10A1
	WF16x/13mm, Plan	A51.2701-1613
Objective	Infinity Plan Achromatic Objective 4x	A52.2706-04C
	Infinity LWD Plan Achromatic Objective 60x	A52.2706-60LB
	Infinity LWD Plan Phase-Contrast Objective 10x (Positive)	A5C.2735-10PB
	Infinity LWD Plan Phase-Contrast Objective 40x (Positive)	A5C.2735-40PB
	Infinity LWD Plan Phase-Contrast Objective 10x (Negative)	A5C.2735-10NB
	Infinity LWD Plan Phase-Contrast Objective 20x (Negative)	A5C.2735-20NB
	Infinity LWD Plan Phase-Contrast Objective 40x (Negative)	A5C.2735-40NB
Stage	Mechanical Stage, Size 350x208mm，Moving Range 50x50mm	A54.2706-5
Adapter	0.25x C-Mount	A55.2701-25A
	Digital Camera Adapter (Need to Know Camera Brand)	A55.2702-2
Bulb	6V30W Halogen Bulb	A56.2703-30C
Specimen Holder	125x85mm	A54.2706-3
Epi-Fluorescent Illumination	100W DC Mercury Lamp House	A5F.2712
	Power Supply Unit for 100W DC Mercury Lamp	A5F.2713
	Epi-fluorescent Illumination,Multi-functional Semi-reflector	A5F.2714
	Excitation Filter B, CHROMA Brand	A5F.2710-IB
	Excitation Filter G, CHROMA Brand	A5F.2710-IG
	Excitation Filter U, CHROMA Brand	A5F.2710-IU
	Excitation Filter V, CHROMA Brand	A5F.2710-IV
	100W Mercury Bulb	A5F.2716-H
	100W Mercury Bulb (Osram)	A5F.2716-I
	Empty Filter Cube	A5F.2727

Pictures Hide Same Show Difference
Model No.	A16.2702-2i	A16.2702-4i
Fluorescene	B&G	B&G&U&UV
Fluorescent Band	2 Bands	4 Bands
Phase Contrast	Phase Contrast Slider for 10x,20x,40x	Phase Contrast Slider for 10x,20x,40x
Video Adapter	C-Mount 0.5x	C-Mount 0.5x
Power Supply Type	AC 110V-240V	AC 110V-240V
Reflect Light	100W Mercury Bulb	100W Mercury Bulb
Transmit Light	6V30W Halogen	6V30W Halogen
Light Source Type	Mercury Halogen Fluorescent	Mercury Halogen Fluorescent
Light Source Features	Fluorscent 100W Halogen 30W	Fluorscent 100W Halogen 30W
Condenser	with Phase Contrast Slider & Filter (φ34) Blue,Green & Yellow, Long Work Distance 72mm	with Phase Contrast Slider & Filter (φ34) Blue,Green & Yellow, Long Work Distance 72mm
Condenser N.A.	0.3	0.3
Condenser Type	LWD/ELWD Phase Contrast Abbe	LWD/ELWD Phase Contrast Abbe
Condenser Features	Slot For PH Slide Filter Holder Iris Diaphragm	Slot For PH Slide Filter Holder Iris Diaphragm
Focusing Scale	1μm	1μm
Focusing Range	12mm	12mm
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Focusing Features	Tension Adjustable Safety Stop Lock Ring	Tension Adjustable Safety Stop Lock Ring
Working Stage	Right Hand Controls, Low Position	Right Hand Controls, Low Position
Working Stage Moving	135x85mm	135x85mm
Working Stage Size	240x260mm	240x260mm
Working Stage Type	1 Layer+Sliding Ruler	1 Layer+Sliding Ruler
Working Stage Features	Size ≥140x180mm Knob Universal Direction	Size ≥140x180mm Knob Universal Direction
Objective	Infinity LWD Plan Achromatic Objective 10x/0.25 W.D.9.67 Infinity LWD Plan Achromatic Objective 20x/0.40 W.D.7.97 Infinity LWD Plan Achromatic Objective 40x/0.60 W.D.3.76 Infinity LWD Plan Phase	Infinity LWD Plan Achromatic Objective 10x/0.25 W.D.9.67Infinity LWD Plan Achromatic Objective 20x/0.40 W.D.7.97Infinity LWD Plan Achromatic Objective 40x/0.60 W.D.3.76Infinity LWD Plan Phase
Objective Type	Infinity Plan Phase Contrast	Infinity Plan Phase Contrast
Objective Features	LWD	LWD
Nosepiece Holes	5 Holes	5 Holes
Eyepiece	WF10x/20mm,2pc	WF10x/20mm,2pc
Eyepiece Diameter	23.2mm	23.2mm
Head Specification	Left Tube ±5 Diopter Adjustment	Left Tube ±5 Diopter Adjustment
Head Interpupillary	52~75mm	52~75mm
Head Inclination	45°	45°
Head Type	Seidentopf Binocular	Seidentopf Binocular
Standard Magnification	100x-400x	100x-400x
Optical System	Infinity Plan	Infinity Plan
Features	Infinity	Infinity
Standard Function	BF+FL+PH	BF+FL+PH
