Full Motorized Inverted Fluorescent Microscope, Semi-APO, BF+PH+FL, DF/PL/DIC

Auto Research Level Full Motorized Inverted Fluorescent Microscope For BF/PH/FL, Optional DF/PL/DIC

Trinocular Head With Built-in Bertrand Lens SW10x/22mm Eyepiece, Infinity Plan Semi-APO PH10x20x40x

5.7''LCD Touch Screen, Motorized Sextuple Nosepiece, Motorized X/Y/Z Stage, Motorized Phase Contrast Disc, Motorized Multi Function Turret

Media Lens Magnification Switch 1.0x/1.5x CF, Video Port On Left/Rigth Side/Trinocular Port

Transmit 5W LED Kohler Illumination, Reflect 100W Mercury Fluorescent Light With B,G,U Filters

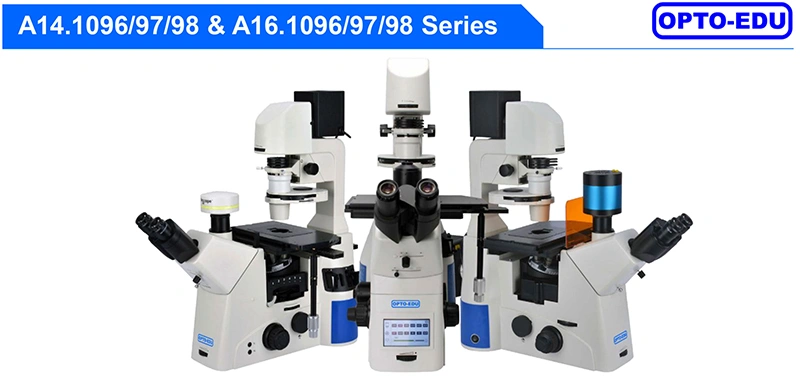

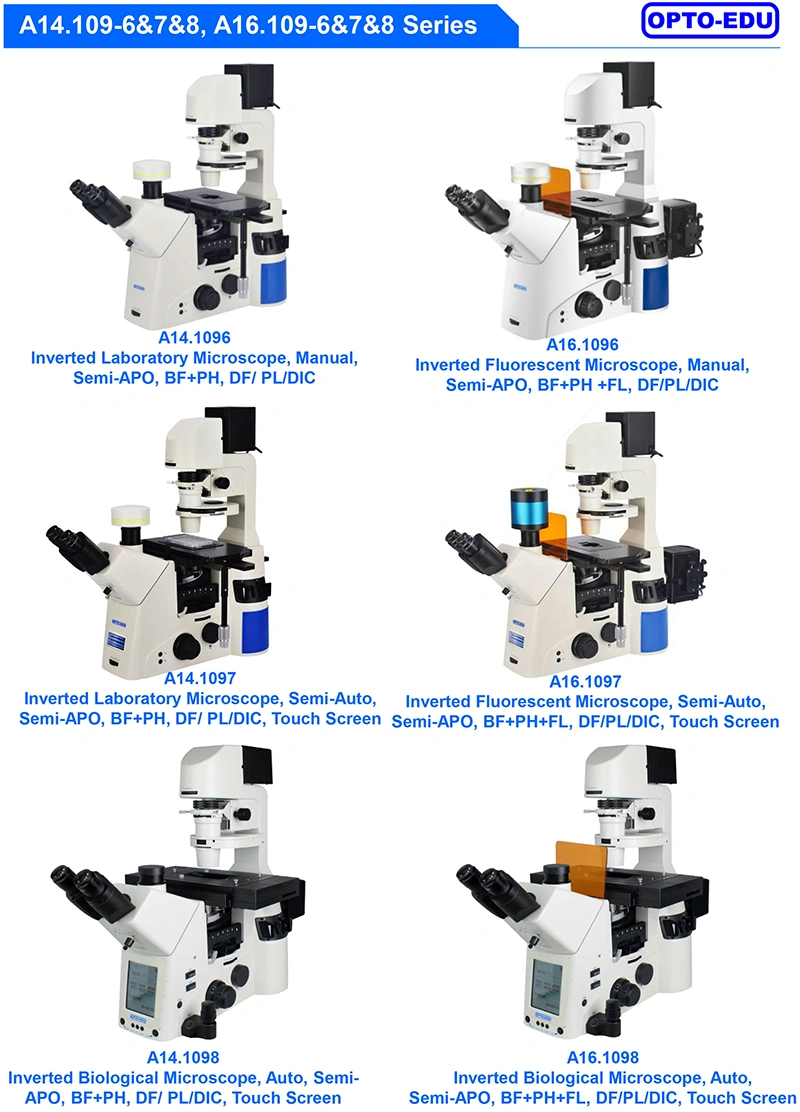

A14.1096 & A16.1096, A14.1097 & A16.1097, Research Level Microscope

A14.1096 & A16.1096 are manual model equipped with multiple image ports for optical output, it is convenient to connect the camera and detector. Multi-port imaging is supported, and multiple cameras can simultaneously shoot images at different wavelengths.
A14.1097 & A16.1097 are coded model that upgraded from A14.1096 & A16.1096. They can show objectives and multi function cubes in use on the front 4.3’’ LCD screen, which is more suitable for microscope operation in darkroom and makes complicated microscope operation more intuitive and visible.

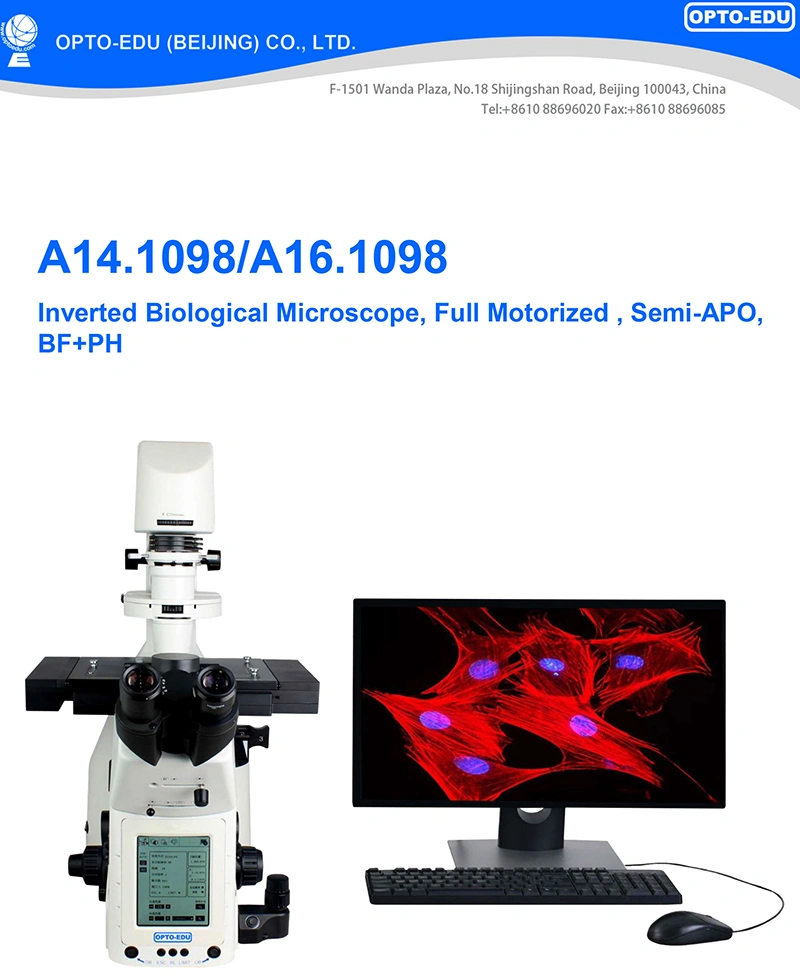

A14.1098 & A16.1098, Research Inverted Microscope

A14.1098 & A16.1098 are motorized model upgraded from A14.1097 & A16.1097

Designed to meet the needs of advanced life science research, can meet your various needs. It is an all-round microscope, which can realize bright field, phase contrast, polarization, DIC, fluorescence and other observation methods. Even the confocal and super-resolution required by top life science research can be realized on this microscope. Fully consider the user's operating habits and adopt ergonomic design, which greatly reduces the mechanical fatigue caused by long-term observation. It also adopts high-speed electric control, which simplifies and visualizes the complicated operation and makes the operation easier and simpler.

▶ The system Condenser

Brightfield observation, phase contrast observation and DIC observation provide the maximum choice for your experiment.

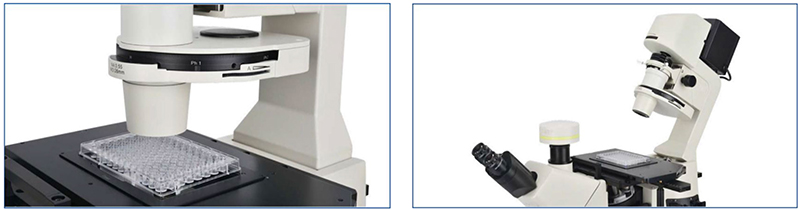

▶ Ergonomic Transmitted Illumination

Ergonomic transmission lighting column ensures that users have a larger working space and is convenient for changing samples.

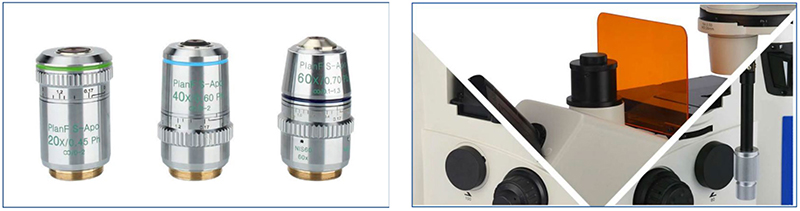

▶ N-iPLFN PH Plan Semi-apochromatic Objective

Semi-apochromatic objective lenses have built-in correction rings, which can correct the poor coverage caused by nonstandard cover glass thickness.

▶ Multi-end Optical Path Exit

The left side of the microscope is provided with an optical output selection dial, which is convenient for distributing optical images to different ports and provides expanded space for more optical image applications.

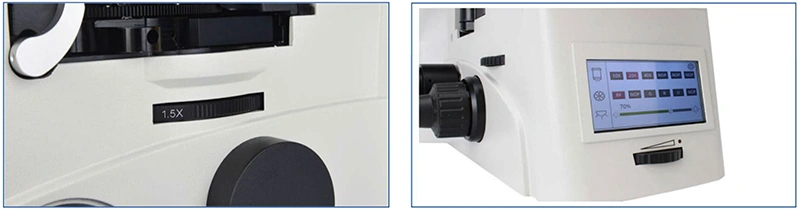

▶ Switching Intermediate Magnification

Through smooth turntable operation, the intermediate magnification can be quickly switched between 1 and 1.5 times.

▶ Microscope Use Status Display Screen

In order to facilitate the use of microscope in darkroom, A14.1097&A16.1097adds a 4.3-inch touch screen on the front panel to show the use status of microscope.

A Variety of Electric Components Are Combined To Realize Fast Reading and Accurate Operation

You can control a variety of electric parts of the microscope through software, such as objective lens conversion, focusing, condenser conversion, fluorescent module conversion and so on. Quick and simple operation of this scientific inverted microscope not only increases your work efficiency, but also reduces the exposure time of cells and phototoxicity, and the experimental results obtained are more accurate and valuable.

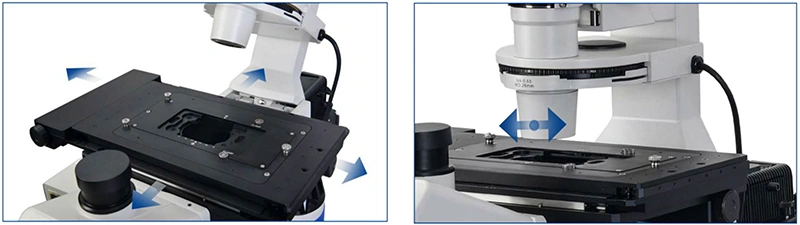

▶ Motorized Stage

Large stroke, high precision, quick positioning, suitable for multi-point observation.

▶ Motorized Universal Condenser

The conversion of electric condenser module can be carried out.

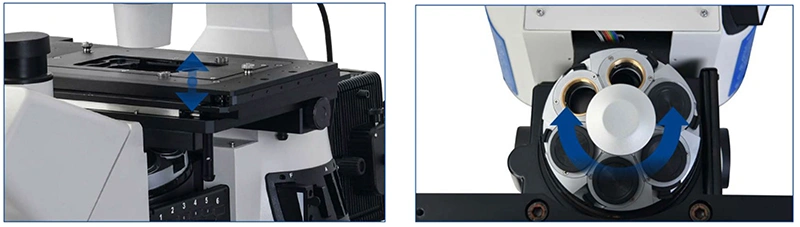

▶ Z-axis Autofocus

Fast and accurate Z-axis control can be performed.

▶ Motorized DIC Sextuple Nosepiece

It can realize the arbitrary conversion of six objective lenses.

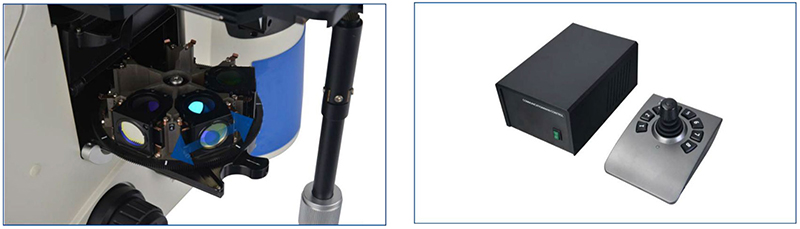

▶ Motorized Filter Cube Turret

It can realize the random conversion of 6-hole fluorescent module.

▶ Joystick Module

Flexible positioning of the electric stage is carried out.

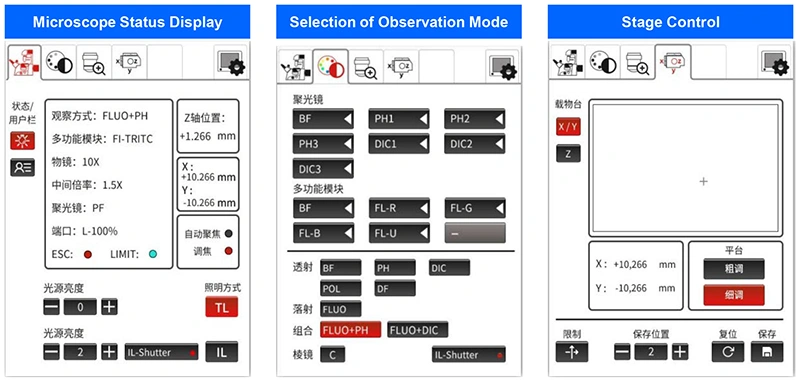

Front Microscope Operation Screen To Realize Full Electric Control.

A14.1098&A16.1098 adds a microscope operation screen at the front of the microscope, which can realize almost all microscope operations, including electric focusing, stage movement, objective lens selection, condenser module conversion, intermediate magnification conversion, side port output selection, aperture stop adjustment, multi-function turntable conversion and other functions, and integrates the operation handle on the right side of the fuselage, greatly reducing the desktop space.

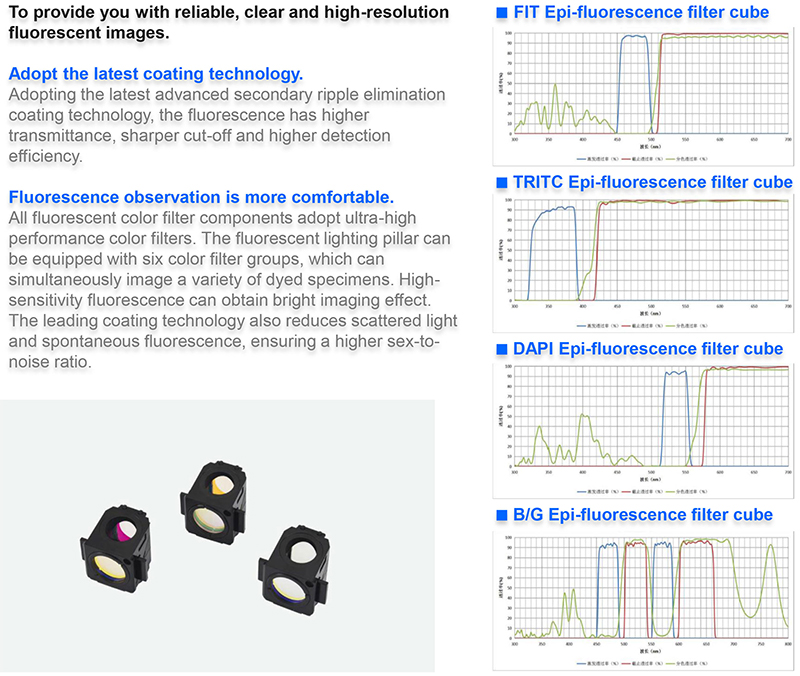

Clear Observation Can Be Obtained By Using Various Fluorescent Dyes.

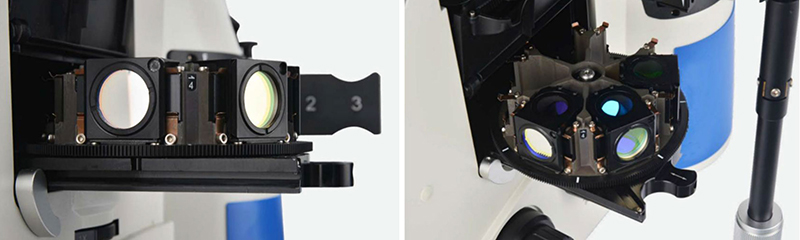

▶ Fluorescent Excitation Module Turntable: Easier And More Flexible

Adopt multifunctional six-station fun table structure, which can be easily taken out from the main machine and convenient to replace Various fluorescent excitation modules.

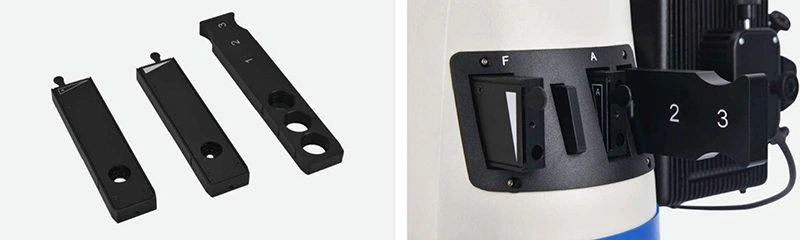

▶ Simple And Fast Operation, A14.1096/97/98&A16.1096/97/98 Diaphragm Slider

Reflective field diaphragm, aperture diaphragm and fitter insert plate, and three different types of diaphragm siders show the versatility of NIBs00in the study of living cells. When the aperture stop and the fluorescent fitter board are used together, the optimal fluorescence intensity can be adjusted according to the selected fluorescent module and objective lens.

A14.1090 Research Level Inverted Biological Microscope		A14.1096	A14.1097	A14.1098	A16.1096	A16.1097	A16.1098	Cata.No.
Optical System	NIS60 Infinite Optical System, Semi-APO	●	●	●	●	●	●
Observation Method	Bright Field	●	●	●	●	●	●
	Dark Field	○	○	○	○	○	○
	Phase Contrast	●	●	●	●	●	●
	Polarizing	○	○	○	○	○	○
	Flourescent	○	○	○	●	●	●
	DIC	○	○	○	○	○	○
LCD Screen	4.3"LCD Information Touch Screen In Front of Main Body, For Easy Use in Dark Working Condition. --Show Objectives In Use In Nosepiece --Show Cubes In Use In Multi Function Turret --Brightness Memorize & Restore Function --Touch To Adjust Brightness --Touch To Set The System	-	●	-	-	●	-
LCD Screen	5.7"LCD Information Touch Screen In Front of Main Body, consolidating all traditional mechanical controls into a intelligent interface. --Power on self test --User Switch and Memorize --Touch To Set Objectives and its magnification --Touch To Set Cubes In Use In Multi Function Turret --Touch To Set Condensor and its hole position --Touch To Set parameters of Working Stage --Touch To Set Eyepiece and magnification --Touch To Adjust Brightness （LIM） --Touch To Set The System & Language	-	-	●	-	-	●
Head	Seidentopf Trinocular Head, Inclined 45°, Interpupillary Distance 47-78mm, Ligth Split Switch E100:P0/E20:P80/E0:P100, With Built-in BertrandLens Which Can Be Used As Centering Telescope	●	●	●	●	●	●
Eyepiece	SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	○	○	○	○	A51.1090-1025
	SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm	●	●	●	●	●	●	A51.1090-1022
	EW12.5x/17.5mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	○	○	○	○	A51.1090-12517
	WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	○	○	○	○	A51.1090-1516
	WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	○	○	○	○	A51.1090-2012
Media Lens	Built-in Media Lens Magnification Switch 1.0x/1.5x, Under Nosepiece	●	●	-	●	●	-
Media Lens	Built-in Media Lens Magnification Switch 1.0x/1.5x CF, Under Nosepiece	-	-	●	-	-	●
Nosepiece	Manual Sextuple Nosepiece, With DIC Slot	●	-	-	●	-	-
	Coded Manual Sextuple Nosepiece, With DIC Slot	-	●	-	-	●	-
	Motorized Coded Manual Sextuple Nosepiece, With DIC Slot, With Objective Protection Function When Switch The Objectives	-	-	●	-	-	●
N-iPLFN PH Infinity Plan Semi-APO Phase Contrast Objective	4x/0.13, W.D.16.5mm, No Cover Glass	○	○	○	○	○	○	A5C.1098-4
	10x/0.30, W.D.7.4mm, Cover Glass 1.2mm	●	●	●	●	●	●	A5C.1098-10
	20x/0.45, W.D.7.5-8.8mm, Cover Glass 0-2mm, With Built-in Correct Ring	●	●	●	●	●	●	A5C.1098-20
	40x/0.6, W.D.3-4.4mm, Cover Glass 0-2mm, With Built-in Correct Ring	●	●	●	●	●	●	A5C.1098-40
	60x/0.75, W.D.1.8-2.6mm, Cover Glass 0.1-1.3mm, With Built-in Correct Ring	○	○	○	○	○	○	A5C.1098-60
Focusing	Coaxial Coarse & Fine Focusing, Focusing Range 9mm (Up 7mm, Down 2mm), Coarse Stroke 2mm, Fine Stroke 0.2mm	●	●	-	●	●	-
Focusing	Motorized Z Axies (Optical Grating Type) Focusing System, Focusing Range 9mm (Up 7mm, Down 2mm), Focusing Resloution 0.02um With Optical Grating, Movement Repeat Positioning Accuracy +/-0.1um, Prevent Stage Fall Down Function	-	-	●	-	-	●

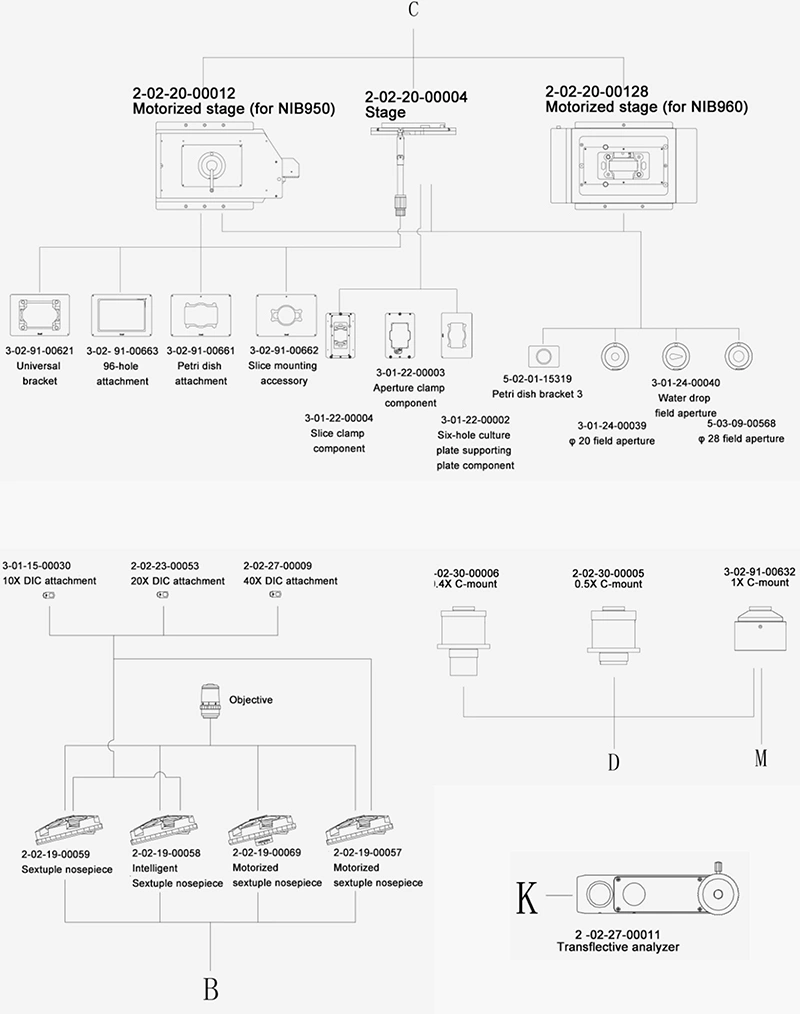

Working Stage	Three Layer Mechnical Stage, Size 340x230mm, Moving Range 130x85mm, Flexible Knob, Available For Different Size Small Stage Mounted on Top Layer	●	●	-	●	●	-	A54.1098
	Dia.38mm Holder For Slide & Petri Dish	●	●	-	●	●	-	A54.1098-38
	Dia.54mm Holder For Petri Dish	●	●	-	●	●	-	A54.1098-54
	96 Holes Plate Holder	●	●	-	●	●	-	A54.1098-96
	Terasaki Holder	●	●	-	●	●	-	A54.1098-TH
	Universal Holder	●	●	-	●	●	-	A54.1098-UH
	Motorized X/Y Axies (Optical Grating Type) Mechanical Stage, Size 390x230mm,Moving Range 114x76mm, Max Speed 71mm/s, Resolution 0.1um, Repeat Accuracy +/-0.5um, Available For Different Size Small Stage Mounted on Top Layer, With Separate Communication/Main Control Box & Stick	-	-	●	-	-	●	A54.1098-M4
	Sample Holder, For Motorized Stage	-	-	●	-	-	●	A54.1098-M1
	96 Holes Plate Holder, For Motorized Stage	-	-	●	-	-	●	A54.1098-M2
	6 Holes Petri Dish Holder, For Motorized Stage	-	-	●	-	-	●	A54.1098-M3
Condenser	Long Working Distance Turret Condenser, N.A.0.55, W.D.26mm, With 6 Positions For Phase Contrast Annulus, DIC Annulus, And Bright Field View	●	●	-	●	●	-	A56.1098
Condenser	MotorizedLong Working Distance Turret Condenser, N.A.0.55, W.D.26mm, With 6 Positions For Phase Contrast Annulus, DIC Annulus, And Bright Field View	-	-	●	-	-	●	A56.1098-M
Multi Function Turret	Multi Function Turret Under Nosepice, With 6 Positions For Cubes Of Bright Field, Dark Field, Phase Contrast, Polarizing, Fluorescent View, Turning The Disc To Easily Switch Observation Methods	●	-	-	●	-	-
	CodedMulti Function Turret Under Nosepice, With 6 Positions For Cubes Of Bright Field, Dark Field, Phase Contrast, Polarizing, Fluorescent View, Turning The Disc To Easily Switch Observation Methods	-	●	-	-	●	-
	Motorized Coded Multi Function Turret Under Nosepice, With 6 Positions For Cubes Of Bright Field, Dark Field, Phase Contrast, Polarizing, Fluorescent View, Turning The Disc To Easily Switch Observation Methods	-	-	●	-	-	●
Dark Field	Dark Field Block, Put In Multi Function Turret, For Reflect Light Source	○	○	○	○	○	○	A5D.1098
Polarizing For Transmit Light	Polarizer Filter On LWD Turret Condenser	○	○	○	○	○	○	A5P.1098-P
Polarizing For Transmit Light	Analyzer Slide, Insert Into Slot On Nosepiece, 360° Rotatable	○	○	○	○	○	○	A5P.1098-A
Polarizing For Reflect Light	Polarizer Light Block, Put In Multi Function Turret	○	○	○	○	○	○	A5P.1098-PL
Polarizing For Reflect Light	Circularly Polarized Light Block, Put In Multi Function Turret	○	○	○	○	○	○	A5P.1098-CP
Phase Contrast	Phase Contrast Annulus 10x/20x, Put In Turret Condenser	●	●	●	●	●	●	A5C.1096-1020
	Phase Contrast Annulus 40x, Put In Turret Condenser	●	●	●	●	●	●	A5C.1096-40
	Phase Contrast Annulus 60x, Put In Turret Condenser	○	○	○	○	○	○	A5C.1096-60

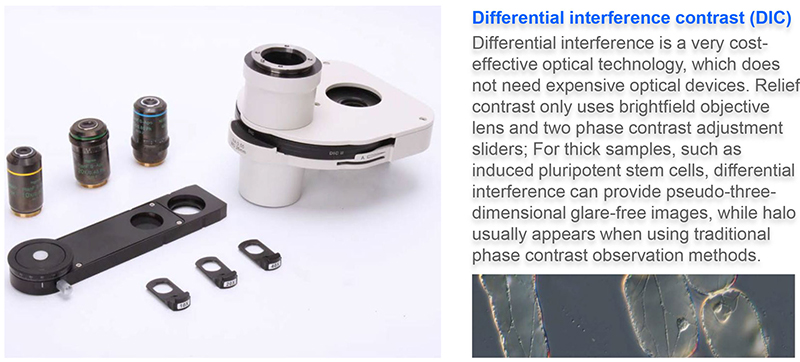

DIC	DIC Full Set, For A14.109, A16.109 Series --Transmit DIC Sliders 10x20x40x60x, Insert Under Nosepiece --Transmit DIC Prism 10x20x40x60x, Put Into LWD Condenser Disc --Polarizing Analyizer 360° Rotateable	○	○	○	○	○	○	A5C.1097
Illumniation	Transmit/Reflect Illumnation Switch Knob, On Right Side Of Main Body, Press To Switch Transmit And Reflect Switch Light Quickly	●	●	●	●	●	●
Transmit Light Source	12V100W Halogen Kohler Illumination, Brightness Adjustable, Flexible Illuminator Body Can Retrovert From Optical Path For Large Space of Operation And Sample Exchange	●	-	-	●	-	-	A56.1095-12V100W
Transmit Light Source	5W LED Kohler Illumination	-	●	●	-	●	●	A56.1095-5WLED
Reflect Light Source	Large Filter Holder Slide With 3 Holes	○	○	○	●	●	●	A56.1095-LS
	Field Diaphram Slide, Center Adjustable,	○	○	○	●	●	●	A56.1095-FS
	Small Empty Slide	○	○	○	●	●	●	A56.1095-ES
	Aperture Diaphragm Slide	○	○	○	●	●	●	A56.1095-AS
	Netural Filter	○	○	○	●	●	●	A56.1095-NE

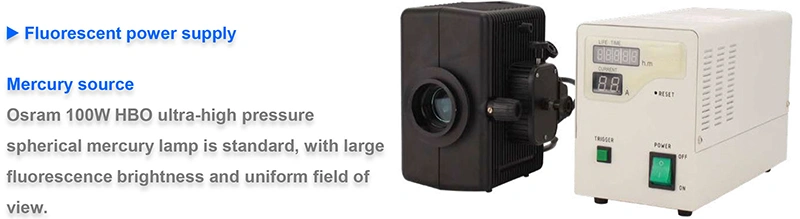

ReflectFluorescent Light Source	Reflect 100W Osram Mercury HBO Fluorescent Light House Intelligent Power Supply Control Box With Barrier To Stop/Recover Fluorescent Illumination Quickly	○	○	○	●	●	●	A5F.1095-100W

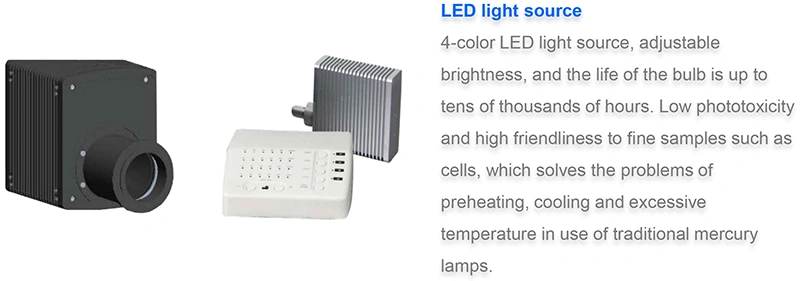

	10W S-LED Fluorescent Light, 4 Color Bands, Brightness Adjustable By Control Box	○	○	○	○	○	○	A5F.1095-10WLED
	75W Metal Halide Light Source, Life Time 2000 Hours	○	○	○	○	○	○	A5F.1095-75WM
	Fluorescent Filter B Block, Put In Multi Function Turret	○	○	○	●	●	●	A5F.1095-B
	Fluorescent Filter G Block, Put In Multi Function Turret	○	○	○	●	●	●	A5F.1095-G
	Fluorescent Filter U Block, Put In Multi Function Turret	○	○	○	●	●	●	A5F.1095-U
	Fluorescent Filter V Block, Put In Multi Function Turret	○	○	○	○	○	○	A5F.1095-V
Metallurgical	Upgrade To A13.1090Inverted Metallurgical Microscope	○	○	○	○	○	○	A13.1090
Adapter	3 Camera Ports, On Both Side Of Main Body And Head, Turret Switch Between: --Trinocular Port Switch E100:P0/E20:P80/E0:P100 --Left Port C-Mount 1.0x E0:P100 --Right Port C-Mount 1.0x E20:P80	●	●	●	●	●	●
	C-Mount 0.4x	○	○	○	○	○	○	A55.1095-04
	C-Mount 0.5x	○	○	○	○	○	○	A55.1095-05
	C-Mount 1.0x	●	●	●	●	●	●	A55.1095-10
Software	NOMISPROX Image Processing Software	○	○	○	○	○	○	A30.1090
Note:"●"In Table Is Standard Outfits,"○"Is Optional Accessories"-"Is Unavailable

Pictures

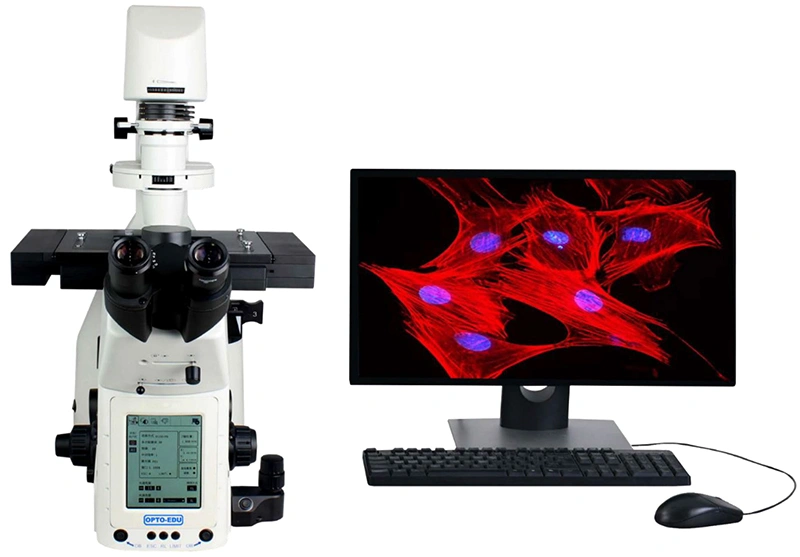

Full Motorized Inverted Fluorescent Microscope, Semi-APO, BF+PH+FL, DF/PL/DIC

Model No.

A16.1098

Fluorescene

Reflect 100W Mercury HBO Fluorescent Light, 3 Filter Among B,G,UV,V, Field Diaphram Slide,
Aperture Diaphragm Slide,
Filter Holder Slide With ND6, ND25 Filters

Fluorescent Band

B,G,UV

Phase Contrast

Phase Contrast Annulus Built-in Turret Condenser, For 10x,20x,40x

DIC Slider

Power Supply Type

Power Cord Detachable
AC 100V-240V Wide Voltage

Reflect Light

100W Mercury HBO Fluorescent Light

Transmit Light

12V100W Halogen

Light Source Type

Flourescent
Halogen

Light Source Features

Fluorscent 100W
Halogen 100W
Transmit & Reflect
Brightness Adjustable
Kohler Illumination

Condenser

Turret Condenser, W.D.26mm, With 6 Positions For Phase Contrast, DIC, Bright Field View

Condenser N.A.

0.55

Condenser Type

LWD/ELWD
Phase Contrast
DIC Condenser

Focusing Range

9mm

Focusing Type

Coaxial Coarse & Fine

Focusing Features

Tension Adjustable
Safety Stop Lock Ring

Working Stage

With Terasaki Holder Plate,
Petri Dish Holder Plate Dia.38mm,
Petri Dish Holder Plate Dia.54mm

Working Stage Moving

130x85mm

Working Stage Type

Triple Layers Mechanical

Working Stage Features

Knob Universal Direction
Large Size >140x140mm

Objective

NIS60 Infinity Plan Semi-APO LWD PH Objective, Glass Slide Thickness 1.2mm

10x/0.30, W.D.6mm

20x/0.45, W.D.3.1mm

40x/0.60, W.D.2.2mm

60x/0.85, W.D.1.2mm

Objective Type

Infinity Plan
Phase Contrast
Semi-APO (Apochromatic)

Objective Features

With Iris Diaphragm
LWD (Long Working Distance)

Nosepiece Holes

6 Holes

Nosepiece Features

With DIC Slot

Eyepiece

SW10x/22mm, 2pcs

Eyepiece Diameter

30.0mm
