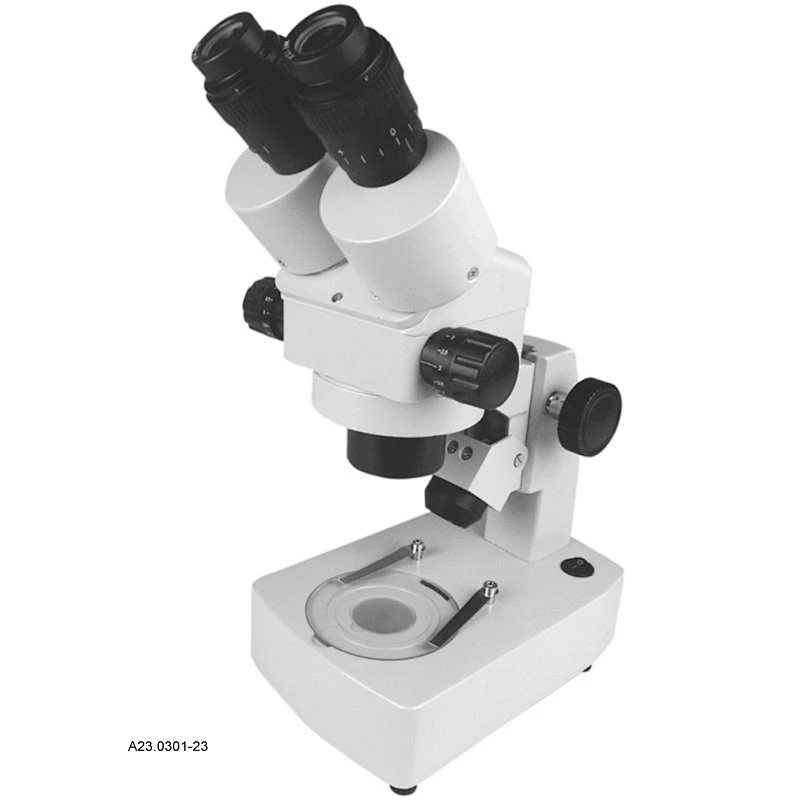

Zoom Stereo Microscope 0.7x-4.5x
Zoom Stereo Microscope 0.7x-4.5x
Zoom Stereo Microscope 0.7x-4.5x
Zoom Stereo Microscope 0.7x-4.5x
Zoom Stereo Microscope 0.7x-4.5x
Zoom Stereo Microscope 0.7x-4.5x
Zoom Stereo Microscope 0.7x-4.5x

A23.0301

Like Favorites

Zoom Stereo Microscope 0.7x-4.5x

Quantity：


A23.0301 zoom stereo microscope, suitable for observe and research in the field of teaching biological anatomy, electronic engineering, geology & mine, farming and forestry of plant protection, penal reconnaissance, jewelry appraisal and so on.

--Zoom objective 0.7x-4.5x, zoom ratio 1:6.5
--SWF10x/23mm eyepiece optional
--Different stand with or without lightsource for choice

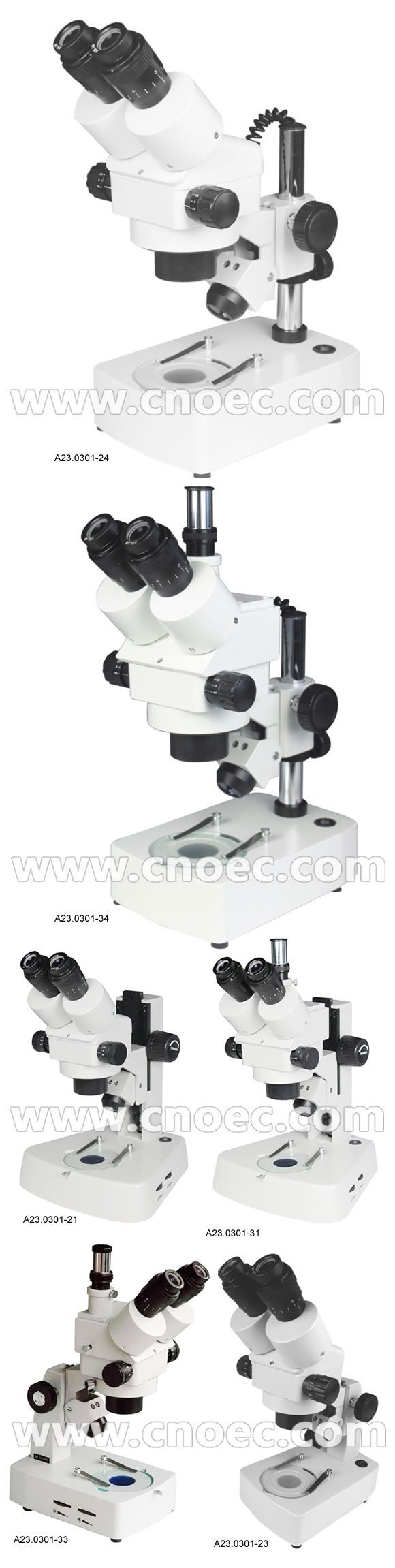

Model
-24
-34
-23
-33
-21
-31
Head
Binocular
Trinocular
Binocular
Trinocular
Binocular
Trinocular
Stand
Pole Stand
Track stand (Small)
Track stand (Big)
D, E, F Stand Optional
Specification
Head
Binocuar / Trinocular, inclined 45°, stereo viewing angle 13°
Zoom Ratio
1:6.5 (0.7x-4.5x)
Eyepiece
WF10x/20mm
Objective
0.7x-4.5x
Working Distance
95mm
Viewing Field
5.1mm-33mm
Working Stage
Round Working Stage Φ95mm, filter Φ40mm
Illumination
Up light 12V10W halogen lamp, brightness adjustable
Bottom light fluorescent lamp, brightness adjustable
Optional Accessories
Eyepiece
SWF10x/23mm
A51.0306
WF5x
A51.0305-05
WF12.5x

A51.0305-12.5

WF15x
A51.0305-15
WF20x
A51.0305-20
WF25x
A51.0305-25
Auxiliary Objective
0.5x
A52.0321-05
0.75x
A52.0321-75
1.5x
A52.0321-15
2.0x
A52.0321-20
Adapter
CCD adapter
A55.0302
Photo adapter
A55.0301
Digital camera adapter
A55.0303
Condenser
Dark field condenser
A57.0310
