OPTO-EDU A23.1501-B2 Zoom Stereo Microscope, 0.8~5x

Zoom Stereo Microscope, 0.8~5x, Binocular, Fan Stand Up/Bottom LED

Zoom Stereo 0.8x~5.0x, Total Magnification Up To 4x~200x With Auxiliary Lens & Eyepiece

Super Wide Field Plan Eyepiece WF10x/22mm Diopter Adjustable, WF15x, WF20x Optional

Auxiliary Lens 0.5x, 0.7x, 2.0x Optional To Enlarge Magnfication and Working Distance

Large Track Stand With Up/Bottom LED Light In Square & Fan Shape For Choice

A56.1522 Extra 60 LEDs Ring Light Source Optional For More Illumination

Pictures Hide Same Show Difference
Model No.	A23.1501-B2	A23.1501-B1	A23.1501-T1	A23.1501-T2	A23.1501-B3	A23.1501-T3	A23.1501-B4	A23.1501-T4
Other Specification	Zoom Knob With Click Stop At 1x,2x,3x,4x	Zoom Knob With Click Stop At 1x,2x,3x,4x	Zoom Knob With Click Stop At 1x,2x,3x,4x	Zoom Knob With Click Stop At 1x,2x,3x,4x	Zoom Knob With Click Stop At 1x,2x,3x,4x	Zoom Knob With Click Stop At 1x,2x,3x,4x	Zoom Knob With Click Stop At 1x,2x,3x,4x	Zoom Knob With Click Stop At 1x,2x,3x,4x
Optional Accessory	Auxiliary 0.5x, 0.7x, 2.0x	Auxiliary 0.5x, 0.7x, 2.0x	Auxiliary 0.5x, 0.7x, 2.0x	Auxiliary 0.5x, 0.7x, 2.0x	Auxiliary 0.5x, 0.7x, 2.0x	Auxiliary 0.5x, 0.7x, 2.0x	Auxiliary 0.5x, 0.7x, 2.0x	Auxiliary 0.5x, 0.7x, 2.0x
Stereo Stand	Big Fan Track Stand, Upper/Bottom LED, Brightness Adjustable	Big Fan Track Stand, No Light	Big Fan Track Stand, No Light	Big Fan Track Stand, Upper/Bottom LED, Brightness Adjustable	Big Square Track Stand, No Light	Big Square Track Stand, No Light	Big Square Track Stand, Upper/Bottom LED, Brightness Adjustable	Big Square Track Stand, Upper/Bottom LED, Brightness Adjustable
Stereo Stand Type	Track Stand	Track Stand	Track Stand	Track Stand	Track Stand	Track Stand	Track Stand	Track Stand
Working Distance	115mm, Up To 40~211m	115mm, Up To 45~211m	115mm, Up To 40~211m	115mm, Up To 40~211m	115mm, Up To 40~211m	115mm, Up To 40~211m	115mm, Up To 40~211m	115mm, Up To 40~211m
Stereo Zoom Ratio	1:6.25	1:6.5	1:6.25	1:6.25	1:6.25	1:6.25	1:6.25	1:6.25
Video Adapter	C-Mount 0.3x	——	——	——	C-Mount 0.3x	——	C-Mount 0.3x	——
Power Supply Type	AC 110V/220V	——	——	AC 110V/220V	——	——	AC 110V/220V	AC 110V/220V
Reflect Light	LED	——	——	LED	——	——	LED	LED
Transmit Light	LED	——	——	LED	——	——	LED	LED
Light Source Type	LED	——	——	LED	——	——	LED	LED
Light Source Features	Transmit & Reflect	——	——	Transmit & Reflect	——	——	Transmit & Reflect	Transmit & Reflect
Focusing Range	100mm	100mm	100mm	100mm	100mm	100mm	100mm	100mm
Focusing Type	Coarse Only	Coarse Only	Coarse Only	Coarse Only	Coarse Only	Coarse Only	Coarse Only	Coarse Only
Working Stage	——	Glass Plate Dia.125mm	——	——	——	——	——	——
Objective	0.8x~5.0x	0.8x~5.0x	0.8x~5.0x	0.8x~5.0x	0.8x~5.0x	0.8x~5.0x	0.8x~5.0x	0.8x~5.0x
Eyepiece	WF10x/22mm Diopter Adjustable, 2 pcs	WF10x/22mm Diopter Adjustable, 2 pcs	WF10x/22mm Diopter Adjustable, 2 pcs	WF10x/22mm Diopter Adjustable, 2 pcs	WF10x/22mm Diopter Adjustable, 2 pcs	WF10x/22mm Diopter Adjustable, 2 pcs	WF10x/22mm Diopter Adjustable, 2 pcs	WF10x/22mm Diopter Adjustable, 2 pcs
Eyepiece Diameter	30.0mm	30.0mm	30.0mm	30.0mm	30.0mm	30.0mm	30.0mm	30.0mm
Eyepiece Features	Diopter Adjustable Super WF ≥23mm	Diopter Adjustable	Diopter Adjustable Super WF ≥23mm	Diopter Adjustable Super WF ≥23mm	Diopter Adjustable Super WF ≥23mm	Diopter Adjustable Super WF ≥23mm	Diopter Adjustable Super WF ≥23mm	Diopter Adjustable Super WF ≥23mm
Head Interpupillary	52~75mm	52~75mm	52~75mm	52~75mm	52~75mm	52~75mm	52~75mm	52~75mm
Head Rotation	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°
Head Type	Seidentopf Binocular	Seidentopf Binocular	Seidentopf Trinocular	Seidentopf Trinocular	Seidentopf Binocular	Seidentopf Trinocular	Seidentopf Binocular	Seidentopf Trinocular
Standard Magnification	——	8x-50x	——	——	——	——	——	——
Optical System	Greenough	Greenough	Greenough	Greenough	Greenough	Greenough	Greenough	Greenough
New Product Year	2015	2015	2015	2015	2015	2015	2015	2015
Focusing Features	——	Tension Adjustable	——	——	——	——	——	——
Objective Type	——	Stereo	——	——	——	——	——	——
Head Inclination	——	45°	——	——	——	——	——	——
Standard Function	——	BF	——	——	——	——	——	——

Advanced Cookie Settings

Essential Cookies

These cookies enable core functionality such as security, verification of identity and network management. These cookies can’t be disabled.

Enable Marketing Cookies

These cookies are used to track advertising performance, consent to the sending of advertising-related user data to Google, and consent for the website to serve personalized advertising to provide more relevant services.

Enable Functional Cookies

These cookies collect data to remember choices users make to improve and give a more personalised experience.

Enable Analytics Cookies

These cookies help us to understand how visitors interact with our website, discover errors and provide a better overall analytics.

A23.1501 Zoom Stereo Microscope		B1	T1	B2	T2	B3	T3	B4	T4
Head	Binocular Head, 45° Inclined, 360° Rotatable, Interpupillary Range 52mm~75mm	o		o		o		o
Head	Trinocular Head, 45° Inclined, 360° Rotatable, Interpupillary Range 52mm~75mm, Light Spilt Ratio E30:P70, With 0.5x C-Mount		o		o		o		o
Magnification	8x~50x, Up To 4x~200x With Optional Eyepieces & Auxiliary Objective
Eyepiece	WF10x/22mm, Diopter Adjustment -8~+5°
Zoom Lens	0.8~5.0x
Zoom Ratio	1:6.5
Zoom Knob	Zoom Knob With Click Stop At 1x,2x,3x,4x
W.D.	Working Distance 115mm, Up To 45~211mm With Auxiliary Objective
Focusing	Coarse Focusing Knob With Tension Adjustable, Focusing Range 100mm
Working Stage	Glass Plate Dia.125mm
Base & Light Source	BigFan Base Track Stand, No Light	o	o
	BigFan Base Track Stand, With Up/Bottom LED			o	o
	BigSquare Base Track Stand, No Light					o	o
	BigSquare Base Track Stand, With Up/Bottom LED							o	o

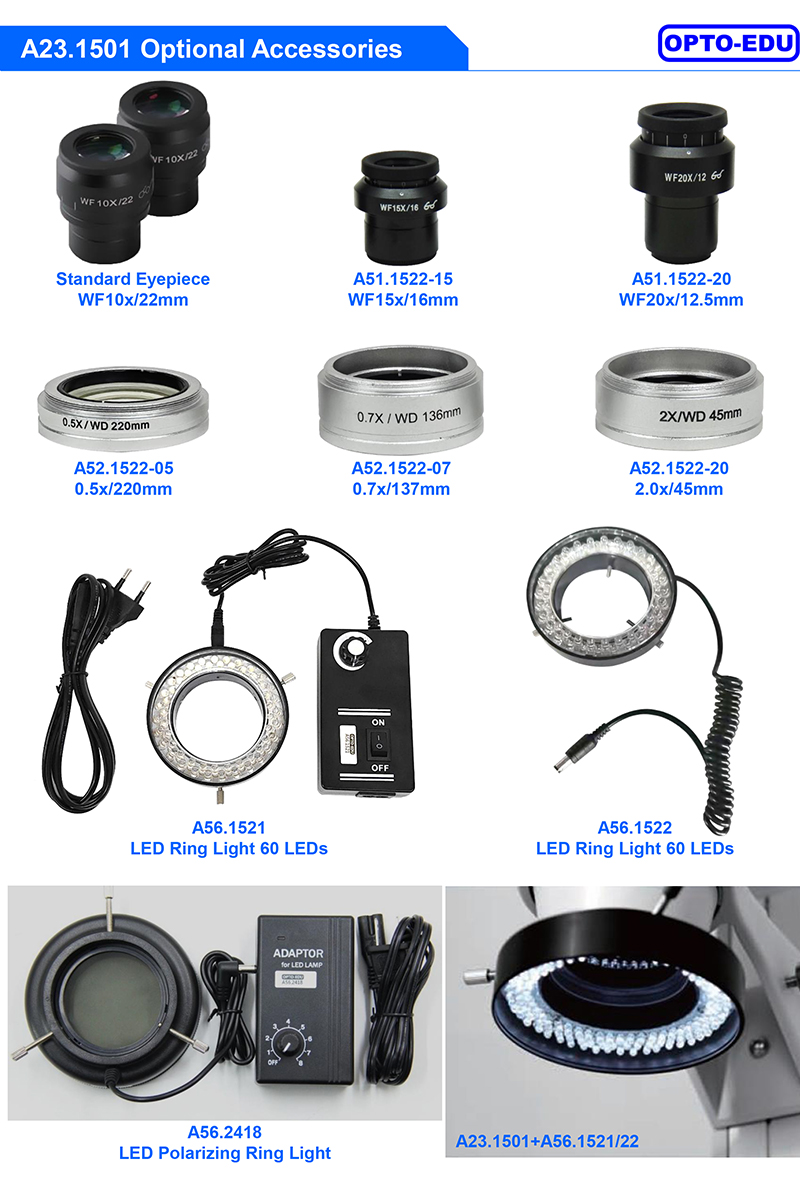

A23.1501 Zoom Stereo Microscope Optional Accessories						Item No.
Eyepiece	WF10x/22mm, Diopter Adjustment -8°~+5°					A51.1522-10
	WF15x/16mm, Diopter Adjustment -8°~+5°					A51.1522-15
	WF20x/12.5mm, Diopter Adjustment -8°~+5°					A51.1522-20
Auxiliary Objective	0.5x/220mm					A52.1522-05
	0.7x/137mm					A52.1522-07
	2.0x/45mm					A52.1522-20
Light Source	LED Ring Light 60 LEDs					A56.1522

A23.1501-B2

Zoom Stereo Microscope, 0.8~5x, Binocular, Fan Stand Up/Bottom LED
